METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (5/6)

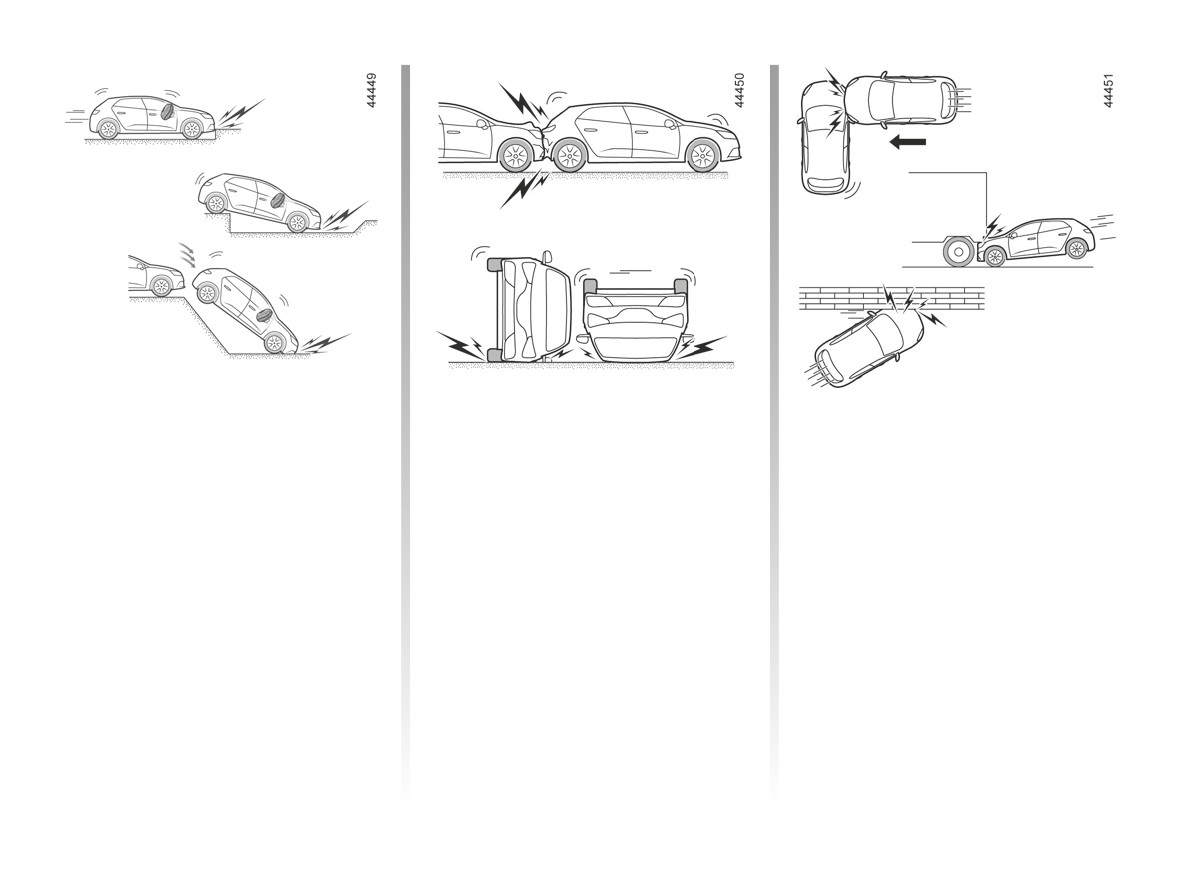

In the following examples, the pre-

- side impact, affecting the front of the

tensioners or the airbags could op-

tensioners or airbags might not op-

vehicle;

erate:

- frontal impact, under the tail of a lorry;

- impacts to the underside of the vehi-

- rear impact, however severe;

- frontal impact against an obstacle

cle, e.g. from kerbs;

- the vehicle overturning;

with a sharp angle;

- potholes;

- ...

- a fall or a hard landing;

- stones;

- ...

1.50

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (6/6)

All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent

the risk of serious injuries caused by items which may be dislodged when it inflates.

Warnings concerning the driver’s airbag

- Do not modify the steering wheel or the steering wheel boss.

- Do not cover the steering wheel boss under any circumstances.

- Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.

- The steering wheel must not be removed (except by qualified personnel from our Network).

- Do not sit too close to the steering wheel: adopt a driving position whereby your arms are slightly folded ➥ 1.41. This will

allow sufficient space for the airbag to deploy correctly and be fully effective.

Warnings concerning the passenger airbag

- Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard on or near the airbag.

- Do not place anything between the dashboard and the passenger (pet, umbrella, walking stick, parcels, etc.).

- The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. In

general, parts of the body should be kept away from the dashboard (knees, hands, head, etc.).

- The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure

the protection of the passenger in the event of an impact.

A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE

RESTRAINT SYSTEMS IN ADDITION TO THE FRONT PASSENGER SEATBELT ARE DEACTIVATED ➥ 1.69.

Warnings concerning the anti-submarining airbag

Do not let a child under the age of 12 sit in this seat. When triggered, the anti-submarining airbag may project objects left on

the seat base with a great deal of force.

Risk of serious injury.

1.51

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE REAR SIDE SEAT BELTS

Force limiter

Above a certain severity of impact, this

mechanism is used to limit the force of

the belt against the body so that it is at

an acceptable level.

- Have the entire restraint

system checked following

an accident.

- No operation whatsoever

is permitted on any part of the

system (airbags, electronic units,

wiring) and the system compo-

nents must not be reused on any

other vehicle, even if identical.

- Only qualified personnel from our

Network may work on the airbags;

otherwise the system may trigger

accidentally and cause injury.

1.52

CarManuals2.co

SIDE PROTECTION DEVICES

Side Airbags

This airbag is fitted to the front seats,

activated at the sides of the seats (door

side) to protect the occupants in the

event of a severe side impact.

Warning relating to the side airbag

- Fitting seat covers: seats equipped with an airbag require covers spe-

cifically designed for your vehicle. Contact an approved dealer to find

out if these covers are available. The use of any covers other than those

designed for your vehicle (including those designed for another vehicle) may

affect the operation of the airbags and reduce your protection.

- Do not place any accessories, objects or even pets between the seatback, the

door and the internal fittings. Do not cover the seatback with objects such as

clothes or accessories. This may prevent the airbag from operating correctly or

cause injury when the airbag is deployed.

- No work or modification whatsoever may be carried out on the seat or internal

fittings, except by qualified personnel from an approved dealer.

- The space between the seatback of the rear bench seat and the trim is the

area of airbag operation: no objects must be placed here.

Depending on the vehicle, a mark-

ing on the windscreen informs you

of the presence of additional means

of restraint (airbags, pretensioners,

etc.) in the passenger compartment.

1.53

CarManuals2.co

ADDITIONAL METHODS OF RESTRAINT

All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent

the risk of serious injuries caused by items which may be dislodged when it inflates.

The airbag is designed to complement the action of the seat belt. Both the airbag and the seat belt are integral parts

of the same protection system. It is therefore essential to wear seat belts at all times. If seat belts are not worn, the oc-

cupants are exposed to the risk of serious injury in the event of an accident. It may also increase the risk of minor su-

perficial injuries occurring when the airbag is deployed, although such minor injuries are always possible with airbags.

If the vehicle should overturn or suffer a rear impact, however severe, the pretensioners and airbags are not always triggered.

Shocks to the underbody of the vehicle, from pavements, potholes, stones etc. can all trigger these systems.

- Work and modifications on the complete airbag system (airbags, pretensioners, ECU, wiring harness, etc.), are strictly pro-

hibited (except by qualified Network personnel).

- To ensure that the system is in good working order and to avoid accidental triggering of the system which may cause injury,

only qualified Network personnel may work on the airbag system.

- As a safety precaution, have the airbag system checked if your vehicle has been involved in an accident, or is stolen or

broken into.

- When selling or lending the vehicle, inform the user of these points and hand over this driver’s handbook with the vehicle.

- When scrapping your vehicle, contact your approved dealer for disposal of the gas generator(s).

1.54

CarManuals2.co

CHILD SAFETY: General information (1/2)

Carrying children

Please ensure that you comply with the

legislation of your country.

Children, and adults, must be correctly

seated and strapped in for all journeys.

The children being carried in your vehi-

cle are your responsibility.

Driver’s responsibility

A child is not a miniature adult. Children

when parking or stopping

are at risk of specific injuries as their

the vehicle

muscles and bones have not yet fin-

ished growing. The seat belt alone

Never leave an animal,

would not provide suitable protection.

child or adult who is not self-suffi-

Use an approved child seat and ensure

cient alone on your vehicle, even for

you use it correctly.

a short time.

They may pose a risk to themselves

or to others by starting the engine,

A collision at 30 mph (50

activating equipment such as the

km/h) is the same as fall-

electric windows or by locking the

ing a distance of 10 metres.

doors.

Transporting a child without

Also, in hot and/or sunny weather,

a restraint is the equivalent of allow-

please remember that the tempera-

ing him or her to play on a fourth-

ture inside the passenger compart-

floor balcony without railings.

ment increases very quickly.

Never travel with a child held in your

RISK OF DEATH OR SERIOUS

arms. In the event of an accident,

INJURY.

you will not be able to keep hold of

the child, even if you yourself are

wearing a seat belt.

If your vehicle has been involved in

To prevent the doors being

a road accident, replace the child

opened, use the “Child lock”

seat and have the seat belts and

feature. ➥ 1.30.

ISOFIX anchorage points checked.

1.55

CarManuals2.co

CHILD SAFETY: General information (2/2)

Using a child seat

Before fitting a child seat, read the

manual and respect its instructions. If

The level of protection offered by the

you experience any difficulties during

child seat depends on its ability to re-

installation, contact the manufacturer

strain your child and on its installation.

of the equipment. Keep the instructions

Incorrect installation compromises the

with the seat.

protection it offers the child in the event

of harsh braking or an impact.

Before purchasing a child seat, check

that it complies with the regulations for

the country you are in and that it can

be fitted in your vehicle. Consult an ap-

proved dealer to find out which seats

are recommended for your vehicle.

The regulations on transporting children

Never leave a child unat-

are specific to each country. The use of

tended in the vehicle.

a child seat depends on the age and/or

the size and/or weight of the child.

Check that your child is

always strapped in and that

For children who do not need to be

the belt or safety harness used is

transported in a child seat, make sure

correctly set and adjusted. Avoid

that the seat belt is correctly adjusted

Set a good example by always fas-

wearing bulky clothing which could

and fastened.

tening your seat belt and teaching

cause the belts to slacken.

In all cases, you must comply with the

your child:

Never let your child put their head or

regulations of the particular country you

- to strap themselves in correctly;

arms out of the window.

are in.

- to always get in and out of the car

at the kerb, away from busy traf-

Check that the child is in the correct

fic.

position for the entire journey, espe-

Do not use a second-hand child

cially if asleep.

seat or one without an instruction

manual.

Check that there are no objects in

the vicinity of the child seat which

could impede its operation.

1.56

CarManuals2.co

CHILD SAFETY: choosing a child seat

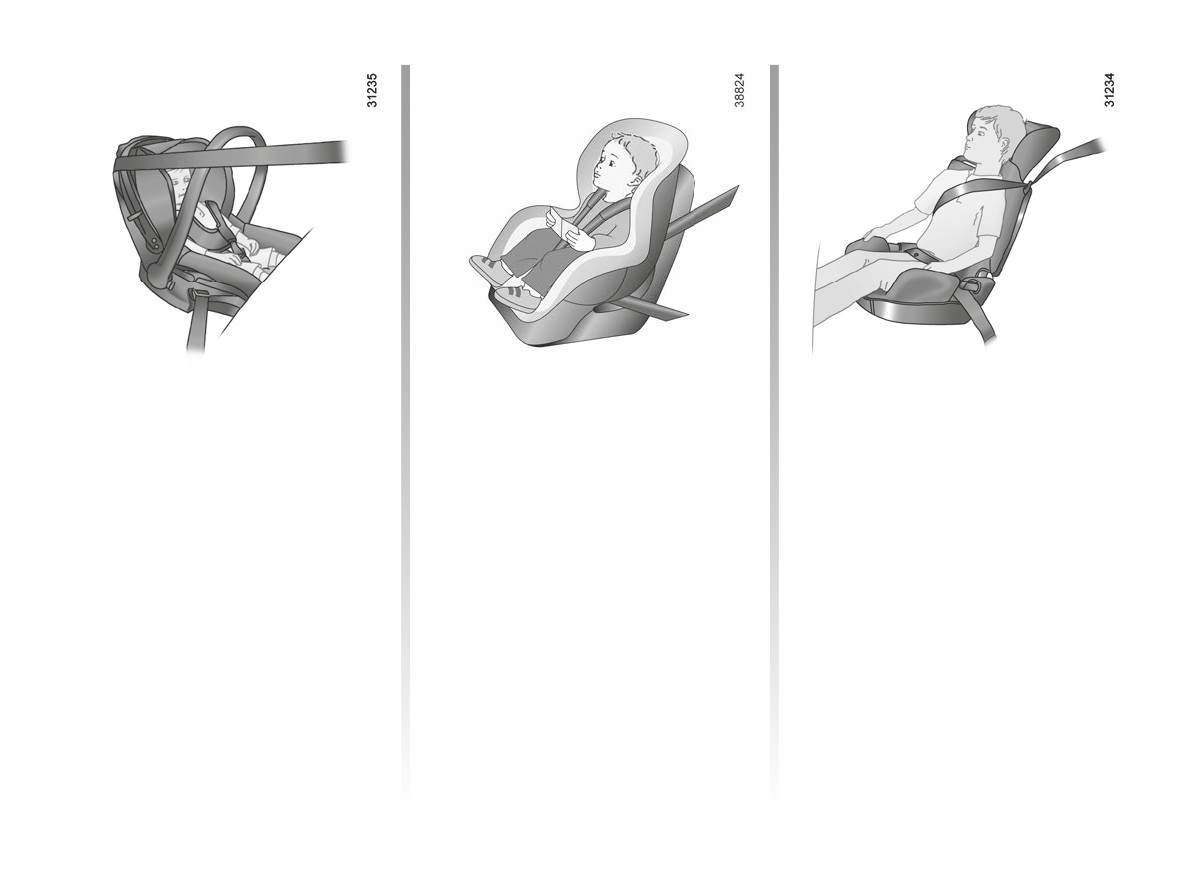

Rear-facing child seats
