Renault Trafic (2023 year). Manual in english

ENGINE OIL LEVEL: general information

It is normal for an engine to use oil for

Reading the oil level

lubrication and cooling of moving parts

The oil level should be read with the ve-

and it is normal to top up the level be-

hicle on level ground, after the engine

tween oil changes.

has been switched off for some time.

However, contact your approved

The dipstick must be used to read

Dealer if more than 0.5 litres is being

the exact oil level and make sure that

consumed every 620 miles (1,000 km)

the maximum level has not been ex-

after the running in period.

ceeded (risk of engine damage).

Oil change frequency: check the oil

Depending on the vehicle, the instru-

level from time to time and certainly

ment panel display only alerts the driver

before any long journey to avoid the

when the oil level is at its minimum.

risk of damaging your engine.

- remove the dipstick and wipe with a

clean, lint-free cloth;

- push the dipstick in as far as it will

go;

- take out the dipstick again;

- read the level: it should never fall

below the “MINI” mark A and never

exceed the “MAXI” B mark.

Once the level has been read, push the

Exceeding the maximum

dipstick in as far as it will go.

engine oil level

Adding engine oil

Under no circumstances

Use a funnel or protect the

should maximum filling

filling neck area to avoid

level B be exceeded: this could

engine oil escaping onto a

damage the engine and the anti-pol-

hot part of the engine compartment

lution system.

or a sensitive part (e.g. electrical

components).

If the level exceeds the

“MAXI”

Before carrying out any

level, do not start your vehicle,

Fire hazard.

action in the engine com-

contact an authorised dealer.

partment, you must switch

off the ignition ➥ 2.3.

4.4

CarManuals2.co

ENGINE OIL LEVEL: topping up, filling, oil change (1/2)

Before carrying out any

Please note when work-

action in the engine com-

Adding engine oil

ing close to the engine that

partment, you must switch

Use a funnel or protect the

it may be hot. In addition,

off the ignition ➥ 2.3.

filling neck area to avoid

the engine cooling fan may

engine oil escaping onto a

start at any moment. The 

hot part of the engine compartment

warning light in the engine compart-

or a sensitive part (e.g. electrical

ment reminds you of this.

Engine oil change: if you

components).

are changing the oil when

Risk of injury.

Fire hazard.

the engine is hot, be careful

not to scald yourself if the

oil overflows.

Filling and/or checking

the oil level: when topping

Never run the engine in an

Exceeding the maximum

up or checking the oil level,

enclosed space as exhaust

engine oil level

ensure that no oil leaks onto

gases are poisonous.

the engine components.

Under no circumstances

should the maximum fill-

Do not forget to properly close the

ing level be exceeded: this could

cap and refit the dipstick to prevent

damage the engine and the emis-

any oil spatter on hot engine com-

sion control system.

ponents.

When working in the engine

If the oil level exceeds the maximum

compartment, ensure that

Fire hazard.

the windscreen wiper stalk

level, do not start your vehicle and

is in the park position.

contact an approved dealer.

Risk of injury.

4.5

CarManuals2.co

ENGINE OIL LEVEL: topping up, filling, oil change (2/2)

Topping up/filling

Oil change

The vehicle must be parked on level

Service interval: refer to the mainte-

ground and the engine should be cold

nance document for your vehicle.

(for instance, before the engine is

started up for the first time in the day).

Oil change capacity

Please refer to the maintenance docu-

ment for your vehicle, or contact an au-

thorised dealer.

Always check the engine oil level using

the dipstick, as explained previously (it

should never fall below the “MINI”, or be

over the “MAXI” level on the dipstick).

Engine oil grade

- Unscrew cap 1;

Refer to the maintenance document for

- top up the level (as a guide, the ca-

your vehicle.

pacity between the “MINI” and the

“MAXI” reading on the dipstick 2

is between 0.33 and 0.44 gallons

(1.5 and 2 litres) depending on the

engine);

- wait for approximately 10 minutes to

Consult your approved dealer at

allow the oil to flow into the engine;

once if you notice an abnormal or

- check the level using the dipstick 2

repeated drop in any of the fluid

(as described above).

levels.

Once the operation has been com-

pleted, ensure that the dipstick is

pushed in as far as it will go and that

Do not exceed the “MAXI” level and

the cap is completely screwed in.

do not forget to refit cap 1 and dip-

stick 2.

4.6

CarManuals2.co

LEVELS (1/3)

Before carrying out any

action in the engine com-

partment, you must switch

off the ignition ➥ 2.3.

Please note when work-

ing close to the engine that

it may be hot. In addition,



Coolant

the engine cooling fan may

With the engine switched off and on

start at any moment. The 

level ground, the level when cold must

label in the engine compartment re-

be between the “MINI” and “MAXI”

minds you of this.

marks on coolant reservoir 1.

Risk of injury.

Top this level up when cold before it

reaches the MINI mark.

When working in the engine

No operations should be

compartment, ensure that

carried out on the cooling

the windscreen wiper stalk

circuit when the engine is

is in the park position.

hot.

Consult your approved dealer at

once if you notice an abnormal or

Risk of injury.

Risk of burns.

repeated drop in any of the fluid

levels.

4.7

CarManuals2.co

LEVELS (2/3)

Frequency of checking coolant level

Level 2

Check the coolant level regularly

It is normal for the level to drop as the

(very severe damage is likely to be

brake shoes become worn, but it must

caused to the engine if it runs out of

never drop lower than the “MINI" warn-

coolant).

ing line.

If the level needs to be topped up, only

If you wish to check the disc and drum

use products approved by our Technical

wear yourself, you should obtain the

Department which ensure:

document explaining the checking pro-

cedure from our network or from the

- protection against freezing;

manufacturer’s website.

- an anti-corrosion protection for the

cooling system.

Topping up

Replacement interval

After any operation on the hydraulic cir-

cuit, a specialist must replace the brake

Refer to the Maintenance Document for

fluid.

your vehicle.

Only use fluids approved by our



Brake fluid

Technical Department (and taken from

a sealed container).

The level should be read with the engine

switched off and on level ground.

Replacement interval

This should be checked frequently,

Refer to the Maintenance Document for

and immediately if you notice even the

your vehicle.

slightest loss in braking efficiency.

Consult your approved dealer at

once if you notice an abnormal or

repeated drop in any of the fluid

levels.

4.8

CarManuals2.co

LEVELS (3/3)

Filters

The replacement of filter components

(air filter, cabin filter, diesel filter, etc.)

is scheduled in the maintenance opera-

tions for your vehicle.

Replacement intervals for filter el-

ements: refer to the Maintenance

Document for your vehicle.



Windscreen washer

reservoir

Topping up

With the engine switched off, open the

cap 3. Fill until you can see the fluid,

then refit the cap.

Liquid

Screen wash product (product with an-

tifreeze in winter).

4.9

CarManuals2.co

TYRE PRESSURE (1/2)

Vehicle fitted with a tyre pressure

loss warning system

In the event of under-inflation (punc-

tures, under-inflation etc.), warning light



appears on the instrument panel

➥ 2.26.

For your safety, please re-

spect the speed limit.

When they need to be re-

placed, only tyres of the

same make, size, type and profile

should be used on a single axle.

Label A

They must: either have a load ca-

pacity and speed rating at least

Open the driver’s door to read it.

equal to those of the original

Tyre pressures should be checked

tyres, or conform to those recom-

when the tyres are cold.

mended by an authorised dealer.

If the tyre pressures cannot be checked

Failure to heed these instructions

when the tyres are cold, increase the

could endanger your safety and

pressures from 0.2 to 0.3 bar (or 3 PSI).

affect your vehicle’s roadworthi-

Never deflate a hot tyre.

ness.

Risk of loss of control of the ve-

hicle.

4.10

CarManuals2.co

TYRE PRESSURE (2/2)

E: tyre pressures for the rear wheels

Tyre safety and chain fitting: for infor-

(motorway) or when driving with a

mation on servicing conditions and, de-

significant load.

pending on the vehicle version, the use

of chains ➥ 5.12.

D E

B: front tyre pressure when driving

(non-motorway), or if less than

4 people occupy the vehicle.

C: rear tyre pressure when driving (non-

motorway), or if less than 4 people

occupy the vehicle.

Vehicle used fully laden

D: tyre pressures for the front wheels

(Maximum Permissible

(motorway) or when driving with a

Load Weight Maxi) and

significant load.

towing a trailer

The maximum speed must be lim-

ited to 62 mph (100 km/h) and the

tyre pressure increased by 0.2 bar

(3 psi) ➥ 6.10.

Risk of tyre blowouts.

4.11

CarManuals2.co

BATTERY (1/2)

Replacing the battery

For your own safety and

to ensure correct opera-

tion of the vehicle’s elec-

trical equipment

(lights,

windscreen wipers, ABS etc.), it is

essential that any operation on the

battery

(removal, disconnection

etc.) is performed by a specialist

professional.

Risk of serious burns or electric

shocks.

You must respect the replacement

Before carrying out any

intervals (without exceeding them)

action in the engine com-

as stated in the maintenance doc-

partment, you must switch

ument.

off the ignition ➥ 2.3.

The battery is a specific type.

Please ensure it is replaced with the

same type.

Call an approved Dealer.

Please note when work-

ing close to the engine that

it may be hot. In addition,

the engine cooling fan may

start at any moment. The 

warning light in the engine compart-

ment reminds you of this.

Risk of injury.

4.12

CarManuals2.co

BATTERY (2/2)

When the ignition is off, some consum-

ers may also be switched off (dipped

beam headlights, radio, ventilation, in-

terior lighting etc.). When the level is

extremely low, the message “Battery

low start engine” is displayed.

The charge status of the battery can

decrease, especially if you use your ve-

hicle:

for short journeys;

–

for driving in town;

–

when the temperature drops;

–

with the vehicle stationary and the

engine off.

This is located under cover 1 and does

Label A

not need to be serviced. You should

Observe the indications on the battery:

not open it or add any fluid.

- 2 naked flames and smoking forbid-

den;

- 3 eye protection required;

- 4 keep away from children;

- 5 explosive materials;

- 6 please consult the vehicle user

manual;

- 7 corrosive materials.

4.13

CarManuals2.co

BODYWORK MAINTENANCE (1/3)

A well-maintained vehicle will last

You should

Respect local regulations about wash-

longer. It is therefore recommended to

ing vehicles (e.g. do not wash your ve-

Wash your car frequently, with the

maintain the exterior of the vehicle reg-

hicle on a public highway).

engine off, with cleaning prod-

ularly.

ucts recommended by our Technical

Observe the vehicle stopping distances

Your vehicle has been treated with very

Department (never use abrasive prod-

when driving on gravelled surfaces to

effective anti-corrosion products. It is

ucts). Rinse thoroughly beforehand

prevent paint damage.

nevertheless subject to various outside

with a jet:

Repair, or have repaired quickly, areas

influences.

spots of tree resin and industrial pol-

where the paint has been damaged, to

lution;

prevent corrosion spreading.

Corrosive agents in the

mud in the wheel arches and under-

atmosphere:

Remember to visit the body shop pe-

neath the body which forms damp

riodically in order to maintain your an-

- Atmospheric pollution

(in built-up

patches;

ti-corrosion warranty. Refer to the

and industrial areas);

bird droppings, which cause a

Maintenance Document.

- saline atmospheres (near the sea,

chemical reaction with the paint that

particularly in hot weather);

rapidly discolours paintwork and

If it is necessary to clean mechani-

- seasonal and damp weather condi-

may even cause the paint to peel

cal components, hinges, etc., spray

tions (e.g. road salt in winter, water

off;

them with products approved by our

from road cleaners, etc.).

Wash the vehicle immediately to

Technical Department to protect them

remove these marks since it is im-

after they have been cleaned.

Minor impacts

possible to remove them by polish-

ing;

Abrasive action:

salt, particularly in the wheel arches

and underneath the body after driv-

Dust and sand in the air, mud, road grit

ing in areas where the roads have

thrown up by other vehicles, etc.

been gritted.

You should take a number of minor pre-

cautions in order to safeguard your ve-

Remove any plant matter (resin, leaves,

hicle against such risks.

etc.) from the vehicle regularly.

We have selected special products

to care for your vehicle and you can

obtain these from the manufactur-

er’s accessory outlets.

4.14

CarManuals2.co

BODYWORK MAINTENANCE (2/3)

What you should not do

Wash the vehicle in bright sunlight or

freezing temperatures.

Degrease or clean using

high-pressure cleaning

Do not scrape off mud or dirt without

equipment or by spray-

pre-wetting.

ing on products not ap-

Allow dirt to accumulate on the exterior.

proved by our Technical

Department:

Allow rust to form following minor im-

mechanical components

(e.g.:

pacts.

engine compartment);

Use solvents not approved by our

the wheels

(e.g. braking system

Technical Department to remove stains

components such as brake calli-

as they could damage the paintwork.

pers);

Do not drive in snow or muddy condi-

underbody;

tions without washing the vehicle, par-

ticularly under the wheel arches and

–

parts with hinges (e.g.: inside the

body.

doors);

painted plastic external fittings (e.g.:

bumpers).

Doing this could give rise to corrosion

or operational faults.

4.15

CarManuals2.co

BODYWORK MAINTENANCE (3/3)

Vehicles with a matte paint

Using a roller type car wash

Cleaning stickers, decorative

finish

Return the wiper stalk to the park po-

films, etc.

This type of paint requires certain pre-

sition ➥ 1.128. Check the mounting of

You should do the following

cautions.

external accessories, additional lights

Use a soft cloth or cotton wool. Moisten

and rear view mirrors, and ensure that

it with soapy water, then always wipe

You should do the following

the wiper blades are secured with ad-

clean with a soft cloth or cotton wool.

hesive tape.

Wash the vehicle by hand using plenty

Finally, carefully dry off with a soft dry

of water, using a soft cloth or a gentle

Remove the radio aerial mast if your

cloth.

sponge.

vehicle is fitted with this equipment.

Do not do the following

Remember to remove the tape and refit

Do not do the following

the antenna after washing.

Use alcohol-based cleaning products.

Use wax-based products (polishing).

Use utensils (e.g.: scraper). Rub too

hard.

Rub too hard.

Cleaning the headlights,

Wash the vehicle in a roller-type car

sensors and cameras

wash.

Use a soft cloth or cotton wool. If this

Attach stickers to the paintwork (risk of

does not clean them properly, moisten

leaving marks).

the cloth with soapy water, then wipe

Wash the area using a

clean with a soft damp cloth or cotton

high-pressure clean-

wool.

ing device.

Wash the vehicle

Finally, carefully dry off with a soft dry

using a high-pressure

cloth.

cleaning device.

Do not use cleaning products con-

taining alcohol or utensils (e.g.: a

scraper).

4.16

CarManuals2.co

INTERIOR TRIM MAINTENANCE (1/2)

A well-maintained vehicle will last

Glass instrument panel

Textiles (seats, door trim, etc)

longer. It is therefore recommended to

(e.g. instrument panel, clock, exterior

Vacuum-clean the textiles regularly.

maintain the interior of the vehicle regu-

temperature display, radio display, etc.)

larly.

Use a soft cloth (or cotton wool).

Liquid stain

A stain should always be dealt with

If this does not clean them properly,

Use soapy water.

swiftly.

use a soft cloth (or cotton wool) slightly

Dab lightly (never rub) with a soft cloth,

Whatever type of stain is on the trim,

moistened with soapy water and then

rinse and remove the excess.

use cold(or tepid) soapy water with

wipe clean with another soft damp cloth

natural soap.

or cotton wool.

Solid or pasty stain

Detergents (washing-up liquid, pow-

Carefully remove the excess solid or

Finally, carefully dry off with a soft dry

dered products, alcohol-based prod-

pasty material immediately using a

cloth.

ucts) should not be used.

spatula (working from the edges to the

Do not use products containing alco-

centre to avoid spreading the stain).

Use a soft cloth.

hol and/or spray fluids on the area.

In the case of a liquid stain, clean as

Rinse and soak up the excess.

indicated.

Seat belts

Special instructions for sweets or

Multimedia screen

These must be kept clean.

chewing gum

Maintenance of the screen may depend

Use products selected by our Technical

Place an ice cube on the stain to solid-

on the type of multimedia equipment.

Department

(approved outlets) or

ify it then proceed as for a solid stain.

Please refer to the multimedia instruc-

warm, soapy water and a sponge and

tions for further information.

wipe with a dry cloth.

Detergents or dyes must not be used

under any circumstances.

For further recommendations for

maintaining the interior, and/or for

any unsatisfactory results, please

see an authorised dealer.

4.17

CarManuals2.co

INTERIOR TRIM MAINTENANCE (2/2)

Removal/replacing removable

You should not:

equipment originally fitted in

Position objects such as deodorants,

the vehicle

perfumes etc. near air vents as this

could damage your dashboard trim.

If you need to remove equipment in

order to clean the passenger com-

partment (for example, mats), always

ensure that they are correctly refitted

and are the right way around (the driv-

er’s mat should be fitted on the driver’s

Use high-pressure

side etc.) and fit them with the compo-

cleaning equipment or

nents supplied with the equipment (for

sprays inside the pas-

example, the driver mat should always

senger compartment:

be fixed using the pre-fitted mounting

components).

without careful use, this equipment

With the vehicle stationary, always

could impair the correct functioning

ensure that nothing will impede driving

of the electrical or electronic compo-

(anything obstructing the pedals, heel

nents in the vehicle, or have other

wedged by the mat etc.).

detrimental effects.

4.18

CarManuals2.co

Section 5: Practical advice

Puncture, emergency spare wheel

5.2

Tyre inflation kit

5.4

Tools

5.8

Wheel trim, wheel

5.9

Changing a wheel

5.10

Tyres (tyre and wheel safety, use in winter)

5.12

Battery: troubleshooting

5.15

Fuses

5.17

Headlights and side lights (replacing bulbs)

5.19

Rear lights: changing bulbs

5.21

Indicator lights (changing bulbs)

5.24

Interior lighting: changing bulbs

5.25

Key, radio frequency remote control: battery

5.28

Card: battery

5.30

Accessories

5.32

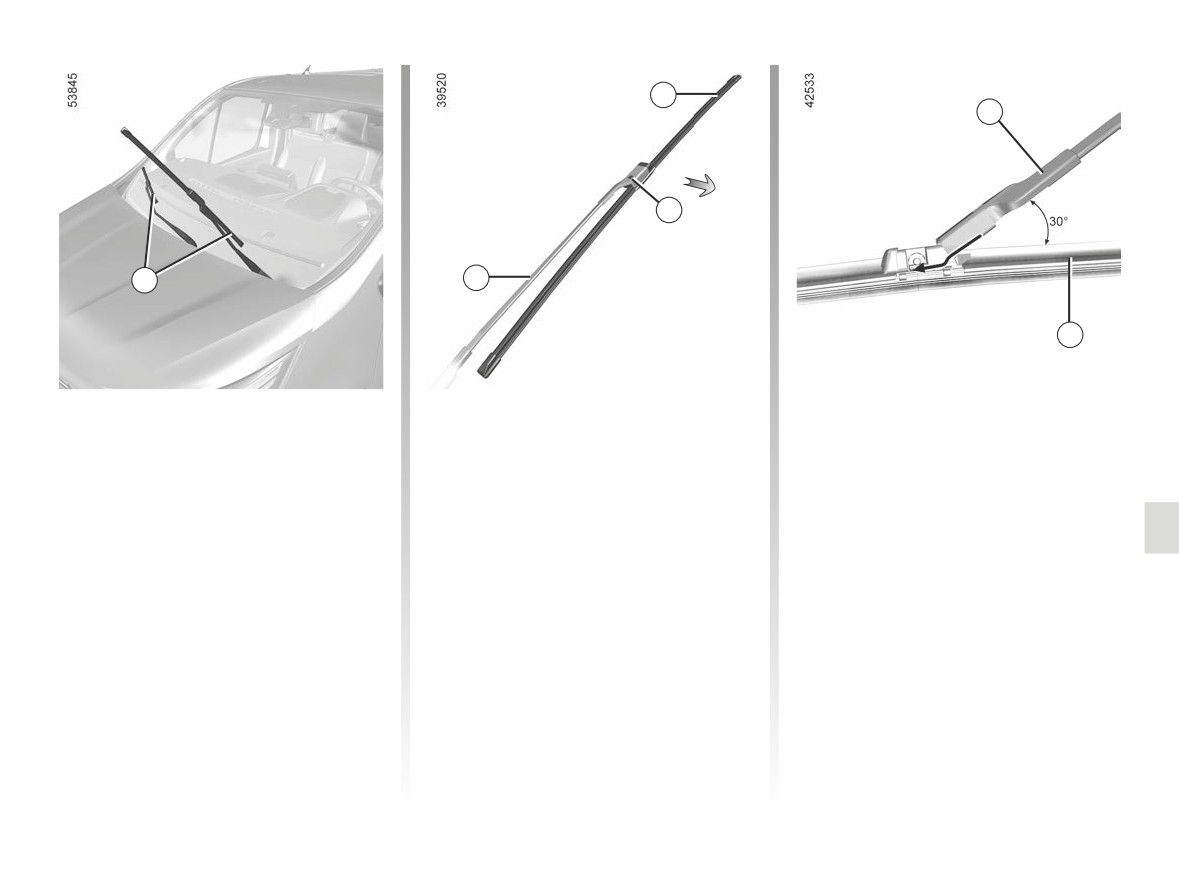

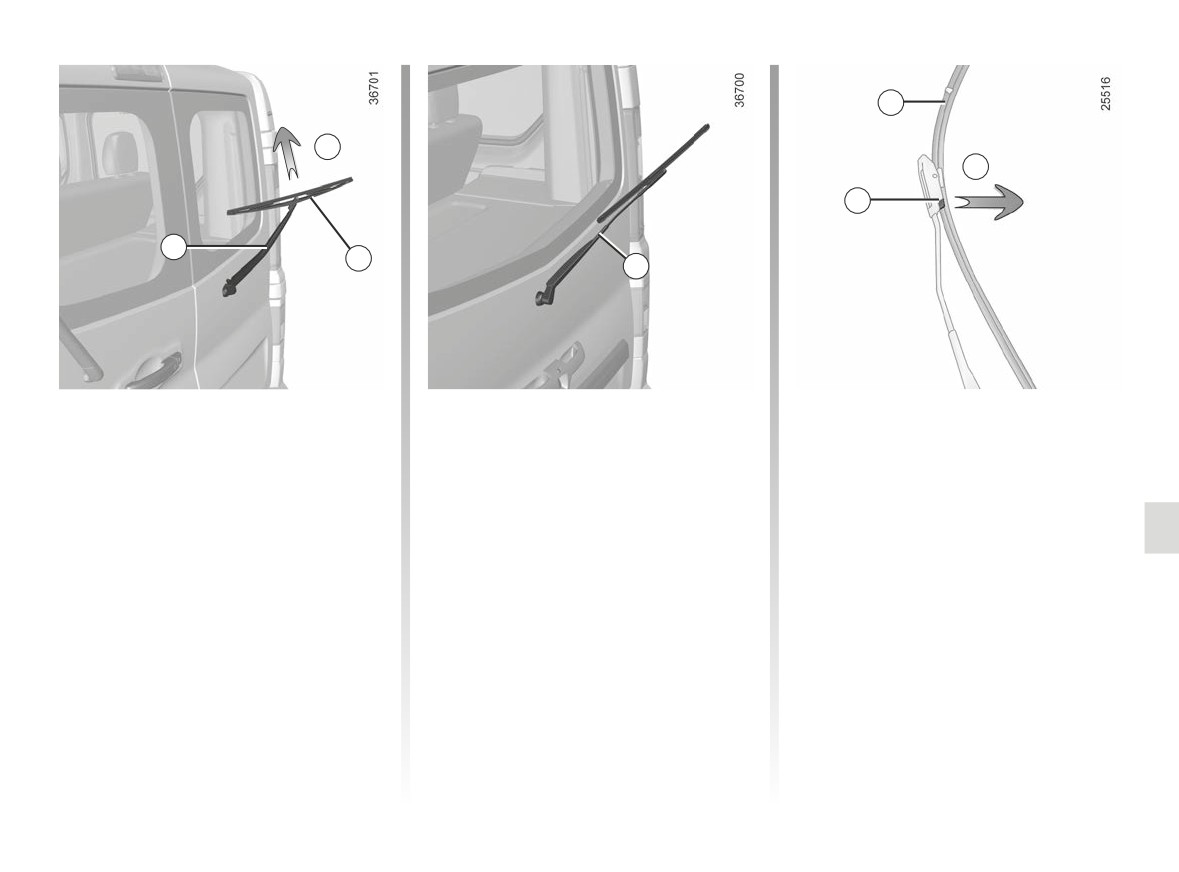

Wipers (replacing blades)

5.33

Towing

5.36

Fitting a radio

5.39

Operating faults

5.40

5.1

CarManuals2.co

PUNCTURE, EMERGENCY SPARE WHEEL (1/2)

In case of puncture

Depending on the vehicle, a tyre infla-

tion kit or emergency spare wheel is

provided (refer to the following pages).

Vehicle fitted with a tyre pressure

loss warning system

In some cases (rear puncture, vehicle loaded with towing equipment etc.), it

In the event of under-inflation (punc-

is necessary to raise the vehicle (using the lifting point nearest the wheel con-

tures, under-inflation etc.), the 

cerned) to permit access to the emergency spare wheel.

warning light appears on the instrument

panel ➥ 2.26.

If the emergency spare wheel has been stored for several years, have it

checked by your Dealer to ensure that it is safe to use.

Vehicle fitted with an emergency spare wheel that differs from the

other wheels:

Never fit more than one emergency spare wheel to the same vehicle.

–

As the punctured wheel is wider than the emergency spare wheel, the vehicle’s

ground clearance is reduced.

Replace the emergency spare wheel as soon as possible with a wheel identi-

cal to the original one.

If the vehicle is parked on

When this is fitted to the vehicle, which must only be a temporary measure, the

the hard shoulder, you must

driving speed must not exceed the speed indicated on the label on the wheel.

warn other road users of

Fitting an emergency spare wheel may alter the way the vehicle usually runs.

your vehicle’s presence

Avoid sudden acceleration or deceleration and reduce your speed when cor-

with a warning triangle or with other

nering.

devices as per the legislation apply-

If you need to use snow chains, fit the emergency spare wheel to the rear axle

ing to the country you are in.

and check the tyre pressure.

5.2

CarManuals2.co

PUNCTURE, EMERGENCY SPARE WHEEL (2/2)

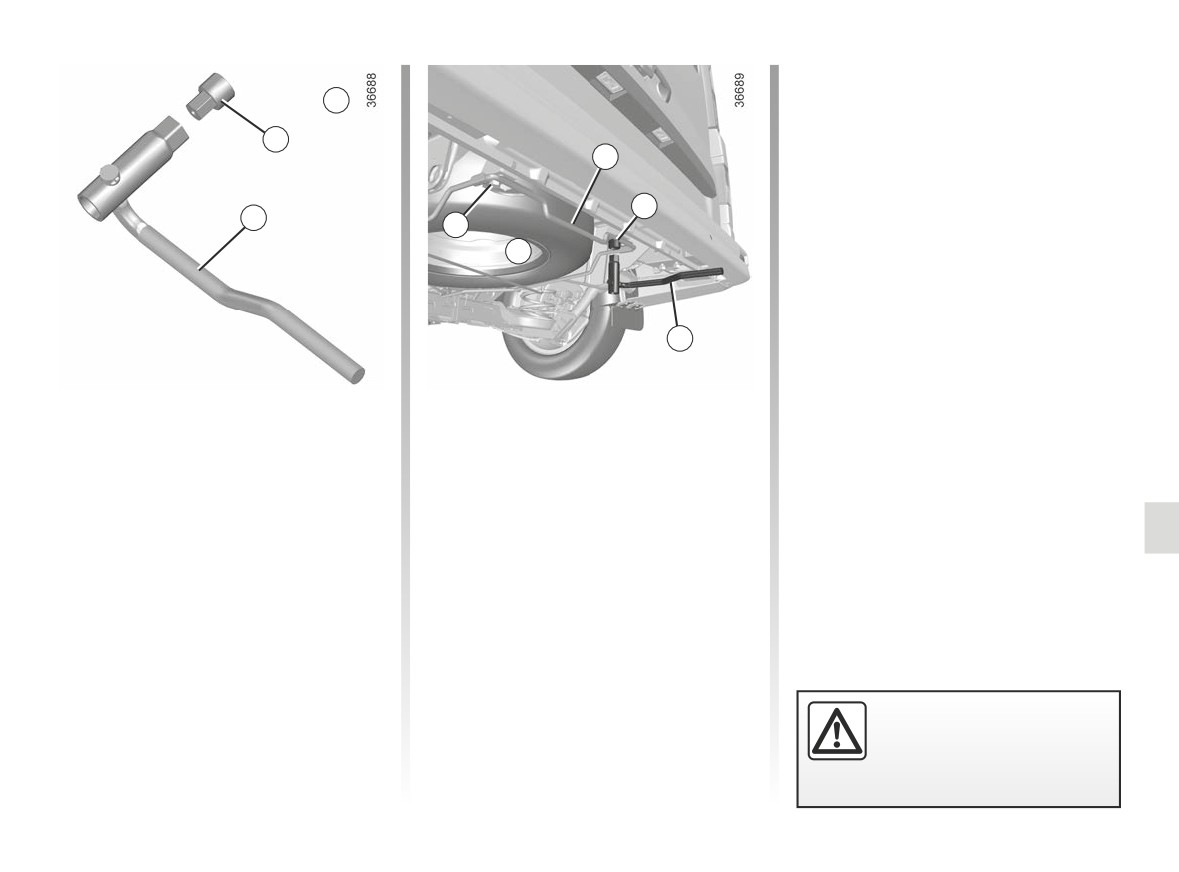

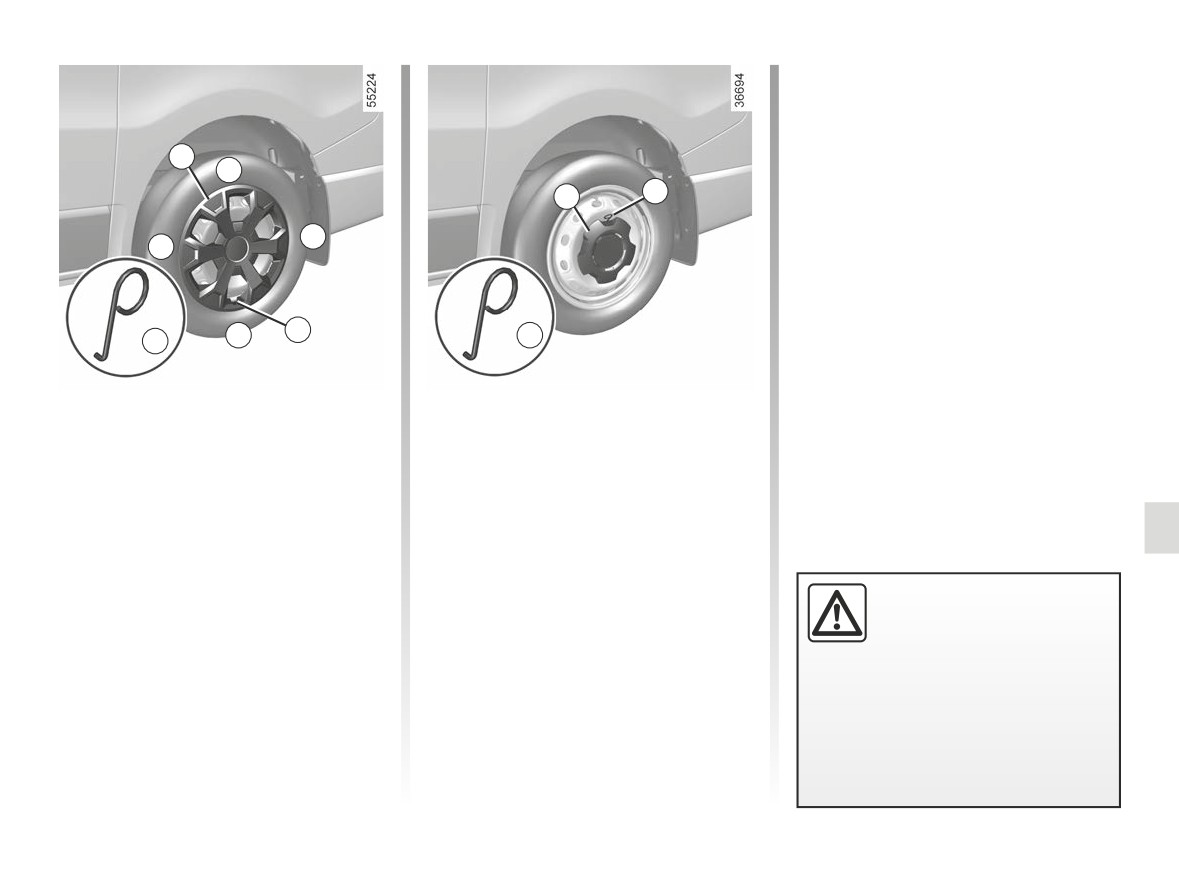

To put the spare wheel back B

Proceed in reverse order. Check that

wheel carrier 4 is correctly positioned

before tightening nuts 3 and 5.

Note: do not fit the hubcap on the emer-

gency spare wheel, so that you do not

hide the safety message on the label on

the emergency spare wheel. The mes-

sage indicates the 50 mph (80 km/h)

speed limit. Please abide by the limits

set by the local legislation of the coun-

try that you are in.

Emergency spare wheel

To take out emergency spare wheel B

On equipped vehicles, use the tool A

Using the tool A, completely unscrew

comprising:

the nut 5 (right-hand side) and partially

unscrew the nut 3 (left-hand side) until

- wheelbrace 2;

the notch of the wheel carrier 4 is re-

- for some versions, special end

leased from the nut 3.

piece 1 (which must be added).

Move it up and down and from side to

These components are stored in the

side to release the emergency spare

tool kit ➥ 5.8.

wheel.

Depending on the vehicle, a note in the

tool kit covers these instructions.

Do not touch the exhaust

system.

Risk of burns.

5.3

CarManuals2.co

TYRE INFLATION KIT (1/4)

Do not attempt to use the

The kit is only approved for

inflation kit if the tyre has

inflating the tyres of the ve-

been damaged as a result

hicle originally equipped

of driving with a puncture.

with the kit.

You should therefore carefully check

It must never be used to inflate

the condition of the tyre sidewalls

the tyres of another vehicle, or any

before any operation.

other inflatable object (rubber ring,

rubber boat, etc.).

Driving with underinflated, flat or

punctured tyres can be dangerous

Avoid spillage on skin when han-

and may make the tyre impossible

dling the repair product bottle. If

to repair.

droplets do leak out, rinse them off

with plenty of water.

This repair is temporary.

Keep the repair kit away from chil-

A tyre which has been punctured

dren.

should always be inspected (and re-

paired, where possible) as soon as

Do not dispose of the empty bottle

The kit repairs tyres when

possible by a specialist.

in the countryside. Return it to your

tread A has been dam-

approved dealer or to a recycling or-

aged by objects smaller

When taking a tyre which has been

ganisation.

than 4 mm. It cannot repair

repaired using this kit to be replaced,

all types of puncture, such as cuts

you must inform the specialist.

The bottle has a limited service

larger than 4 mm, or cuts in tyre

life which is indicated on its label.

When driving, vibration may be felt

sidewall B.

Check the expiry date.

due to the presence of the repair

Ensure also that the wheel rim is in

product injected into the tyre.

Contact an approved dealer to re-

good condition.

place the inflation tube and repair

product bottle.

Do not pull out the foreign body

causing the puncture if it is still in

the tyre.

5.4

CarManuals2.co

TYRE INFLATION KIT (2/4)

Vehicle fitted with a tyre pressure

loss warning system

In the event of under-inflation (punc-

tures, under-inflation etc.), the 

warning light appears on the instrument

panel. ➥ 2.26.

Depending on the vehicle, in the event

of a puncture, use the kit located in the

tool kit underneath the driver’s seat.

To remove it, move the seat as far for-

wards as possible and tilt the seatback.

Unscrew the mounting screw C from

the unit and swivel to extract.

If the vehicle is parked on

the hard shoulder, you must

Before using this kit, park

warn other road users of

the vehicle at a sufficient

your vehicle’s presence

distance from traffic, switch

with a warning triangle or with other

on the hazard warning

devices as per the legislation apply-

lights, apply the handbrake, ask all

ing to the country you are in.

passengers to leave the vehicle and

keep them away from traffic.

5.5

CarManuals2.co

TYRE INFLATION KIT (3/4)

- after a maximum of 15 minutes, stop

Once the tyre is correctly inflated,

inflating and read the pressure (on

remove the kit: slowly unscrew the in-

pressure gauge 1);

flation end piece of the container 3 to

prevent any product spatter and store

Note: while the bottle is emptying

the container in plastic packaging to

(approximately

30 seconds), the

prevent product leaks.

pressure gauge 1 will indicate briefly

Affix the driving recommendation

a pressure of up to 6 bars, then the

label to the dashboard where it can

pressure drops.

easily be seen by the driver;

- Adjust the pressure: to increase

Put the kit away.

it, continue inflation with the kit. To

–

At the end of this initial inflation op-

reduce it, press the button 2.

eration, air will still escape from the

If a minimum pressure of 1.8 bar is

tyre. You must drive a short distance

not reached after 15 minutes, repair

in order to seal the hole.

is not possible; do not drive the ve-

Start immediately and drive at

hicle but contact an approved dealer.

a speed of 12 to 37 mph (20 to

With the engine running and the

60 km/h) in order to distribute the

parking brake applied,

product evenly in the tyre; after driv-

ing a distance of 2 miles (3 km), stop

Disconnect any accessories plugged

and check the pressure.

in to the vehicle’s accessories sock-

If the pressure is higher than 1.3 bar

ets;

but lower than the recommended

refer to the information on the in-

pressure (see the label affixed to

flation kit compressor that is lo-

the edge of the driver’s door), adjust

cated under the driver’s seat and

it. Otherwise, contact an approved

follow the instructions;

dealer: the tyre cannot be repaired.

–

inflate the tyre to the recommended

pressure ➥ 4.10;

Nothing should be placed

around the driver’s feet

as such objects may slide

under the pedals during

sudden braking manoeuvres and

obstruct their use.

5.6

CarManuals2.co

TYRE INFLATION KIT (4/4)

Precautions when using the

kit

The kit should not be operated for more

than 15 consecutive minutes.

The container must be replaced after

the first use even if liquid remains

inside.

Following repair with the kit,

do not travel further than

120 miles (200 km). In addi-

tion, reduce your speed and

under no circumstances exceed

48 mph (80 km/h). The sticker,

Please be aware that a

which you must affix in a prominent

poorly tightened or miss-

position on the dashboard, reminds

ing valve cap can make the

you of this.

tyres less airtight and may

Depending on the country or local

lead to pressure loss.

legislation, a tyre repaired with the

Always use valve caps identical to

inflation kit may need to be replaced.

those fitted originally and tighten

them fully.

5.7

CarManuals2.co

TOOLS

Do not leave the tools un-

secured inside the vehicle

as they may come loose

under braking. After use,

check that all the tools are correctly

clipped into the tool kit, then position

it correctly in its housing to reduce

the risk of injury.

The jack is designed for wheel

The tools included in the tool kit

Hubcap tool 5

changing purposes only. Under no

depend on the vehicle. Tool kit 2 is lo-

This tool is used to remove the wheel

circumstances should it be used for

cated under the driver’s seat. To take

trims.

carrying out repairs underneath the

it out, move the seat forward and fold

vehicle or to gain access to the un-

down the seatback ➥ 1.40. Unscrew

Offset wrench 6

derside of the vehicle.

the mounting screw 1 from the unit and

Wheelbrace 7

swivel to extract.

This locks and unlocks the wheel bolts

Jack 3

and the emergency spare wheel holder.

Fold it correctly before refitting it in its

Towing hitch 8 ➥ 5.36

housing (ensure that the wheelbrace is

Nothing should be placed

correctly positioned).

on the floor area in front of

the driver as such objects

Wheel bolt anti-theft piece 4

may slide under the pedal

during braking manoeuvres, thus

obstructing its use.

5.8

CarManuals2.co

WHEEL TRIM, WHEEL

Wheel trim 1

Wheel trim 4

Remove the wheel trim using hubcap

Remove using hubcap tool 2 (located in

tool 2 (located in the tool kit) by fit-

the tool kit) by engaging the hook in the

ting the hook into one of the openings

opening near the edge of the trim.

around the edge of the wheel trim.

To refit, position the five trim attach-

To refit it, align it with valve 3.

ments facing the five wheel attach-

ments and press hard in the middle of

Push the retaining hooks in fully, start-

the trim to clip it to the wheel.

ing on the side of valve A, followed by B

Do not leave the tools un-

and C, finishing at Dopposite the valve.

secured inside the vehicle

as they may come loose

under braking. After use,

check that all the tools are correctly

clipped into the tool kit, then position

it correctly in its housing to reduce

the risk of injury.

5.9

CarManuals2.co

CHANGING A WHEEL (1/2)

Switch on the hazard warn-

ing lights.

Keep the vehicle away from

Do not leave the tools un-

traffic and on a level surface

secured inside the vehicle

where it will not slip.

as they may come loose

Apply the hand brake and engage a

under braking. After use,

gear (first or reverse, or P for auto-

check that all the tools are correctly

matic transmissions).

clipped into the tool kit, then position

it correctly in its housing to reduce

Ask all the passengers to leave the

the risk of injury.

vehicle and keep them away from

traffic.

The jack is designed for wheel

changing purposes only. Under no

circumstances should it be used for

carrying out repairs underneath the

vehicle or to gain access to the un-

derside of the vehicle.

If the vehicle is parked on

the hard shoulder, you must

warn other road users of

your vehicle’s presence

If you have a puncture, re-

with a warning triangle or with other

place the wheel as soon as

devices as per the legislation apply-

possible.

ing to the country you are in.

A tyre which has been punc-

tured should always be inspected

(and repaired, where possible) by a

specialist.

5.10

CarManuals2.co

CHANGING A WHEEL (2/2)

Remove the wheel trim ➥ 5.8.

Insert the 2 jack horizontally so that

Loosen the wheel nuts and remove the

jack head pin 3 meets the 4 hole in the

wheel.

Use the wheelbrace 1 to slacken off the

lower section of the body and closest to

wheel bolts. Position it so as to be able

Fit the emergency spare wheel in place

the wheel concerned.

to push from above.

on the central hub.

Begin to crank the jack so that the base-

Tighten the nuts and lower the jack.

plate is correctly positioned (it should

be underneath the vehicle and aligned

With the wheels on the ground, tighten

with the jack head).

the nuts fully and check if they are tight

as quickly as possible.

Position the trim.

Anti-theft bolt

If you use anti-theft bolts, fit these

nearest the valve (otherwise it may

not be possible to fit the wheel trim).

5.11

CarManuals2.co

TYRES (1/3)

The tyres are the only contact between

When the tyre tread has been worn

the vehicle and the road, so it is essen-

to the level of the warning strips, they

tial to keep them in good condition.

become visible 2: it is then necessary

to replace your tyres because the tread

You must make sure that your tyres

rubber is now only 1.6 mm deep at

conform to local road traffic regulations.

most, resulting in poor road holding

on wet roads.

An overloaded vehicle, long journeys

by motorway, particularly in very hot

weather, or continual driving on poorly

surfaced minor roads will lead to more

rapid tyre wear and affect safety.

Maintaining the tyres

The tyres must be in good condition

and the tread form must have sufficient

depth; tyres approved by our Technical

Department have wear warning strips 1

which are indicators moulded into

the tread at several points.

Incidents which occur when

driving, such as striking the

kerb, may damage the tyres

and wheel rims, and could

also lead to misalignment of the

front or rear axle geometry. In this

case, have the condition of these

checked by an approved dealer.

5.12

CarManuals2.co

TYRES (2/3)

Tyre pressures

Pressures should be checked when the

Vehicle fitted with a tyre pressure

tyres are cold; ignore higher pressures

loss warning system

Adhere to the tyre pressures (including

which may be reached in hot weather

the emergency spare wheel). The tyre

In the event of under-inflation (punc-

or following a fast journey.

pressures should be checked at least

tures, under-inflation, etc.), the 

once a month and additionally before

If tyre pressures cannot be checked

warning light appears on the instrument

any long journey (refer to the label af-

when the tyres are cold, assume an in-

panel ➥ 2.26.

fixed to the edge of the driver’s door).

crease of 0.2 to 0.3 bar (or 3 PSI).

Never deflate a hot tyre.

Changing wheels around

This practice is not recommended.

Emergency spare wheel

Incorrect tyre pressures

➥ 5.10

lead to abnormal tyre wear

and unusually hot running.

These are factors which

may seriously affect safety and lead

to:

- poor road holding,

- risk of bursting or tread separa-

tion.

Please be aware that a

The pressure depends on the load

poorly tightened or miss-

and the speed of use. Adjust the

ing valve cap can make the

pressure according to the condi-

tyres less airtight and lead

tions of use (refer to the label affixed

to pressure loss.

to the edge of the driver’s door).

Always use valve caps identical to

those fitted originally and tighten

them fully.

5.13

CarManuals2.co

TYRES (3/3)

Fitting new tyres

Use in winter

Studded tyres

This type of equipment may only be

Chains

used for a limited period and as laid

For your safety, please re-

For safety reasons, fitting snow

down by local legislation.

spect the speed limit.

chains to the rear axle is strictly for-

It is necessary to observe the speed

bidden.

When they need to be re-

specified by current legislation.

placed, only tyres of the

Chains cannot be fitted to tyres which

These tyres must, at a minimum, be

same make, size, type and profile

are larger than those originally fitted to

fitted to the two front wheels.

should be used on a single axle.

the vehicle.

They must: either have a load ca-

Snow or Winter tyres

pacity and speed rating at least

We recommend that these be fitted to

equal to those of the original

all four wheels to ensure that your ve-

tyres, or conform to those recom-

hicle retains maximum traction.

mended by an authorised dealer.

Warning: These tyres sometimes have

Failure to heed these instructions

a specific direction of rotation and a

could endanger your safety and

maximum speed index which may be

affect your vehicle’s roadworthi-

lower than the maximum speed of your

In all cases, we would recommend

ness.

vehicle.

that you contact an approved Dealer

Risk of loss of control of the ve-

who will be able to advise you on

hicle.

the choice of equipment which is

most suitable for your vehicle.

17” wheels cannot be

fitted with chains.

If you wish to fit snow

chains, you must use spe-

Chains may only be fitted to tyres of the same size as those originally

cial equipment.

fitted to your vehicle.

Consult an approved Dealer.

Only certain chains can be fitted to tyres. Consult an approved Dealer.

5.14

CarManuals2.co

BATTERY: breakdown recovery (1/2)

To avoid all risk of sparks:

- Ensure that any power consumers

(courtesy lights, etc.) are switched

off before disconnecting or recon-

necting a battery;

- when charging, stop the charger

before connecting or disconnecting

the battery;

- do not place metal objects on the

Handle the battery with care

battery as this could create a short

as it contains sulphuric acid,

circuit between the terminals;

which must not come into

- always wait at least one minute after

contact with eyes or skin. If

the engine has been switched off

it does, wash the affected area with

Before carrying out any

before disconnecting a battery;

plenty of cold water. If necessary,

action in the engine com-

- make sure that you reconnect the

consult a doctor.

partment, you must switch

battery terminals after refitting.

off the ignition ➥ 2.3.

Ensure that naked flames, red hot

objects and sparks do not come into

Connecting a battery charger

contact with the battery as there is a

risk of explosion.

The battery charger must be com-

Special procedures may be

patible with a battery with nominal

Please note when working close to

required to charge some

voltage of 12 volts.

the engine that it may be hot. In ad-

batteries. Contact your ap-

Do not disconnect the battery when the

dition, the engine cooling fan may

proved dealer.

engine is running. Follow the instruc-

start at any moment. The 

Avoid all risk of sparks which may

tions given by the manufacturer of

warning light in the engine compart-

cause an immediate explosion, and

the battery charger you are using.

ment reminds you of this.

charge the battery in a well venti-

Risk of injury.

lated area.

Risk of serious injury.

5.15

CarManuals2.co

BATTERY: breakdown recovery (2/2)

Starting the vehicle using the

battery from another vehicle

If you have to use the battery from an-

other vehicle to start, obtain suitable

jump leads (with a large cross section)

from an approved dealer or, if you al-

ready have jump leads, ensure that

they are in perfect condition.

The two batteries must have an iden-

tical nominal voltage of 12 volts. The

battery supplying the current should

have a capacity (amp-hours, Ah) which

is at least the same as that of the dis-

charged battery.

Ensure that there is no risk of contact

Connect the negative cable B to the

With the engine running, disconnect

between the two vehicles (risk of short

terminal 3 (-) of the battery supplying

the A and B cables in the reverse order

circuiting when the positive terminals

the current, then to the terminal 2 (-) of

(2 - 3 - 4 - 1).

are connected) and that the discharged

the discharged battery.

battery is properly connected. Switch

off your vehicle ignition.

Start the engine of the vehicle supply-

ing the current and run it at an interme-

Depending on the vehicle, unclip the

diate engine speed.

battery cover.

With the engine running, the message

Check that there is no con-

Connect the positive cable A to the ter-

tact between leads A and B

“12V battery charging” appears on the

minal 1 (+) then to the terminal 4 (+) of

and that the positive lead A

instrument panel for approximately five

the battery supplying the current.

is not touching any metal

minutes.

parts on the vehicle supplying the

If your vehicle’s engine does not start

current.

immediately, switch off the ignition and

Risk of injury and/or damage to

wait a few seconds before repeating

the vehicle.

the operation.

5.16

CarManuals2.co

FUSES (1/2)

Passenger compartment fuses

Clip 1

If any electrical equipment does not

Remove the fuse using tweezers 5, lo-

work, check the condition of the fuses.

cated at the back of flap 1.

To access the fuses, pull the edge A

To remove the fuse from the tweezers,

of the storage compartment 1 firmly to-

slide the fuse to the side.

wards you.

To reposition the storage compart-

Check the fuse in question

It is not advisable to use the free fuse

ment 1, engage the centring pins 2 in

and replace it, if neces-

locations.

the openings 3. Then, lower the storage

sary, by a fuse of the same

compartment slightly 1 to align the 4

rating.

clips with their respective notches.

If a fuse is fitted with too high a

Apply pressure at the top, at the middle

rating, it may cause the electrical

and at the bottom of the storage com-

circuit to overheat (risk of fire) in the

partment to lock it correctly.

event of an item of equipment using

To comply with current legislation, or

an excessive amount of current.

as a precaution, you can obtain an

emergency kit from your approved

dealer containing a set of spare

bulbs and fuses.

5.17

CarManuals2.co

FUSES (2/2)

Allocation of fuses

(the presence and location of fuses depends on the vehicle equipment level)

Symbol

Allocation

Windscreen washer

Multimedia accessories socket, multimedia

screen

Front and rear second row accessories socket

Horn

Towbar socket



Heated rear view mirrors

Brake lights, passenger compartment central unit

Use the fuse allocation label in the

storage compartment to identify the

Passenger compartment centre unit, rear wiper,



fuses.

rear fog light

Certain fuses should only be re-

placed by a qualified professional.

Direction indicator lights, hazard warning lights,

These fuses are not listed on the

high level brake lights

label.

Only change the fuses represented

on the label.

5.18

CarManuals2.co

HEADLIGHTS AND SIDE LIGHTS: replacing bulbs (1/2)

Please note when work-

ing close to the engine that

it may be hot. In addition,

the engine cooling fan may

start at any moment. The 

warning light in the engine compart-

ment reminds you of this.

Risk of injury.

Any operation on (or modi-

fication to) the electrical

LED daytime running lights

system must be performed

and direction indicator

by an approved dealer

lights 1

since an incorrect connection might

damage the electrical equipment

Consult an approved dealer.

(harness, components and in partic-

ular the alternator). In addition, your

Dealer has all the parts required for

LED main beam headlights 2

fitting these units.

Consult an approved dealer.

To comply with local legislation, or

as a precaution, you can obtain an

emergency kit containing a set of

spare bulbs and fuses from an ap-

proved dealer.

Before carrying out any

action in the engine com-

The bulbs are under pres-

partment, you must switch

sure and can break when

off the ignition ➥ 2.3.

replaced.

Risk of injury.

5.19

CarManuals2.co

REAR LIGHTS: changing bulbs (1/4)

Rear light unit A

Turn the light unit slightly and release it

Direction indicator lights 3

to access the bulb holder 2.

Remove bolt 1.

Pear-shaped, bayonet type PY 21W

Unclip the bulb holders by rotating them

bulb.

a quarter of a turn.

Side lights and brake lights 4

Unclip the bulbs by pressing them

Pear-shaped, bayonet type P 21/5W

slightly and rotating them a quarter of

bulb.

a turn.

The bulbs are under pres-

sure and can break when

replaced.

Risk of injury.

5.21

CarManuals2.co

REAR LIGHTS: changing bulbs (4/4)

High-mounted brake light on

Remove the light from the outside to

Number plate lights

access the bulb 11.

tailgate

The bulb is accessed in the same way

Pear-shaped, bayonet type P 21W

for both vehicles with hinged doors and

Remove nuts 10.

bulb.

those with the tailgate.

Unclip the light 12 (using a tool such as

a flat-blade screwdriver).

Remove the light cover to gain access

to the bulb.

Bulb type: W5W.

5.24

CarManuals2.co

INTERIOR LIGHTING: changing bulbs (3/3)

5 light

6 light

(depending on the vehicle)

Remove the lens using a tool such as a

flat-blade screwdriver.

Bulb version

Pull the bulb to remove it from its hous-

Remove the lens using a tool such as a

ing.

flat-blade screwdriver.

Bulb type: W5W

Pull the bulb to remove it from its hous-

ing.

Replace the bulb and refit the lens.

Bulb type: W5W

Replace the bulb and refit the lens.

LED version

Consult an approved dealer.

5.27

CarManuals2.co

RADIO FREQUENCY REMOTE CONTROL: battery (1/2)

Operating faults

If the battery is too weak to ensure cor-

rect operation, you will still be able to

start and lock/unlock the vehicle

➥ 1.32.

Replacing the battery

When refitting, ensure that the cover is

correctly clipped on and the screw tight-

Open the case at slot 1 using a flat-

ened.

blade screwdriver or similar, and re-

place the battery 2, observing the type

Note: It is not advisable to touch the

and polarity shown on the back of the

electronic circuit in the key cover when

cover.

replacing the battery.

If they need to be replaced,

The batteries are available from ap-

be sure to use the same

proved Dealers, and their service

or equivalent type of bat-

life approximately two years.

tery (consult an Approved

Check that there is no dye on the

Dealer).

When refitting, ensure that the cover

battery: risk of an incorrect electri-

is correctly clipped on and the screw

cal contact.

tightened.

5.28

CarManuals2.co

RADIO FREQUENCY REMOTE CONTROL: battery (2/2)

Precautions relating to

Do not dispose of your used batter-

batteries:

ies in the countryside. Give them to

an organisation that collects and re-

- keep (new or used) bat-

cycles used batteries.

teries out of reach of chil-

dren;

- do not swallow batteries;

When replacing:

Risk of chemical burns which

- make sure that the batter-

may lead to death.

ies are correctly inserted;

- if ingested or inserted into any

part of the body, consult a doctor

Risk of explosion.

as soon as possible.

- if the flap does not close cor-

rectly, do not use and keep out of

reach of children.

5.29

CarManuals2.co

CARD: battery (1/2)

Check that the cover is clipped shut.

The batteries are available from ap-

proved Dealers, and their service

life approximately two years. Check

that there is no dye on the battery:

risk of an incorrect electrical con-

tact.

Replacing the battery

When refitting, proceed in the reverse

If they need to be replaced,

order, then press one of the buttons on

be sure to use the same

When the message “Keycard Battery

the card four times, close to the vehicle:

or equivalent type of bat-

Low” appears on the instrument panel,

the next time the vehicle is started, the

tery (consult an Approved

replace the battery in the card:

message will disappear.

Dealer).

- slide the rear casing 1 downwards

Check that the cover is clipped shut.

while pressing on zone A;

Note: Do not touch the electronic circuit

- remove the battery cover 2;

or contacts on the card when replacing

- remove the battery by pressing on

the battery.

When replacing:

one side and lifting the other;

- make sure that the batter-

- replace it according to the direc-

ies are correctly inserted.

tion and template shown inside the

There is a risk of explosion.

cover.

- if the flap does not close cor-

rectly, do not use and keep out of

reach of children.

5.30

CarManuals2.co

CARD: battery (2/2)

Operating faults

If the battery is too weak to ensure cor-

rect operation, you will still be able to

start and lock/unlock the vehicle ➥ 2.4.

Precautions relating

to batteries:

- keep (new or used) batter-

ies out of reach of children;

- not to swallow the batteries.

Risk of chemical burns which

may led to death.

- If it may have been ingested or

inserted into any part of the body,

consult a doctor as soon as pos-

sible.

Do not throw away your used bat-

teries; give them to an organisation

responsible for collecting and recy-

cling batteries.

5.31

CarManuals2.co

ACCESSORIES

Electrical and electronic accessories

Before installing this type of accessory (particularly for transmitters/receivers: frequency bandwidth, power level, po-

sition of the aerial, etc.), make sure it is compatible with your vehicle. You can get advice from an authorised dealer.

Before connecting an accessory to a socket, please ensure that you do not exceed the maximum power authorised for the

socket ➥ 3.16, ➥ 3.35. Fire hazard.

No work may be carried out on the vehicle’s electrical or radio circuits, except by authorised dealers: an incorrectly connected

system may result in damage being caused to the electrical equipment and/or the components connected to it.

If the vehicle is fitted with any aftermarket electrical equipment, make sure that the installation is correctly protected by a fuse.

Establish the rating and position of this fuse.

Using the diagnostic socket

The use of electronic accessories on the diagnostic socket may cause serious disturbance to the vehicle’s electronic systems.

For your safety we recommend that you use only electronic accessories approved by the manufacturer, consult an Approved

Dealer. Serious accident risk.

Fitting aftermarket accessories

If you wish to install accessories on the vehicle: consult an approved dealer. Also, to ensure the correct operation of your ve-

hicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your vehicle,

which are the only accessories for which the manufacturer will provide a warranty.

If you are using an anti-theft device, only attach it to the brake pedal.

Obstructions to the driver

On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting reg-

ularly. Do not lay one mat on top of another. There is a risk of wedging the pedals.

5.32

CarManuals2.co

WINDSCREEN WIPER BLADES (1/3)

Windscreen wiper blades 1

Lift the windscreen wiper arm 3, press

Refitting

button 2 to release the blade 1.

With the ignition on and the engine

Offer up the blade 3 of the wiper arm 1

switched off, lower the windscreen

at an angle of 30°.

wiper stalk fully: the wipers stop in a

Slide the blade along the arm until it

position away from the bonnet.

clips on. Check that the bonnet is cor-

rectly locked. Lower the windscreen

wiper arm carefully.

With the ignition on, return the wind-

screen wiper stalk to the stop position.

5.33

CarManuals2.co

WINDSCREEN WIPER BLADES (2/3)

- In frosty weather, make

sure that the wiper blades

are not stuck by ice (risk of

motor overheating).

- Check the condition of the wiper

Check the condition of the wiper

blades.

blades. You are responsible for their

service life:

Replace the wiper blades as soon

- clean the blades, windscreen and

as they begin to lose efficiency (ap-

rear screen regularly with soapy

proximately once a year).

water;

Whilst changing the blade, take care

not to drop the arm onto the window

- do not use them when the wind-

after it has been removed as this

screen or rear screen are dry;

may break the window.

- free them from the windscreen or

rear screen when they have not

been used for a long time.

5.34

CarManuals2.co

WINDSCREEN WIPER BLADES (3/3)

Rear screen wiper blade on

To refit

rear hinged doors

tailgate

Proceed in the reverse order to re-

- Lift the wiper arm 4;

- Lift the wiper arm 6;

moval. Make sure that the blade is cor-

rectly locked in position.

- pivot the blade 5 until some resist-

- pull the tab 8 (movement B) and

ance is met;

push the blade 7 upwards.

- pull the blade to release it (move-

ment A).

5.35

CarManuals2.co

Renault Trafic (2023 year). Manual in english - page 7
