METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (2/6)
Load limiter
Each airbag system consists of:
Above a certain severity of impact, this
- an airbag and gas generator fitted on
mechanism is used to limit the force of
the steering wheel for the driver and
the belt against the body so that it is at
in the dashboard for the passenger;
an acceptable level.
- an electronic unit for system monitor-
A
ing which controls the gas generator
electrical trigger system;
Airbags driver and passenger
front
- a single å
warning light on the
Fitted to the driver and passenger
instrument panel.
sides.
An airbag marking on the steering
wheel and the dashboard (airbag A
area) indicates that this device is fitted.
The airbag system uses py-
rotechnic principles. This
The passenger airbag
explains why, when the
airbag only protects the
airbag inflates, it will gener-
front side passenger; the
ate heat, produce smoke (this does
front centre passenger is
not mean that a fire is about to start)
only protected by the seat belt.
and make a banging noise. In a situ-
Please follow the usual safety in-
ation where an airbag is required, it
structions (wearing the seat belt).
will inflate immediately and this may
Risk of injury in the event of an
cause some minor, superficial graz-
accident.
ing to the skin or other problems.
1.50
CarManuals2.co
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/6)
4
Operation
Operating faults
This system is only operational when
the ignition is switched on.
Warning light 4 å
will light up on
the instrument panel when the ignition
In a severe frontal impact, the airbags
is turned on and then go out after a few
inflate rapidly, cushioning the impact
seconds.
of the driver's head and chest against
the steering wheel and of the front pas-
If it does not light up when the ignition
senger against the dashboard. The air-
is switched on, or comes on when the
bags then deflate immediately so that
engine is running, there is a fault in the
the passengers are not in any way hin-
system.
dered from leaving the vehicle.
Contact your approved Dealer as soon
as possible. Your protection will be re-
duced until this fault is rectified.
1.51
CarManuals2.co
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/6)

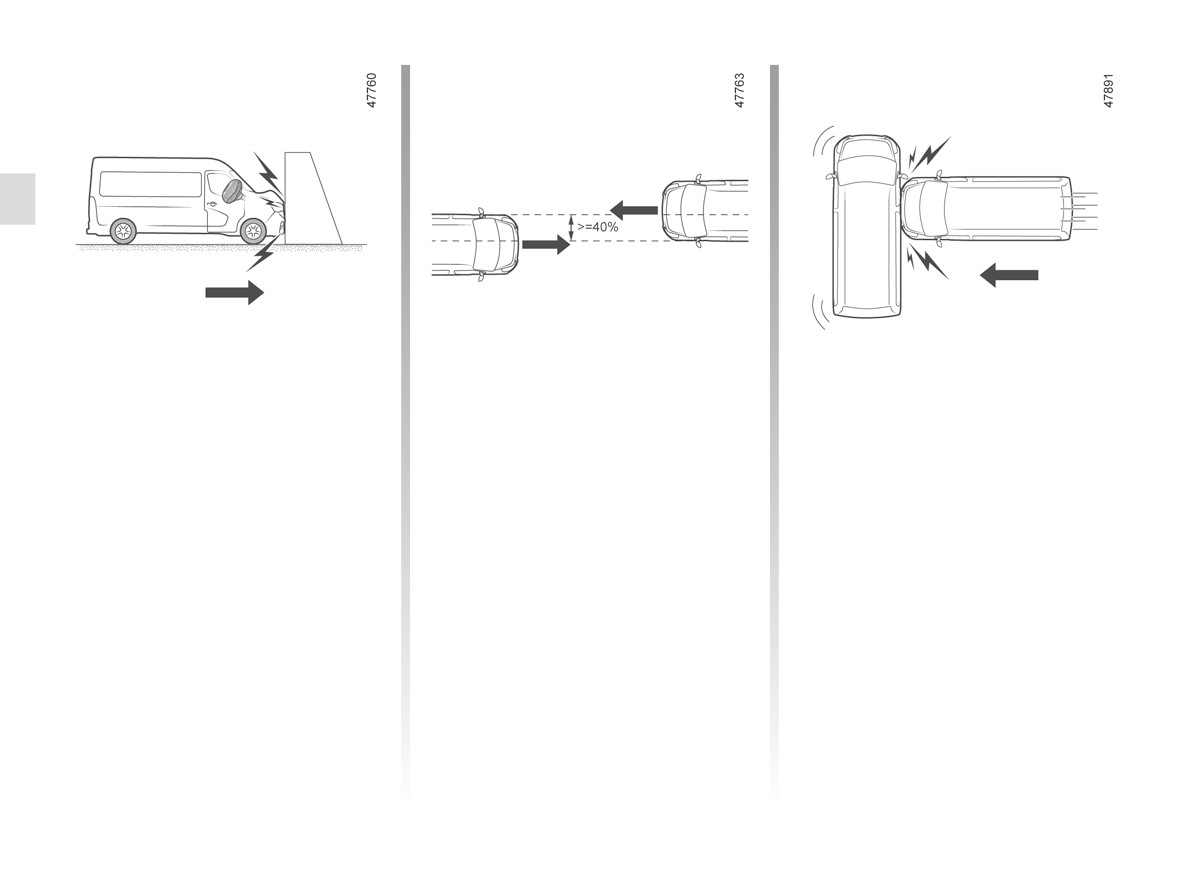

The following conditions will trigger
In the event of a frontal impact with
In a side impact with another vehicle
the pretensioners or airbags.
another vehicle of an equivalent or
of an equivalent or higher category, at
higher category, with an impact area
an impact speed equal to or greater
In a frontal impact against a rigid
equal to or greater than 40%, where
than 31 mph (50 km/h).
(non-deformable) surface at an impact
the speed of both vehicles is equal to or
speed equal to or greater than 16 mph
greater than 35 mph (56 km/h).
(25 km/h).
1.52
CarManuals2.co
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (5/6)

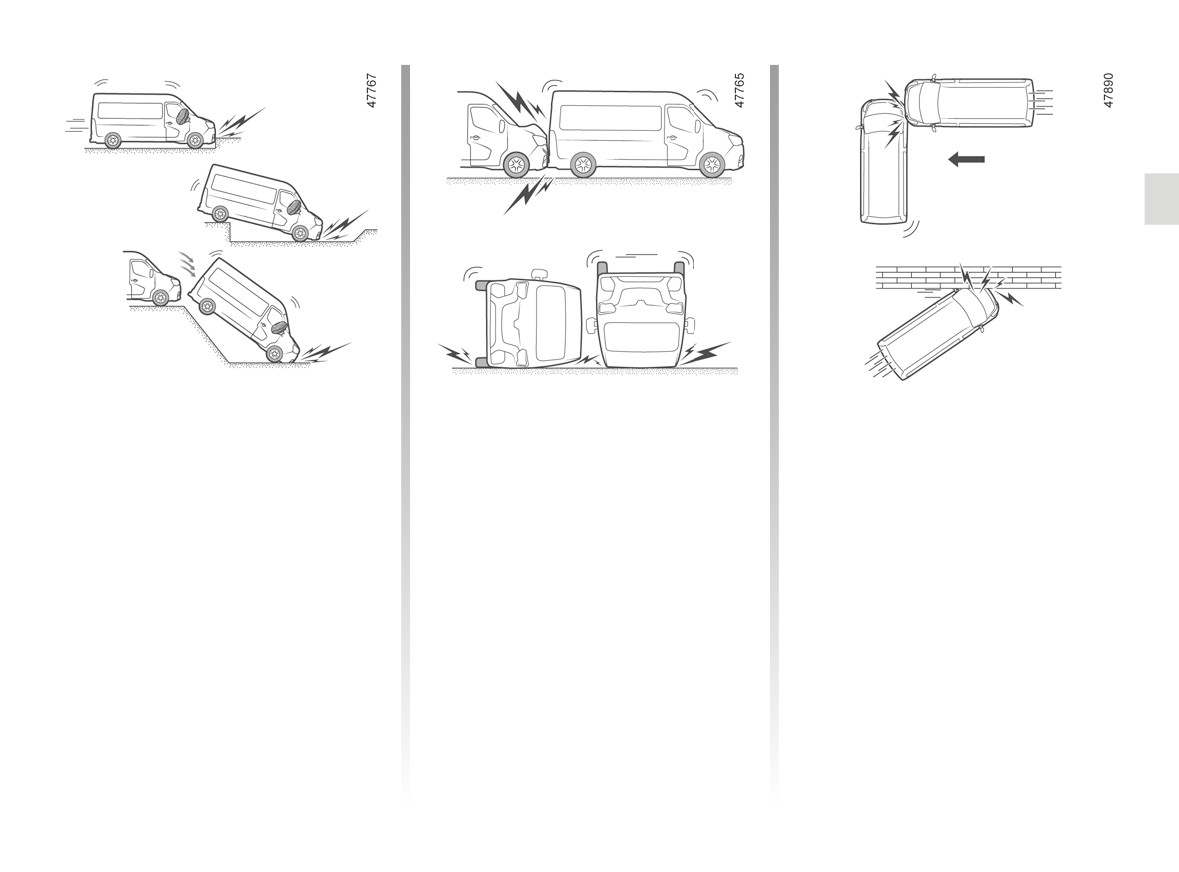

In the following examples, the pre-
In the following examples, there is a
- side impact to the front or rear of the
tensioners or the airbags could op-
risk that pretensioners orairbags may
vehicle;
erate:
not be triggered:
- frontal impact against an obstacle
- impact under vehicle such as pave-
- rear impact, however severe;
with a sharp angle;
ment;
– the vehicle overturning;
- ...
- potholes;
- a fall or a hard landing;
- stones;
– ...
1.53
CarManuals2.co
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (6/6)
All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when it inflates.
Warnings concerning the driver’s airbag
- Do not modify the steering wheel or the steering wheel boss.
- Do not cover the steering wheel boss under any circumstances.
- Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.
- The steering wheel must not be removed (except by qualified personnel from our Network).
- Do not sit too close to the steering wheel: adopt a driving position whereby your arms are slightly folded ➥ 1.43. This will
allow sufficient space for the airbag to deploy correctly and be fully effective.
Warnings concerning the passenger airbag
- Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard on or near the airbag.
- Do not place anything between the dashboard and the passenger (pet, umbrella, walking stick, parcels, etc.).
- The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. In
general, parts of the body should be kept away from the dashboard (knees, hands, head, etc.).
- The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure
the protection of the passenger in the event of an impact.
A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE
RESTRAINT SYSTEMS IN ADDITION TO THE FRONT PASSENGER SEATBELT ARE DEACTIVATED ➥ 1.91.
1.54
CarManuals2.co
METHODS OF RESTRAINT IN ADDITION TO REAR SEAT BELTS
Force limiter
Above a certain level of impact force,
this mechanism is used to limit the force
of the belt against the body so that it is
at an acceptable level.
- Have the entire restraint system checked following an accident.
- N o operation whatsoever is permitted on any part of the system (pre-
tensioners, airbags, computers, wiring) and the system components
must not be reused on any other vehicle, even if identical.
- Only qualified personnel from our Network may work on the airbags; otherwise
the system may trigger accidentally and cause injury.
- The electric trigger system may only be tested by a specially trained technician
using special equipment.
- When the vehicle is scrapped, contact an approved dealer for disposal of the
pretensioner and airbags gas generators.
1.55
CarManuals2.co
SIDE PROTECTION DEVICES
Side Airbags
These airbags may be fitted to individ-
ual seats and are deployed at the sides
of the seats (door side) to protect the
occupants in the event of a severe side
impact.
Curtain Airbags
These are airbags fitted to each upper
side of the vehicle. They deploy along
the front door side windows to protect
occupants in the event of a severe side
impact.
Warning relating to the side airbag
- Fitting seat covers: seats equipped with an airbags require covers
specifically designed for your vehicle. Contact an approved dealer to find
out if these covers are available. The use of any covers other than those
designed for your vehicle (including those designed for another vehicle) may
affect the operation of the airbags and reduce your protection.
- Do not place any accessories, objects or even pets between the seatback, the
door and the internal fittings. Do not cover the seatback with any items such as
clothes or accessories. This may prevent the air bag from operating correctly
or cause injury when the airbag is deployed.
- No work or modification whatsoever may be carried out on the seat or internal
fittings, except by qualified personnel from an approved Dealer.
1.56
CarManuals2.co
ADDITIONAL METHODS OF RESTRAINT
All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when it inflates.
The airbag is designed to complement the action of the seat belt. Both the airbag and the seat belt are integral parts
of the same protection system. It is therefore essential to wear seat belts at all times. If seat belts are not worn, the oc-
cupants are exposed to the risk of serious injury in the event of an accident. It may also increase the risk of minor su-
perficial injuries occurring when the airbag is deployed, although such minor injuries are always possible with airbags.
If the vehicle should overturn or in the event of a rear impact, however severe, the pretensioners and airbags are not always
triggered. Impacts to the underside of the vehicle, e.g. from pavements, potholes or stones, can all trigger these systems.
- No work or modification whatsoever may be carried out on any part of the airbag system (airbags, pretensioners, computer,
wiring harness, etc.), except by qualified Network personnel.
- To ensure that the system is in good working order and to avoid accidental triggering of the system which may cause injury,
only qualified Network personnel may work on the airbag system.
- As a safety precaution, have the airbag system checked if your vehicle has been involved in an accident, or is stolen or
broken into.
- When selling or lending the vehicle, inform the user of these points and hand over this handbook with the vehicle.
- When scrapping your vehicle, contact your approved Dealer for disposal of the gas generator(s).
1.57
CarManuals2.co
CHILD SAFETY: General information (1/2)
Carrying children
Please ensure that you comply with the
legislation of your country.
Children, and adults, must be correctly
seated and strapped in for all journeys.
The children being carried in your vehi-
cle are your responsibility.
Driver’s responsibility
A child is not a miniature adult. Children
when parking or stopping
are at risk of specific injuries as their
the vehicle
muscles and bones have not yet fin-
ished growing. The seat belt alone
Never leave an animal,
would not provide suitable protection.
child or adult who is not self-suffi-
Use an approved child seat and ensure
cient alone on your vehicle, even for
you use it correctly.
a short time.
They may pose a risk to themselves
A collision at 30 mph (50
or to others by starting the engine,
km/h) is the same as fall-
activating equipment such as the
ing a distance of 10 metres.
electric windows or by locking the
Transporting a child without
doors.
a restraint is the equivalent of allow-
ing him or her to play on a fourth-
Also, in hot and/or sunny weather,
floor balcony without railings.
please remember that the tempera-
ture inside the passenger compart-
Never travel with a child held in your
ment increases very quickly.
arms. In the event of an accident,
you will not be able to keep hold of
RISK OF DEATH OR SERIOUS
the child, even if you yourself are
INJURY.
wearing a seat belt.
If your vehicle has been involved in
a road accident, replace the child
To prevent the doors being
seat and have the seat belts and
opened, use the “Child lock”
ISOFIX anchorage points checked.
feature. ➥ 1.23.
1.58
CarManuals2.co
CHILD SAFETY: General information (2/2)
Using a child seat
The level of protection offered by the
child seat depends on its ability to re-
strain your child and on its installation.
Incorrect installation compromises the
protection it offers the child in the event
of harsh braking or an impact.
Before purchasing a child seat, check
that it complies with the regulations for
the country you are in and that it can
be fitted in your vehicle. Consult an ap-
proved dealer to find out which seats
are recommended for your vehicle.
Before fitting a child seat, read the
Never leave a child unat-
manual and respect its instructions. If
tended in the vehicle.
you experience any difficulties during
installation, contact the manufacturer
Check that your child is
of the equipment. Keep the instructions
always strapped in and that
with the seat.
the belt or safety harness used is
Set a good example by always fas-
correctly set and adjusted. Avoid
tening your seat belt and teaching
wearing bulky clothing which could
your child:
cause the belts to slacken.
- to strap themselves in correctly;
Never let your child put their head or
arms out of the window.
- to always get in and out of the car
at the kerb, away from busy traf-
Check that the child is in the correct
fic.
position for the entire journey, espe-
cially if asleep.
Do not use a second-hand child
seat or one without an instruction
manual.
Check that there are no objects in
the vicinity of the child seat which
could impede its operation.
1.59
CarManuals2.co
CHILD SAFETY: choosing a child seat

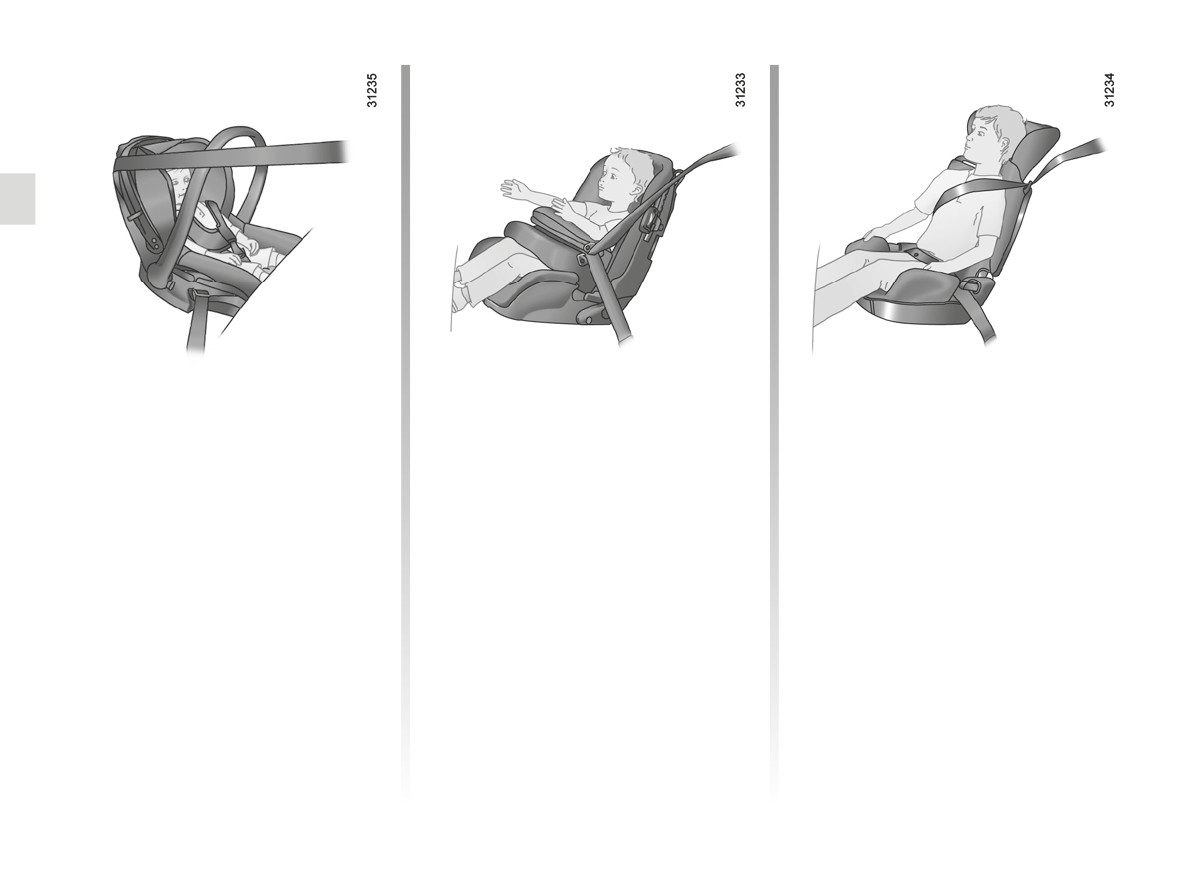

Rear-facing child seats
Forward-facing child seats
Booster cushions
A baby’s head is, proportionally, heavier
Up to 18 kg or 4 years, the child may
From 15 kg or 4 years, the child can
than that of an adult and its neck is very
travel on a forward-facing seat. Choose
travel using a booster seat, which will
fragile. Transport the child in this po-
your seat according the child’s size:
enable the seat belt to be adapted to
sition for as long as possible (until the
their head and abdomen are the areas
suit his size and shape. The booster
age of 2 at the very least). It supports
which must be most protected. A for-
seat cushion must be fitted with guides
both the head and the neck.
ward-facing child seat which is firmly at-
to position the seat belt on the child’s
tached to the vehicle will reduce the risk
thighs rather than the stomach. It is
Choose a bucket type seat for best side
of impact to the head. Ensure your child
recommended that you use a seat-
protection and change it as soon as the
travels in a forward-facing seat with a
back which can be adjusted in terms
child’s head is higher than the shell.
harness or buckle for as long as their
of height to position the seat belt in the
size permits.
centre of the shoulder. It must never
rest on the neck or on the arm.
Choose a bucket type seat for optimum
side protection.w
Choose a bucket type seat for optimum
side protection.
1.60
CarManuals2.co
CHILD SAFETY: choosing a child, baby seat mounting (1/2)
There are two ways of attaching child
Attachment using the ISOFIX
Do not use the child seat
seats: via the seat belt or using the
system
if it may unfasten the seat
ISOFIX system.
belt restraining it: the base
Authorised ISOFIX child seats are ap-
of the seat must not rest on
proved in accordance with regulation
Attachment via the seat belt
the buckle and/or catch of the seat
ECE-R44 in one of the three following
The seat belt must be adjusted to
cases:
belt.
ensure that it is effective in the event of
- ISOFIXuniversal 3-point forward-fac-
harsh braking or an impact.
ing seat;
- ISOFIXsemi-universal 2-point seat;
Ensure that the strap paths indicated
- specific.
by the child seat manufacturer are re-
spected.
For the latter two, check that your child
seat can be installed by consulting the
Always check that the seat belt is cor-
Before using an ISOFIX
list of compatible vehicles.
rectly fastened by pulling it up, then
child seat that you pur-
pulling it out fully whilst pressing on the
Attach the child seat with the ISOFIX
chased for another vehicle,
child seat.
locks, if these are provided. The ISOFIX
check that its installation is
system allows quick, easy, safe fitting.
Check that the seat is correctly held by
authorised. Consult the list of ve-
moving it from side to side and back
hicles which can be fitted with the
The ISOFIX system consists of 2 rings
to front: the seat should remain firmly
seat from the equipment manufac-
and, in some cases, a third ring.
fixed.
turer.
Check that the child seat has not been
installed at an angle and that it is not
resting against a window.
The seat belt must never be twisted or the tension relieved. Never pass the shoulder strap under the arm or behind
the back.
Check that the seat belt has not been damaged by sharp edges.
If the seat belt does not operate normally, it will not protect the child. Consult an approved dealer. Do not use this seat
until the seat belt has been repaired.
1.61
CarManuals2.co
CHILD SAFETY: choosing a child, baby seat mounting (2/2)
- Place the headrest in the top position
or remove it;
- pass the belt 2 (supplied with the
seat) between the two rear headrest
1
rods;
2
- the hook 3 must be attached to the
ring 4 marked by the symbol to
the rear of the seat;
- pull the belt so that the child seat
comes into contact with the vehicle
3
seatback.
4
The two rings 1 are located between the
Front-facing seat mounting ring for
seatback and the seat base of the seat
rear side seats
and are identified by a marking Ü.
The third ring is used to attach the
Check that the seatback
upper strap on some child seats.
of the forward-facing child
seat is in contact with the
No modifications may be
back of the vehicle seat.
made to the component
In this case, the child seat may not
parts of the restraint system
always rest on the base of the vehi-
(seat belts, ISOFIX and
cle seat.
seats and their mountings) originally
fitted.
The ISOFIX anchorage points have been exclusively designed for child seats with the ISOFIX system. Never fit a dif-
ferent type of child seat, seat belt or other objects to these anchorage points.
Check that nothing is obstructing the anchorage points.
If your vehicle has been involved in a road accident, have the ISOFIX anchorage points checked and replace your
child seat.
1.62
CarManuals2.co
CHILD SAFETY: fitting a child seat, general information (1/2)
Some seats are not suitable for fitting
In the front seat
After installing the child seat, when this
child seats. The diagram on the follow-
is possible, you can move the vehi-
The laws concerning children travel-
ing page shows you how to attach a
cle seat forward if necessary (so as to
ling in the front passenger seat differ in
child seat.
leave enough space in the rear seats
every country. Consult the legislation in
for passengers or other child seats).
The types of child seat indicated may
force and follow the indications on the
For a rear-facing child seat, do not let
not be available. Before using a differ-
diagram on the following page.
it touch the dashboard or move it to the
ent child seat, check with the manufac-
Before fitting a child seat in this seat (if
furthest forward position.
turer that it can be fitted.
authorised):
Do not change other settings after in-
- lower the seat belt as far as possible;
stalling the child seat.
- move the seat as far back as possi-
ble;
- gently tilt the seatback away from
Make sure the child seat or
vertical (approximately 25°);
the child’s feet do not pre-
vent the front seat from
- on equipped vehicles, raise the seat
locking correctly ➥ 1.40.
base as far as possible.
Check that when installing the child
Always fully raise the seat headrest so
seat in the vehicle it is not at risk of
that it does not interfere with the child
coming loose from its base.
seat ➥ 1.39.
If you have to remove the headrest,
check that it is correctly stored so
that it does not come loose under
harsh braking or impact.
Always attach the child seat to the
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.
RISK
OF
DEATH
OR
SERIOUS INJURY: before
fitting a child seat in the
front passenger seat, make
sure that the front passenger airbag
has been deactivated. ➥ 1.91.
1.63
CarManuals2.co
CHILD SAFETY: fitting a child seat, general information (2/2)
In the rear side seat
Rear centre seat
A carrycot can be installed across the
Check that the belt is suitable for secu-
vehicle and will take up at least two
ring your child seat. Consult an appro-
seats.
ved dealer.
Position the child with their feet nearest
the door.
Move the front seat as far forward as
possible to install a rear-facing child
seat, then move back the seat in front
as far as it will go, although without al-
lowing it to come into contact with the
child seat.
For the safety of the child in the for-
ward-facing position:
- do not push the seat in front of the
child back further than halfway along
its runners;
- do not recline the seatback too far
(maximum of 25°) and raise the seat
as much as possible.
Always remove the headrest from the
A child seat with a floor sup-
rear seat on which the child seat is po-
port must never be installed
sitioned ➥ 3.37. This must be done
on the rear centre seat.
before fitting the child seat.
RISK OF DEATH OR
Check that the forward-facing child seat
SERIOUS INJURY.
is resting against the back of the vehi-
cle seat.
Fit the child seat in a rear
seat wherever possible.
1.64
CarManuals2.co
CHILD SEATS: attachment by seat belt (1/14)
2-seater van
Check the status of the airbag
³
before fitting a child seat or al-
lowing a passenger to use the seat.
Seat not suitable for fitting
²
child seats.
Child seat attached using the belt
Seat which allows a child seat
¬
with “Universal” approval to be
attached by a seat belt.
Using a child safety system
which is not approved for
this vehicle will not cor-
3-seater van
rectly protect the baby or
child. They risk serious or even fatal
injury.
RISK OF DEATH OR
SERIOUS INJURY: before
fitting a rear-facing child
seat in this seat, make sure
that the front passenger airbag has
been deactivated. ➥ 1.91.
1.65
CarManuals2.co
CHILD SEATS: attachment by seat belt (2/14)
The table below summarises the information already shown on the diagram on the previous page, to ensure the applica-
ble regulations are respected.
Two or three-seater van versions
Front passenger seat(s)
With two-seater bench seat
Type of child seat
Weight of the child
With single
passenger seat
Centre seat
Side seat
Shell seat/rear-facing seat
< to 13 kg and 9 to 18 kg
U (2)
X
U (2)
Groups 0, 0+ and 1
Forward-facing seat
9 to 18 kg
U (1)
X
U (1)
Group 1
Booster seat
15 to 25 kg and 22 to 36
U (1)
X
U (1)
Groups 2 and 3
kg
X Seat which does not allow a child seat to be fitted.
U Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
(1) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Raise the
headrest. Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately
25°).
(2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in this seat, make sure that the front
passenger airbag has been deactivated ➥ 1.91.
1.66
CarManuals2.co
CHILD SEATS: attachment by seat belt (3/14)
5-seater Combi
Check the status of the airbag
³
before fitting a child seat or al-
lowing a passenger to use the seat.
Child seat attached using the belt
Seat which allows a child seat
¬
with “Universal” approval to be
attached by a seat belt.
Seat not suitable for fitting
²
child seats.
Using a child safety system
which is not approved for
RISK OF DEATH OR
this vehicle will not cor-
SERIOUS INJURY: before
rectly protect the baby or
fitting a rear-facing child
child. They risk serious or even fatal
seat in this seat, make sure
injury.
that the front passenger airbag has
been deactivated ➥ 1.91.
1.67
CarManuals2.co
CHILD SEATS: attachment by seat belt (4/14)
The table below summarises the information already shown on the diagram on the previous page, to ensure the applica-
ble regulations are respected.
5-seater Combi version
Front passenger
Rear side
Rear centre
Type of child seat
Weight of the child
seat
seat
seat
Carrycot fitted across
the vehicle
< 10 kg
X
U (3)
U (3)
Group 0
Rear-facing shell seat
< 13 kg
U (1) (2)
U (4)
U (4)
Groups 0 and 0+
Rear-facing seat
< 13 kg and 9 to 18 kg
U (1) (2)
U (4)
U (4)
Groups 0+ and 1
Forward-facing seat
9 to 18 kg
X
U (5)
U (5)
Group 1
Booster seat
15 to 25 kg and 22 to 36
X
U (5)
U (5)
Groups 2 and 3
kg
(1) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in this seat, make sure that the front
passenger airbag has been deactivated ➥ 1.91.
1.68
CarManuals2.co
CHILD SEATS: attachment by seat belt (5/14)
X = Seat not suitable for fitting child seats of this type.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
(2) Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).
(3) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(4) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child seat.
(5) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situ-
ations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child
seat. ➥ 3.37. Do not push the seat in front of the child more than halfway back on its runners and do not recline the seatback
more than 25°.
1.69
CarManuals2.co
CHILD SEATS: attachment by seat belt (6/14)
The table below summarises the information already shown in the diagram on the following pages, to ensure the appli-
cable regulations are respected.
6-seater Combi version
Front seat
Rear seat
Type of child seat
Weight of the child
Central
Side
Side
Central
passenger
passenger
Carrycot fitted across the
vehicle
< 10 kg
X
X
U (2)
U (2)
Group 0
Rear-facing shell seat
< 13 kg
X
U (1)
U (3)
U (3)
Groups 0 and 0+
Rear-facing seat
< 13 kg and 9 to 18 kg
X
U (1)
U (3)
U (3)
Groups 0+ and 1
Forward-facing seat
9 to 18 kg
X
X
U (4)
U (4)
Group 1
Booster seat
15 to 25 kg and 22 to
X
X
U (4)
U (4)
Groups 2 and 3
36 kg
(1) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in this seat, make sure that the front
passenger airbag has been deactivated. ➥ 1.91.
1.70
CarManuals2.co
CHILD SEATS: attachment by seat belt (7/14)
X = Seat not suitable for fitting child seats of this type.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
(2) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(3) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child seat.
(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situ-
ations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child
seat. ➥ 3.37. Do not push the seat in front of the child more than halfway back on its runners and do not recline the seatback
more than 25°.
1.71
CarManuals2.co
CHILD SEATS: attachment by seat belt (8/14)
6-seater Combi
Check the status of the airbag
³
before fitting a child seat or al-
lowing a passenger to use the seat.
Child seat attached using the belt
Seat which allows a child seat
¬
with “Universal” approval to be
attached by a seat belt.
Seat not suitable for fitting
²
child seats.
Using a child safety system
which is not approved for
RISK OF DEATH OR
this vehicle will not cor-
SERIOUS INJURY: before
rectly protect the baby or
fitting a rear-facing child
child. They risk serious or even fatal
seat in this seat, make sure
injury.
that the front passenger airbag has
been deactivated. ➥ 1.91.
1.72
CarManuals2.co
CHILD SEATS: attachment by seat belt (9/14)
8-seater combi/bus
Check the status of the airbag
³
before fitting a child seat or al-
lowing a passenger to use the seat.
Child seat attached using the belt
Seat which allows a child seat
¬
with “Universal” approval to be
attached by a seat belt.
Seat not suitable for fitting
²
child seats.
Using a child safety system
which is not approved for
RISK OF DEATH OR
this vehicle will not cor-
SERIOUS INJURY: before
rectly protect the baby or
fitting a rear-facing child
child. They risk serious or even fatal
seat in this seat, make sure
injury.
that the front passenger airbag has
been deactivated. ➥ 1.91.
1.73
CarManuals2.co
CHILD SEATS: attachment by seat belt (10/14)
The table below summarises the information already shown on the diagram on the previous page, to ensure the applica-
ble regulations are respected.
8-seater Bus/Combi version
Rear seat
Front
Weight of
Type of child seat
passenger
the child
2nd row
2nd row
3rd row
3rd row
seat
side seats
centre seat
side seats
centre seat
Carrycot fitted across
the vehicle
< 10 kg
X
U (3)
U (3)
U (3)
U (3)
Group 0
Rear-facing shell
seat
< 13 kg
U (1) (2)
U (4)
U (4)
U (4)
U (4)
Groups 0 and 0+
Rear-facing seat
< 13 kg and 9 to
U (1) (2)
U (4)
U (4)
U (4)
U (4)
Groups 0+ and 1
18 kg
Forward-facing seat
9 to 18 kg
X
U (5)
U (5)
U (5)
U (5)
Group 1
Booster seat
15 to 25 kg and 22
X
U (5)
U (5)
U (5)
U (5)
Groups 2 and 3
to 36 kg
(1) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in this seat, make sure that the front
passenger airbag has been deactivated. ➥ 1.91.
1.74
CarManuals2.co
CHILD SEATS: attachment by seat belt (11/14)
X = Seat not suitable for fitting child seats of this type.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
(2) Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).
(3) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(4) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child seat.
(5) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situ-
ations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child
seat. ➥ 3.37. Do not push the seat in front of the child more than halfway back on its runners and do not recline the seatback
more than 25°.
1.75
CarManuals2.co
CHILD SEATS: attachment by seat belt (12/14)
The table below summarises the information already shown in the diagram on the following pages, to ensure the appli-
cable regulations are respected.
9-seater Bus/Combi version
Front seat
Rear seat
Weight of
3rd row
Type of child seat
Central
Side
2nd row
2nd row
3rd row
the child
centre
passenger
passenger
side seats
centre seat
side seats
seat
Carrycot fitted across
the vehicle
< 10 kg
X
X
U (2)
U (2)
U (2)
U (3)
Group 0
Rear-facing shell seat
< 13 kg
X
U (1)
U (3)
U (3)
U (3)
U (3)
Groups 0 and 0+
Rear-facing seat
< 13 kg and 9 to
X
U (1)
U (4)
U (3)
U (3)
U (3)
Groups 0+ and 1
18 kg
Forward-facing seat
9 to 18 kg
X
X
U (4)
U (4)
U (4)
U (4)
Group 1
Booster seat
15 to 25 kg and
X
X
U (4)
U (4)
U (4)
U (4)
Groups 2 and 3
22 to 36 kg
(1) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in this seat, make sure that the front
passenger airbag has been deactivated. ➥ 1.91.
1.76
CarManuals2.co
CHILD SEATS: attachment by seat belt (13/14)
X = Seat not suitable for fitting child seats of this type.
U = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
(2) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(3) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child seat.
(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situ-
ations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child
seat. ➥ 3.37. Do not push the seat in front of the child more than halfway back on its runners and do not recline the seatback
more than 25°.
1.77
CarManuals2.co
CHILD SEATS: attachment by seat belt (14/14)
9-seater combi/bus
Check the status of the airbag
³
before fitting a child seat or al-
lowing a passenger to use the seat.
Child seat attached using the belt
Seat which allows a child seat
¬
with “Universal” approval to be
attached by a seat belt.
Seat not suitable for fitting
²
child seats.
Using a child safety system
which is not approved for
RISK OF DEATH OR
this vehicle will not cor-
SERIOUS INJURY: before
rectly protect the baby or
fitting a rear-facing child
child. They risk serious or even fatal
seat in this seat, make sure
injury.
that the front passenger airbag has
been deactivated. ➥ 1.91.
1.78
CarManuals2.co
CHILD SEATS: attachment using the ISOFIX system (1/12)
5-seater Combi
Child seat attached using the ISOFIX
mounting
ü
Seat which allows an ISOFIX
child seat to be fitted.
±
The rear seats are fitted with
an anchorage point which allows a for-
ward-facing ISOFIX child seat with uni-
versal approval to be fitted. The anchor-
age points are located in the luggage
compartment and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
- A, B, B1 [F3, F2, F2X]: for for-
ward-facing seats in Group 1 (9 to 18
kg);
- C [R3]: for rear-facing seats in group
Seat which does not allow a
²
1 (9 to 18 kg);
child seat to be fitted.
- D, E [R2, R1]: for rear-facing seats or
shell seats in group 0 or 0+ (under 13
kg);
- F, G [L1, L2]: carrycots in group 0
(less than 10 kg);
Using a child safety system
- [B2]: boosters in groups 2 and 3 (15
which is not approved for
to 25 kg and 22 to 36 kg).
this vehicle will not cor-
rectly protect the baby or
child. They risk serious or even fatal
injury.
1.79
CarManuals2.co
CHILD SEATS: attachment using the ISOFIX system (2/12)
The table below summarises the information already shown on the diagram on the previous page, to ensure the applica-
ble regulations are respected.
5-seater Combi version
Seat size ISOFIX
Front
Rear side
Rear centre
Type of child seat
Weight of the child
[Height]
passenger seat
seat
seat
Carrycot fitted across
F, G
the vehicle
< 10 kg
X
IL (1)
X
[L1, L2]
Group 0
Rear-facing shell seat
E
< 13 kg
X
IL (2)
X
Groups 0 and 0+
[R1]
Rear-facing seat
C, D
< 13 kg and 9 to 18 kg
X
IL (2)
X
Groups 0+ and 1
[R3, R2]
Forward-facing seat
A, B, B1
9 to 18 kg
X
IUF-IL (3)
X
Group 1
[F3, F2, F2X]
Booster seat
15 to 25 kg and 22 to
[B2]
X
IUF-IL (3)
X
Groups 2 and 3
36 kg
Seat I-Size
X
X
X
1.80
CarManuals2.co
CHILD SEATS: attachment using the ISOFIX system (3/12)
X = Seat not suitable for fitting child seats ISOFIX.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(1) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(2) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child seat.
(3) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situ-
ations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child
seat. ➥ 3.37. Do not push the seat in front of the child more than halfway back on its runners and do not recline the seatback
more than 25°.
1.81
CarManuals2.co
CHILD SEATS: attachment using the ISOFIX system (4/12)
The table below summarises the information already shown in the diagram on the following pages, to ensure the appli-
cable regulations are respected.
6-seater Combi version
Front seat
Rear seat
Seat size
Weight of
Type of child seat
ISOFIX
the child
Central
Side
[Height]
Side
Central
passenger
passenger
Carrycot fitted across
F, G
the vehicle
< 10 kg
X
X
X
X
[L1, L2]
Group 0
Rear-facing shell seat
E
< 13 kg
X
X
IL (2)
X
Groups 0 and 0+
[R1]
Rear-facing seat
<
13 kg and
C, D
X
X
X
X
Groups 0+ and 1
9 to 18 kg
[R3, R2]
Forward-facing seat
A, B, B1
9 to 18 kg
X
X
IUF-IL (3)
X
Group 1
[F3, F2, F2X]
Booster seat
15 to 25 kg and
[B2]
X
X
IUF-IL (3)
X
Groups 2 and 3
22 to 36 kg
Seat I-Size
X
X
X
X
1.82
CarManuals2.co
CHILD SEATS: attachment using the ISOFIX system (5/12)
X = Seat not suitable for fitting child seats ISOFIX.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(1) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(2) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child seat.
(3) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situ-
ations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child
seat. ➥ 3.37. Do not push the seat in front of the child more than halfway back on its runners and do not recline the seatback
more than 25°.
1.83
CarManuals2.co
CHILD SEATS: attachment using the ISOFIX system (6/12)
6-seater Combi
Child seat attached using the ISOFIX
mounting
ü
Seat which allows an ISOFIX
child seat to be fitted.
±
The rear seats are fitted with
an anchorage point which allows a for-
ward-facing ISOFIX child seat with uni-
versal approval to be fitted. The anchor-
age points are located in the luggage
compartment and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
- A, B, B1 [F3, F2, F2X]: for for-
ward-facing seats in Group 1 (9 to 18
kg);
- C [R3]: for rear-facing seats in group
Seat which does not allow a
²
1 (9 to 18 kg);
child seat to be fitted.
- D, E [R2, R1]: for rear-facing seats or
shell seats in group 0 or 0+ (under 13
kg);
- F, G [L1, L2]: carrycots in group 0
(less than 10 kg);
Using a child safety system
- [B2]: boosters in groups 2 and 3 (15
which is not approved for
to 25 kg and 22 to 36 kg).
this vehicle will not cor-
rectly protect the baby or
child. They risk serious or even fatal
injury.
1.84
CarManuals2.co
CHILD SEATS: attachment using the ISOFIX system (7/12)
8-seater combi/bus
Child seat attached using the ISOFIX
mounting
ü
Seat which allows an ISOFIX
child seat to be fitted.
±
The rear seats are fitted with
an anchorage point which allows a for-
ward-facing ISOFIX child seat with uni-
versal approval to be fitted. The anchor-
age points are located in the luggage
compartment and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
- A, B, B1 [F3, F2, F2X]: for for-
ward-facing seats in Group 1 (9 to 18
kg);
- C [R3]: for rear-facing seats in group
Seat which does not allow a
²
1 (9 to 18 kg);
child seat to be fitted.
- D, E [R2, R1]: for rear-facing seats or
shell seats in group 0 or 0+ (under 13
kg);
- F, G [L1, L2]: carrycots in group 0
(less than 10 kg);
Using a child safety system
- [B2]: boosters in groups 2 and 3 (15
which is not approved for
to 25 kg and 22 to 36 kg).
this vehicle will not cor-
rectly protect the baby or
child. They risk serious or even fatal
injury.
1.85
CarManuals2.co
CHILD SEATS: attachment using the ISOFIX system (8/12)
The table below summarises the information already shown on the diagram on the previous page, to ensure the applica-
ble regulations are respected.
8-seater Bus/Combi version
Rear seat
Seat size
Front
Weight of
Type of child seat
ISOFIX
passenger
the child
2nd row
2nd row
3rd row
3rd row
[Height]
seat
side seats
centre seat
side seats
centre seat
Carrycot fitted
F, G
across the vehicle
< 10 kg
X
IL (1)
X
X
X
[L1, L2]
Group 0
Rear-facing shell
E
seat
< 13 kg
X
IL (2)
X
X
X
[R1]
Groups 0 and 0+
Rear-facing seat
< 13 kg and 9 to
C, D
X
IL (2)
X
X
X
Groups 0+ and 1
18 kg
[R3, R2]
Forward-facing
A, B, B1
seat
9 to 18 kg
[F3, F2,
X
IUF-IL (3)
X
X
X
Group 1
F2X]
Booster seat
15 to 25 kg and
[B2]
X
IUF-IL (3)
X
X
X
Groups 2 and 3
22 to 36 kg
Seat I-Size
X
X
X
X
X
1.86
CarManuals2.co
CHILD SEATS: attachment using the ISOFIX system (9/12)
X = Seat not suitable for fitting child seats ISOFIX.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(1) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(2) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child seat.
(3) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situ-
ations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child
seat. ➥ 3.37. Do not push the seat in front of the child more than halfway back on its runners and do not recline the seatback
more than 25°.
1.87
CarManuals2.co
CHILD SEATS: attachment using the ISOFIX system (10/12)
The table below summarises the information already shown on the diagram on the following pages, to ensure the ap-
plicable regulations are respected.
9-seater Bus/Combi version
Front seat
Rear seat
Seat size
Type of
Weight of
ISOFIX
3rd row
child seat
the child
Central
Side
2nd row
2nd row
3rd row
centre
[Height]
passenger
passenger
side seats
centre seat
side seats
seat
Carrycot fitted
F, G
across the vehicle
< 10 kg
X
X
X
X
X
X
[L1, L2]
Group 0
Rear-facing shell
E
seat
< 13 kg
X
X
IL (2)
X
X
X
[R1]
Groups 0 and 0+
<
13 kg
Rear-facing seat
C,D
and 9 to 18
X
X
X
X
X
X
Groups 0+ and 1
[R3, R2]
kg
Forward-facing
A, B, B1
seat
9 to 18 kg
[F3, F2,
X
X
IUF-IL (3)
X
X
X
Group 1
F2X]
15 to 25 kg
Booster seat
and 22 to
[B2]
X
X
IUF-IL (3)
X
X
X
Groups 2 and 3
36 kg
Seat I-Size
X
X
X
X
X
X
1.88
CarManuals2.co
CHILD SEATS: attachment using the ISOFIX system (11/12)
X = Seat not suitable for fitting child seats ISOFIX.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(1) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(2) Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child seat.
(3) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. In all situ-
ations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the child
seat. ➥ 3.37. Do not push the seat in front of the child more than halfway back on its runners and do not recline the seatback
more than 25°.
1.89
CarManuals2.co
CHILD SEATS: attachment using the ISOFIX system (12/12)
9-seater combi/bus
Child seat attached using the ISOFIX
mounting
ü
Seat which allows an ISOFIX
child seat to be fitted.
±
The rear seats are fitted with
an anchorage point which allows a for-
ward-facing ISOFIX child seat with uni-
versal approval to be fitted. The anchor-
age points are located in the luggage
compartment and are visible.
The size of the ISOFIX child seat is in-
dicated by a letter:
- A, B, B1 [F3, F2, F2X]: for for-
ward-facing seats in Group 1 (9 to 18
kg);
- C [R3]: for rear-facing seats in group
Seat which does not allow a
²
1 (9 to 18 kg);
child seat to be fitted.
- D, E [R2, R1]: for rear-facing seats or
shell seats in group 0 or 0+ (under 13
kg);
- F, G [L1, L2]: carrycots in group 0
(less than 10 kg);
Using a child safety system
- [B2]: boosters in groups 2 and 3 (15
which is not approved for
to 25 kg and 22 to 36 kg).
this vehicle will not cor-
rectly protect the baby or
child. They risk serious or even fatal
injury.
1.90
CarManuals2.co
CHILD SAFETY: deactivating, activating AIRBAG front passenger (1/3)
DANGER
Since operation of the front
passenger airbag is not
compatible with the po-
sition of a rear-facing child seat,
2
NEVER fit a rear-facing child re-
straint system in a seat protected
by an ACTIVATED front AIRBAG.
This can lead to the DEATH of the
1
CHILD or SERIOUS INJURY.
Deactivating the front
To deactivate the airbag: with the
vehicle stationary and the ignition
passenger airbag
switched off,push and turn lock 1 to
Before installing a child seat on the
the OFF position.
The passenger airbag may
front passenger seat:
When the ignition is switched on, you
only be activated or deacti-
- check that the child seat can be in-
vated when the vehicle is
stalled on this seat;
must check that the ]
warning
stationary with the igni-
light is lit on the 2 display and, depend-
tion off.
- it is essential to deactivate the
ing on the vehicle, that the message
airbagfor a rear-facing child seat.
If it is interfered with when the ve-
“Passenger airbag off” is displayed.
hicle is being driven, indicator lights
This light remains permanently lit to
let you know that you can fit a child
å
seat.
Switch the ignition off then on again
to reset the airbag in accordance
with the lock position.
1.91
CarManuals2.co
CHILD SAFETY: deactivating, activating AIRBAG front passenger (2/3)
3
A
A
The markings on the dashboard and
labels A on each side of the passen-
ger sun visor 3 (example: label shown
above) remind you of these instruc-
tions.
DANGER
Since operation of the front
passenger airbag is not
compatible with the po-
sition of a rear-facing child seat,
NEVER fit a rear-facing child re-
straint system in a seat protected
by an ACTIVATED front AIRBAG .
This can lead to the DEATH of the
CHILD or SERIOUS INJURY.
1.92
CarManuals2.co
CHILD SAFETY: deactivating, activating AIRBAG front passenger (3/3)
Operating faults
It is forbidden to fit a rear-facing child
seat to the front passenger seat if the
airbag activation/deactivation system is
faulty.
Allowing any other passenger to sit in
that seat is not recommended.
2
Contact your approved dealer as soon
as possible.
1
Activating the front
To restart the airbag
: vehicle
stopped, ignition switched off, press
passenger airbag
and turn the lock to1 position ON.
You should reactivate the airbag as
When the ignition is switched on, you
The passenger airbag may
soon as you remove the child seat from
only be activated or deacti-
the front passenger seat to ensure the
must check that the ]
warning
vated when the vehicle is
protection of the front passenger in the
stationary with the igni-
event of an impact.
light is off and that the
warning
tion off.
light comes on the display 2 after each
start-up for around 60 seconds.
If it is interfered with when the ve-
hicle is being driven, indicator lights
The front passenger airbag is activated.
å
Switch the ignition off then on again
to reset the airbag in accordance
with the lock position.
1.93
CarManuals2.co
DRIVING POSITION: LEFT-HAND DRIVE (1/2)
1
2
3
4
5
6
7
8
9
10
11
9
12
2
1
26
25
24
23
22
21
20
19
18
16
15
14
13
17
1.94
CarManuals2.co
DRIVING POSITION: LEFT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
1
Side air vents.
10 Touch screen or radio or upper cen-
20 Engine start/stop button.
tral storage compartment.
2
Location for ashtray or cup holder.
21 Ignition switch for vehicles with key.
11 Storage compartment.
3
Stalk for:
22 Control for adjusting steering wheel
- direction indicators;
12 Passenger storage compartment lo-
reach.
- exterior lights;
cation.
23 Storage compartment.
- front fog lights;
13 glove box or storage drawer.
- rear fog lights.
24 Bonnet release control.
14Accessories socket or cigarette
4
Instrument panel.
25 Cruise control/speed limiter main
lighter.
controls.
5
Driver airbag and horn location.
15 Manual or automatic air conditioning
26 Controls for:
6
Controls for:
controls.
- headlight beam height remote
- on-board computer information
16 Storage compartment or induction
adjustment;
read-out and vehicle settings
charging area.
- lighting rheostat for control
customisation menu;
instru- ments;
- remote radio and navigation
17 Handbrake.
- activation/deactivation of the
system.
18 Controls for:
lane departure warning.
7
Stalk:
- hazard warning lights switch;
- the windscreen and rear screen
- ECO mode switch;
washers/wipers;
- central door locking/unlocking
- trip computer and warning
controls;
system information read-out.
- activation/deactivation of the
Stop and Start function;
8
Multimedia controls.
- activation/deactivation of Park
9
Centre air vents.
Assist;
- activation/deactivation of trac-
tion control,
19 Gearstick.
1.95
CarManuals2.co
DRIVING POSITION: RIGHT-HAND DRIVE (1/2)
1
2
3
4
5
6
4
7
8
9
10
11
2
1
21
19
18
17
16
15
14
13
12
26
25
24
23
22
20
1.96
CarManuals2.co
DRIVING POSITION: RIGHT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
1 Side air vents.
11 Stalk:
19 Engine start/stop button.
- the windscreen and rear screen
2 Location for cup holders.
20 Handbrake.
washers/wipers;
3 Passenger airbag location.
- trip computer and warning
21 Gearstick.
system information read-out.
4 Centre air vents.
22 Manual or automatic air conditioning
12 Controls for:
controls.
5 Storage compartment.
- headlight beam height remote
23 Controls for:
6 Touch screen or radio or upper cen-
adjustment;
- hazard warning lights switch;
tral storage compartment.
- lighting rheostat for control
- ECO mode switch;
7 Stalk:
instru- ments;
- central door locking/unlocking
- direction indicators;
- activation/deactivation of the
controls;
- exterior lights;
lane departure warning.
- activation/deactivation of the
- front fog lights;
Stop and Start function;
13 Multimedia controls.
- rear fog lights.
- activation/deactivation of Park
14 Bonnet release control.
Assist;
8 Instrument panel.
15 Storage compartment.
- activation/deactivation of trac-
9 Driver airbag and horn location.
tion control,
16 Ignition switch for vehicles with key.
10 Controls for:
24 Storage compartment or induction
- on-board computer information
17 Control for adjusting steering wheel
charging area.
read-out and vehicle settings
reach.
customisation menu;
25 Accessories socket or cigarette
18 Cruise control/speed limiter main
- remote radio and navigation
lighter.
controls.
system.
26 Glovebox.
1.97
CarManuals2.co
REAR VIEW MIRRORS (1/2)
Folding door mirrors
Heated door mirrors
The door mirrors automatically fold out
Depending on the vehicle, with the
when the vehicle is unlocked (switch 3
engine running, the mirrors are heated
in position B). The door mirrors fold in
in conjunction with the rear windows.
when the vehicle is locked.
In any case, you can make the rear view
mirrors fold in (switch 3 in position C) or
fold out (switch 3 in position A).
2
1
Automatic mode is then deactivated. To
reactivate it, position switch 3 to B.
3
A
B
C
Electrically-adjustable door
mirrors
Adjustment
For safety reasons, carry
With the ignition on, select the rear
out any adjustments when
view mirror using switch 2, then button 1
the vehicle is stationary.
to adjust it to the desired position.
Objects observed in the
door mirror glass are actu-
ally closer than they appear.
For your safety, take this
into account in order to correctly
assess the distance before any ma-
noeuvre.
1.98
CarManuals2.co
REAR VIEW MIRRORS (2/2)
D
E
5
6
E
F
4
D
F
Interior rear view mirror
Wide angle rear view mirror 6
The various zones seen by the driver
(depending on the vehicle)
are:
Its position can be adjusted.
Lower the sun visor 5 to access the
- D in the the wide-angle rear view
Rear view mirror with lever 4
wide angle rear view mirror to increase
mirror;
When driving at night, to avoid being
side vision when manoeuvring.
- E via the passenger window;
dazzled by the headlights of the vehicle
- F in the exterior rear view mirror.
behind, depress the little lever located
behind rear view mirror 4.
Objects observed in the
Rear view mirror without lever 4
door mirror glass are actu-
The rear view mirror automatically dark-
ally closer than they appear.
ens when you are being followed by a
For your safety, take this
vehicle using main beam headlights or
into account in order to correctly
in very bright lighting.
assess the distance before any ma-
noeuvre.
1.99
CarManuals2.co
