ASSISTED PARKING (5/5)

This function is an additional driving aid. This function is not under any circumstances intended to replace the due care

and attention of the driver, who should at all times be in control of the vehicle. Make sure that the manoeuvre complies

with the applicable traffic regulations in your location.

The driver should always be ready for sudden incidents while driving: always ensure that there are no small, narrow

moving obstacles (such as a child, animal, pushchair, bicycle, stone, post, towing equipment, etc.) in the blind spot when

manoeuvring.

System servicing/repairs

- In the event of an impact, the alignment of the sensors may be changed and their operation may consequently be affected.

Deactivate the function and consult an authorised dealer.

- Any work in the area where the sensors are located (repairs, replacements, exterior trim modifications, etc.) must be carried

out by a qualified professional.

Only an authorised dealer is qualified to service the system.

In the event of system disturbance

Certain conditions may disrupt or impair operation of the system, such as poor weather conditions (snow, hail, ice, etc.).

In the event of the system behaving abnormally, deactivate it and consult an authorised dealer.

Risk of erroneous false alarms.

Limitations of the system operation

- The system cannot detect objects located in the sensor blind spots.

- Always visually check that the parking space proposed by the system is still available and contains no obstacles.

- The system should not be used when towing a trailer or when there is a towing or load carrying system on the vehicle or on

surrounding vehicles.

2.151

CarManuals2.co

AUTOMATIC TRANSMISSION (1/4)

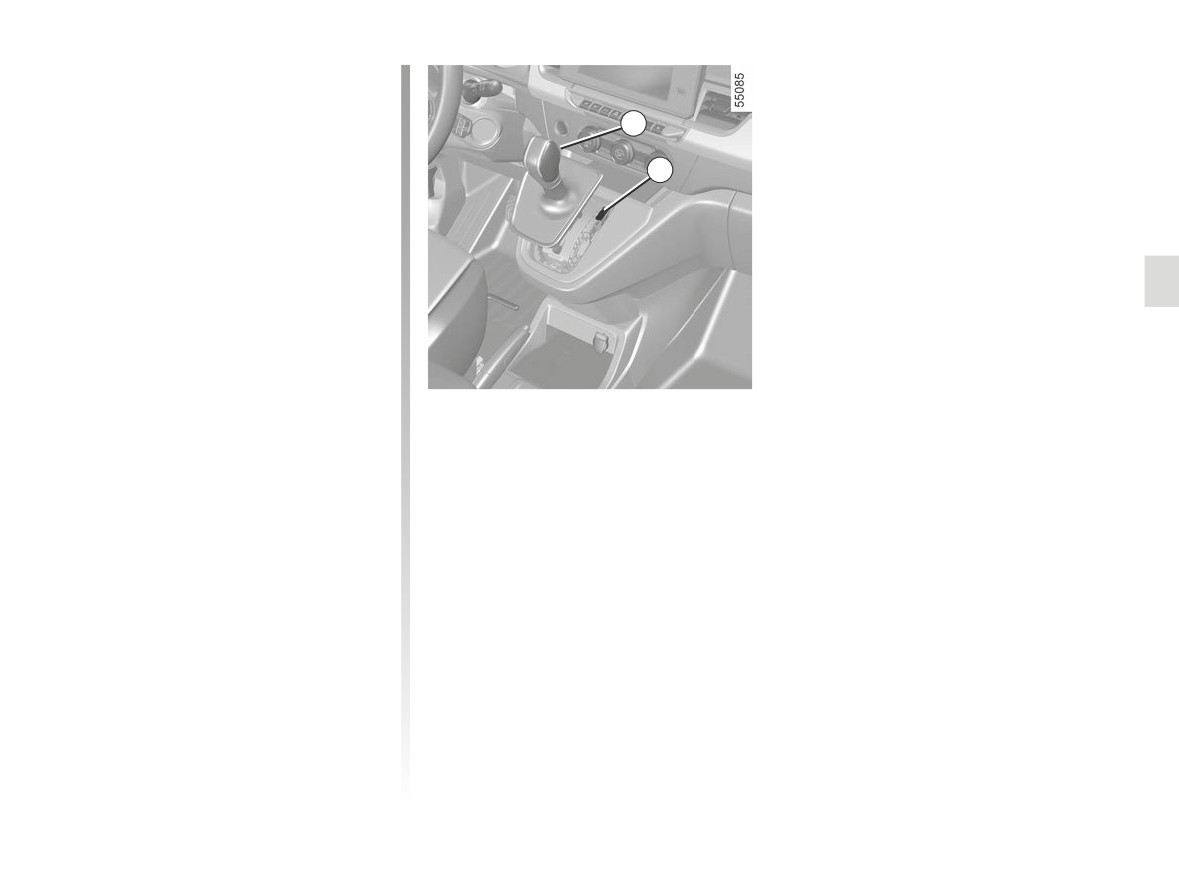

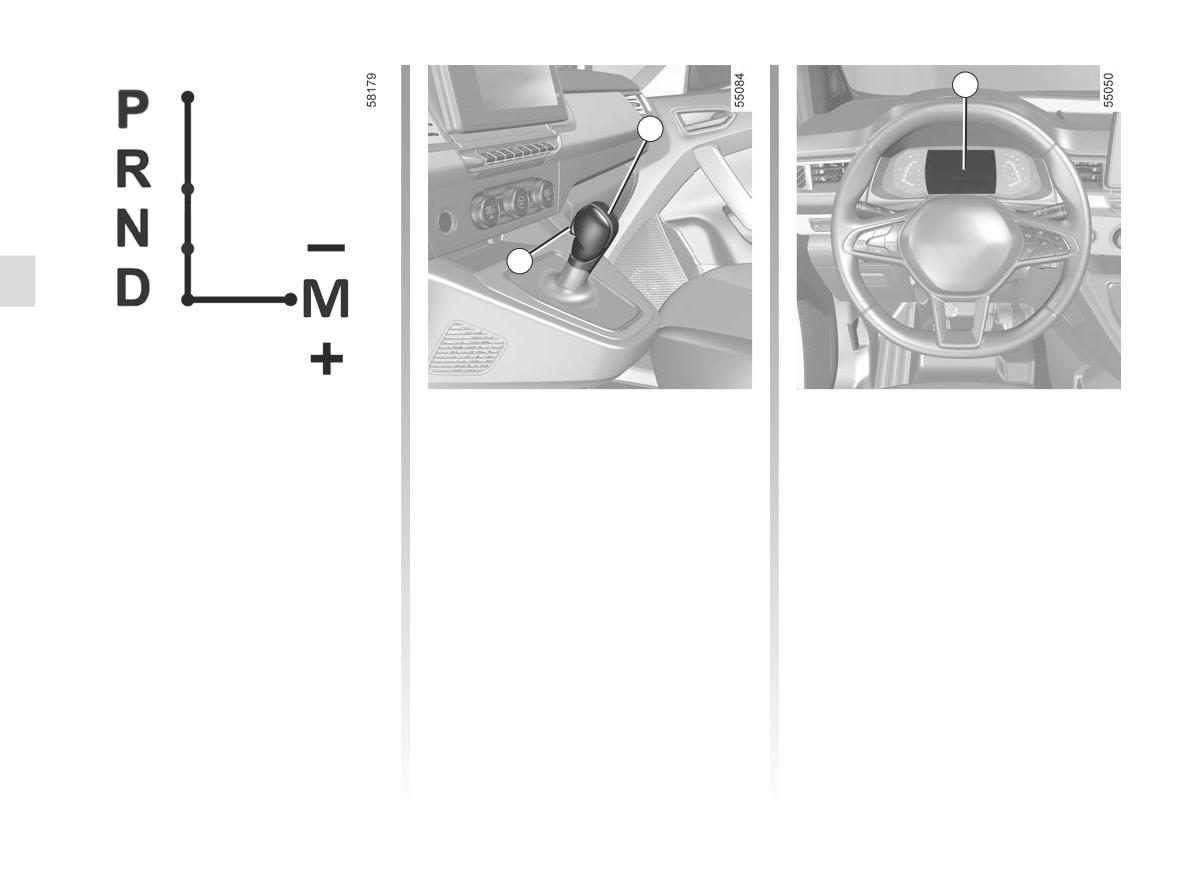

Selector lever 1

Operation

Only engage D or R when the vehi-

cle is stopped, with your foot on the

P: park

With the selection lever 1 in position P,

brake and the accelerator pedal re-

switch on the ignition.

R: reverse

leased.

To move out of position P, you must de-

N: Neutral

press the brake pedal before pressing

D: automatic mode

the unlocking button 2.

M: Manual mode

With your foot on the brake pedal (warn-

+: upshifting gear

ing light Ó

on the display goes out),

-: descending gear

move the lever out of position P.

The gear currently engaged is dis-

played on the instrument panel A.

Note: Press button 2 to go from posi-

tion D or N to R or P.

2.152

CarManuals2.co

AUTOMATIC TRANSMISSION (2/4)

Driving in automatic mode

Driving in manual mode

Special circumstances

Put lever 1 into position D.

With the selector lever in position D,

- If the road type or weather condi-

move the lever to the right into the M

tions

(steep uphill slopes, sudden

In most road conditions you will en-

position. Shifting the lever repeatedly

downhill slopes, deep snow, sand

counter, you will not need to touch your

allows you to change gears manually:

or mud) make it difficult to stay in

lever again: the gears will change au-

- to move down through the gears,

automatic mode, depending on the

tomatically at the right time and at the

push the lever forwards;

vehicle, it is advisable to switch to

most suitable engine speed because

- to move up through the gears, push

manual mode using the paddles.

the automatic system takes into ac-

the lever backwards.

This will prevent the automatic gear-

count the vehicle load and road contour

The gear selected is displayed on the

box from changing gears repeatedly

and adjusts itself to the particular driv-

instrument panel.

when climbing, and permit engine

ing style you have chosen.

braking on long descents.

Economical driving

- In cold weather, to prevent the

Special cases

When driving, always leave the lever

engine from stalling, wait a few sec-

In certain driving conditions (resulting

in position D, keeping the accelerator

onds before moving the selector

in, for example, engine protection, oper-

pedal lightly depressed to ensure auto-

lever from position P or N and en-

ation of the Electronic Stability Control

matic gear changes at a lower engine

gaging it in D or R.

programme: ESC etc.) the automated

speed.

system may change the gear automati-

cally. Likewise, to prevent incorrect ma-

Accelerating and overtaking

noeuvres, a gear change may be re-

Depress the accelerator pedal firmly

fused by the automatic system: in this

and fully (so that it goes beyond the

case the gear display flashes for a few

kickdown point).

seconds as a warning.

This will enable you to change down

to the optimum gear within the

engine range.

When facing uphill, to remain

stopped, do not keep your foot on

the accelerator.

Risk of overheating the automatic

gearbox.

2.153

CarManuals2.co

AUTOMATIC TRANSMISSION (3/4)

Parking the vehicle

Maintenance period

When the vehicle is stopped, move the

Refer to the maintenance document

lever to position P while keeping your

for your vehicle or consult an Approved

foot on the brake pedal: the gearbox is

Dealer to check whether the automatic

in neutral and the drive wheels are me-

gearbox requires scheduled mainte-

chanically locked by the driveshaft.

nance.

Apply the handbrake or, depending

If it does not need to be serviced, there

on the vehicle, ensure that the elec-

is no need to top up the oil.

tronic parking brake is applied.

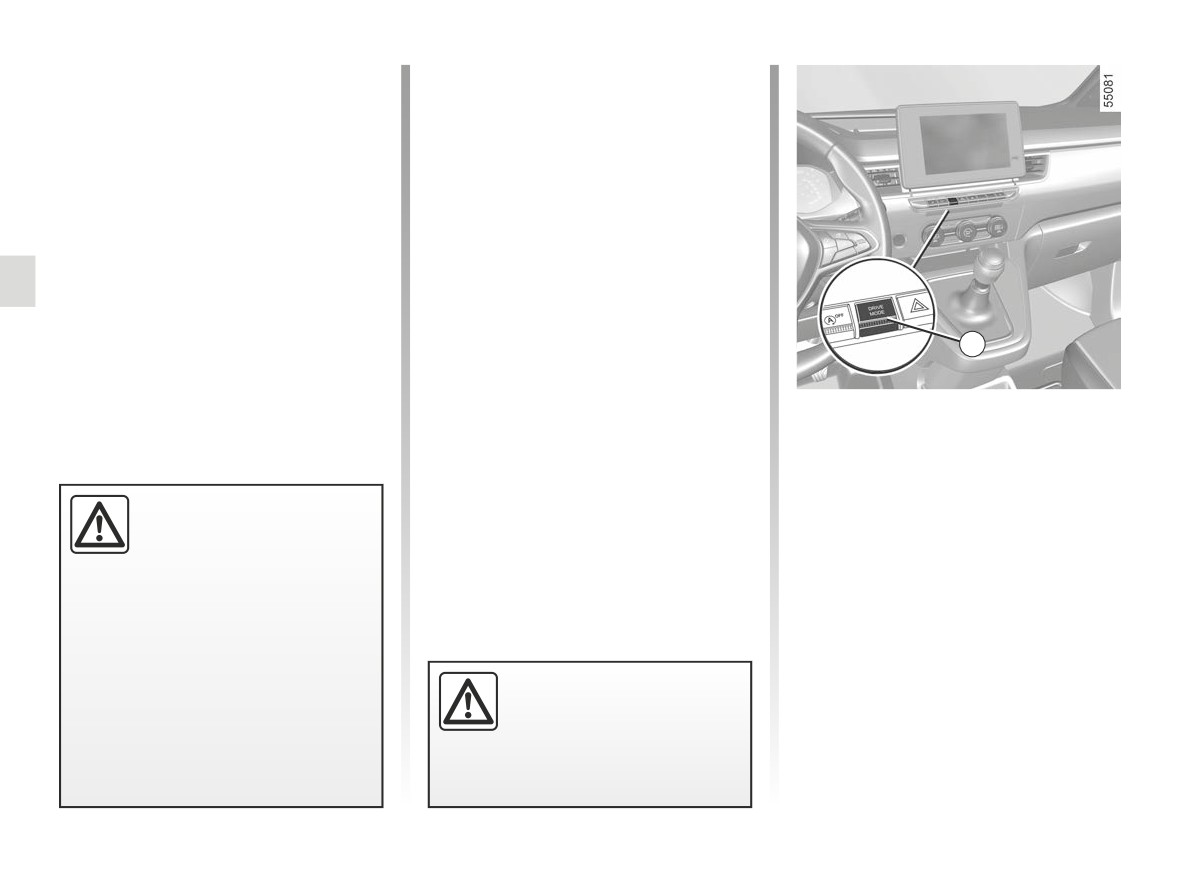

Load mode

When the vehicle is driven loaded,

press the 3 switch on the dashboard.

The indicator light Perfo on the instru-

ment panel will light up.

An impact to the under-

side of the vehicle while

Load mode is deselected every time

manoeuvring

(e.g.: strik-

the engine is switched off. It will be nec-

ing a post, raised kerb or

essary to select it again.

other street furniture) may result in

Load mode may be used to equal effect

damage to the vehicle (e.g.: defor-

in both automatic and manual modes.

mation of an axle).

To avoid any risk of accident, have

your vehicle checked by an ap-

For safety reasons, do not

proved Dealer.

switch off the ignition before

the vehicle has come to a

complete standstill.

2.154

CarManuals2.co

AUTOMATIC TRANSMISSION (4/4)

Operating faults

- When driving, if the “WARNING:

Check Gearbox” message appears

on the instrument panel, it indicates

a fault.

Contact your approved Dealer as

soon as possible;

- When driving, if the message

“WARNING: Gearbox Overheating”

appears on the instrument panel,

stop as soon as possible to allow the

gearbox to cool down and wait for

the message to disappear.

- Breakdown of a vehicle with an

automatic gearbox ➥ 5.40.

When setting off, if the lever is stuck in

P when you press the brake pedal (e.g.

battery fault), it is possible to manually

release the lever to unblock the drive

wheels. To do this, unclip the base of

the gaiter and press the 4 button while

simultaneously pressing the 2 button

on the lever to unlock the lever and shift

to position N.

Contact an authorised dealer as soon

as possible.

2.155

CarManuals2.co

VEHICLE WITH OVERSPEED FUNCTION

Special case: if your vehicle is fitted

with the Cruise control/Speed limiter,

fully pressing the accelerator pedal

(beyond the kickdown point) will not

enable you to exceed the overspeed

function set speed. ➥ 2.96.

The vehicle speed may be permanently

set at a fixed value depending on the

vehicle or on local legislation.

To adjust the value or activate/deacti-

vate the function, consult an approved

dealer.

In the event of statutory limits, depend-

ing on the vehicle, this function cannot

be deactivated.

Label 1 attached to the dashboard

The function does not take

shows the speed limit.

the place of the driver.

Under no circumstances

should it replace observa-

In exceptional circumstances (e.g.

tion of speed limits nor vigilance

steep gradient), the overspeed func-

and responsibility on the part of the

tion speed may be exceeded slightly

driver.

as the function does not affect the

braking system.

2.156

CarManuals2.co

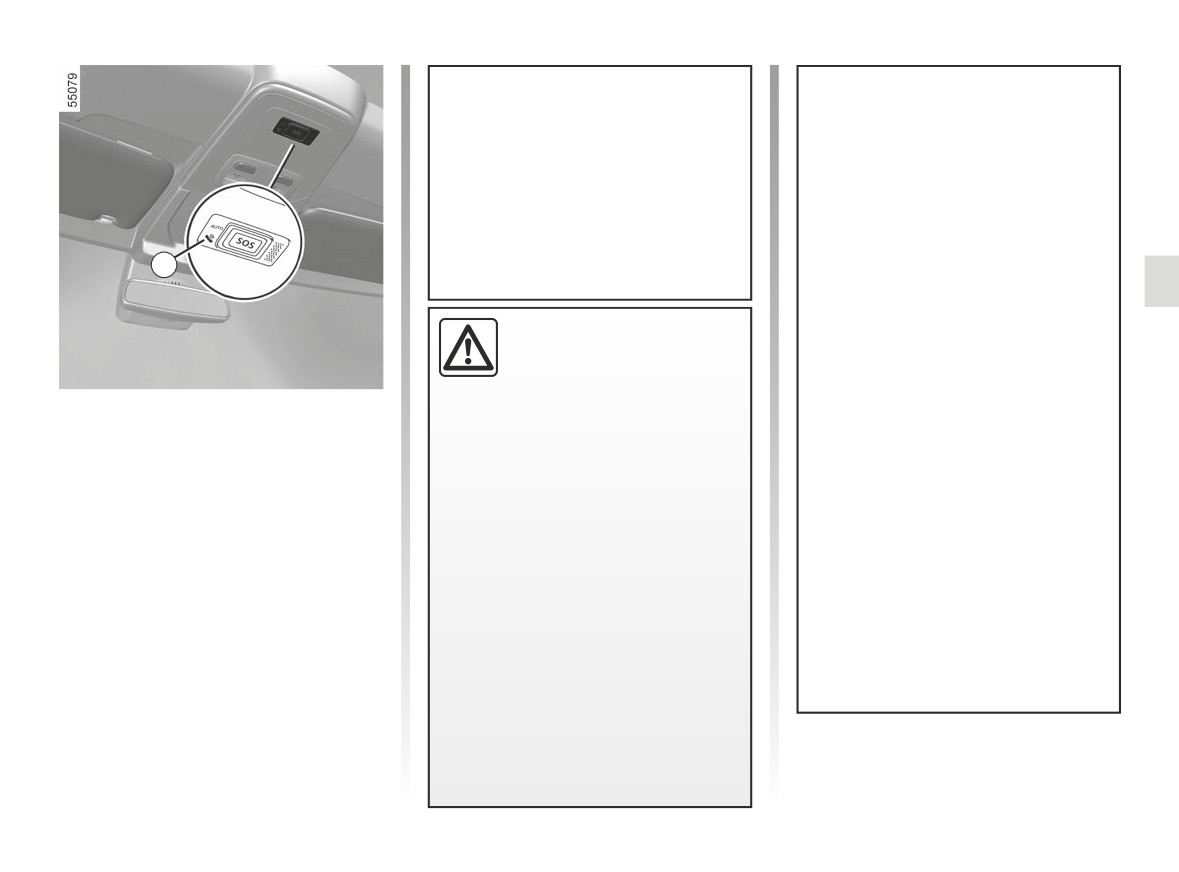

EMERGENCY CALL (1/3)

If the vehicle is equipped, the emer-

gency call function can be used to

call the emergency services (without

charge) automatically or manually in

the event of an accident or illness, re-

ducing the time it takes for the emer-

gency services to arrive.

Note: the emergency call operates:

- in countries covered by the associ-

ated telematics emergency services

and infrastructure compatible with

the system;

- depending on the network coverage

in the geographical region where the

vehicle is being driven.

System operation warning light:

If you use the emergency call function

- green: operational

to report an accident which you have

(network available);

witnessed, this implies stopping where

- off: non-operational

traffic conditions allow in order for the

Use the emergency call only in the

(network unavailable);

emergency services to locate your ve-

event of an emergency you are in-

- red: operating

hicle and therefore the location of the

volved in, if you witness an accident

fault;

reported accident.

or if you feel ill.

- green flashing: call in progress.

In all cases, comply with local legisla-

Automatic mode warning light;

tion.

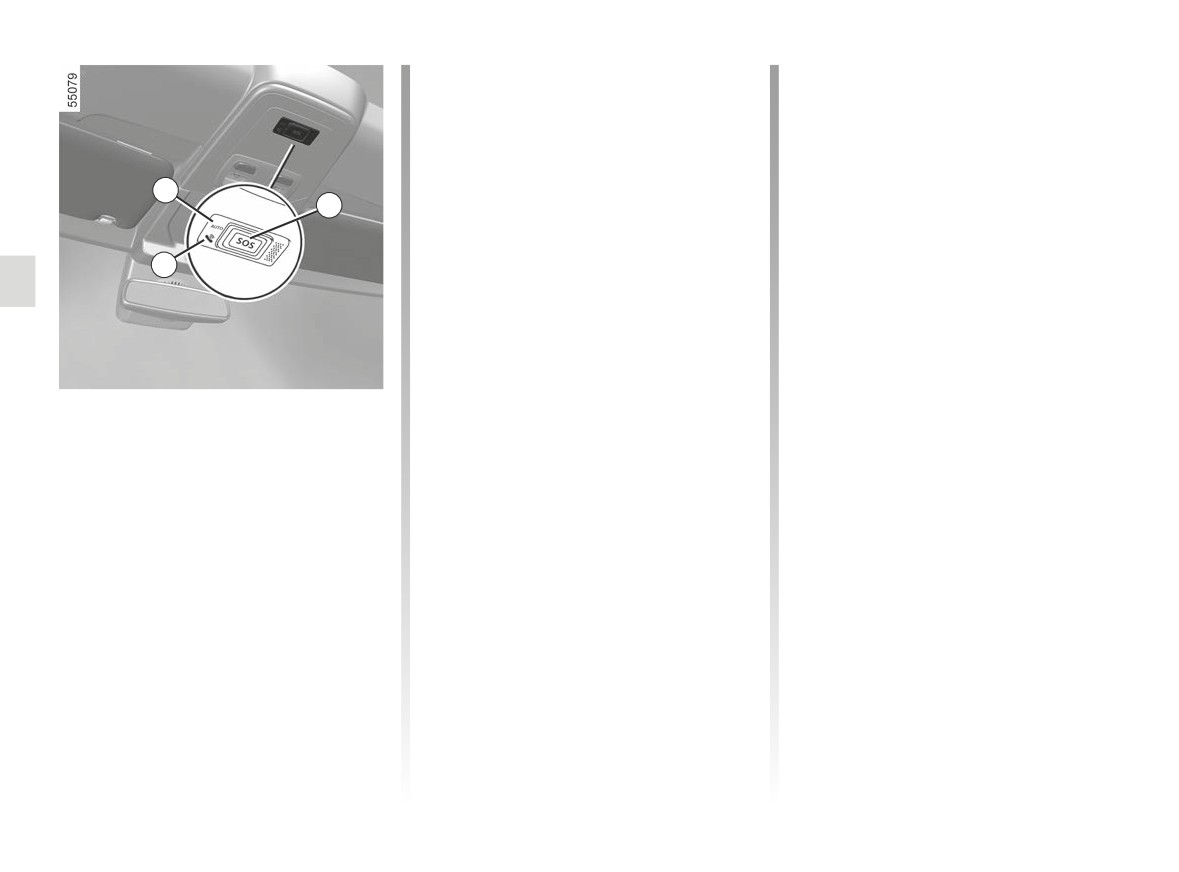

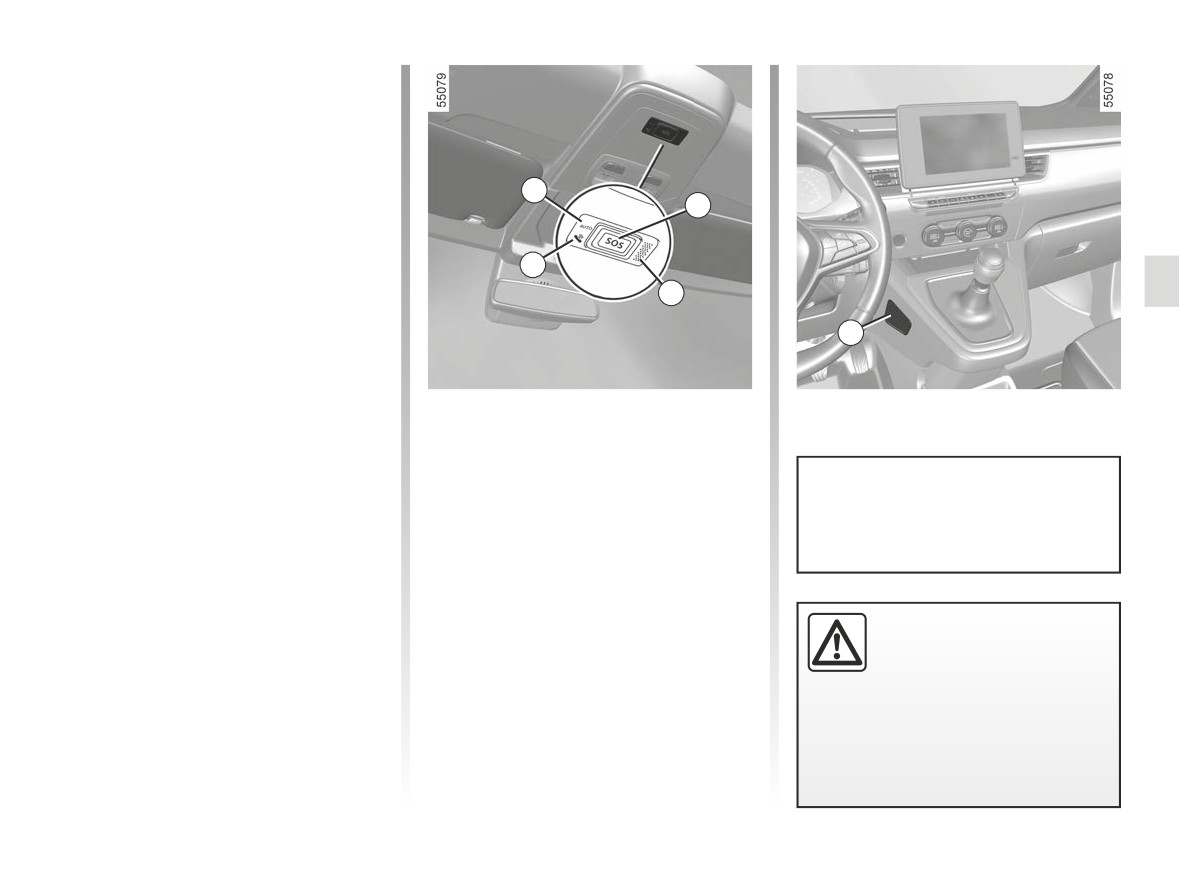

SOS button;

Microphone;

In the event of an acci-

Speaker.

dent, if the location and traf-

fic conditions permit, stay

close to the vehicle in order

to be able answer the call centre

quickly if necessary.

2.157

CarManuals2.co

EMERGENCY CALL (2/3)

Automatic mode

Test mode

(depending on local laws)

If the automatic mode 2 warning light

appears in green this confirms that the

Test mode is reserved exclusively for

automatic system is activated.

Approved Dealers to check that the

emergency call feature is working prop-

The emergency call starts automati-

erly.

cally in the event of an accident that

has required the activation of the pro-

To activate test mode:

tective equipment (seat belt pretension-

- briefly press the 3 button three times;

ers, airbag etc.).

- wait approximately 15 seconds;

Manual mode

- briefly press the 3 button three times.

The emergency call is carried out by:

Exit from test mode is automatic.

- pressing and holding the 3 button for

at least three seconds;

A call is always made as follows:

- the call is set up with the emergency

- pressing the

3 button five times

services;

within ten seconds.

- send data related to the incident (ve-

In the event of unintended operation, it

hicle identification plate, local time

is possible to cancel the call by press-

of the call, last positions, direction of

ing the 3 button for around two sec-

the vehicle) ;

onds, before the call is connected to

the call centre.

- voice communication with the emer-

gency services;

Once a call is established, only the call

centre can end the call.

- if necessary, emergency assistance

is called.

Emergency call has two modes:

- automatic mode;

- Manual mode.

2.158

CarManuals2.co

EMERGENCY CALL (3/3)

The system operates with a dedi-

cated battery. The battery serv-

ice life is approximately four years

(the 1 warning light lights up in red

Without the emergency call feature,

to warn you when approaching

the system is not trackable and will

expiry).

not be under constant surveillance.

Consult an approved dealer

Data is automatically and constantly

erased, and the system stores only

the last three positions of the vehi-

cle.

To guarantee your safety

and the proper operation of

According to local legislation, data

the system, any operation

is only sent in the event of an emer-

carried out on the battery

gency call. Data sent to the call

Operating faults

(removal, disconnection, etc.) must

centre is treated according to the

In some cases, the emergency call may

be carried out by a qualified special-

personal data protection laws appli-

not work (e.g. low battery).

ist.

cable in the country where you are

located. The system stores activity

When the system detects an operating

Risk of serious burns or electric

history data for 13 hours only.

fault, the 1 warning light turns red for

shocks.

over 30 minutes; consult an Approved

The vehicle owner has the right of

You must respect the replacement

Dealer as soon as possible.

access to their data. They can re-

intervals (without exceeding them)

quest that the data be corrected,

as stated in the maintenance docu-

deleted or locked.

ment.

The battery is a specific type.

Please ensure it is replaced with the

same type.

Call an approved Dealer.

2.159

CarManuals2.co

Section 3: Your comfort

Air vents

3.2

Manual air conditioning, heating system

3.5

Automatic climate control

3.9

Air conditioning: information and advice on use

3.14

Multimedia equipment

3.16

Electric windows

3.19

Interior lighting

3.22

Sun visor, mirrors, grab handle

3.24

Passenger compartment storage, fittings

3.25

Accessories socket

3.32

Rear headrests

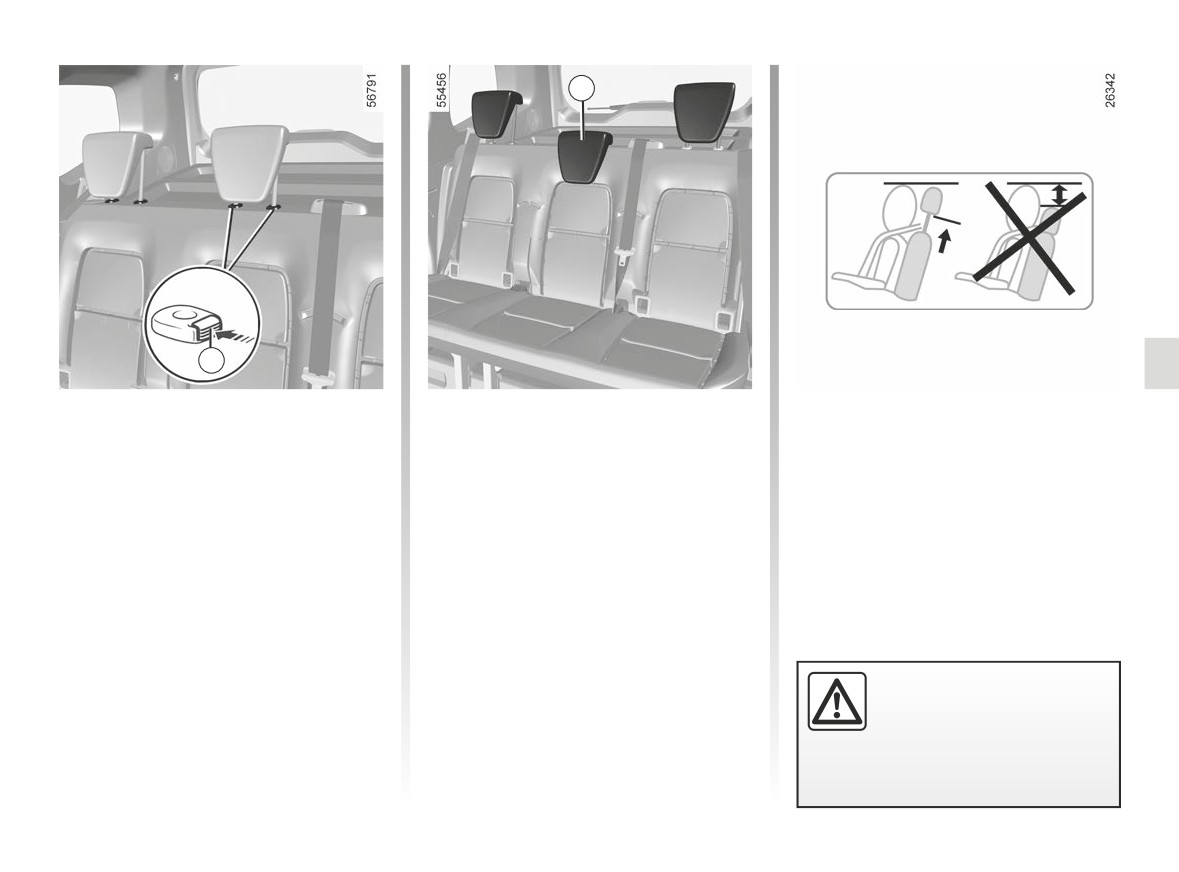

3.33

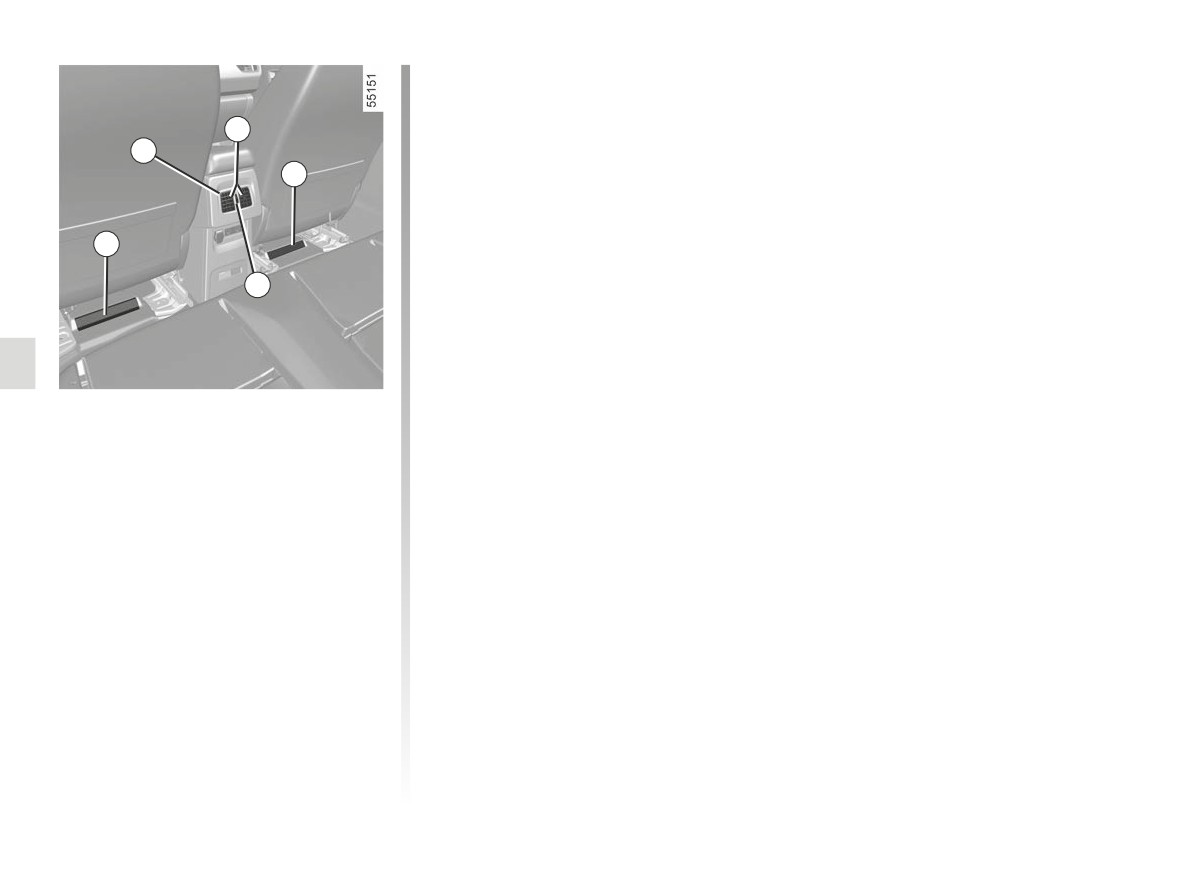

Rear bench seat: functions

3.34

Rear parcel shelf

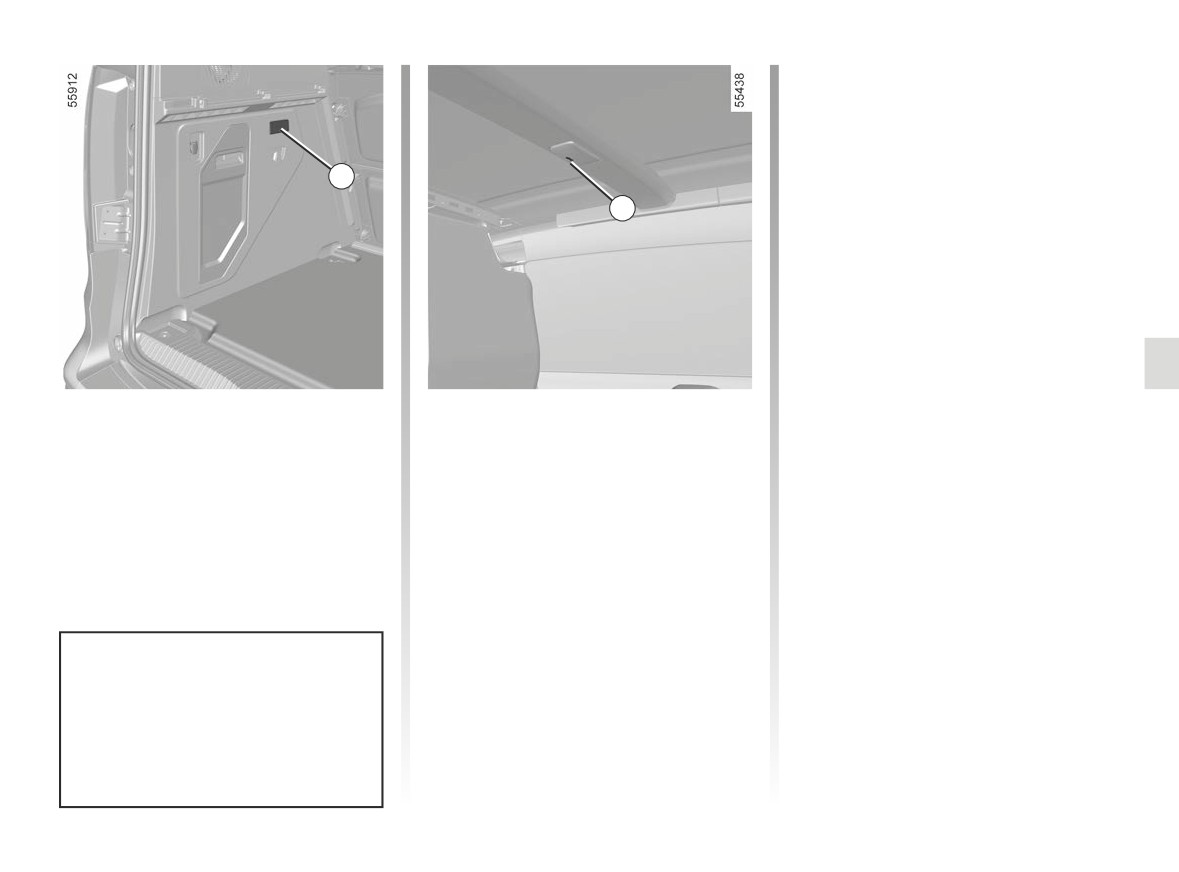

3.36

Luggage net

3.37

Luggage compartment storage space and fittings

3.38

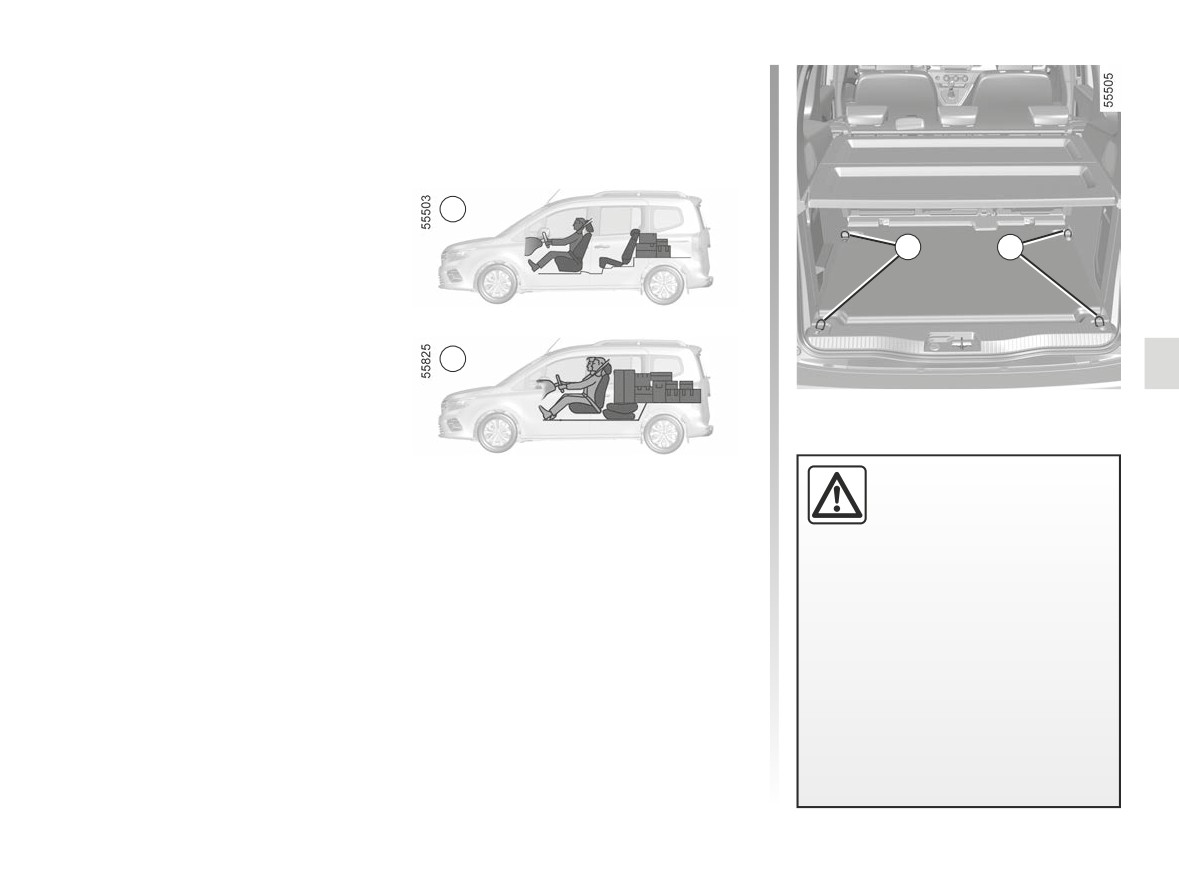

Transporting objects in the luggage compartment

3.39

Transporting objects: towbar

3.43

Roof bars

3.44

Roof anchorage points

3.46

3.1

CarManuals2.co

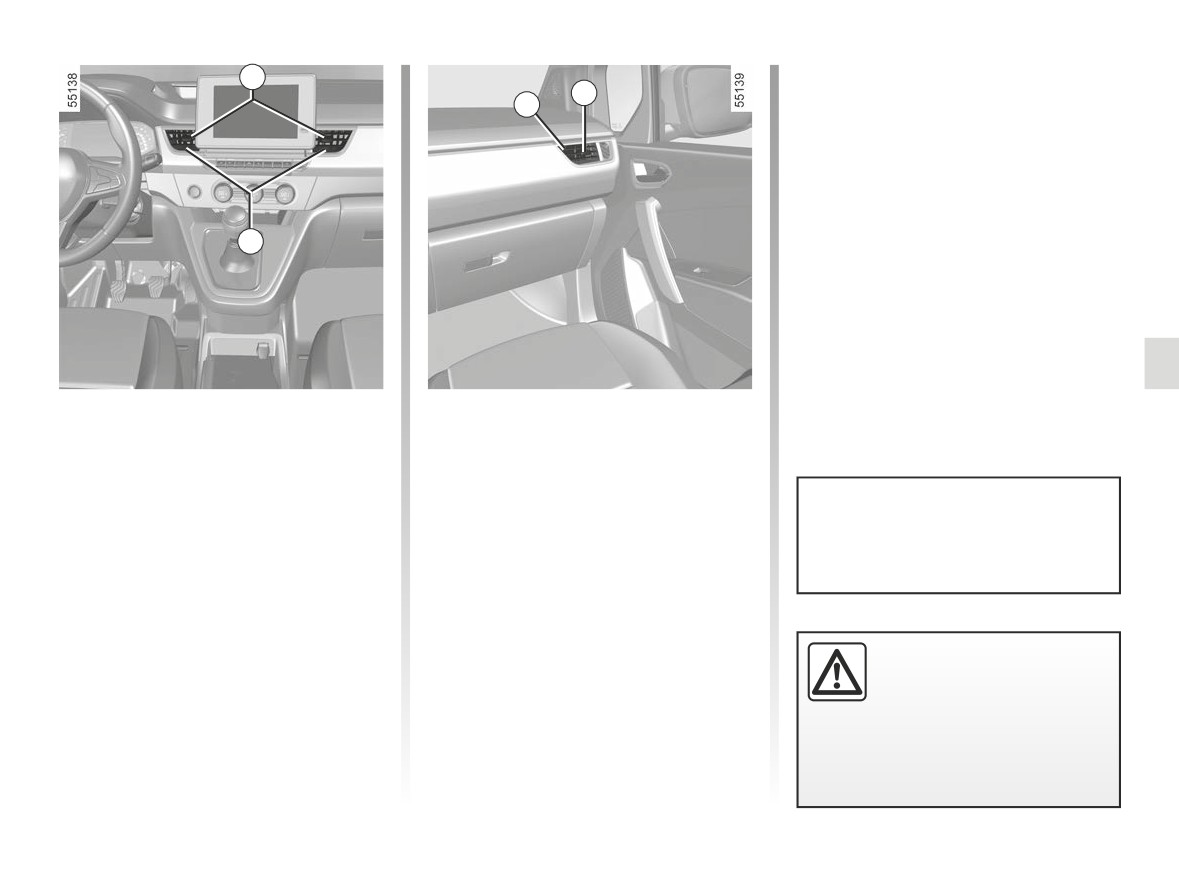

AIR VENTS, air outlets (2/3)

Centre air vents 4

Side air vents 2

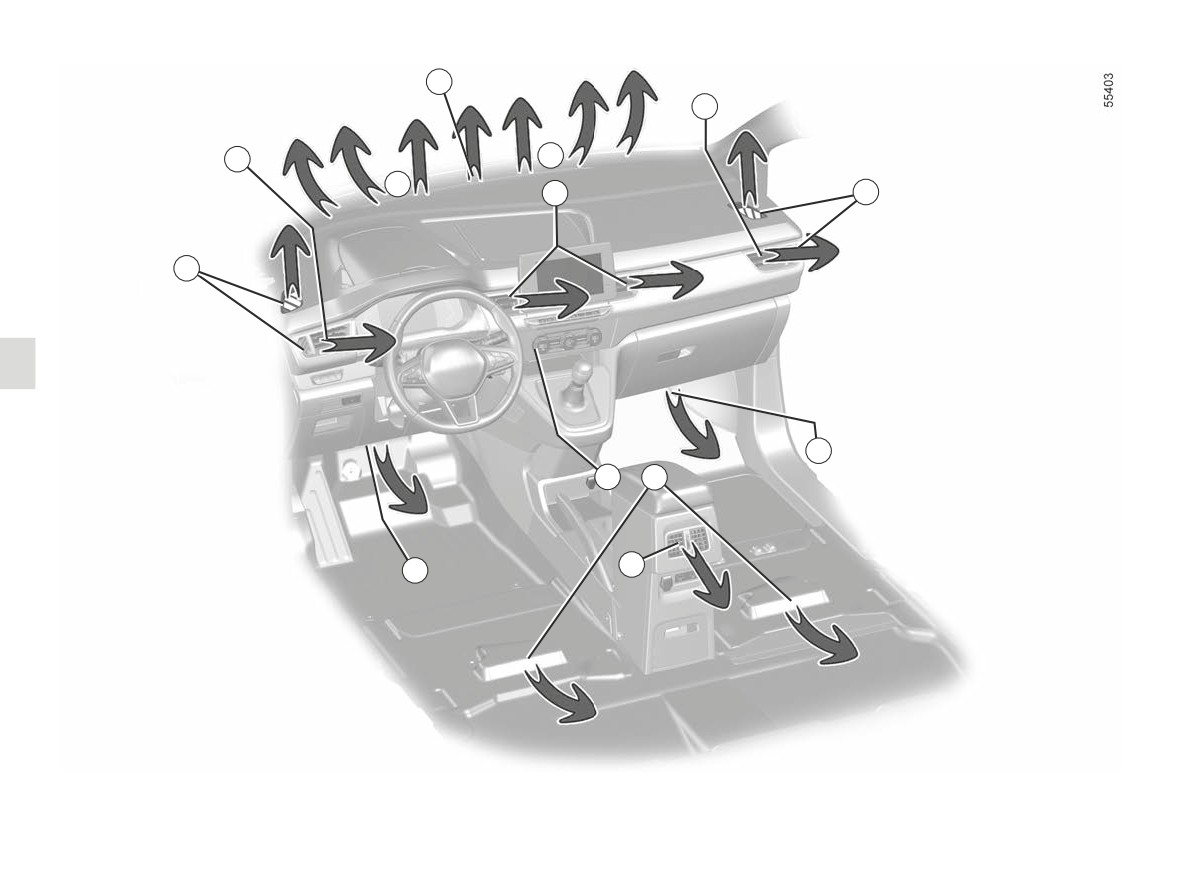

Air flow

To close: move the cursor 9 towards the

To close: move the cursor 10 towards

outside of the vehicle up to the point of

the inside of the vehicle.

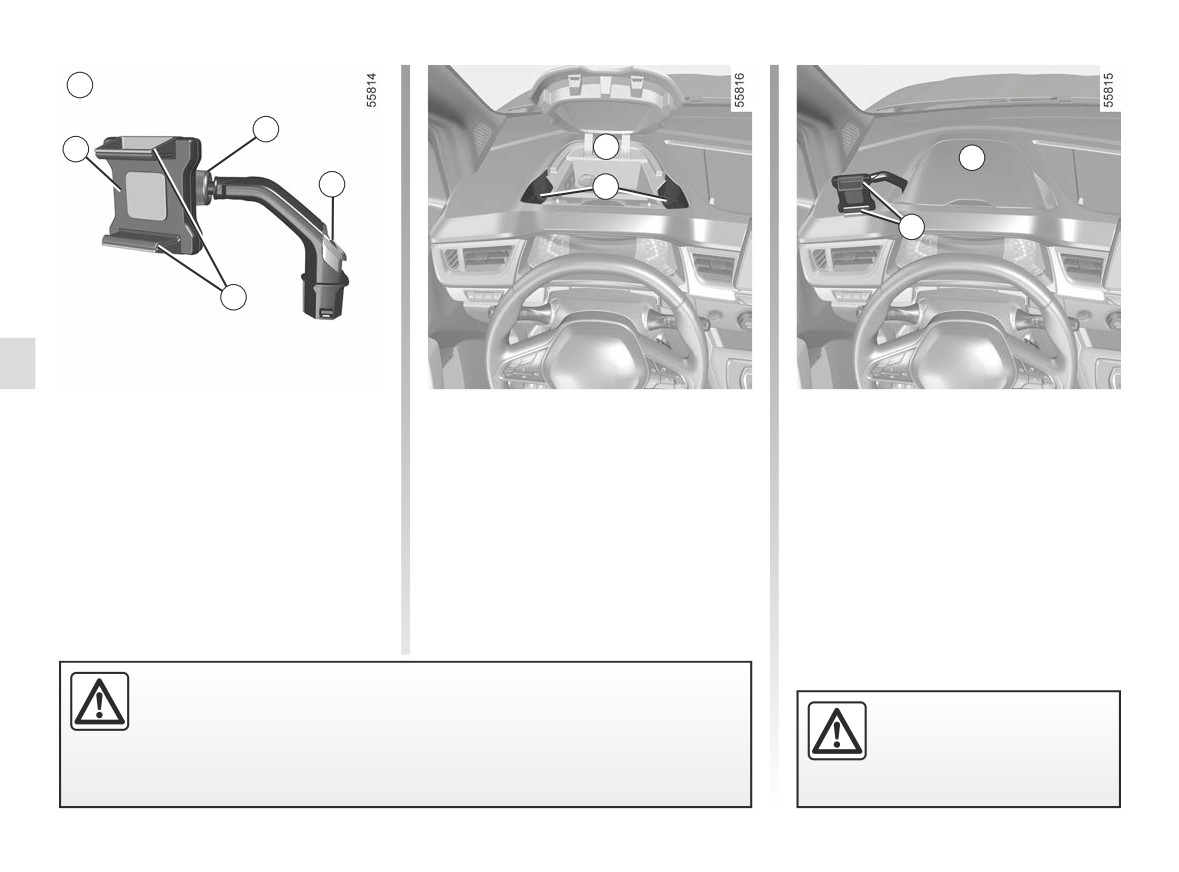

Do not attach any objects to the air

resistance.

To open: move the cursor 10 towards

vents (e.g. telephone mounting).

To open: move the cursor 9 towards the

the outside of the vehicle up to the point

Risk of damage.

inside of the vehicle.

of resistance.

Direction

Move the cursor 9 to the desired posi-

Move the cursor 10 to the desired po-

tion.

sition.

Do not add anything to the

vehicle’s ventilation circuit

(for example, to remove

bad odours).

There is a risk of damage or of

fire.

3.3

CarManuals2.co

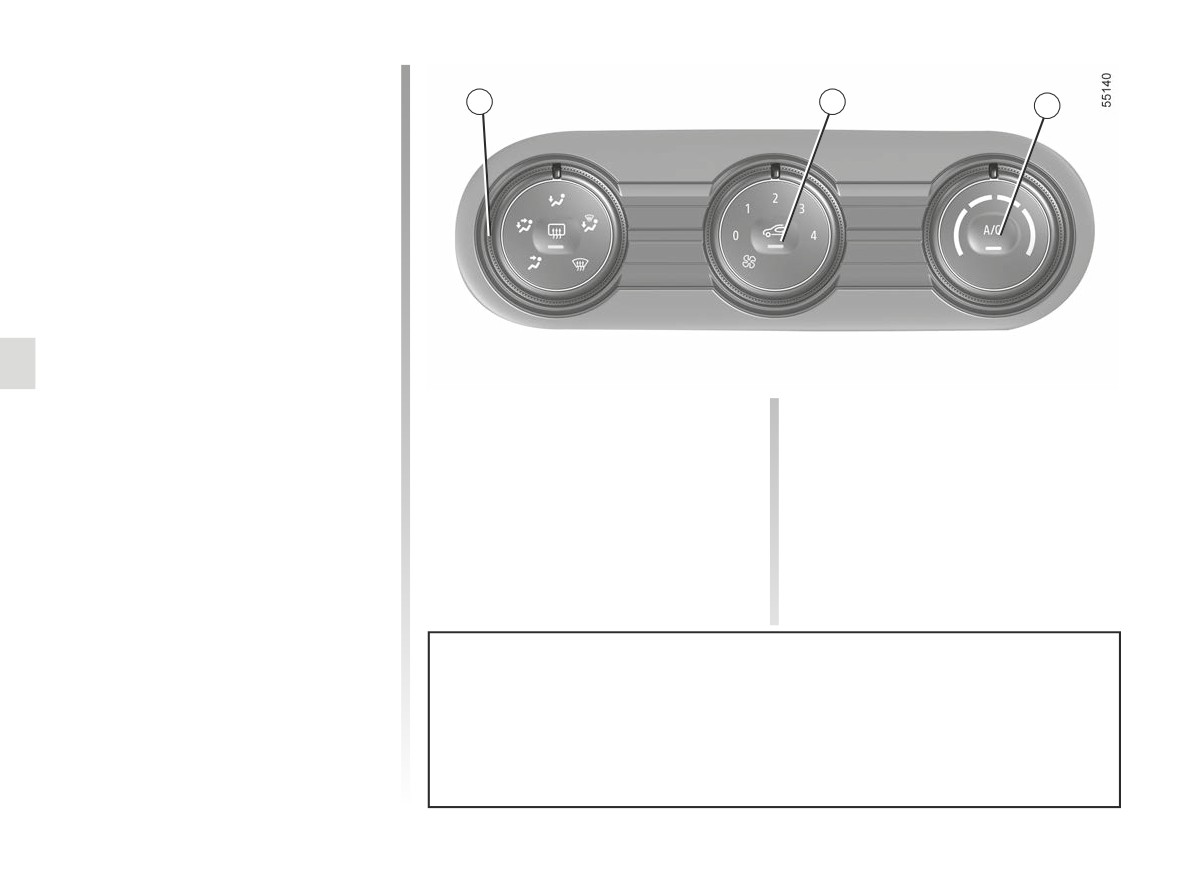

MANUAL AIR CONDITIONING, HEATING SYSTEM (1/4)

The air conditioning system is used

for:

- lowering the temperature inside the

passenger compartment;

- eliminating condensation more

quickly.

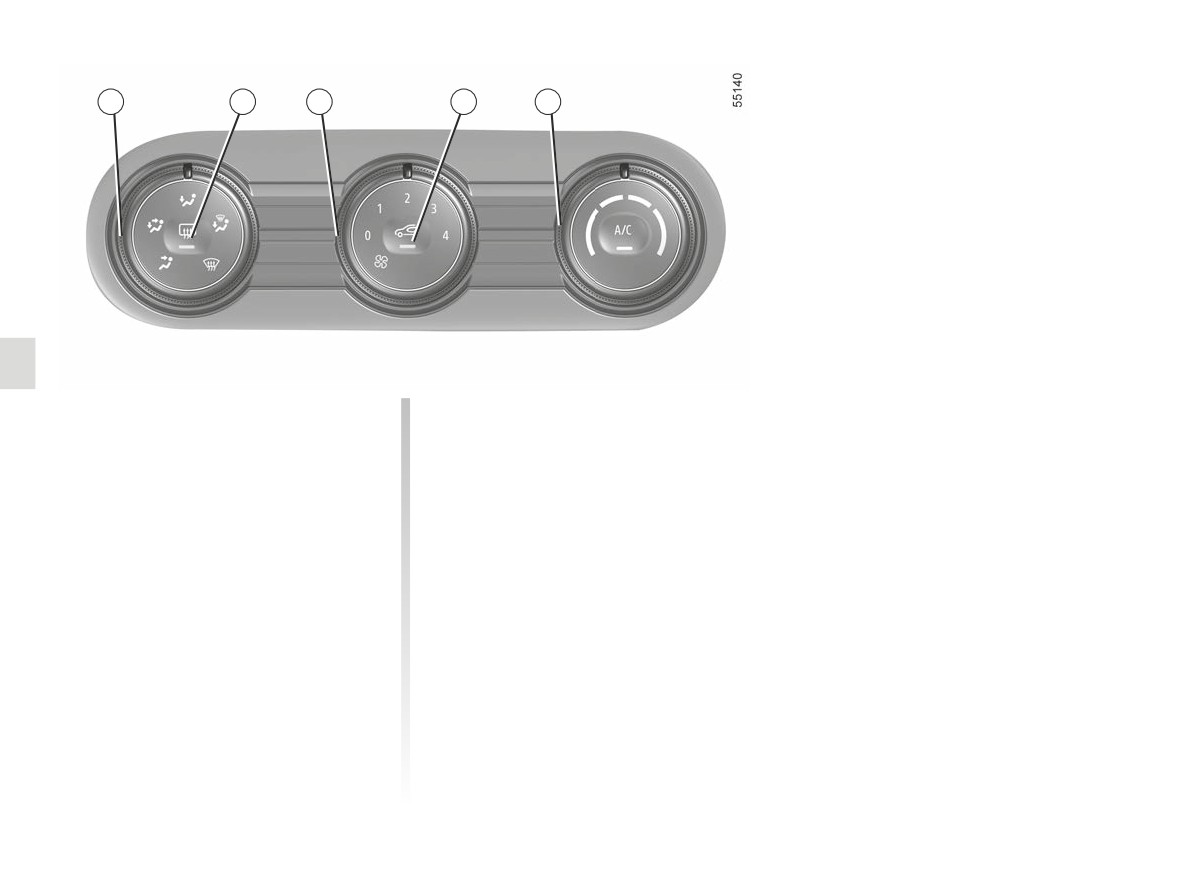

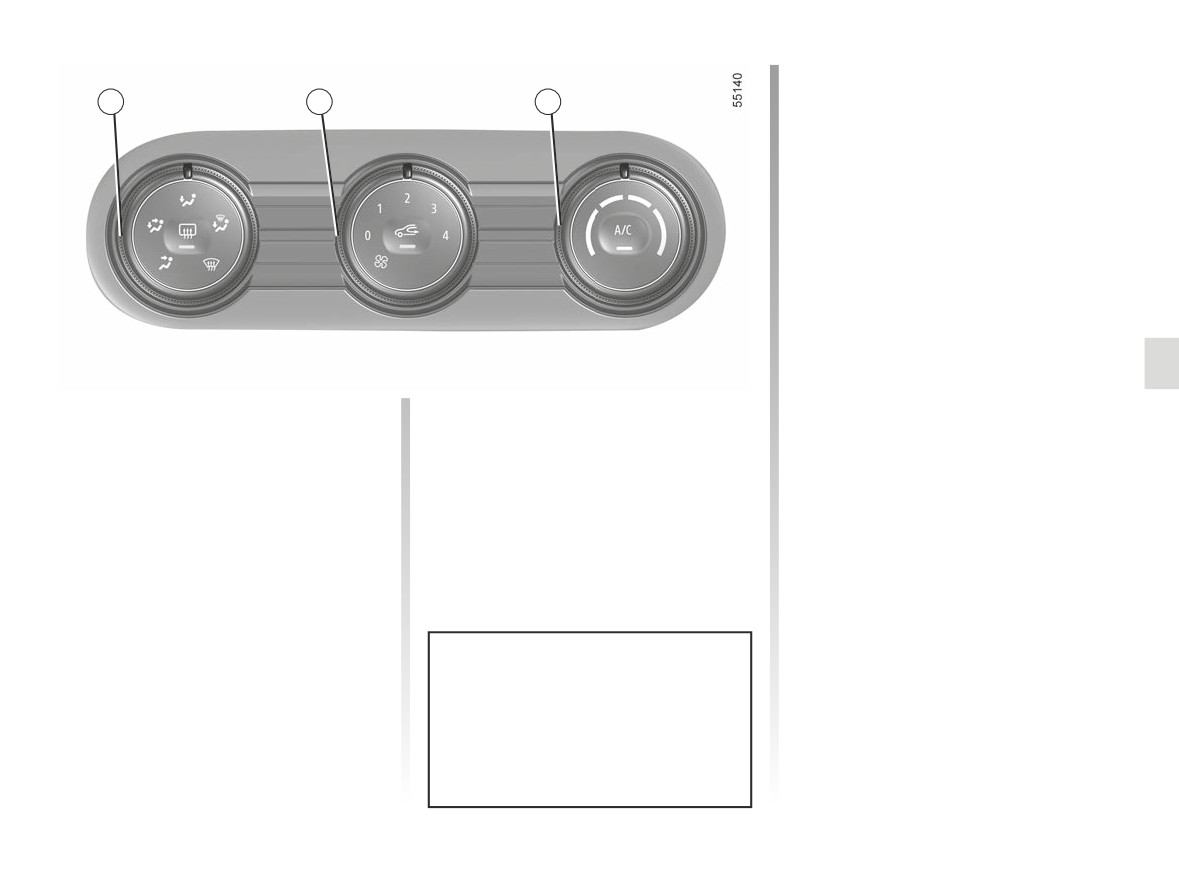

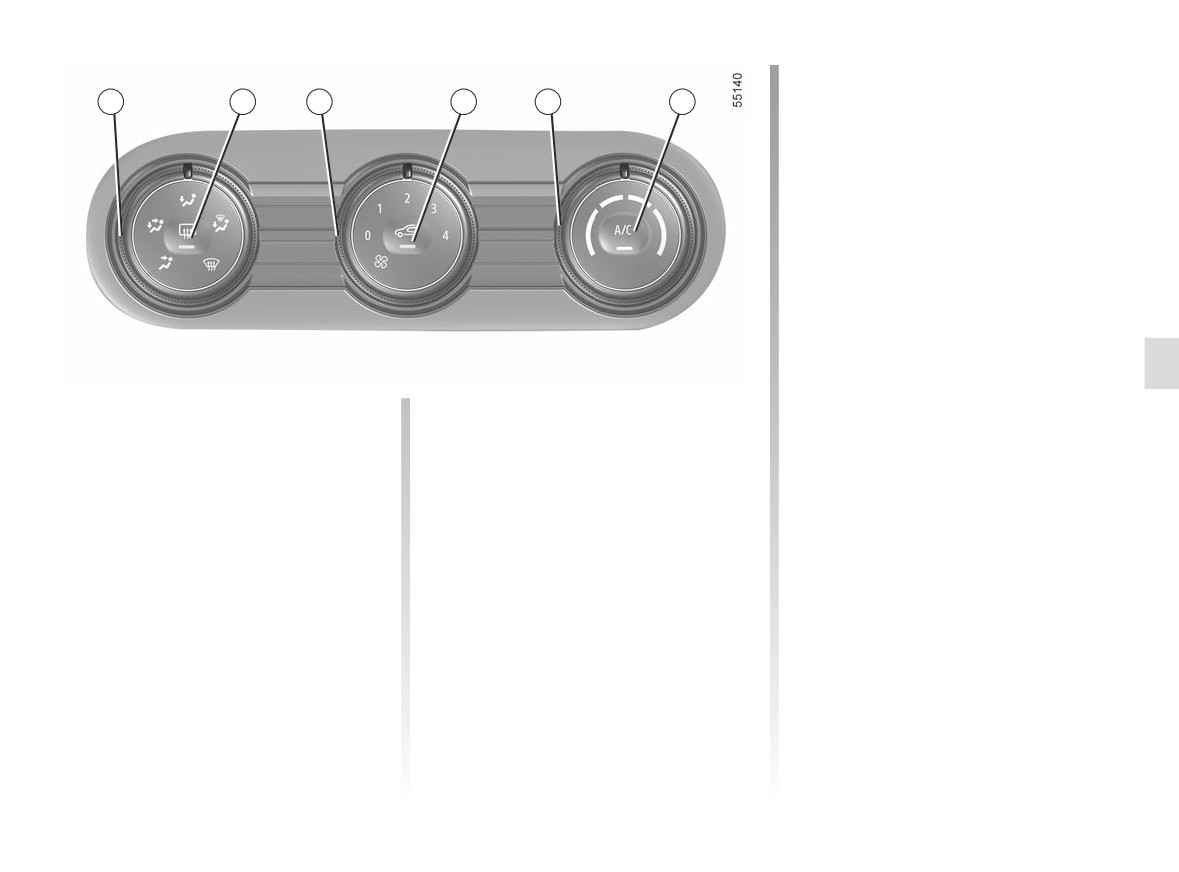

The controls

Switching air conditioning on

(depending on vehicle)

or off

1 Distribution of air in the passenger

The air conditioning is switched on (in-

compartment.

dicator light on) or off (indicator light off)

2 De-icing/demisting the door mirrors

using button 6.

and rear screen (if the vehicle is

Activation is not possible if the 3 control

equipped).

is set to “0”.

3 Adjusting the ventilation fan speed.

4 Air recirculation.

5 Adjusting the air temperature.

6 Air conditioning.

3.5

CarManuals2.co

MANUAL AIR CONDITIONING, HEATING SYSTEM (2/4)

Distribution of air in the

passenger compartment

There are five air distribution options.

Turn control 1 to choose the distribution

option.

The air flow is directed to the

windscreen and the front side

window demisting vents.

The air flow is distributed be-



tween front side window de-

misting vents, the windscreen demist-

ing vents and the footwells.

The air flow is directed mainly



towards the footwells.

Switching the air

Air recirculation is for:

The air flow is directed to-



wards the dashboard air vents,

recirculation on

- isolating the vehicle from the exter-

the front footwells and, depending on

nal atmosphere (driving in polluted

Press the 4 button: the integrated indi-

the vehicle, the second row footwells.

areas, etc.);

cator light comes on. Under these con-

The air flow is mainly directed

ditions, air is taken from the passenger

- lowering the passenger compart-

to the dashboard air vents.

compartment and is recirculated, with

ment temperature as quickly as pos-

no air being taken from outside the ve-

sible.

hicle.

If the air conditioning is not activated (“A/C” light on the 6 switch off), prolonged

use of recirculated air may cause mist to form on the side windows and wind-

screen as well as other problems due to the presence of non-recirculated air in

the passenger compartment. We therefore advise you to return to normal mode

(external air) as soon as the air recirculation function is no longer required, by

pressing button 4 again.

3.6

CarManuals2.co

MANUAL AIR CONDITIONING, HEATING SYSTEM (3/4)

Adjusting the air temperature

Turn control 5 to obtain the desired

temperature. The further towards the

red the slide is, the higher the tempera-

ture will be.

When the air conditioning system is

used for long periods, it may begin to

feel cold. To increase the temperature,

turn control 5 to the right.

Adjusting the ventilation

The system is deactivated: the ventila-

tion speed is zero (vehicle stationary).

speed

You can, however, still feel a slight flow

Move control 3. The further the control

of air when the vehicle is moving.

is positioned to the right, the greater the

amount of air blown into the passenger

compartment. If you want to shut off the

flow of air, set the 3 control to “0”.

Use of the W

position on the 1

control leads automatically to the air

flowing out in order to prevent the

risk of misting on the windscreen.

3.7

CarManuals2.co

MANUAL AIR CONDITIONING, HEATING SYSTEM (4/4)

Rear screen de-icing/

Rapid demisting

demisting

Turn controls 1, 3 and 5 to:

With the engine running, press

- demisting W

;

button 2. The operating tell-tale comes

on.

- blower at speed 3 or 4 ;

This function permits rapid demisting/

- maximum temperature.

de-icing of the rear screen and de-icing

Press the 4 button to disable the air

of the door mirrors (on equipped vehi-

recirculation (light off) and press the 2

cles).

button to activate de-icing of the rear

To exit this function, press button 2

screen (light on).

again. Warning light goes out.

Demisting automatically stops.

3.8

CarManuals2.co

AUTOMATIC CLIMATE CONTROL (1/5)

Automatic mode

The automatic climate control system

guarantees comfort in the passen-

ger compartment and good visibility

(except in the event of extreme condi-

tions), while optimising consumption.

The system controls the ventilation

speed, air distribution, air recirculation,

and starting and stopping the air condi-

tioning and air temperature.

AUTO: allows the selected comfort

level to be best attained, depending on

the exterior conditions. Press button 2.

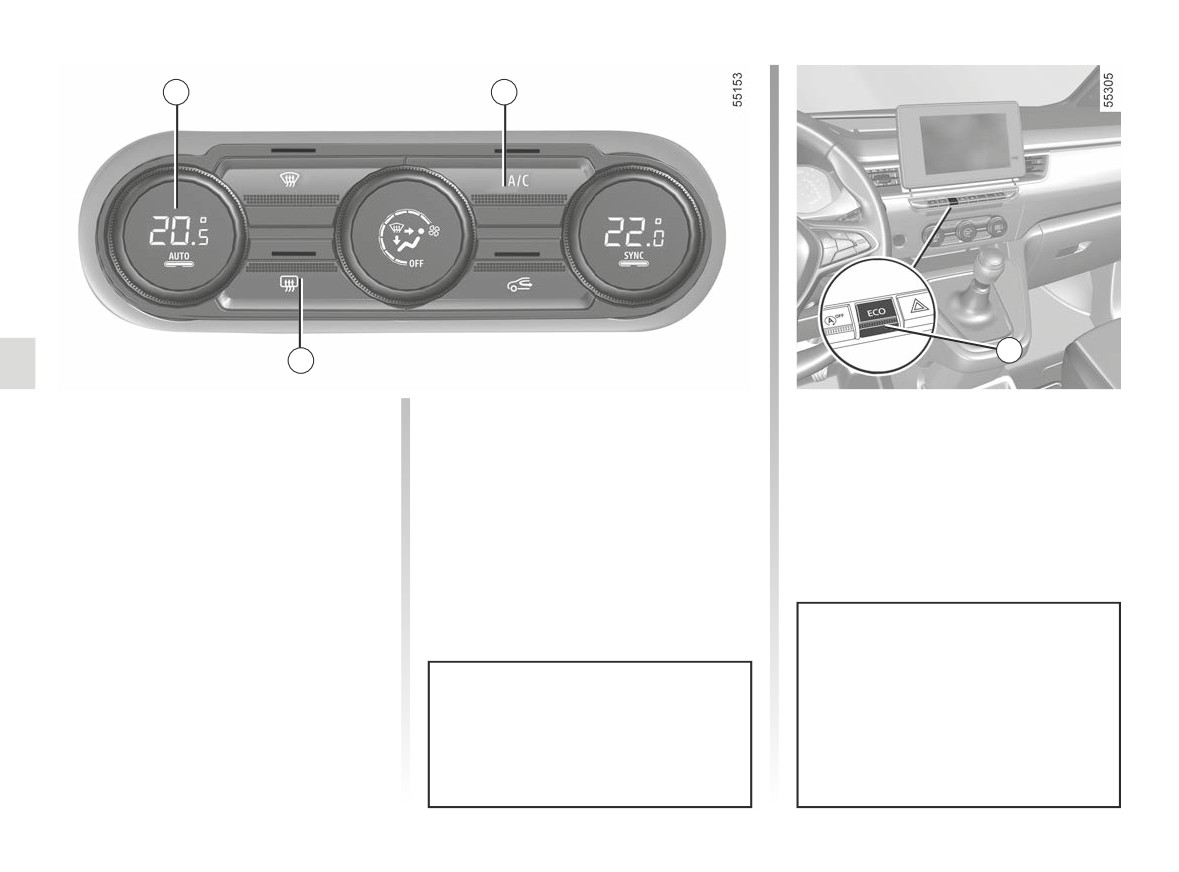

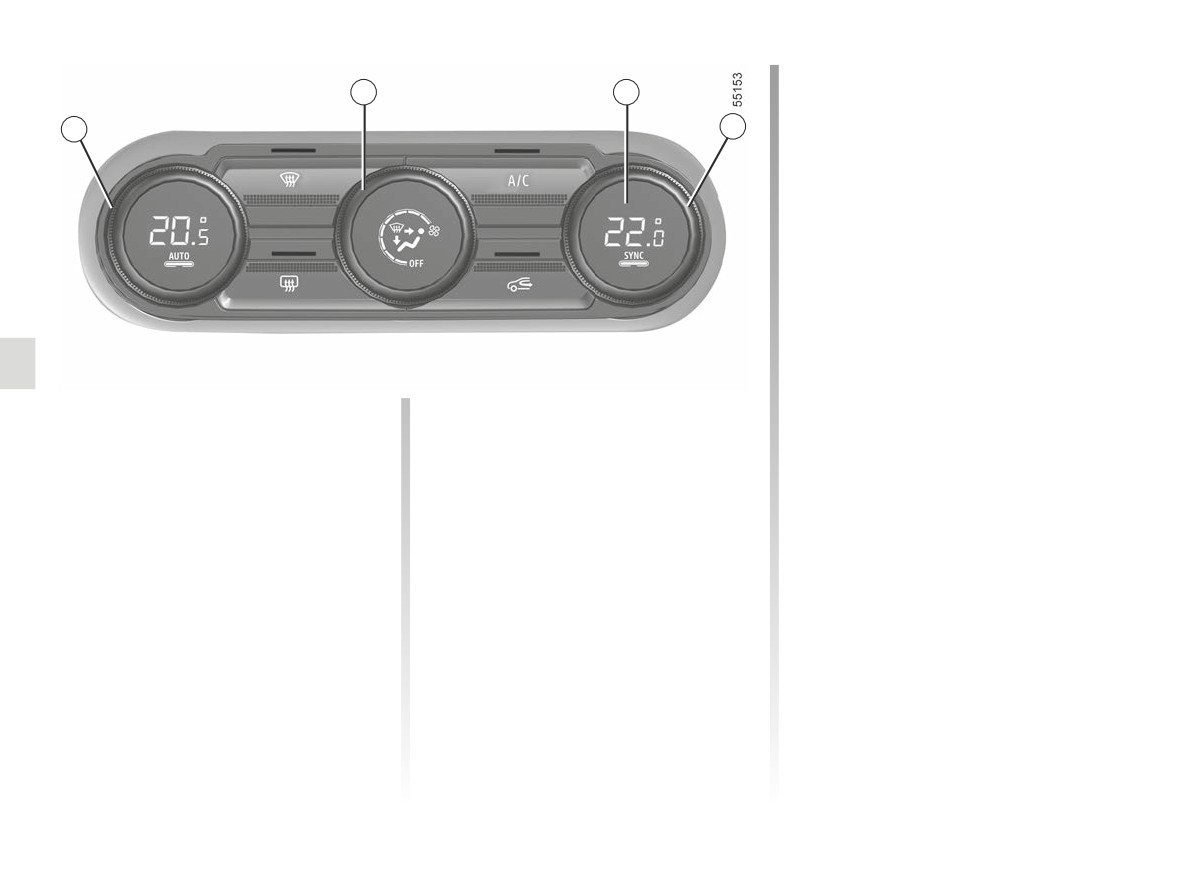

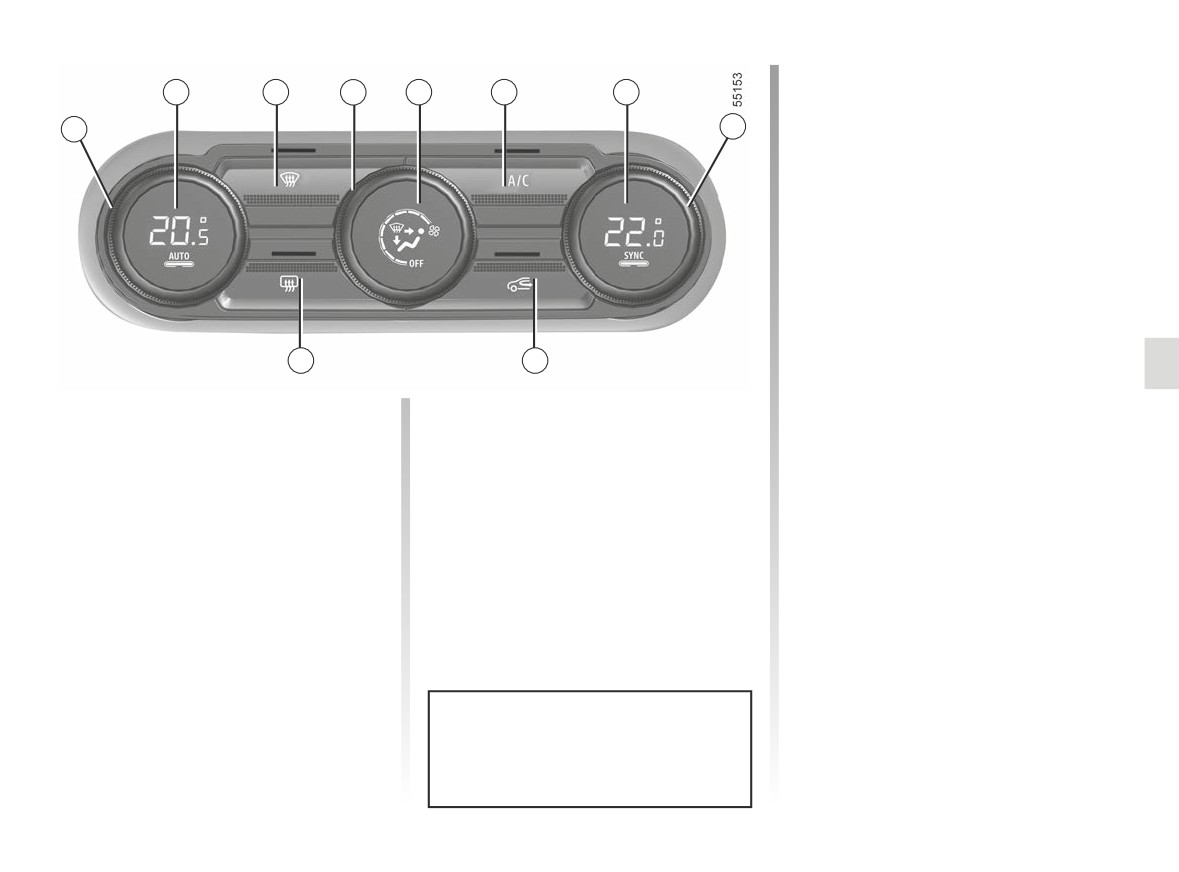

The controls

SYNC “Synchronisation” function.

1 Adjusting the driver’s side air tem-

Adjusting the front passenger’s air

perature.

temperature.

2 “AUTO” automatic mode.

Air recirculation.

3 “Clear View” function.

10 De-icing/demisting the door mirrors

and rear screen (if the vehicle is

4 Adjusting the ventilation fan speed.

equipped).

5 Distribution of air in the passenger

compartment.

6 Air-conditioning activation control.

Any action on a button other than

the AUTO button triggers deactiva-

tion of automatic mode.

3.9

CarManuals2.co

AUTOMATIC CLIMATE CONTROL (2/5)

SYNC function

Press the 7 button to enable uniform

setting of the passenger compartment.

The 7 button light will illuminate.

To deactivate the function, press the 7

button again or use the 8 control and

adjust the right-hand side separately

from the left-hand side.

The 7 button warning light switches off.

Adjusting the ventilation

Adjusting the air temperature

speed.

Turn control 1 or control 8 according to

In automatic mode, the system uses

the temperature required.

the most suitable amount of air to reach

Turning the control to the right in-

and maintain the desired comfort level.

creases the temperature.

You can still adjust the ventilation

speed by turning control 4 to increase

or reduce the ventilation speed.

3.10

CarManuals2.co

AUTOMATIC CLIMATE CONTROL (3/5)

Adjusting the distribution

of air in the passenger

compartment

Press the 5 control as many times as

necessary to select the passenger

compartment air distribution mode. 5

is displayed to indicate the distribution

mode selected.

All the air is then directed to

the windscreen and front side

window demisting vents.

The air flow is distributed be-



tween front side window de-

misting vents, the windscreen demist-

ing vents and the footwells.

Clear View function

Press button 10 to stop the heated rear

screen operating, and the integrated in-

The air flow is directed towards

Press the 3 button: the integrated indi-



the dashboard air vents, the

dicator goes out.

cator light comes on.

front footwells and, depending on the

To exit this function, press button 2

This function quickly demists and de-

vehicle, the second row footwells.

or 3.

ices the windscreen, the rear screen,

The air flow is mainly directed

the front side windows and the door



to the dashboard air vents.

mirrors (depending on the vehicle). The

air conditioning and rear screen de-ic-



owards the footwells.

ing functions must be activated.

Some buttons have an operating

tell-tale which indicates the operat-

ing status.

3.11

CarManuals2.co

AUTOMATIC CLIMATE CONTROL (4/5)

Rear screen de-icing/

Switching air conditioning on

demisting

or off

Press the 10 button: the integrated in-

In automatic mode, the system switches

dicator light comes on. This function

the air conditioning system on or off,

enables rapid demisting or de-icing of

depending on the climate conditions.

the rear screen and de-icing of the rear

Press the 6 button to deactivate the air

view mirrors (on equipped vehicles).

conditioning. The integrated indicator

To exit this function, press button 10

light goes off.

again. Demisting automatically stops.

Vehicles equipped with ECO

mode (switch 11): when activated,

ECO mode may reduce the perfor-

Fuel consumption increases when

mance of the automatic air condi-

the air conditioning is being used

tioning ➥ 2.21.

(switch it off when it is not required).

3.12

CarManuals2.co

AUTOMATIC CLIMATE CONTROL (5/5)

Stopping the system

Turn the control 4 to “OFF” to stop the

system. To start it, turn the control 4

again, then adjust the fan speed or

press the button 2.

Air recirculation (isolation of

Manual use

the passenger compartment)

Press the 9 button: the integrated indi-

cator light comes on.

This function is managed automatically

but you can also activate it manually. In

Prolonged use of this position may lead

this case, the operation is confirmed by

to odours, caused by non-renewal of

a warning light on the button 9.

air, and the formation of condensation

on the windows.

We therefore advise you to return to au-

tomatic mode as soon as air recircula-

tion is no longer needed, by pressing

button 9.

The demisting/de-icing will still take

priority over the air recirculation.

3.13

CarManuals2.co

AIR CONDITIONING: information and operating instructions (1/2)

Advice on use

Fuel consumption

Operating faults

In some situations (air conditioning off,

You will normally notice an increase in

As a general rule, contact your ap-

air recirculation activated, ventilation

fuel consumption (especially in town)

proved dealer in the event of an oper-

speed at zero or low etc.), you may

when the air conditioning is operating.

ating fault.

notice that condensation starts to form

For vehicles fitted with air conditioning

- Reduction in de-icing, demisting

on the windows and windscreen.

with no automatic mode, switch off the

or air conditioning performance.

If there is condensation, use the “Clear

system when it is not required.

This may be caused by the passen-

View” function to remove it, then use

ger compartment filter cartridge be-

Advice for reducing consumption

the air conditioning in automatic mode

coming clogged.

and helping to preserve the environ-

to stop it forming again.

ment

- No cold air is being produced.

Check that the controls are set cor-

Drive with the air vents open and the

rectly and that the fuses are sound.

windows closed. If the vehicle has been

Otherwise, switch off the system.

parked in the sun, open the doors for a

few moments to let the hot air escape

before starting the engine.

Presence of water under the

vehicle

Maintenance

After prolonged use of the air condi-

Refer to the Maintenance Document

tioning system, it is normal for water

for your vehicle for the inspection fre-

to be present under the vehicle. This is

quency.

caused by condensation.

Do not add anything to the

vehicle’s ventilation circuit

Do not open the refriger-

(for example, to remove

Use the air conditioning system reg-

ant fluid circuit. The fluid

bad odours).

ularly, even in cold weather, running

may damage eyes or skin.

There is a risk of damage or of

it at least once a month for approxi-

fire.

mately 5 minutes.

3.14

CarManuals2.co

AIR CONDITIONING: information and operating instructions (2/2)

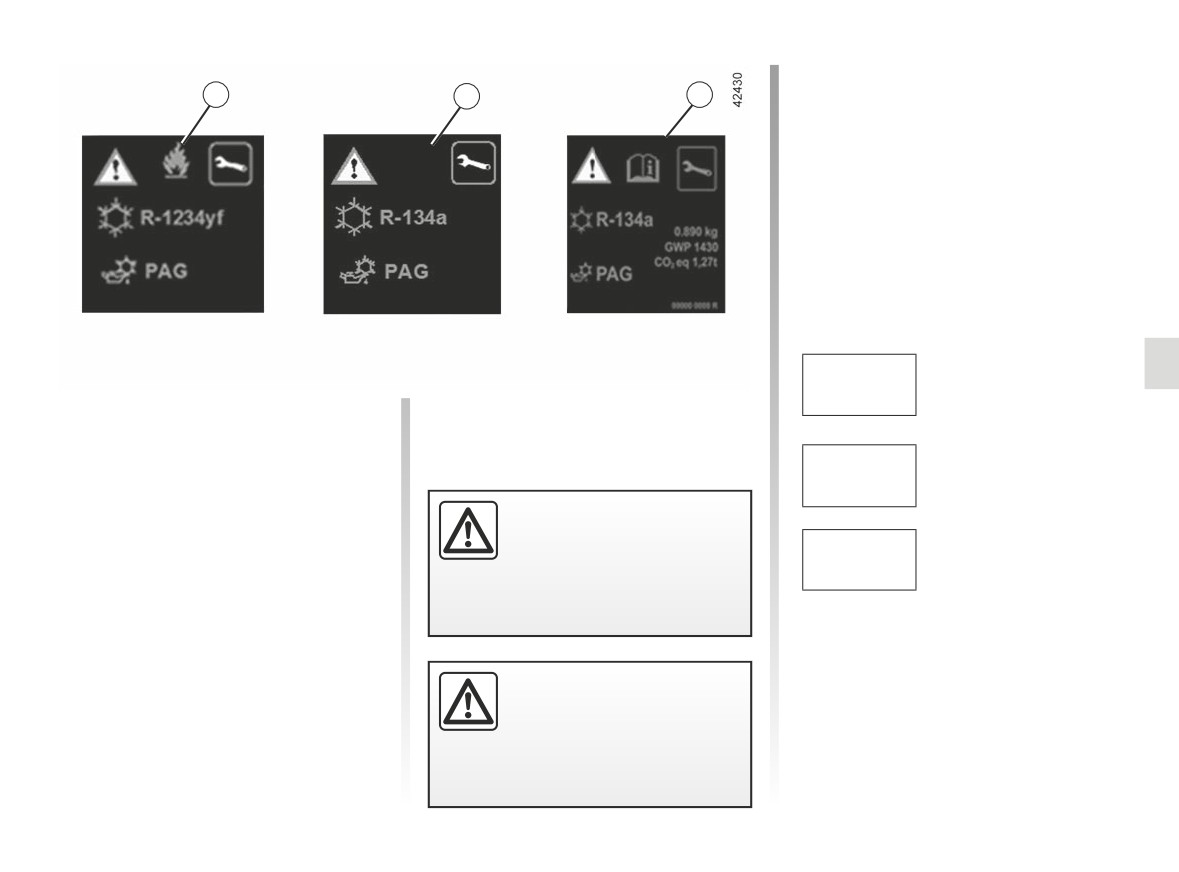

Type of refrigerant fluid

Type of oil in the air condi-



tioning circuit

Inflammable product



Consult the driver’s hand-



book

Maintenance



Quantity of refrigerant

x.xxx kg

fluid present in the ve-

The refrigerant fluid circuit (of which

hicle.

some components are hermetically

sealed) may contain fluorinated green-

Global

Warming

house gases.

GWP xxxxx

Potential (CO2 equiv-

Depending on the vehicle, you will find

alent).

Do not open the refriger-

the following information on label A af-

ant circuit. The fluid may

fixed inside the engine compartment.

damage eyes or skin.

CO2 eq

Quantity in weight and

The presence and location of the infor-

x.xx t

in CO2 equivalent.

mation on label A depends on the ve-

hicle.

Before carrying out any

action in the engine com-

partment, you must switch

off the ignition.

➥ 2.4 or

➥ 2.5.

3.15

CarManuals2.co

MULTIMEDIA EQUIPMENT (1/3)

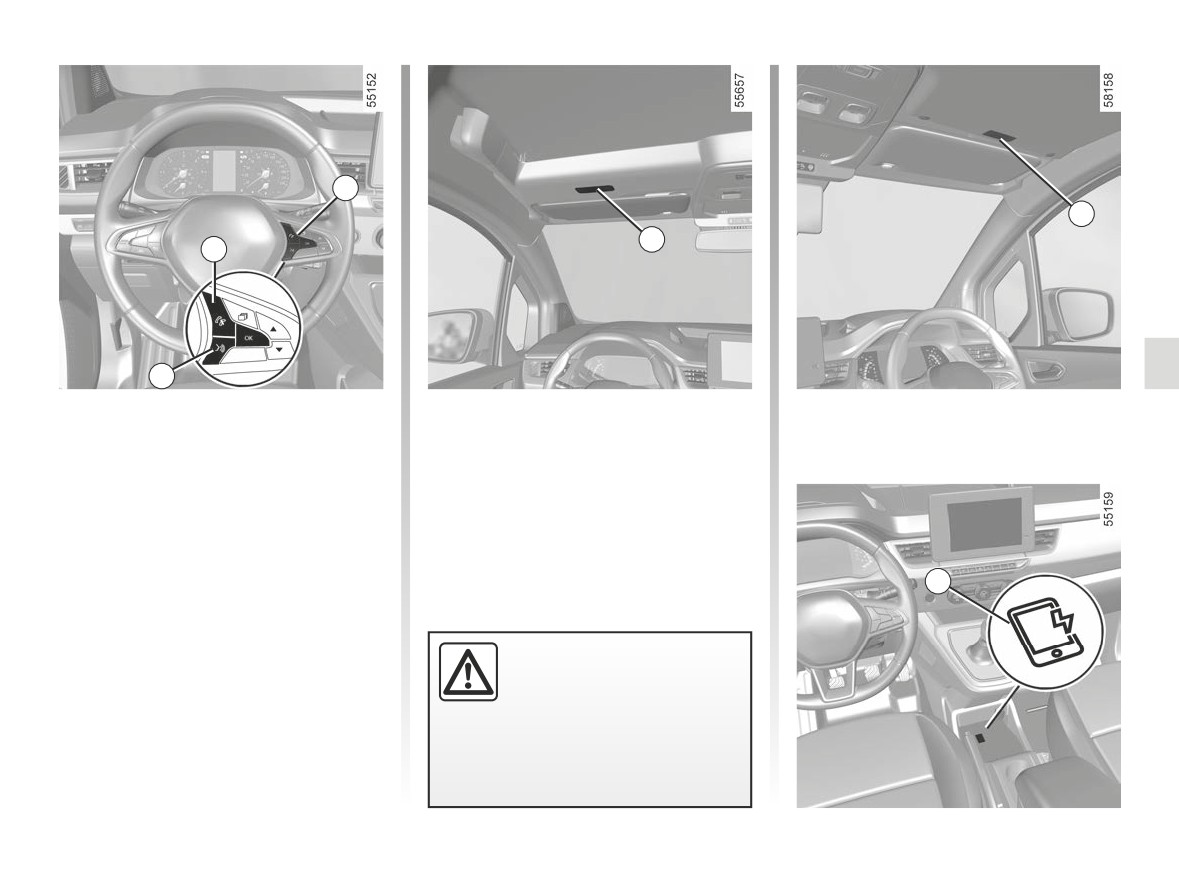

The location and operation of equip-

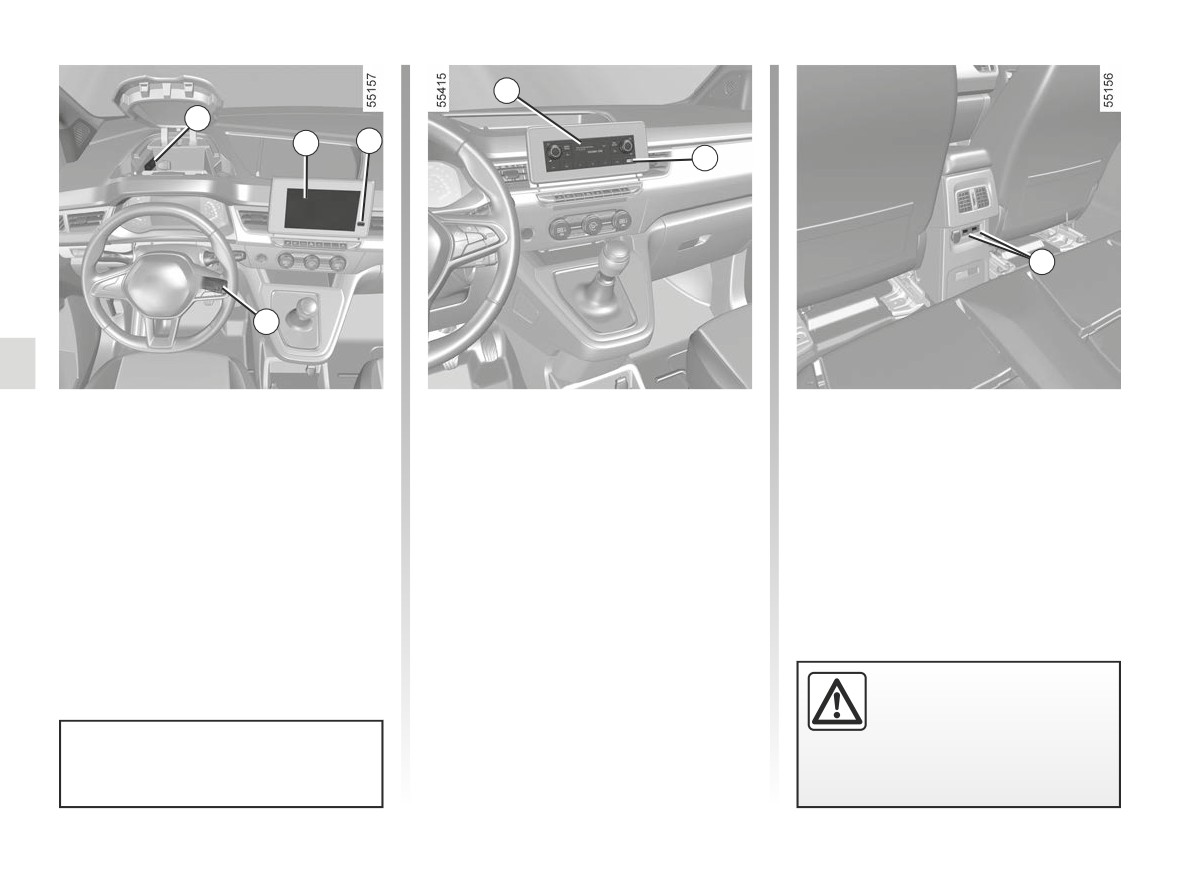

Multimedia socket 3

Sockets USB 1

ment may vary according to the vehicle.

You can use USB socket to access the

The sockets USB can only allow re-

1 USB sockets;

multimedia content of your accessories.

charge accessories approved by the

2 Multimedia screen;

The various sources can be selected

brand's Technical Services of power

3 Multimedia socket;

from the multimedia screen and from

not exceeding 12 watts (voltage 5 V)

4 Steering column controls;

the steering column controls.

per outlet.

5 Radio.

The USB ports can also be used to re-

charge accessories which have been

approved by our Technical Department

and have a maximum power rating of

12 Watts (5 V) per port.

Connect accessories with a

maximum power of 12 watts

only.

Please refer to the multimedia in-

Fire hazard.

structions for further information.

3.16

CarManuals2.co

MULTIMEDIA EQUIPMENT (3/3)

Telephone holder 11

To place your smartphone in the 12

Note: the holder 12 can be repositioned.

holder:

Use the tightening nut 13 to attach the

On equipped vehicles, open the storage

holder in the desired position.

compartment A and insert the phone

- move the clips 15;

holder into one of the locations 16 while

To remove the telephone holder 11,

- place your smartphone in the phone

pressing the button 14.

open the storage compartment A and

holder 12 while pressing the clips 15;

remove the holder while pressing the

- release the clips so that the smart-

button 14.

phone is held firmly in place.

Make sure that the base of the telephone holder is correctly fitted and that

the telephone is securely held in place in the telephone holder, so that it is

For safety reasons, carry

not thrown onto the occupants during sudden turning or braking.

out any adjustments when

the vehicle is not being

driven.

3.18

CarManuals2.co

ELECTRIC WINDOWS (1/3)

Electric windows

These systems operate with the igni-

tion on or off, until one of the front doors

is opened (limited to about 3 minutes).

Press the switch for the window con-

cerned to lower it to the desired height.

Lift the switch to raise the window to the

desired height.

Driver’s responsibility

From the driver’s seat

Never leave your vehicle

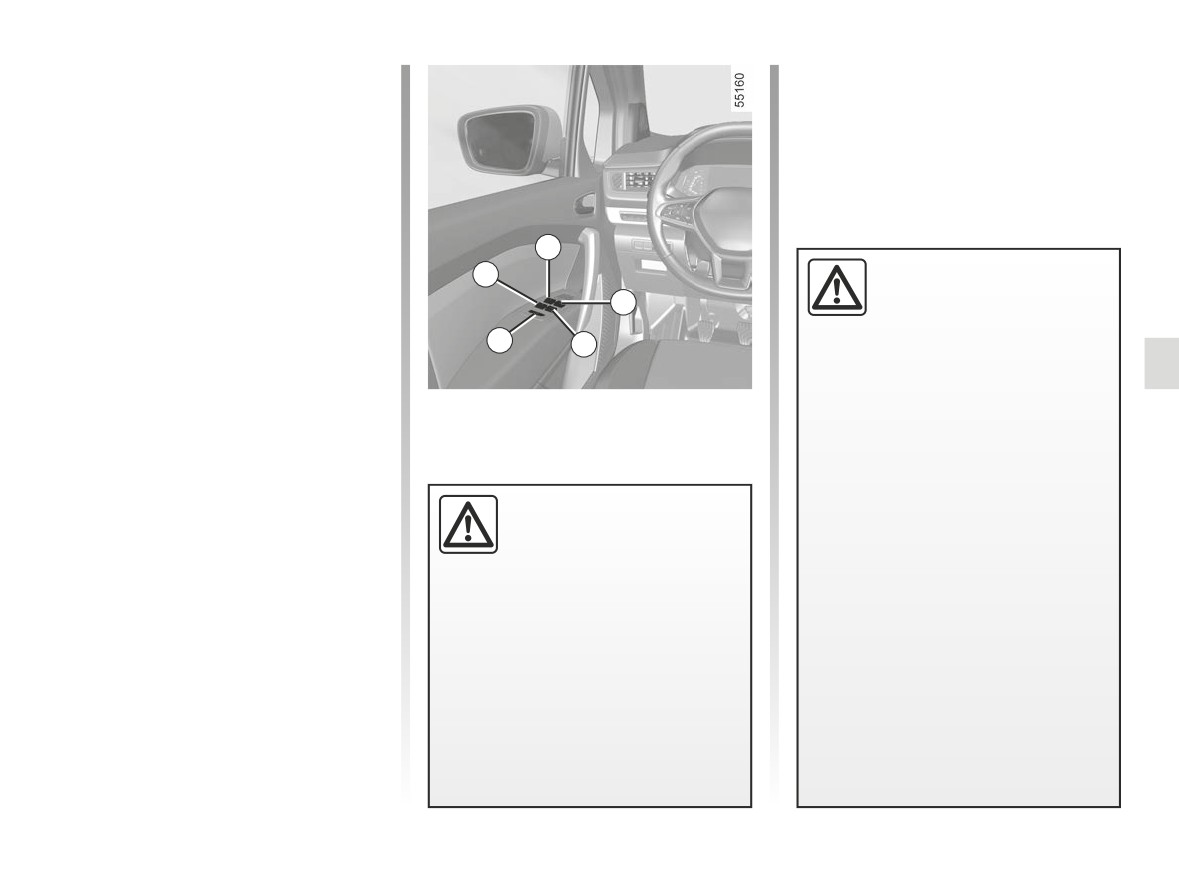

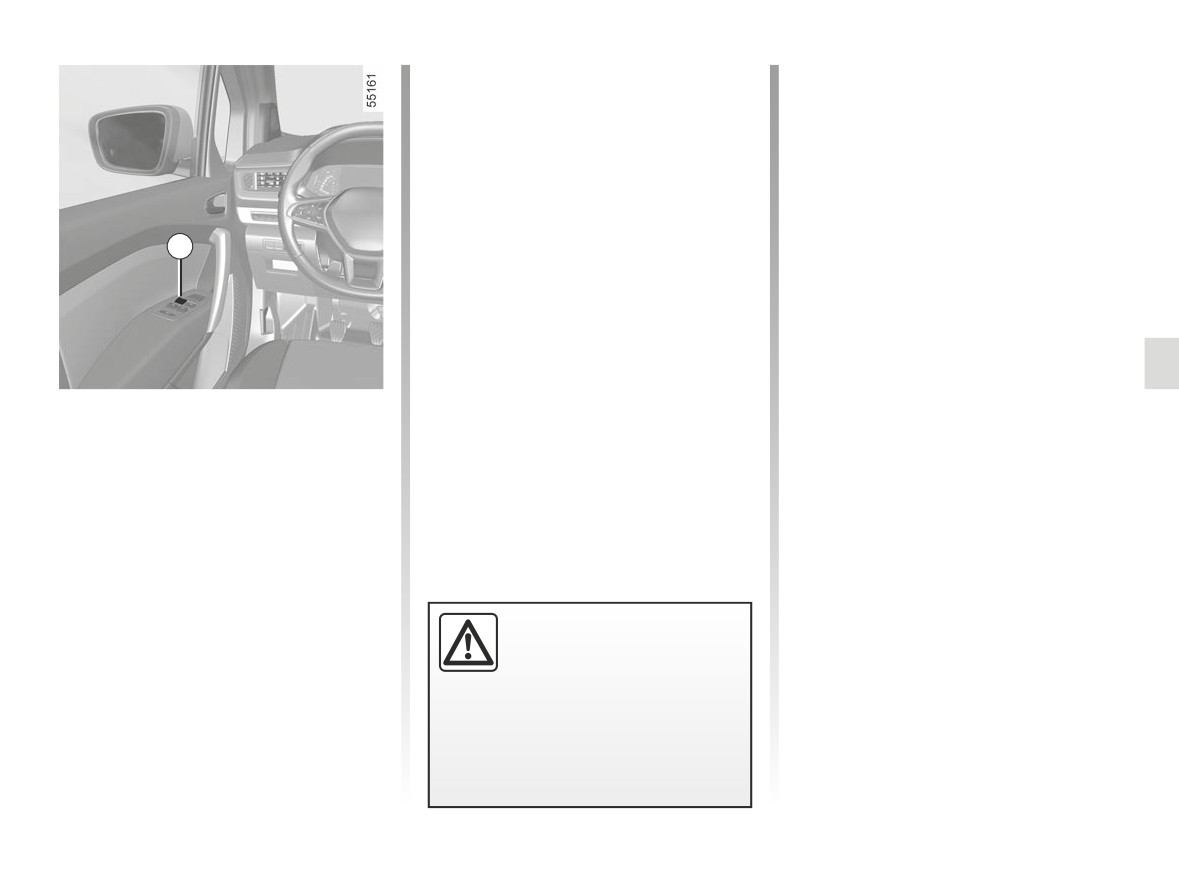

Operate the switches as follows:

with the card or key inside,

- 1 for the driver’s side;

with a child, adult who is not

self-sufficient or a pet in the vehicle,

- 2 for the front passenger’s side;

even for a short while.

- depending on the vehicle, 3 and 5 for

They may pose a risk to themselves

the rear passengers.

or to others by starting the engine

or activating equipment (such as the

gear lever or electric windows).

Safety of rear occupants

If any part of the body becomes

The driver can prevent op-

trapped, reverse the direction of the

eration of the rear elec-

window immediately by pressing the

tric windows by pressing

relevant switch.

switch 4. A confirmation message is

Risk of serious injury.

displayed on the instrument panel.

3.19

CarManuals2.co

ELECTRIC WINDOWS (2/3)

From the front passenger seat

From the rear seats

Half-opening window

Press switch 6.

With the doors closed, press switch 7.

To half-open the window, turn handle 8

in the direction of the arrow, then lock it

by pushing the handle. When closing it,

check that it is properly locked.

Avoid resting any objects against a

half-open window: there is a risk that

the electric window winder could be

damaged.

3.20

CarManuals2.co

ELECTRIC WINDOWS (3/3)

Operating faults

Pressing the switch again while the

window is moving will stop its move-

In case of a fault when closing a

ment.

window, the system reverts to normal

Note: if the window detects resistance

mode: pull the switch concerned up as

when closing (e.g. tree branch etc.), it

often as necessary to fully close the

stops and then lowers again by a few

window (the window will close gradu-

centimetres.

ally), hold the switch (still on the clos-

ing side) for one second then lower and

raise the window fully to reinitialise the

system.

If necessary, contact an approved

Dealer.

One-touch electric window

The one-touch mode works in addition

to the operation of the electric windows

described previously.

It is fitted to the driver’s window.

Briefly press or pull the switch 1 as far

as it will go: the window will be fully

raised or lowered.

When closing the windows,

ensure that no part of the

body (arm, hand, etc.) is

protruding from the vehicle.

Risk of serious injury.

3.21

CarManuals2.co

INTERIOR LIGHTING (1/2)

Courtesy light

Map reading lights

(depending on vehicle)

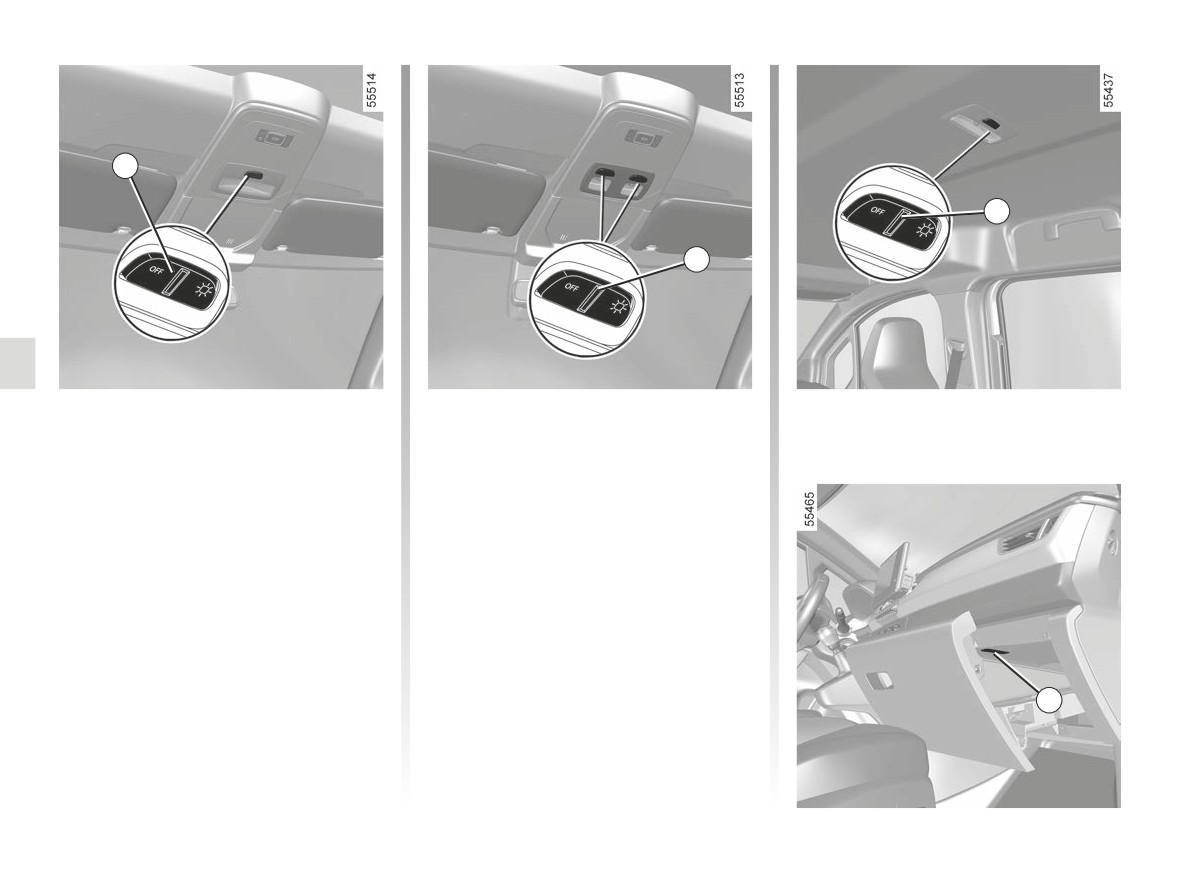

Pressing switch 1 provides:

Pressing switch 2 provides:

- continuous lighting;

- or temporary lighting by opening one

of the front doors, or by opening one

of the four doors, depending on the

vehicle. The light only goes out when

the doors are correctly closed;

– no lighting.

- no lighting.

Glovebox light 3

Light 3 comes on when the cover is

opened.

3.22

CarManuals2.co

INTERIOR LIGHTING (2/2)

Special features

Depending on the vehicle, remote un-

locking of the doors triggers timed light-

ing of the passenger compartment. If

one of the front or rear doors is opened,

the period for which the light is switched

on will start again.

Then the courtesy light and the luggage

compartment light dim and go out.

The lighting timer will cut out for vari-

ous reasons:

- if a door has been open for 15 min-

utes;

- if all the doors have been closed for

Boot light 4

Rear light

15 seconds or 5 minutes, depending

on the vehicle;

Light 4 comes on when the luggage

Turning the switch 5 gives you:

compartment is opened.

- when the ignition is switched on.

- continuous lighting;

- or temporary lighting, controlled by

opening one of the front doors, or

by opening one of the four doors,

depending on the vehicle. The light

only goes out when the doors are

correctly closed;

– or else the light definitively turned off.

When the doors or luggage com-

partment are unlocked and opened

the courtesy and footwell lights

come on temporarily.

3.23

CarManuals2.co

SUN VISOR, MIRRORS, GRAB HANDLE

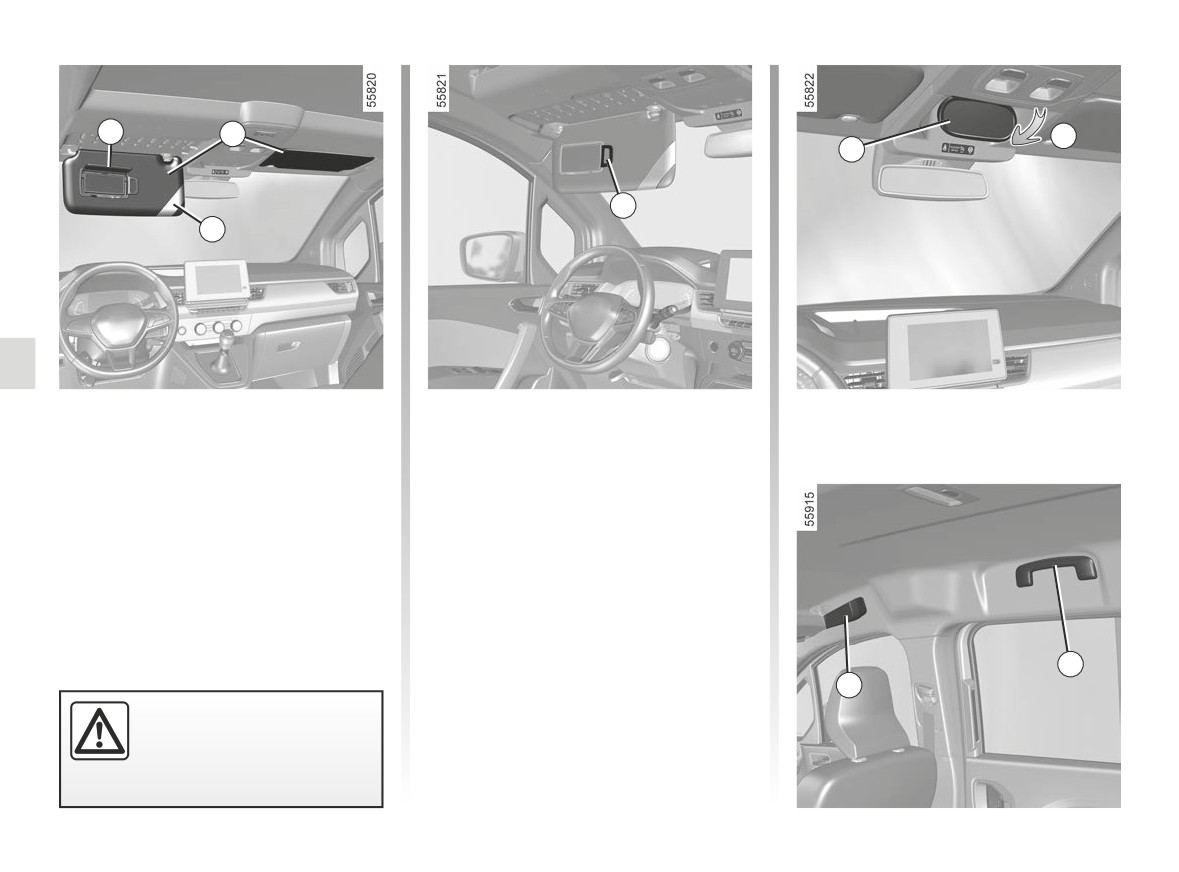

Front sun visor

Child minder mirror 4

(depending on the vehicle)

Lower sun visor 2.

The child minder mirror allows you to

keep an eye on your child in the back

Courtesy mirrors

seat. Pull downwards (movement A) to

(depending on the vehicle)

set it to its operating position.

Lift the cover 1.

Front 5 and rear 6 grab

Sun visor storage 3

handles

This can be used for storing motorway

These can be used for support by pas-

tickets, cards, etc.

sengers while the vehicle is moving. Do

not use them for getting into or out of

the vehicle.

When driving, ensure the

courtesy mirror cover is

closed.

Risk of injury.

3.24

CarManuals2.co

PASSENGER COMPARTMENT STORAGE, FITTINGS (1/7)

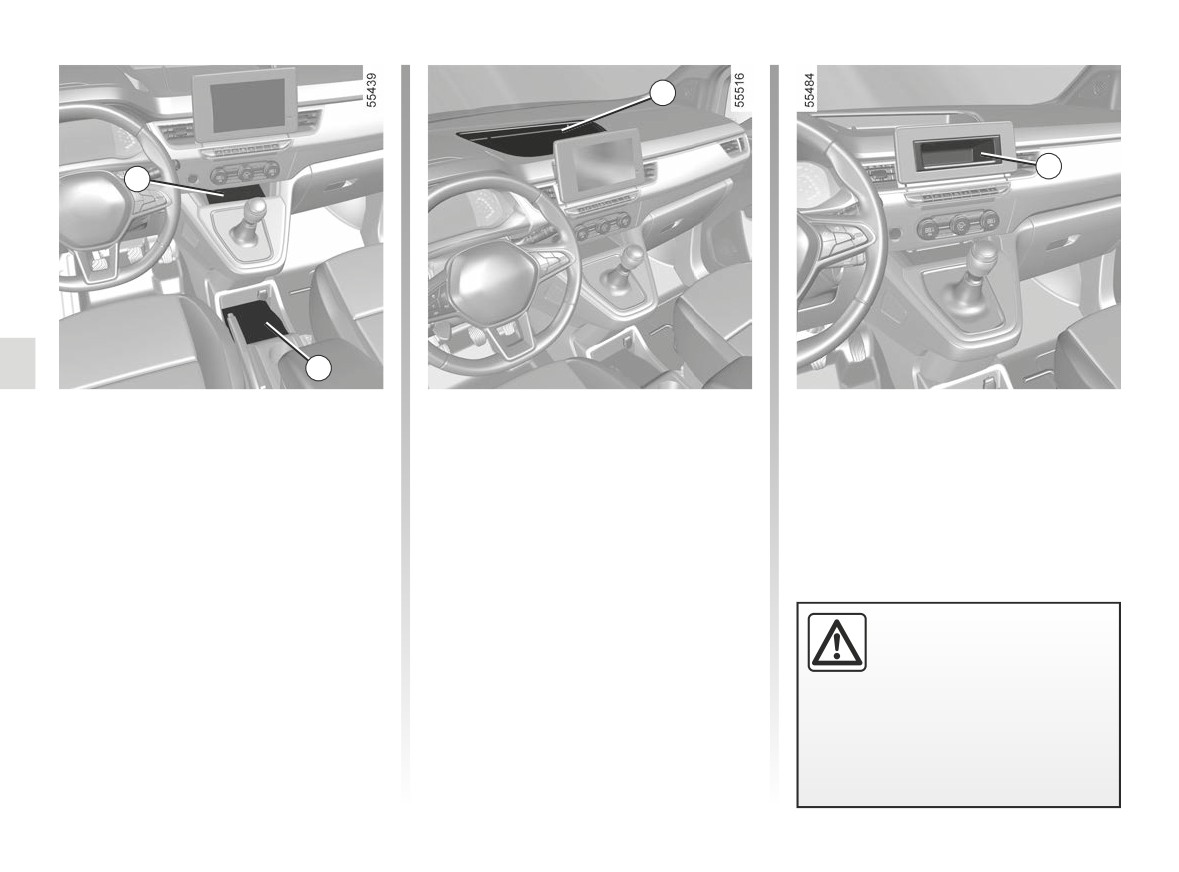

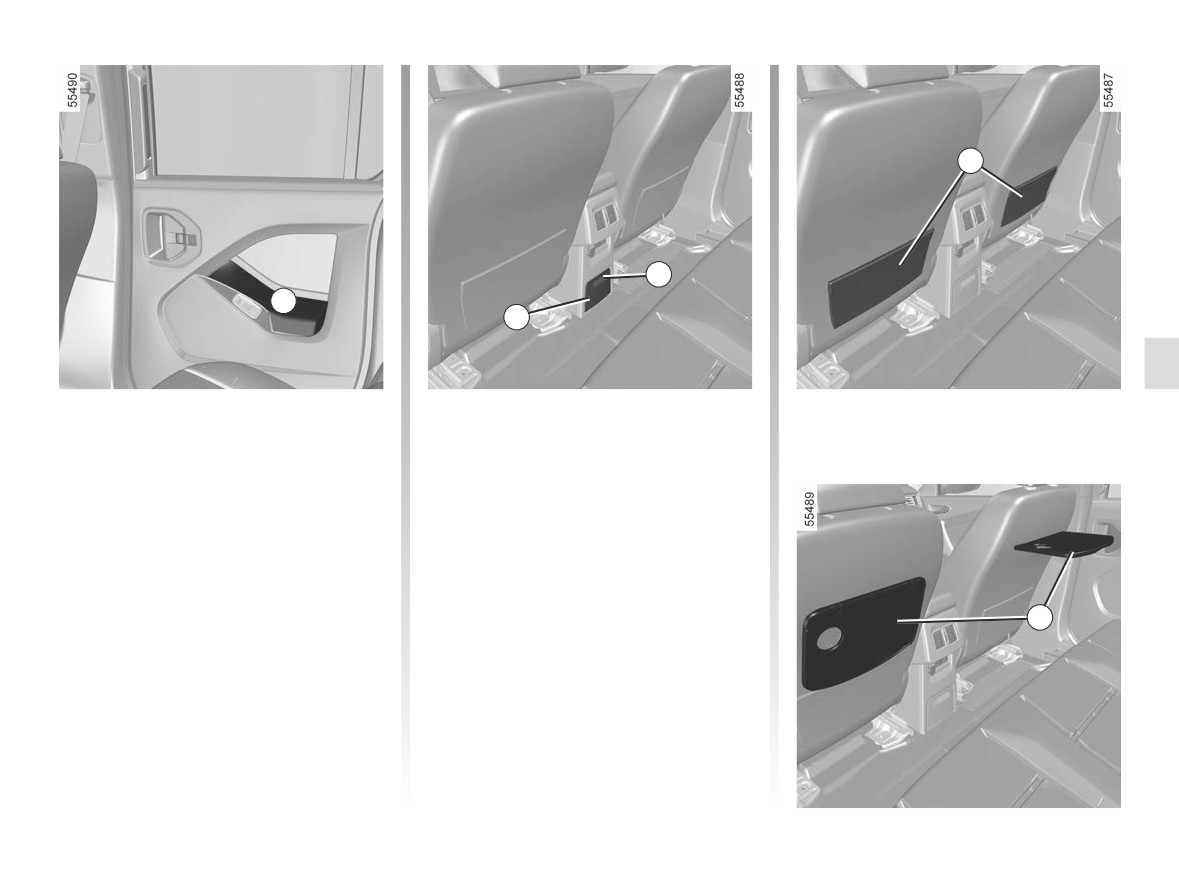

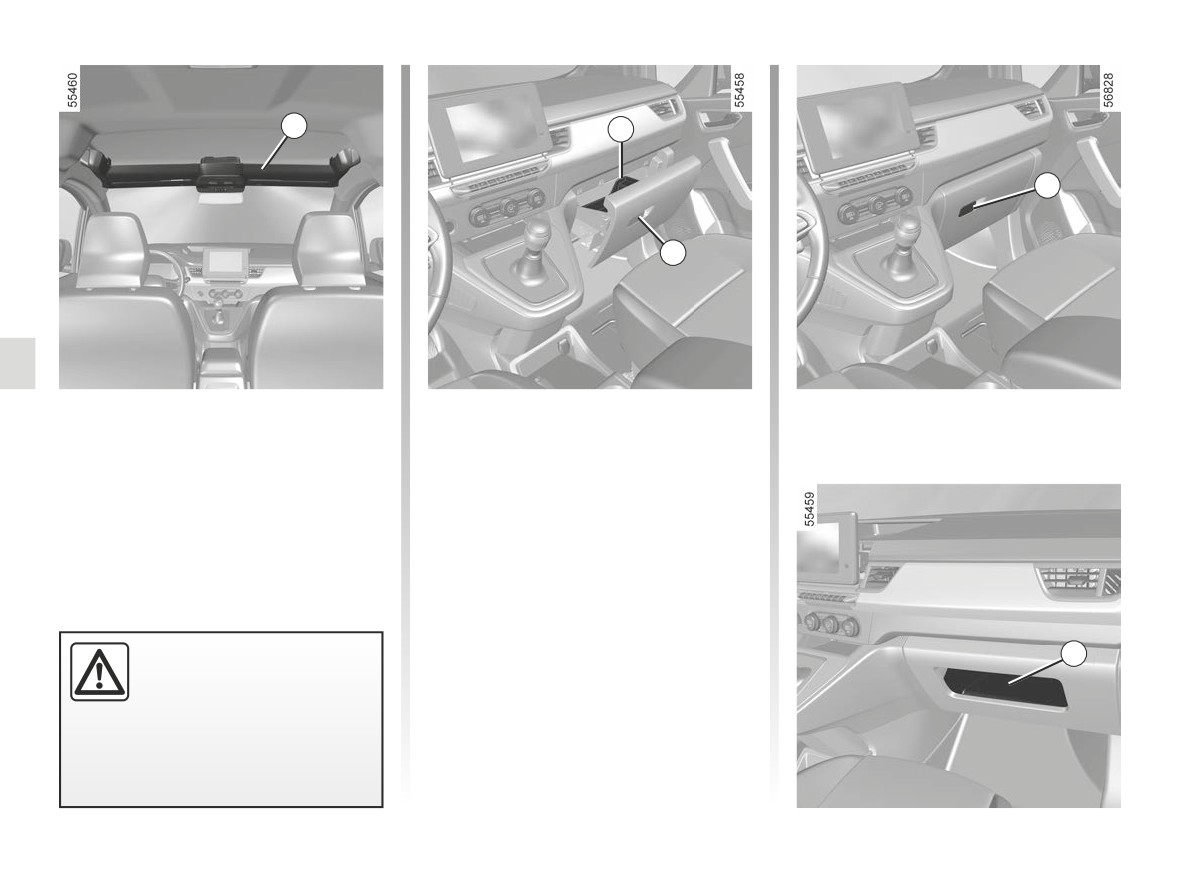

Front door storage pockets 1

Open storage compartment 2

Driver’s dashboard upper

storage compartment A

Press the button 3, place your hand

in areas 4 and lift to open the storage

compartment A.

It is recommended that you open the

storage compartment only when the ve-

hicle is stationary.

Nothing should be placed

on the floor area in front of

Check that the dashboard

the driver as such objects

storage compartment A is

may slide under the pedal

correctly closed before driv-

during braking manoeuvres, thus

ing the vehicle.

obstructing its use.

Risk of the driver’s field of vision

being obstructed if it inadvert-

ently opens.

3.25

CarManuals2.co

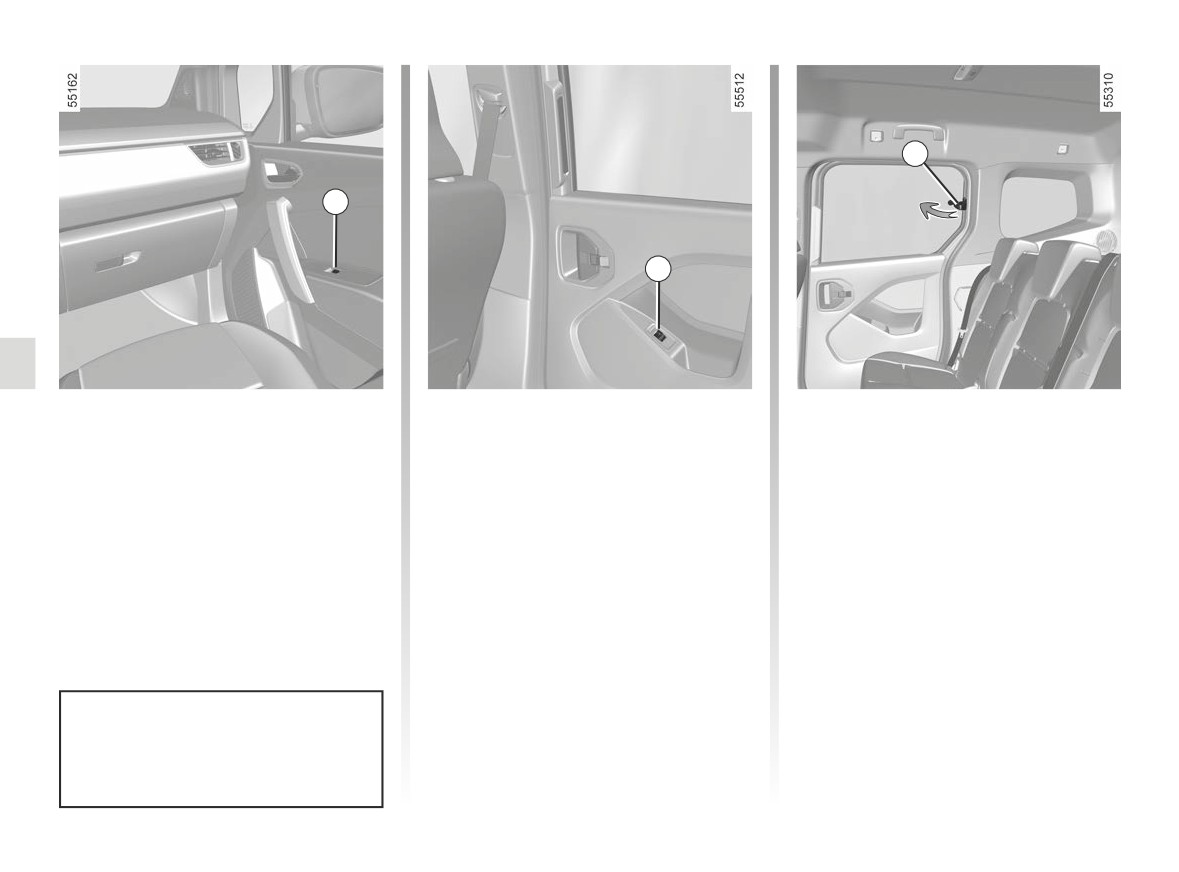

PASSENGER COMPARTMENT STORAGE, FITTINGS (2/7)

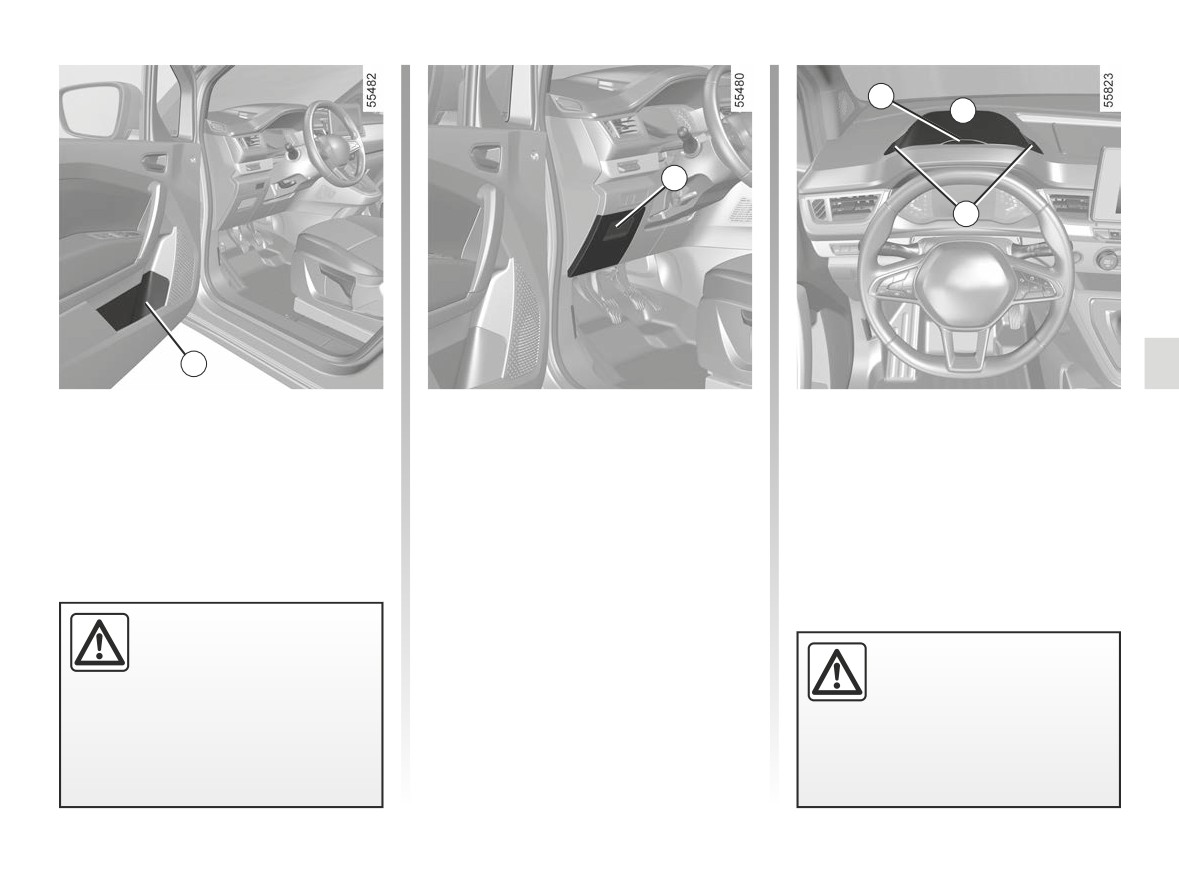

Storage compartment 5

Dashboard storage 7

Storage compartment 8

Centre console storage

compartment/Wireless

charger - Induction

charging 6

For more information on the induction

charging zone, please refer to the mul-

timedia instructions.

Ensure that no hard, heavy

or pointed objects are

placed in the “open” storage

compartments in such a

way that they may fall onto passen-

gers during sudden turning, braking

or in the event of an accident.

3.26

CarManuals2.co

PASSENGER COMPARTMENT STORAGE, FITTINGS (3/7)

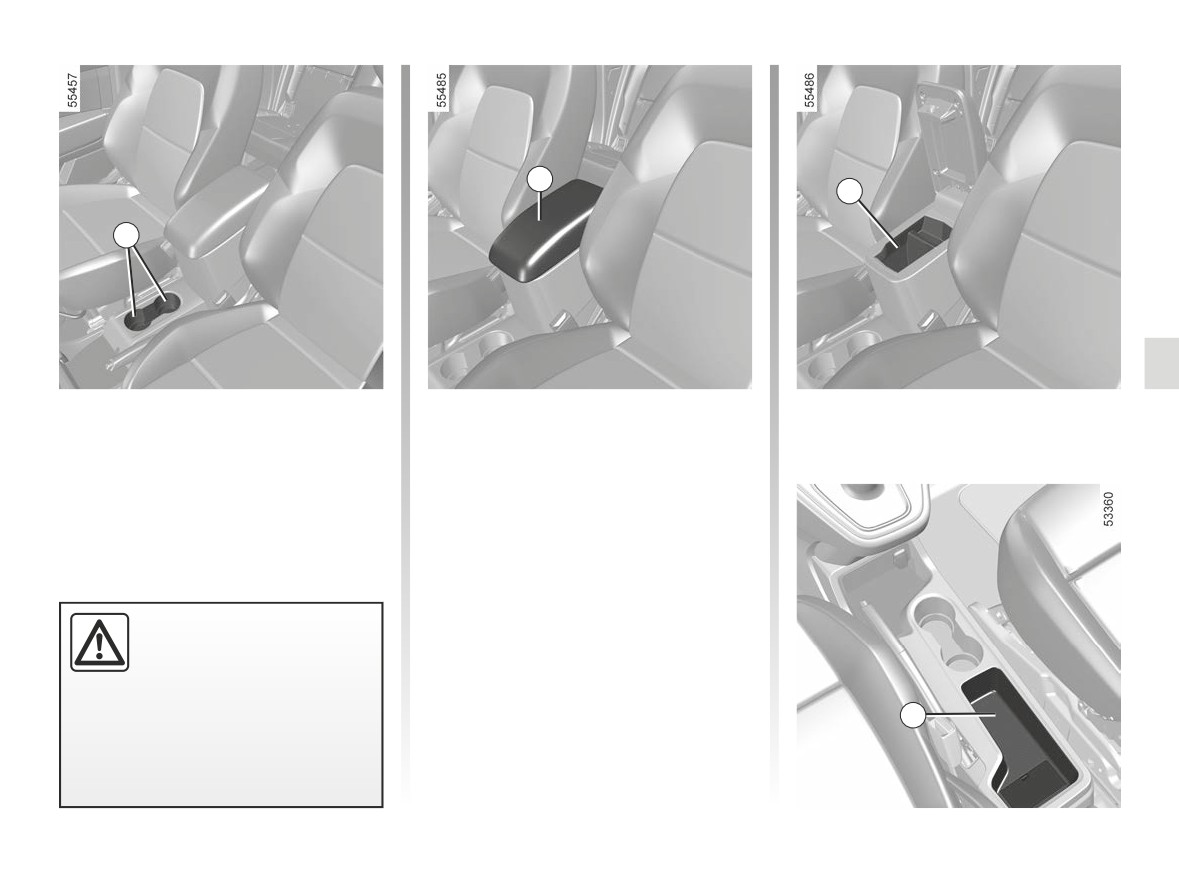

Cup holders 9

Centre armrest storage

compartment 11

Depending on the vehicle, the cup

holder may be equipped with retaining

Lift the armrest cover 10.

hooks to keep the cup in place.

This can be used to store a mobile ash-

Centre console storage

tray, drink cans, etc.

compartment 12

When turning corners,

accelerating or braking,

ensure that the recepta-

cle being held by the cup

holder is not dislodged.

There is a risk of injury if hot

liquid escapes.

3.27

CarManuals2.co

PASSENGER COMPARTMENT STORAGE, FITTINGS (4/7)

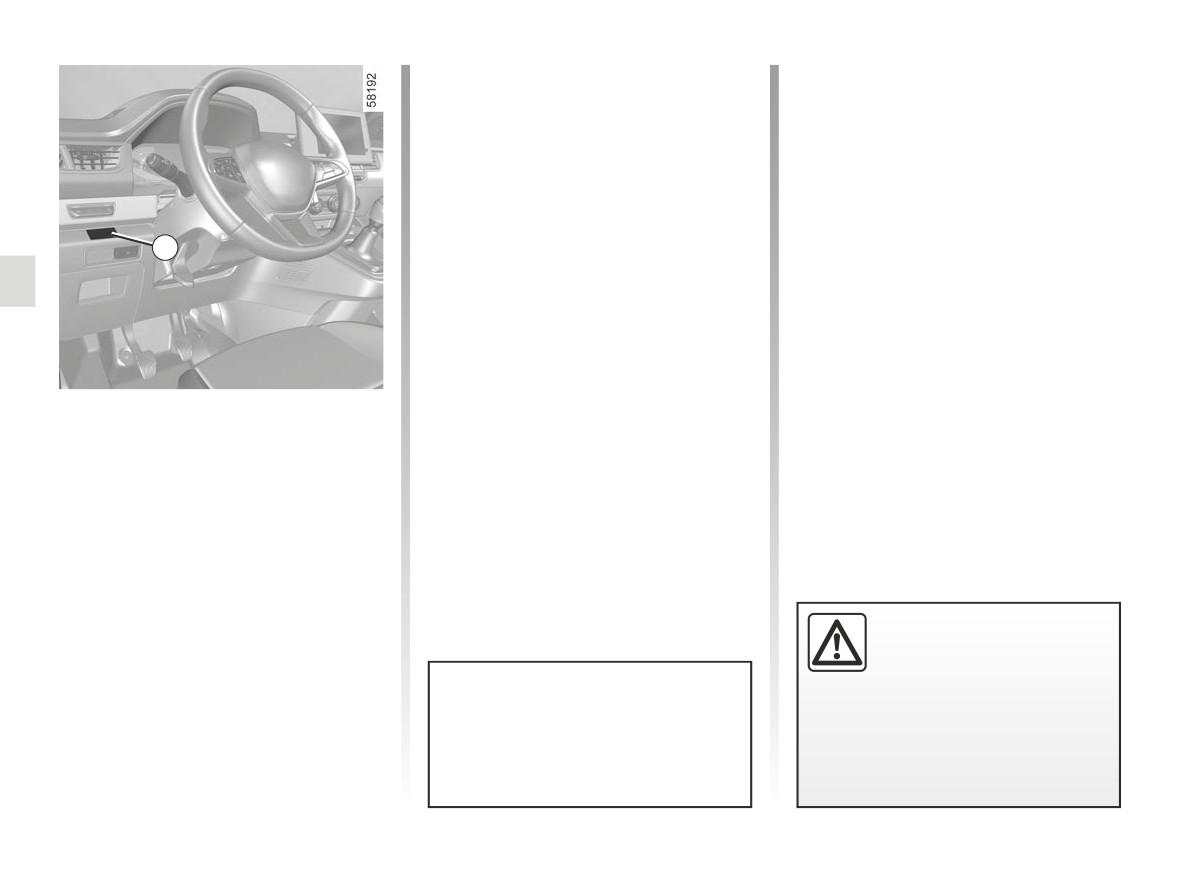

Front upper cab storage

Passenger storage drawer 14

compartment 13

If fitted on the vehicle, pull paddle 15 to

Do not use it for getting into or out of the

open.

vehicle and do not hang from it.

Do not place wet items or containers

Glovebox

with liquid in them in the upper cab stor-

If fitted on the vehicle, pull paddle 16 to

age compartment.

open.

Passenger storage

compartment 17

Do not hang any heavy and/

or sharp objects which may

fall whilst driving.

Risk of injury.

3.28

CarManuals2.co

PASSENGER COMPARTMENT STORAGE, FITTINGS (5/7)

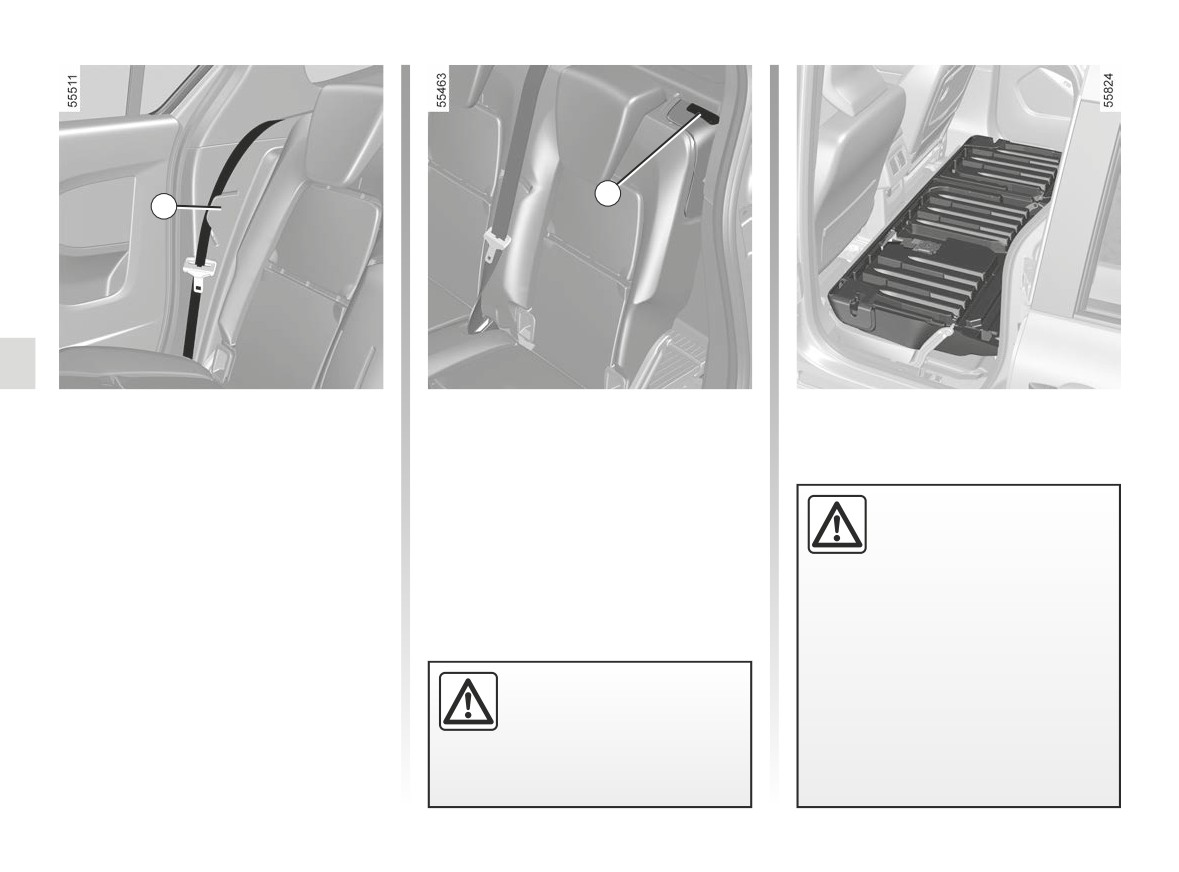

Sliding side door storage

Storage compartment 19

compartment 18

Pass a hand in location 20 and pull to

Items stored in the sliding side door

open the storage compartment 19.

storage compartments should not stick

out from the storage compartment, so

Rear seat storage pockets 21

as not to hamper the sliding of the door.

Rear parcel shelves 22

Raise them to their horizontal position.

Note: the maximum permissible load

on the parcel shelf is 5 kg, evenly dis-

tributed.

3.29

CarManuals2.co

PASSENGER COMPARTMENT STORAGE, FITTINGS (6/7)

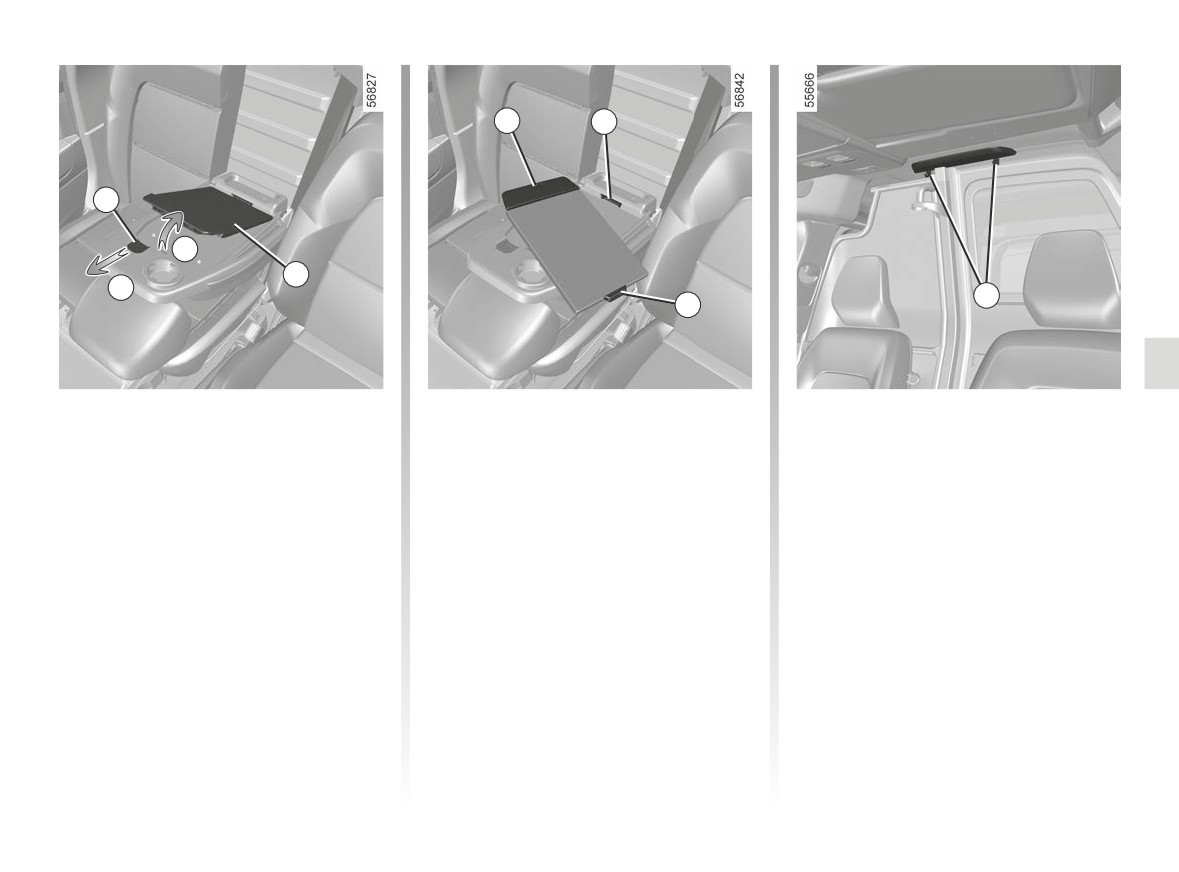

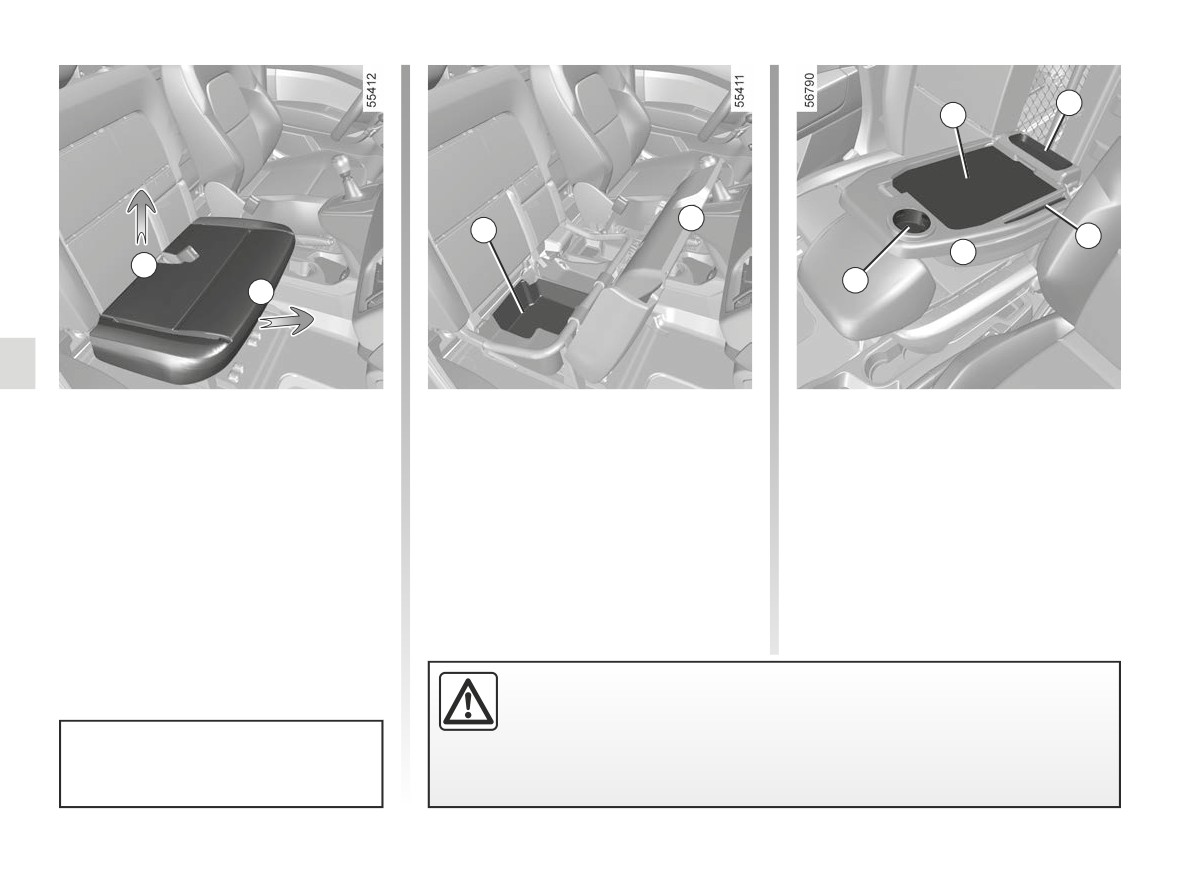

Storage compartment 23

To replace the seat, proceed in reverse:

Parcel shelf 24, storage area 25, pen

- lift the bench seat cushion so as to

holder 26 and cup holder 27

under front passenger seat

position the rear section B of the

(depending on the vehicle)

(for vehicles fitted with front bench seat

cushion under the seatback;

for two)

Lower the seatback D ➥ 1.34.

- push down on the front of the cush-

Depending on the vehicle, the cup

To get to it:

ion C so as to lock the seat base.

holder may be equipped with retaining

- pull the front of the bench seat cush-

Check that the bonnet is correctly

hooks to keep the cup in place. This

ion C as far as the stop;

locked.

can be used for storing a mobile ash-

- then, lift the rear section B of the

tray, cup holder, etc.

cushion and pivot the seat base.

When turning corners, accelerating or braking, ensure that the receptacle

being held by the cup holder is not dislodged.

There is a risk of injury if hot liquid escapes.

Maximum load weight allowed in the

storage area 23: 10 kg.

3.30

CarManuals2.co

PASSENGER COMPARTMENT STORAGE, FITTINGS (7/7)

Tray 24

To refit the parcel shelf:

Clothes hooks 32

To remove the parcel shelf, press con-

- insert the end 31 of the parcel shelf

Depending on the vehicle, the hooks

trol

28 (movement E) and raise the

into the slot 30;

may be located on the ceiling behind

parcel shelf (movement F).

- press the 28 control (movement E)

the seats.

You can attach documents using the

and place the parcel shelf in the stor-

For safety reasons, these hooks may

clamp 29.

age position;

only be used to hang clothes.

You can attach sticky notes to the dedi-

- release the 28 control.

Note: the maximum permitted load is

cated area on the clamp 29.

4 kg.

Note: make sure that you refit the

parcel shelf properly and remove any

items from the cup holder before rais-

ing the centre seatback. Check that

the back of the centre seat is properly

locked.

3.31

CarManuals2.co

REAR HEAD RESTS

To raise it

Storage position 2

When the headrest is set at the

lowest position, this is for storage

Slide it to the required height.

Pull it towards you and lower it com-

only. It should not be in this position

pletely.

when a seat is occupied.

To lower it

Pull it towards you and slide it to the re-

quired height.

To remove it

Raise the headrest then press tabs 1 to

release it.

To refit it

Press tab 1 and insert the rods into the

The headrest is a safety

holes, with the notches facing forwards.

component; check that it is

fitted and in the correct po-

sition.

3.33

CarManuals2.co

REAR BENCH SEAT: functions (1/2)

To fold down the seatback

To raise the seatback

Before moving the bench seat, ensure

Before raising the seatback, ensure

that the front seats are pushed forward

that no objects (water bottle, tool box,

sufficiently, that no objects are present

etc.) will prevent it from locking properly

on the floor and that nothing will ob-

and that the seat belt is correctly placed

When refitting the seat-

struct the manoeuvre.

in its hook.

back, make sure it is cor-

Place the seat belt in the hook 1 to pre-

Raise the seatback and click it into po-

rectly locked in place.

vent it from being damaged and lower

sition. Check that it is correctly locked.

If seat covers are fitted,

the rear headrests to the storage posi-

make sure these do not prevent the

tion.

seatback latch from locking in.

Make sure that the seat belts are

Pull lever 2 of the seatback you wish to

positioned correctly.

fold down (on the right or left-hand side

Reposition the headrests.

of the bench seat), and bring the seat-

Check that the rear seat

back down.

belts are positioned and

operating correctly each

time the rear bench seat is

moved.

3.34

CarManuals2.co

REAR PARCEL SHELF

The shelf is made up of two rigid sec-

- Storage position B.

tions.

To store the parcel shelf, slide it into the

There are two possible positions:

runner 3 behind the rear bench seat-

back.

- top position A;

In this case, you can fold section 2 onto

section 1 by lifting it as shown by the

arrow.

Do not place any heavy or

hard object on the parcel

shelf. These may pose a

risk to the vehicle occu-

pants if the driver has to brake sud-

denly or if the vehicle is involved in

an accident.

3.36

CarManuals2.co

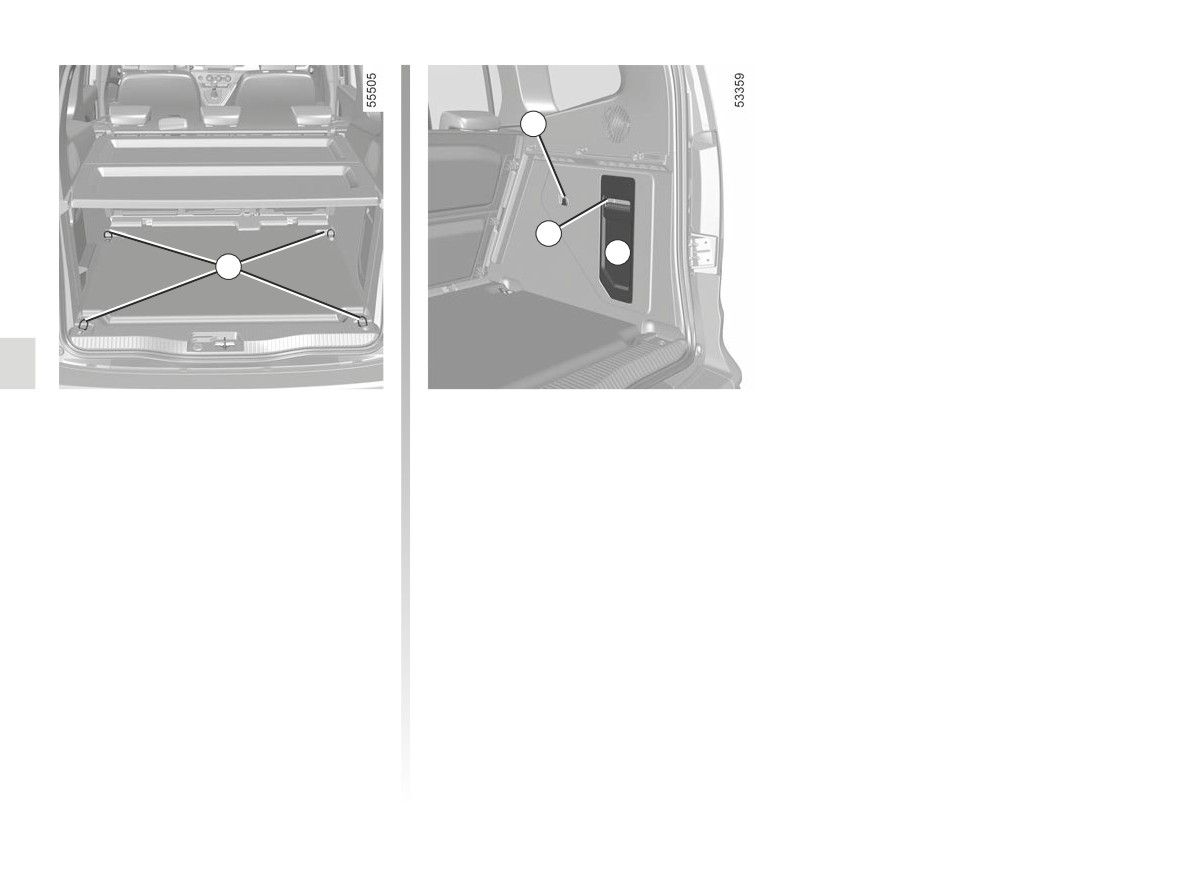

LUGGAGE NET

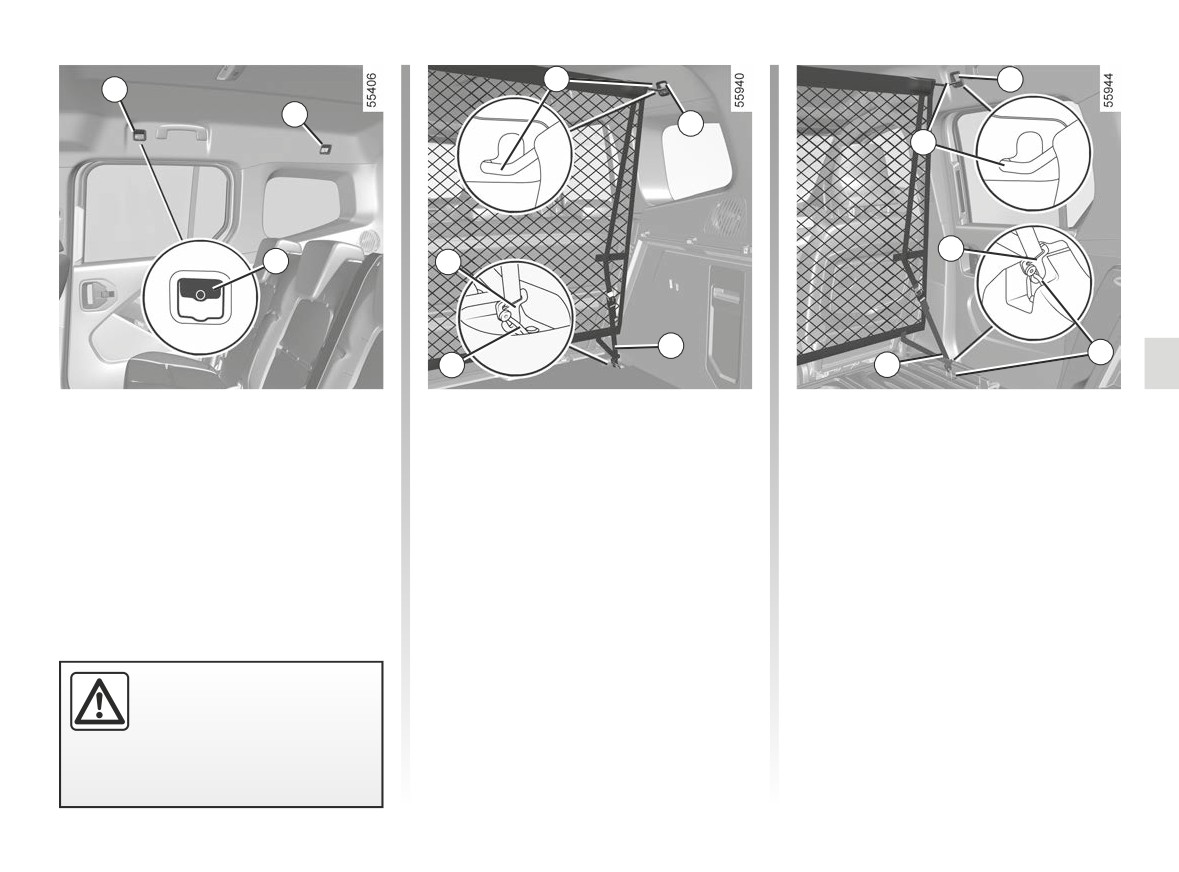

On equipped vehicles, the luggage net

Fitting the luggage net

can be used, when transporting ani-

behind the rear seats

behind the front seats

mals or luggage, to separate them from

Inside the vehicle on each side:

the passenger section.

- insert the upper rod of the net 4 into

- lift the covers 2 to access the an-

It is fitted behind the rear bench seat

the anchoring points 3;

choring points 1 and remove the an-

or behind the driver and front passen-

- attach the two hooks 6 of the straps 5

choring point covers 8;

ger seats.

from the net onto the anchoring

- insert the upper rod of the net 4 into

points 7;

the anchoring points 1;

– adjust the net strap 5 so that it is taut.

- attach the two hooks 6 for the net

straps 5 to the anchoring points 8;

- adjust the net strap 5 so that it is taut.

The luggage net must not

be used to restrain or hold

objects.

Risk of injury.

3.37

CarManuals2.co

TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT (1/4)

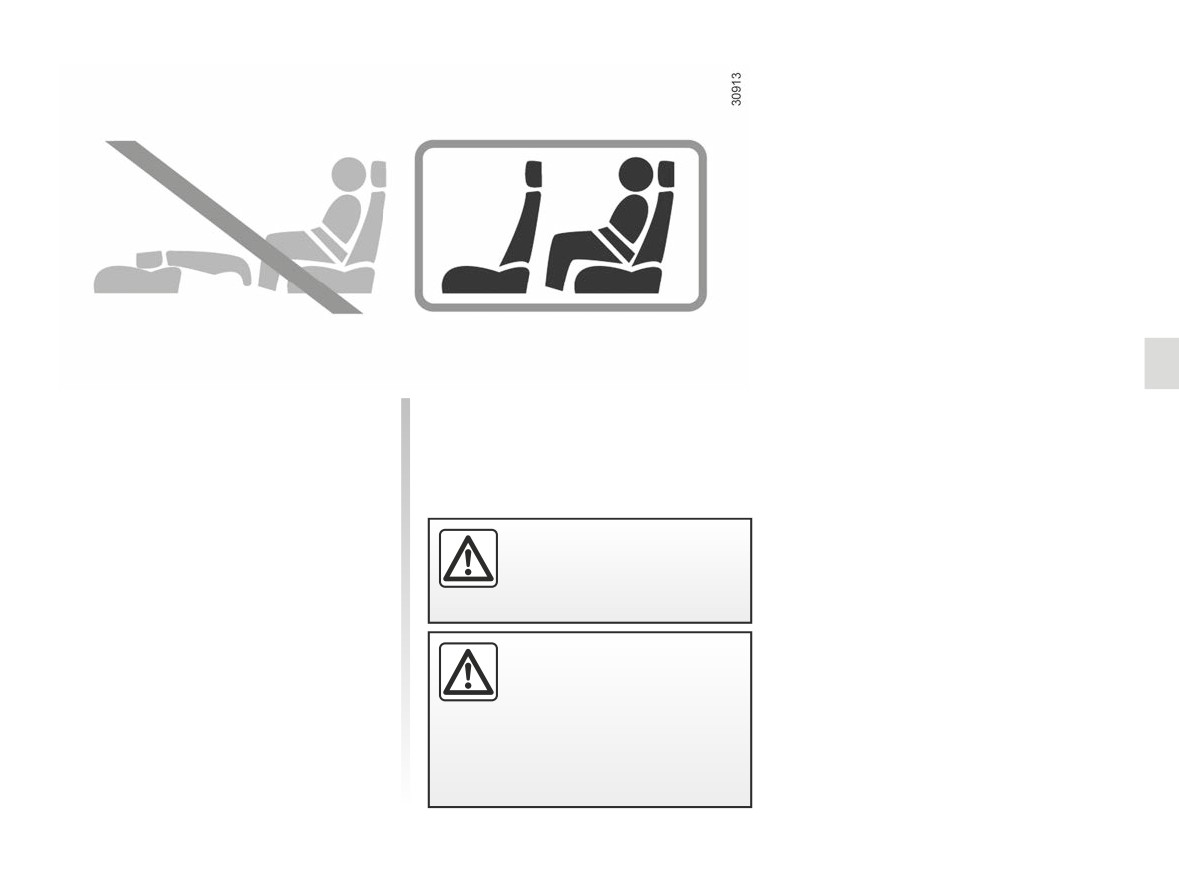

Always position the objects transported

so that the largest surface is against:

- the rear bench seatback, for normal

loading (example A);

– the front seatbacks with the rear seat-

backs folded down, as is the case for

maximum loads (example B).

Always position the heavi-

est items directly on the

floor. Use the lashing

Ensure that the objects being trans-

points 1 on the boot floor, if

ported are evenly distributed throughout

these are fitted to the vehicle. The

the loading area.

luggage should be loaded in such a

way that no items will be thrown for-

If you have to place objects on the folded

ward and strike the occupants if the

seatback, it is necessary that you lower

driver has to brake suddenly. Fasten

the headrests before folding the seat-

the rear seat belts, even if the seats

back so that it can be folded as flat as

are not occupied.

possible against the seat.

3.39

CarManuals2.co

TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT (2/4)

For your safety, check that

all the vehicle’s doors are

properly closed before

starting the engine.

Transporting objects in the

Special note for van version

While driving with the right

rear load area

rear hinged door open,

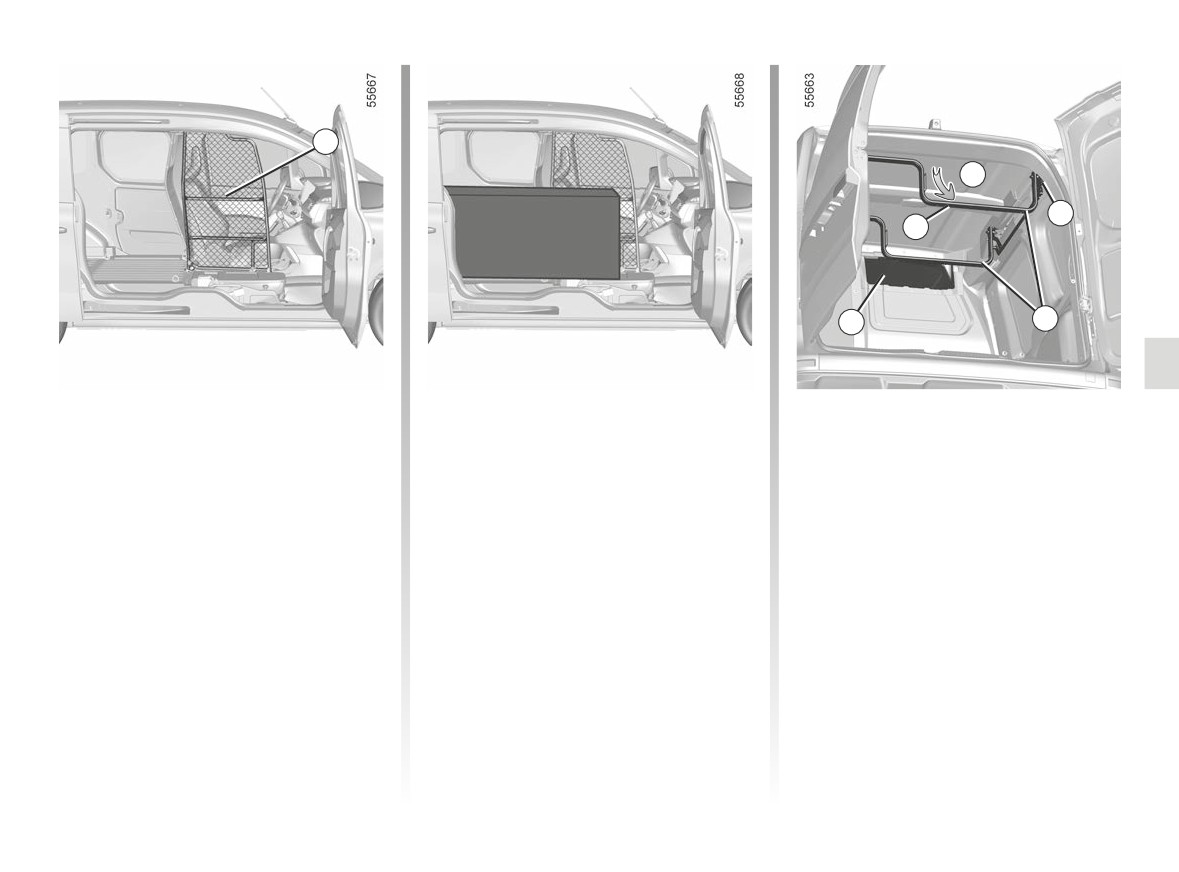

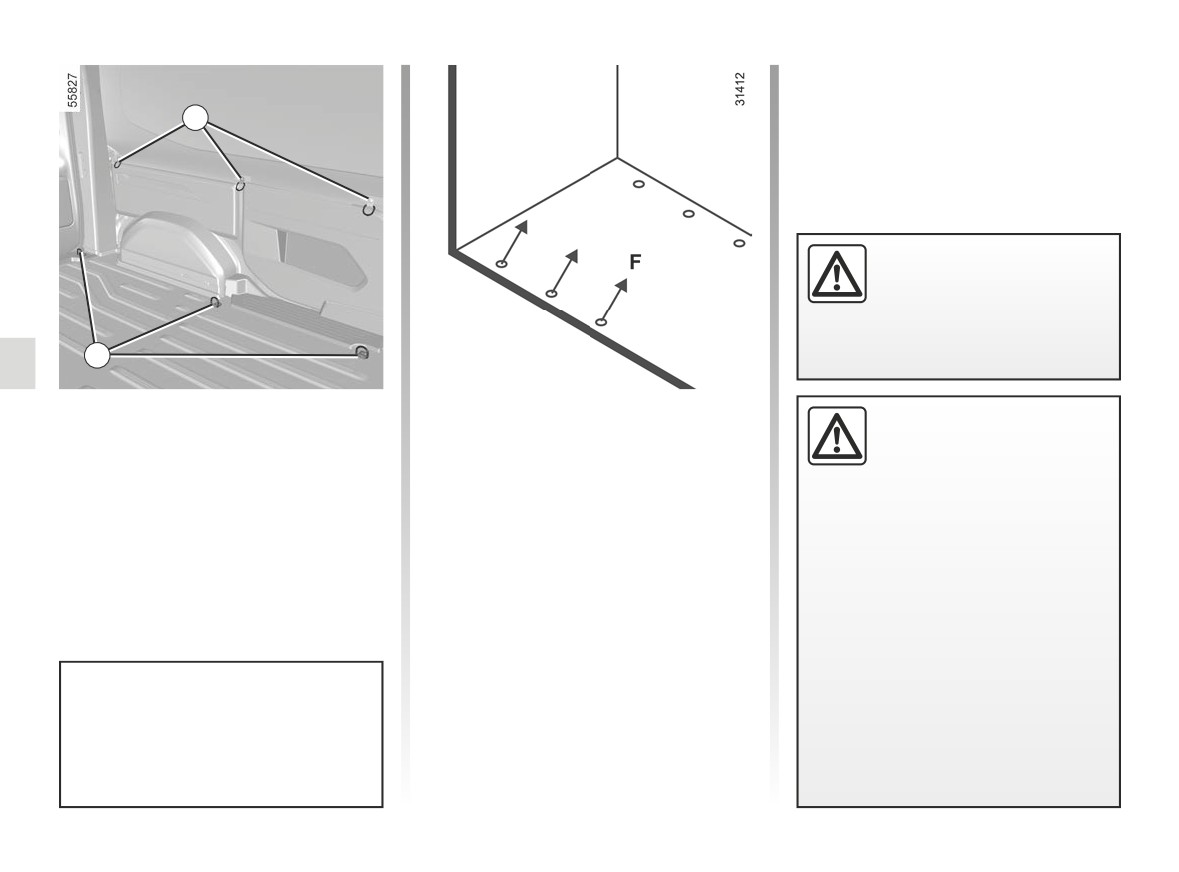

Rotary rings 3:

always secure transported

Depending on the vehicle, rotating

F max: 400 daN

loads. The left-hand door,

rings 2 and 3 can be used to prevent

which remains shut, should not be

transported objects from moving. The

used to hold transported loads in

number of rings and their locations may

place. Using the right rear hinged

vary depending on the vehicle.

door open while driving should only

be done in exceptional cases.

In any event, please refer to local

legislation.

Risk of loads falling on the road

surface.

The sole purpose of these rings 2 is

to prevent transported objects from

moving. The objects must be se-

cured to the mounting rings 3 on the

vehicle floor beforehand.

3.40

CarManuals2.co

TRANSPORTING OBJECTS IN THE LUGGAGE COMPARTMENT (3/4)

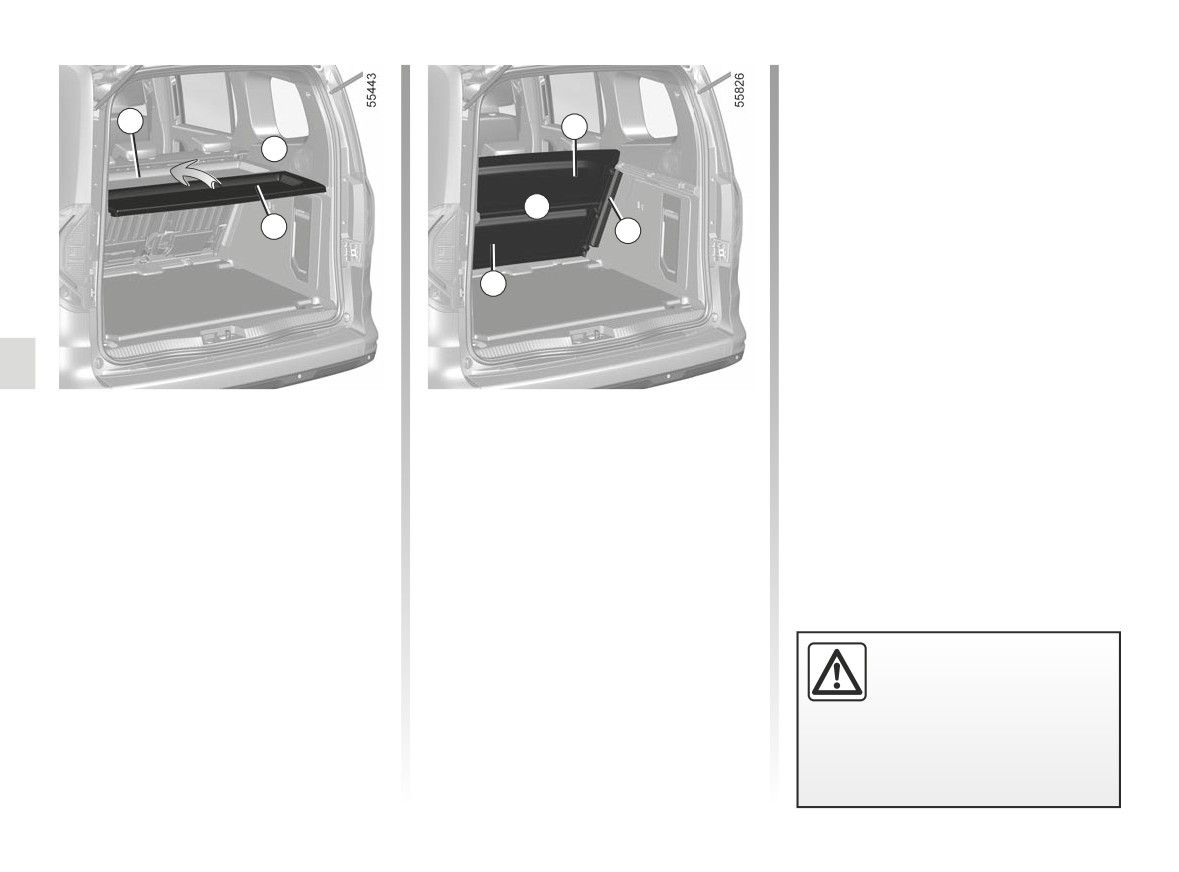

“Open Sesame” version

To do this, pivot the partition 4. Please

Recess 8 and roof rack 7

observe the procedure when pivoting

(depending on the vehicle)

Depending on the width and length of

the partition. ➥ 1.41.

objects carried in the rear load area,

Depending on the length of the objects

use the front passenger door and slid-

being transported in the rear load area,

ing side door openings.

you can use the recess 8 or the roof

rack 7.

Position for use

With the roof rack in the storage po-

sition, pull the lever 6 downwards to

unlock the roof rack, then hold the roof

rack bar 5 and pull it towards you until it

locks (movement C).

The roof rack locks automatically.

Check that the bonnet is correctly

locked.

3.41

CarManuals2.co

Renault Kangoo (2023 year). Manual in english - page 7
