METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/6)
Depending on the vehicle, they will con-
- Have the entire restraint
sist of:
system checked following
- seat belt inertia reel pretension-
an accident.
ers;
- No operation whatso-
- central seat belt pretensioners;
ever is permitted on any part
- chest-level load limiters;
of the system
(pretensioners,
airbags, computers, wiring) and
- airbags driver and passenger
the system components must not
front.
be reused on any other vehicle,
These systems are designed to act in-
even if identical.
dependently or together when the vehi-
-
Only qualified personnel from our
cle is subjected to a frontal impact.
2
Network may work on the airbags;
Depending on the severity of the
otherwise the system may trigger
1
impact, the system can trigger:
accidentally and cause injury.
-
seat belt locking;
Pretensioners
-
The electric trigger system may
only be tested by a specially
–
the seat belt inertia reel pretensioner
The pretensioners hold the seat belt
trained technician using special
(which engages to correct seat belt
against the body, holding the occupant
equipment.
slack);
more securely against the seat, thus in-
-
When the vehicle is scrapped,
-
lap seat belt pretensioners to hold
creasing the seat belt’s efficiency.
contact an approved dealer for
the occupant in their seat;
In the event of a severe frontal impact
disposal of the pretensioner and
-
the front airbag.
and if the ignition is switched on, the
airbags gas generators.
system may engage the following de-
pending on the force of the impact:
- the seat belt inertia reel preten-
sioner 1 which instantly retracts the
seat belt;
- the lap seat belt inertia reel preten-
sioner 2 on the front seats.
1.50
CarManuals2.co
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (2/6)
Load limiter
driver and passenger front
Above a certain severity of impact, this
Airbags
mechanism is used to limit the force of
Fitted to the driver and passenger
the belt against the body so that it is at
sides.
an acceptable level.
A symbol on the lower section of the
windscreen indicates if this equipment
is present (depending on the vehicle).
Each airbag system consists of:
- an airbag and gas generator fitted on
the steering wheel for the driver and
in the dashboard for the passenger;
- an electronic unit for system monitor-
ing which controls the gas generator
electrical trigger system;
- remote sensors;
- a single warning light å
on the
instrument panel.
The airbag system uses py-
rotechnic principles. This
explains why, when the
airbag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a banging noise. In a situ-
ation where an airbag is required, it
will inflate immediately and this may
cause some minor, superficial graz-
ing to the skin or other problems.
1.51
CarManuals2.co
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/6)
Operating faults
å
This warning light comes on
when the engine is started and then
goes out after approximately three sec-
onds.
If it does not come on when the ignition
is switched on or if it stays on, there is a
fault in the system.
Contact your approved Dealer as soon
as possible.
Your protection will be reduced until this
fault is rectified.
Operation
This system is only operational when
the ignition is switched on.
In a severe frontal impact, the airbags
inflate rapidly, cushioning the impact
of the driver's head and chest against
the steering wheel and of the front pas-
senger against the dashboard. The air
bags then deflate immediately so that
the passengers are not in any way hin-
dered from leaving the vehicle.
1.52
CarManuals2.co
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/6)
The following conditions will trigger
In a frontal impact with another vehi-
In a side impact with another vehicle
the pretensioners or airbags.
cle of an equivalent or higher category,
of an equivalent or higher category, at
with an impact area equal to or greater
an impact speed equal to or greater
In a frontal impact against a rigid
than 40%, where the speed of both ve-
than 31 mph (50 km/h).
(non-deformable) surface at an impact
hicles is equal to or greater than
speed equal to or greater than 16 mph
25 mph (40 km/h).
(25 km/h).
1.53
CarManuals2.co
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (5/6)

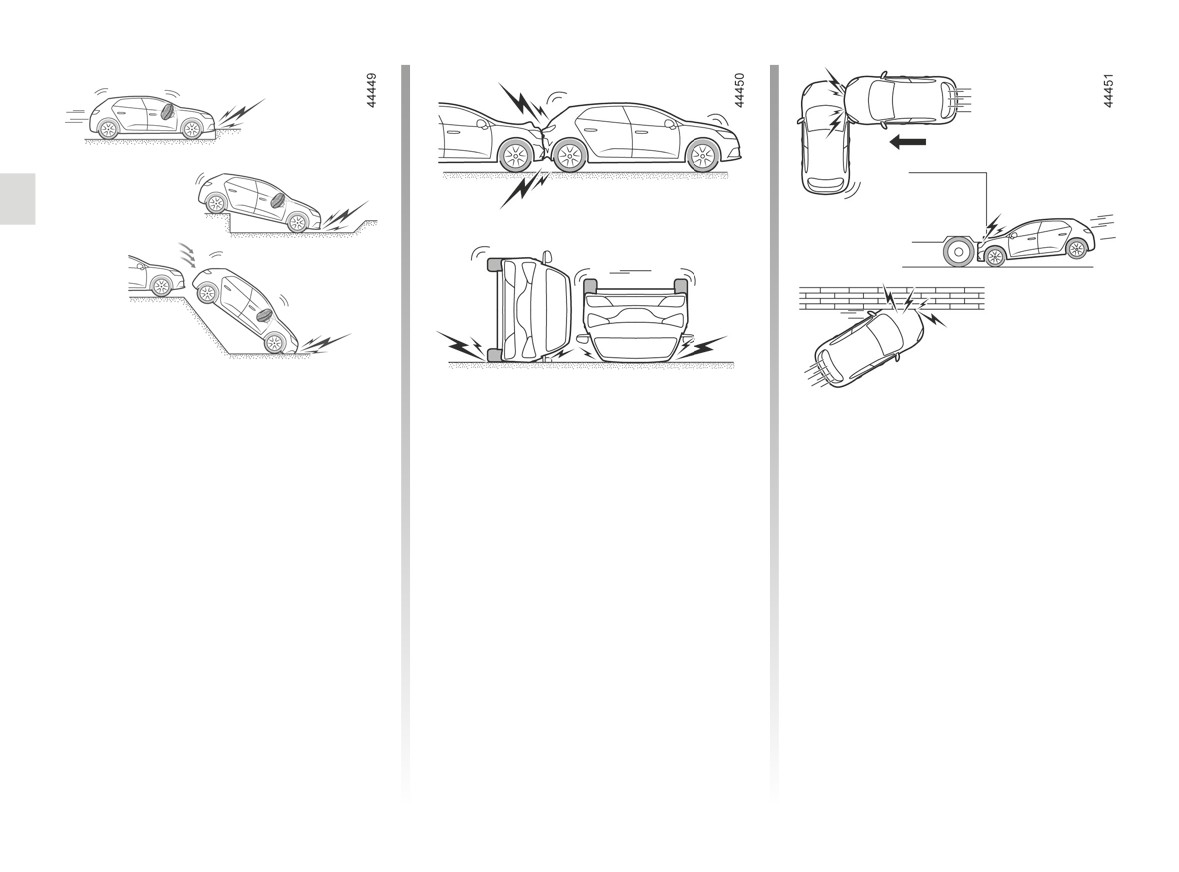

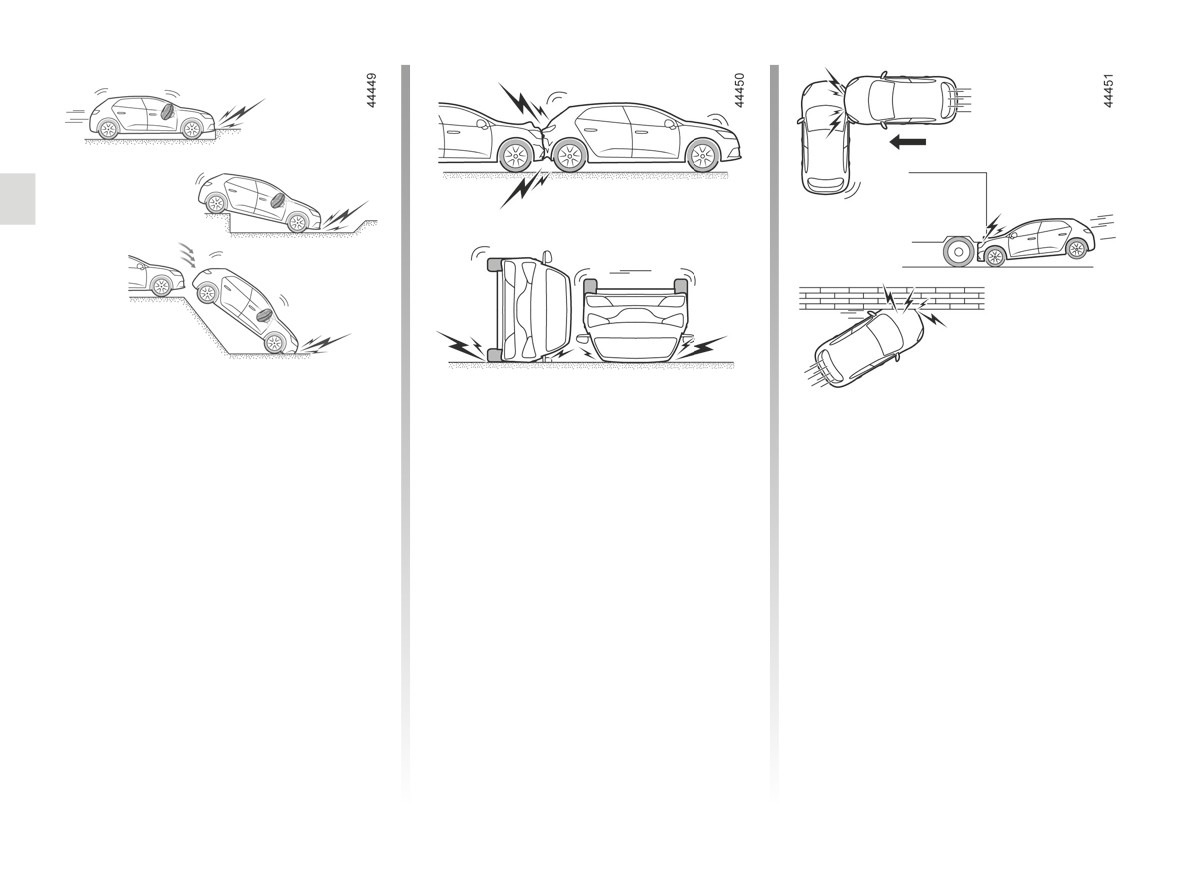

In the following examples, the pre-
In the following examples, there is a
- side impact, affecting the front of the
tensioners or the airbags could op-
risk that pretensioners orairbags may
vehicle;
erate:
not be triggered:
- frontal impact, under the tail of a
- impact under vehicle such as pave-
- rear impact, however severe;
lorry;
ment;
– the vehicle overturning;
- frontal impact against an obstacle
- potholes;
with a sharp angle;
- drop or hard landing;
- ...
- stones;
– ...
1.54
CarManuals2.co
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (6/6)
All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when it inflates.
Warnings concerning the driver’s airbag
- Do not modify the steering wheel or the steering wheel boss.
- Do not cover the steering wheel boss under any circumstances.
- Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.
- The steering wheel must not be removed (except by qualified personnel from our Network).
- Do not sit too close to the steering wheel when driving: sit with your arms slightly bent (see “Adjusting your driving position”
➥ 1.43). This will allow sufficient space for the airbag to deploy correctly and be fully effective.
Warnings concerning the passenger airbag
- Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard on or near the airbag.
- Do not place anything between the dashboard and the passenger (pet, umbrella, walking stick, parcels, etc.).
- The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. In
general, parts of the body should be kept away from the dashboard (knees, hands, head, etc.).
- The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure
the protection of the passenger in the event of an impact.
A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE
RESTRAINT SYSTEMS IN ADDITION TO THE FRONT PASSENGER SEATBELT ARE DEACTIVATED ➥ 1.90.
1.55
CarManuals2.co
METHODS OF RESTRAINT IN ADDITION TO THE REAR SEAT BELTS
Depending on the vehicle, they will con-
- Have the entire restraint
sist of:
system checked following
- side seat belt inertia reel preten-
an accident.
sioners;
- No operation whatso-
- chest force limiters.
ever is permitted on any part
These systems are designed to act in-
of the system
(pretensioners,
dependently or together when the vehi-
airbags, computers, wiring) and
cle is subjected to a frontal impact.
the system components must not
be reused on any other vehicle,
Depending on the severity of the
even if identical.
impact, the system can trigger:
1
-
Only qualified personnel from our
- seat belt locking;
Network may work on the airbags;
- the seat belt inertia reel pretensioner
otherwise the system may trigger
(which engages to correct seat belt
accidentally and cause injury.
slack).
Side seat belt pretensioners
-
The electric trigger system may
only be tested by a specially
The pretensioners hold the seat belt
Force limiter
trained technician using special
against the body, holding the occupant
equipment.
Above a certain severity of impact, this
more securely against the seat, thus in-
-
When the vehicle is scrapped,
mechanism is used to limit the force of
creasing the seat belt’s efficiency.
contact an approved dealer for
the belt against the body so that it is at
With the ignition on, following a signif-
disposal of the pretensioner and
an acceptable level.
icant frontal impact and depending on
airbags gas generators.
the severity of the impact, the system
may trigger the seat belt inertia reel
pretensioner 1, which instantly retracts
the seat belt.
1.56
CarManuals2.co
SIDE PROTECTION DEVICES
Side Airbag
This airbag may be fitted to each of the
front seats and is activated at the sides
of the seats (door side) to protect the
occupants in the event of a severe side
impact.
Curtain Airbag
This is an airbag fitted (depending on
the vehicle) along the upper sides of
the vehicle - they inflate along the front
and rear door side windows to protect
the passengers in the event of a severe
side impact.
Warning relating to the side airbag
- Fitting seat covers: seats equipped with an airbag require covers spe-
cifically designed for your vehicle. Contact an approved dealer to find
out if these covers are available. The use of any covers other than those
designed for your vehicle (including those designed for another vehicle) may
affect the operation of the airbag and reduce your protection.
-
Do not place any accessories, objects or even pets between the seatback, the
door and the internal fittings. Do not cover the seatback with any items such as
clothes or accessories. This may prevent the air bag from operating correctly
or cause injury when the airbag is deployed.
-
No work or modification whatsoever may be carried out on the seat or internal
fittings, except by qualified personnel from an approved Dealer.
-
This airbag operates through slits in the front seatbacks (door side): never
insert any objects in these slits.
1.57
CarManuals2.co
ADDITIONAL METHODS OF RESTRAINT
All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when it inflates.
The airbag is designed to complement the action of the seat belt. Both the airbag and the seat belt are integral parts
of the same protection system. It is therefore essential to wear seat belts at all times. If seat belts are not worn, the oc-
cupants are exposed to the risk of serious injury in the event of an accident. It may also increase the risk of minor su-
perficial injuries occurring when the airbag is deployed, although such minor injuries are always possible with airbags.
If the vehicle should overturn or in the event of a rear impact, however severe, the pretensioners and airbags are not always
triggered. Impacts to the underside of the vehicle, e.g. from pavements, potholes or stones, can all trigger these systems.
- No work or modification whatsoever may be carried out on any part of the airbag system (airbags, pretensioners, computer,
wiring harness, etc.), except by qualified Network personnel.
- To ensure that the system is in good working order and to avoid accidental triggering of the system which may cause injury,
only qualified Network personnel may work on the airbag system.
- As a safety precaution, have the airbag system checked if your vehicle has been involved in an accident, or is stolen or
broken into.
- When selling or lending the vehicle, inform the user of these points and hand over this handbook with the vehicle.
- When scrapping your vehicle, contact your approved Dealer for disposal of the gas generator(s).
1.58
CarManuals2.co

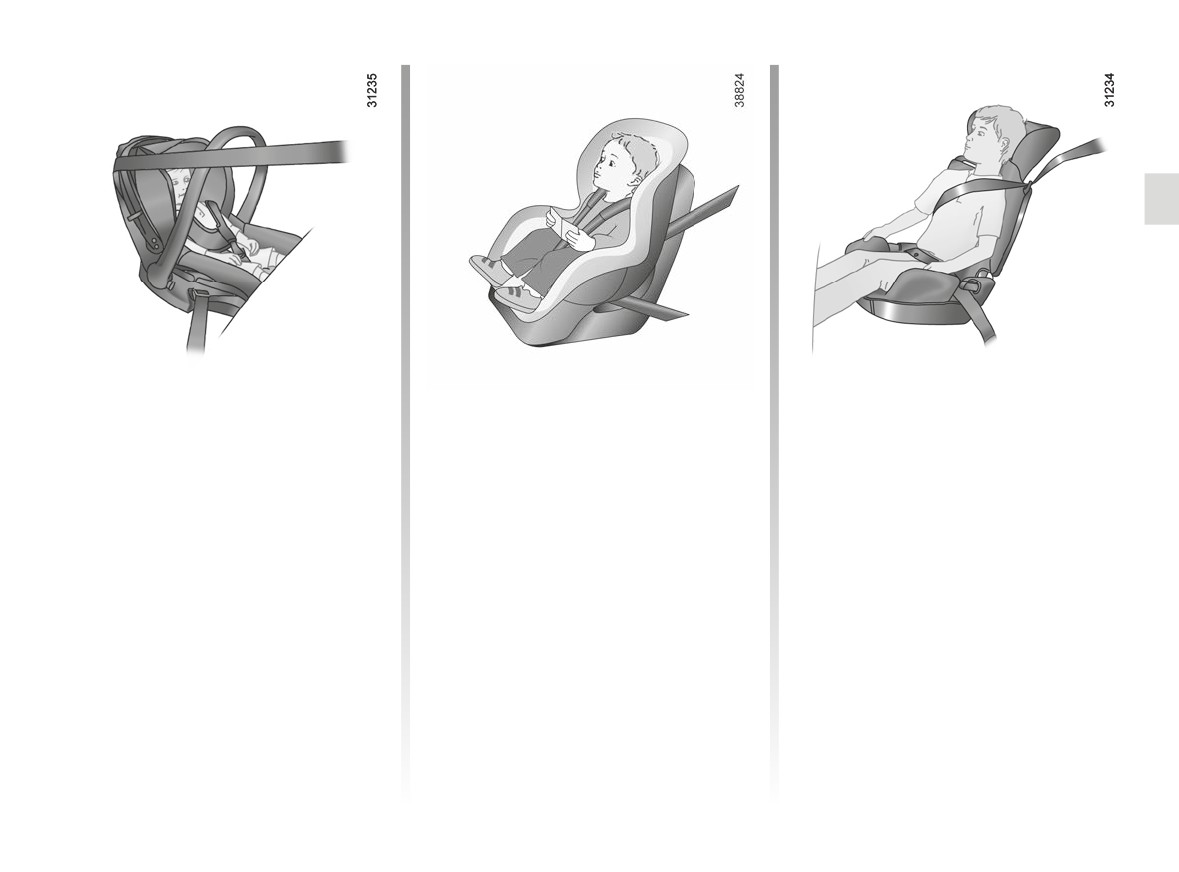

CHILD SAFETY: General information (1/2)
Carrying children
Please ensure that you comply with the
legislation of your country.
Children, and adults, must be correctly
seated and strapped in for all journeys.
The children being carried in your vehi-
cle are your responsibility.
Driver’s responsibility
A child is not a miniature adult. Children
when parking or stopping
are at risk of specific injuries as their
the vehicle
muscles and bones have not yet fin-
ished growing. The seat belt alone
Never leave an animal,
would not provide suitable protection.
child or adult who is not self-suffi-
Use an approved child seat and ensure
cient alone on your vehicle, even for
you use it correctly.
a short time.
A collision at 30 mph (50
They may pose a risk to themselves
km/h) is the same as fall-
or to others by starting the engine,
ing a distance of 10 metres.
activating equipment such as the
Transporting a child without
electric windows or by locking the
a restraint is the equivalent of allow-
doors.
ing him or her to play on a fourth-
floor balcony without railings.
Also, in hot and/or sunny weather,
please remember that the tempera-
Never travel with a child held in your
ture inside the passenger compart-
arms. In the event of an accident,
ment increases very quickly.
you will not be able to keep hold of
the child, even if you yourself are
RISK OF DEATH OR SERIOUS
wearing a seat belt.
INJURY.
If your vehicle has been involved in
a road accident, replace the child
To prevent the sliding side
seat and have the seat belts and
doors from being opened,
ISOFIX anchorage points checked.
use the “Child lock” feature
➥ 1.23.
1.59
CarManuals2.co
CHILD SAFETY: General information (2/2)
Using a child seat
Before fitting a child seat, read the
manual and respect its instructions. If
The level of protection offered by the
you experience any difficulties during
child seat depends on its ability to re-
installation, contact the manufacturer
strain your child and on its installation.
of the equipment. Keep the instructions
Incorrect installation compromises the
with the seat.
protection it offers the child in the event
of harsh braking or an impact.
Before purchasing a child seat, check
that it complies with the regulations for
the country you are in and that it can
be fitted in your vehicle. Consult an ap-
proved dealer to find out which seats
are recommended for your vehicle.
The regulations on transporting chil-
dren are specific to each country.
Never leave a child unat-
tended in the vehicle.
The use of a child seat during transport
depends on the age and/or the size
Check that your child is
and/or weight of the child.
always strapped in and that
Set a good example by always fas-
the belt or safety harness used is
For children who do not need to be
tening your seat belt and teaching
correctly set and adjusted. Avoid
transported to a child seat, make sure
your child:
wearing bulky clothing which could
that the seat belt is correctly adjusted
- to strap themselves in correctly;
cause the belts to slacken.
and fastened.
- to always get in and out of the car
Never let your child put their head or
In all cases, you must comply with the
at the kerb, away from busy traf-
arms out of the window.
regulations of the particular country you
fic.
are in.
Check that the child is in the correct
Do not use a second-hand child
position for the entire journey, espe-
seat or one without an instruction
cially if asleep.
manual.
Check that there are no objects in
the vicinity of the child seat which
could impede its operation.
1.60
CarManuals2.co
CHILD SAFETY: choosing a child seat
Rear-facing child seats
Forward-facing child seats
Booster cushions
A baby’s head is, proportionally, heavier
Up to 18 kg or 4 years, the child may
From 15 kg or 4 years, the child can
than that of an adult and its neck is very
travel on a forward-facing seat.
travel using a booster seat, which will
fragile. Transport the child in this po-
enable the seat belt to be adapted to
Choose your seat according the child’s
sition for as long as possible (until the
suit his size and shape. The booster
size: their head and abdomen are the
age of 2 at the very least). It supports
seat cushion must be fitted with guides
areas which must be most protected. A
both the head and the neck.
to position the seat belt on the child’s
forward-facing child seat which is firmly
thighs rather than the stomach. It is
Choose a bucket type seat for best side
attached to the vehicle will reduce the
recommended that you use a seat-
protection and change it as soon as the
risk of impact to the head. Ensure your
back which can be adjusted in terms
child’s head is higher than the shell.
child travels in a forward-facing seat
of height to position the seat belt in the
with a harness for as long as their size
centre of the shoulder. It must never
permits.
rest on the neck or on the arm.
Choose a bucket type seat for optimum
Choose a bucket type seat for optimum
side protection.
side protection.
1.61
CarManuals2.co
CHILD SAFETY: choosing a child seat mounting (1/3)
There are two ways of attaching child
Attachment via the seat belt
seats: via the seat belt or using the
The seat belt must be adjusted to
ISOFIX system.
ensure that it is effective in the event of
harsh braking or an impact.
Ensure that the strap paths indicated
by the child seat manufacturer are re-
spected.
Always check that the seat belt is cor-
rectly fastened by pulling it up, then
pulling it out fully whilst pressing on the
child seat.
Check that the seat is correctly held by
moving it from side to side and back
to front: the seat should remain firmly
fixed.
Check that the child seat has not been
installed at an angle and that it is not
The seat belt must never
resting against a window.
be twisted or the tension
relieved. Never pass the
shoulder strap under the
arm or behind the back.
Check that the seat belt has not
been damaged by sharp edges.
If the seat belt does not operate nor-
mally, it will not protect the child.
Do not use the child seat
Consult an approved dealer. Do not
if it may unfasten the seat
use this seat until the seat belt has
belt restraining it: the base
been repaired.
of the seat must not rest on
the buckle and/or catch of the seat
belt.
1.62
CarManuals2.co
CHILD SAFETY: choosing a child seat mounting (2/3)
Attachment using the ISOFIX
Attach the child seat with the ISOFIX
system
locks, if these are provided. The ISOFIX
system allows quick, easy, safe fitting.
Approved child seats ISOFIX are stand-
ardised in accordance with current reg-
The ISOFIX system consists of 2 rings
ulations if any of the four cases below
and, in some cases, a third ring.
1
applies:
- ISOFIXuniversal 3-point forward-fac-
ing seat;
- ISOFIXsemi-universal 2-point seat;
- specific;
- i-Size which has either:
- a strap which attaches to the third
ring of the seat concerned;
The ISOFIX anchorage
- or a strut that rests on the vehi-
points have been exclu-
cle floor, compatible with the ap-
sively designed for child
proved seat i-Size, the role of
seats with the ISOFIX
The two rings 1 are located between the
which is to prevent the child seat
system. Never fit a different type of
seatback and the seat base of the seat
from moving in the event of a col-
child seat, seat belt or other objects
lision.
and are identified by a
symbol.
to these anchorage points.
In the latter three cases check that your
Check that nothing is obstructing
child seat can be installed by consulting
the anchorage points.
the list of compatible vehicles.
If your vehicle has been involved in
a road accident, have the ISOFIX
anchorage points checked and re-
place your child seat.
No modifications may be
made to the component
Before using an ISOFIX child seat that you purchased for another vehi-
parts of the restraint system
cle, check that its installation is authorised. Consult the list of vehicles
(seat belts, ISOFIX and
which can be fitted with the seat from the equipment manufacturer.
seats and their mountings) originally
fitted.
1.63
CarManuals2.co
CHILD SAFETY: choosing a child seat mounting (3/3)
2
2
3
The ISOFIX anchorage
3
points have been exclu-
sively designed for child
seats with the ISOFIX
system. Never fit a different type of
4
child seat, seat belt or other objects
to these anchorage points.
4
Check that nothing is obstructing
the anchorage points.
Attachment using the ISOFIX
Front passenger seat
If your vehicle has been involved in
system (continued)
If the front passenger seat is equipped,
a road accident, have the ISOFIX
The third ring 4 is used to attach the
attach the hook 3 of the upper strap 2
anchorage points checked and re-
upper strap 2 on some child seats.
on the ring 4 marked by the symbol.
place your child seat.
Rear seats
All seats
The upper strap 2 should be positioned
Pull the upper strap 2 so that the back
between the seatback and the rear
of the child seat comes into contact with
parcel shelf. To do so, remove the rear
the back of the vehicle seat.
parcel shelf ➥ 3.36.
Check that the seatback
Attach the 3 hook on one of the 4 rings
of the forward-facing child
marked with the symbol.
seat is in contact with the
back of the vehicle seat.
In this case, the child seat may not
always rest on the base of the vehi-
cle seat.
1.64
CarManuals2.co
CHILD SAFETY: fitting a child seat, general information (1/2)
Some seats are not suitable for fitting
The types of child seat indicated may
After installing the child seat, when this
child seats. The diagram on the follow-
not be available. Before using a differ-
is possible, you can move the vehi-
ing page shows you how to attach a
ent child seat, check with the manufac-
cle seat forward if necessary (so as to
child seat.
turer that it can be fitted.
leave enough space in the rear seats
for passengers or other child seats).
In the front seat
For a rear-facing child seat, do not let
The laws concerning children travel-
it touch the dashboard or move it to the
ling in the front passenger seat differ in
furthest forward position.
every country. Consult the legislation in
Do not change other settings after in-
Fit the child seat in a rear
force and follow the indications on the
stalling the child seat.
seat wherever possible.
diagram on the following page.
Make sure the child seat or
Before fitting a child seat in this seat (if
the child’s feet do not pre-
authorised):
vent the front seat from locking cor-
- lower the seat belt as far as possible;
rectly. ➥ 1.34.
- move the seat as far back as possi-
Check that when installing the child
ble;
seat in the vehicle it is not at risk of
- gently tilt the seatback away from
coming loose from its base.
vertical (approximately 25°);
If you have to remove the headrest,
- on equipped vehicles, raise the seat
check that it is correctly stored so
base as far as possible.
that it does not come loose under
harsh braking or impact.
Always fully raise the seat headrest so
that it does not interfere with the child
Always attach the child seat to the
seat ➥ 1.33.
vehicle even if it is not in use so that
it does not come loose under harsh
braking or impact.
RISK
OF
DEATH
OR
SERIOUS INJURY: before
fitting a rear-facing child
seat in this seat, make sure
that the front passenger airbag has
been deactivated. ➥ 1.90.
1.65
CarManuals2.co
CHILD SAFETY: fitting a child seat, general information (2/2)
In the rear side seat
Always remove the headrest from the
In rear centre seat
rear seat on which the child seat is
A carrycot can be installed across the
Check that the belt is suitable for se-
positioned. ➥ 3.33. If necessary, posi-
vehicle and will take up at least two
curing your child seat. Consult an ap-
tion the rear seat as far back as pos-
seats. Position the child with his or her
proved dealer.
sible. This must be done before fitting
feet nearest the door.
the child seat. Check that the child seat
Move the front seat as far forward as
is resting against the back of the rear
possible to install a rear-facing child
seat.
seat, then move back the seat in front
as far as it will go, although without al-
lowing it to come into contact with the
child seat.
For the safety of the child in the for-
ward-facing position:
- move the relevant seat backwards
as far as possible;
Fitting a seat ISOFIX in
An ISOFIX or a child seat
- move the seat in front of the child
the rear-left seat means
with a floor support must
forwards, and set the position of the
the middle seat cannot be
never be installed on the
seatback to avoid contact between
used. The central seat belt
rear centre seat.
the seat and the child’s legs.
will no longer be either accessible or
RISK OF DEATH OR SERIOUS
useable.
INJURY.
When fitting a child seat
Fit the child seat in a rear
(Group 2 or 3 booster seat),
seat wherever possible.
check that the seat belts
To install an ISOFIX seat in
Ensure that the child seat
operate
(wind) correctly
this seat, unbuckle the seat
or the child’s feet do not
➥ 1.43. If necessary, adjust the posi-
belt by hand before engaging the
prevent the front seat from
tion of the vehicle seat.
bolts.
locking correctly. ➥ 3.34.
1.66
CarManuals2.co
CHILD SEATS: attachment by seat belt (1/14)
“Open Sesame” van version
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
Child seat attached using the belt
They risk serious or even fatal injury.
Seat enabling only a forward-facing seat with “Universal” approval to be
fitted.
²
Seat not suitable for fitting child seats.
³
Check the status of the airbag before fitting a child seat or allowing a passen-
RISK OF DEATH OR
ger to use the seat.
SERIOUS INJURY: never
install a rear-facing child
seat on the front passenger
seat.
1.67
CarManuals2.co
CHILD SEATS: attachment by seat belt (2/14)
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.
“Open Sesame” van version
Front passenger seat
Type of child seat
Weight of the child
airbag activated on
without passenger airbag
passenger side (1)
or with it deactivated (1)
Carrycot fitted across the ve-
hicle
< 10 kg
X
X
Group 0
Rear-facing shell seat
< 13 kg
X
X
Groups 0 or 0 +
Shell seat/rear-facing seat
< 13 kg
X
X
Groups 0+ and 1
9 to 18 kg
Forward-facing seat
9 to 18 kg
UF (2)
X
Group 1
Booster seat
15 to 25 kg
UF (2)
X
Groups 2 and 3
22 to 36 kg
Refer to the “Child safety equipment” booklet (available from the network) to choose a seat suited to your child and rec-
ommended for your vehicle.
X = Seat not suitable for fitting child seats of this type.
UF = Seat which enables only a forward-facing seat with "Universal" approval to be fitted: check if it can be fitted.
(2) Depending on the vehicle, raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly
(approximately 25°).
(1) RISK OF DEATH OR SERIOUS INJURY: never install a rear-facing child seat on the front passenger seat.
1.68
CarManuals2.co
CHILD SEATS: attachment by seat belt (3/14)
Van version with foldable passenger seat
Using a child safety system
which is not approved for
this vehicle will not correctly
Child seat attached using the belt
protect the baby or child.
They risk serious or even fatal injury.
¬
Seat which allows a child seat with “Universal” approval to be attached by a
seat belt.
²
Seat not suitable for fitting child seats.
³
Check the status of the airbag before fitting a child seat or allowing a passen-
RISK OF DEATH OR
ger to use the seat.
SERIOUS INJURY: before
fitting a rear-facing child
seat in this seat, make sure
that the front passenger airbag has
been deactivated. ➥ 1.90.
1.69
CarManuals2.co
CHILD SEATS: attachment by seat belt (4/14)
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.
Van version with foldable passenger seat
Front passenger seat
Type of child seat
Weight of the child
airbag activated on
without passenger airbag or
passenger side (1)
with it deactivated (2)
Carrycot fitted across the ve-
hicle
< 10 kg
X
X
Group 0
Rear-facing shell seat
< 13 kg
X
U
Groups 0 or 0 +
Shell seat/rear-facing seat
< 13 kg
X
U
Groups 0+ and 1
9 to 18 kg
Forward-facing seat
9 to 18 kg
U
X
Group 1
Booster seat
15 to 25 kg
U
X
Groups 2 and 3
22 to 36 kg
Refer to the “Child safety equipment” booklet (available from the network) to choose a seat suited to your child and rec-
ommended for your vehicle.
X = Seat not suitable for fitting child seats of this type.
U = Seat allowing a child seat with “Universal” approval to be attached by the seat belt; check that it can be fitted.
(1) RISK OF DEATH OR SERIOUS INJURY: never install a rear-facing child seat on the front passenger seat if the
vehicle is equipped with a passenger airbag that cannot be deactivated.
(2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, ensure
that the airbag has been deactivated ➥ 1.90.
1.70
CarManuals2.co
CHILD SEATS: attachment by seat belt (5/14)
Van version with unfoldable passenger seat
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
Child seat attached using the belt
They risk serious or even fatal injury.
¬
Seat which allows a child seat with “Universal” approval to be attached by a
seat belt.
²
Seat not suitable for fitting child seats.
³
Check the status of the airbag before fitting a child seat or allowing a passen-
RISK OF DEATH OR
ger to use the seat.
SERIOUS INJURY: before
fitting a rear-facing child
seat in this seat, make sure
that the front passenger airbag has
been deactivated. ➥ 1.90.
1.71
CarManuals2.co
CHILD SEATS: attachment by seat belt (6/14)
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.
Van version with unfoldable passenger seat
Front passenger seat
Type of child seat
Weight of the child
airbag activated on
without airbag passenger or
passenger side (1)
with it deactivated (2) (3)
Carrycot fitted across the ve-
hicle
< 10 kg
X
X
Group 0
Rear-facing shell seat
< 13 kg
X
U
Groups 0 or 0 +
Shell seat/rear-facing seat
< 13 kg
X
U
Groups 0+ and 1
9 to 18 kg
Forward-facing seat
9 to 18 kg
U (3)
X
Group 1
Booster seat
15 to 25 kg
U (3)
X
Groups 2 and 3
22 to 36 kg
Refer to the “Child safety equipment” booklet (available from the network) to choose a seat suited to your child and rec-
ommended for your vehicle.
X = Seat not suitable for fitting child seats of this type.
U = Seat allowing a child seat with “Universal” approval to be attached by the seat belt; check that it can be fitted.
(3) Depending on the vehicle, raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly
(approximately 25°).
(1) RISK OF DEATH OR SERIOUS INJURY: never install a rear-facing child seat on the front passenger seat if the
vehicle is equipped with a passenger airbag that cannot be deactivated.
(2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, ensure
that the airbag has been deactivated ➥ 1.90.
1.72
CarManuals2.co
CHILD SEATS: attachment by seat belt (7/14)
Van version with three front seats
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
Child seat attached using the belt
¬
Seat which allows a child seat with “Universal” approval to be attached by a
seat belt.
²
Seat not suitable for fitting child seats.
³
Check the status of the airbag before fitting a child seat or allowing a passen-
RISK OF DEATH OR
ger to use the seat.
SERIOUS INJURY: before
fitting a rear-facing child
seat in this seat, make sure
that the front passenger airbag has
been deactivated. ➥ 1.90.
1.73
CarManuals2.co
CHILD SEATS: attachment by seat belt (8/14)
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.
Van version with three front seats
Side front passenger seat
airbag activated
Central front
Type of child seat
Weight of the child
without airbag passenger
on passenger
passenger seat
or with it deactivated (2)
side (1)
Carrycot fitted across the ve-
hicle
< 10 kg
X
X
X
Group 0
Rear-facing shell seat
< 13 kg
X
U
X
Groups 0 or 0 +
Shell seat/rear-facing seat
< 13 kg
X
U
X
Groups 0+ and 1
9 to 18 kg
Forward-facing seat
9 to 18 kg
U
X
X
Group 1
Booster seat
15 to 25 kg
U
X
X
Groups 2 and 3
22 to 36 kg
Refer to the “Child safety equipment” booklet (available from the network) to choose a seat suited to your child and rec-
ommended for your vehicle.
X = Seat not suitable for fitting child seats of this type.
U = Seat allowing a child seat with “Universal” approval to be attached by the seat belt; check that it can be fitted.
(1) RISK OF DEATH OR SERIOUS INJURY: never install a rear-facing child seat on the front passenger seat if the
vehicle is equipped with a passenger airbag that cannot be deactivated.
(2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, ensure
that the airbag has been deactivated ➥ 1.90.
1.74
CarManuals2.co
CHILD SEATS: attachment by seat belt (9/14)
Estate version with unfoldable front passenger seat
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
Child seat attached using the belt
They risk serious or even fatal injury.
¬
Seat which allows a child seat with “Universal” approval to be attached by a
seat belt.
²
Seat not suitable for fitting child seats.
³
Check the status of the airbag before fitting a child seat or allowing a passen-
RISK OF DEATH OR
ger to use the seat.
SERIOUS INJURY: before
fitting a rear-facing child
seat in this seat, make sure
that the front passenger airbag has
been deactivated. ➥ 1.90.
1.75
CarManuals2.co
CHILD SEATS: attachment by seat belt (10/14)
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.
Estate version with unfoldable front passenger seat
Front passenger seat
Rear seats
Weight of
Type of child seat
without passenger
the child
airbag activated on
airbag or with it
Side seats
Centre seat
passenger side (1)
deactivated (2) (3)
Carrycot
fitted
across the vehicle
< 10 kg
X
X
U (4)
X
Group 0
Rear-facing shell
seat
< 13 kg
X
U
U (5)
U (5) (7)
Groups 0 or 0 +
Shell seat/rear-facing
< 13 kg
seat
X
U
U (5)
U (5) (7)
9 to 18 kg
Groups 0+ and 1
Forward-facing seat
9 to 18 kg
U (3)
X
U (6)
U (6) (7)
Group 1
Booster seat
15 to 25 kg
U (3)
X
U (6)
U (6)
Groups 2 and 3
22 to 36 kg
(1) RISK OF DEATH OR SERIOUS INJURY: never install a rear-facing child seat on the front passenger seat if the
vehicle is equipped with a passenger airbag that cannot be deactivated.
(2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, ensure
that the airbag has been deactivated ➥ 1.90.
1.76
CarManuals2.co
CHILD SEATS: attachment by seat belt (11/14)
Refer to the “Child safety equipment” booklet (available from the network) to choose a seat suited to your child and rec-
ommended for your vehicle.
X = Seat not suitable for fitting child seats of this type.
U = Seat allowing a child seat with “Universal” approval to be attached by the seat belt; check that it can be fitted.
(3) Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).
(4) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(5) In order to install a rear-facing child seat, move the front seat as far forward as possible, then move the front seat back as far
as it will go, without allowing it to come into contact with the child seat.
(6) In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the
child seat. ➥ 3.33. Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat
and the child’s legs.
(7) RISK OF DEATH OR SERIOUS INJURY: a child seat with a floor support must never be fitted on the rear centre
seat.
1.77
CarManuals2.co
CHILD SEATS: attachment by seat belt (12/14)
The table below summarises the information already shown on the diagram on the following pages, to ensure the appli-
cable regulations are respected.
Estate version with foldable front passenger seat
Front passenger seat
Rear seats
Weight of
Type of child seat
without passenger
the child
airbag activated on
airbag or with it
Side seats (8)
Centre seat
passenger side (1)
deactivated (2) (3)
Carrycot
fitted
across the vehicle
< 10 kg
X
X
U (4)
X
Group 0
Rear-facing shell
seat
< 13 kg
X
U
U (5)
U (5) (7)
Groups 0 or 0 +
Shell seat/rear-facing
< 13 kg
seat
X
U
U (5)
U (5) (7)
9 to 18 kg
Groups 0+ and 1
Forward-facing seat
9 to 18 kg
U (3)
X
U (6)
U (6) (7)
Group 1
Booster seat
15 to 25 kg
U (3)
X
U (6)
U (6)
Groups 2 and 3
22 to 36 kg
(1) RISK OF DEATH OR SERIOUS INJURY: never install a rear-facing child seat on the front passenger seat if the
vehicle is equipped with a passenger airbag that cannot be deactivated.
(2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, ensure
that the airbag has been deactivated ➥ 1.90.
1.78
CarManuals2.co
CHILD SEATS: attachment by seat belt (13/14)
Refer to the “Child safety equipment” booklet (available from the network) to choose a seat suited to your child and rec-
ommended for your vehicle.
X = Seat not suitable for fitting child seats of this type.
U = Seat allowing a child seat with “Universal” approval to be attached by the seat belt; check that it can be fitted.
(3) Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 15°).
(4) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(5) In order to install a rear-facing child seat, move the front seat as far forward as possible, then move the front seat back as far
as it will go, without allowing it to come into contact with the child seat.
(6) In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the
child seat. ➥ 3.33. Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat
and the child’s legs.
(7) RISK OF DEATH OR SERIOUS INJURY: a child seat with a floor support must never be fitted on the rear centre
seat.
(8) RISK OF DEATH OR SERIOUS INJURY: it is forbidden to fit a child seat behind a folded front seat.
1.79
CarManuals2.co
CHILD SEATS: attachment by seat belt (14/14)
Estate version with foldable front passenger seat
Using a child safety system
which is not approved for
this vehicle will not correctly
Child seat attached using the belt
protect the baby or child.
They risk serious or even fatal injury.
¬
Seat which allows a child seat with “Universal” approval to be attached by a
seat belt.
²
Seat not suitable for fitting child seats.
³
Check the status of the airbag before fitting a child seat or allowing a passen-
RISK OF DEATH OR
ger to use the seat.
SERIOUS INJURY: before
fitting a rear-facing child
seat in this seat, make sure
that the front passenger airbag has
been deactivated. ➥ 1.90.
1.80
CarManuals2.co
CHILD SEATS: fitted using the ISOFIX SYSTEM (1/9)
Van version with front passenger seat equipped with ISOFIX system
Child seat fitted using the ISOFIX
mounting
Seat which allows an ISOFIX
child seat to be fitted.
The anchorage point is located on
the back of the front passenger seat.
Seat which does not allow a
²
child seat to be fitted.
³
Check the status of the airbag
before fitting a child seat or allowing a
passenger to use the seat.
Using a child safety system
RISK OF DEATH OR
which is not approved for
SERIOUS INJURY:
this vehicle will not correctly
before fitting a rear facing
protect the baby or child.
child seat on the front pas-
They risk serious or even fatal injury.
senger seat, check that the airbag
has been deactivated ➥ 1.90.
1.81
CarManuals2.co
CHILD SEATS: fitted using the ISOFIX SYSTEM (2/9)
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.
Van version with front passenger seat equipped with ISOFIX system
Front passenger seat
Weight of
Size of ISOFIX
Type of child seat
without passenger
the child
seat [Size]
airbag activated on
airbag or with it
passenger side
deactivated
Carrycot fitted across the ve-
F, G
hicle
< 10 kg
X
X
[L1, L2]
Group 0
Rear-facing shell seat
E
< 13 kg
X
IL (1) (2)
Groups 0 or 0 +
[R1]
C
Group 0 +
< 13 kg
X
IL (1) (2)
Shell seat/
[R3]
rear-facing
D
seat
Group 1
9 to 18 kg
X
IL (1) (2)
[R2, R2X]
Forward-facing seat
A, B, B1
9 to 18 kg
IUF - IL (1)
X
Group 1
[F3, F2, F2X]
Booster seat
15 to 25 kg
B2, B3
IUF - IL (1)
X
Groups 2 and 3
22 to 36 kg
Seat i-Size
i-UF (1)
i-U (1) (2)
1.82
CarManuals2.co
CHILD SEATS: fitted using the ISOFIX SYSTEM (3/9)
X = Seat not suitable for fitting child seats of this type.
IUF/IL = On equipped vehicles, seat which allows a child seat with "Universal/Semi-universal or vehicle-specific" approval to be
fitted using the ISOFIX system; check that it can be fitted.
i-U = Suitable for “universal” front-facing and rear-facing i-Size restraint devices.
i-UF = Suitable only for “universal” front-facing and rear-facing i-Size restraint devices.
(1) Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).
The size of the ISOFIX child seat is indicated by a letter:
- A, B, B1 [F3, F2, F2X]: for forward-facing seats in group 1 (9 to 18 kg);
- C, D [R3, R2, R2X]: rear-facing seats or shell seats in group 0+ (less than 13 kg) or group 1 (9 to 18 kg);
- E [R1]: rear-facing shell seats in group 0 (less than 10 kg) or 0+ (less than 13 kg);
- F, G [L1, L2]: carrycots in group 0 (under 10 kg);
- B2, B3: boosters in groups 2 and 3 (15 to 25 kg and 22 to 36 kg).
(2) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, ensure
that the airbag has been deactivated. ➥ 1.90.
1.83
CarManuals2.co
CHILD SEATS: fitted using the ISOFIX SYSTEM (4/9)
The table below summarises the information already shown on the diagram on the following pages, to ensure the appli-
cable regulations are respected.
Estate version with front passenger seat equipped with ISOFIX system
Front passenger seat
Rear seats
Weight of
Size of ISOFIX
airbag
without
Type of child seat
the child
seat [Size]
activated on
passenger
Side seats
Centre seat
passenger
airbag or with
side
it deactivated
Carrycot fitted across the
F, G
vehicle
< 10 kg
X
X
IL (1)
X
[L1, L2]
Group 0
Rear-facing shell seat
E
< 13 kg
X
IL (2) (5)
IL (3)
X
Groups 0 or 0 +
[R1]
C
Group 0 +
< 13 kg
X
IL (2) (5)
IL (3)
X
Shell seat/
[R3]
rear-facing
D
seat
Group 1
9 to 18 kg
X
IL (2) (5)
IL (3)
X
[R2, R2X]
Forward-facing seat
A, B, B1
9 to 18 kg
IUF - IL (2)
X
IUF - IL (3) (4)
X
Group 1
[F3, F2, F2X]
B2
IUF - IL (2)
X
IUF - IL (3) (4)
X
Booster seat
15 to 25 kg
Groups 2 and 3
22 to 36 kg
B3
IUF - IL (2)
X
X
X
Seat i-Size
i-UF (2)
i-U (2) (5)
i-U
X
1.84
CarManuals2.co
CHILD SEATS: fitted using the ISOFIX SYSTEM (5/9)
X = Seat not suitable for fitting child seats of this type.
IUF/IL = On equipped vehicles, seat which allows a child seat with "Universal/Semi-universal or vehicle-specific" approval to be
fitted using the ISOFIX system; check that it can be fitted.
i-U = Suitable for “universal” front-facing and rear-facing i-Size restraint devices.
i-UF = Suitable only for “universal” front-facing and rear-facing i-Size restraint devices.
(1) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(2) Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).
(3) If necessary, position the vehicle seat as far back as possible. In order to install a rear-facing child seat, move the front seat
as far forward as possible, then move the front seat back as far as it will go, without allowing it to come into contact with the
child seat.
(4) In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the
child seat. ➥ 3.33. Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat
and the child’s legs.
The size of the ISOFIX child seat is indicated by a letter:
- A, B, B1 [F3, F2, F2X]: for forward-facing seats in group 1 (9 to 18 kg);
- C, D [R3, R2, R2X]: rear-facing seats or shell seats in group 0+ (less than 13 kg) or group 1 (9 to 18 kg);
- E [R1]: rear-facing shell seats in group 0 (less than 10 kg) or 0+ (less than 13 kg);
- F, G [L1, L2]: carrycots in group 0 (under 10 kg);
- B2, B3: boosters in groups 2 and 3 (15 to 25 kg and 22 to 36 kg).
(5) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat on the front passenger seat, ensure
that the airbag has been deactivated. ➥ 1.90.
1.85
CarManuals2.co
CHILD SEATS: fitted using the ISOFIX SYSTEM (6/9)
Estate version with front passenger seat equipped with ISOFIX system
Child seat fitted using the ISOFIX
mounting
Seat which allows an ISOFIX
child seat to be fitted.
The rear side seats are equipped
with an anchorage point allowing a
forward-facing ISOFIX child seat with
"Universal" approval to be attached.
The anchoring points are located
on the passenger seatback for the front
seat and on the luggage compartment
floor for the rear seats.
Seat which does not allow a
²
child seat to be fitted.
³
Check the status of the airbag
before fitting a child seat or allowing a
passenger to use the seat.
Using a child safety system
Fit the child seat in a rear
which is not approved for
seat wherever possible.
RISK OF DEATH OR
this vehicle will not correctly
SERIOUS INJURY:
To install an ISOFIX seat in
protect the baby or child.
before fitting a rear facing
this seat, detach the central
They risk serious or even fatal injury.
child seat on the front pas-
seat belt by hand before engaging
senger seat, check that the airbag
the bolts.
has been deactivated ➥ 1.90.
1.86
CarManuals2.co
CHILD SEATS: fitted using the ISOFIX SYSTEM (7/9)
Estate version with front passenger seat not equipped with ISOFIX system
Child seat fitted using the ISOFIX
mounting
Seat which allows an ISOFIX
child seat to be fitted.
The rear side seats are equipped
with an anchorage point allowing a
forward-facing ISOFIX child seat with
"Universal" approval to be attached.
The anchorage points are located
on the boot floor for the rear seats.
Seat which does not allow a
²
child seat to be fitted.
Using a child safety system
Fit the child seat in a rear
which is not approved for
seat wherever possible.
this vehicle will not correctly
To install an ISOFIX seat in
protect the baby or child.
this seat, detach the central
They risk serious or even fatal injury.
seat belt by hand before engaging
the bolts.
1.87
CarManuals2.co
CHILD SEATS: fitted using the ISOFIX SYSTEM (8/9)
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.
Estate version with front passenger seat not equipped with ISOFIX system
Rear seats
Weight of
Size of ISOFIX
Type of child seat
Front passenger seat
the child
seat [Size]
Side seats (4)
Centre seat
Carrycot fitted across the ve-
F, G
hicle
< 10 kg
X
IL (1)
X
[L1, L2]
Group 0
Rear-facing shell seat
E
< 13 kg
X
IL (2)
X
Groups 0 or 0 +
[R1]
C
Group 0 +
< 13 kg
X
IL (2)
X
Shell seat/
[R3]
rear-facing
D
seat
Group 1
9 to 18 kg
X
IL (2)
X
[R2, R2X]
Forward-facing seat
A, B, B1
9 to 18 kg
X
IUF - IL (2) (3)
X
Group 1
[F3, F2, F2X]
B2
X
IUF - IL (2) (3)
X
Booster seat
15 to 25 kg
Groups 2 and 3
22 to 36 kg
B3
X
X
X
Seat i-Size
X
i-U
X
1.88
CarManuals2.co
CHILD SEATS: fitted using the ISOFIX SYSTEM (9/9)
X = Seat not suitable for fitting child seats of this type.
IUF/IL = On equipped vehicles, seat which allows a child seat with "Universal/Semi-universal or vehicle-specific" approval to be
fitted using the ISOFIX system; check that it can be fitted.
i-U = Suitable for “universal” front-facing and rear-facing i-Size restraint devices.
i-UF = Suitable only for “universal” front-facing and rear-facing i-Size restraint devices.
(1) A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest
the door.
(2) If necessary, position the vehicle seat as far back as possible. In order to install a rear-facing child seat, move the front seat
as far forward as possible, then move the front seat back as far as it will go, without allowing it to come into contact with the
child seat.
(3) In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the
child seat. ➥ 3.33. Move the seat in front of the child forwards, move the seatback forward to avoid contact between the seat
and the child’s legs.
The size of the ISOFIX child seat is indicated by a letter:
- A, B, B1 [F3, F2, F2X]: for forward-facing seats in group 1 (9 to 18 kg);
- C, D [R3, R2, R2X]: rear-facing seats or shell seats in group 0+ (less than 13 kg) or group 1 (9 to 18 kg);
- E [R1]: rear-facing shell seats in group 0 (less than 10 kg) or 0+ (less than 13 kg);
- F, G [L1, L2]: carrycots in group 0 (under 10 kg);
- B2, B3: boosters in groups 2 and 3 (15 to 25 kg and 22 to 36 kg).
(4) RISK OF DEATH OR SERIOUS INJURY: it is forbidden to fit a child seat behind a folded front seat.
1.89
CarManuals2.co
CHILD SAFETY: deactivating, activating AIRBAG front passenger (1/3)
1
The passenger airbag may
only be activated or deacti-
vated when the vehicle is
stationary with the igni-
2
tion off.
If it is interfered with when the ve-
hicle is being driven, indicator lights
å
Switch the ignition off then on again
to reset the airbag in accordance
with the lock position.
Deactivating the front
To deactivate the airbag: with the
vehicle stationary and the ignition
passenger airbag
switched off, push and turn lock 1 to
(depending on the vehicle)
the OFF position.
Before installing a child seat on the
When the ignition is switched on, it is
front passenger seat:
DANGER
essential to check that the warning
- check that the child seat can be in-
Since operation of the front
stalled on this seat;
light
¹
is illuminated on the dis-
passenger airbag is not
play 2.
compatible with the po-
- it is essential to deactivate the
sition of a rear-facing child seat,
airbagfor a rear-facing child seat.
This light remains permanently lit to
NEVER fit a rear-facing child re-
let you know that you can fit a child
straint system in a seat protected
seat.
by an ACTIVATED front AIRBAG.
This can lead to the DEATH of the
CHILD or SERIOUS INJURY.
1.90
CarManuals2.co
CHILD SAFETY: deactivating, activating AIRBAG front passenger (2/3)
3
A
A
The markings on the dashboard and
labels A on each side of the passen-
ger sun visor 3 (example: label shown
above) remind you of these instruc-
tions.
DANGER
Since operation of the front
passenger airbag is not
compatible with the po-
sition of a rear-facing child seat,
NEVER fit a rear-facing child re-
straint system in a seat protected
by an ACTIVATED front AIRBAG.
This can lead to the DEATH of the
CHILD or SERIOUS INJURY.
1.91
CarManuals2.co
CHILD SAFETY: deactivating, activating AIRBAG front passenger (3/3)
Operating faults
It is forbidden to fit a rear-facing child
seat to the front passenger seat if the
1
airbag activation/deactivation system is
faulty.
Allowing any other passenger to sit in
that seat is not recommended.
2
Contact your approved dealer as soon
as possible.
Activating the front
To restart the airbag: vehicle
stopped, ignition switched off, press
passenger airbag
and turn the lock to 1 position ON.
(depending on the vehicle)
When the ignition is switched on, you
The passenger airbag may
You should reactivate the airbag as
only be activated or deacti-
soon as you remove the child seat from
must check that the ¹
warning
vated when the vehicle is
the front passenger seat to ensure the
stationary with the igni-
protection of the front passenger in the
light is off and that the
warning
tion off.
event of an impact.
light comes on the display 2 after each
start-up for around 60 seconds.
If it is interfered with when the ve-
hicle is being driven, indicator lights
The front passenger airbag is activated.
å
Switch the ignition off then on again
to reset the airbag in accordance
with the lock position.
1.92
CarManuals2.co
AUDIBLE AND VISUAL SIGNALS
Direction indicators
Move the stalk 1 in the same direc-
tion as you want to move the steering
wheel.
One-touch mode
1
Briefly shift the stalk
1 upwards or
downwards, not exceeding the point
of resistance, then release it: the stalk
will return to its original position and the
A
direction indicator light concerned will
flash three times.
2
Horn
Hazard warning lights
é
Press the steering wheel boss A to ac-
Press switch 2.
tivate the horn.
This switch activates all four direction
indicators and the side indicator lights
simultaneously. It must only be used in
Headlight flasher
an emergency to warn drivers of other
Pull stalk 1 towards you then release it
vehicles that you have had to stop in
to flash the headlights.
an area where stopping is prohibited or
unexpected, or that you are obliged to
drive under special conditions.
1.93
CarManuals2.co
DRIVING POSITION: LEFT-HAND DRIVE (1/2)
1
2
3
4
5
6
7
8
9
10
11
12
1
28
27
25
24
23
22
21
20
26
19
17
16
15
14
13
18
1.94
CarManuals2.co
DRIVING POSITION: LEFT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
1
Side air vent.
14
Controls for:
24
Control for adjusting steering
2
Stalk for:
- front seat heating;
wheel height and reach.
- direction indicator lights;
- activation/deactivation of the
25
Storage compartment and fuse
- exterior lights;
Stop and Start function;
box.
- fog lights.
- activation/deactivation of ECO
26
Bonnet release control.
3
Dashboard storage compartment
mode;
27
Controls for:
sockets USB and accessories
- activation/deactivation of the
- lighting rheostat for control
socket.
driving mode;
instru- ments;
4
Instrument panel.
- hazard warning lights;
- headlight beam height remote
5
Driver airbag and horn location.
- electric door locking;
adjustment;
6
Controls for:
- activation/deactivation of the
- activation/deactivation of Lane
- on-board computer information
parking distance control;
Keeping Assist/Lane Departure
read-out and vehicle settings
- Park Assist.
Warning;
customisation menu,
15
Storage compartment.
- activation/deactivation of ESC;
- remote radio and navigation
16
Electronic parking brake.
- activation/deactivation of the
system.
17
Gearstick.
traction control - Extended grip.
7
Steering column stalk for wind-
18
Smartphone induction charging
28
Main switch and controls for cruise
screen and rear screen wash/
area.
control/speed limiter and adaptive
wiper.
19
Handbrake.
cruise control.
8
Dashboard central storage com-
20
Accessories socket.
partment.
21
Engine start/stop button.
9
Centre air vents.
22
Radio remote control.
10
Multimedia screen.
23
Ignition switch.
11
Heating or air conditioning con-
trols.
12
Passenger airbag location.
13
Glovebox.
1.95
CarManuals2.co
DRIVING POSITION: RIGHT-HAND DRIVE (1/2)
1
2
3
4
5
6
4
7
8
9
10
11
12
13
14
1
27
26
25
24
15
23
28
22
21
20
19
18 17 16
1.96
CarManuals2.co
DRIVING POSITION: RIGHT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
1
Side air vent.
10
Dashboard storage compartment
17
Radio remote control.
2
Passenger airbag location.
sockets USB and accessories
18
Ignition switch.
3
Heating or air conditioning con-
socket.
19
Control for adjusting steering
trols.
11
Instrument panel.
wheel height and reach.
4
Centre air vents.
12
Driver airbag and horn location.
20
Engine start/stop button.
5
Multimedia screen.
13
Controls for:
21
Gearstick.
6
Dashboard central storage com-
- on-board computer information
22
Handbrake.
partment.
read-out and vehicle settings
23
Charging zone/telephone storage
7
Controls for:
customisation menu,
24
Accessories socket.
- front seat heating;
- remote radio and navigation
25
Electronic parking brake.
- activation/deactivation of the
system.
26
Storage compartment.
Stop and Start function;
14
Steering column stalk for wind-
27
Glovebox.
- activation/deactivation of ECO
screen and rear screen wash/
28
Bonnet release control.
mode;
wiper.
- activation/deactivation of the
15
Controls for:
driving mode;
- lighting rheostat for control
- hazard warning lights;
instru- ments;
- electric door locking;
- headlight beam height remote
- activation/deactivation of the
adjustment;
parking distance control;
- activation/deactivation of Lane
- park assist.
Keeping Assist/Lane Departure
8
Stalk:
Warning;
- direction indicator lights;
- activation/deactivation of ESC;
- exterior lights;
- activating/deactivating the trac-
- fog lights.
tion control - Extended grip.
9
Main switch and controls for cruise
16
Storage compartment and fuse
control/speed limiter and adaptive
flap.
cruise control.
1.97
CarManuals2.co
WARNING LIGHTS (1/5)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
A
B
C
1
1
1
Instrument panel A, B or C: it illumi-
In some cases, the appearance of a
nates when the ignition is switched on.
warning light is accompanied by a mes-
Press or lift the 1 switch as many times
sage on the instrument panel.
as required to adjust the intensity.
If no lights or sounds are ap-
parent, this indicates a fault
For your safety, the warning
in the instrument panel. This
light® requires you to
indicates that it is essential
stop immediately as soon
to stop immediately (as soon as traf-
Warning light
means you
as traffic conditions allow.
fic conditions allow). Ensure that the
should drive very carefully to an
Switch off the engine and do not re-
vehicle is correctly immobilised and
authorised dealer as soon as
start it. Call an approved Dealer.
contact an approved Dealer.
possible. If you fail to follow this
recommendation, you risk damag-
ing your vehicle.
1.98
CarManuals2.co
WARNING LIGHTS (2/5)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
Side light warning light
Indicator lightairbag
Brake circuit fault warning
š
å
D
light
It lights up when the ignition or
Main beam headlight tell-
the engine is switched on and goes off
It lights up when the ignition or the
á
tale
after a few seconds.
engine is switched on and goes off after
a few seconds.
Dipped beam headlight tell-
If it does not come on when the igni-
k
tale
tion is switched on, or comes on when
If it comes on during braking and is ac-
the engine is running, there is a fault in
companied by the
®
warning light
Rear fog lights tell-tale
the system.
and a beep, it indicates that the fluid
level in the circuit is low or that there is
Contact your approved Dealer as soon
Front fog light tell-tale
a braking system fault.
g
as possible.
Stop as soon as traffic conditions allow
STOP light
Automatic main beam head-
®
and consult an approved dealer.
light indicator light ➥ 1.133
This lights up when the igni-
Battery charge warning light
tion or engine is switched on and goes
Left-hand direction indicator
Ú
-
out as soon as the engine is running. It
It lights up when the ignition or
tell-tale
comes on with other warning lights and/
the engine is switched on and goes off
Right-hand direction indica-
or messages, and is accompanied by
after a few seconds.
˜
tor tell-tale light
a beep.
If it comes on on the road, accompa-
It requires you to stop immediately, for
nied by the
®
warning light and a
your own safety, as soon as traffic con-
beep, this indicates an overload or dis-
ditions allow. Switch off the engine and
charge in the electrical circuit.
do not restart it.
Stop as soon as traffic conditions allow
Contact an approved Dealer.
and contact an approved Dealer.
1.99
CarManuals2.co
WARNING LIGHTS (3/5)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
Oil pressure warning light
Warning light
Handbrake
“on” or elec-
À
}
It lights up when the ignition or
tronic parking brake warn-
This lights up when the igni-
the engine is switched on and goes off
ing light ➥ 2.16, ➥ 2.17
tion or engine is switched on and goes
after a few seconds.
out as soon as the engine is running.
Brake pedal warning light
If it comes on on the road, accompa-
It can light up in conjunction with other
Ó
This lights up when the brake
nied by the
®
warning light and
warning lights and/or messages on the
pedal should be depressed ➥ 2.152.
a beep, stop immediately and cut the
instrument panel. It means you should
ignition.
drive very care- fully to an approved
Gear change indicators
This lights up to advise
Dealer as soon as possible. If you fail
Check the oil level. If the level is normal,
to follow this recommendation, you risk
you to change to a higher gear (arrow
the warning light is related to something
damaging your vehicle.
pointing upwards) or lower gear (arrow
else.
pointing downwards) ➥ 2.21.
Warning light
Call an approved Dealer.
If it appears in red during driv-
Warning light for the elec-
Variable power-assisted
tronic stability program
ing and is accompanied by the
®
U
steering warning light
(ESC) and traction control system
indicator light, you must, for your safety,
It lights up when the ignition or the
stop as soon as traffic conditions allow.
It lights up when the ignition or the
engine is switched on and goes off after
Switch off the engine and do not restart
engine is switched on and goes off after
a few seconds.
it. Call an approved Dealer. If it appears
a few seconds.
in yellow during driving and is accom-
If it comes on while driving, alongside
There are several reasons for the warn-
the warning light
®
, this means
ing light to appear: ➥ 2.42.
an approved dealer as soon as possi-
there is a system fault.
Warning light for non-availa-
ble. Meanwhile, drive with care. If you
Contact an authorised dealer.
bility of the electronic stabil-
fail to follow this recommendation, you
risk damaging your vehicle.
ity program (ESC) and traction con-
trol system
Side winds assistance warn-
ing light ➥ 2.42
1.100
CarManuals2.co
