TYRE PRESSURE LOSS WARNING (3/6)

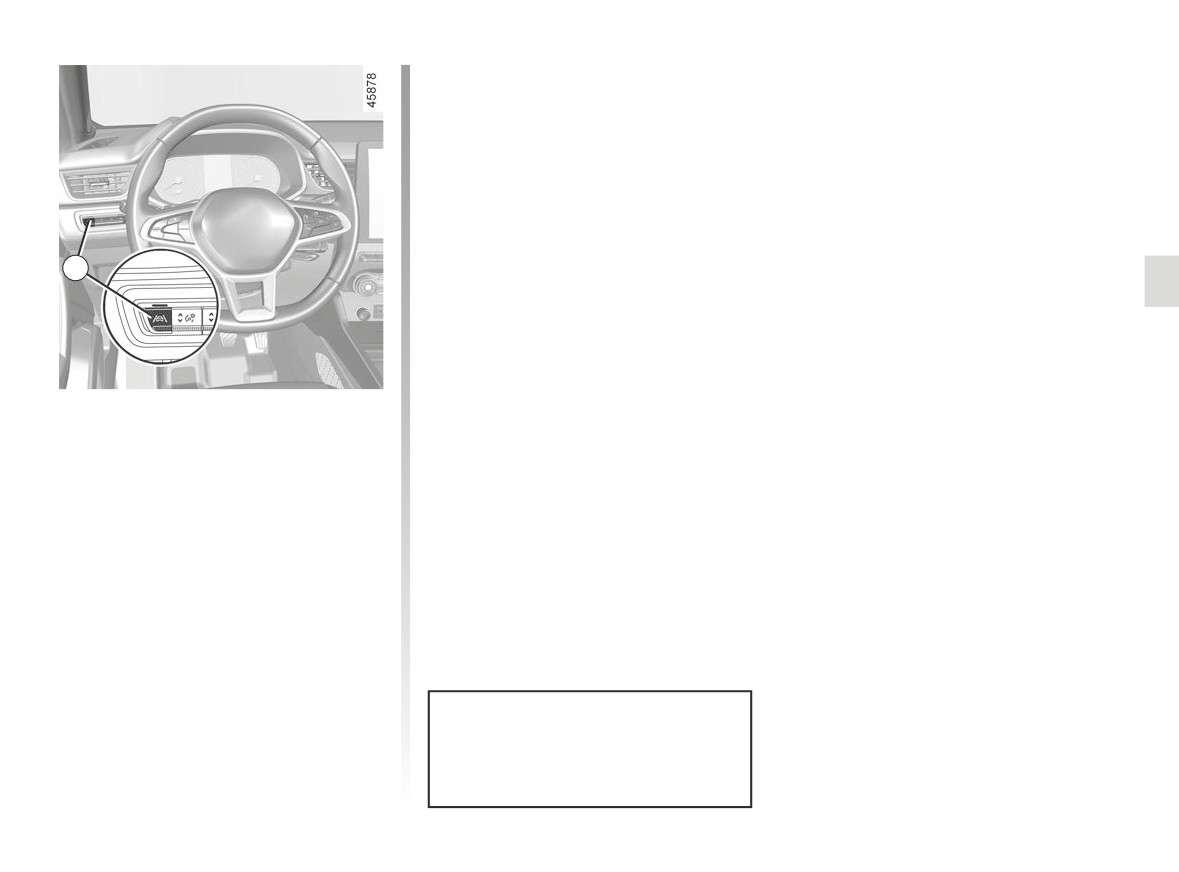

Hold down the

5 switch until the

B

“Operation completed” message ap-

pears. You can now drive.

7

6

3

4

5

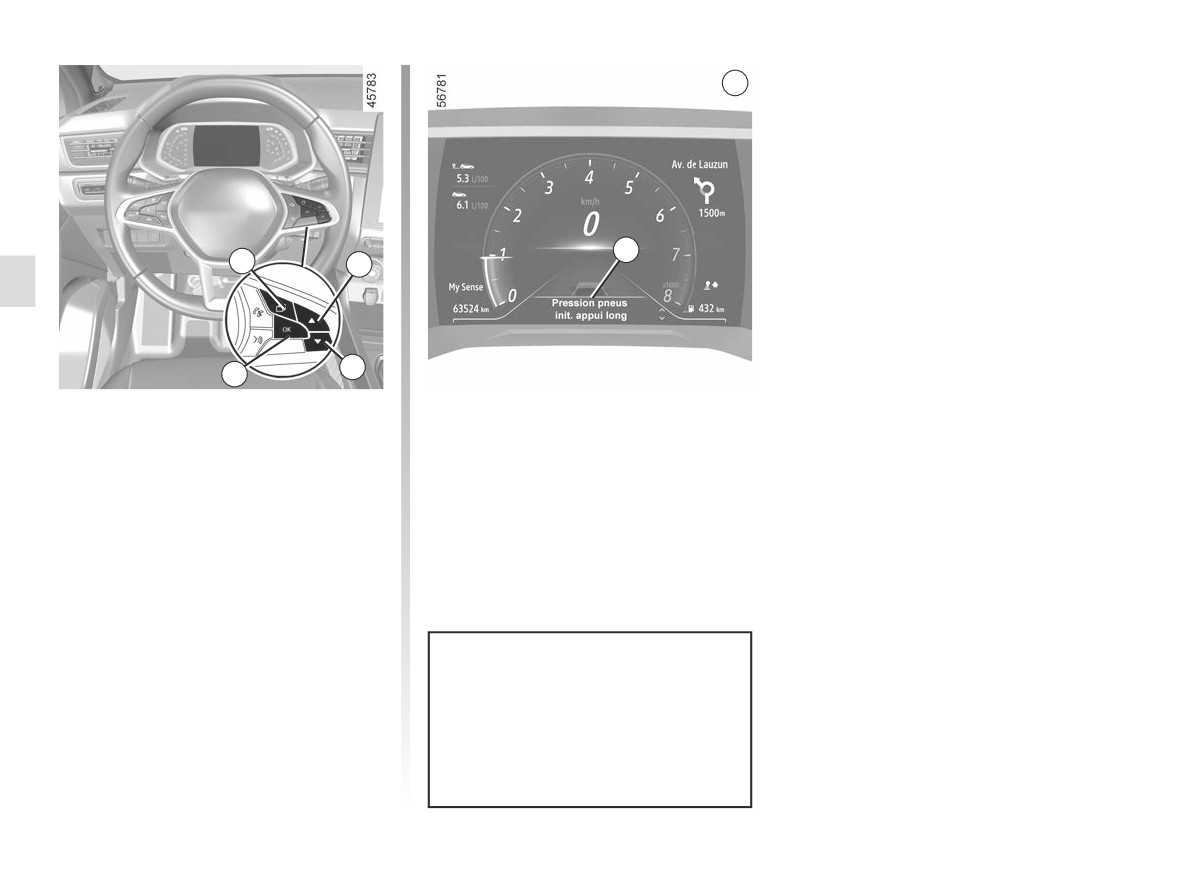

Resetting procedure

- briefly press the 3 or 4 switch to

reach the “Tyre pressure init. long

Ignition on, vehicle stopped:

press” page;

- for vehicles fitted with a type A or C

- press and hold the 5 OK switch to

instrument panel (➥ 1.71, repeatedly

launch the reset.

tap the 6 switch as many times as

necessary to reach the “vehicle” tab



;

- for vehicles fitted with a type B in-

strument panel, tap the switch 6 to

reach the 7 area of the instrument

panel;

If the vehicle is equipped with a nav-

igation system, the resetting proce-

dure may also be carried out using

the multimedia screen: please see

the equipment instructions.

2.42

CarManuals2.co

TYRE PRESSURE LOSS WARNING (5/6)

Readjustment of tyre

After each change of wheel/tyre, read-

just the tyre pressure and launch the

8

pressures

reset of the tyre pressure reference

The pressure of the four tyres must

value.

be set when cold (refer to the label lo-

cated on the edge of the driver’s door).

Emergency spare wheel

If tyre pressures cannot be checked

when the tyres are cold, the recom-

If fitted on the vehicle, readjust the tyre

mended pressures should be increased

pressure and launch the reinitialisation

by 0.2 to 0.3 bar (3 PSI).

of the tyre pressure reference value.

Never deflate a hot tyre.

After each reinflation or readjustment of

Tyre repair product and

the tyre pressure, launch the reinitiali-

inflation kit

sation of the tyre pressure reference

value.

Only use equipment approved by the

Network, otherwise the system risks

late activation or incorrect operation.

Tyre pressure faults

Replacing wheels/tyres

➥ 5.4. After using the tyre inflation kit,

The table on the following page lists

Only use equipment approved by the

readjust the tyre pressure and launch

the warning messages which appear

network, otherwise the system risks

the resetting of the tyre pressure refer-

on the instrument panel 8 when the

late activation or incorrect operation.

ence value.

system detects a tyre pressure fault.

➥ 5.12.

2.44

CarManuals2.co

LANE DEPARTURE WARNING (1/5)

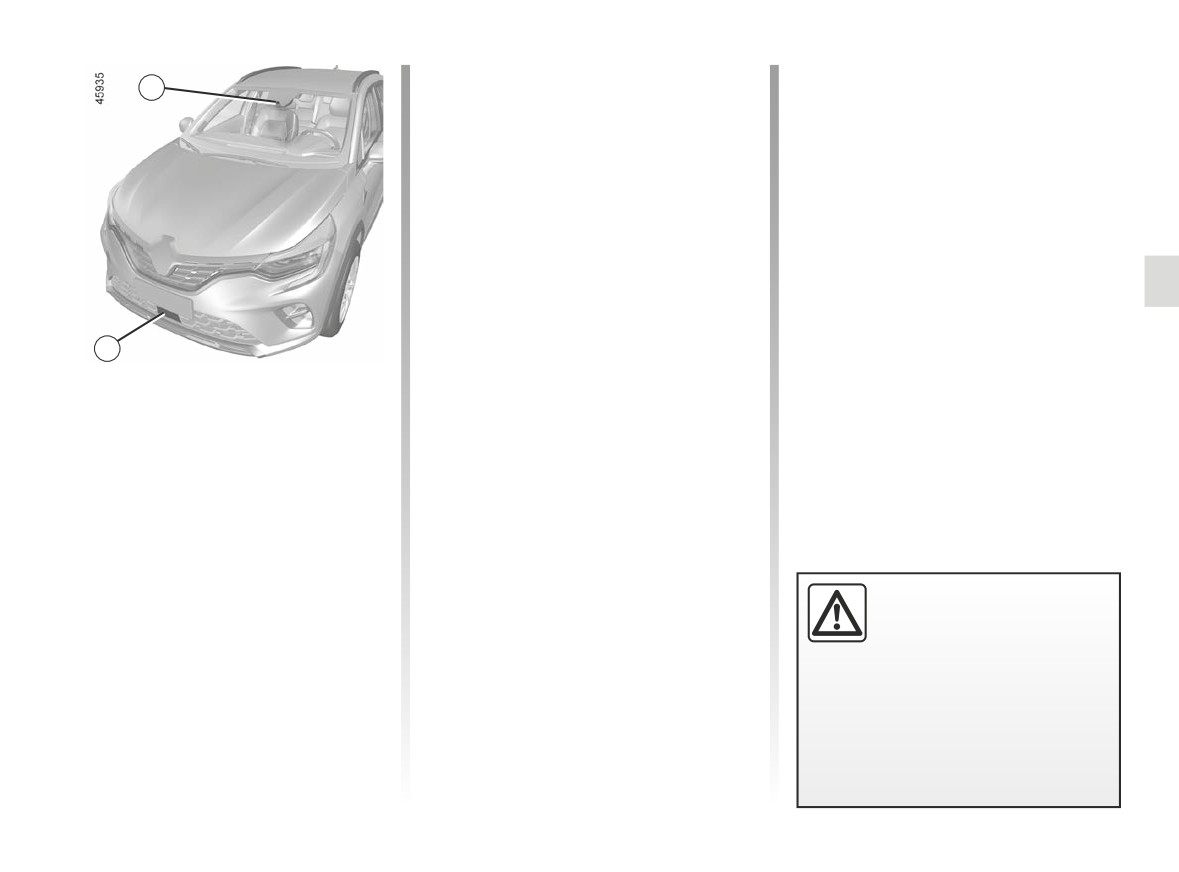

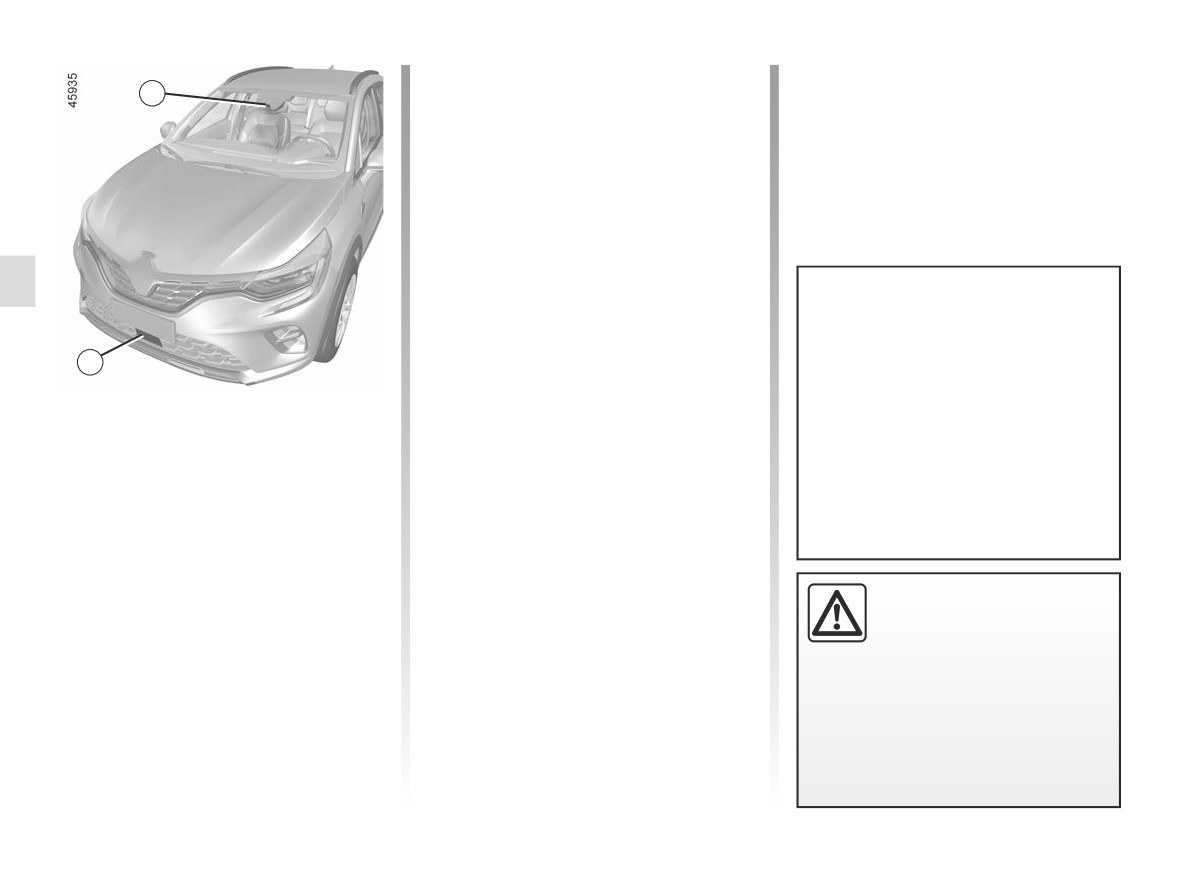

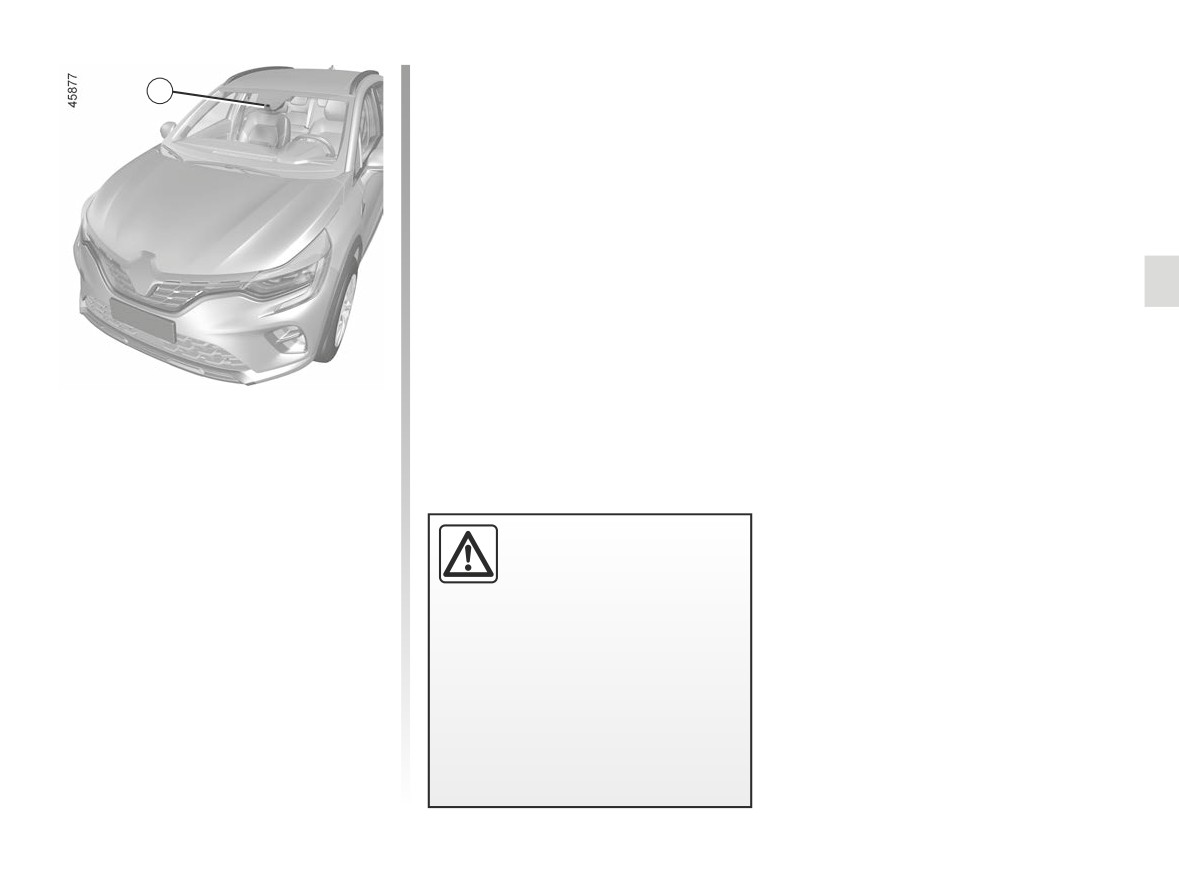

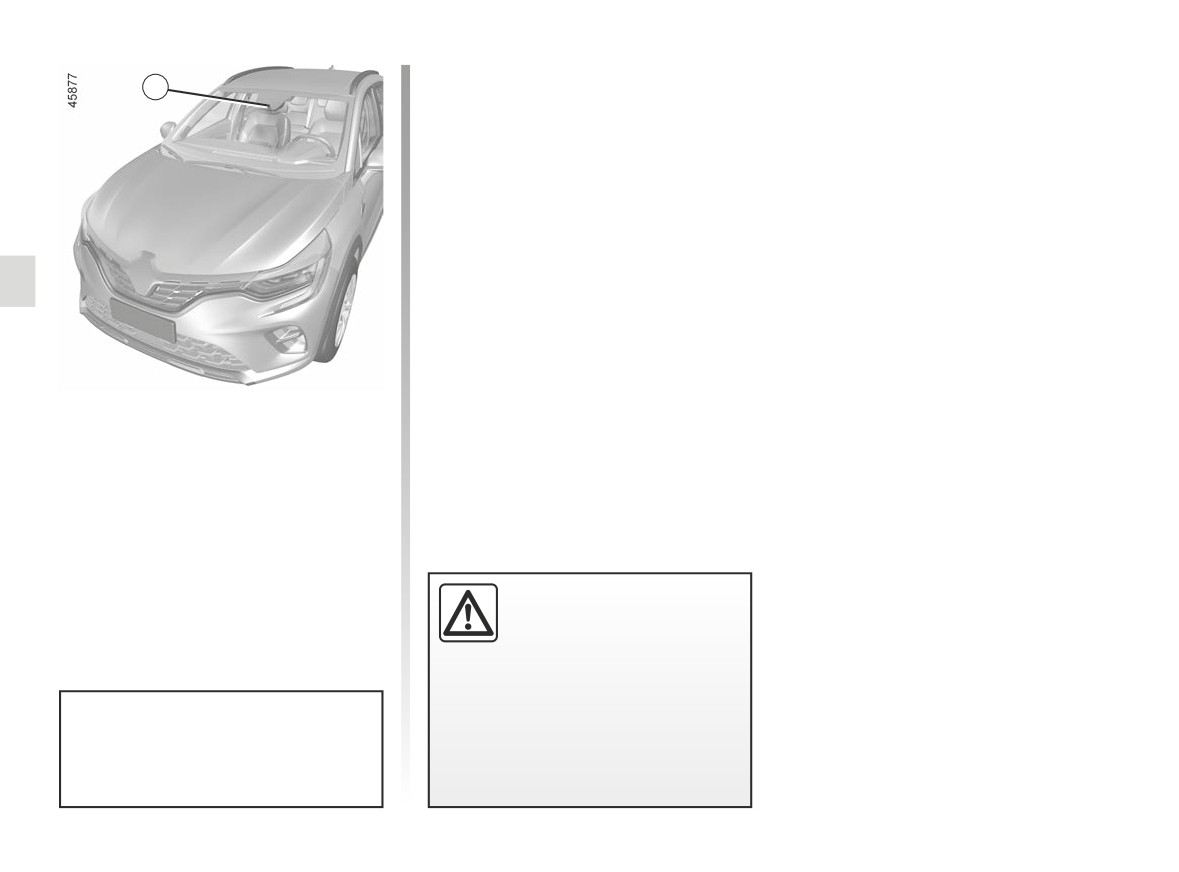

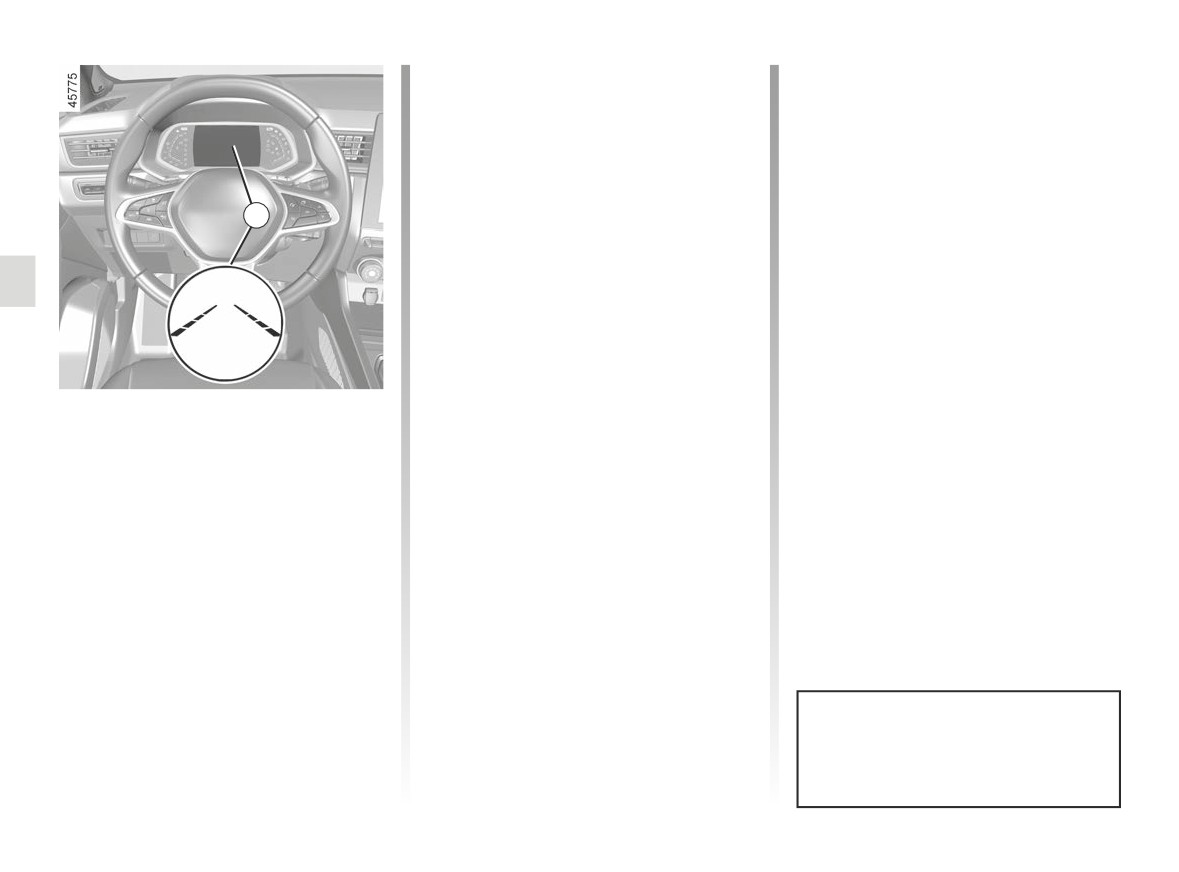

Location of the camera 1

1

Make sure the windscreen is not ob-

scured (dirt, mud, snow, condensation

etc.).

Using information from the 1 camera,

the function warns the driver when a

continuous or broken line is crossed

or when approaching the roadside (di-

vider, barrier, pavement, embankment,

etc.) without the direction indicator

lights being activated.

This function is an addi-

tional driving aid. This func-

tion is not under any cir-

cumstances intended to

replace the due care and attention

of the driver, who should at all times

be in control of the vehicle.

The lane departure warning func-

tion does not correct the vehi-

cle’s trajectory.

2.51

CarManuals2.co

LANE DEPARTURE WARNING (2/5)

Operation

When the function is activated, the



warning light and the left and

right lines 3 are displayed in grey on the

instrument panel.

The function is set to notify the

3

driver if:

- speed is between approximately

2

43 mph (70 km/h) and 112 mph

(180 km/h);

and

warning light and left/right

- the 

line indicators 3 are coloured white.

The warning function is triggered

Activation/deactivation

The function alerts the driver:

if the vehicle breaches a line or ap-

To activate the function, press the 2

- by a vibration in the steering wheel;

proaches a roadside (divider, barrier,

switch as many times as required to

and

pavement, embankment, etc.) without

select “Lane Departure Warning” on

the direction indicator lights being ac-

- the 

warning light and 3 the in-

the instrument panel. The “Lane depar-

tivated.

dicator for the crossed line turn red.

ture warning on” message and “”

warning light are displayed on the in-

strument panel.

To disable the function, press the 2

switch as many times as required to

select

“Lane departure warning off”

(or, depending on the vehicle “Lane

Keeping deactivated”) on the instru-

ment panel. Warning light 

goes

Each time the vehicle is started,

out on the instrument panel.

the function continues the mode

saved the last time the engine was

stopped.

2.52

CarManuals2.co

LANE DEPARTURE WARNING (3/5)

Temporarily not available

Conditions for non-activation

4

- very fast lane departure;

of the system

The system cannot be activated when:

- driving continuously on a line;

- four seconds approximately after

- reverse gear is engaged;

changing lanes;

- the field of vision of the camera is ob-

- tight bends;

structed;

- impaired visibility;

- the û

warning light is displayed.

- activation of one of the direction indi-

cator lights;

The 

warning light and the left/

right line indicators turn to grey on the

- strong acceleration;

instrument panel.

- ...

When the function is not available, the

Adjustment

-

“Alert”: adjust the line detection sen-



warning light and the left/right in-

sitivity level. To do this select:

Vehicles fitted with a multimedia

dicators turn to grey on the instrument

screen.

- “Late”: line detected when cross-

panel.

ing;

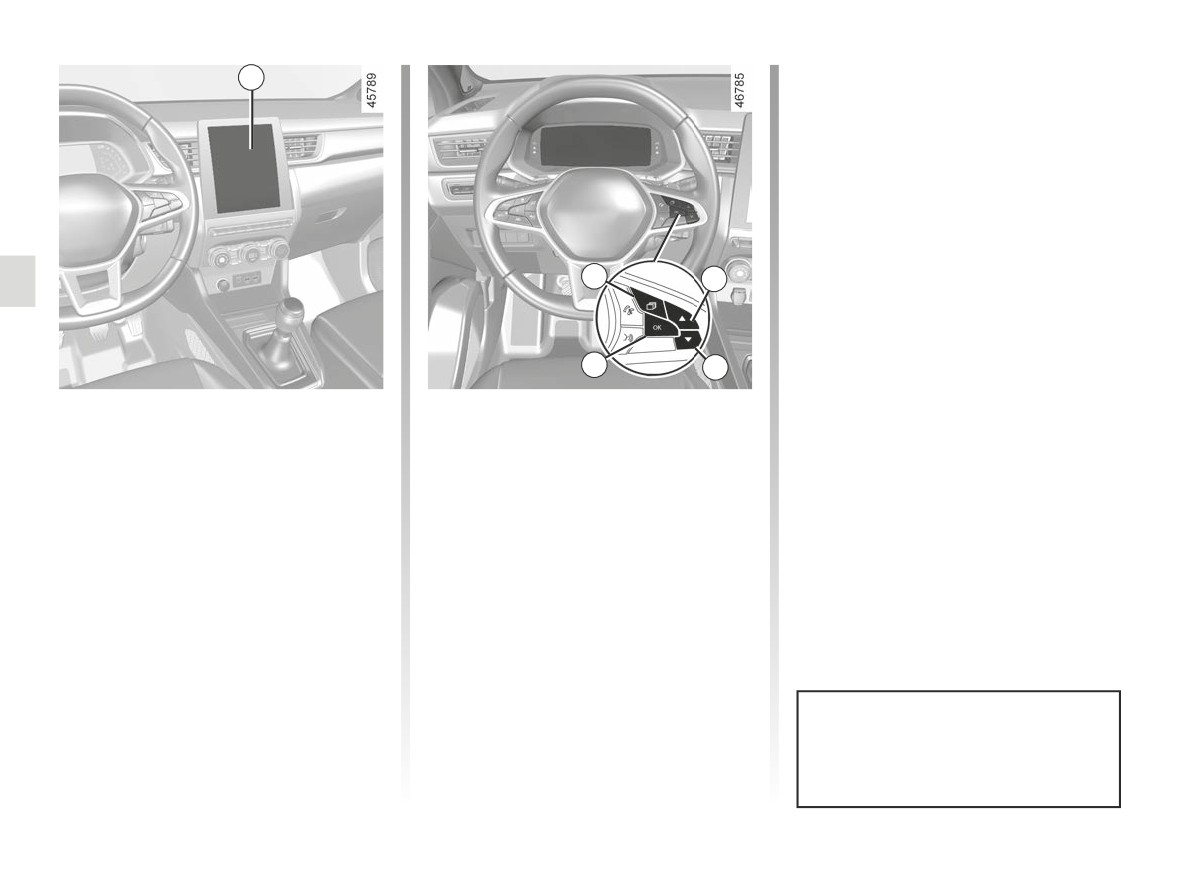

To access the multimedia screen func-

tion settings 4, refer to the multimedia

- “Standard”: line detected on ap-

instructions:

proach;

- “Vibration”: adjust the steering wheel

- “Early”: line detected nearby.

vibration level;

Please refer to the multimedia instruc-

tions for further information.

2.53

CarManuals2.co

LANE DEPARTURE WARNING (4/5)

- press control 6 or 7 repeatedly to

Operating faults

reach the “DRIVING ASSIST” menu.

In the event of a malfunction, the left

Press the switch 8 OK;

and right line indicators (and, depend-

- press the 6 or 7 control repeat-

edly to reach the “Lane Departure

ing on display style, the 

warning

Sensitivity” or

“Lane Departure

light) disappear or stay grey on the in-

Vibration” menu. Press the switch 8

strument panel.

OK;

In some cases, they are accompanied

- press the 6 or 7 control repeatedly

by the message “Check Front camera”

6

5

to adjust the setting. Press the 8 OK

or the

warning light on the in-

button.

strument panel.

Consult an approved dealer.

8

7

Adjustments (continued)

Vehicles not fitted with a multimedia

screen

- With the vehicle stopped, press the

switch 5 as many times as required

to reach the “Vehicle” tab;

- press the 6 or 7 control repeatedly to

reach the “Settings” menu. Press the

switch 8 OK;

2.54

CarManuals2.co

LANE KEEPING ASSIST (1/6)

Location of the camera 1

1

Make sure the windscreen is not ob-

scured (dirt, mud, snow, condensation

etc.).

Using information from the 1 camera,

the function triggers corrective action

on the vehicle steering system when

a continuous or broken line is crossed

or when approaching the roadside (di-

vider, barrier, pavement, embankment,

etc.) without the direction indicator

lights being activated.

This function is an addi-

tional driving aid. This func-

tion is not under any circum-

stances intended to replace

the due care and attention of the

driver, who should at all times be

in control of the vehicle.

You can retake control of the ve-

hicle at any time by operating the

steering wheel.

2.56

CarManuals2.co

LANE KEEPING ASSIST (2/6)

To disable the function, press the 2

switch as many times as required to

select “Lane Keeping deactivated” on

the instrument panel.

Warning light 

goes out on the in-

strument panel.

Note: deactivating the “Lane Keeping

Assist” function causes deactivation of

2

the “Lane Departure Warning” function.

Activation/deactivation

To activate the function, press the 2

switch as many times as required to

select “Lane Keeping Assist” on the in-

strument panel.

The “Lane Keeping activated” message

and “

” warning light are displayed

on the instrument panel.

When Lane Keeping Assist is activated,

the “Lane Departure Warning” function

is automatically activated. ➥ 2.51.

Each time the vehicle is started,

the function continues the mode

saved the last time the engine was

stopped.

2.57

CarManuals2.co

LANE KEEPING ASSIST (3/6)

In these cases:

Special cases

- the function triggers an action on the

When using the function:

vehicle’s steering system to correct

-

If the system can no longer detect

the vehicle trajectory;

any action by the driver on the steer-

- the warning light 

and the indi-

ing wheel, the 

warning light

cator 3 on the side of the breached

appears in yellow on the instrument

3

line turns to yellow on the instrument

panel, accompanied by the message

panel.

“Keep hands on steering wheel” and

an audible warning.

Note: on bends, the function allows for

slightly cutting the bend.

The audible warning is emitted along

with the warning light and message

If the corrective action on the steer-

until the driver takes control;

ing system is not sufficient, the 

-

if the system is active for too long,

warning light and the indicator 3 on the

an audible warning is emitted and

Operation

side of the breached line turn to red on

the indicator 3 on the side of the line

When the function is activated, the

the instrument panel, accompanied by

concerned flashes until the driver

a vibration on the steering wheel.

takes control.



warning light and the left and

right lines 3 are displayed in grey on the

instrument panel.

The function is set to operate when

the vehicle speed is between approxi-

mately 43 mph (70 km/h) and 112 mph

(180 km/h) and if the 

warning

light and left-hand and right-hand line

indicators 3 appear in white.

The function operates if the vehicle

breaches a line or if the vehicle ap-

proaches the roadside (divider, barrier,

pavement, embankment, etc.) without

You can interrupt the trajectory cor-

the direction indicator lights being ac-

rection at any time by moving the

tivated.

steering wheel.

2.58

CarManuals2.co

LANE KEEPING ASSIST (4/6)

Temporarily not available

Conditions for non-activation

4

– Very fast lane departure;

of the system

The system cannot be activated when:

- driving continuously on a line;

- reverse gear is engaged;

- four seconds approximately after

- the field of vision of the camera is ob-

changing lanes;

structed;

- tight bends;

- the û

warning light is displayed.

- impaired visibility;

The 

warning light and the left/

- activation of one of the direction indi-

right line warning lights are displayed in

cator lights;

grey on the instrument panel.

- strong acceleration;

- emergency braking;

Adjustment

– ...

Vehicles fitted with a multimedia

-

“Alert”: adjust the line detection sen-

screen.

If the function is unavailable, the 

sitivity level. To do this, select:

warning light and the left/right correc-

To access the multimedia screen func-

- “Late”: line detected when cross-

tion warning lights 3 appear in grey on

tion settings 4, refer to the multimedia

ing;

the instrument panel.

instructions:

- “Standard”: line detected on ap-

- “Vibration”: adjust steering wheel

proach;

vibration for the

“Lane Departure

Warning” function;

- “Early”: line detected nearby.

Please refer to the multimedia instruc-

tions for further information.

2.59

CarManuals2.co

LANE KEEPING ASSIST (5/6)

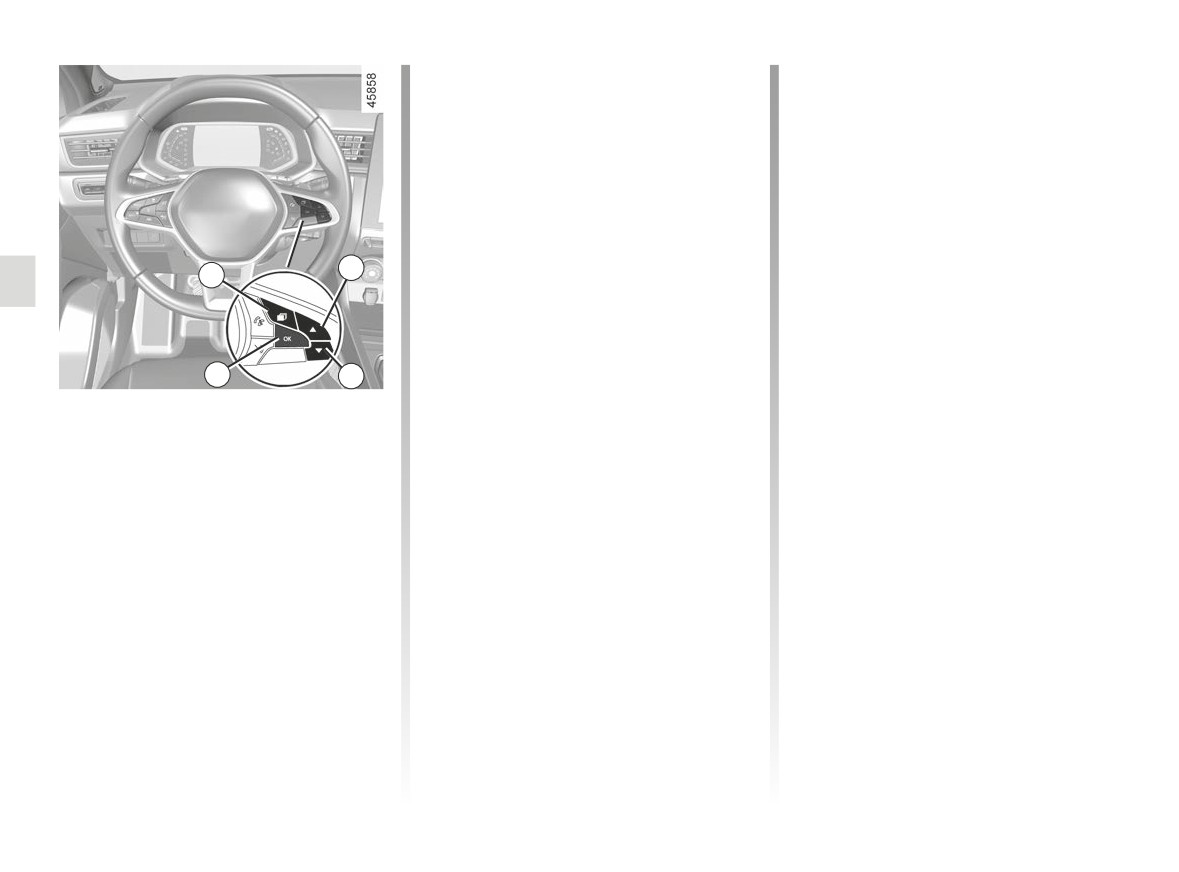

- press the 6 or 7 control repeatedly to

Operating faults

reach the “DRIVING ASSIST” menu.

When the system detects an operating

Press the switch 8 OK;

fault, the

warning light lights up

– press the 6 or 7 control repeatedly to

on the instrument panel, with the mes-

reach the “Lane Keeping sensitivity”

sage “Front camera to check”.

menu. Press the switch 8 OK;

Consult an approved dealer.

- scroll repeatedly pressing control 6

or 7 to adjust the setting. Press the 8

OK button.

6

5

8

7

Adjustments (continued)

Vehicles not fitted with a multimedia

screen

- With the vehicle stopped, press the

switch 5 as many times as required

to reach the “Vehicle” tab;

- press the 6 or 7 control repeatedly to

reach the “Settings” menu. Press the

switch 8 OK;

2.60

CarManuals2.co

BLIND SPOT WARNING (1/7)

C

B

A

A

B

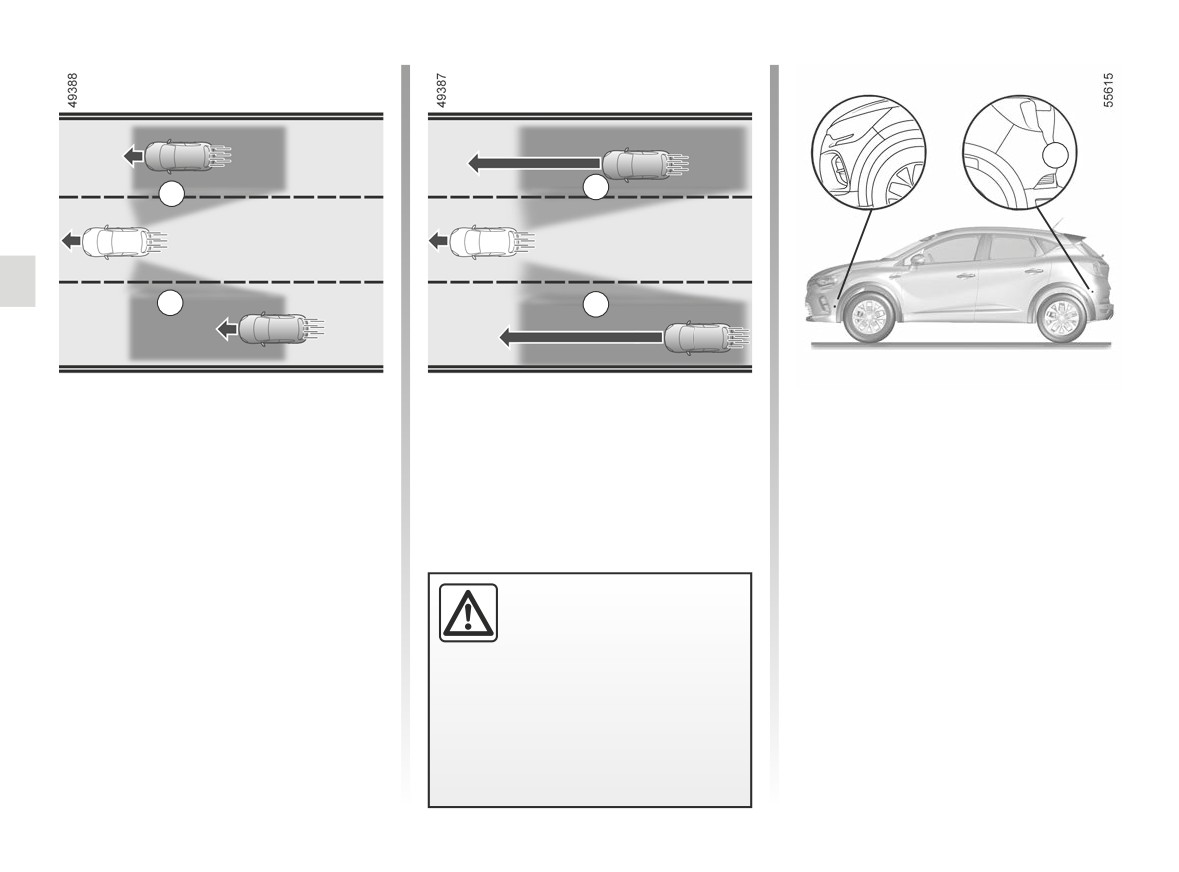

Using information from the sensors in-

Special feature

stalled on each side of the rear bumper

Ensure that the area C around the

(area C), the function warns the driver:

radars on each side of the rear bumper

- when another vehicle appears in the

are not obstructed (by dirt, mud, snow,

detection area A;

condensation, etc.).

and/or

If a radar is obscured, the message

“Side radars no visibility” will appear on

- when there is a risk of collision with

the instrument panel. Clean the area

a vehicle that is in area B, driving

This function is an addi-

where the sensors are located.

faster than you.

tional driving aid. This func-

The function warns you when the ve-

tion is not under any cir-

hicle is travelling at a speed above ap-

cumstances intended to

proximately 9 mph (15 km/h).

replace the due care and attention

of the driver, who should at all times

be in control of the vehicle.

2.62

CarManuals2.co

BLIND SPOT WARNING (2/7)

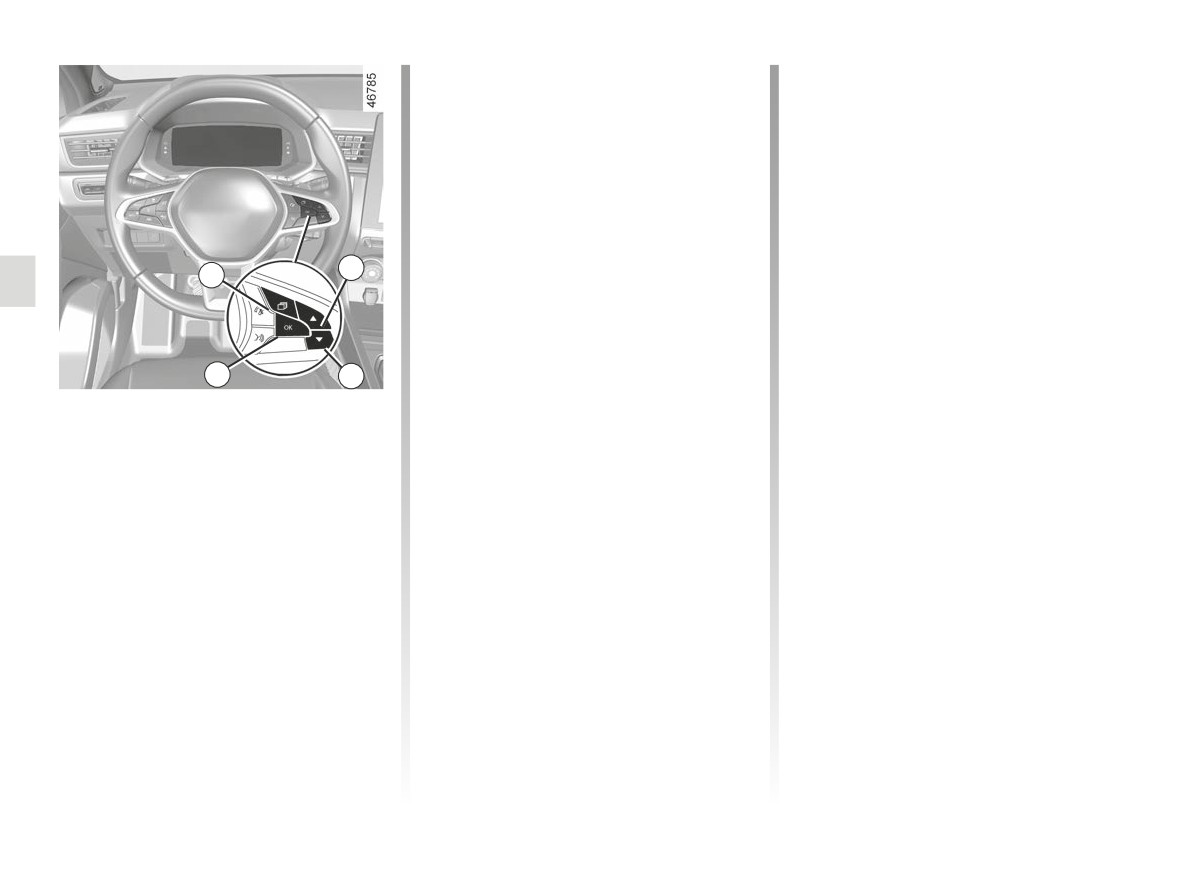

- press the switch 5 OK again to acti-

1

vate or deactivate the function:

=

function activated

<

function deactivated

2

3

5

4

Activation/deactivation

- press the 3 or 4 control repeatedly to

reach the “Settings” menu. Press the

Vehicles fitted with a multimedia

switch 5 OK;

screen 1

- press the 3 or 4 control repeatedly to

To activate or deactivate the function,

reach the “DRIVING ASSIST” menu.

refer to the multimedia instructions.

Press the switch 5 OK;

Select “ON” or “OFF”.

- press the 3 or 4 control repeatedly to

reach the “Blind spot alert” menu and

Vehicles not fitted with a multimedia

press the 5 OK switch;

screen

- With the vehicle stopped, press the 2

switch as many times as required to

The system’s detection range oper-

reach the “Vehicle” tab;

ates according to a standard lane

width. When driving in a narrow

lane, the function can warn you

when a vehicle is detected beyond

the adjacent lane.

2.63

CarManuals2.co

BLIND SPOT WARNING (3/7)

6

A

B

7

A

B

Indicator 6

Operation

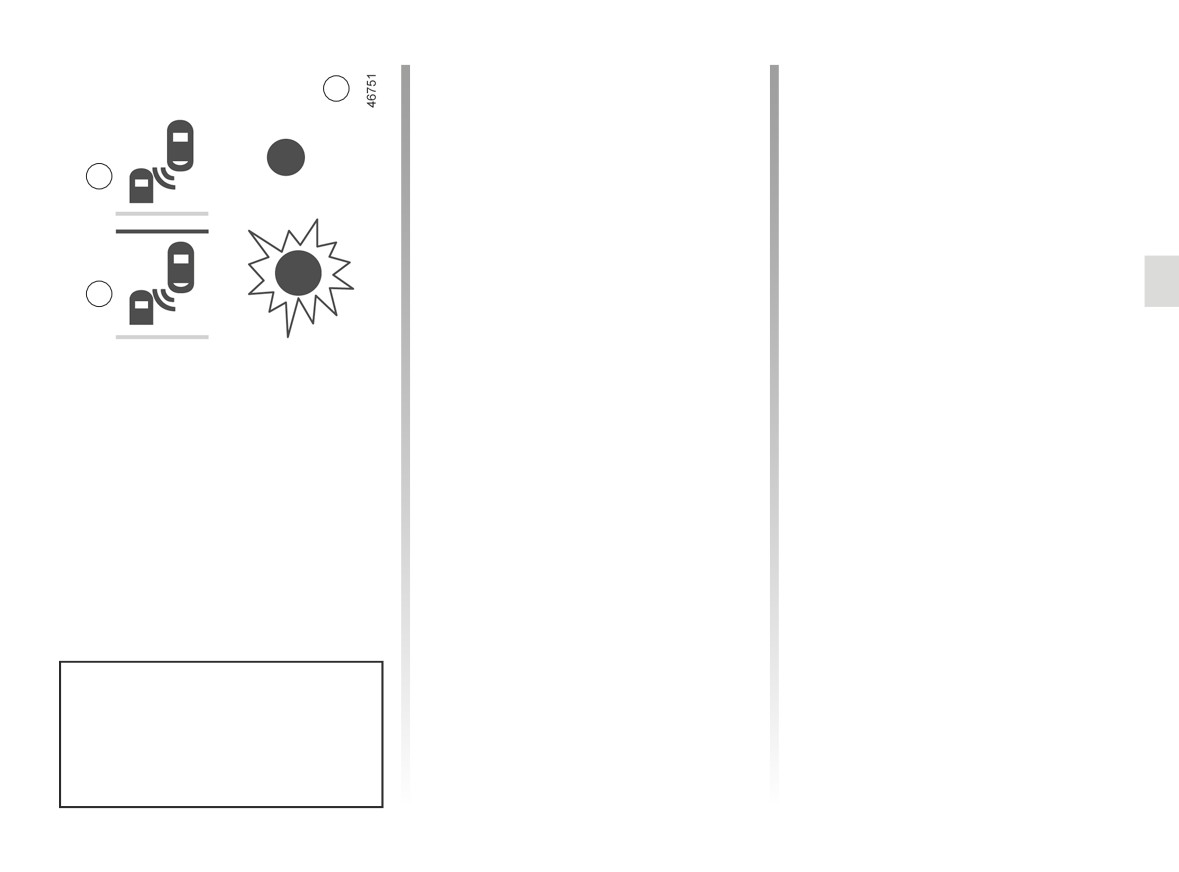

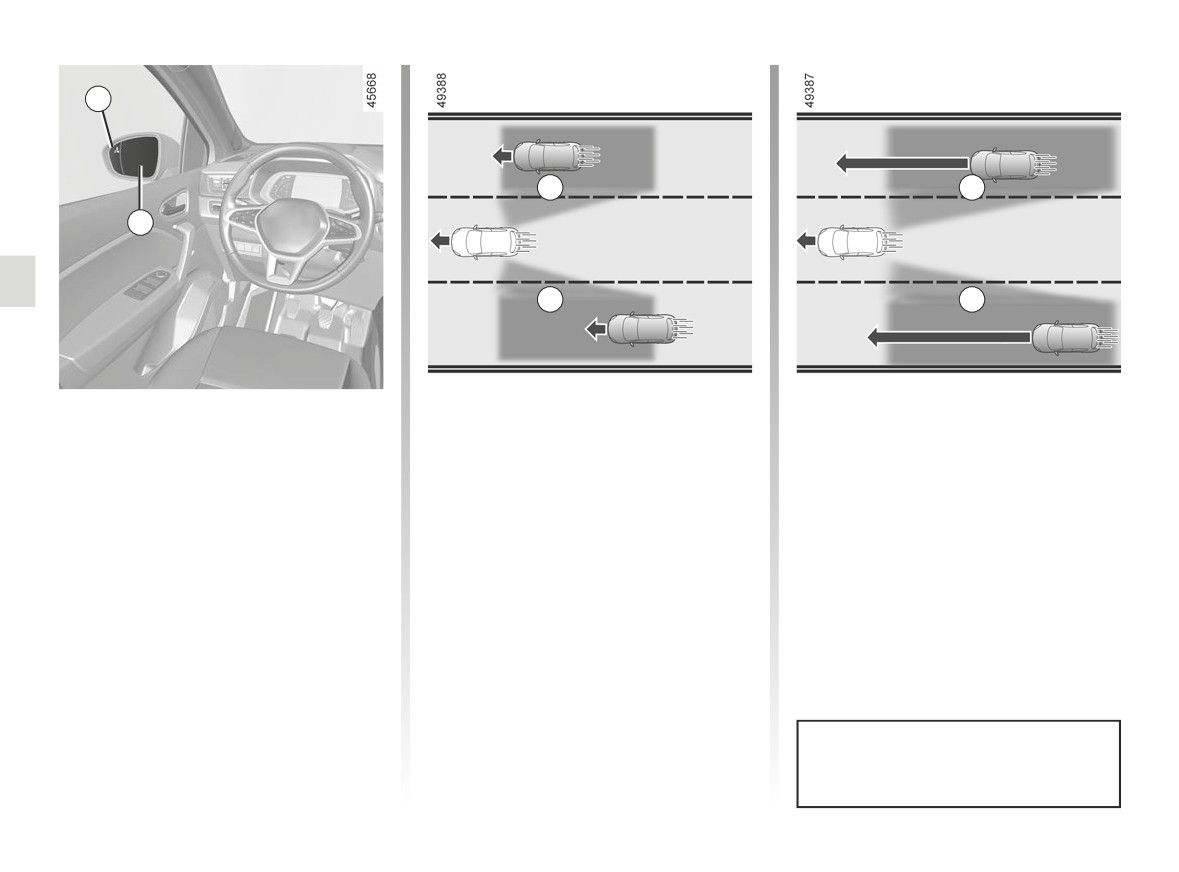

An indicator light 6 is located on each

The function warns you when the speed

rear view mirror 7.

of your vehicle is over 9 mph (15 km/h):

- when another vehicle is in the blind

Note: clean the rear view mirrors 7 reg-

spot area A and travelling in the

ularly so that the indicators 6 can be

same direction as your vehicle;

seen.

- when a vehicle approaches quickly

from the rear in an adjacent lane

within the range of detection area B.

If you overtake another vehicle, the 6

indicator will only come on if that vehi-

cle remains for a long enough period in

your vehicle’s blind spot A.

The function does not notify the

driver if the other vehicles are not

moving.

2.64

CarManuals2.co

BLIND SPOT WARNING (4/7)

Display E

Conditions for non-function

6

Direction indicator activated, the 6

- When driving on a road with tight

warning light flashes when the func-

bends;

tion detects a vehicle in the blind spot

- in reverse.

warning area and/or a vehicle is rapidly

D

approaching from the rear on the side

If the vehicle is equipped with a towbar

towards which you will turn the wheel.

recognised by the system, the “Trailer:

If you cancel the direction indicator, the

blind spot alert off” message displayed

function will return to the initial warning

on the instrument panel informs you

(display D).

that the function is not operational. For

information on the range of equipment

E

adapted to your vehicle, we advise you

to consult an approved Dealer.

Display D

First warning: direction indicator not

activated, the 6 warning light indicates

that a vehicle is detected in the blind

spot area and/or that a vehicle is rap-

idly approaching from the rear in an ad-

jacent lane.

When the engine is started, the

system adopts the last status saved

before the ignition was switched off

(refer to the previous pages).

2.65

CarManuals2.co

SAFE DISTANCE ALERT (1/4)

The function is activated when the vehi-

1

cle speed is between about 19 and

124 mph (30 and 200 km/h).

Location of the camera 1

Make sure the windscreen is not ob-

scured (by dirt, mud, snow, condensa-

tion etc.).

Location of the radar 2

Ensure that the radar area is not ob-

structed (by dirt, mud, snow, a badly

2

fitted front number plate), impacted,

modified (including painting) or hidden

Using the information from the radar 2

by any accessory fitted on the front of

and camera 1, this function informs the

the vehicle (on the grille or logo etc.).

driver of the time interval between their

vehicle and the vehicle in front so that a

safe stopping distance between the two

vehicles can be maintained.

This function is an addi-

tional driving aid. This func-

tion is not under any cir-

cumstances intended to

replace the due care and attention

of the driver, who should at all times

be in control of the vehicle.

2.69

CarManuals2.co

SAFE DISTANCE ALERT (2/4)

- press the 5 or 6 control repeatedly to

3

reach the “Distance warning” menu.

Press the switch 7 OK;

- Press the switch 7 OK again to acti-

vate or deactivate the function:

=

function activated

<

function deactivated

4

5

7

6

Activating/deactivating the

Vehicles not fitted with a multimedia

screen

function

- With the vehicle stopped, press the

Vehicles fitted with a multimedia

switch 4 as many times as required

screen 3

to reach the “Vehicle” tab;

To activate or deactivate the function,

- press the 5 or 6 control repeatedly to

refer to the multimedia instructions.

reach the “Settings” menu. Press the

Select “ON” or “OFF”.

switch 7 OK;

- press the 5 or 6 control repeatedly to

reach the “DRIVING ASSIST” menu.

Press the switch 7 OK;

Each time the vehicle is started,

the function continues the mode

saved the last time the engine was

stopped.

2.70

CarManuals2.co

SAFE DISTANCE ALERT (3/4)

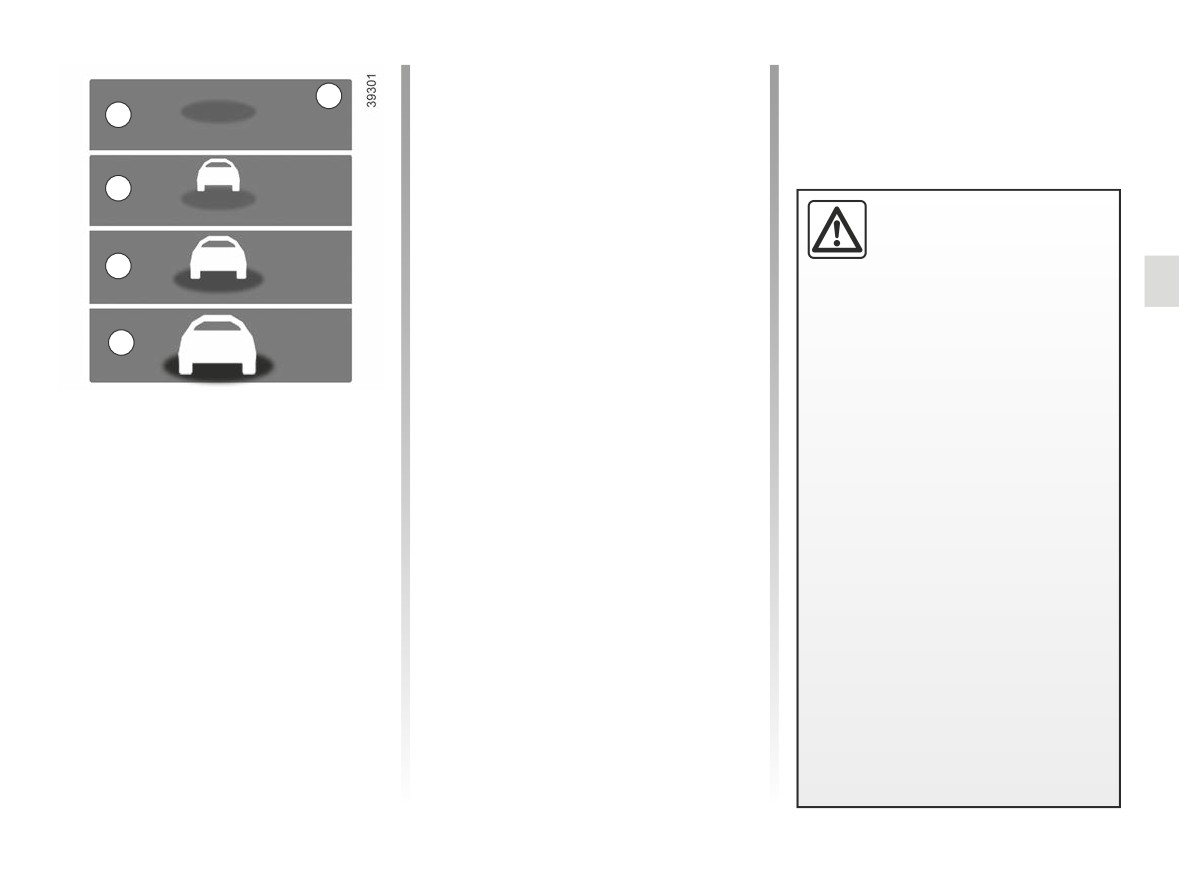

- C (orange): the time interval falls be-

8

tween around 1 and 2 seconds (in-

A

sufficient distance between the two

vehicles);

- D (red): the time interval is less than

B

or equal to around one second (very

insufficient distance between the two

The measurement is dis-

vehicles).

played for information: the

If the interval between the two vehi-

system does not carry out

C

cles is less than approximately 0.5 sec-

any action on the vehicle.

onds, the 8 indicator and the D display

This function is not designed for use

will flash in red on the instrument panel

in urban conditions or for a dynamic

D

along with “-.- s”.

driving style (sudden cornering, ac-

Under certain conditions, the time inter-

celeration, braking, etc.), but rather

val may not be displayed:

for stable driving conditions.

Operation

- while cornering;

The function does not interact with

With the function activated, the 8 in-

the braking system.

- when changing lane;

dicator is displayed on the instrument

The radar and camera zones must

panel and informs the driver of the dis-

- if the vehicle in front is sufficiently far

be kept clean and free of any tam-

tance between their vehicle and the ve-

or outside the range of the radar or

pering in order to ensure the proper

hicle in front.

camera.

operation of the system.

- A (grey): function not operational;

Any work carried out in the area

- A (green): no vehicle detected;

where the radar or camera is lo-

cated (repairs, replacements, wind-

- B (green): the time interval is greater

screen and/or bumper modifica-

than or equal to around two seconds

tions, etc.) must be carried out by a

(distance between the two vehicles

qualified professional.

adapted to your speed);

2.71

CarManuals2.co

360° CAMERA (1/9)

1

5

4

2

2

3

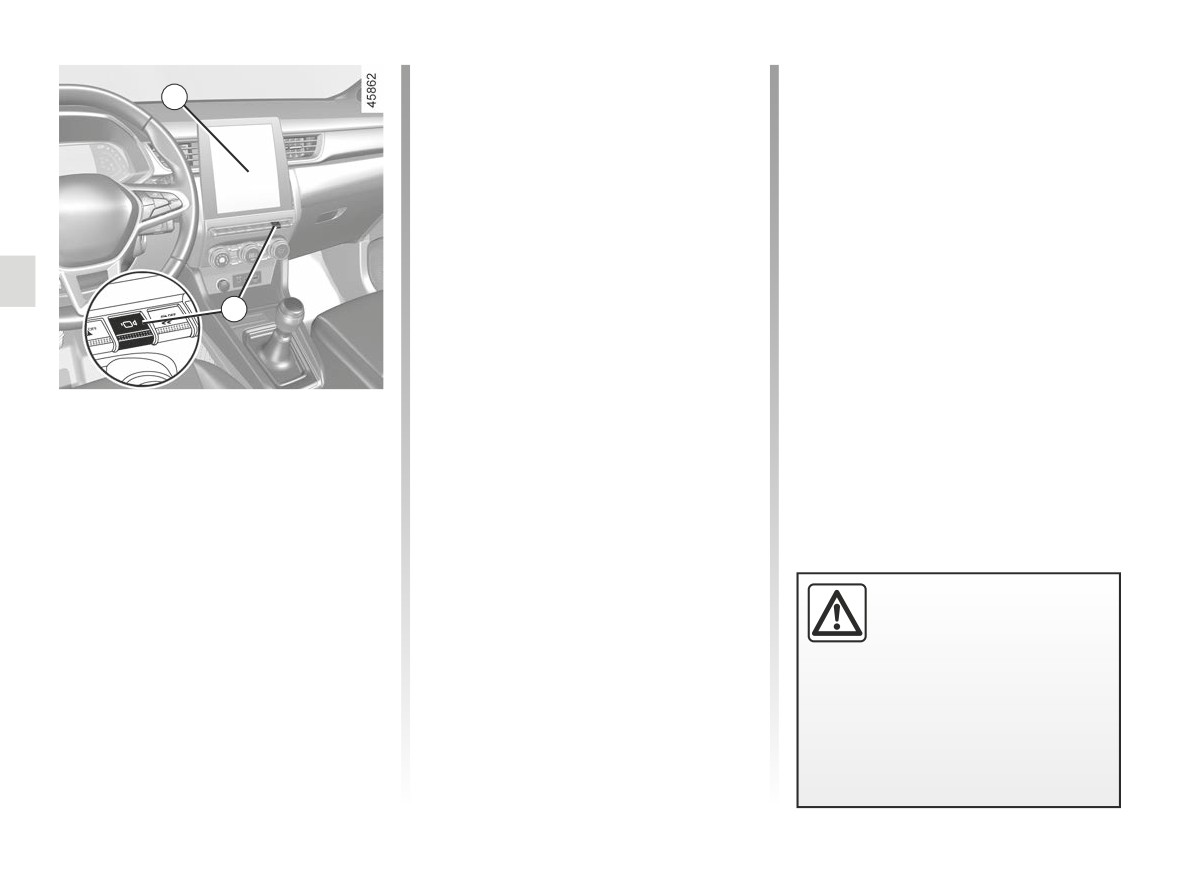

Using information from cameras 1, 2,

Operation

- front side view (depending on the ve-

and 3 located in the front bumper, door

hicle): using camera 2 (passenger

The cameras transmit four separate

mirrors and on the tailgate, as well as

side).

views to the multimedia screen 5.

ultrasonic detectors 4 located in the ve-

They enable you to view the vehicle

The ultrasonic detectors detect obsta-

hicle bumpers, the feature assists with

surroundings:

cles at the front, rear and (depending

difficult manoeuvres (e.g. parking) by

- front view: using camera 1;

on the vehicle) side of the vehicle.

displaying the vehicle surroundings.

- rear view: using camera 3;

Note: make sure that the cameras are

- bird’s eye view: using cameras 1, 2

not obscured (by dirt, mud, snow etc.).

and 3;

This function is an additional aid. It cannot, therefore, under any circumstances replace the vigilance or the responsi-

bility of the driver.

The driver should always be ready for sudden incidents while driving: always ensure that there are no small, narrow

moving obstacles (such as a child, animal, pushchair, bicycle, stone, post, etc.) in the blind spot when manoeuvring.

2.73

CarManuals2.co

360° CAMERA (2/9)

5

3

1

Front view 1

Rear view 3

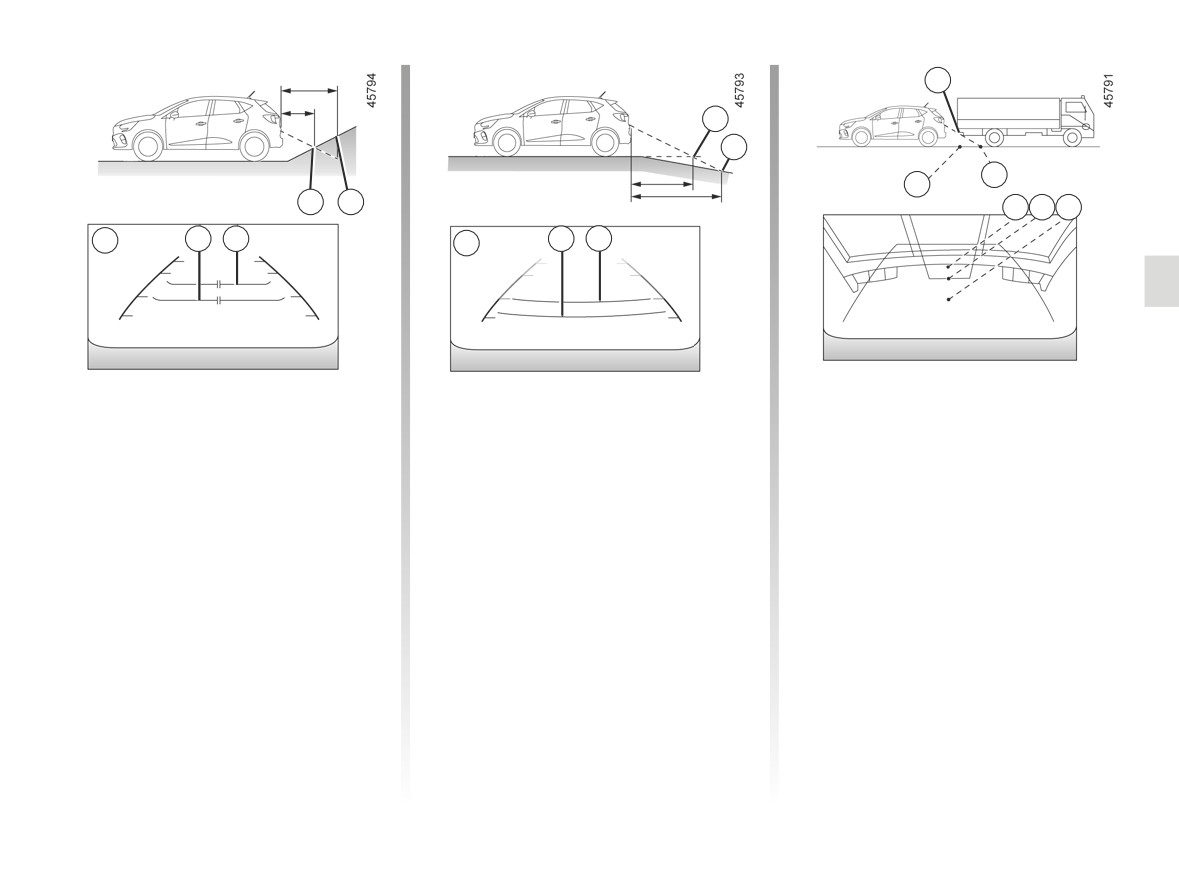

The view of the front camera is dis-

The view of the rear camera is dis-

played on the multimedia screen 5.

played on the multimedia screen 5.

In front view or rear view:

when manoeuvring on a

slope, objects shown on

the multimedia screen may

be closer or further away than they

seem.

Take this into account in order

The 5 multimedia screen shows a

to correctly assess the distance

reverse image of the rear view 3 as

before any manoeuvre.

in a rear view mirror.

2.74

CarManuals2.co

360° CAMERA (3/9)

5

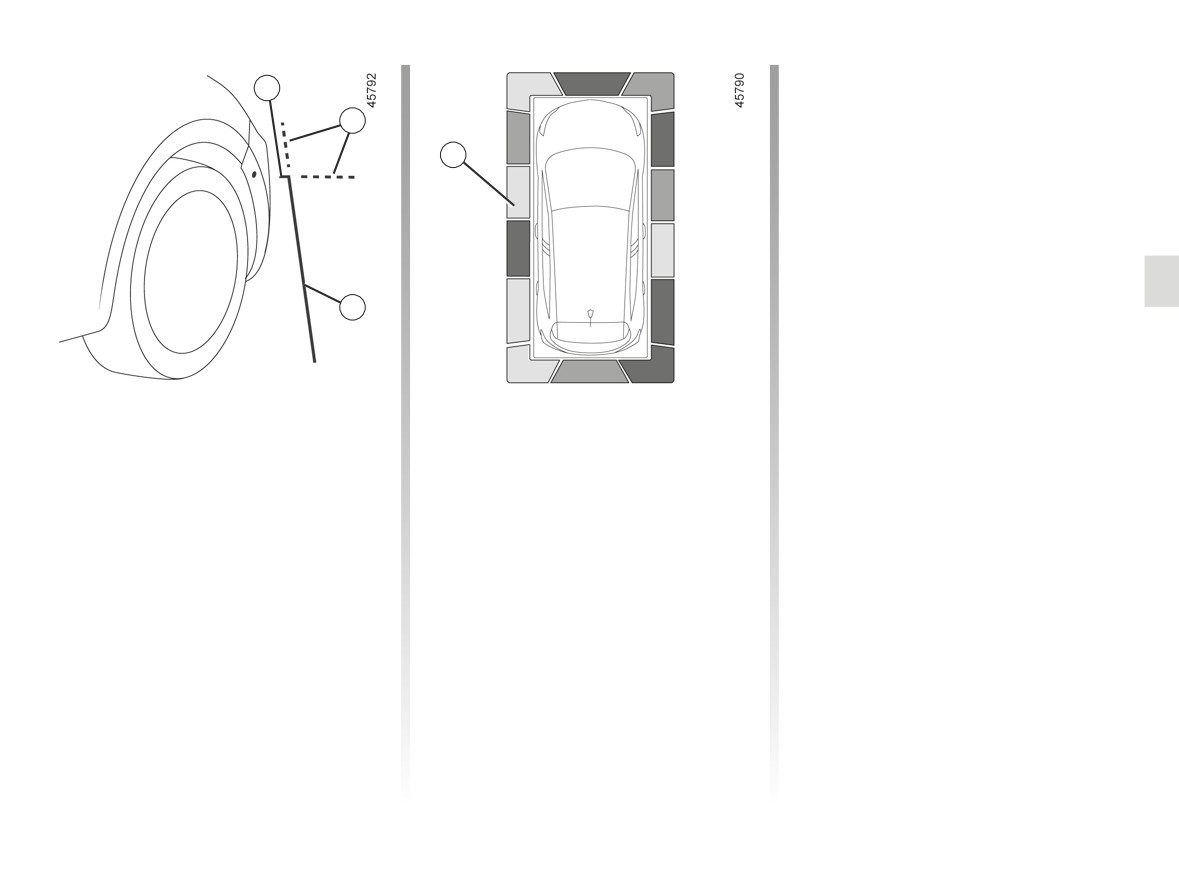

The front, rear and side view guide-

6

7

lines are a representation projected

onto flat ground; this information

C

must not be taken into account

when superimposed on a vertical

B

object or an object on the ground.

Objects displayed on the edge of

A

the multimedia screen may appear

distorted.

In very bright light (snow, vehicle in

sunshine etc.), the camera vision

may be adversely affected.

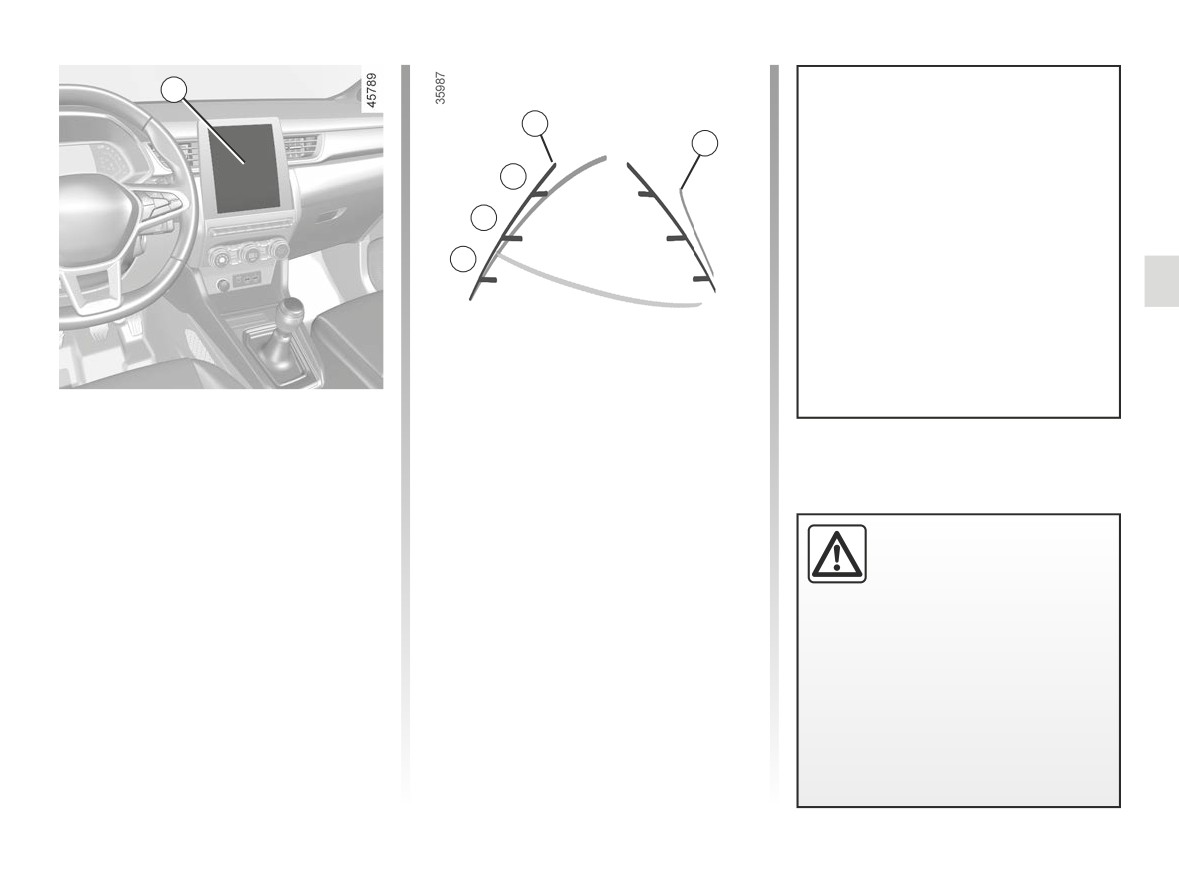

Rear view 3 (continued)

The fixed clearance gauge comprises

coloured markers A, B and C indicating

Fixed clearance gauge 6

the distance behind the vehicle:

- A(red) approximately 30 centime-

The “front” or “rear” view transmitted to

tres from the vehicle;

the multimedia screen 5 is displayed

- B(yellow) approximately 70 centi-

with one or two guidelines 6 and 7.

metres from the vehicle;

In the combined represen-

This system is initially used with the aid

- C(green) approximately 150 centi-

tation from the cameras:

of several gauges (mobile for trajectory

metres from the vehicle.

and fixed for distance).

- raised objects (pavement,

Dynamic gauge 7 (depending on the

vehicle, etc.) may appear

vehicle)

distorted in bird’s eye view;

This is shown in blue on the multime-

- any objects on top of the vehicle

dia screen 5. It indicates the vehicle tra-

are not displayed.

jectory according to the position of the

steering wheel in the front and the rear

view.

2.75

CarManuals2.co

360° CAMERA (4/9)

9

8

9

2

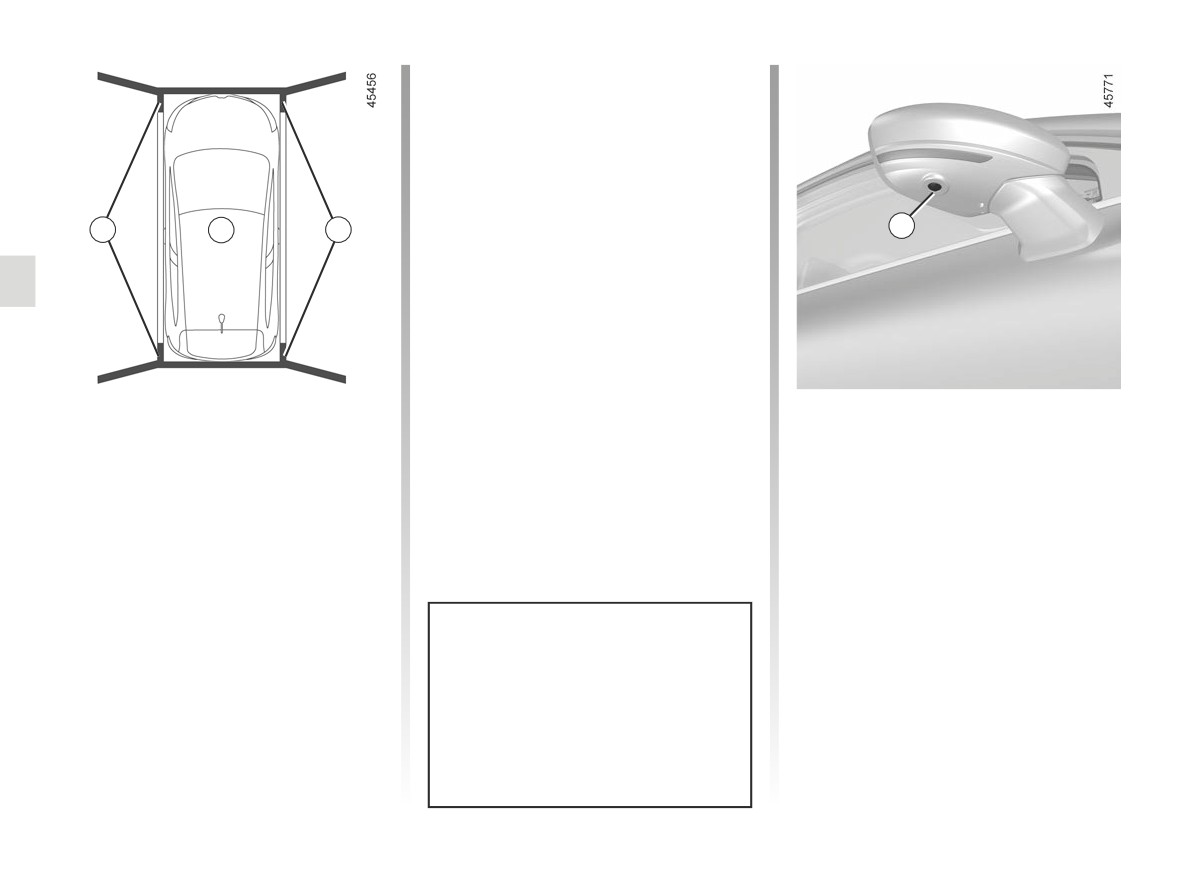

Bird’s eye view

Front side view on passenger

The bird’s eye view is a combined rep-

side 2

resentation from cameras 1, 2 and 3.

(depending on the vehicle)

It displays a view of the top of the vehi-

The camera, fitted in the door mirror,

cle and its surroundings.

transmits a side view to the multimedia

screen 5.

This can be used to confirm a view of

the vehicle position in relation to its im-

Depending on the vehicle, you can use

mediate surroundings (front, rear and

the multimedia screen to change the

side).

bird’s eye view to the front side view.

Please refer to the multimedia instruc-

The 8 view indicates the vehicle posi-

In “bird’s eye view” mode, the ob-

tions for further information.

tion. 9 areas not covered by the cam-

jects displayed on the multimedia

eras are indicated in black.

screen are actually further away

than they seem.

Take this into account in order

to correctly assess the distance

before any manoeuvre.

2.76

CarManuals2.co

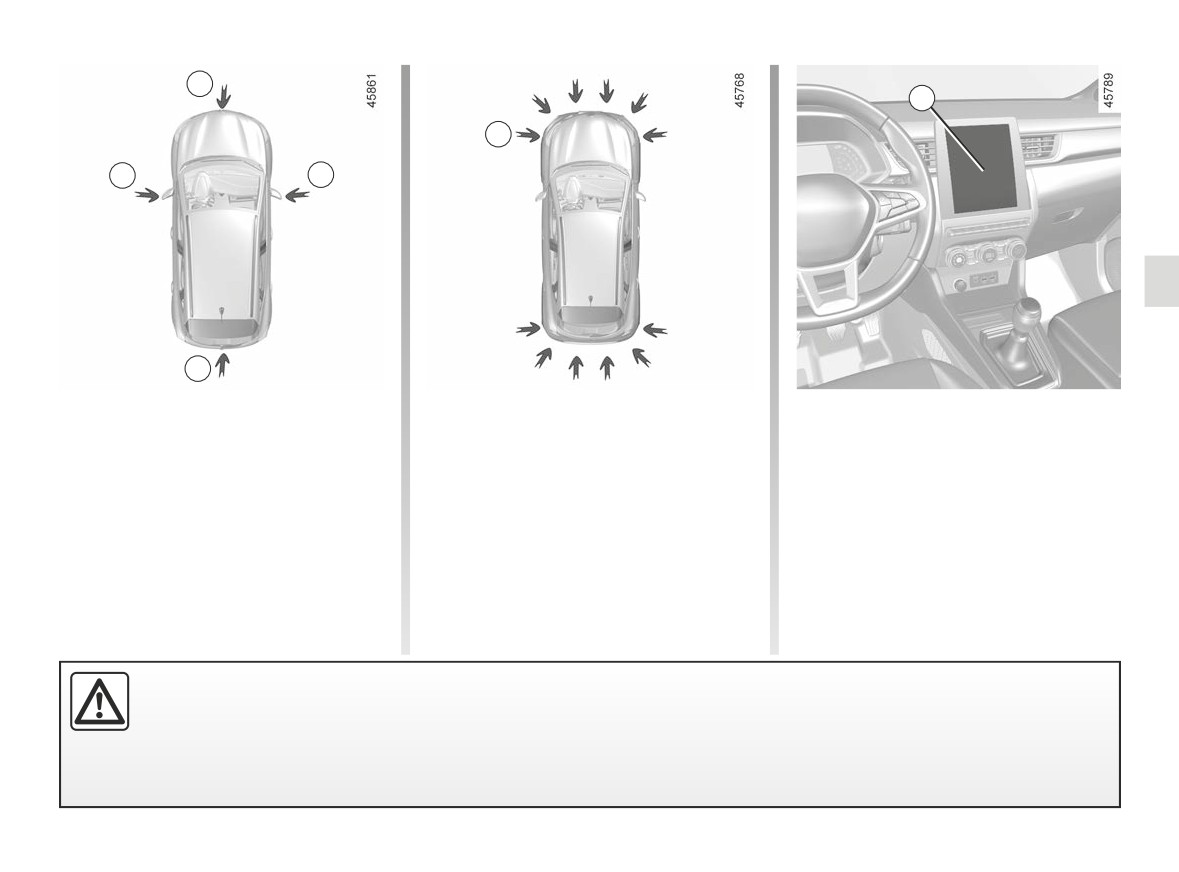

360° CAMERA (5/9)

In addition to the sound alert, these in-

10

dicator lines show the proximity of ob-

stacles via different colours:

11

- Green: obstacle between approxi-

13

mately 50 and 70 cm;

- Yellow: obstacle between approxi-

mately 30 and 50 cm;

- Red: obstacle within approximately

30 cm.

These indicator lines also show the lo-

12

cation of the obstacles detected relative

to the “Vehicle” symbol.

For more information ➥ 2.133.

The “Front side view on passenger

Depending on the vehicle, you can use

side” is transmitted to the multimedia

the multimedia screen to change the

screen with fixed guidelines to measure

bird’s eye view to the front side view.

the distances.

Please refer to the multimedia instruc-

tions for further information.

Fixed guidelines 10, 11 and 12

Fixed guideline 10 shows the front sec-

Obstacle detection

tion of the vehicle.

Fixed guideline 12 shows the vehicle

While the system is activated, if the

width including door mirrors.

“Park Assist” function detects one or

Fixed guidelines 11 are shown in red

more obstacles around the vehicle,

and dotted. These are extensions of

the 13 indicator lines display:

fixed guidelines 10 and 12.

- on the bird’s eye view;

- on the front side view on the passen-

ger side (depending on the vehicle).

2.77

CarManuals2.co

360° CAMERA (6/9)

Automatic mode is disabled:

5

- when the gear lever is in neutral

(manual gearbox) or in position N or

P (automatic gearbox) for approxi-

mately three seconds;

- when the vehicle speed moving for-

ward exceeds 6 mph (10 km/h).

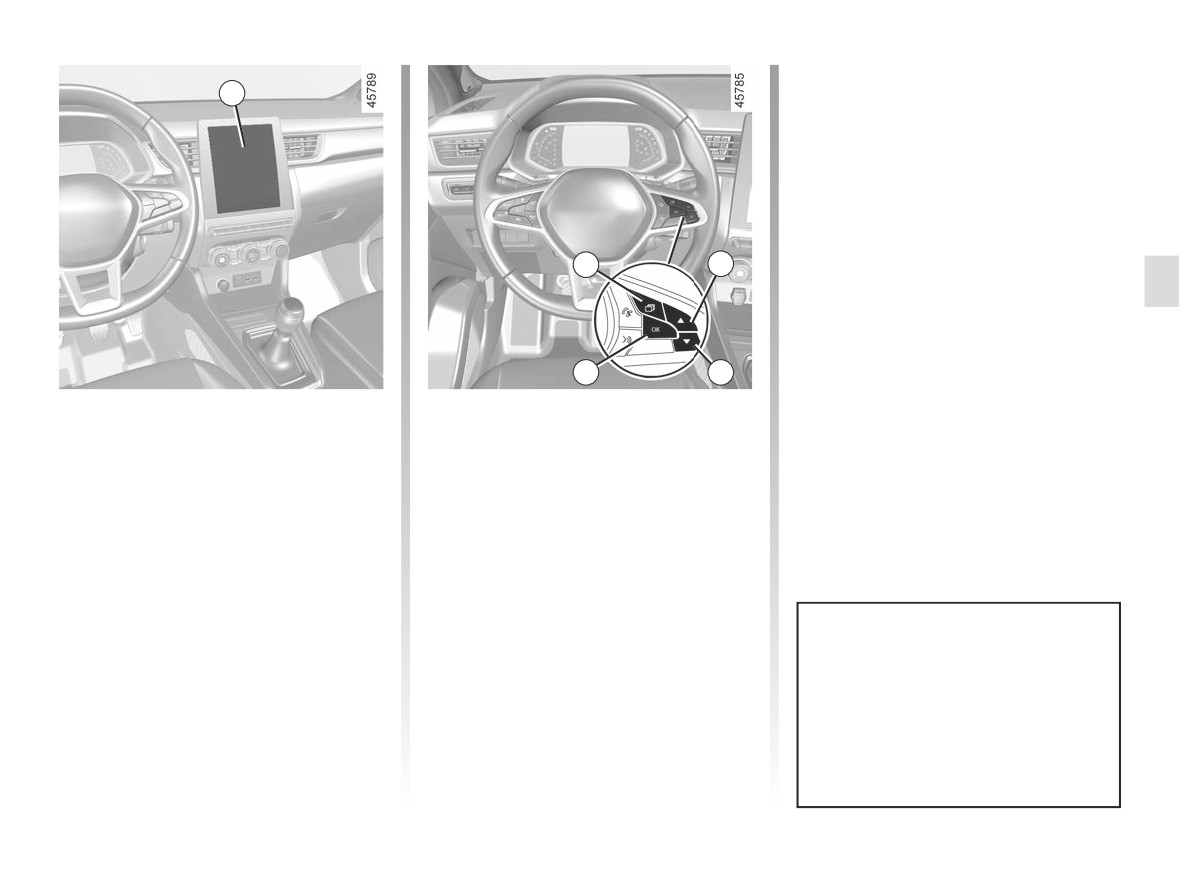

Manual mode

To activate manual mode, with the ve-

hicle stopped and the engine running,

14

press the 14 switch: the front view and

bird’s eye view appear on the multime-

dia screen.

Manual mode is disabled:

Activation/deactivation

- when the vehicle speed moving for-

ward reaches 6 mph (10 km/h);

Automatic mode

- when the gear lever has not been

With the vehicle stationary and the

used for approximately three min-

engine running, automatic mode is ac-

utes;

tivated when the reverse gear is en-

- when you press the 14 button.

gaged. The rear view and the bird’s

eye view appear on the 5 multimedia

screen.

-Do not use this function

When the reverse gear is quickly shifted

while the door mirrors are in

to forward gear, the rear view and bird’s

folded position.

eye view are replaced by the front view

-Ensure that the luggage

and bird’s eye view on the 5 multimedia

compartment door is properly

screen.

closed before using the function.

- Do not place any objects on or in

front of the cameras.

2.78

CarManuals2.co

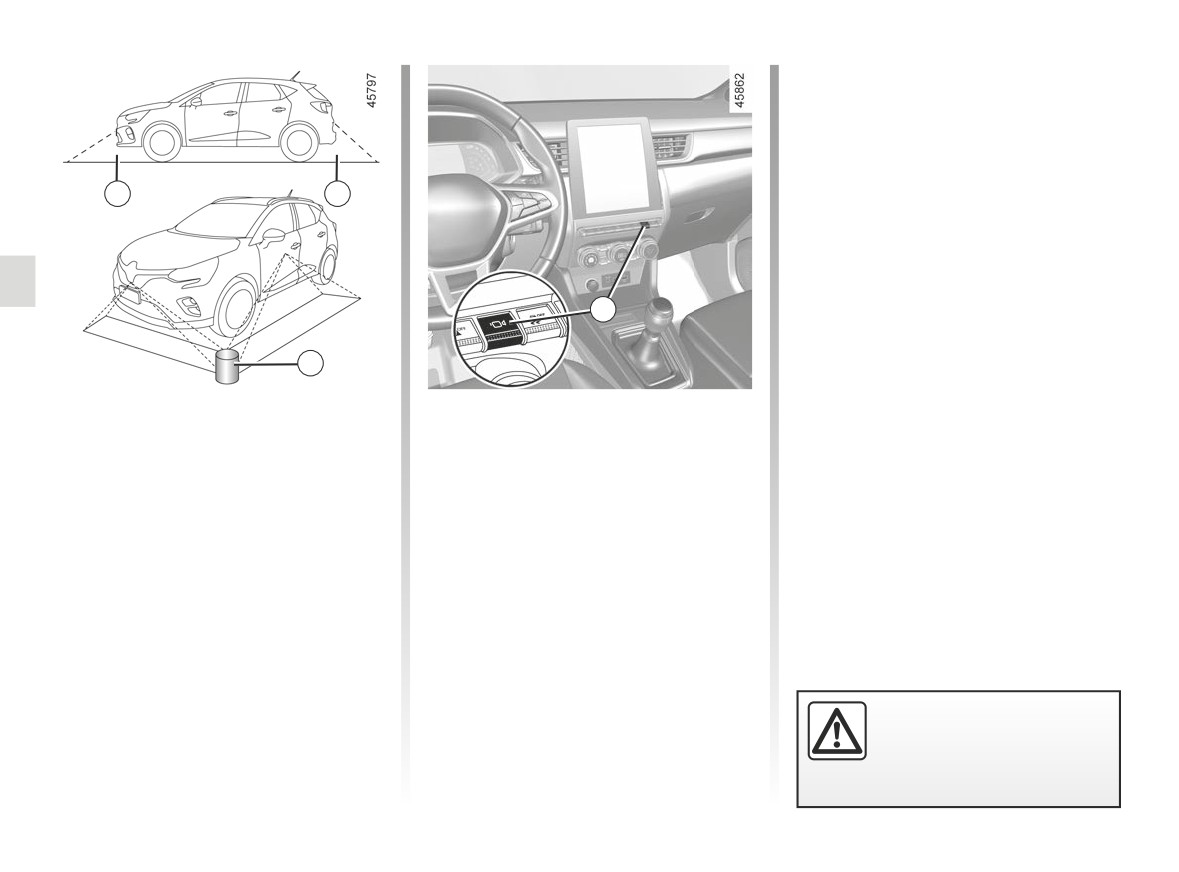

360° CAMERA (7/9)

H

F

G

J

K

D E

H J

K

15

D E

15

F G

Difference between the

Driving or reversing towards a steep

Driving or reversing towards a

downhill slope

protruding object

estimated distance and

actual distance

The fixed guidelines 15 show the dis-

Position H seems further than posi-

tances as further than they actually are.

tion J on the screen. However, posi-

Driving or reversing towards a steep

tion H is at the same distance as posi-

Therefore, the objects shown on the

uphill slope

tion K.

screen are actually closer on the slope.

The fixed guidelines 15 show the dis-

The trajectory indicated by the fixed

For example, if the screen displays an

tances as closer than they actually are.

and mobile guidelines do not take into

object at G, the actual distance of the

account the height of the object. So

The objects shown on the screen are

object is at F.

there is a risk that the vehicle may col-

actually further away on the slope.

lide with the object when reversing to-

For example, if the screen displays an

wards position K.

object at D, the actual distance of the

object is at E.

2.79

CarManuals2.co

360° CAMERA (8/9)

L

L

14

M

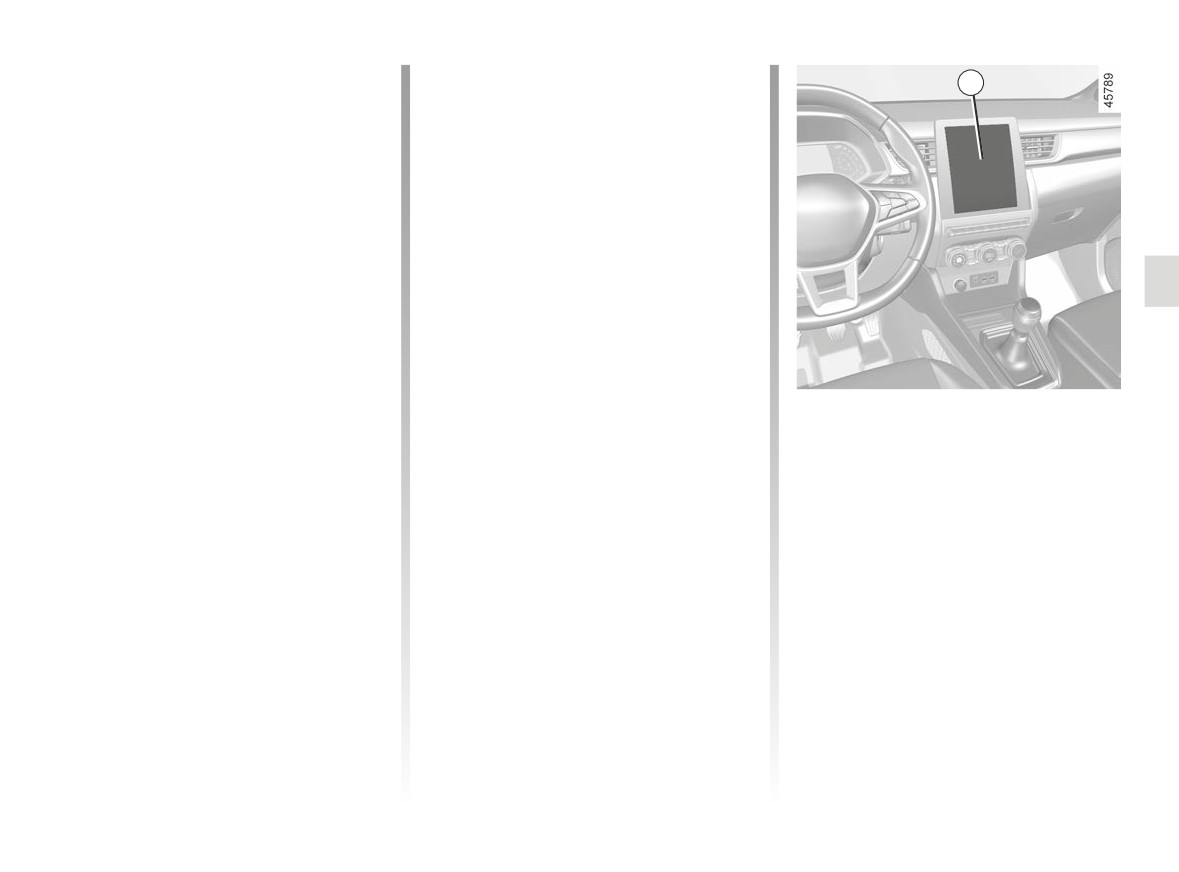

Limitation of the system operation

Adjusting the display

The system is unable to display objects

With the ignition on, press the 14 switch

located in certain areas.

or move the selection lever to position

R (on an automatic gearbox) or to re-

In the front or rear view mode, the

verse gear (on a manual gearbox) in

system cannot be used to view an

order to use the feature.

object in area L.

The function displays different views on

In bird’s eye view mode, the system

the screen according to the gear lever

cannot be used to view a large object in

position.

area M (near the edge of the displayed

area).

Depending on the vehicle, you can

select the “bird’s eye view” or “front side

view on the passenger side”.

For safety reasons, carry

out any adjustments when

the vehicle is not being

driven.

2.80

CarManuals2.co

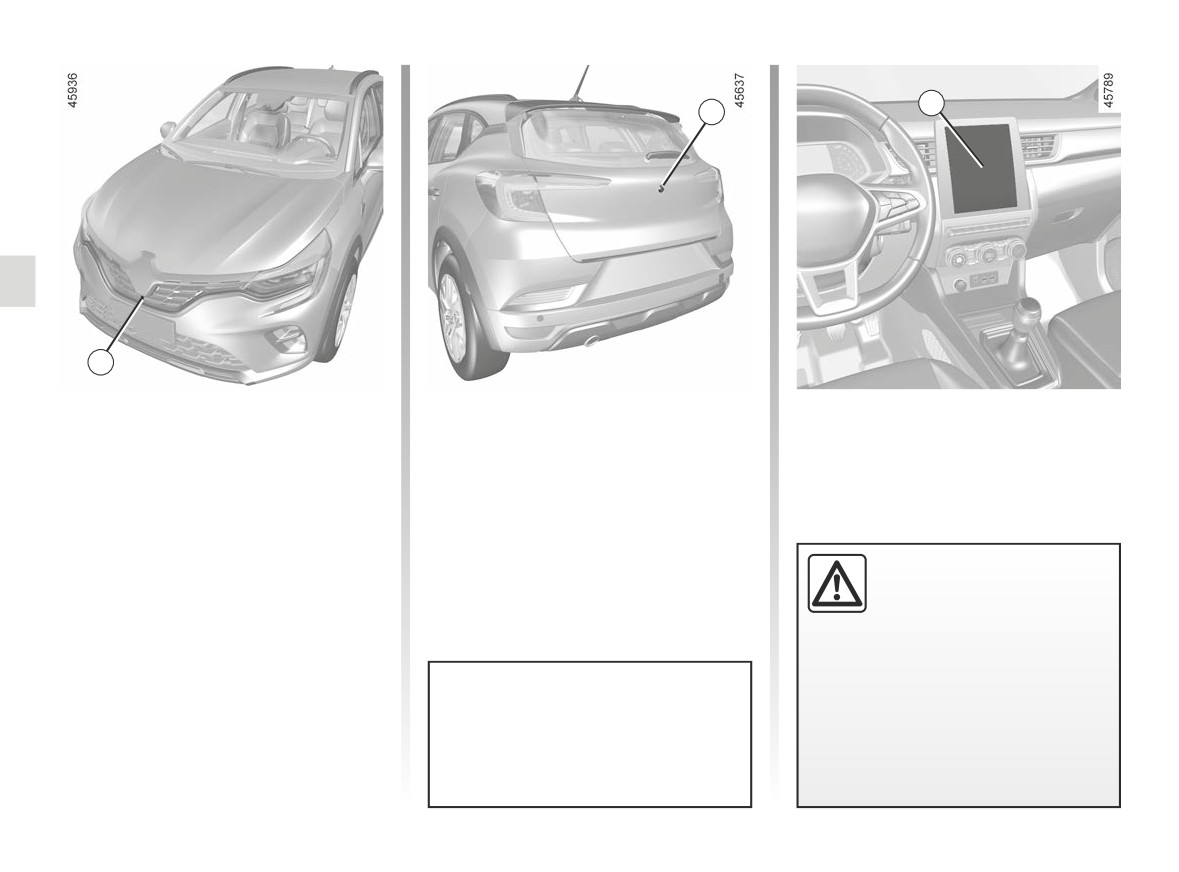

ACTIVE EMERGENCY BRAKING (1/8)

Depending on the reactivity of the

1

driver, the system can assist with brak-

ing in order to limit damage or prevent

a collision.

Note: ensure that the windscreen and

front bumper are not obstructed (by

dirt, mud, snow, condensation, number

plate, etc.).

Location of the camera 1

Make sure the windscreen is not ob-

scured (by dirt, mud, snow, condensa-

This system can apply maximum

tion etc.).

braking to the vehicle until it is

2

completely stationary if necessary.

For safety reasons, always wear

The system uses information from the

Location of the radar 2

your seat belt when travelling in

radar 2 and the camera 1 to determine

Ensure that the radar area is not ob-

your vehicle and make sure that it

the distance from your vehicle:

structed (by dirt, mud, snow, a badly

is loaded so that no items can be

- from the vehicle ahead in the same

fitted front number plate), impacted,

thrown forward and hit the occu-

lane;

modified (including painting) or hidden

pants.

by any accessory fitted on the front of

or

the vehicle (on the grille or logo etc.).

- surrounding pedestrians and cy-

clists.

This function is an addi-

The system informs the driver if there

tional driving aid. This func-

is a risk of head-on collision to enable

tion is not under any circum-

appropriate emergency manoeuvres

stances intended to replace

(pressing the brake pedal and/or turn-

the due care and attention of the

ing the steering wheel).

driver, who should at all times be

in control of the vehicle.

2.82

CarManuals2.co

ACTIVE EMERGENCY BRAKING (2/8)

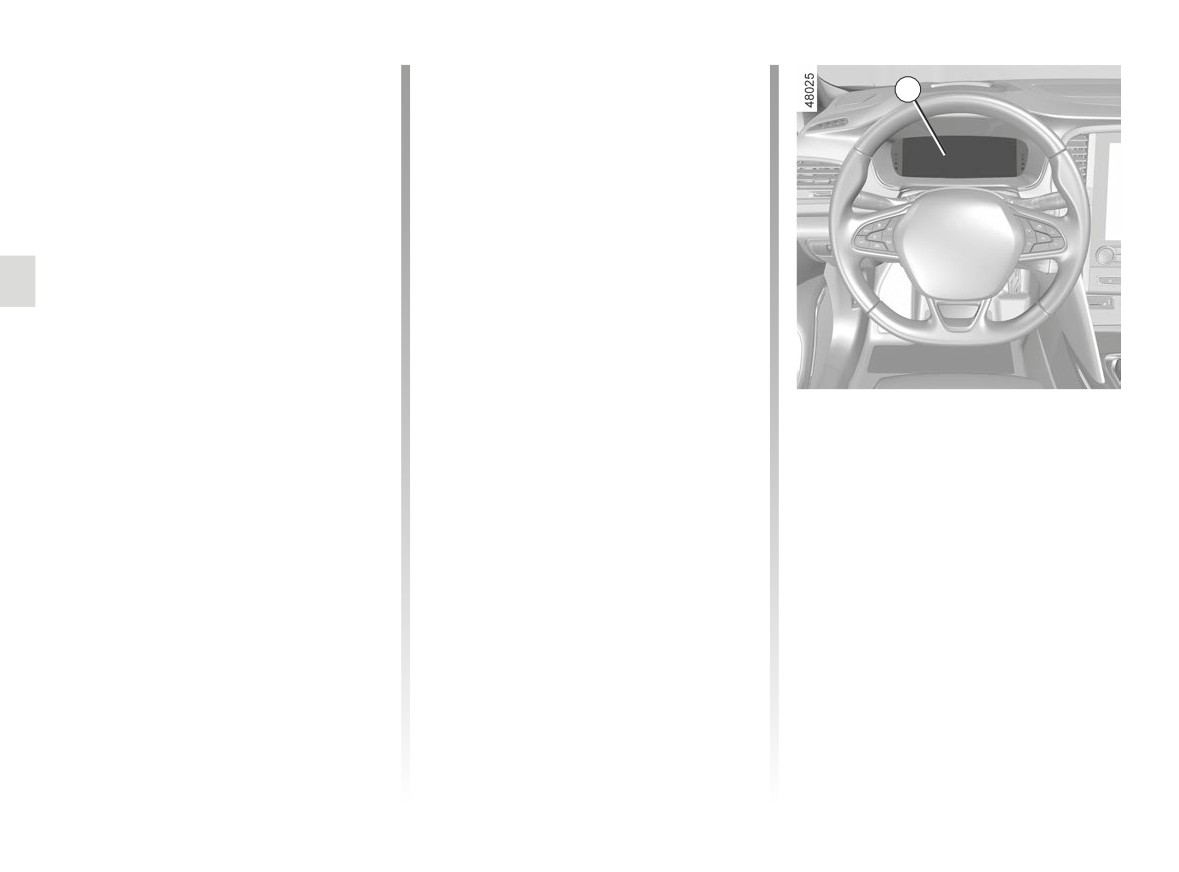

Operation

Special features of warnings

Depending on the speed, the warning

Detection of vehicles

and braking may be activated simulta-

When driving at a speed between ap-

neously.

proximately 4 mph (7 km/h) and 105

mph (170 km/h), if there is a risk of

3

Special features of stationary

collision with the vehicle in front, the

vehicles

system:

Stationary vehicles are detected when

- warns you of a collision risk:

your vehicle is being driven at a speed

When the vehicle speed is between

between approximately 4 mph (7 km/h)

approximately 4 mph (7 km/h) and

and 50 mph (80 km/h). The system is

106 mph (170 km/h), the message

not active and does not emit a warning

“Brake” is displayed in red on the in-

for stationary vehicles when you exceed

strument panel 3 accompanied by a

approximately 50 mph (80 km/h).

beep.

If the driver depresses the brake

If active emergency braking has caused

pedal and the system still detects a

the vehicle to stop, the vehicle is kept

risk of collision, the brake force is in-

stationary for a short time. Beyond this

creased.

time limit, the vehicle must be held sta-

- may trigger braking:

tionary by the driver keeping their foot

when the vehicle speed is below ap-

on the brake pedal.

proximately 75 mph (120 km/h), if the

Note: if the driver uses the vehicle con-

driver does not respond to the warn-

trols (steering wheel, pedals, etc.) the

ing and a collision is imminent.

system may delay certain operations or

not activate.

In the event of emergency manoeu-

vre, you can stop braking at any

moment by:

- tapping the accelerator pedal;

or

- turning the steering wheel as a

collision avoidance manoeuvre.

2.83

CarManuals2.co

Content      ..     3      4      5      6     ..
