Peugeot 1007 (2008 year). Manual - part 3

Deﬁ ne the vehicle parameters

Once this menu has been selected,

you can activate or deactivate the fol-

lowing equipment:
-

wiper linked with reverse gear,

"follow-me-home" lighting and
duration.

Example: "Duration of the "follow-me-

home" lighting"

Display conﬁ guration

Once this menu has been selected,

you can access the following settings:
-

brightness-video setting,

date and time setting,

selection of the units.

Once you have selected a setting,

press the navigator.
Turn the navigator to change its value.

Press the navigator to record the

change and move on to the next

setting or press the "ESC" button to

cancel.

Selection of the language
Once this menu has been selected,

you can change the language

used on the display (Deutsch,

English, Espanol, Français, Italiano,

Nederlands, Portugues, Portugues-

Brasil).

For safety reasons, it is im-

perative that conﬁ guration of

the multifunction displays by

the driver takes place when

stationary.

MONOCHROME SCREEN C

"Audio functions" menu

With the RD4 audio equipment

switched on, once this menu has

been selected, you can activate

or deactivate the functions linked

with the use of the radio (RDS,

REG, RadioText), the CD or the CD

changer (introscan, random play, CD

repeat).

Presentation

This displays the following informa-
tion, via the RD4 audio equipment

control keypad:
-

the time,

the date,

the outside temperature (this

ﬂ ashes if there is a risk of ice),

the audio source displays (radio,

CD, ...),

the status of the accesses

(doors, boot, ...),

the warning messages (e.g.:

"Antipollution system faulty")

or information messages (e.g.:

"Automatic headlamp lighting

activated"), displayed temporar-

ily, can be cleared by pressing

the "ESC" button,

the trip computer (see corre-

sponding section).

General menu

Press the "MENU" button to gain

access to the general menu:

audio functions,

trip computer

(see corresponding section),

personalisation-conﬁ guration,

telephone (hands-free kit).

Press the "  " or " 

" buttons to select

the menu required, then conﬁ rm by

pressing the "OK" button.

"Personalisation-
Configuration" menu

Once this menu has been selected,

you can gain access to the following

functions:

deﬁ ne the vehicle parameters,

display conﬁ guration,

selection of the language.

Deﬁ ne the vehicle parameters

Once this menu has been selected,

you can activate or deactivate the

following equipment:
-

wiper linked with reverse gear,

"follow-me-home lighting" and
duration.

Example: "Duration of follow-me-

home lighting"

Display conﬁ guration

Once this menu has been selected,

you can gain access to the following

settings:
-

brightness-video setting,

date and time setting,

selection of the units.

When you have selected a setting,

press the "OK" button, then press
the "  " or " 

" buttons to change its

value.

Press the "OK"

button to record the

change and move on to the next

setting or press the "ESC" button to

cancel.

Selection of the language
Once this menu has been selected,

you can change the language

used by the display (Deutsch,

English, Espanol, Français, Italiano,

Nederlands, Portugues, Portugues-

Brasil).

For safety reasons, it is im-

perative that conﬁ guration of

the multifunction displays by

the driver takes place when

stationary.

COLOUR SCREEN

Displays on the screen

When the ignition is switched on, this

displays the following information

automatically and directly:
-

the time,

the date,

the outside temperature (if there

is a risk of ice, you are warned

by a message).

Warning messages (e.g.: "Fuel level

low") and vehicle function status

messages (e.g.: "Automatic switching

on of the headlamps activated")

may appear temporarily. These can

be cleared by pressing the "ESC"

button.

General menu

When the RT4 GPS audio/telephone

is switched on, select the menu

which corresponds to the following

applications:
-

the satellite navigation system,

the guidance on the map,

the trafﬁ c information,

the audio sources (radio, CD,

Jukebox, ...),

the telephone directories and

functions,

the conﬁ guration of the screen

and the setting of the parameters

of the vehicle’s equipment,

the displaying of a video.

the vehicle diagnostics (warnings

log and status of the functions).

Controls

From the RT4 GPS audio/telephone

control panel, to select one of the

applications:
 press the "MENU" button to gain

access to the general menu ,



turn the dial to move the selection,



press the dial to conﬁ rm the

selection,

or
 press the "ESC" button to aban-

don the operation in progress and
return to the previous display.

For further details concerning these

applications, refer to the RT4 part of

the "Audio and Telematics" section.

Selection of the language
Once the "Selection of the language"

menu has been selected, you gain

access to the following parameters:

selection of the display, infor-

mation and voice commands

language (Français, English,

Italiano, Portugues, Espanol,

Deutsch, Nederlands).

Display conﬁ guration

Once the "Display conﬁ guration"

menu has been selected, you gain

access to the following parameters:

selection of the palette of colours

available for the display,

setting of the brightness and bril-

liance of the display,

setting of the date and time
(12 or 24 hour mode, adjustment

of the minutes on GPS),

selection of the units (tempera-

ture in °Celsius or °Fahrenheit;

consumption in l/100 km or mpg

or km/l).

Sounds
Once the "Sounds" menu has been

selected, you gain access to the

following parameters:
-

setting of the voice commands,

setting of the voice synthesiser

(volume of the instructions

and other messages, male or

female),

activation of the auxiliary input

AUX.

Deﬁ ne the vehicle parameters

Once the "Deﬁ ne the vehicle param-

eters" menu has been selected, you

can activate or deactivate certain

driving and comfort equipment:

wiper linked with reverse gear

(refer to the "Visibility" section),

"follow-me-home" lighting and

duration (refer to the "Visibility"

section).

"Configuration" menu

 Press the "MENU" button on

the RT4 GPS audio/telephone

to gain access to the general

menu .



Turn the dial to select the

"Conﬁ guration" menu, then

press it to conﬁ rm.

Once this menu has been selected,

you can gain access to the following

functions:



Select the line "Duration of the

"follow-me-home" lighting" then

conﬁ rm.

Example: setting the duration of the

"follow-me-home" lighting.


Turn the dial to select the "Lighting

conﬁ guration" menu, then press it

to conﬁ rm.



Select the duration then press

the dial.

 Turn the dial to set the value

required (15, 30 or 60 seconds),

then press the dial.



Select the "OK" box, then conﬁ rm.

The RT4 GPS audio/tele-

phone must reinitialise and

restart in order to change

the voice used by the voice

synthesiser (male or female)

or the language used by the
system.

For safety reasons, it is im-

perative that conﬁ guration of

the multifunction displays by

the driver takes place when

stationary.

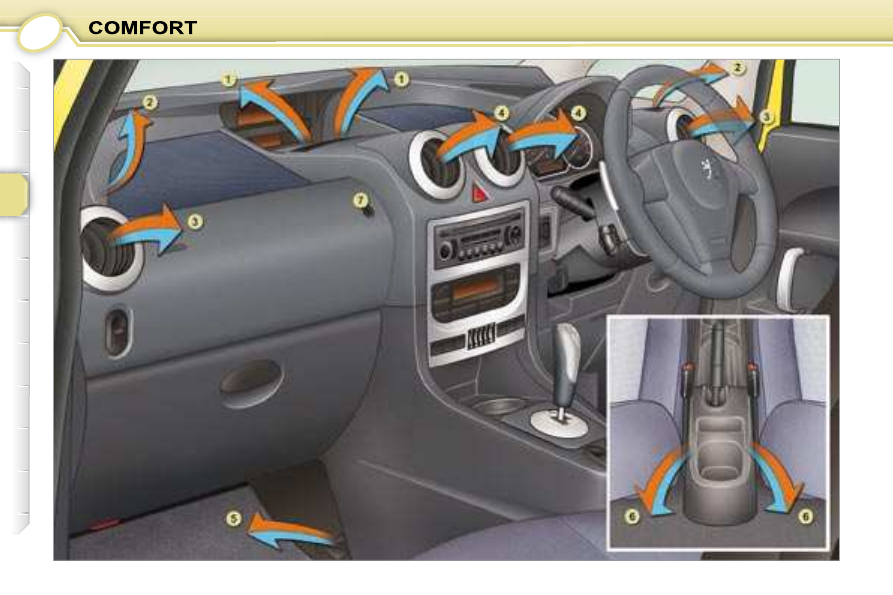

VENTILATION

1. Windscreen de-icing or

demisting vent.

2. Side window de-icing or

demisting vents.

  3.   Side vents.
  4.   Central vents.
  5.   Air outlets to the front footwells.
  6.   Air outlets to the rear footwells.
  7.   Temperature sensor.

Recommendations for use

If  the  interior  temperature  remains
very  high  following  a  long  period
parked in the sun, do not hesitate to
ventilate the passenger compartment
for a few minutes.
For  an  even  air  distribution,  make
sure  that  you  do  not  block  the  out-
side air inlet grille, the vents and the
air outlets to the footwells.
In certain cases of particularly  arduous
use (towing the maximum load on a
steep  gradient  in  a  high  tempera-
ture),  cutting  off  the  air   conditioning
permits recovery of the engine  power
and  therefore   improvement  of  the
towing capacity.
Ensure that the passenger compart-

ment ﬁ lter, located underneath the

windscreen, in the engine compart-
ment, is in good condition. Have the

ﬁ lter elements replaced regularly

(refer to the chapter "Checks - § Checks").
If you drive in a dusty environment,
change them twice as often.

We recommend the use of a
combined passenger compartment

ﬁ lter. By means of its second special

active ﬁ lter, it contributes to the

puriﬁ cation of the air breathed by the

occupants and to the cleanness of the
passenger  compartment  (reduction
of  allergic  symptoms,  unpleasant
odours and oily deposits).
Operate the air conditioning system for
5 to 10 minutes, once or twice a month,
to keep it in perfect working order.
To  guarantee  correct  operation  of
your air conditioning system, we also
recommend that you have it checked
regularly.
The  condensation  created  by  the

air conditioning results in a ﬂ ow of

water  underneath  the  vehicle  when
stationary which is perfectly normal.
If  the  system  does  not  produce
cold  air,  do  not  use  it  and  contact  a
PEUGEOT  dealer.
Do  not  cover  the  temperature  sen-
sor  7 ,  it  is  used  for  regulation  of  the
air conditioning.

The  air  conditioning  system
does  not  contain  chlorine
and  does  not  present  any
danger to the ozone layer.

Turn  the  control  from  blue
(cold)  to  red  (hot)  to  adjust
the  temperature  to  your
requirements.

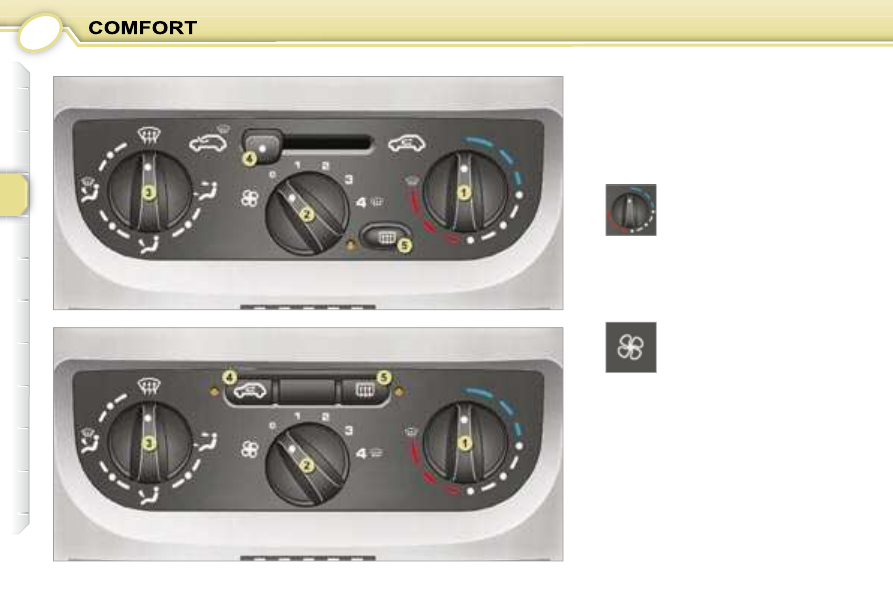

HEATING/VENTILATION

The heating and ventilation can only
operate when the engine is running.

1. Temperature adjustment

Version with button and indicator light

Version with manual control

2. Air ﬂ ow adjustment

Turn

the

control

from

position 1 to position 4 to

obtain a ﬂ ow of air sufﬁ cient

to ensure your comfort.

To maintain a certain level of comfort
in the passenger compartment, avoid
position 0 as much as possible.
However, in position 0

, a slight ﬂ ow

of air, due to the movement of the
vehicle, can still be felt.

3. Air distribution adjustment

Version with manual control

Windscreen and side
windows.

Windscreen, side windows
and footwells.

Footwells (vents closed).

Centre and side vents.

5. Demisting the rear screen and

exterior mirrors

With  the  engine  running,
pressing  the  button  once
demists  the  rear  screen
and the exterior mirrors.
This  switches  off  auto-

matically  in  relation  to  the   exterior
temperature  and  to  prevent  an
excessive consumption of current.
It  is  possible  to  stop  demisting  by
pressing the button again before it is
switched off automatically.

  4. Air intake/Air recirculation
The  interior  air  recirculation  function
enables you to isolate the passenger
compartment  from  exterior  odours
and smoke.
The  outside  air  intake  function
prevents  condensation  on  the  wind-
screen and side windows.

Pressing  button   4   permits
recirculation  of  the  interior
air.  This  is  indicated  by
illumination  of  the  indicator
light.

As  soon  as  possible,  move  the
manual  control   4   to  the  left  or  press
button  4  again to permit the intake of
outside  air  to  prevent  deterioration
of  the  air  quality  and  misting  of  the
windscreen  and  side  windows.  This
is indicated by the switching off of the
indicator light for the button version.

Move  the  manual  con-
trol  4   to  the  right  for  the
"Interior  air  recirculation"
position.

Version with button and indicator
light

To quickly de-ice or demist
the windscreen and side
windows:

The air distribution can be adjusted by
placing the control in an intermediate
position, marked by " ".

De-icing and demisting the
windscreen

Set the air distribution to "Wind-
screen and side windows",

Place the air intake control 4 in
the ‘’Outside Air Intake" position,

Place the temperature 1 and air

ﬂ ow 2 controls at maximum,

Close the centre vents.

1. Air conditioning on/off

MANUAL AIR CONDITIONING

The air conditioning can only operate
when the engine is running.

2. Temperature adjustment

Turn  the  control  from  blue
(cold)  to  red  (hot)  to  adjust
the  temperature  to  your
requirements.

Version with button and indicator light

Version with manual control

The

air

conditioning

designed

operate

effectively  in  all  seasons,
with  the  windows  closed.
In  summer,  it  enables  the

temperature  to  be  lowered  and  in
winter,  above  0  °C,  it  increases  the
effectiveness of the demisting.
Press  the  switch,  the  indicator  light
comes on.
  The  air  conditioning  does  not

operate while the air ﬂ ow adjust-

ment control 3 is in position "0".

Windscreen and side
windows.

4. Air distribution adjustment

  5. Air intake/Air recirculation
The  interior  air  recirculation  function
enables you to isolate the passenger
compartment  from  exterior  odours
and smoke.
The outside air intake function enables
you  to  prevent  condensation  on  the
windscreen and side windows.

3. Air ﬂ ow adjustment

Turn

the

control

from

position 1 to position 4 to

obtain a ﬂ ow of air sufﬁ cient

to ensure your comfort.

To maintain a certain level of comfort
in the passenger compartment, avoid
position 0 as much as possible.
However, in position 0

, a slight ﬂ ow

of air, due to the movement of the
vehicle, can still be felt.

Windscreen, side windows
and footwells.

Footwells (vents closed).

Centre and side vents.

The distribution of the air can be
adjusted by placing the control in an

intermediate position, marked by " ".

Move  the  manual  control  5
to  the  right  for  the  "Interior
air recirculation" position.

With  the  engine  running,
pressing  the  button  once
demists  the  rear  screen
and the exterior mirrors.

This  switches  off  automatically  in
relation  to  the  exterior  tempera-
ture  and  to  prevent  an  excessive
consumption of current.
It  is  possible  to  stop  demisting  by
pressing  the  button  again   before
the

demisting

switched

off

automatically.

De-icing and demisting the
windscreen

To quickly de-ice or dem-
ist the windscreen and side
windows:

Version with manual control

6. Demisting the rear screen and

the mirrors

Press button  5  for recircula-
tion  of  the  interior  air.  This
is  indicated  by  illumination
of the indicator light.

As  soon  as  possible,  move  the
manual  control   5   to  the  left  or  press
button  5  again to permit the intake of
outside  air,  to  prevent  deterioration
of  the  air  quality  and  misting  of  the
windscreen  and  side  windows.  This
is  indicated  by  the  switching  off  of
the  indicator  light  in  the  case  of  the
button version.

Version with button and indicator
light

Used in a humid climate, air
recirculation may result in misting of
the windows.

set the air distribution to "Wind-
screen and side windows",

place the temperature 2 and air

ﬂ ow 3 controls at maximum,

close the centre vents,

place the air intake control 5 in
the "Outside air intake" position,

switch on the air conditioning by
pressing button 1 .

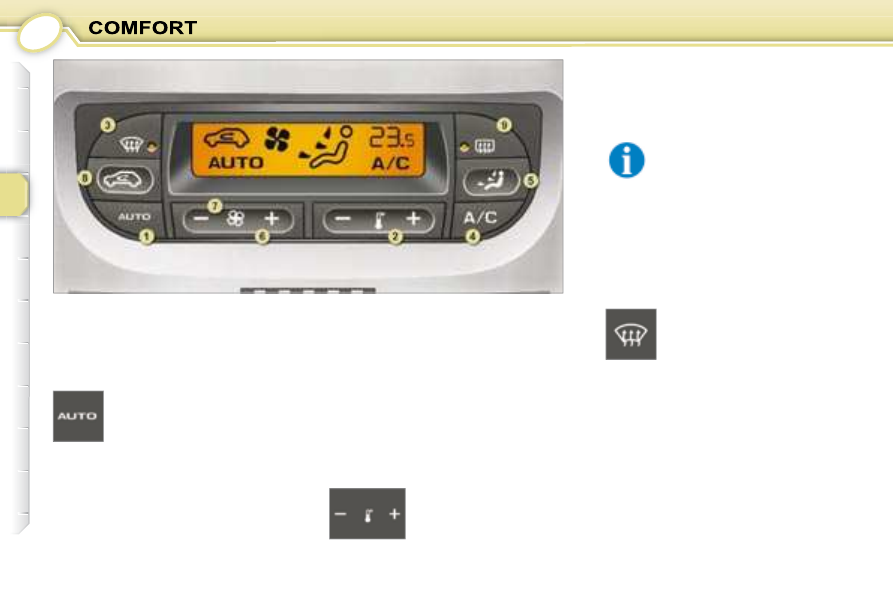

AUTOMATIC AIR CONDITIONING

The air conditioning can only operate when the engine is running.

1. Automatic "comfort" programme

We  recommend  that  you  use  this
mode,  it  provides  optimised  auto-
matic  control  of  all  of  the  following
functions:  passenger  compartment

temperature, air ﬂ ow, air distribution

and air intake, in accordance with the
comfort value that you have chosen.
This system is designed to operate
effectively in all seasons, with the
windows closed.

Press the "AUTO" button.
The "AUTO" symbol is
displayed.

The

automatic

comfort

programme may not be

sufﬁ cient for rapid de-icing or

demisting of the windscreen
and side windows (humidity,

several passengers, ice, etc.).
In  this  case,  select  the  automatic
visibility  programme.  The  button  3
indicator light comes on.
The  system  automatically  controls

the air conditioning and the ﬂ ow of air

and provides optimum distribution of
the ventilation to the windscreen and
side  windows.  It  deactivates  the  air
recirculation.
To  exit  this  programme,  press
button  3  again or press the  "AUTO"
button,  the  indicator  light  on  the
button is switched off and  "AUTO"  is
displayed.

Note: for your comfort, when the

engine is switched off, the settings are

retained until the engine is switched

on again, if the temperature in the

passenger compartment has not

altered signiﬁ cantly; otherwise, opera-

tion resumes in automatic mode.
When the engine is cold, to prevent

too great a distribution of cold air, the

air ﬂ ow will only reach its optimum

level gradually.

3. Automatic "visibility" programme

Automatic operation

The  value  indicated  on
the display corresponds
to a level of comfort and
not  to  a  temperature
in  degrees  Celsius  or
Fahrenheit.

2. Temperature adjustment

On  entering  the  vehicle,  if
the  interior  temperature  is
much colder or warmer than
is  comfortable,  there  is  no

need  to  change  the  value  displayed
in order to reach the required level of
comfort.  The  system  eliminates  the
temperature difference automatically
and as quickly as possible.

Press  the   "+"   and   "-"   buttons  to
change  this  value.  A  setting  around
the   value  22   enables  optimum
comfort  to  be  obtained.  However,
depending  on  your  requirements,  a
setting between 18 and 24 is usual.

Press  this  button  to  switch
off the air conditioning.
Automatic  operation  of  the
air  conditioning  is  resumed
when  the  button  is  pressed

again. The symbol "A/C" is displayed.

4. Air conditioning on/off

Pressing this button several
times in succession enables

the air ﬂ ow to be directed in

turn towards:

the windscreen and the side
windows (de-icing or demisting),

the windscreen, the side windows,
the vents and the footwells,

the windscreen, the side windows
and the footwells,

5. Air distribution adjustment

Press buttons "+" or "-"
respectively to increase

or reduce the air ﬂ ow.

The air ﬂ ow symbol, the fan, ﬁ lls

progressively in relation to the value
requested.

6. Air ﬂ ow adjustment

Press the air ﬂ ow "-" button 6 until

the fan symbol is empty.
This  action  switches  off  all  of  the
functions  of  the  air  conditioning
system, with the exception of the rear
screen demisting  9 .
Avoid driving with the air conditioning
switched off for long periods.
Pressing the air ﬂ ow  "+"  button  6  again

or the  "AUTO"  button  reactivates the
system  with  the   values  set  before  it
was switched off.

7. Switching the system off

Control using the manual
buttons

It  is  possible  to  adjust  one  or  more
functions manually while leaving the
other functions in automatic mode.
The   "AUTO"   button  indicator  light
switches off.
Switching to manual mode may result
in discomfort (temperature, humidity,
odour,  condensation)  and  does  not
provide optimum comfort.
To  return  to  automatic  mode,  press
the  "AUTO"  button.

Press

this

button

for

recirculation  of  the  interior
air.  The  air  recirculation
symbol  8  is displayed.

Air recirculation enables the passenger
compartment  to  be  isolated  from
exterior odours and smoke.
Avoid  prolonged  recirculation  of
interior  air  (risk  of  condensation  or
deterioration of the air quality).
Press  this  button  again  or  press  the
"AUTO"  button to resume automatic
management of the intake of air.

8. Air intake/Air recirculation

With  the  engine   running,
press  this  button  to   demist
the  rear  screen  and  the
exterior

mirrors.

The

indicator light on button 9
comes on.

Demisting switches off automatically
in relation to the exterior temperature
and

prevent

excessive

consumption of current.
It is possible to stop operation of the
demisting  before  it  is  switched  off
automatically by pressing the button
again.
If the engine is switched off before the
demisting is switched off automatically,
the  demisting  will  resume  the  next
time the engine is switched on.

9. Demisting the rear screen and

the mirrors

the footwells,

the centre vents, the side vents
and the footwells,

the centre and side vents.

MIRRORS

from outside:

 lock the vehicle using the remote

control or the key.

  Note :  if  the  mirrors  are  folded  using
switch   A ,  they  will  not  unfold  when
the  vehicle  is  unlocked  using  the
remote  control  or  the  key.  Switch   A
must be turned again.

Manual interior mirror

The interior mirror has two positions:
-

day (normal),

night (anti-dazzle).

To  change  from  one  to  the  other,
push  or  pull  the  lever  on  the  lower
edge of the mirror.

STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT

When  the  vehicle  is  stationary,   unlock
the steering wheel by pulling handle  A .
Adjust  the  height  and  depth  of  the
steering wheel.
Lock it by pushing handle  A  down fully.

Demisting
To demist the mirrors, with the engine
running, press the rear screen
demisting button.

  Folding
When  parked,  the  mirrors  can  be
folded back manually.
If  your  vehicle  is  ﬁ tted  with  electric

folding:
-

from inside:

 with the ignition on, turn switch A

downwards.

Objects

observed

the

mirrors are, in reality, closer
than they appear.
Take this into account to

assess correctly the distance of
vehicles approaching from the rear.

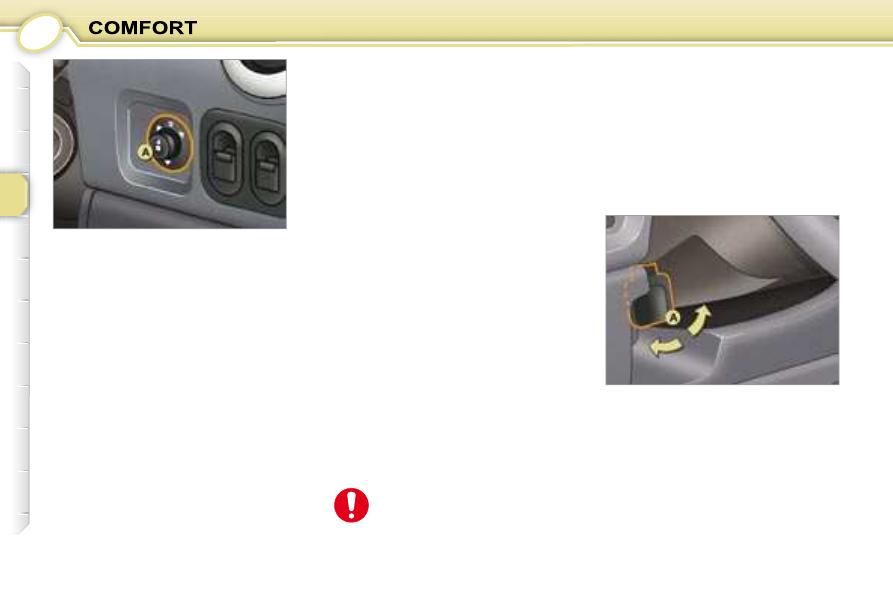

Electric exterior mirrors

Adjustment
 Turn switch A to the right or to the

left to select the corresponding
mirror.

 Move this switch in all four

directions to adjust.

 Return switch A to the centre

position.

Unfolding

When parked, the mirrors can be
unfolded manually.
If your vehicle is ﬁ tted with electric

unfolding:
-

from inside:

 with the ignition on, turn switch A

to the central position.

from outside:

 unlock the vehicle using the

remote control or the key.

The  folding  and  unfolding  of  the
exterior  mirrors  can  be  deactivated
by a  PEUGEOT  dealer.

FRONT SEATS

2 - Driver’s seat height

adjustment

Pull the control upwards.
Take your weight off the seat to raise
it or press on the seat to lower it.

  3 - Seat back angle adjustment
Turn the  knob  to adjust  the  angle  of
the seat back.

  1 -  Forwards-backwards adjustment
Lift  the  control  and  slide  the  seat
forwards or backwards.

Content .. 1 2 3 4 ..
