WARNING LIGHTS

A permanently lit warning light or one ﬂ ashing, with the engine running, indicates an operating fault of the unit con-

cerned. The illumination of certain warning lights may be accompanied by an audible signal and a message on the

multifunction display. Do not ignore this warning: consult a PEUGEOT dealer.

If the central STOP warning light comes on when you are driving, stop your vehicle immediately, where it is safe to

do so.

Central STOP
warning light

This comes on for a few
seconds each time the ig-

nition is switched on.
Linked to the warning lights:
-

"engine oil pressure and
temperature",

"punctured wheel",

"maximum coolant
temperature",

"handbrake", "low brake ﬂ uid

level", and "electronic brake
force distribution".

You must stop if the light comes

on with the engine running.
Consult a PEUGEOT dealer.

Engine oil pressure

and temperature

warning light

This comes on for a few seconds each
time the ignition is switched on.
Linked  to  the  central  STOP  warning
light.
If  this  warning  light  comes  on,  with
the  engine  running,  it  indicates  one
of the following:
   -

insufﬁ cient oil pressure,

a lack of oil in the lubrication
circuit. Top up the level,

an  oil  temperature  which  is  too
high. The warning light is accom-
panied  by  an  audible  signal.  To
lower the oil temperature, reduce
your speed.

You must stop.
Consult a PEUGEOT dealer.

Service warning light

This comes on for a few sec-
onds each time the ignition is
switched on.

If this warning light comes on, with the en-
gine running, accompanied by an audible
signal and a message on the multifunc-
tion display, it indicates the occurrence of
a problem in one of the systems which

does not have a speciﬁ c warning light.

Consult the message on the multi-
function display to identify the system
concerned.
Check:
-

the remote control battery,

the pressure of the tyres,

the engine oil level,

the screenwash level,

the condition of the bulbs.

For all other cases, contact a PEUGEOT
dealer.
The lighting of this warning light may
also indicate the start of saturation of

the particle emission ﬁ lter (Diesel),

due to exceptionally prolonged urban
driving conditions: low speed, long

trafﬁ c jams, ...

In order to regenerate the ﬁ lter, you

are advised to drive, as soon as traf-

ﬁ c conditions permit, at a speed of

35 mph (60 km/h) or more for at least

ﬁ ve minutes (until the warning light

switches off).
If the warning light remains on, contact
a PEUGEOT dealer.

Punctured wheel

warning light

This comes on for a few sec-
onds each time the ignition is
switched on.

Linked  to  the  central  STOP  warning
light.
If  this  warning  light  comes  on  while
the vehicle is moving, it indicates that
one or more wheels are punctured.
It is accompanied by an audible signal
and  a  message  on  the  multifunction
display locating the wheel concerned.

You must stop.
Change  the  damaged  wheel  and
have  it  repaired  by  a   PEUGEOT
dealer.

Maximum coolant

temperature warning

light

You must stop.
Consult a PEUGEOT dealer.

Anti-lock braking

system (ABS) warning

light

This comes on for a few seconds each
time the ignition is switched on.
If the warning light remains on or
comes on above 8 mph (12 km/h),
this indicates an ABS malfunction.

Electronic stability

control system

(ESP/ASR) warning light

This comes on for a few seconds each
time the ignition is switched on.
While the engine is running and the

vehicle is moving, it ﬂ ashes if the

system is activated.
It comes on permanently when it is
disarmed.

Battery charge warning

light

This comes on for a few

seconds  each  time  the  ignition  is
switched on.
If  it  comes  on,  with  the  engine  run-
ning, it indicates one of the following:
   -

faulty operation of the charging
circuit,

slack battery or starter terminals,

a cut or slack alternator belt,

an alternator failure.

Consult a PEUGEOT dealer.

Handbrake, low brake

fluid level and Electronic

Brake Force Distribution

warning light

This comes on for a few sec-
onds each time the ignition is
switched on.

Linked  to  the  central  STOP  warning
light.
If  this  warning  light  comes  on,  with
the  engine  running,  it  indicates  one
of the following:
   -

that the handbrake is applied or
not fully released, if the vehicle is
moving,

an excessive drop in brake ﬂ uid

level (if the warning light remains
on even when the handbrake is
released),

a fault in the Electronic Brake
Force Distribution.

You must stop.
Consult a PEUGEOT dealer.

However, the vehicle retains conven-
tional servo-assisted braking.
Lighting of this warning light, accom-
panied by an audible signal, indicates
an ABS fault.
Consult a PEUGEOT dealer.

Low fuel level warning

light

This comes on for a few sec-
onds each time the ignition is
switched on.

When this light ﬁ rst comes on, you

have enough fuel to drive

approxi-

mately 30 miles (50 km) (The tank

capacity is approximately 40 litres).

Water in diesel filter

indicator

This comes on for a few sec-
onds each time the ignition is
switched on.

If it comes on, with the engine running,
this indicates that there is a risk of

damage to the injection system.
Consult a PEUGEOT dealer as soon
as possible.

Diesel engine pre-heat

warning light

Wait until the warning light
goes out before starting the
engine.

If  the  temperature  is  high  enough,
the  warning  light  comes  on  for  less
than  one  second.  You  can  start  the
engine without waiting.

Passenger air bag

disarmed warning light

This comes on for a few sec-
onds each time the ignition is
switched on.

If the passenger air bag is disarmed,
the warning light remains on.
Always consult a PEUGEOT dealer if

the warning light ﬂ ashes.

Seat belt not fastened

warning light

When the ignition is switched
on, this warning light comes

on if the driver (and/or a passenger)
has not fastened his seat belt.
Above 12 mph (20 km/h), this warning

light ﬂ ashes for two minutes accom-

panied by an audible signal which be-
comes progressively louder. Once the
two minutes have elapsed, the warning
light remains on until the driver (and/or
passenger) fastens his seat belt.

The driver must ensure that all

passengers fasten and use the

seat belts correctly.

Door open warning
light

This comes on if a door, the

bonnet or the boot is still open.
Above 6 mph (10 km/h), this warning
light  is  accompanied  by  an  audible
signal  and  a  message  on  the  multi-
function display.

"Foot on brake"

warning light

("2 Tronic" gearbox)

When this warning light comes on,
you must put your foot on the brake
(example: when starting the engine).
If you do not put your foot on the

brake, this warning light ﬂ ashes.

Front, steering column,

side and curtain air

bags warning light

This comes on for a few seconds each
time the ignition is switched on.
With the engine running, illumination
of this warning light, accompanied by
an audible signal, indicates a fault
in the front, steering column, side or
curtain air bags.
Consult a PEUGEOT dealer.

Emission control

system warning light

This comes on each time the
ignition is switched on and
remains on until the engine is
started.

If it comes on, with the engine run-
ning, it indicates a malfunction of the
emission control system.
Consult a PEUGEOT dealer.

Lack of oil
If "OIL"

ﬂ ashes and the service

warning light comes on, accompanied
by an audible signal and a message
on  the  multifunction  display,  this
indicates  a  lack  of  oil  which  could
damage the engine.
If  the  lack  of  oil  is  conﬁ rmed  by  a

check using the dipstick, it is essential
that the level is topped up.

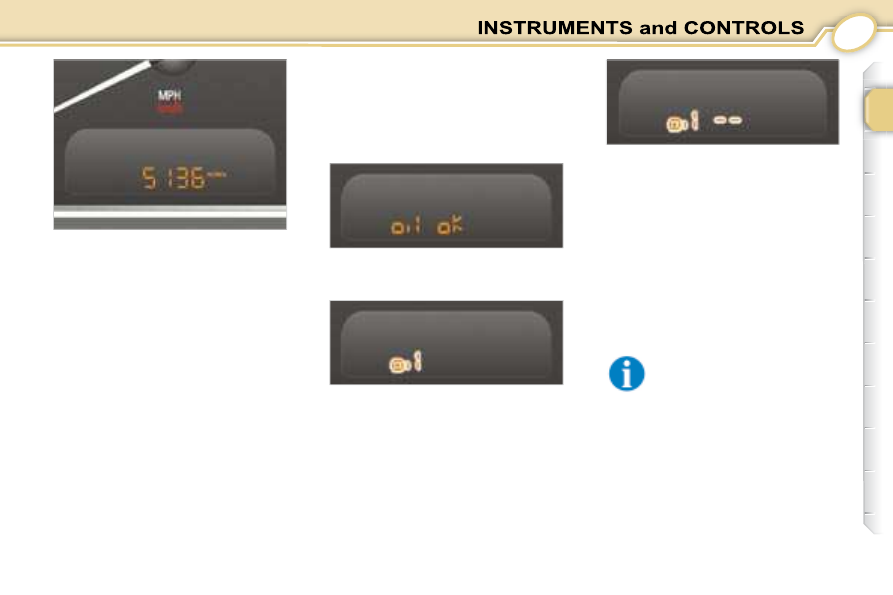

Engine oil level indicator

When  the  ignition  is  switched  on,
the  engine  oil  level  is  indicated  for
approximately  5  seconds  after  the
service indicator display.

  Oil level gauge fault
Check  the  oil  level  using  the  dip-
stick.
If

"OIL --" ﬂ ashes, this indicates a

malfunction of the engine oil level
gauge.
Consult a PEUGEOT dealer.

INSTRUMENT PANEL
DISPLAY

After switching on the ignition, three
functions are shown in succession:
-

service indicator,

engine oil level indicator

total distance recorder (total and
trip distances).

The level read on the dipstick
will only be correct if the ve-
hicle  is  on  level  ground  and
the  engine  has  been  off  for
more than 15 minutes.

Oil level correct

Note: the trip distance is displayed

for  thirty  seconds,  when  the  ignition
is  switched  off,  on  opening  and
closing  the  driver’s  door  as  well  as
on locking the vehicle.

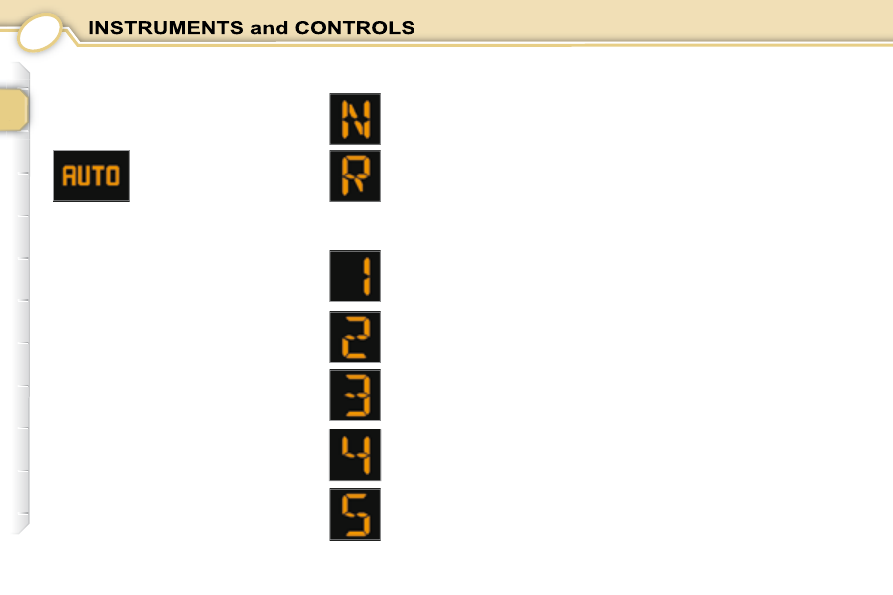

It  also  displays  the  "2  Tronic"  gear-
box  positions  and  operating  modes
selected,  as  well  as  the  information
relating to the cruise control or speed
limiter when one of these functions is
active.

Service indicator

This indicates when the next service
is due in accordance with the manu-
facturer’s servicing schedule.
The  point  at  which  the  next  service
is  due  is  calculated  from  the  last
indicator zero reset. It is determined
by two parameters:
   -

the distance travelled,

the time which has elapsed
since the last service.

  Operation
When the ignition is switched on, the
spanner  symbolising  the  servicing
operations  comes  on;  the  distance
recorder display indicates the number
of  miles  [kilometres]  (rounded  off)
remaining until the next service.

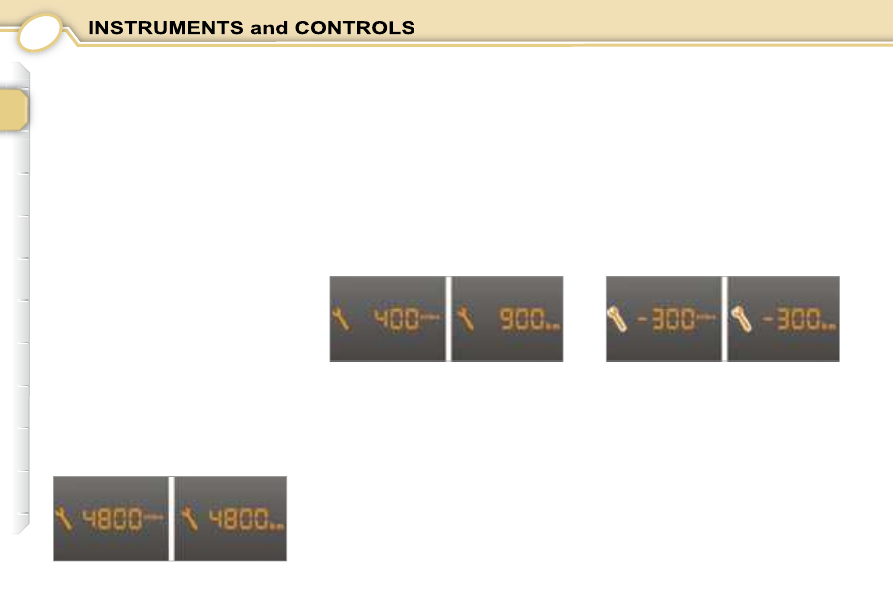

Example: 4,800 miles/km remain be-

fore the next service. For ﬁ ve seconds

after the ignition is switched on, the
display indicates:

10  seconds  after  the  ignition  was
switched  on,  the  distance  recorder
resumes  its  normal  operation  and
the  display  indicates  the  total  or  trip
distance.

10  seconds  after  the  ignition  was
switched  on,  the  distance  recorder
resumes its normal operation and the
spanner remains lit.
It  indicates  that  a  service  must  be
carried  out  soon.  The  display  indi-
cates the total or trip distance.

The service is overdue.

The spanner ﬂ ashes for 5 seconds

each time the ignition is switched on.

10  seconds  after  the  ignition  was
switched  on,  the  distance  recorder
resumes its normal operation and the
spanner remains lit.
The display indicates the total or trip
distance.
The  distance  remaining  before  the
next service may be weighted by the
time factor, depending on the user’s
driving habits.
The  spanner  may  also  come  on  if
more  than  two  years  have  elapsed
since the last service.

The distance remaining to

the next service is less than

500 miles/1,000 km.

Example: 400 miles/900 km remain

before the next service.
For 5 seconds after the ignition is
switched on, the display indicates:

Example: the service is overdue by

300 miles/km, your vehicle must be
serviced as soon as possible.
For 5 seconds after the ignition is
switched on, the display indicates:

Service indicator zero re-set

   Your   PEUGEOT   dealer  carries  out
this operation after each service.
However, if you carry out the service
yourself,  the  re-set  procedure  is  as
follows:
      Switch off the ignition,
     Press and hold the trip recorder

re-set button,

 Switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears.

Total/trip distance recorder

Brieﬂ y pressing the button alternates

between  the  total  and  trip  distance
displays.
To reset the trip distance recorder to
zero,  when  it  is  displayed  press  the
button until zeros appear.

Lighting rheostat

With the lights on, press the button to
vary the intensity of the lighting of the
instruments  and  controls.  When  the
lighting  reaches  the  required  bright-
ness, release the button.

After  this  operation,  if  you
wish  to  disconnect  the  bat-
tery,  lock  the  vehicle  and

wait for at least ﬁ ve minutes,

otherwise the zero re-set will not be
registered.

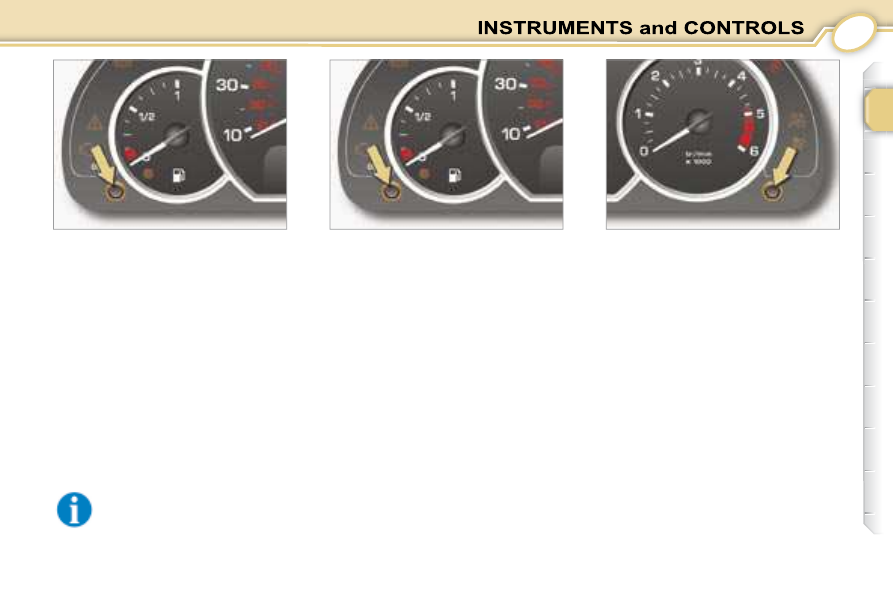

"2 Tronic" gearbox indicator

This  comes  on  when
the  "AUTO"  automated
operation  mode  is  se-
lected.

It is switched off on switching to the
sequential operation mode.
It ﬂ ashes if a malfunction occurs.

Gear lever positions:

"Neutral"

"Reverse"

Sequential operating mode

1st gear

2nd gear

3rd gear

4th gear

5th gear

"AUTO" indicator light

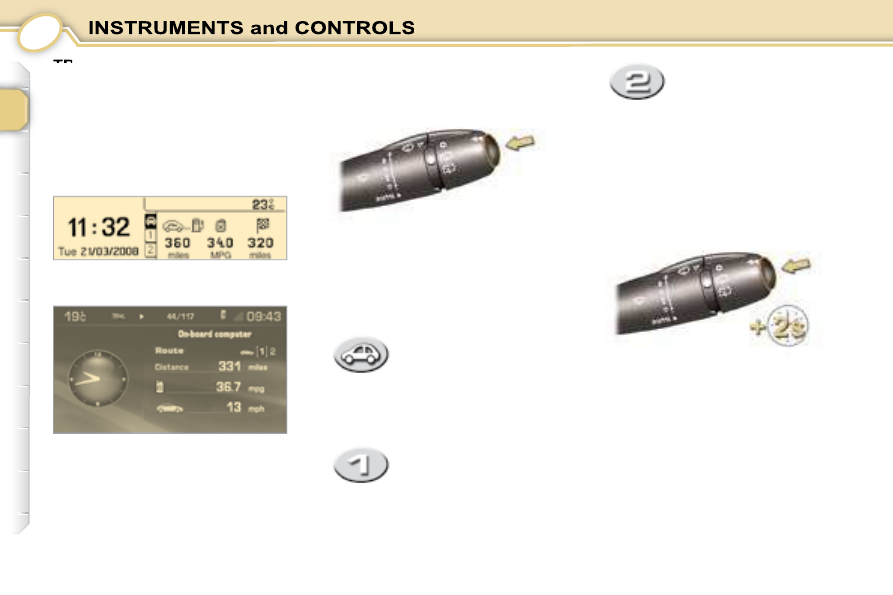

TRIP COMPUTER

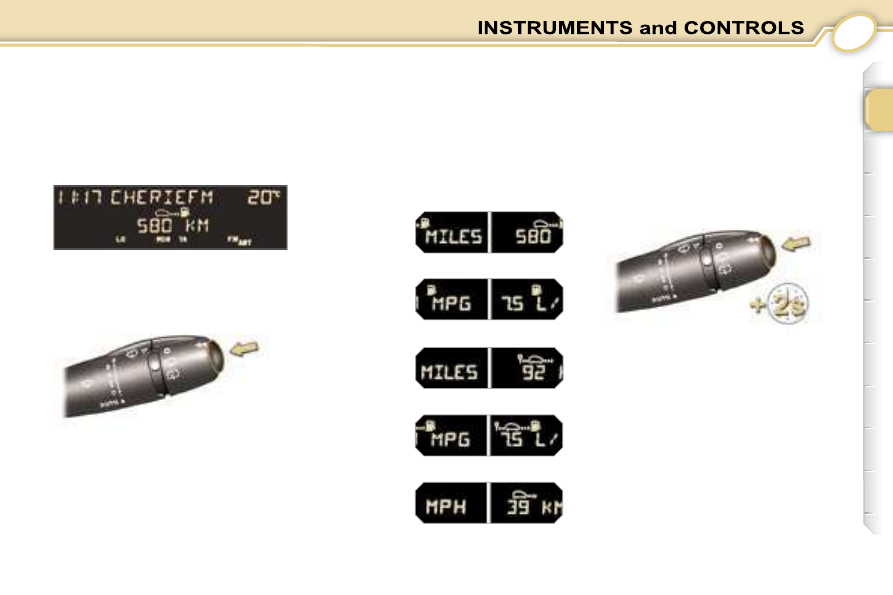

 Press the button, located at the

end of the

wipers stalk , to dis-

play the various items of trip
computer data in succession.

The trip computer data is the following:

System which provides current infor-
mation concerning the route travelled
(range, consumption, ...).

 Press the control for more than

two seconds to reset the dis-
tance travelled, the average con-
sumption and the average speed
to zero.

Monochrome display A

Zero reset

Data displays

the range,

the current consumption,

the distance travelled,

the average consumption,

the average speed.

 The next press then returns you

to the normal display.

- the current information

tab with:
the range,

the current

consumption,

the distance

remaining to be
travelled,

Colour display

Route zero reset

Monochrome display C

 Press the button, located at the

end of the

wipers stalk , to dis-

play the various trip computer
tabs in succession:

Data displays

 When the route required is dis-

played, press the control for
more than two seconds.

- the route "1" tab with:

the distance

travelled,

the average

consumption,

the average speed,

for the ﬁ rst route.

- the route "2" tab with:

the distance

travelled,

the average

consumption,

the average speed,

for the second route.

The  routes   "1"   and   "2"   are  inde-
pendent but their use is identical.
Route  "1"  permits, for example, daily
calculations,  and  route   "2"   monthly
calculations.

TRIP COMPUTER

System which provides current infor-
mation concerning the route travelled
(range, consumption, …).

Distance remaining to be

travelled
(km or miles)

This is the distance remaining to be

travelled to the ﬁ nal destination. It

is either calculated instantly by the
navigation system if guidance is acti-
vated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

  Average speed
(km/h or mph)
This  is  the  average  speed
calculated  since  the  last
trip  computer  zero  reset
(ignition on).

Range
(km or miles)

This  indicates  the  number  of  miles
(or  kilometres)  which  can  still  be
travelled  with  the  fuel  remaining  in
the  tank  in  relation  to  the  average
consumption  over  the  last  few  miles
(kilometres) travelled.

Current consumption
(l/100 km or km/l or mpg)

This is the average quantity of fuel
consumed over the last few sec-
onds.

Average consumption
(l/100 km or km/l or mpg)

This is the average quantity of fuel
consumed since the last trip computer
zero reset.

Distance travelled
(km or miles)

This indicates the distance travelled
since the last trip computer zero reset.

A few definitions…

When the range falls below 20 miles
(30 km), dashes are displayed. After

ﬁ lling with at least 5 litres of fuel, the

range is recalculated and is displayed
when it exceeds 60 miles (100 km).

If dashes are displayed con-
tinuously while driving in
place of the digits, contact a
PEUGEOT dealer.

This function is only displayed
from 20 mph (30 km/h).

This ﬁ gure may increase fol-

lowing a change of driving
style or relief, resulting in a

signiﬁ cant change in the cur-

rent consumption.

Display C

 Press the "MENU" button to gain

access to the general menu.

 Press the arrows, then the "OK"

button to select the

"Trip computer"

menu.

 On the

"Trip computer" menu,

select one of the following appli-
cations:

  Warnings log
This  summarises  the  active  warning
messages,  displaying  them  in  suc-
cession on the multifunction display.

  Status of the functions
This  summarises  the  active  or  inac-
tive status of the functions present on
the vehicle.

Enter the distance to the

destination
This enables you to enter an approxi-

mate value for the distance to the ﬁ nal

destination.

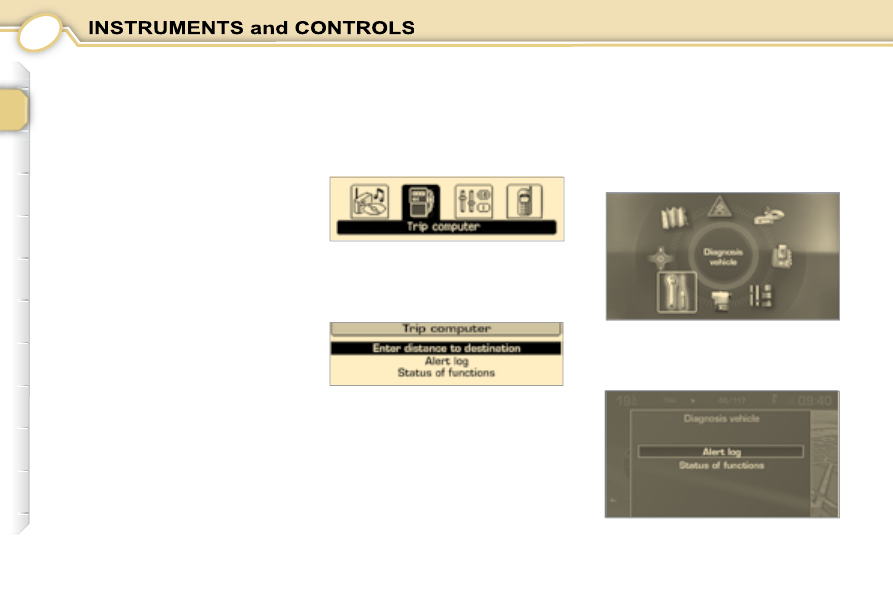

"TRIP COMPUTER" MENU

System  which  provides  general  infor-
mation concerning the status of certain
equipment  with  which  your  vehicle  is
equipped,  such  as  the  warnings  log,
the status of the functions...

"DIAGNOSTICS" MENU

 On the

"Diagnostics" menu,

select one of the following appli-
cations:

Colour display

 Press the "MENU" button to gain

access to the general menu.

 Turn the dial and press it to

select the

"Diagnostics" menu.

MONOCHROME DISPLAY A
(without RD4 audio equipment)

Presentation

This displays the following information:
-

the time,

the date,

the outside temperature (this

ﬂ ashes if there is a risk of ice),

the status of the accesses

(doors, boot, ...),

the warning messages (e.g.: "Anti-

pollution system faulty") or infor-

mation messages (e.g.: "Auto

lights on"), displayed temporarily,

can be cleared by pressing the

"ESC" button,

the trip computer (see corre-

sponding section).

Parameter configuration

There are three display control buttons:
-

"ESC" to abandon the operation
in progress,

"MENU"

to scroll through the

menus or sub-menus,

"OK"

to select the menu or sub-

menu required.

General menu

Press the "MENU"

button to scroll

through the various menus of the
general menu:
-

vehicle conﬁ guration,

options,

display settings,

languages,

units.

Press the "OK"

button to select the

menu required.

Vehicle conﬁ guration

Once the "Vehicle conﬁ guration"

menu has been selected, you can

activate or deactivate the following

equipment:
-

wiper linked with reverse gear,

"follow-me-home" lighting.

Languages
Once the "Languages" menu has been

selected, you can change the language

used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-

Brasil, Deutsch, English, Espanol).

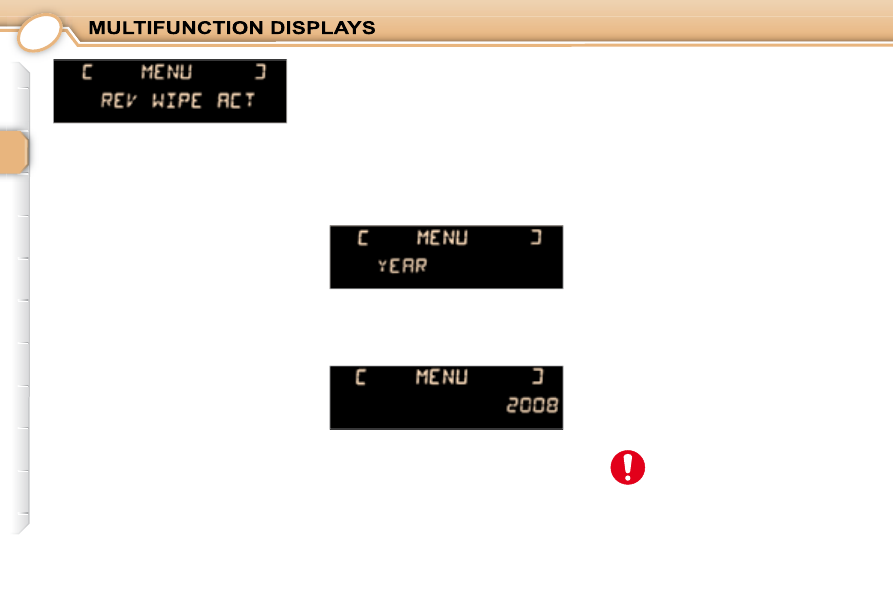

Display settings
Once the "Display settings" menu has

been selected, you can gain access

to the following settings:
-

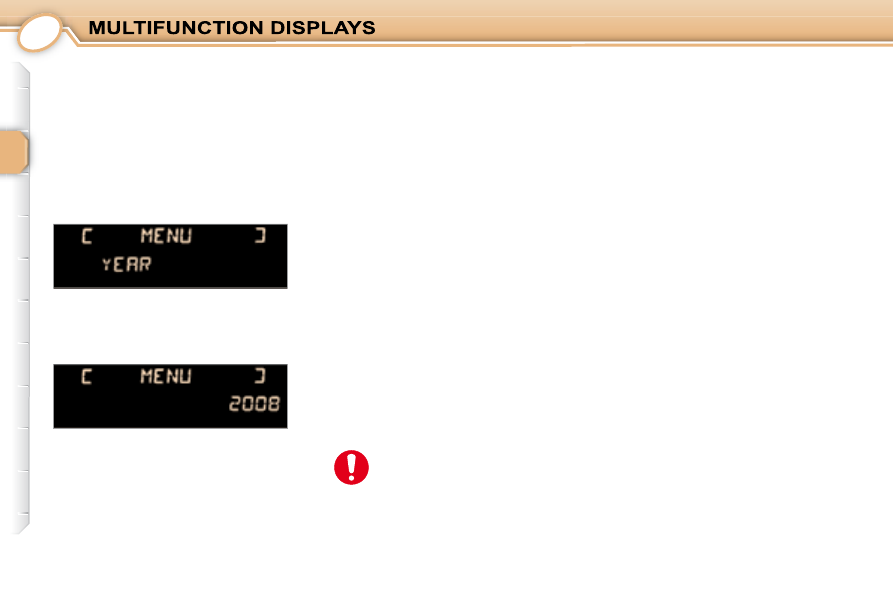

year,

month,

day,

hour,

minutes,

12 or 24 hour mode.

Options
Once the "Options" menu has been

selected, you can start diagnostics of

the status of the equipment (active,

not active, faulty).

Once you have selected a setting,

press the "OK"

button to change its

value.

Wait for approximately ten sec-

onds without any action to allow the

changed data to be recorded or press

the "ESC"

button to cancel.

The display then returns to the nor-
mal display.

Units
Once the "Units" menu has been

selected, you can change the units

of the following parameters:
-

temperature (°C or °F),

fuel consumption (l/100, mpg or

km/l).

For safety reasons, it is im-

perative that conﬁ guration of

the multifunction displays by

the driver takes place when

stationary.

General menu

Press the "MENU" button to gain

access to the general menu, then

press the "  " or " 

" buttons to scroll

through the following items:
-

radio-CD,

vehicle conﬁ guration,

options,

display settings,

languages,

units.

Press the "OK"

button to select the

menu required.

Vehicle conﬁ guration

Once the "Vehicle conﬁ guration"

menu has been selected, you can

activate or deactivate the following

equipment:
-

rear wiper linked with reverse

gear,

"follow-me-home" lighting.

Presentation

This displays the following informa-
tion, via the RD4 audio equipment

control keypad:
-

the time,

the date,

the outside temperature (this

ﬂ ashes if there is a risk of ice),

the audio source displays (radio,

CD, ...),

the status of the accesses

(doors, boot, ...),

the warning messages (e.g.: "Anti-

pollution system faulty") or infor-

mation messages (e.g.: "Auto

lights on"), displayed temporarily,

can be cleared by pressing the

"ESC" button,

the trip computer (see corre-

sponding section).

MONOCHROME DISPLAY A

Options
Once the "Options" menu has been

selected, you can start diagnostics of

the status of the equipment (active,

not active, faulty).

Radio-CD
With the RD4 audio equipment

switched on, once the "Radio-CD"

menu has been selected, you can

activate or deactivate the functions

linked with the use of the radio (RDS

following, REG mode), the CD or the

CD changer (introscan, random play,

CD repeat).

Display settings
Once the "Display settings" menu has

been selected, you can gain access

to the following settings:
-

year,

month,

day,

hour,

minutes,

12 or 24 hour mode.

Languages
Once the "Languages" menu has been

selected, you can change the language

used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-

Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been

selected, you can change the units

of the following parameters:
-

temperature (°C or °F),

fuel consumption (l/100, mpg or

km/l).

Once you have selected a setting,

press the "  " or "  " buttons to

change its value.

Press the "  " or "  " buttons to
move to the previous or next setting

respectively.
Press the "OK"

button to record

the change and return to the normal

display or press the "ESC" button to

cancel.

For safety reasons, it is im-

perative that conﬁ guration of

the multifunction displays by

the driver takes place when

stationary.

MONOCHROME DISPLAY C
(without RD4 audio equipment)

General menu

Press the "MENU"

button to access

the general menu:
-

trip computer (see corresponding

section),

personalisation-conﬁ guration.

Turn the navigator to select the menu

required, then conﬁ rm by pressing

the navigator.

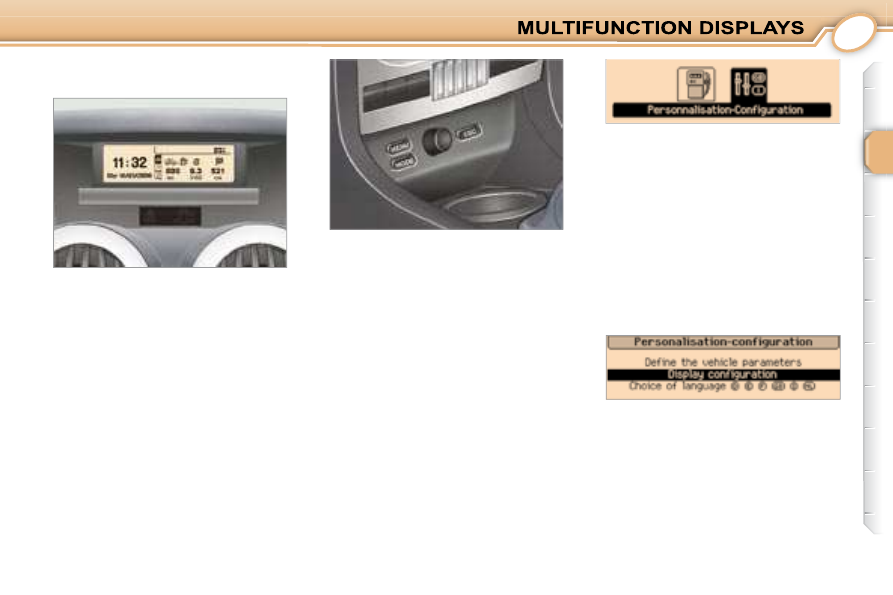

Presentation

It displays the following information:
-

the time,

the date,

the exterior temperature (this

ﬂ ashes if there is a risk of ice),

the accesses check (doors, boot, ...),

the warning messages (e.g.:

"Antipollution system faulty")

or information messages (e.g.:

"Automatic headlamp lighting

activated"), displayed tempora-

rily, can be cleared by pressing

the "ESC" button,

the trip computer (see corre-

sponding section),

Parameter configuration

There are three buttons and a navi-

gator to enable you to control the

screen:
-

"MENU" to display the general
menu,

"MODE"

to change the perma-

nent application (trip computer,

date, ...),

"ESC" to abandon the operation
in progress,

Rotation of the navigator:
movement on the display or

changing of a setting,

Press on the navigator:

conﬁ r-

mation of the selection.

"Personalisation-
Configuration" menu

Once this menu has been selected, you

can access the following functions:

deﬁ ne the vehicle parameters,

display conﬁ guration,

selection of the language.

Content .. 1 2 3 ..
