Peugeot 1007 Dag (2008.5). Manual

FRONT INTERIOR LAYOUT

  5. Writing table
When  the  front  passenger  seat  is
placed in the table position, you have
a  table  with  two  pieces  of  elastic  to
retain A4  format  documents,  as  well
as pen holders.

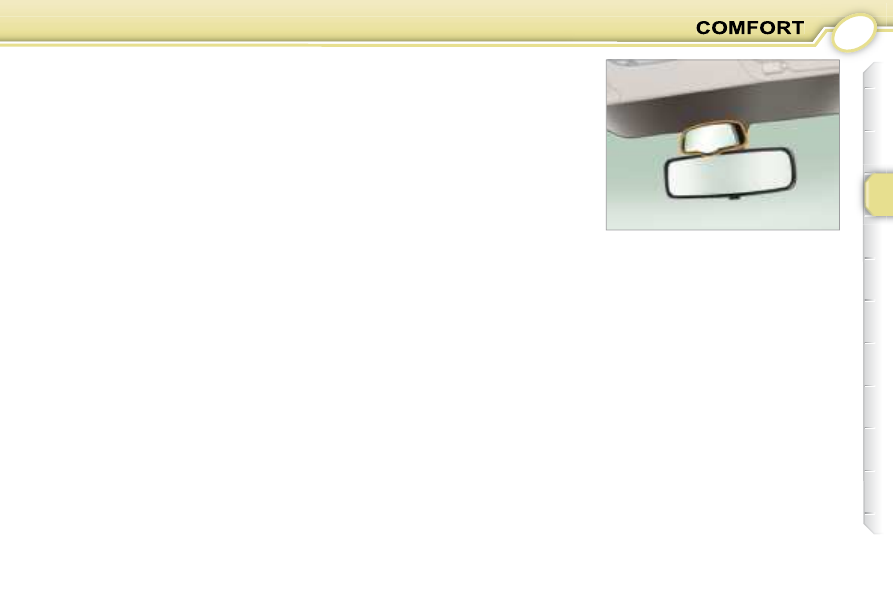

CHILD MONITORING MIRROR

This mirror enables the driver or front
passenger to observe all the rear
seats.
Fitted on its own ball joint, it provides
a panoramic view of the rear interior
of the vehicle.

AREAS FOR TOLL CARDS/
CAR PARK TICKETS

* With colour screen only.

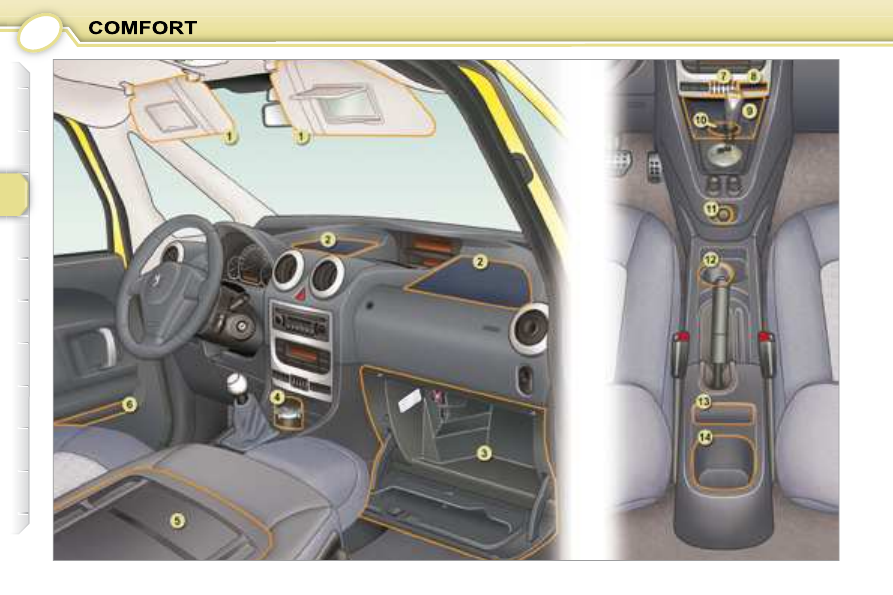

1. Sun visor
Each sun visor has a courtesy mirror
with concealer and a ticket holder.

2. Storage trays on the fascia

  3. Glove box
To open the glove box, lift the handle.
The  glove  box  lights  when  the  lid  is
opened.
The lid has two opening positions, in-
termediate and full.
It contains the passenger air bag dis-
arming  switch,  a  ventilation  nozzle
that  can  be  closed  (distributing  the
same  conditioned  air  as  the  vents
of  the  passenger  compartment)  and
three  sockets *   for  connecting  audio/
video equipment (refer to the "Audio
and  Telematics"  section  to  activate
the auxiliary input sockets).
The  layout  allows  storage  of  a  pen,
the vehicle handbook, a pair of spec-
tacles, maps, etc.

4. Enclosed storage

compartment/Movable ashtray

This can be placed in the positions
marked 10, 12 and 14.

6. Door storage trays
Before opening the door, ensure that

there are no objects protruding from
the tray.

7. Coin storage

8. Card holder

9. Storage compartment/USB

socket/Buttons and navigator
(Screen C without WIP Sound)

10. Can holder

11. Lighter/12 volt accessories

socket (100 W max.)

This is supplied with current from the
running position.

12. Can holder

13. Mobile storage

14. Bottle storage

The athermic windscreen has a non-

reﬂ ective zone located above the

base of the interior mirror.
It is intended for afﬁ xing toll cards

and/or car park tickets.

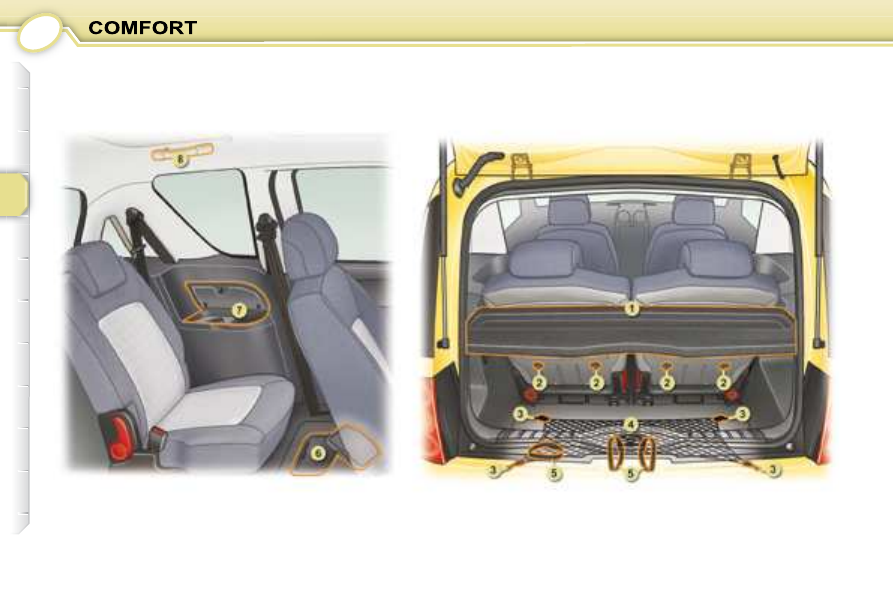

REAR INTERIOR LAYOUT

  5. Retaining straps
These  secure  the  warning  triangle,
the tool kit, oil cans...

1. Rear parcel shelf
To remove the shelf:
-

tilt and slightly raise the shelf,

pull upwards on each side to de-
tach it from its fasteners.

There are several options for storing
the shelf:
-

either behind the rear seats,

or ﬂ at in the boot.

2. Retaining hooks

3. Stowing rings

  4. Luggage retaining net
Hooked  onto  the  stowing  rings,  this
enables your luggage to be secured.

6. Storage trays in the ﬂ oor
The right storage tray houses the

subwoofer of the JBL audio system.

  7. Armrests/Side storage trays
These  have  recesses  for  storing  a
can and a bottle.

8. Grab handles with coat hook

THE REMOTE CONTROL KEY

The  remote  control  permits  locking,
deadlocking, unlocking and locating of
the vehicle, as well as folding and un-
folding  of  the  exterior  mirrors.  It  does
not work when the ignition is on.
The  key  permits  mechanical  and  in-

dependent operation of the fuel ﬁ ller

cap and passenger air bag disarming
switch as well as switching on of the
ignition.
From  the  driver's  door,  the  key  per-
mits  electrical  control  of  the  locking,
deadlocking and unlocking of the ve-
hicle, as well as folding and unfolding
of the exterior mirrors.
If  one  of  the  doors  or  the  tailgate  is
open,  the  central  locking  does  not
work.

Using the key
Turn the key in the lock on the driver's
door to lock the vehicle.
Normal locking is conﬁ rmed by ﬁ xed

lighting of the direction indicators for
approximately two seconds.
The exterior mirrors fold at the same
time.

Using the key
Turn the key in the lock on the driver's
door to unlock the vehicle.
Unlocking is conﬁ rmed by rapid

ﬂ ashing of the direction indicators for

approximately two seconds.
The exterior mirrors unfold at the
same time.

Folding/Unfolding the key

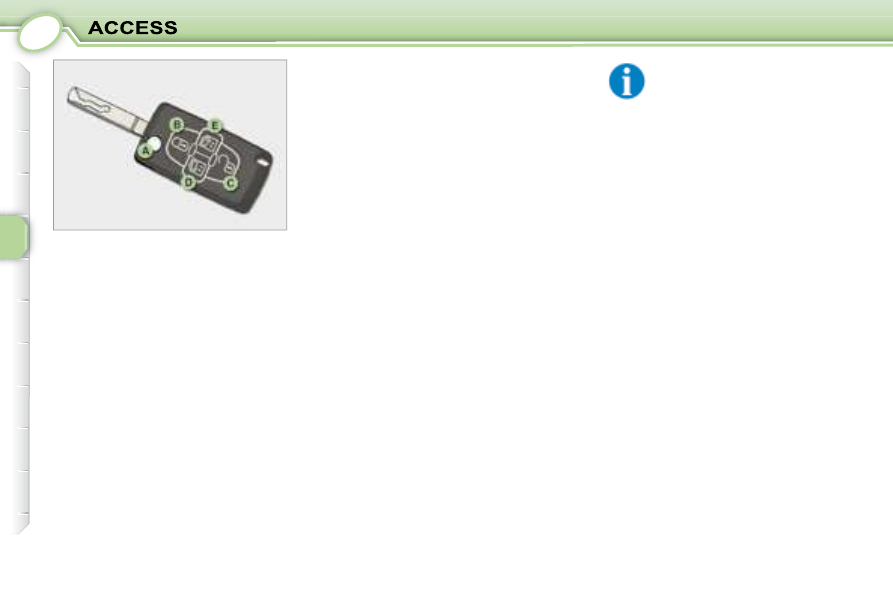

To fold the key, press button A then
fold the key into the casing of the re-
mote control.
To unfold the key, press button A .

Unlocking

Normal locking

When the vehicle is locked, if
unlocking is activated inadver-
tently, without the doors being
opened within 30 seconds, the
vehicle will lock automatically.

The  folding  and  unfolding  of  the  ex-
terior  mirrors  can  be  deactivated  by
a  PEUGEOT  dealer.
The  remote  control  does  not  work
when the ignition is on.

  Using the remote control
  Press button   B  to lock the vehicle.
  Pressing  button  B  for  more  than
2 seconds  permits automatic   closing
of the windows and sunroof in addition
to locking.
Each  action  is  conﬁ rmed  by  ﬁ xed

lighting of the direction indicators for
approximately two seconds.
The exterior mirrors fold at the same
time.

Using the remote control
Press button C to unlock the vehicle.
This is conﬁ rmed by rapid ﬂ ashing of

the direction indicators.
The exterior mirrors unfold at the
same time.

Deadlocking

Deadlocking renders the internal and
external door controls inoperative.
It also deactivates the internal central
locking button.

  Using the remote control
  Pressing button B  locks the   vehicle
or  pressing button B for more than
2 seconds  permits   automatic closing
of  the  windows  and  sunroof  in  addi-
tion to locking.
  A second press

within ﬁ ve seconds

deadlocks the vehicle.
Each action is conﬁ rmed by ﬁ xed

lighting of the direction indicators for
approximately two seconds.

Opening/Closing the
"Sesame" doors

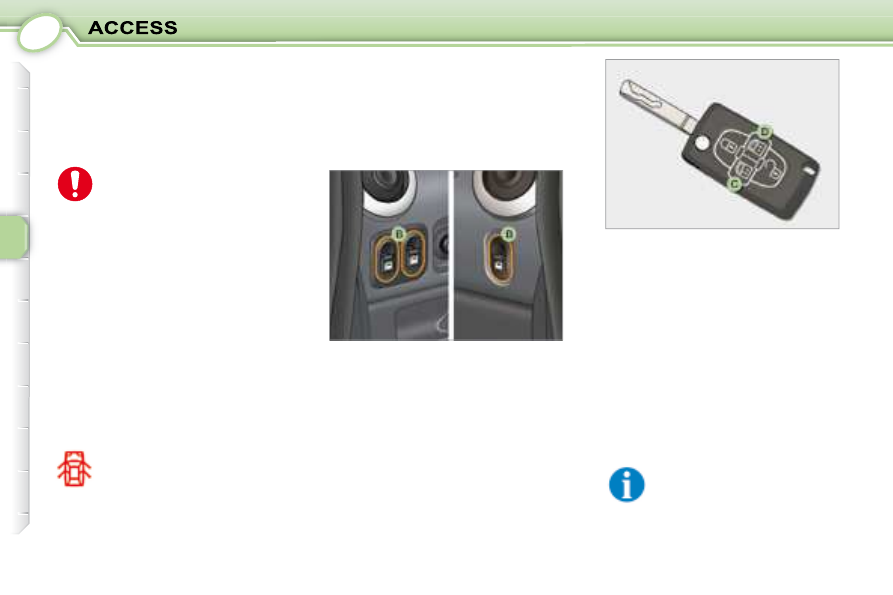

  Pressing  button    D   or   E   opens  or
closes the left or right door.
This press unlocks the vehicle before
opening the corresponding door.
  A  second  press   stops  the  move-
ment of the corresponding door.
  A  third  press   reverses  the  move-
ment of the corresponding door.

Using the key
Turn the key in the lock on the driver's
door to lock the vehicle.
Within the next ﬁ ve seconds, turn the

key again to deadlock the vehicle.
Each action is conﬁ rmed by ﬁ xed

lighting of the direction indicators for
approximately two seconds.

Key in ignition

A buzzer sounds on opening the driver's
door, if the key has been left in the
ignition.

   Locating your vehicle
To  locate  your  vehicle,  if  you  have
locked it, in a car park:
      press  button   B ,  the  courtesy

lights come on and the direction

indicators ﬂ ash for a few

seconds.

If the deadlocking is opera-
ted from inside the vehicle, it
will change to normal locking
when the vehicle is started.

  When  closing  the  windows
and  sunroof  using  the  remote
control,  the  user  must  ensure
that  no  one  is  preventing  cor-
rect  closing  of  the  windows
and sunroof.

Never leave anyone inside the vehicle
when it is deadlocked.

ELECTRONIC ENGINE
IMMOBILISER

This  locks  the  engine  control  system
a  few  moments  after  the  ignition  has
been  switched  off  and  therefore  pre-
vents starting of the vehicle by anyone
who does not have the key.
The ignition key has an electronic chip
which  has  a  special  code.  When  the
ignition  is  switched  on,  the  code  is
recognised and starting is possible.
  If  the  system  does  not  function
correctly,   the  service  warning  light
comes  on,  accompanied  by  an  au-
dible  signal  and  a  message  on  the
multifunction display.
In  this  case,  your  vehicle  will  not
start. Contact a  PEUGEOT  dealer as
soon as possible.
  Lost keys
Visit a  PEUGEOT  dealer with the ve-

hicle's V5 registration certiﬁ cate and

your personal identiﬁ cation docu-

ments.
A   PEUGEOT   dealer  will  be  able  to
retrieve  the  key  code  and  the  tran-
sponder  code  required  to  order  a
replacement key.

Programming the remote
control

Following  changing  of  the  remote
control  battery  or  disconnection  of
the  vehicle  battery,  the  remote  con-
trol must be reprogrammed.
      Wait  at  least  one  minute  before

using the remote control.

 Switch on the ignition.
 Press button B or C for at least

ﬁ ve seconds within the next ten

seconds.

 Switch off the ignition.
 Wait at least one minute before

using the remote control.

The remote control is now working
again.

Changing the remote control
battery

Battery ref.: CR1620/3 volts.
The information "battery ﬂ at" is given

by  displaying  of  the  service  warning
light,  accompanied  by  an  audible
signal  and  a  message  on  the  multi-
function display.

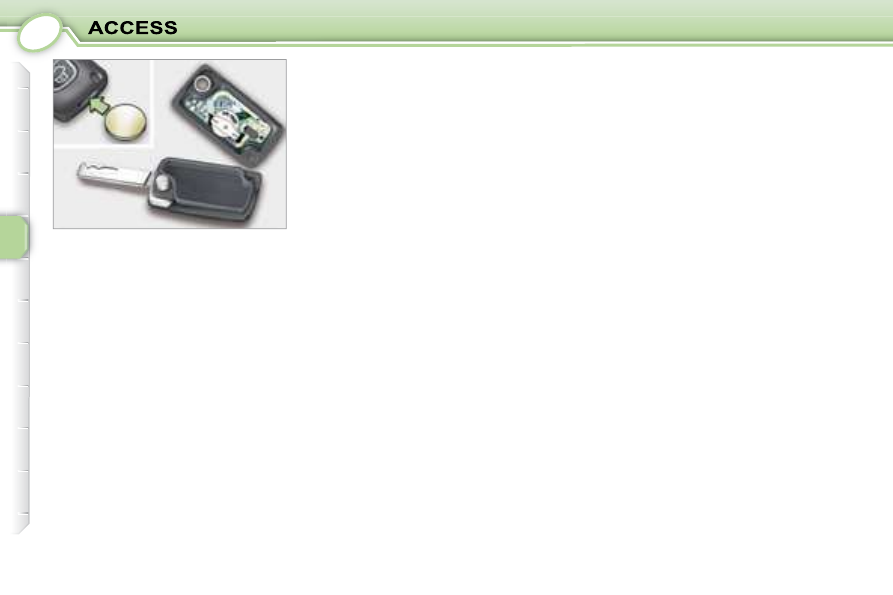

To replace the battery, unclip the casing
using a coin at the notch.
If  the  remote  control  does  not  work
after  the  battery  has  been  changed,
re-programme the remote control.

  Make  a  careful  note  of  the
number  on  each  key.  The
key number is coded on the
label attached to the key.

    If  the  keys  are  lost,  a   PEUGEOT
dealer can rapidly supply you with
new keys.
  The  high  frequency  remote  con-
trol  is  a  sensitive  system;  do  not
operate it while it is in your pocket
as there is a possibility that it may
unlock  your  vehicle,  without  you
being aware of it.
  The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
  Do  not  operate  the  deadlocking
function  if  there  is  anyone  inside
the vehicle.
  Driving with the doors locked may
make  access  to  the  passenger
compartment  by  the  emergency

services more difﬁ cult in an emer-

gency.
  As  a  safety  precaution  (with  chil-
dren on board), remove the ignition
key  when  you  leave  the  vehicle,
even for a short time.
  Do not repeatedly press the button
of your remote control out of range
and  out  of  sight  of  your  vehicle.
You run the risk of stopping it from
working  and  the  remote  control
would have to be reprogrammed.

When

purchasing

second-

hand vehicle, have the key codes
memorised by a  PEUGEOT  dealer
to  ensure  that  the  keys  in  your
possession  are  the  only  ones
which can start the vehicle.

       Do  not  throw  the  remote
control  batteries  away,  they
contain  metals  which  are
harmful to the environment.

Take them to an approved collection
point.

Do not make any modiﬁ cations to

the electronic engine immobiliser
system.

ELECTRONIC ENGINE
IMMOBILISER

hicle's V5 registration certiﬁ cate and

your personal identiﬁ cation docu-

ments.
A   PEUGEOT   dealer  will  be  able  to
retrieve  the  key  code  and  the  tran-
sponder  code  required  to  order  a
replacement key.

Programming the remote
control

Following  changing  of  the  remote
control  battery  or  disconnection  of
the  vehicle  battery,  the  remote  con-
trol must be reprogrammed.
      Wait  at  least  one  minute  before

using the remote control.

 Switch on the ignition.
 Press button B or C for at least

ﬁ ve seconds within the next ten

seconds.

 Switch off the ignition.
 Wait at least one minute before

using the remote control.

The remote control is now working
again.

Changing the remote control
battery

Battery ref.: CR1620/3 volts.
The information "battery ﬂ at" is given

  Make  a  careful  note  of  the
number  on  each  key.  The
key number is coded on the
label attached to the key.

services more difﬁ cult in an emer-

When

purchasing

second-

hand vehicle, have the key codes
memorised by a  PEUGEOT  dealer
to  ensure  that  the  keys  in  your
possession  are  the  only  ones
which can start the vehicle.

       Do  not  throw  the  remote
control  batteries  away,  they
contain  metals  which  are
harmful to the environment.

Take them to an approved collection
point.

Do not make any modiﬁ cations to

the electronic engine immobiliser
system.

ALARM

The alarm offers two types of protection.
-

external; the alarm sounds if
one of the doors, the bonnet
or the tailgate is opened ,

internal; the alarm sounds if
there is air movement in the
passenger

compartment

broken window or movement
within the car).

The  alarm  also  has  an  anti-tamper
function.
If  there  is  an  attempt  to  tamper  with
the following equipment:
   -

the wires to the siren or the
control unit, the siren sounds

accompanied by ﬂ ashing of the

direction indicators.

the battery, the siren sounds.

Complete setting and
disarming of the alarm

  Complete disarming of the alarm
Press  the  unlocking  button  on  the
remote control.
The  direction  indicators  ﬂ ash  for

two seconds.

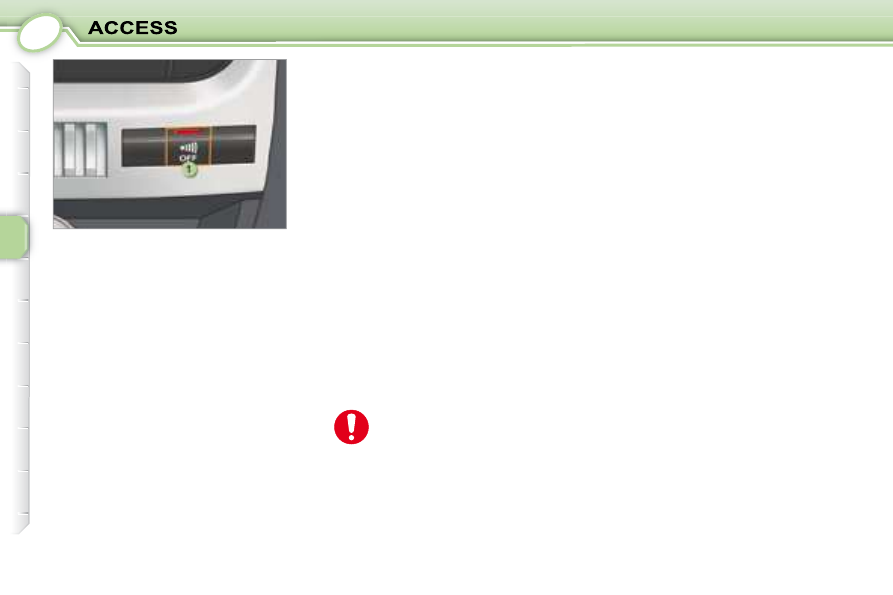

The red indicator light on the switch 1
goes out.
Note: if the indicator light continues

to ﬂ ash after de-activation of the

alarm, it is a sign that the alarm has
been triggered during your absence.

The ﬂ ashing will stop when the igni-

tion is switched on.

When the alarm is set, if a
door, the tailgate or the bon-
net is not closed correctly, the
siren sounds for a moment. If

the  vehicle  is  closed  correctly  in  the
following  45  seconds,  the  alarm  is
set. In all cases, the alarm is set after
45 seconds.

Automatic setting

The alarm is set automatically 2 minutes
after the last door or the boot is closed.
To prevent the alarm being triggered
when  a  door  or  the  boot  is  opened,
the  remote  control  unlocking  button
must be pressed again.

Locking the vehicle without
alarm

To lock the vehicle without activating
the alarm (for example when washing),
insert the key in the lock, then lock it.

  Complete setting of the alarm
  Switch off the ignition and get out
of the vehicle.
Lock or deadlock the vehicle.
The  direction  indicators  light  for
two seconds.
The red indicator light on the switch  1

ﬂ ashes once a second.
5 seconds later, external protection
is set.
45 seconds later, internal protection
is set.

  Note:   when  the  alarm  is  triggered,
the  siren  sounds  for  thirty  seconds.
However,  after  the  siren  stops,  the
alarm remains set.

Selection of the type
of protection

Remote control failure

Unlock the doors using the key.
Open the door.
The alarm is triggered.
Switch on the ignition.
The  electronic  engine  immobiliser
system recognises the key.
The  siren  stops  and  the  alarm  is
disarmed.

Do not make any modiﬁ ca-

tions to the alarm system, this
could result in malfunctions.

  To de-activate external protection
only
Press  the  unlocking  button  on  the
remote control.
The  direction  indicators  ﬂ ash  for

two seconds.
The red indicator light on the switch 1
goes out.

Work on the battery

The alarm must not be set when the
battery is disconnected. Otherwise,
the siren will sound.
After reconnecting the battery:
-

lock or deadlock, then unlock the
vehicle using the remote control,

the alarm will be operational
again the next time the vehicle is
locked or deadlocked.

  To set the alarm to external
protection only
If  you  want  to  leave  a  window  par-
tially open, or a pet inside the vehicle,
you need to select external protection
only:
   -

switch off the ignition,

within  the  next  ten  seconds,
press  the  control  button   1   until
the  warning  light  comes  on
continuously,

get out of the vehicle,

lock or deadlock the vehicle,

the direction indicators light for
two seconds,

the red indicator light on the
switch 1

ﬂ ashes once a second.

ELECTRIC WINDOWS

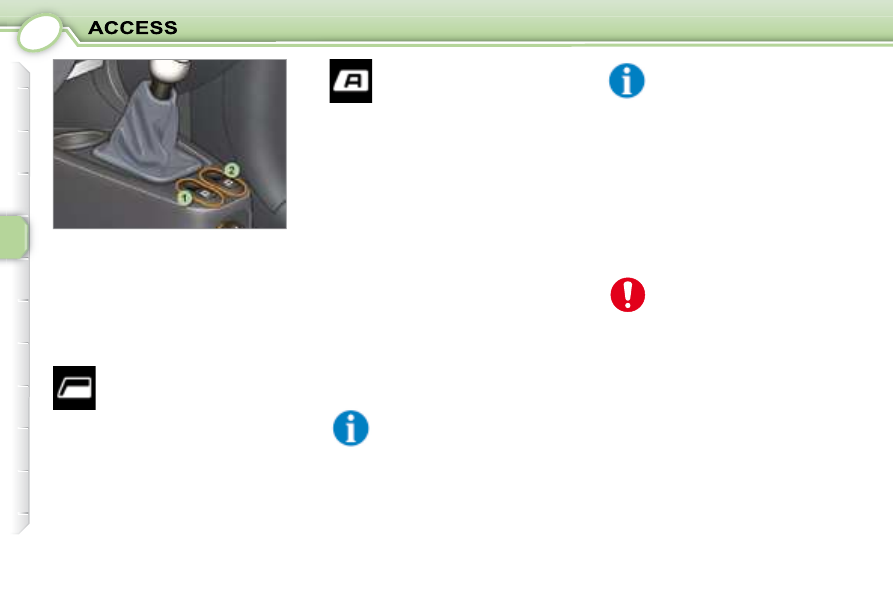

1. Driver's electric window

switch.

2. Passenger electric window

switch.

  You  can  close  all  of  the
windows  using  the  remote
control  when  locking  (refer
to  the  chapter  "Access  -  §
Remote control key").

The electric window switches are not
active  when  the  door  concerned  is
open.
The  movement  of  a  window  stops  if
the door is opened. A second action
on  the  electric  window  switch  will
only be taken into account when the
door is closed.

Safety auto-reverse
In automatic mode, when the window
rises and meets an obstacle, it stops
and partially lowers again.

In  the  case  of  unwanted
opening  of  the  window  on
closing  or  if  the  window  will
not  rise,  lower  it  completely

and  raise  it  again  immediately,  by
pulling  the  switch  until  the  window
closes completely. Continue to press
the  switch  for  approximately  one
second after closing.
  The  safety  auto-reverse  function
is  not  operational  during  these
operations.

Electric window

Press or pull switch 1 . The
window stops as soon as the
switch is released.

One-touch electric window
with safety auto-reverse

You have two options:

Manual mode:

Press or pull switch 1 gently.
The window stops as soon
as the switch is released.

Automatic mode:

Press or pull switch  1  fully. The win-
dow  opens  or  closes  completely
when the switch is released.
Pressing  the  switch  again  stops  the
movement of the window.
  Note:   the  electrical  functions  of  the
one-touch  electric  windows  are  de-
activated  approximately  one  minute
after the ignition is switched off.

  Note:   the  electrical  functions  of  the
electric  windows  are  deactivated
approximately  45  seconds  after  the
ignition  is  switched  off,  or  when  a
door is opened.

Always remove the key from
the ignition when leaving
the vehicle, even for a short
time.

In the event of contact when operating
the  windows,  you  must  reverse  the
movement of the window. To do this,
press the switch concerned.
When  the  driver  operates  the  pas-
senger  window  switches,  he  must
ensure that no one is preventing cor-
rect closing of the window.
The driver must ensure that passengers
use the electric windows correctly.
Be aware of children when operating
the windows.

"SESAME" DOORS

The  exterior  and  interior  handles
only  permit  triggering  of  the  electric
movement of the door when it is fully
closed or fully open.
Opening  and  closing  of  the  doors  is
accompanied by an audible signal.

Closing from outside
Give a ﬁ rm, fast push forwards on the

handle,  without  guiding  the  door,  to
trigger  the  electric  movement  of  the
door.

  Opening from outside
Using  your  hand,  tilt  the  handle  to-
wards  the  rear  of  the  vehicle  and
remove  your  hand  from  the  handle
when  the  electric  movement  of  the
door begins.

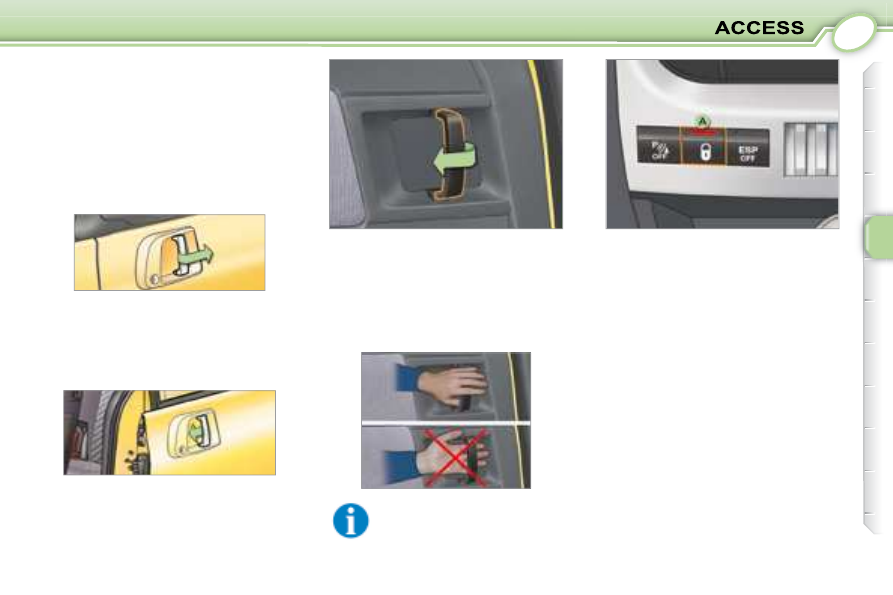

  Locking/Unlocking from inside
Press button  A , the red warning light
comes on when the vehicle is locked
and switches off when it is unlocked.
This locks/unlocks the doors and the
tailgate.
If the vehicle is locked or deadlocked
from  outside,  the  red  warning  light

ﬂ ashes and button A does not func-

tion. In this case, use the key or the
remote control for unlocking.

  Opening/Closing from inside
The opening and closing operates in
the same way as from outside.
None  of  the  door  opening  switches
function  when  the  vehicle  is  dead-
locked.

To  open  using  the  interior
handle:  tilt  the  handle,  with
the  palm  of  your  hand  to-
wards the door.

  Automatic central locking
The  doors  can  lock  automatically
when  you  are  driving  (at  a  speed  of
more than 6 mph (10 km/h).
You  can  activate  or  deactivate  this
function.

Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more

difﬁ cult in an emergency.

  Activation
With  the  ignition  on,  press  and  hold
button  A .
Activation of the function is accompa-
nied by an audible signal and a mes-
sage on the multifunction display.

  Deactivation
With  the  ignition  on,  press  and  hold
button  A .
Deactivation

the

function

accompanied  by  an  audible  signal
and  a  message  on  the  multifunction
display.

"Door open" alert

when  the  vehicle  is  moving,
by  lighting  of  the  "door  open"
warning  light,  accompanied  by
an audible signal and a message
on the multifunction display for a
few seconds.

  Opening/Closing using the
remote control
Press button  C  or  D  to open or close
the left or right door.
The opening and closing of the door is
accompanied by an audible signal.
2nd  press  on  button   C   or   D   during
opening/closing    interruption of the
movement.
3rd press on button  C  or  D      move-
ment  of  the  door  in  the  opposite
direction.

You are advised to use the
remote control or the controls
as much as possible.

  Opening/Closing from the front
Press  switch   B   to  open  or  close  the
corresponding door.
Choosing the movement of the door
using the controls:
   -

pull  opens the door,

push  closes,

second press  stops the
movement,

the controls do not function
above 3 mph (5 km/h).

If a door or the boot is not
closed properly, you are
warned:

when the engine is running,

by lighting of the "door open"
warning light, accompanied by
a message on the multifunction
display for a few seconds.

General
recommendations

Always check that it is safe to operate
the door and be sure, in particular, not
to leave children or animals near the
door controls without supervision.
When opening the door, with the win-
dow  open,  ensure  that  no  person,
animal  or  object  is  hanging  through
the window.
Before  any  opening  or  closing  and
during  any  movement  of  the  doors,
ensure that no person, animal or ob-
ject  is  preventing  the  required  ma-
noeuvre, either inside or outside the
vehicle.
It  is  imperative  that  the  doors  are
operated  only  when  the  vehicle  is
stationary.
For your safety and for that of your pas-
sengers, as well as for correct operation
of  the  doors,  you  are  strongly  advised
not to drive with a door open. The au-
dible  warning,  the  lighting  of  the  "door
open"  warning  light  and  the  message
on the multifunction display are there to
remind you.
Lock your vehicle when using an au-
tomatic carwash.

The doors and the overall
dimensions of the vehicle

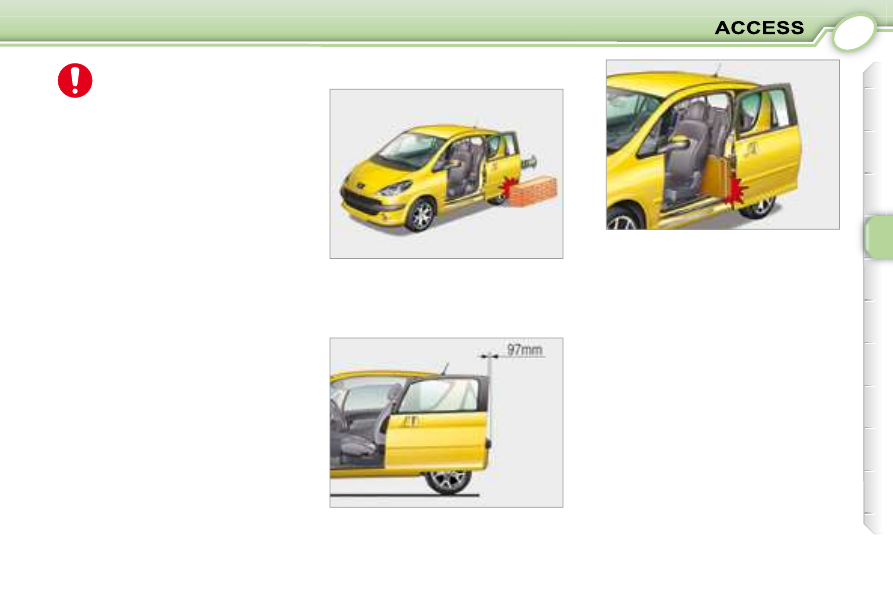

Safety/Obstacle detection

The  obstacle  detection  system  is
triggered when an obstacle of a cer-
tain  physical  resistance  hinders  the
movement of the door.
       If  an  obstacle  is  detected  while

the door is closing, the door
stops then opens fully.

If an obstacle is detected while

the  door  is  opening,  the  door
stops. When you have removed
the obstacle, complete or restart
the  action  using  buttons   C   or
D   on  the  remote  control  or  the
controls  B .

When open, a door never protrudes
beyond the rear bumper.

When open, a door exceeds the
width of the exterior mirror by 8 mm,
be sure to take this into account when
you park alongside a wall, a post or
a high kerb...

Peugeot 1007 Dag (2008.5). Manual - part 5
