Peugeot 1007 Dag (2008.5). Manual

  4 - Access to the rear seats
If  necessary,  detach  the  seat  belt
from the handle and position it along
the door pillar.
Lift  control   A   with  one  hand  and
guide the movement of the seat for-
wards  with  the  other  hand  (keeping
the control in the lifted position).
The driver has a courtesy handle  B ,
located on the inner side of the pas-
senger  seat,  for  tilting  the  seat  to
allow  a  child  access  to  the  rear  for
example.
When it is put back in place, the seat
returns to its initial position.

5 - Head restraint height and

angle adjustment

To raise the head restraint, pull it up-
wards.
To lower it, it is necessary to push si-
multaneously:
-

the button, located on the left
guide at the base of the head re-
straint frame,

the head restraint downwards.

No person or object should
prevent the seat from returning

to its initial position; the return

to this position is necessary in
order for it to be secured.

The head restraint is ﬁ tted with a frame

which has notches which prevent it

from lowering; this is an impact safety

device.

Never drive with the head re-

straints removed; they must

be in place and correctly
adjusted.

  The  adjustment  is  correct
when  the  upper  edge  of
the  head  restraint  is  level
with the top of the head.

To adjust the angle of the head restraint,
tilt it.
To remove it, press the lug and pull
it upwards.

  6 - Heated seats control
Press the switch. The temperature is
controlled automatically.
Pressing  the  switch  again  switches
the function off.

  7 - Storage drawer
Your  vehicle  has  a  storage  drawer
under each seat.
To open it, lift it and pull.
To remove it, bring it to the end of its
travel,  press  the  ends  of  the  slides
and lift it, then pull it fully.
To  put  it  back  in  place,  at  the  end
of  its  travel,  press  on  the  top  of  the
drawer to secure it.

Do not place objects weighing
more than 1 kg in the drawers.

8 - Placing the passenger seat in

the table position

Use one of the two red controls located
at the base, on each side of the seat.
To place the seat in the table position,
lift this control with one hand and guide
the seat back to the table position with
the other hand.
To return the seat to the upright posi-
tion, carry out exactly the same pro-
cedure in reverse (always lift the red
control).

  As  a  safety  precaution,  a
passenger  sitting  in  the  rear
of the vehicle must not place
his  feet  on  the  front  seat
when  placed  in  the  table
position.

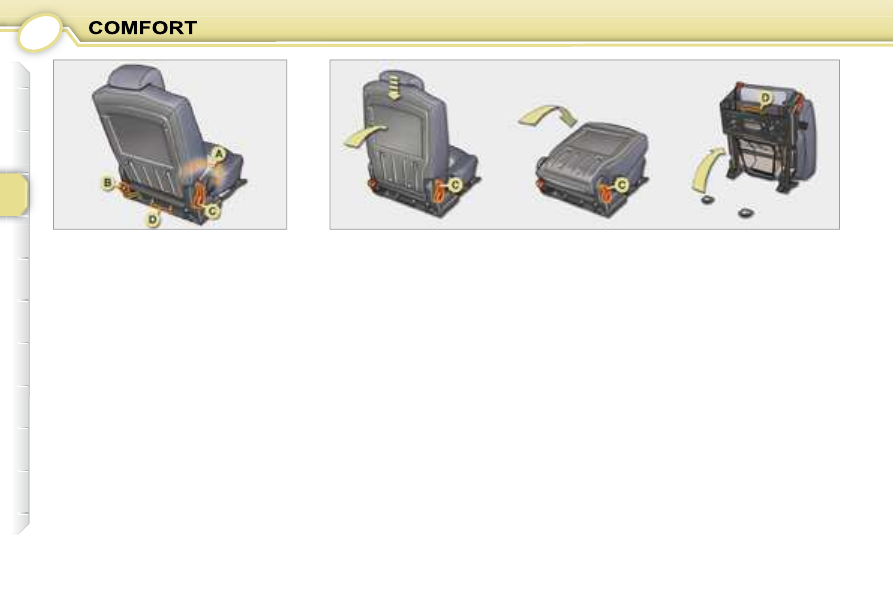

REAR SEATS

Seat back angle adjustment

Tilt the control C and adjust the angle
to the comfort or loading position.
Release the control to lock.

Folding/Placing in the "fully
folded" position

Place  the  head  restraint  in  the  low
position.
Position the seat belt buckle as close
as possible to the strap return.
  Move the seat as far back as possi-
ble  using the bar  A  or the handle   B .
Fold  the  seat  back  onto  the  seat
cushion tilting control  C  fully.
  Note:   you  can  lock  the  seat  back  in
this position by pressing on it.
Push the control  D  upwards to release
the rear feet.
Place  the  seat  in  the  "fully  folded"
position.
When driving, the seat is retained in
this position by the side strut.

Table position

Place  the  head  restraint  in  the  low
position.
Fold  the  seat  back  onto  the  seat
cushion tilting control  C  fully.
  Note:   you  can  lock  the  seat  back  in
this position by pressing on it.

Forwards-backwards
adjustment

Lift the bar  A  and  slide the seat  for-
wards or backwards.
From the boot, you can press the red
handle  B  and slide the seat forwards
or backwards.
This manoeuvre makes folding of the
seat when loading the boot easier.

Never drive with the head re-
straints removed, they must
be in place and correctly
adjusted.

Locked

Released

In order to ensure that the
seat covers have a long ser-
vice life, do not leave the seat
in the table or "fully folded"
position after loading.

Avoid placing luggage on the seats
when they are in the table position.

REAR HEAD RESTRAINTS

The rear head restraints can be re-

moved and have two positions;
-

high, position for use

low, storage position

Repositioning the seat

Press the control D upwards to check
that the rear feet are released.
Tilt the folded seat rearwards.
The rear feet are secured automati-
cally.
Check that the seat is secured correctly.
Raise the seat back, releasing it ﬁ rst

by pulling the control C .

To  raise  a  head  restraint,  pull  it  up-
wards.
To  lower  it,  press  the  lug  then  the
head restraint.
To remove it, place it in the high posi-
tion, push the lug and pull it upwards.
To  reﬁ t  it,  engage  the  head  restraint

rods in the holes taking care to remain
in the centreline of the seat back.

Although one of PEUGEOT's main
criteria when designing your vehicle,
the safety of your children also de-
pends on you.

INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT

Intermediate longitudinal

position

The rules for transporting chil-

dren are speciﬁ c to each country.

Consult the current legislation in
your country.

GENERAL POINTS RELATING
TO CHILD SEATS

  "Forwards-facing"
When  a  "forwards-facing"  child  seat
is  installed  on  the   front  passenger
seat , adjust the vehicle's seat to the
intermediate

longitudinal

position

with the seat back upright and leave
the passenger air bag armed.

"Rearwards-facing"

When  a  "rearwards-facing"
child  seat  is  installed  on  the
front  passenger  seat ,  it  is
essential that the passenger

air bag is disarmed. Otherwise, the
child would risk being seriously
injured or killed if the air bag were

to inﬂ ate.

For maximum safety, please
follow these precautions:

accordance

with

Directive

2003/20, all children under the
age of 12 or less than one metre

ﬁ fty tall must travel in approved

child seats suited to their weight ,

on seats ﬁ tted with a seat belt or

ISOFIX mountings * ,

statistically,  the  safest  seats
in  your  vehicle  for  the  trans-
portation  of  children  are  the
rear seats,

a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the
front and in the rear.

PEUGEOT recommends that children

should travel in the rear seats of your

vehicle:
-

"rearwards-facing" up to the age

of 2,

"forwards-facing" over the age

of 2.

ADVICE ON CHILD
SEATS

  Installing a booster seat
The  chest  part  of  the  seat  belt  must
be positioned on the child's shoulder
without touching the neck.
Ensure  that  the  lap  part  of  the  seat
belt passes correctly over the child's
thighs.
  PEUGEOT   recommends  the  use  of

a booster seat which has a back, ﬁ t-

ted with a seat belt guide at shoulder
level.

As a safety precaution, do not leave:
-

one or more children alone and
unsupervised in a vehicle,

a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

the keys within reach of children
inside the vehicle.

To protect young children from the

rays of the sun, ﬁ t side blinds on the

rear windows.

Children under the age of 10 must not
travel in the "forward facing" position
on  the  front  passenger  seat,  unless
the  rear  seats  are  already  occupied
by other children, cannot be used or
are absent.
Disarm  the  passenger  air  bag  when
a  "rear  facing"  child  seat  is  installed
on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air bag

were to inﬂ ate.

The  incorrect  installation  of  a  child
seat  in  a  vehicle  compromises  the
child's  protection  in  the  event  of  an
accident.
Remember to fasten the seat belts or
the  child  seat  harness   keeping  the
slack  in relation to the child's body  to
a minimum , even for short journeys.
For  optimum  installation  of  the  "for-
ward  facing"  child  seat,  ensure  that
the back of the child seat is in contact
with  the  back  of  the  vehicle's  seat
and that the head restraint does not
cause any discomfort.
If  the  head  restraint  has  to  be  re-
moved,  ensure  that  it  is  stored  or
attached  securely  to  prevent  it  from
being  thrown  around  the  vehicle  in
the event of sharp braking.

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt :

Passenger air bag OFF

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

The use of the restraining cushion is

compulsory for transporting young

children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''

"KLIPPAN

Optima"

From the age

of 6 years

(approximately

22 kg), the booster

is used on its own.

INSTALLING CHILD SEATS SECURED USING THE SEAT BELT

In accordance with European regulations, this table indicates the options for the installation of child seats secured using the
seat belt and universally approved (a) in accordance with the weight of the child and the seat in the vehicle.

U : seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or

"forward facing".

Child seats ﬁ tted with a support which rests on the ﬂ oor of the vehicle must not be installed in the rear.

Weight of the child/indicative age

Seat

Below 13 kg

(groups 0 (b) and 0+)

Up to 1 year approx

From 9 to 18 kg

(group 1)

From 1 to 3 years approx

From 15 to 25 kg

(group 2)

From 3 to 6 years approx

From 22 to 36 kg

(group 3)

From 6 to 10 years approx

Front passenger
seat (c)

U (d)

Rear seat

U (e)

U (d)

(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
(d) Vehicle seat in the intermediate longitudinal position.
(e) Vehicle seat in the most rearward position.

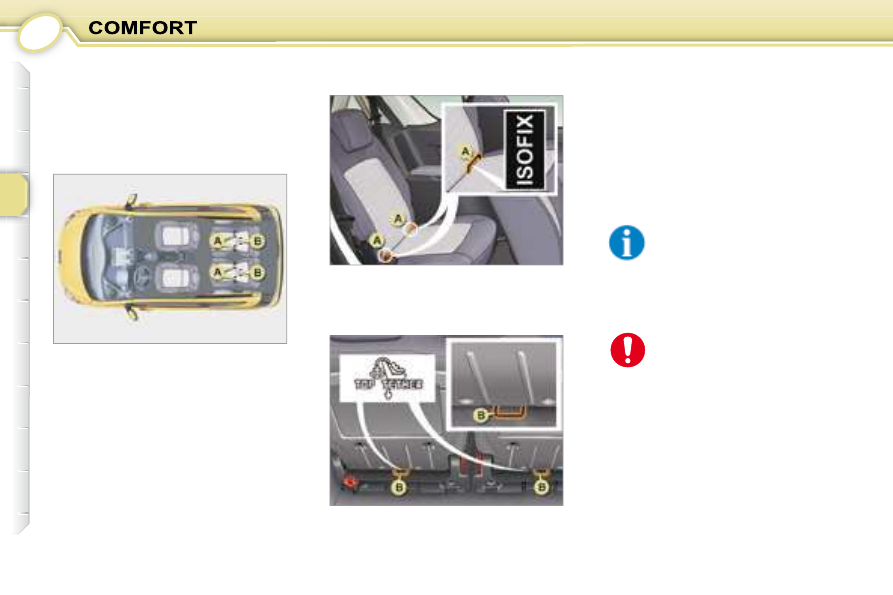

"ISOFIX" MOUNTINGS

Your  vehicle  has  been  approved  in
accordance  with  the   new  ISOFIX
regulation .
The  seats * ,  represented  below,  are

ﬁ tted with regulation ISOFIX mount-

ings:

These are three rings for each seat:

This

ISOFIX

mounting

system

guarantees you fast, reliable and

safe ﬁ tting of the child seat in your

vehicle.
The ISOFIX child seats

are ﬁ tted

with  two  locks  which  are  secured
easily on these lower rings  A .
Some  also  have  an   upper  strap
which is attached to the upper ring  B .

two lower rings A , located be-
tween the vehicle seat back and
cushion, indicated by a label,

an  upper  ring   B ,  referred  to  as
the   TOP  TETHER ,  indicated  by
a label.

  To  attach  this  strap,  raise  the
vehicle  seat's  head  restraint
then  pass  the  hook  between

its rods. Then ﬁ x the hook on

the upper ring B and tighten
the upper strap.

The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident.

For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary
table for the location of the ISOFIX
child seats.
Child seats ﬁ tted with a support which

rests on the ﬂ oor of the vehicle must

not be installed in the rear

* According to version.

This child seat can also be used on seats which are not ﬁ tted with ISOFIX mountings.
In this case, it must be attached to the vehicle seat using the three point seat belt.

Follow the instructions for ﬁ tting the child seat given in the seat manufacturer's installation guide.

ISOFIX RÖMER Duo Plus (size category B1 )

Group 1: from 9 to 18 kg

Installed in the forward facing position.

Fitted with an upper strap to be secured on the ISOFIX upper ring,

referred to as the TOP TETHER.

Three seat body angles: sitting, reclining, lying.

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE

SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS

In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the vehicle

seats ﬁ tted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.

IUF: seat suitable for the installation

of an I

soﬁ x U niversal seat, " F or-

ward facing" and secured using
the "Top Tether" upper strap.

The ISOFIX infant car seat is

ﬁ xed to the lower rings of an

ISOFIX seat and occupies the
two rear seats.

IL-SU: seat suitable for the installation
an I

soﬁ x S emi- U niversal seat which is:

"rear facing" ﬁ tted with a "Top

Tether" upper strap,

an infant car seat which is secured
using the "Top Tether" upper strap.

For the securing of the "Top Tether"

upper strap, refer to the "Isoﬁ x

Mountings" section.

Weight of the child/indicative age

Less than 10 kg

(group 0)

Up to approx.

6 months

Less than 10 kg

(group 0)

Less than 13 kg

(group 0+)

Up to approx. 1 year

From 9 to 18 kg

(group 1)

From 1 to 3 years approx

Type of ISOFIX child seat

Infant car seat *

"rear facing"

"forward facing"

ISOFIX size category

Universal and semi-universal
ISOFIX child seats which can

be installed on the rear seats

IL-SU

IUF

IL-SU

Child seats ﬁ tted with a support which rests on the ﬂ oor of the vehicle must not be installed in the rear.

"CAMELEO" INTERIOR

The  Cameleo  concept  is  based  on
a  range  of  very  different  kits  which
enable you to transform the passen-
ger  compartment  into  one  which  is
unique and attractive.

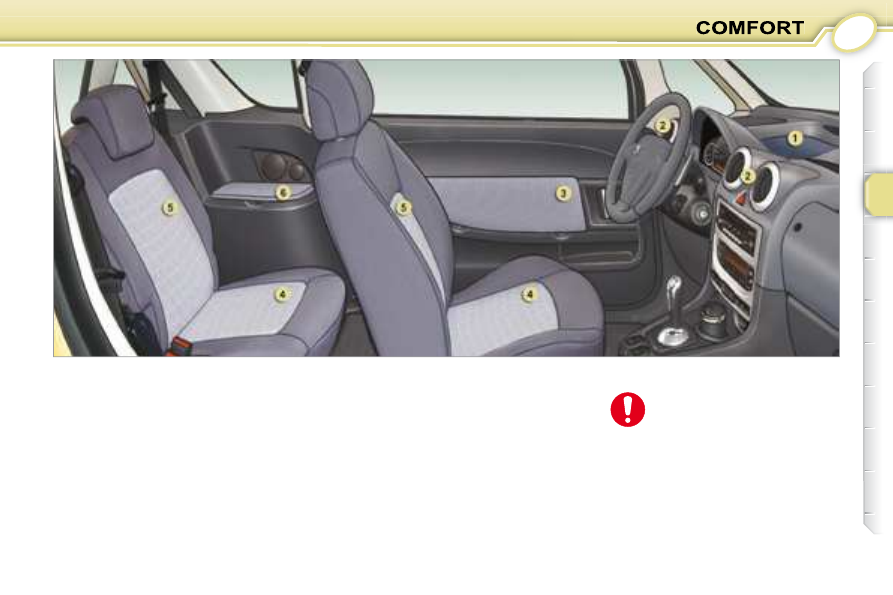

They consist of the following 18 items:
   -

two coverings 1 on the fascia,

four trims 2 for the side and centre
vents,

two trims 3 for the door panels,

four trims 4 for the seat cushions,

four trims 5 for the seat backs,

two trims 6 for the rear side stor-
age compartment covers.

For safety reasons, you must
not drive until you have in-
stalled a kit completely.

Kits consisting of four vent trims are
also available.

The removal and ﬁ tting of the items

in this kit does not require any tools.

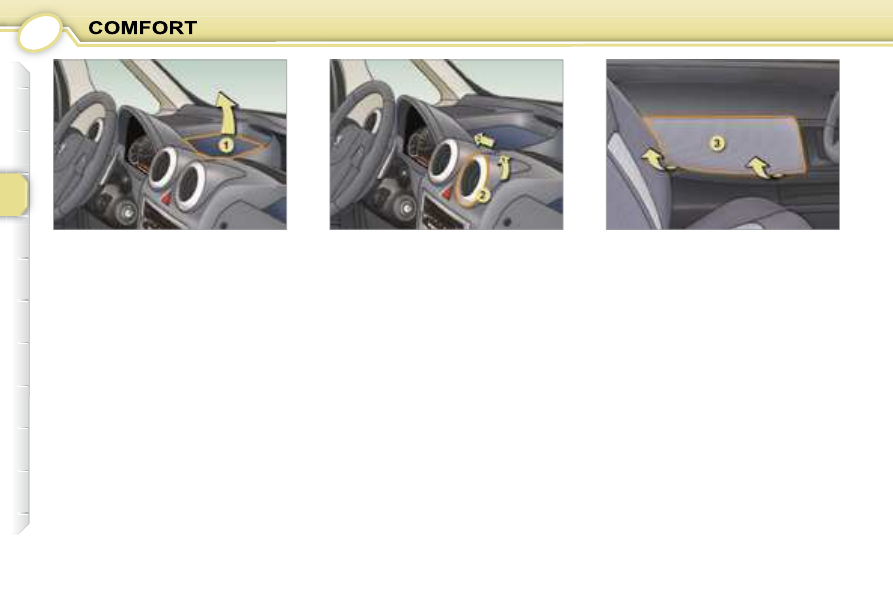

1 - Fascia coverings

Removal
 Pull one of the four corners of

the old fascia covering to detach
the velcro.

Fitting


Position the new covering ﬂ at on

the fascia.

 Press on the four corners to at-

tach the velcro securely.

2 - Vent trims

Removal
 Turn an eighth of a turn to remove

the old trim.

  Fitting
      Position the new trim on the vent.
     Turn an eighth of a turn to the

notch to ﬁ x the new trim.

3 - Door panel trims

Removal
 Pull at the two notches to unclip

it fully.

 Remove the old trim.

Fitting
 Position the new trim on the door

starting at the top.

 Press on the edges to clip it se-

curely.

4 - Seat cushion trims

Fitting
 Position the new trim on the seat

cushion or on the seat back.

 Engage the zip pull, located at

the base of the seat cushion or
seat back.

 Guide the zip pull along the three

sides of the seat cushion or seat
back.

 Position the velcro on the last

side of the seat cushion or seat
back trim.

  On  the  rear  seats,  take  care  to
position  the  velcro  correctly  so
that the ISOFIX mountings are not
covered.
      Fold  down  the  zip  pull  tab  in

the seat cushion or seat back
location.

6 - Rear side storage

compartment cover trims

Removal
 Remove the tab from the zip pull,

located at the base of the seat
cushion or seat back.

 Guide the zip pull along the three

sides of the seat cushion or seat
back.

 Remove the zip pull.
 Pull on the last side to detach the

velcro, then remove the old seat
cushion or seat back trim.

  Removal
      Open the cover to 45°.
     Unclip the lug located under the

cover.

 Remove the old cover trim.

  Reﬁ tting
      Open the cover to 45°.
     Position the new trim on the cover

by means of the two notches.

 Tilt the trim on the cover.
 Clip the lug located under the

cover.

Some  Cameleo  seat  trims
can  be  dry  cleaned.  Please
ask  a   PEUGEOT   dealer  for
details.

5 - Seat back trims

Follow these instructions starting, for
each seat, with the complete seat

cushion removal and ﬁ tting operations,

then repeat them for the seat back.

Peugeot 1007 Dag (2008.5). Manual - part 4
