Peugeot 208 (2017 year). Manual

175

In the event of a breakdown

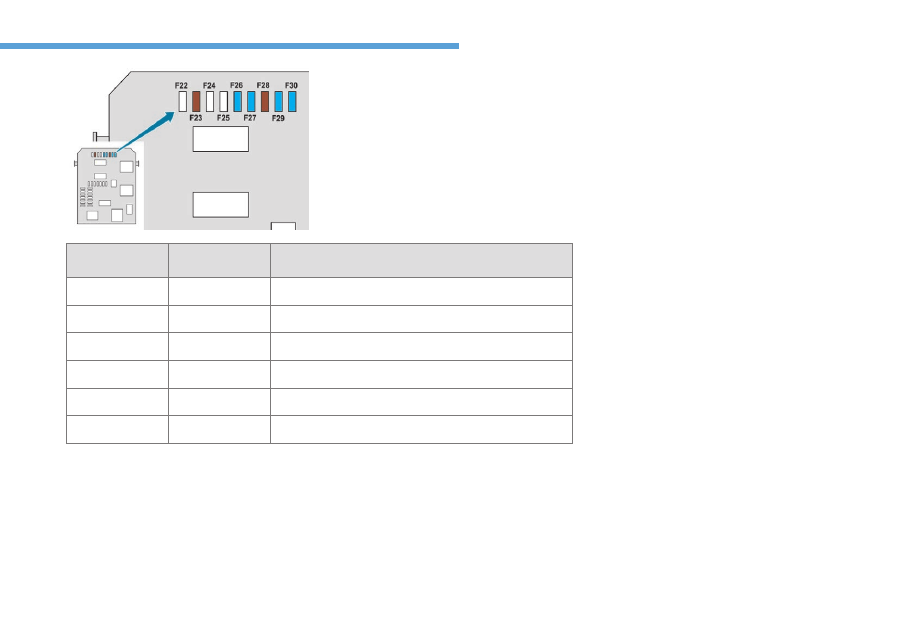

Fuse no.

Rating

Functions

F23

5 A

Courtesy mirrors, map reading lamp.

F26

15 A

Horn.

F27

15 A

Screenwash pump.

F28

5 A

Anti-theft.

F29

15 A

Air conditioning compressor.

F30

15 A

Rear wiper.

176

In the event of a breakdown

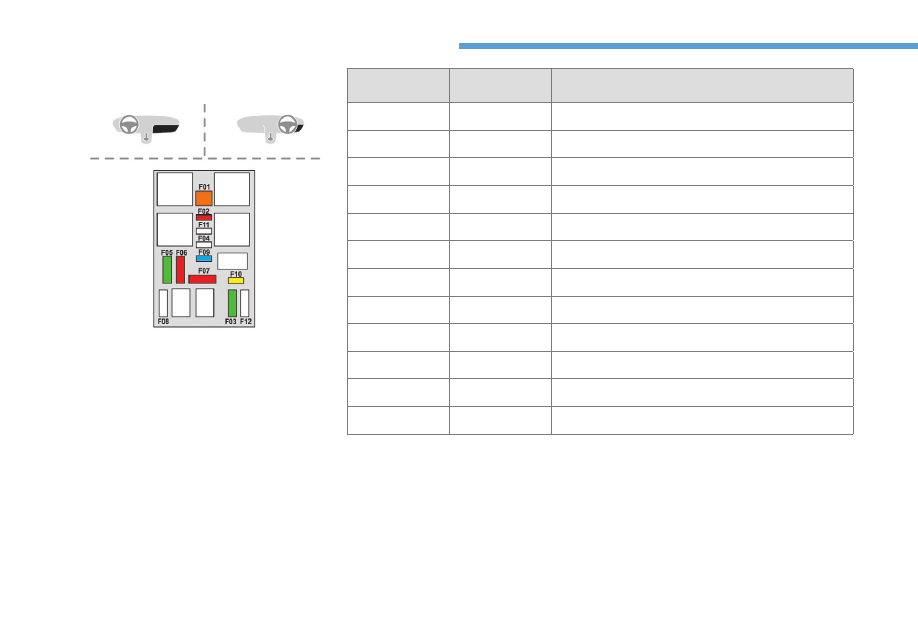

On the right

Fuse no.

Rating

Functions

F01

40 A

Heated rear window.

F02

10 A

Heated door mirrors.

F03

30 A

Front one-touch windows.

F04

Not used.

F05

30 A

Rear one-touch windows.

F06

10 A

Folding door mirrors.

F07

10 A

Folding door mirrors.

F08

Not used.

F09

15 A

Front heated seats.

F10

20 A

Hi-Fi amplifier.

F11

Not used.

F12

Not used.

177

In the event of a breakdown

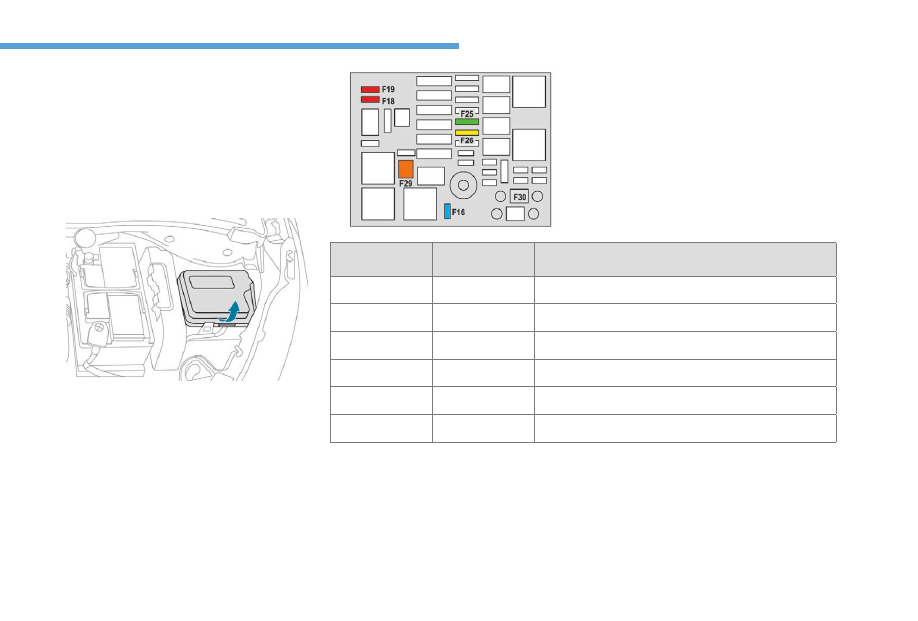

Underbonnet

The fusebox is placed in the engine
compartment near the battery (left-hand side).

Access to the fuses

F  Unclip the cover.
F  Change the fuse.
F  When you have finished, close the cover

very carefully to ensure correct sealing of
the fusebox.

Fuse no.

Rating

Functions

F16

15 A

Front foglamps.

F18

10 A

Right-hand main beam headlamp.

F19

10 A

Left-hand main beam headlamp.

F25

30 A

Headlamp washer relay (after-market).

F26 (GPL)

20 A

Battery + (positive).

F29

40 A

Front wiper motor.

178

In the event of a breakdown

12 V battery

Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.

Procedure for starting the engine using another
battery or charging a discharged battery.

General points

Lead-acid starter batteries

Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources of
sparks, so as to avoid the risk of explosion
or fire.
Wash your hands afterwards.

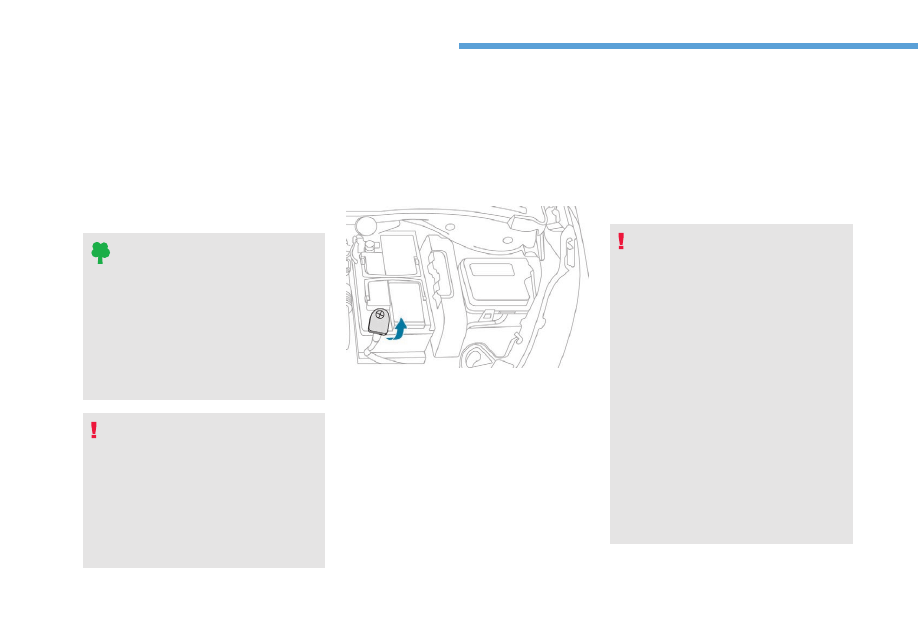

Access to the battery

The battery is located under the bonnet.

To gain access:
F Open the bonnet using the interior release

lever, then the exterior safety catch.

F Secure the bonnet stay.

F Remove the plastic cover on the (+)

terminal.

The battery (-) terminal is not accessible. A
remote earth point is located on the engine.

Starting using another
battery

Never try to start the engine by connecting
a battery charger.
Never use a 24 V or higher battery
booster.
Check beforehand that the backup
battery has a nominal voltage of 12 V and
a capacity at least equal to that of the
discharged battery.
The two vehicles must not be in contact
with each other.
Switch off all the electrical consumers
on both vehicles (audio system, wipers,
lighting, etc.).
Make sure that the jump leads are not
close to moving parts of the engine (fan,
belts, etc.).
Do not disconnect the (+) terminal while
the engine is running.

When your vehicle's battery is discharged, the
engine can be started using a backup battery
(external or from another vehicle) and jump
leads or a battery booster.

179

In the event of a breakdown

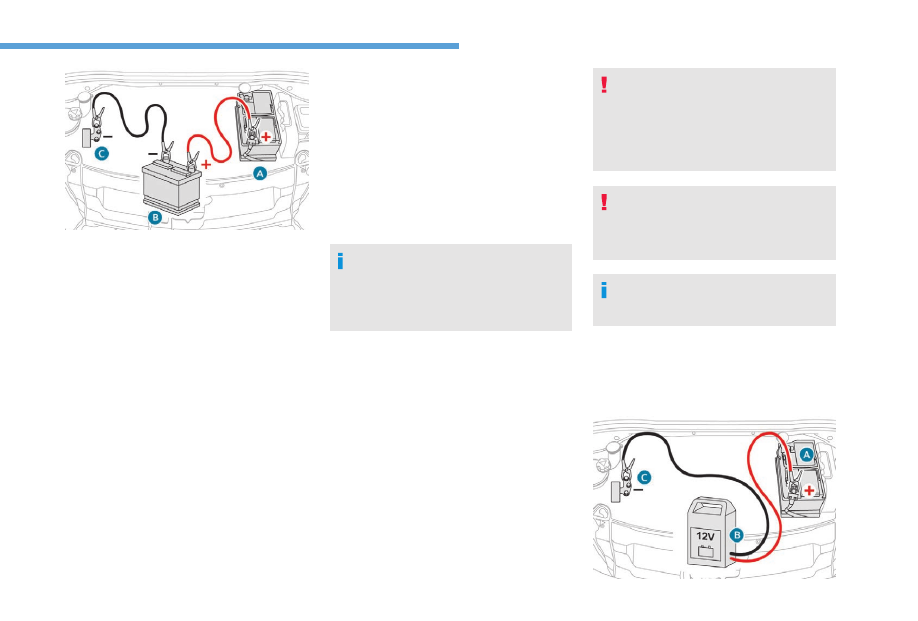

F Lift the plastic cover on the (+) terminal, if

your vehicle has one.

F Connect the red cable to the positive

terminal (+) of flat battery A (at the metal
elbow) then to the positive terminal (+) of
backup battery B or the booster.

F Connect one end of the green or black

cable to the negative terminal (-) of backup
battery B or the booster (or an earth point
on the other vehicle).

F Connect the other end of the green or black

cable to earth point C on the broken down
vehicle.

F Start the engine of the vehicle with the

good battery and leave it running for a few
minutes.

F Operate the starter on the broken down

vehicle and let the engine turn.

If the engine does not start straight away,
switch off the ignition and wait a few moments
before trying again.

F Wait until the engine returns to idle then

disconnect the jump lead cables in the
reverse order.

F Refit the plastic cover to the (+) terminal, if

your vehicle has one.

F Allow the engine to run for at least

30 minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.

Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.

Charging the battery using
a battery charger

For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:
- if you only use your vehicle for short

journeys,

- if the vehicle is to be taken off the road for

several weeks.

Contact a PEUGEOT dealer or a qualified
workshop.

If you plan to charge your vehicle's battery
yourself, use only a charger compatible
with lead-acid batteries of a nominal
voltage of 12 V.

Follow the instructions provided by the
manufacturer of the charger.
Never reverse polarities.

It is not necessary to disconnect the
battery.

F Switch off the ignition.
F Switch off all electrical consumers (audio

system, lighting, wipers, etc.).

180

In the event of a breakdown

F Switch off the charger B before connecting

the cables to the battery, so as to avoid any
dangerous sparks.

F Ensure that the charger cables are in good

condition.

F Raise the plastic cover, if your vehicle has

one, on the (+) terminal.

F Connect the charger B cables as follows:

- the positive (+) red cable to the (+)

terminal of the battery A,

- the negative (-) black cable to the earth

point C on the vehicle.

F At the end of the charging operation, switch

off the charger B before disconnecting the
cables from the battery A.

Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.

If this label is present, it is essential to
use only a 12 V charger to avoid causing
irreversible damage to the electrical
components related to the Stop & Start
system.

Never try to charge a frozen battery – risk
of explosion!
If the battery has frozen, have it checked
by a PEUGEOT dealer or by a qualified
workshop who will check that the internal
components have not been damaged and
that the container has not cracked, which
would mean a risk of toxic and corrosive
acid leaking.

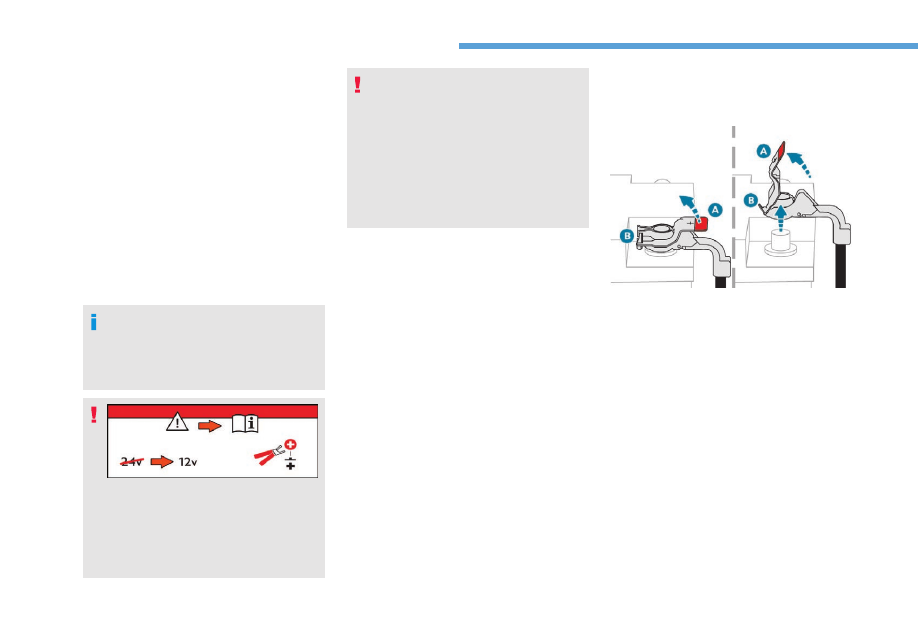

Disconnecting the battery

In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Before disconnecting the battery:
F close all openings (doors, boot, windows,

roof),

F switch off all electrical consumers (audio

system, wipers, lighting, etc.),

F switch off the ignition and wait for four

minutes.

At the battery, detach the (+) terminal only.

Quick-release terminal clamp

Disconnecting the (+) terminal

F Raise lever A fully to release clamp B.
F Remove clamp B by lifting it off.

181

In the event of a breakdown

Towing

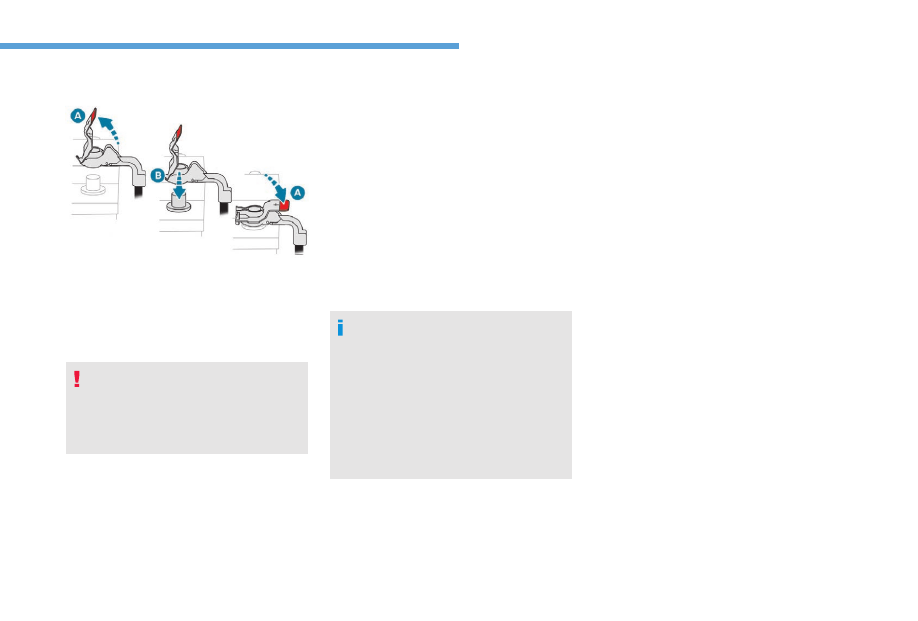

Reconnecting the (+) terminal

F  Raise lever A fully.
F  Refit open clamp B on the (+) terminal.
F  Push clamp B fully down.
F  Lower lever A to lock clamp B.

Do not force the lever as locking will not
be possible if the clamp is not positioned
correctly; start the procedure again.

Following reconnection of the
battery

Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems. If
minor problems nevertheless persist following
this operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise (depending on
version):
- the remote control key,
- etc.

The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the exterior
temperature and the state of charge of the
battery (up to about 8 hours).

Procedure for having your vehicle towed or for
towing another vehicle using the towing eye.

182

In the event of a breakdown

General recommendations
Observe the legislation in force in your
country.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing arm; rope and straps are
prohibited.
The towing vehicle must move off gently.
When the vehicle is towed with its engine
off, there is no longer braking and steering
assistance.
In the following cases, you must always
call on a professional recovery service:
- vehicle broken down on a motorway or

main road,

- four-wheel drive vehicle,
- when it is not possible to put the

gearbox into neutral, unlock the
steering, or release the parking brake,

- towing with only two wheels on the

ground,

- where there is no approved towbar

available.

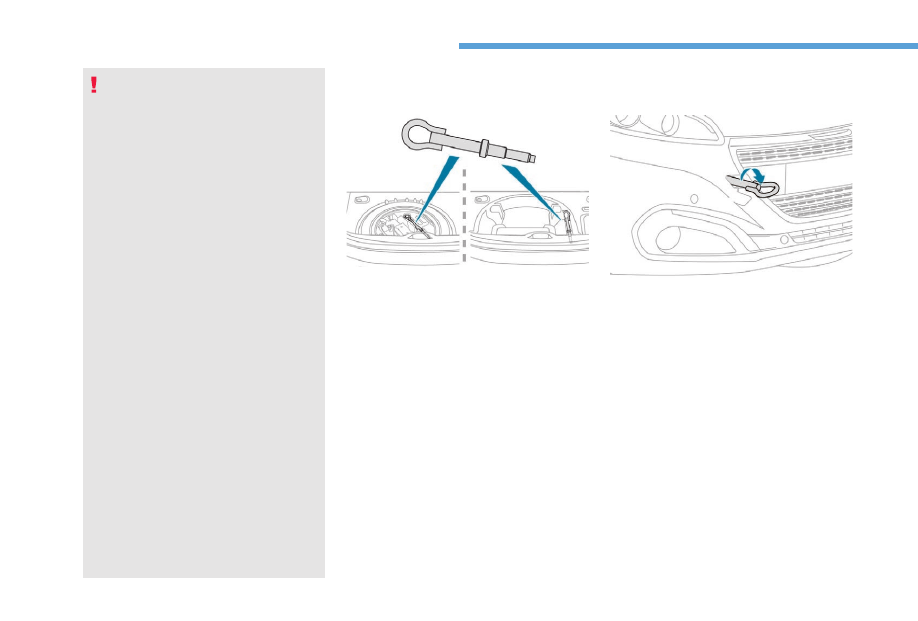

Access to the tools

The towing eye is installed in the boot under
the floor.
To gain access:
F  open the boot,
F  lift the floor and remove it,
F  remove the towing eye from the holder.

Towing your vehicle

F In the front bumper, unclip the cover by

pressing at bottom right.

F Screw the towing eye in fully, until it reaches

a stop.

F Install the towbar.
F With a manual gearbox, place the gear lever

in neutral.

F With an electronic gearbox, place the gear

lever in position N.

F With an automatic gearbox, place the gear

lever in position N.

183

In the event of a breakdown

Failure to follow this instruction may cause
damage to some components (braking,
transmission, etc.) and the absence of
braking assistance when the engine is
restarted.

F Unlock the steering by turning the ignition

key one notch and release the parking
brake.

F Switch on the hazard warning lamps on

both vehicles.

F Set off gently, drive slowly and for a short

distance.

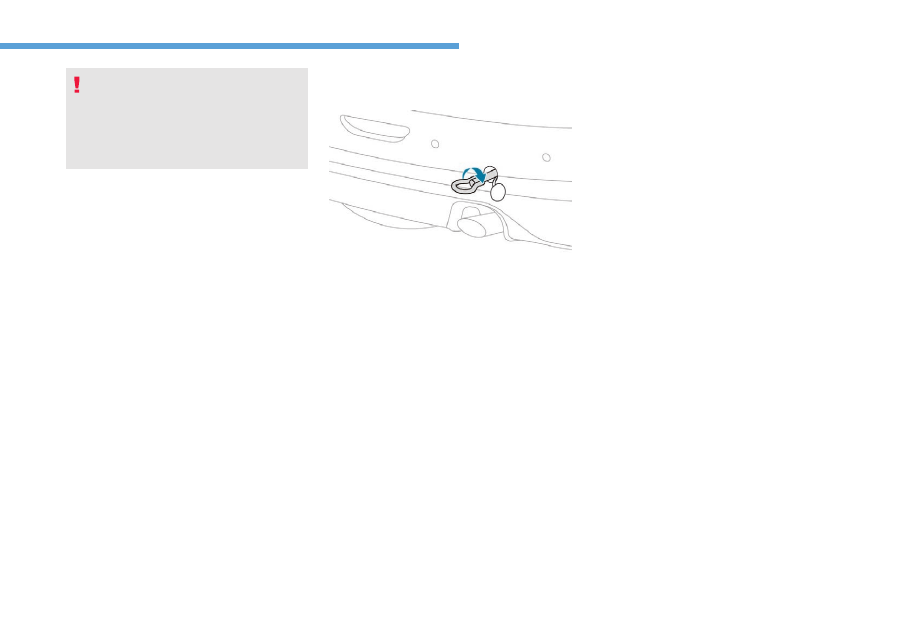

Towing another vehicle

F On the rear bumper, unclip the cover by

pressing at the bottom.

F  Screw the towing eye completely.
F  Install the towing bar.
F  Switch on the hazard warning lamp on both

vehicles.

F Set off gently, drive slowly and for a short

distance.

184

Technical data

Characteristics of engines
and towed loads

Engines

The engine characteristics are given in the
vehicle's registration document, as well as in
sales brochures.

Weights and towed loads

The maximum weights and towed loads for
your vehicle are given in the registration
document, as well as in sales brochures.

These values are also given on the
manufacturer's plate or label.

For more information, contact a PEUGEOT
dealer or a qualified workshop.

The GTW values and the towable loads
listed are valid for a maximum altitude of
1,000 metres. The towable load must be
reduced by steps of 10% for each additional
1,000 metres.
The recommended nose weight is the vertical
load on the towbar ball (removable, with or
without tools).

GTW: Gross train weight.

High exterior temperatures may result
in a reduction in the performance of the
vehicle to protect the engine. When the
exterior temperature is higher than 37°C,
limit the towed weight.

Towing using a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when
towing a trailer.
When using a vehicle to tow, never exceed
a speed of 60 mph (100 km/h) (observe
the local legislation in force).

If the exterior temperature is high, it is
recommended that the engine be allowed
to idle for 1 to 2 minutes after the vehicle
comes to a stop, to facilitate its cooling.

The maximum power corresponds to the
value type-approved on a test bed, under
conditions defined in European legislation
(Directive 1999/99/EC).

For more information, contact a PEUGEOT
dealer or a qualified workshop.

185

Technical data

Engines and towed loads – PETROL

Engine

1.2 PureTech 68

1.2 PureTech 82

Gearboxes

Manual 5-speed

(BVM5)

Manual 5-speed

(BVM5)

Electronic (5-speed)

(ETG5)

Code

QA5 (EB2FB MA)

KQ5 (EB2F MA)

KQP (EB2F MAPS)

CC..., CA... model codes

HMP6

HMZ6 – HMZ0

HMZ6/P – HMZ0/P

Cubic capacity (cm

)

1,199

Max. power: EU standard (kW)

Fuel

Unleaded

Braked trailer (within the GTW limit) on a 12%
slope (Kg)

450 (VP)

485 (VASP)

820 (VP/VASP)

920 (LUV)

820

Unbraked trailer (kg)

450

520

Recommended nose weight (kg)

VP:

Private Vehicle.

VASP: Specialised Motor Vehicle.

LUV:

Light Utility Vehicle.

186

Technical data

Engine

1.2 PureTech 82 S&S

1.2 PureTech 110 S&S 1.2 PureTech 110 S&S

Gearboxes

Electronic 5-speed

STT

(ETG5)

Manual 5-speed

STT

(BVM5)

Manual 5-speed

STT

(BVM5)

Automatic 6-speed

STT

(EAT6)

Code

KQV (EB2F MAPS

STT)

LEJ (EB2FA MA STT)

CQJ / CZJ (EB2DT/

DTM BE STT)

CQQ / CZQ (EB2DT/

DTM AT6III STT)

CC..., CA... model codes

HMZ6/PS

HMRP/S

HNZ6/S – HNV6/S

HNV0/DS

HNZT/S -HNVT/S

HNVA/DS

Cubic capacity (cm

)

1,199

Max. power: EU standard (kW)

Fuel

Unleaded

Braked trailer (within the GTW limit) on a 12%
slope (Kg)

500

820

960 (EB2DT)

450 (EB2DTM)

960 (EB2DT)

450 (EB2DTM)

Unbraked trailer (kg)

500

520

570 (EB2DT)

450 (EB2DTM)

560 (EB2DT)

450 (EB2DTM)

Recommended nose weight (kg)

187

Technical data

Engine

1.6 VTi 120

1.6 THP 165 S&S

1.6 THP 208 S&S

Gearboxes

Manual 5-speed

(BVM5)

Automatic 4-speed

(BVA4)

Manual 6-speed

STT

(BVM6)

Manual 6-speed

STT

(BVM6)

Code

CA5 (EP6C MA)

CAL (EP6C AL4)

KHK (EP6FDT MCM

STT)

KJK (EP6FDTX MCM

STT)

CC..., CA... model codes

5FS0 – 5FS0/D

5FS9 – 5FS9/D

5GZM

5GRM

Cubic capacity (cm

)

1,598

Max. power: EU standard (kW)

115

147

Fuel

Unleaded

Braked trailer (within the GTW limit) on a 12%
slope (Kg)

960

950

920

930

Unbraked trailer (kg)

580

Recommended nose weight (kg)

188

Technical data

Engines and towed loads – DIESEL

Engine

1.6 HDi 75

1.6 BlueHDi 75

1.6 BlueHDi 75 S&S

1.6 HDi 92

Gearboxes

Manual 5-speed

(BVM5)

Manual 5-speed

(BVM5)

Manual 5-speed STT

(BVM5)

Manual 5-speed

(BVM5)

Code

BX5 (DV6EM BE)

KM5 (DV6FE BE)

KMJ (DV6FE BE STT)

BF5 / BW5 (DV6D/DM

BE)

Model codes

9HKC

BHW6

BHW6/1S

9HP0 – 9HJC

Cubic capacity (cm

)

1,560

Max. power: EU standard (kW)

Fuel

Diesel

Braked trailer (within the GTW limit) on a 10 or
12% slope (kg)

970

660

410

970

Unbraked trailer (kg)

570

410

570

Recommended nose weight (kg)

189

Technical data

Engine

1.5 BlueHDi 100

S&S

1.6 BlueHDi 100

S&S

1.6 BlueHDi 100

S&S

1.6 BlueHDi 120

S&S

Gearboxes

Manual 6-speed

STT

(BVM6)

Manual 5-speed

(BVM5)

Manual 5-speed

STT

(BVM5)

Electronic

6-speed STT

(ETG6)

Manual 6-speed

STT

(BVM6)

Code

MDK (DV5RD

MB6 STT)

KE5 (DV6FD BE)

KEJ (DV6FD BE

STT)

KES (DV6FD

MCP STT)

KDK (DV6FC

MCM STT)

Model codes

YHYS/S

BHY6

BHY6/1S

BHYM/PS

BHZM/S

Cubic capacity (cm

)

1,499

1,560

Max. power: EU standard (kW)

Fuel

Diesel

Braked trailer (within the GTW limit) on a 10 or
12% slope (kg)

975

970

1,100 (LUV)

970

960

Unbraked trailer (kg)

570

Recommended nose weight (kg)

LUV: Light Utility Vehicle.

190

Technical data

Engines and towed loads – LPG

Engine

1.2 PureTech 82 LPG

Gearboxes

Manual 5-speed

(BVM5)

Code

KQ5 (EB2F MA LPG)

Model codes

HMX5/GPL

Cubic capacity (cm

)

1,199

Max. power: EU standard (kW)

Fuel

Dual fuel petrol/LPG

Braked trailer (within the GTW limit) on a 10 or 12% slope (kg)

720

Unbraked trailer (kg)

520

Recommended nose weight (kg)

Peugeot 208 (2017 year). Manual - part 12
