Peugeot 208 (2017 year). Manual

Dashboard instruments

Warning / indicator lamp

State

Cause

Action / Observations

Under-inflation

Fixed, accompanied
by an audible signal
and a message.

One or more wheels has
insufficient pressure.

Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after adjusting one or
more tyre pressures and after changing one or more
wheels.
For more information on Tyre under-inflation
detection, refer to the corresponding section.

Flashing then fixed,
accompanied by the
Service warning lamp.

The system is faulty: tyre
pressures are no longer
monitored.

Check the tyre pressures as soon as possible.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.

Dynamic stability
control
(DSC/ASR)

Flashing.

The DSC/ASR regulation is
operating.

The system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.

Fixed.

The DSC/ASR system has a fault.

Have the system checked by a PEUGEOT dealer or a
qualified workshop.

Airbags

Temporarily on.

This warning lamp comes on for
a few seconds when you turn on
the ignition, then goes off.

This warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.

Fixed.

One of the airbag or seat belt
pyrotechnic pretensioner systems
has a fault.

Have it checked by a PEUGEOT dealer or a qualified
workshop.

Dashboard instruments

Passenger's
airbag system

Fixed.

The control switch, located in
the glove box, is set to the "OFF"
position.
The passenger's front airbag is
deactivated.
You can install a "rearward"
facing child seat, unless there is
a fault with the airbags (airbag
warning lamp on).

To activate the passenger front airbag, turn the control
to the "ON" position.
In this case, do not fit a child seat in the "rearward"
facing position.

Min fuel level

Fixed, with the needle
in the red zone.

Approximately 5 litres of fuel
remain in the tank.
You are now starting to use the
fuel reserve.

You must refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time the ignition
is switched on, until sufficient fuel is added.
Capacity of the tank:
- approximately

50 litres (petrol engines).

- approximately

50 litres (Diesel engines).

- approximately

45 litres (Diesel BlueHDi engines).

Never continue to drive until you run out of fuel, as
this could damage the emission control and injection
systems.

Flashing with the
needle in the red zone.

Very little fuel remains in the
tank.

Foot on the
clutch

Fixed.

In STOP mode of the Stop &
Start, the transition to START
mode has been rejected because
the clutch pedal is not fully
pressed down.

With a manual gearbox, you must depress the clutch
fully to allow the change to engine START mode.

Warning / indicator lamp

State

Cause

Action / Observations

Dashboard instruments

Warning / indicator lamp

State

Cause

Action / Observations

AdBlue

1.6 litre BlueHDi
Euro 6.1

Fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.

The remaining driving range is
between 370 miles (600 km) and
1,500 miles (2,400 km).

Have the AdBlue

topped up as soon as possible: go

to a PEUGEOT dealer or a qualified workshop.
You can add up to 10 litres of AdBlue

to its tank.

Flashing,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.

The remaining driving range is
between 0 and 370 miles (0 and
600 km).

You must top up the AdBlue

to avoid a breakdown

or go to a PEUGEOT dealer or a qualified workshop.
You can add up to 10 litres of AdBlue

to its tank.

Flashing,
accompanied by an
audible signal and a
message indicating
that starting is
prevented.

The AdBlue

tank is empty: the

starting inhibition system required
by legislation prevents starting of
the engine.

To be able to start the engine, you must top up the
AdBlue

or go to a PEUGEOT dealer or a qualified

workshop.
It is essential to add at least 4 litres of AdBlue

to its

tank.

Dashboard instruments

Warning / indicator lamp

State

Cause

Action / Observations

AdBlue

1.5 litre BlueHDi
Euro 6.2

Fixed, for around
30 seconds when
switching on the
ignition, accompanied
by an audible signal
and a message
indicating the remaining
driving range.

The remaining driving range is
between 1,500 miles (2,400 km)
and 500 miles (800 km).

Top up the AdBlue

You can add up to 10 litres of AdBlue

to its tank.

Fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.

The remaining driving range is
between 500 miles (800 km) and
60 miles (100 km).

As soon as possible, top up the AdBlue

You can add up to 10 litres of AdBlue

to its tank.

Flashing,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.

The driving range is less than
60 miles (100 km).

You must refuel AdBlue

to avoid running out.

You can add up to 10 litres of AdBlue

to its tank.

Flashing,
accompanied by an
audible signal and a
message indicating
that starting is
prevented.

The AdBlue

tank is empty: the

starting inhibition system required
by legislation prevents starting of
the engine.

To be able to start the engine, you must top up the
AdBlue

It is essential to add at least 4 litres of AdBlue

to its

tank.

Dashboard instruments

Warning / indicator lamp

State

Cause

Action / Observations

SCR emissions
control system
(BlueHDi Diesel)

Fixed, on switching
on the ignition,
associated with the
service and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message.

A fault with the SCR emissions
control system has been
detected.

This alert disappears once the exhaust emissions
return to normal levels.

Flashing, on switching
on the ignition,
associated with
the service and
engine diagnostic
warning lamps,
accompanied by an
audible signal and a
message indicating
the remaining driving
range.

After confirmation of the fault with
the emissions control system,
you can drive for up to 680 miles
(1,100 km) before the engine
starting inhibition system is
triggered.

Contact a PEUGEOT dealer or a qualified workshop
without delay, to avoid a breakdown.

Flashing, on switching
on the ignition,
associated with the
service and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message.

You have exceeded the
authorised driving limit following
confirmation of a fault with the
emissions control system: the
engine starting inhibition system
prevents starting of the engine.

To be able to restart the engine, you must call on a
PEUGEOT dealer or a qualified workshop.

For topping up or for more information on the AdBlue

(BlueHDi engines), refer to the corresponding section.

Dashboard instruments

Warning / indicator lamp

State

Cause

Action / Observations

Service

Temporarily on, with a
message displayed.

One or more minor faults for
which there is no specific warning
lamp have been detected.

Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with some problems yourself, such as a
door open or the start of saturation of the particle filter
(as soon as the traffic conditions allow, regenerate
the filter by driving at a speed of at least 40 mph
(60 km/h), until the warning lamp goes off).
For any other problems, such as a fault with the tyre
under inflation detection system, contact a PEUGEOT
dealer or a qualified workshop.

Fixed, accompanied
by the display of a
message.

One or more major faults for
which there is no specific warning
lamp have been detected.

Identify the cause of the fault using the message
displayed in the instrument panel; you must then
contact a PEUGEOT dealer or a qualified workshop.

Fixed, associated
with the flashing and
then fixed display of
the service indicator
spanner.

The servicing interval has been
exceeded.

Only on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.

Dashboard instruments

Warning / indicator lamp

State

Cause

Action / Observations

Diesel engine
pre-heating

Fixed.

The key is at position 2 (ignition
on) in the ignition switch.

Wait until the warning lamp goes off before starting.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.

Power steering

Fixed.

The power steering has a fault.

Drive carefully at reduced speed.
Have the vehicle checked by a PEUGEOT dealer or a
qualified workshop.

Rear foglamp

Fixed.

The rear foglamp has been
switched on using the ring on the
lighting control stalk.

Turn the ring on the lighting control stalk to the rear to
switch off the rear foglamp.

Stop & Start

Fixed.

When the vehicle stops (red
lights, traffic jams, etc.), the Stop
& Start system puts the engine
into STOP mode.

The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

Flashes for a few
seconds, then goes
off.

STOP mode is temporarily
unavailable.
or
START mode is triggered
automatically.

For more information on Stop & Start, refer to the
corresponding section.

Dashboard instruments

Warning / indicator lamp

State

Cause

Action / Observations

Automatic
wiping

Fixed.

The wiper control stalk has been
pushed down.

Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.

Left-hand
direction
indicator

Flashing with audible
signal.

The lighting control stalk has
been moved down.

Right-hand
direction
indicator

Flashing with audible
signal.

The lighting control stalk has
been moved up.

Sidelamps

Fixed.

The lighting control stalk is in the
"Sidelamps" position.

Front foglamps

Fixed.

The front foglamps are switched
on using the ring on the lighting
control stalk.

Turn the ring on the lighting control stalk rearward
once to switch off the front foglamps.

Dipped beam
headlamps

Fixed.

The lighting lever is in the
"Dipped beam headlamps"
position.

Main beam
headlamps

Fixed.

The lighting lever has been pulled
towards you.

Pull the lever to return to dipped beam headlamps.

Dashboard instruments

Indicators

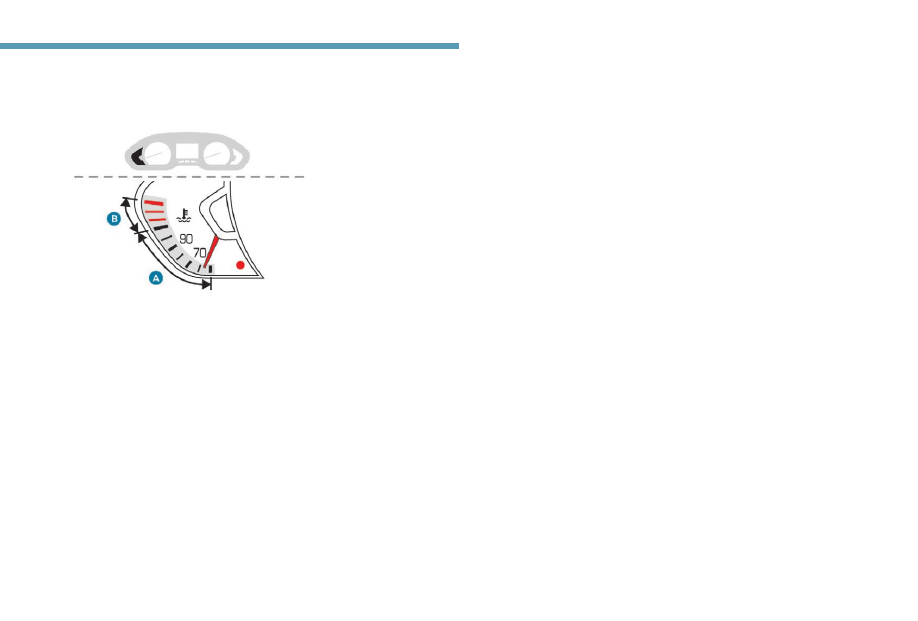

Engine coolant temperature

With the engine running, when the needle is:
-

in zone A, the temperature of the engine
coolant is correct,

in zone B, the temperature of the engine
coolant is too high; the maximum
temperature and the central STOP warning
lamps come on, accompanied by an
audible signal and a warning message in
the screen.

You must stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
Contact a PEUGEOT dealer or a qualified
workshop.

Dashboard instruments

Service indicator

Warning / indicator lamp

State

Cause

Actions / Observations

Service spanner

Fixed, temporary when
the ignition is switched
on.

There are between approximately
620 miles (1,000 km) and
approximately 1,860 miles
(3,000 km) before the next
service is due.

The service indicator is displayed for a few seconds on
the instrument panel. Depending on version:
-

the distance recorder display line indicates the
distance remaining (in kilometres or miles) before
the next service is due.

an alert indicates the distance remaining (in
kilometres or miles) as well as the period before
the next service is due.

The service spanner goes off after a few seconds.
The alert may be triggered close to the due date.

Fixed, when the
ignition is switched on.

Less than approximately
620 miles (1,000 km) remain
before the next service is due.

The service indicator is displayed for a few seconds on
the instrument panel. Depending on version:
-

the distance recorder display line indicates the
distance remaining before the next service is due.

an alert message indicates the distance remaining
as well as the period before the next service is
due.

The service spanner remains on to indicate that the
service is required very soon.
The alert may be triggered close to the due date.

Dashboard instruments

Warning / indicator lamp

State

Cause

Actions / Observations

Service spanner

Flashing then fixed,
when the ignition is
switched on.

The servicing interval has been
exceeded.

The service indicator is displayed for a few seconds on
the instrument panel. Depending on version:
-

the total distance recorder display line indicates
the distance travelled since the due date was
reached. Value preceded by the "-" sign.

an alert message indicates that the due date has
passed.

The service spanner remains on until the service has
been performed.
The alert is triggered when the due date has passed.

Flashing then fixed,
when the ignition
is switched on,
associated with the
service warning lamp.

The servicing interval has been
exceeded for Diesel BlueHDi
versions.

The service indicator is displayed for a few seconds on
the instrument panel. Depending on version:
-

the total distance recorder display line indicates
the distance travelled since the due date was
reached. Value preceded by the "-" sign.

an alert message indicates that the due date has
passed.

The service spanner remains on until the service has
been performed.
The alert is triggered when the due date has passed.

The distance indicated (in kilometres or miles) is calculated according to the mileage covered and the time elapsed since the last service.

Dashboard instruments

Resetting the service indicator

Retrieving the service
information

After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself:
F switch off the ignition,

If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least 5 minutes for the reset to
be registered.

F press and hold the trip distance recorder

reset button,

F switch on the ignition; the distance recorder

display begins a countdown,

F when the display indicates "=0", release

the button; the spanner disappears.

You can access the service information at any
time.

F Press the trip distance recorder reset

button.

The service information is displayed for a few

seconds, then disappears.

Engine oil level indicator

(depending on version)

On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.

The level read will only be correct if the
vehicle is on level ground and the engine
has been off for more than 30 minutes.

Oil level incorrect

This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels,
refer to the corresponding section.

Oil level indicator fault

This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a PEUGEOT dealer or a qualified
workshop.

Dashboard instruments

AdBlue

range indicators

These range indicators are present only on
BlueHDi Diesel versions.
Once the AdBlue

tank is on reserve or after

detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.

In the event of the risk of non-
starting related to a lack of
AdBlue

The engine start prevention system
required by regulations is activated
automatically once the AdBlue

tank is

empty.

In the event of a fault with the electric
indicator, the oil level is no longer
monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking levels,
refer to the corresponding section.

Range of the 1.6 BlueHDi engine
(Euro 6.1)

Range greater than 1,500 miles (2,400 km)
When switching on the ignition, there is no
automatic display of range in the instrument
panel.

Pressing this button
temporarily displays the
driving range with the
message "AdBlue: Range
greater than 1,500 miles
(2,400 km)" followed, if the
tank level of AdBlue permits,
with a message indicating
that you can top it up.

Remaining range between 1,500 and 375 miles
(2,400 and 600 km) (1.6 BlueHDi Euro 6.1)

When switching on the ignition, the warning
lamp comes on, accompanied by an audible
signal and the display of a message (e.g. "Top
up AdBlue: Start-up not possible in x miles")
indicating the remaining range expressed in
miles or kilometres.
When driving, the message is displayed every
200 miles (300 km) until the level is topped up.
The reserve level has been reached; it is
recommended that you top up as soon as
possible.

Dashboard instruments

Remaining range less than 375 miles
(600 km) (1.6 BlueHDi Euro 6.1)

When switching on the ignition, this warning
lamp flashes, accompanied by the permanent
lighting of the service warning lamp, an audible
signal and the display of a message (e.g. "Top
up AdBlue: Start-up not possible in x miles")
indicating the remaining range expressed in
miles or kilometres.
When driving, this message is displayed every
30 seconds until the AdBlue level has been
topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; otherwise
it will not be possible to restart the engine after
the next stop.

Breakdown related to a lack of AdBlue

The AdBlue

tank is empty: the starting

inhibition system required by legislation
prevents starting of the engine.

When switching on the ignition, this warning
lamp flashes, associated with an audible
signal and the display of the message "Top up
AdBlue: Starting impossible".

To be able to restart the engine, it is
essential to add at least 4 litres of AdBlue

to its tank.

Range of the 1.5 BlueHDi
engine (Euro 6.2)

Range greater than 1,500 miles (2,400 km)
When switching on the ignition, there is no
automatic display of range in the instrument
panel.

Remaining range between 1,500 and 500 miles
(2,400 and 800 km) (1.5 BlueHDi Euro 6.2)

When switching on the ignition, this warning
lamp comes on for about 30 seconds,
accompanied by an audible signal and the
display of a message (e.g. "Top up AdBlue:
Start-up not possible in x miles") indicating
the remaining range expressed in miles or
kilometres.
The reserve level has been reached; it is
recommended that you top up as soon as
possible.
These messages are accompanied by the
recommendation to not top up with more than
10 litres of AdBlue.

Remaining range between 500 and 60 miles
(800 and 100 km) (1.5 BlueHDi Euro 6.2)

When switching on the ignition, the warning
lamp comes on, accompanied by an audible
signal (1 beep) and the display of a message
(e.g. "Top up AdBlue: Start-up not possible
in x miles") indicating the remaining range
expressed in miles or kilometres.

Dashboard instruments

Remaining range less than 60 miles
(100 km) (1.5 BlueHDi Euro 6.2)

When driving, the audible signal and the
message display are triggered every 6 miles
(10 km) until the AdBlue tank is topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; otherwise
it will not be possible to restart the engine after
the next stop.

When switching on the ignition, this warning
lamp flashes, accompanied by an audible
signal (1 beep) and the display of a message
(e.g. "Top up AdBlue: Starting impossible
in x miles") indicating the remaining range
expressed in miles or kilometres.)

Breakdown related to a lack of AdBlue

The AdBlue

tank is empty: the starting

inhibition system required by legislation
prevents starting of the engine.

To be able to restart the engine, it is
essential to add at least 4 litres of AdBlue

to its tank.

When switching on the ignition, this warning
lamp flashes, associated with an audible
signal and the display of the message "Top up
AdBlue: Starting impossible".

In the event of a fault with the
SCR emissions control system

An engine immobiliser is activated
automatically after you have driven a
further 650 miles (1,100 km) following
confirmation of a fault with the SCR
emissions control system. Have the
system checked by a PEUGEOT dealer or
a qualified workshop as soon as possible.

In the event of the detection of a fault

If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnostic checks of the SCR
emissions control system.

The warning lamps come on, accompanied
by an audible signal and the display of the
message "Emissions fault".
The alert is triggered while driving as soon
as the fault is detected for the first time, then
when switching on the ignition for subsequent
journeys, while the fault persists.

When driving, the audible signal and the
message display are triggered every 60 miles
(100 km) until the level is topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; otherwise
it will not be possible to restart the engine after
the next stop.

Dashboard instruments

Trip computer

Instrument panel display
screen

F Each press on the end of the wiper

control stalk displays the information in
turn.

- Trip

1 showing:

•  the average speed,
•  the average fuel consumption,
•  the distance travelled,
for the first trip.

Starting prevented

You have exceeded the authorised driving
limit: the starting prevention system does
not allow the engine to be started.

To be able to restart the engine, you must call
on a PEUGEOT dealer or a qualified workshop.

Each time the ignition is switched on, these
warning lamps come on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of the message
"Emissions fault: Starting prevented".

During the permitted driving phase (between
685 and 0 miles (1,100 km and 0 km))

While driving, the message is displayed every
30 seconds while the fault with the SCR
emission control system persists.
The alert is repeated when switching on the
ignition.
You should go to a PEUGEOT dealer or a
qualified workshop as soon as possible.
Otherwise you will not be able to restart the
vehicle.

If a fault with the SCR system is confirmed
(after 30 miles (50 km) covered with the
permanent display of the message signalling
a fault), these warning lamps come on and the
AdBlue warning lamp flashes, accompanied by
an audible signal and the display of a message
(e.g. "Emissions fault: Starting prevented in
200 miles (300 km") indicating the remaining
range expressed in miles or kilometres.

Peugeot 208 (2017 year). Manual - part 2
