INT-20

< ON-VEHICLE REPAIR >

HEADLINING

HEADLINING

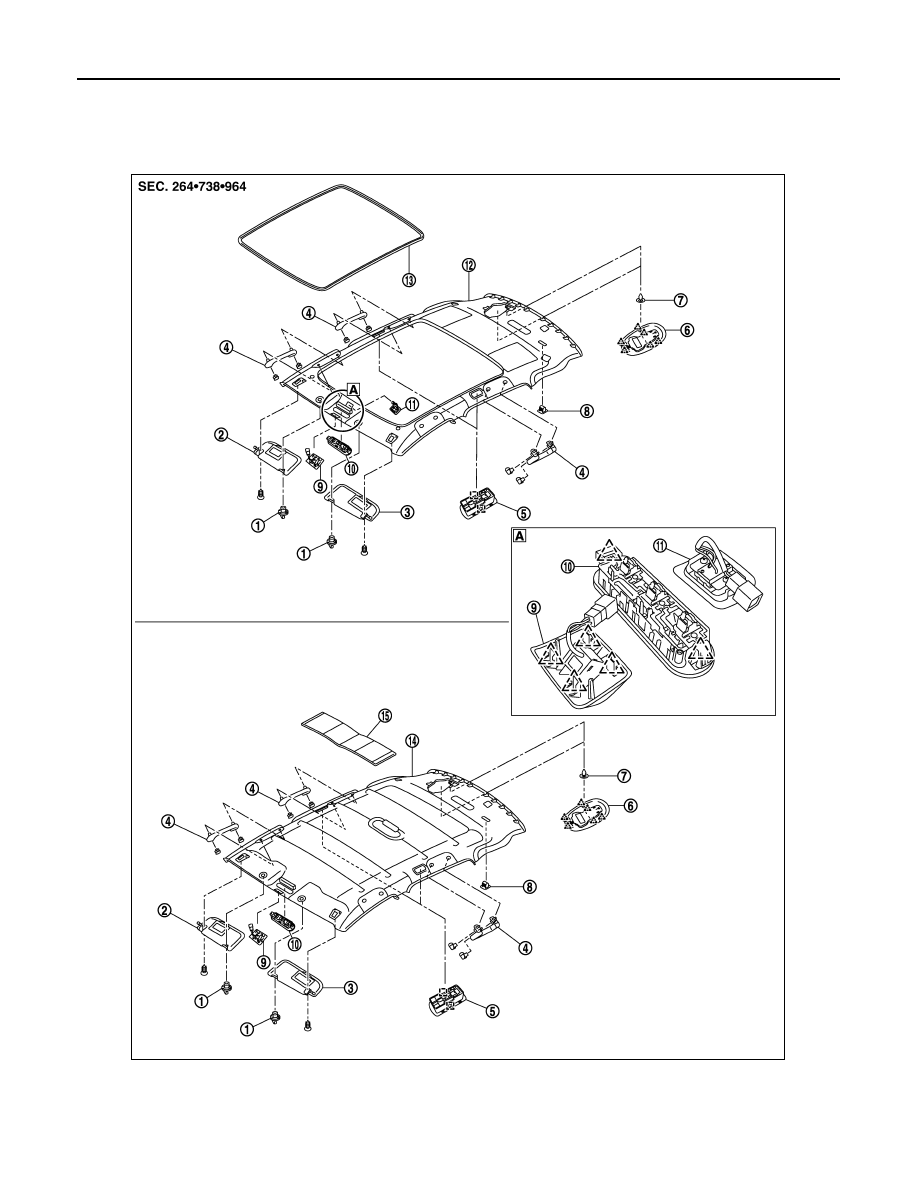

Exploded View

INFOID:0000000000892104

1.

Sun-visor holder

2.

Sun-visor (RH)

3.

Sun-visor (LH)

4.

Assist grip

5.

Personal lamp

6.

Rear seat belt cover

7.

Headlining clip

8.

Headlining clip

9.

Sunroof switch finisher

JMJIA0258ZZ

HEADLINING

INT-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

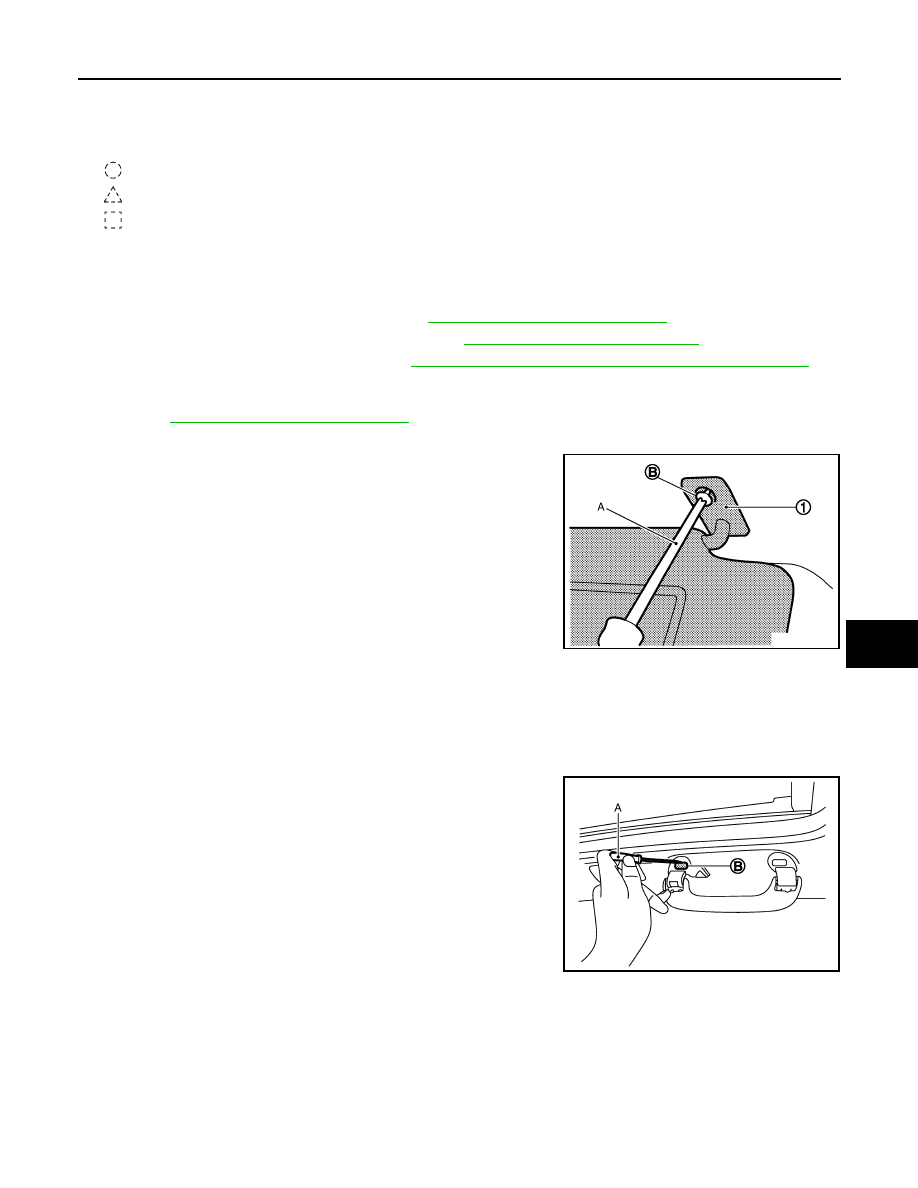

Removal and Installation

INFOID:0000000000892105

REMOVAL

1.

Remove front pillar garnish (LH/RH). Refer to

INT-14, "Removal and Installation"

.

2.

Remove rear seat cushion and seat back. Refer to

SE-31, "Removal and Installation"

.

3.

Remove rear seat belt anchor bolt.Refer to

SB-17, "SEAT BELT BUCKLE : Removal and Installation"

.

4.

Remove front kicking plate inner (LH/RH), center pillar lower garnish (LH/RH), center pillar upper garnish
(LH/RH), rear kicking plate inner (LH/RH), luggage side lower finisher (front), rear pillar finisher (LH/RH).
Refer to

INT-14, "Removal and Installation"

.

5.

Disconnect harness connectors for luggage room lamp after removing rear pillar finisher (LH/RH).

6.

Using screwdriver (A), remove screws (B) from sun-visor
assembly (1).

7.

Unhook the sun-visor bracket from the rear.

8.

Disconnect vanity mirror illumination harness connectors and then remove sun-visor (LH/RH).

9.

Disengage pawls on room lamp, microphone finisher and sunroof switch finisher using remover tool.

10. Disconnect harness connectors for room lamp, microphone finisher and sunroof switch finisher.

11. Remove room lamp, microphone finisher and sunroof switch finisher.

12. Using a flat bladed screwdriver (A), ease out locking pins (B) of

front assistance grip (RH) and rear assistance grip (LH/RH).

13. Pull assistance grips to disengage clips from the fixing holes in the roof metal and remove assistance grip.

14. Disengage pawls of personal lamps (LH/RH) using remover tool.

10. Room lamp

11. Microphone finisher

12. Headlining assembly

(with sunroof glass)

13. Sunroof welt

14. Headlining assembly

(without sunroof glass)

15. Roof insulator

: Clip

: Pawl

: Metal clip

JMJIA0259ZZ

JMJIA0260ZZ

INT-22

< ON-VEHICLE REPAIR >

HEADLINING

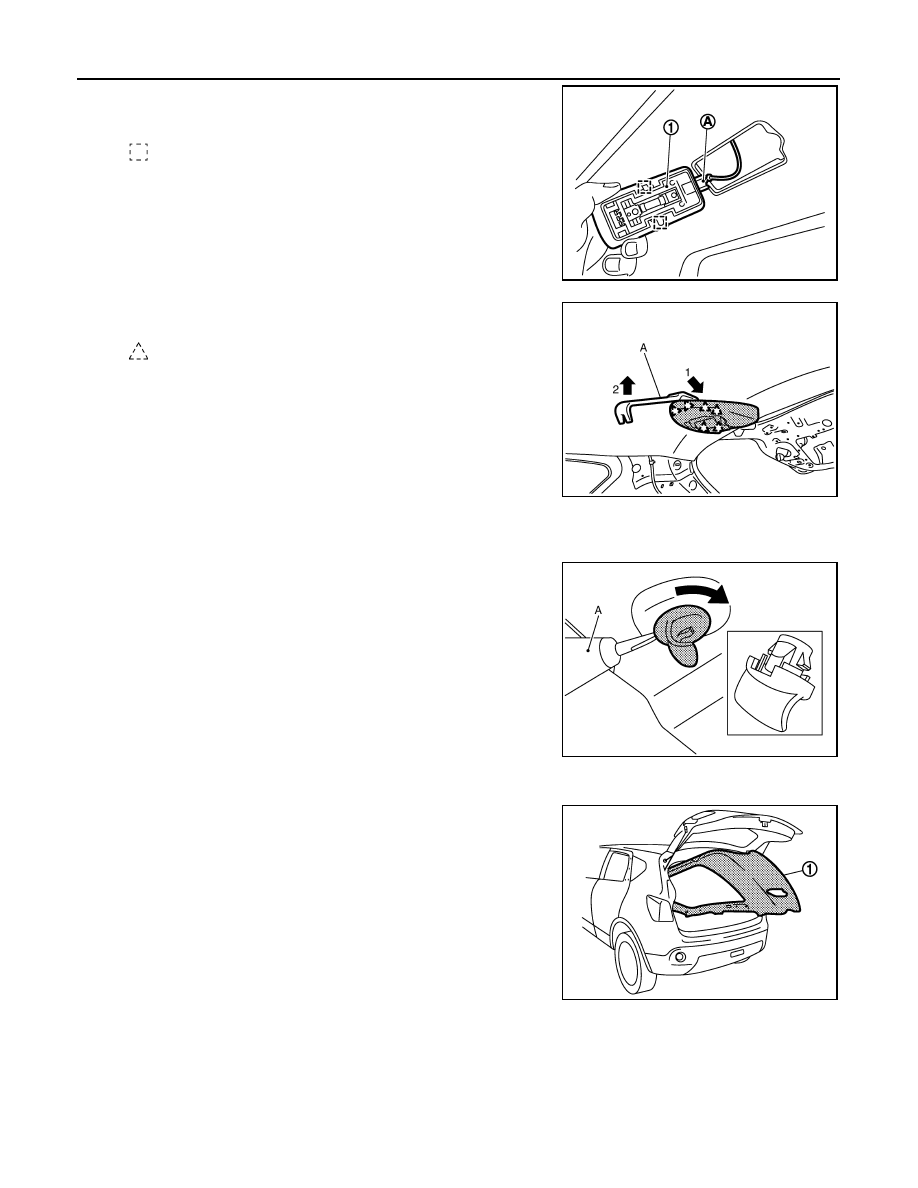

15. Disconnect harness connectors (A) for personal lamps (LH/RH)

and remove personal lamps (1).

16. Remove rear seat belt cover using remover tool (A).

17. Remove sunroof welt.

18. Using remover tool, remove body side headlining clip at the rear side of headlining.

19. Insert flat-bladed screwdriver (A) into the sun-visor holder cut-

out, press and hold while rotating 90 degrees to remove sun-
visor holder (LH/RH).

20. Recline front seat back to facilitate the headlining removal.
21. Remove headlining (1) from back door.

CAUTION:

• When removing, 2 workers are required. (1 for each front

and rear of headlining)

• Cover center console finisher upper surface with a shop

cloth so as to prevent it from being damaged.

• Do not bend headlining when removing.
• Be careful not to scratch or damage any part of the body

while taking out the headlining.

22. Remove the Insulator roof (normal roof only) after removing headlining.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Adjust headlining to the roof frame.

: Metal clip

JMJIA0261ZZ

: Pawl

JMJIA0262ZZ

JMJIA0266ZZ

JMJIA0263ZZ

HEADLINING

INT-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

• As for guide, install sun-visor holder (LH/RH) then both body side mounting headlining clips at the

rear side of headlining.

• Do not bend headlining when installing.
• When installing the sunroof welt, it must be free from visible waviness around full aperture.
• The joint of sunroof welt is to be positioned forward of the rear corner radius on the LH side of the

vehicle.
