INT-12

< ON-VEHICLE REPAIR >

DOOR FINISHER

9.

Remove front door finisher.

10. Remove the following parts after removing door finisher.

• Power window switch front. Refer to

PWC-83, "Removal and Installation"

.

• Seal assembly front door inside.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

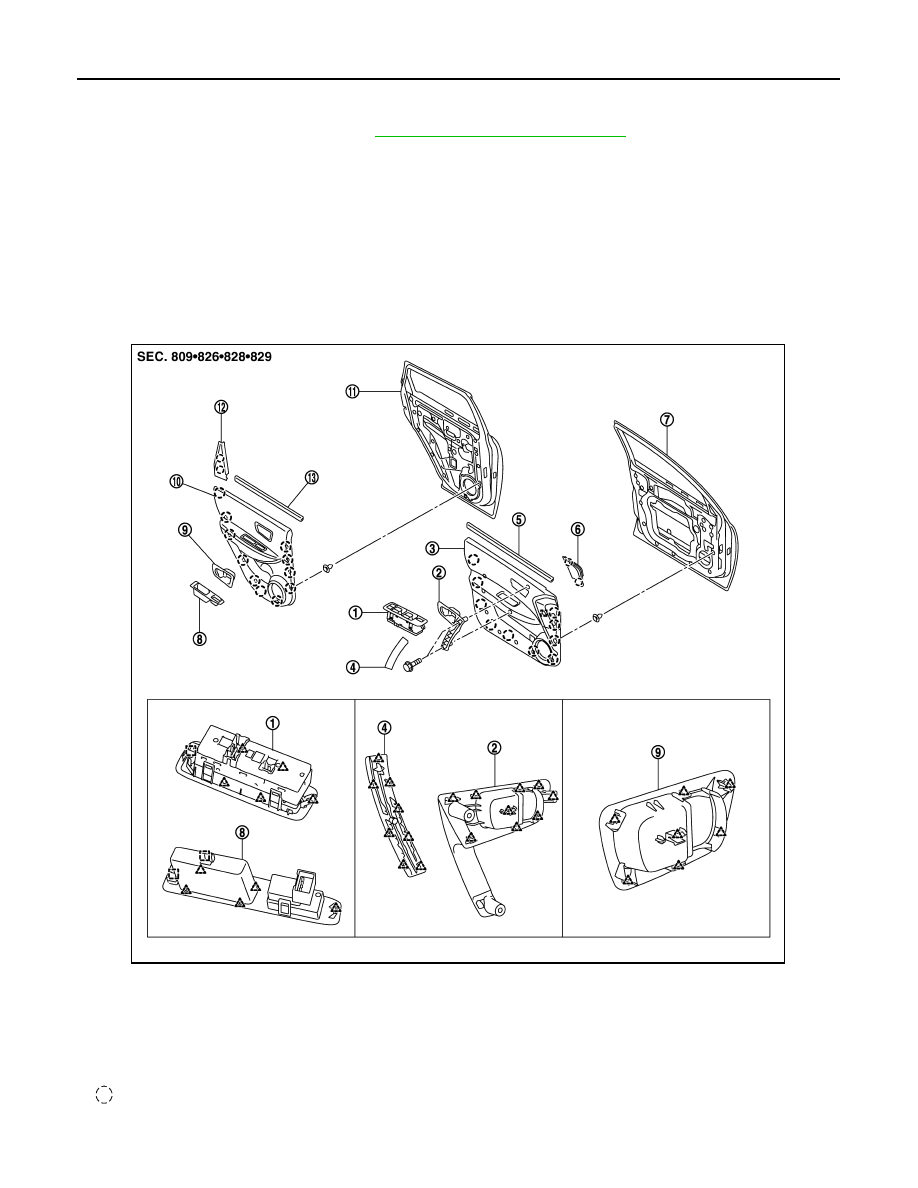

REAR DOOR FINISHER

REAR DOOR FINISHER : Exploded View

INFOID:0000000001051075

1.

Power window switch front (Driver)

2.

Front door grip

3.

Front door finisher (LH)

4.

Cap-Front door grip (LH)

5.

Seal assembly front door inside (LH) 6.

Cover front door inner (LH)

7.

Front door panel

8.

Power window switch rear (LH)

9.

Inside handle escutcheon (rear LH)

10. Rear door finisher (LH)

11. Rear door panel

12. Cover rear door inner (LH)

13. Seal assembly rear door inside (LH)

: Clip

JMJIA0247ZZ

DOOR FINISHER

INT-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

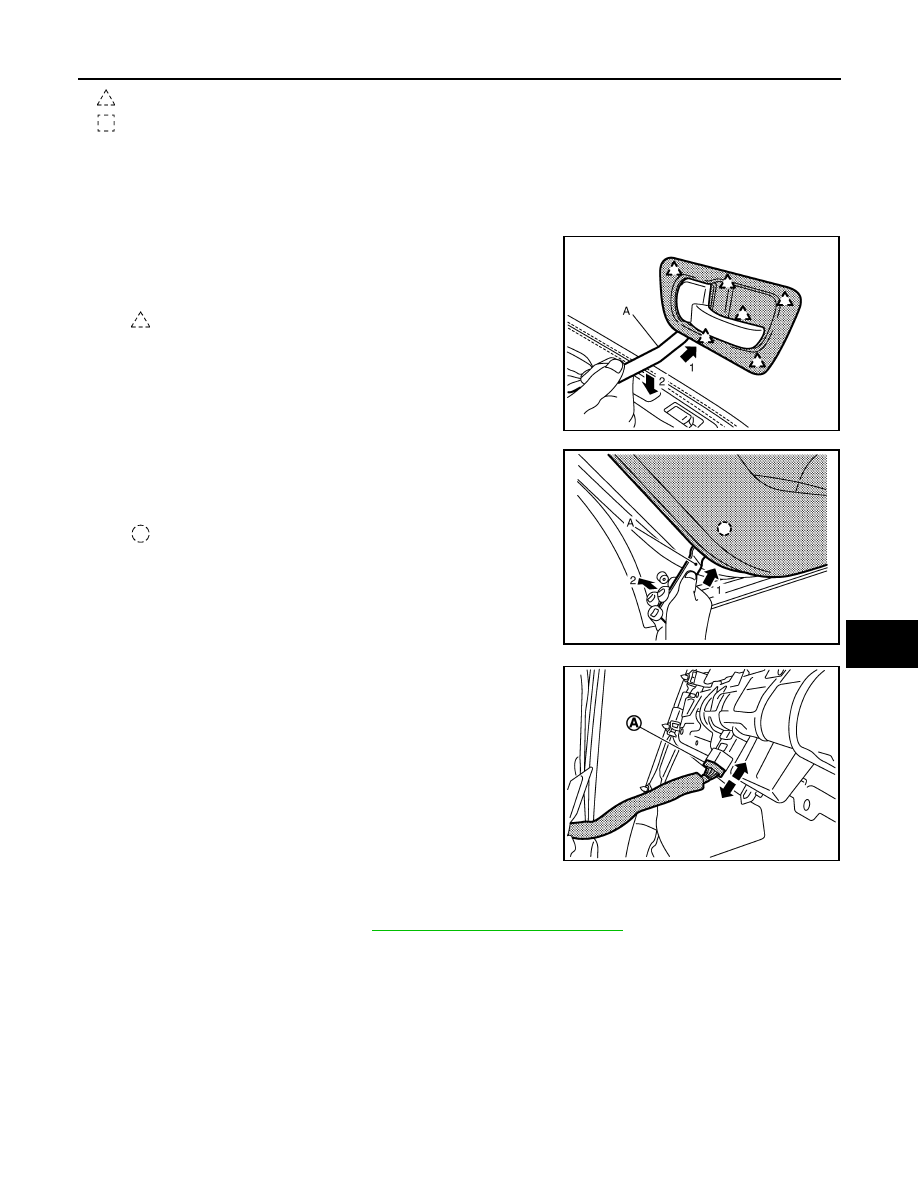

REAR DOOR FINISHER : Removal and Installation

INFOID:0000000001051076

REMOVAL

1.

Fully open door window.

2.

Insert remover tool (A) between door finisher and inside handle
escutcheon (rear LH) to disengage the escutcheon retaining
pawls to door finisher.

3.

Remove inside handle escutcheon.

4.

Insert remover tool (A) between door finisher and door panel to
disengage door finisher mounting clips, starting from the bottom
and working to the top.

5.

Disconnect harness connector (A) for power window switch rear.

6.

Remove rear door finisher.

7.

Remove the following parts after removing door finisher.
• Power window switch rear. Refer to

PWC-83, "Removal and Installation"

.

• Seal assembly rear door inside.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

: Pawl

: Metal clip

: Pawl

JMJIA0255ZZ

: Clip

JMJIA0256ZZ

JMJIA0257ZZ

INT-14

< ON-VEHICLE REPAIR >

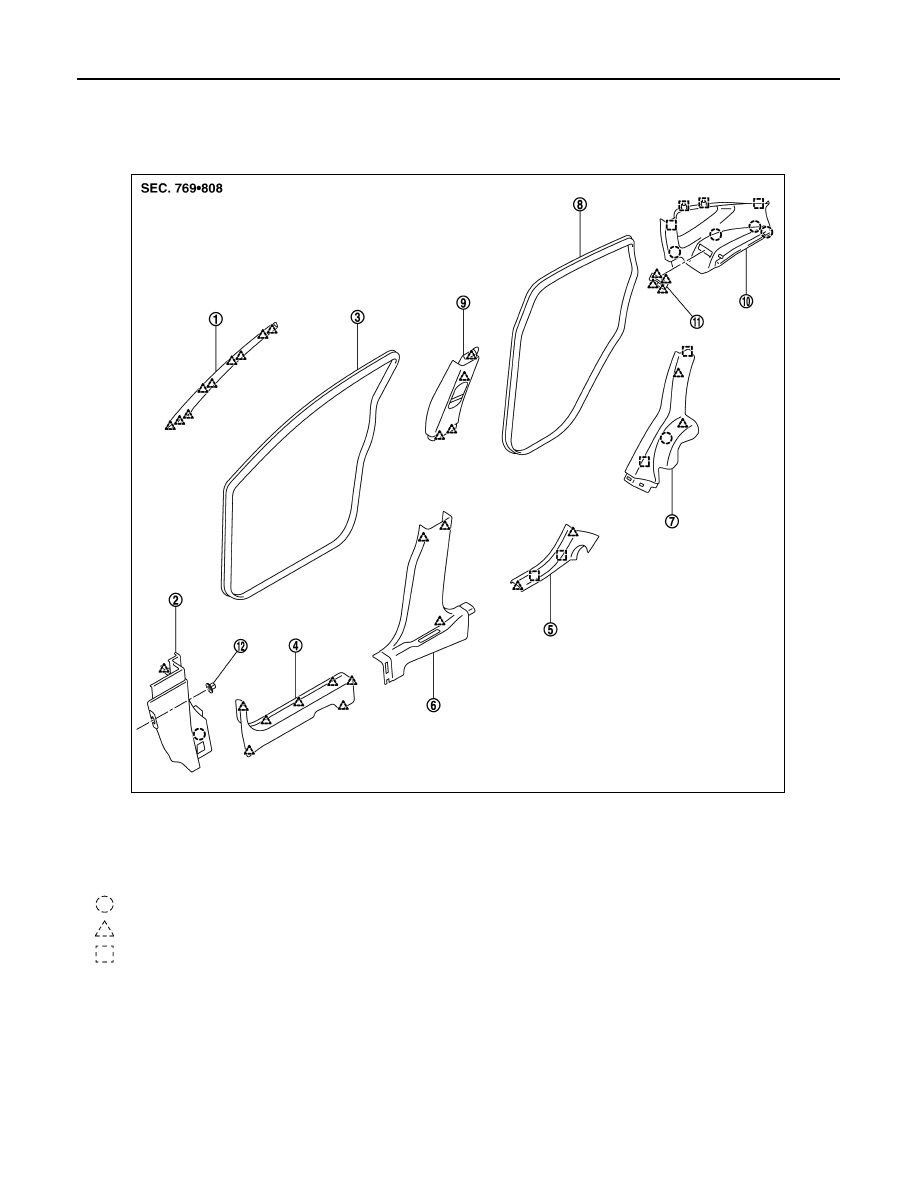

BODY SIDE TRIM

BODY SIDE TRIM

Exploded View

INFOID:0000000000892100

Removal and Installation

INFOID:0000000000892101

CAUTION:

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

REMOVAL

FRONT PILLAR GARNISH

1.

Remove welt body side front (RH).

1.

Front pillar garnish

2.

Dash side finisher

3.

Welt body side front (RH)

4.

Front kicking plate inner

5.

Rear kicking plate inner

6.

Center pillar lower garnish

7.

Luggage side lower finisher (front)

8.

Welt body side rear (RH)

9.

Center pillar upper garnish

10. Rear pillar finisher (RH)

11. Rear seat belt escutcheon

12. Clip-trim

: Clip

: Pawl

: Metal clip

JMJIA0239ZZ

BODY SIDE TRIM

INT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

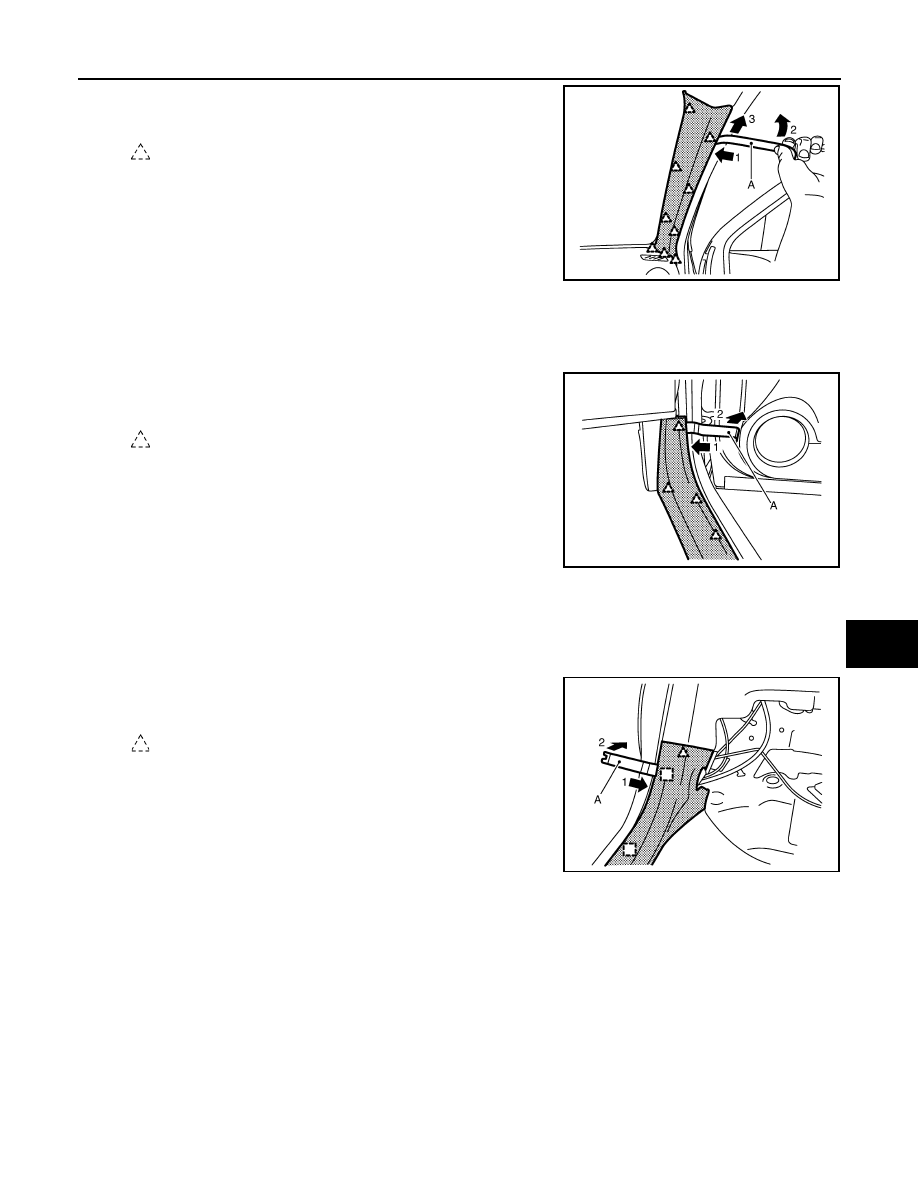

2.

Disengage front pillar garnish mounting pawls using remover
tool (A).

3.

Once free, pull front pillar garnish upwards to disengage the lower locating tab from instrument panel.

4.

Remove front pillar garnish.

FRONT KICKING PLATE INNER

1.

Disengage front kicking plate inner mounting pawls using
remover tool (A).

2.

Pull upwards and rearwards to disengage the clips from body, dash side finisher and center pillar lower
garnish.

3.

Remove front kicking plate inner.

REAR KICKING PLATE INNER

1.

Insert remover tool (A) between rear kicking plate inner and
body side panel to disengage pawls.

2.

Pull upwards to disengage the pawls from the body, center pillar lower garnish and luggage side lower fin-
isher (front).

3.

Remove rear kicking plate inner.

CENTER PILLAR LOWER GARNISH

1.

Remove front and rear kicking plate.

: Pawl

JMJIA0240ZZ

: Pawl

JMJIA0241ZZ

: Pawl

JMJIA0242ZZ
