INT-24

< ON-VEHICLE REPAIR >

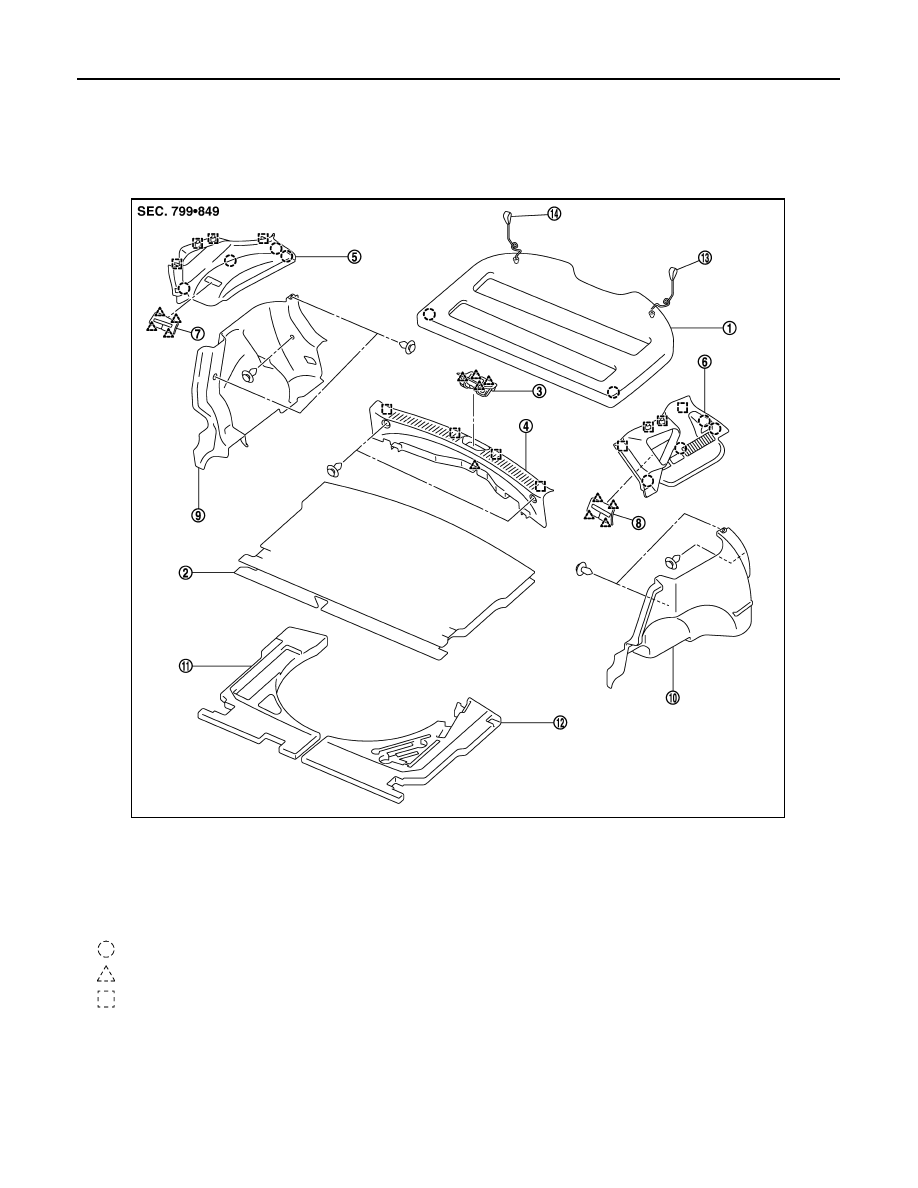

LUGGAGE FLOOR TRIM

LUGGAGE FLOOR TRIM

Exploded View

INFOID:0000000000892106

TRUNK ROOM TRIM

Removal and Installation

INFOID:0000000000892107

REMOVAL

LUGGAGE REAR PLATE

1.

Fully open back door.

1.

Parcel shelf

2.

Luggage floor carpet

3.

Luggage rear plate cap

4.

Luggage rear plate

5.

Rear pillar finisher (RH)

6.

Rear pillar finisher (LH)

7.

Rear seat belt escutcheon (RH)

8.

Rear seat belt escutcheon (LH)

9.

Luggage side lower finisher (RH)

10. Luggage side lower finisher (LH)

11. Luggage floor spacer (RH)

12. Luggage floor spacer (LH)

13. Hook rope (LH)

14. Hook rope (RH)

: Clip

: Metal

: Metal clip

JMJIA0234ZZ

LUGGAGE FLOOR TRIM

INT-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

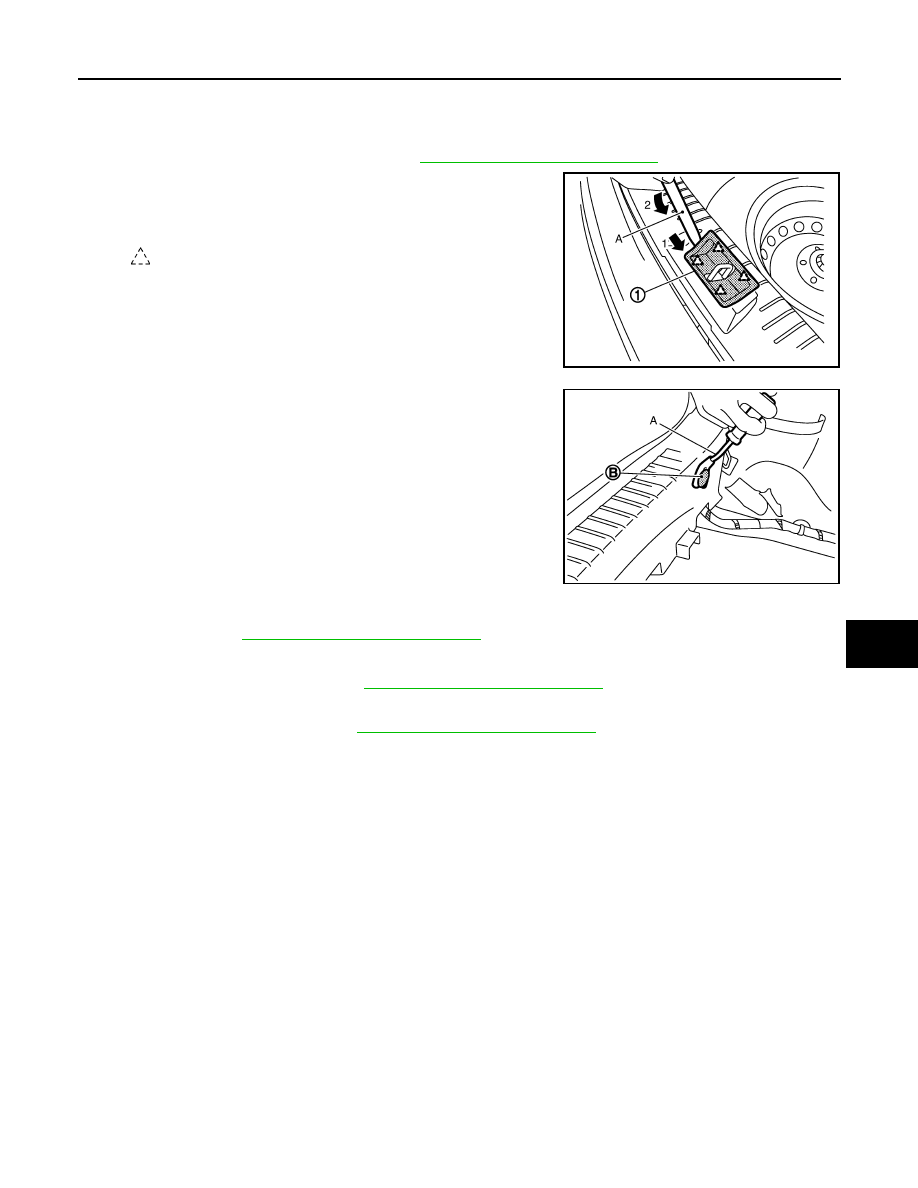

2.

Remove parcel shelf.

3.

Remove luggage floor carpet.

4.

Remove back door welt.

5.

Remove rear pillar finisher (LH/RH).Refer to

INT-14, "Removal and Installation"

.

6.

Insert remover tool (A) between luggage rear plate and luggage
rear plate cap (1) to disengage pawls and then remove luggage
rear plate cap.

7.

Remove both clips (B) on luggage rear plate using a remover
tool (A).

8.

Hold both sides of rear plate, pull upwards to remove.

REAR PILLAR FINISHER

Refer to body side trim

INT-14, "Removal and Installation"

.

LUGGAGE SIDE LOWER FINISHER

1.

Remove luggage rear plate.Refer to

INT-24, "Removal and Installation"

.

2.

Remove luggage floor carpet.

3.

Remove rear pillar finisher.Refer to

INT-14, "Removal and Installation"

.

4.

Remove clips on luggage side lower finisher (LH/RH) by using remover tool.

5.

Remove luggage side lower finisher (left/right).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMJIA0235ZZ

JMJIA0236ZZ

INT-26

< ON-VEHICLE REPAIR >

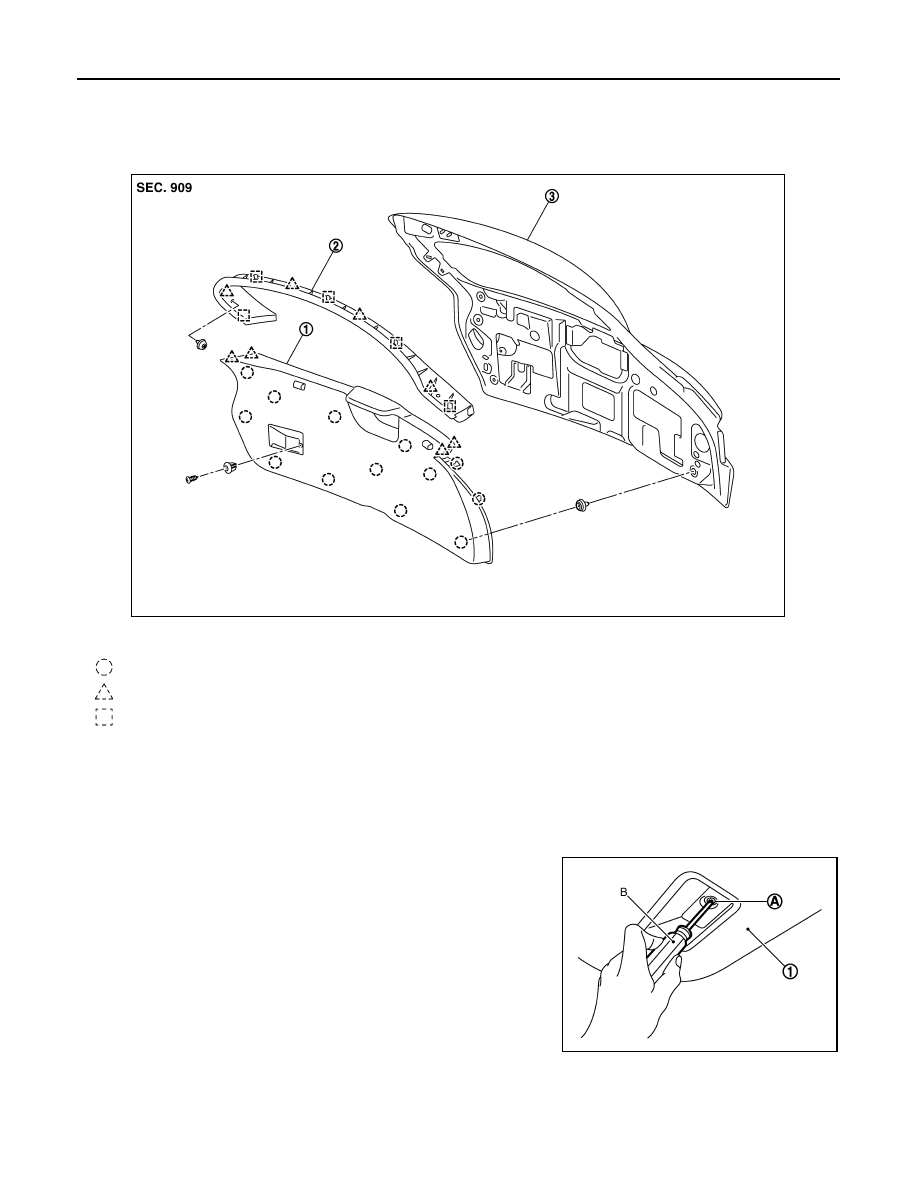

BACK DOOR TRIM

BACK DOOR TRIM

Exploded View

INFOID:0000000000892108

Removal and Installation

INFOID:0000000000892109

REMOVAL

BACK DOOR TRIM

1.

Fully open back door.

2.

Remove screw tap (A) located in back door trim finisher lower
(1) with screwdriver (B).

1.

Back door trim finisher lower

2.

Back door trim finisher upper

3.

Back door assembly

: Clip

: Pawl

: Metal clip

JMJIA0231ZZ

JMJIA0233ZZ

BACK DOOR TRIM

INT-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

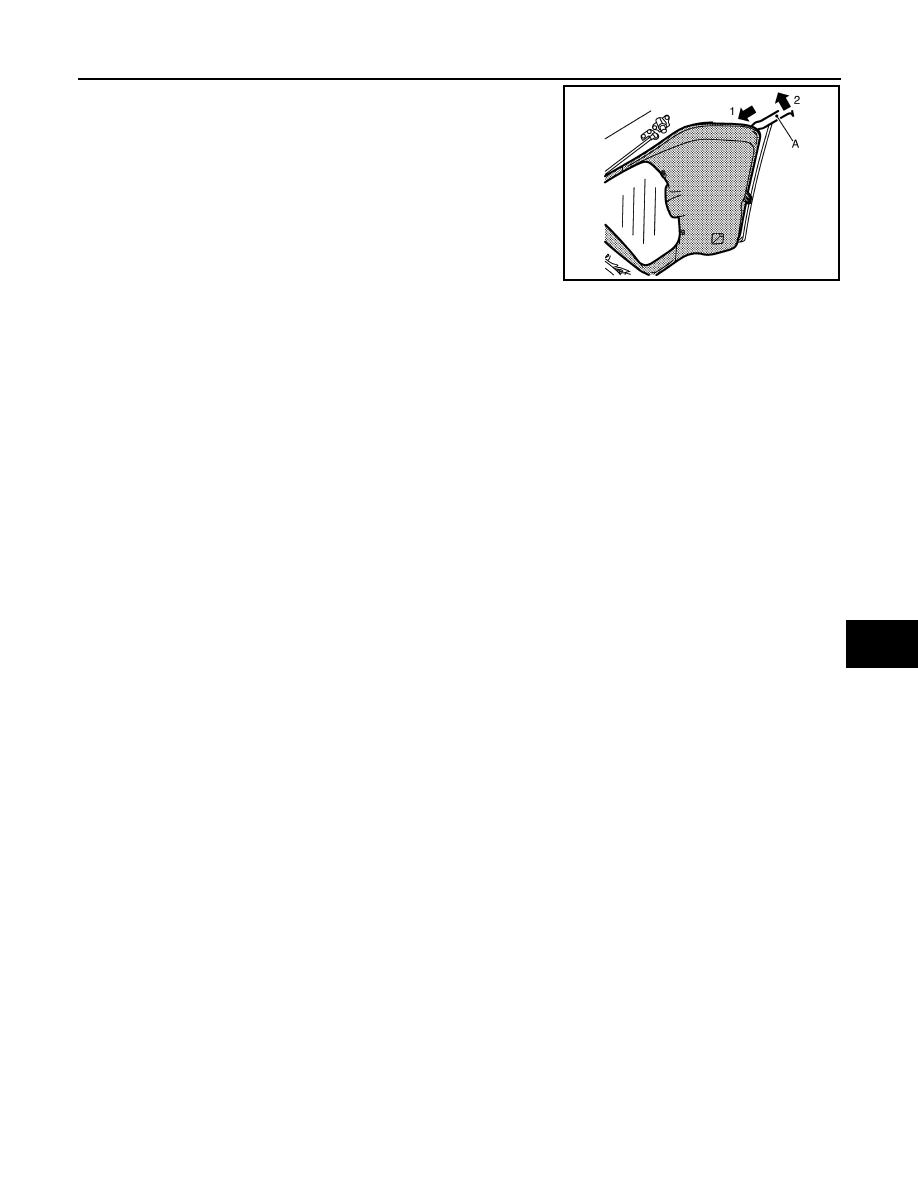

3.

Insert remover tool (A) between back door trim finisher lower
and back door panel to disengage clips.Starting by the lower
downwards and works around the edges and up to the sides.

4.

Pull downwards carefully the back trim finisher to disengage center clips and remove back door trim fin-
isher.

5.

Remove back door trim finisher upper.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.
