Nissan Qashqai (2007-2010). Manual - part 870

HA-50

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER (HR/MR)]

CONDENSER

12. Release radiator maintaining pawls, then pull-up the condenser assembly to release it from radiator. Refer

to

CO-13, "Removal and Installation"

 (HR engine models) or

CO-35, "Removal and Installation"

 (MR

engine models).

13. Maintain radiator pushing back.

14. Pull upward to remove condenser.

CAUTION:

Take care do not damaged condenser or radiator.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of high-pressure flexible hose and high-pressure pipe 1 with new ones, and then

apply compressor oil to it when installing it.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• When recharging refrigerant, check for leaks.

LIQUID TANK

HA-51

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER (HR/MR)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

LIQUID TANK

Exploded View

INFOID:0000000001093798

Removal and Installation

INFOID:0000000001093799

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove engine cover ornament. Refer to

EM-146, "Exploded View"

 (MR engine models).

3.

Clean liquid tank and its surrounding area, and remove dust and rust from liquid tank.

CAUTION:

Be sure to clean carefully.

4.

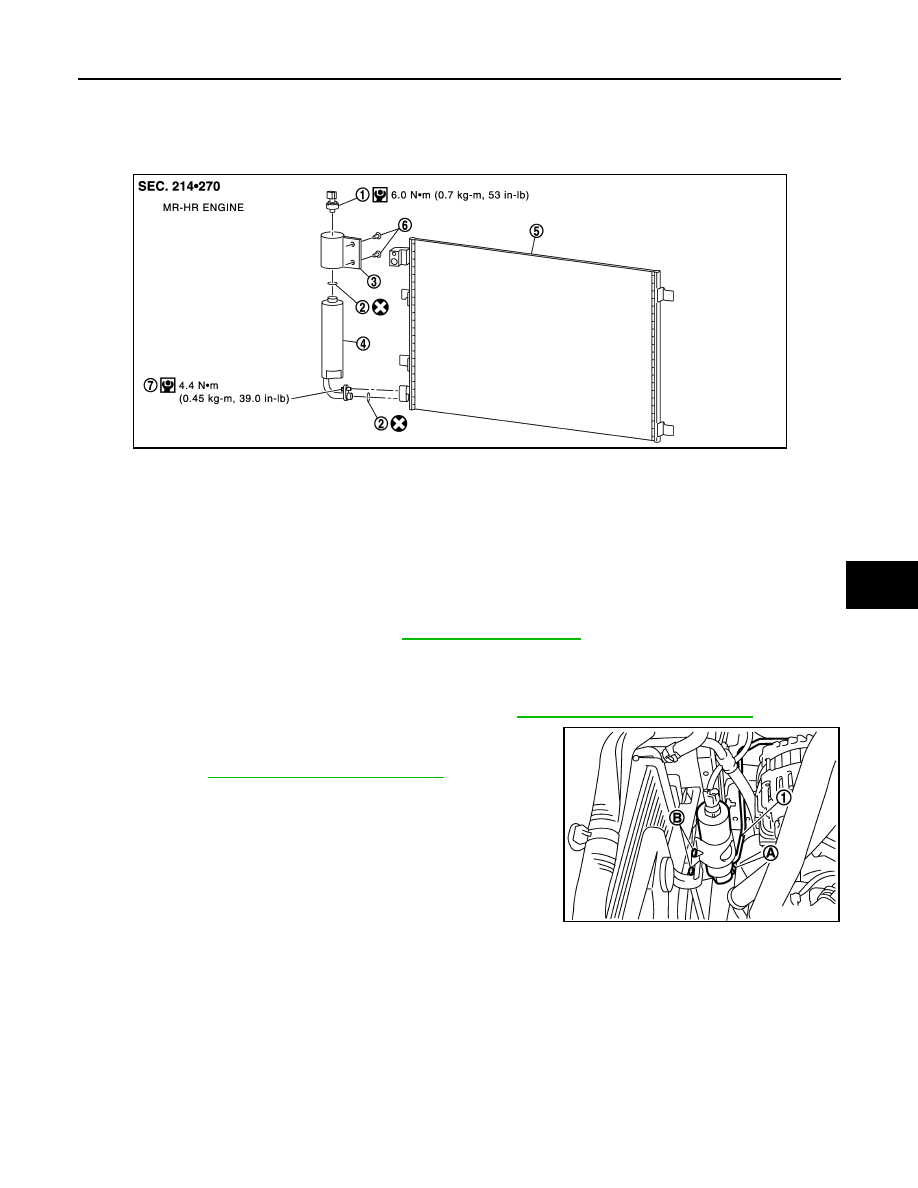

Disconnect refrigerant sensor harness connector. Refer to

HA-52, "Removal and Installation"

.

5.

Remove liquid tank bracket support mounting screws (B).

6.

Remove high pressure pipe 1 (1) mounting bolt (A) from liquid
tank. Refer to

HA-45, "Removal and Installation"

.

7.

Remove liquid tank high pressure pipe mounting bolt (A) from
condenser.

8.

Remove liquid tank pipe bracket fixing screw.

CAUTION:

Cap or wrap the joint of high pressure pipe, liquid tank
pipes and condenser with suitable material such as vinyl
tape to avoid the entry of air.

9.

Remove liquid tank assembly.

INSTALLATION

 Install liquid tank, and then install liquid tank bracket on condenser.

CAUTION:

• Make sure liquid tank bracket is securely installed at protrusion of condenser. (Make sure liquid tank

bracket does not move to a position below center of liquid tank.)

• Replace O-rings of A/C piping with new ones, and then apply compressor oil to it when installing it.
• When recharging refrigerant, check for leaks.

1.

Refrigerant pressure sensor

2.

O-ring

3.

Liquid tank bracket

4.

Liquid tank

5.

Condenser

6.

Liquid tank fixing screw

7.

Liquid tank pipe fixing bolt

E1KIA0050GB

E1KIA0068ZZ

HA-52

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER (HR/MR)]

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR

Exploded View

INFOID:0000000001093800

Removal and Installation

INFOID:0000000001093801

REMOVAL

1.

Remove liquid tank. Refer to

HA-51, "Exploded View"

.

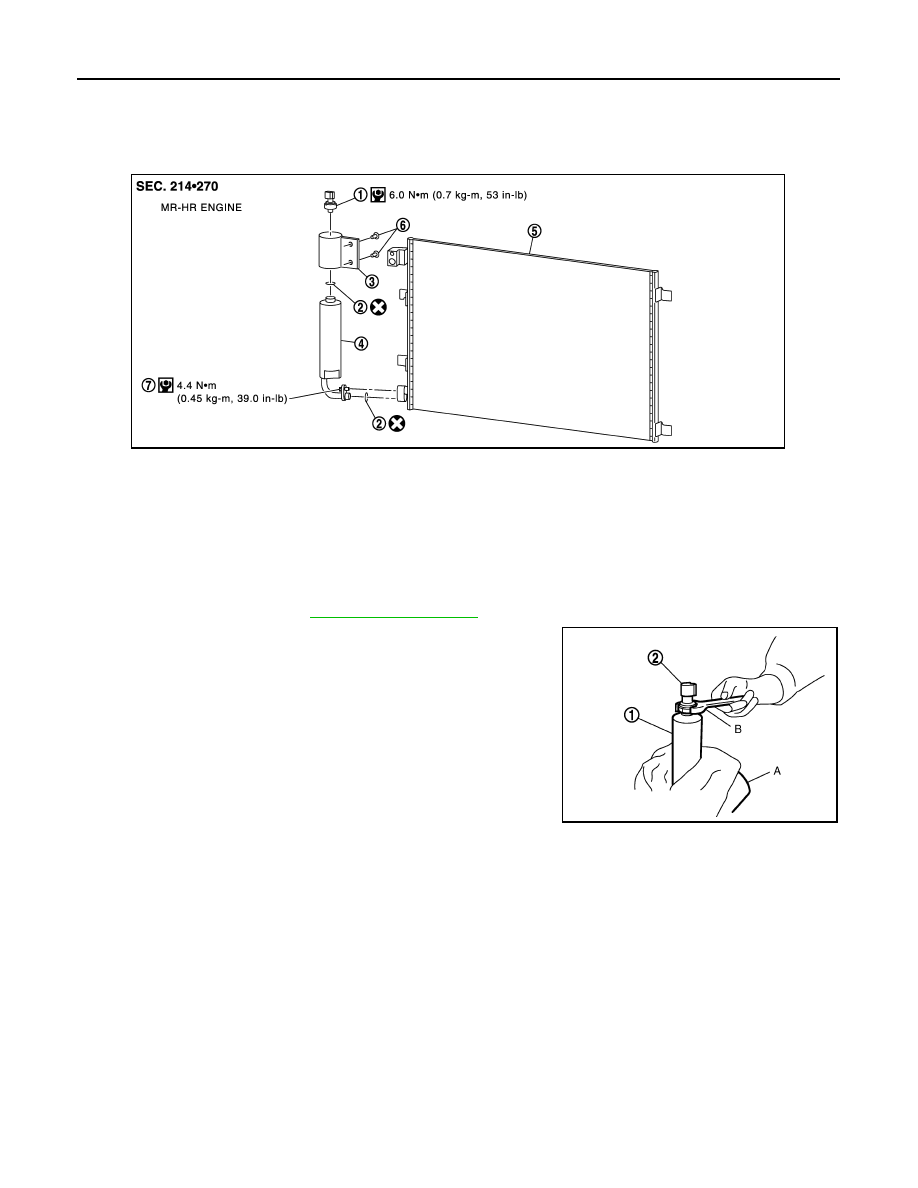

2.

Fix the liquid tank (1) with a vise (A). Remove the refrigerant
pressure sensor (2) with a wrench (B).

CAUTION:

Be careful not to damage liquid tank.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Apply compressor oil to O-ring of refrigerant pressure sensor when installing it.
• When recharging refrigerant, check for leaks.

1.

Refrigerant pressure sensor

2.

O-ring

3.

Liquid tank bracket

4.

Liquid tank

5.

Condenser

6.

Liquid tank fixing screw

7.

Liquid tank pipe fixing bolt

E1KIA0050GB

JSIIA0075ZZ

EVAPORATOR

HA-53

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER (HR/MR)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

EVAPORATOR

Exploded View

INFOID:0000000001093802

Removal and Installation

INFOID:0000000001093803

REMOVAL

1.

Remove low-pressure pipe 2 and high-pressure pipe 1 from expansion valve. Refer to

HA-41, "Removal

and Installation"

. Refer to

HA-45, "Removal and Installation"

.

CAUTION:

Cap or wrap the joint of expansion valve, low-pressure pipe 2 and high-pressure pipe 1 with suit-
able material such as vinyl tape to avoid the entry of air.

2.

Remove heater and cooling fixing clamp and hoses. Refer to

VTL-32, "Removal and Installation"

, Refer to

CO-13, "Removal and Installation"

 (HR engine models) or

CO-35, "Removal and Installation"

 (MR engine

models).

3.

Remove heater and cooling unit assembly. Refer to

VTL-32, "Removal and Installation"

.

4.

Remove evaporator cover fixing screws and cover. Refer to

HA-53, "Removal and Installation"

.

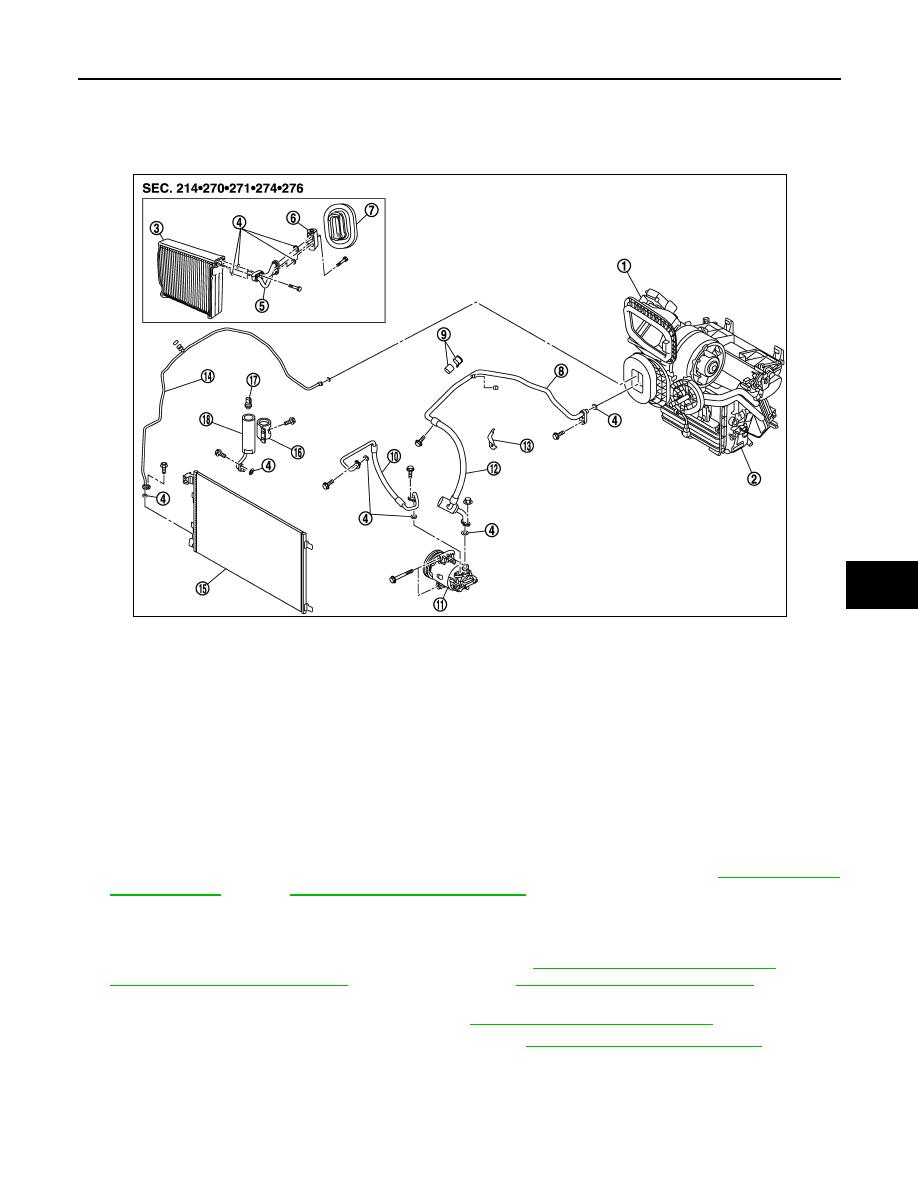

1.

Heater & blower unit assembly

2.

Heater & cooling unit assembly

3.

Evaporator

4.

O-ring

5.

Low pressure pipe 1 and high pres-
sure pipe 2 assembly

6.

Expansion valve

7.

Heater sealing

8.

Low pressure flexible hose and pipe
2

9.

Low pressure pipe 2 fixing clamp as-
sembly

10. High pressure flexible hose

11.

Compressor

12. Low pressure flexible hose

13. Low & high pipe bracket support

14. High pressure pipe 1

15. Condenser assembly

16. Liquid tank fixing bracket

17. Refrigerant pressure sensor

18. Liquid tank

E1KIA0037GB
