EVAPORATOR

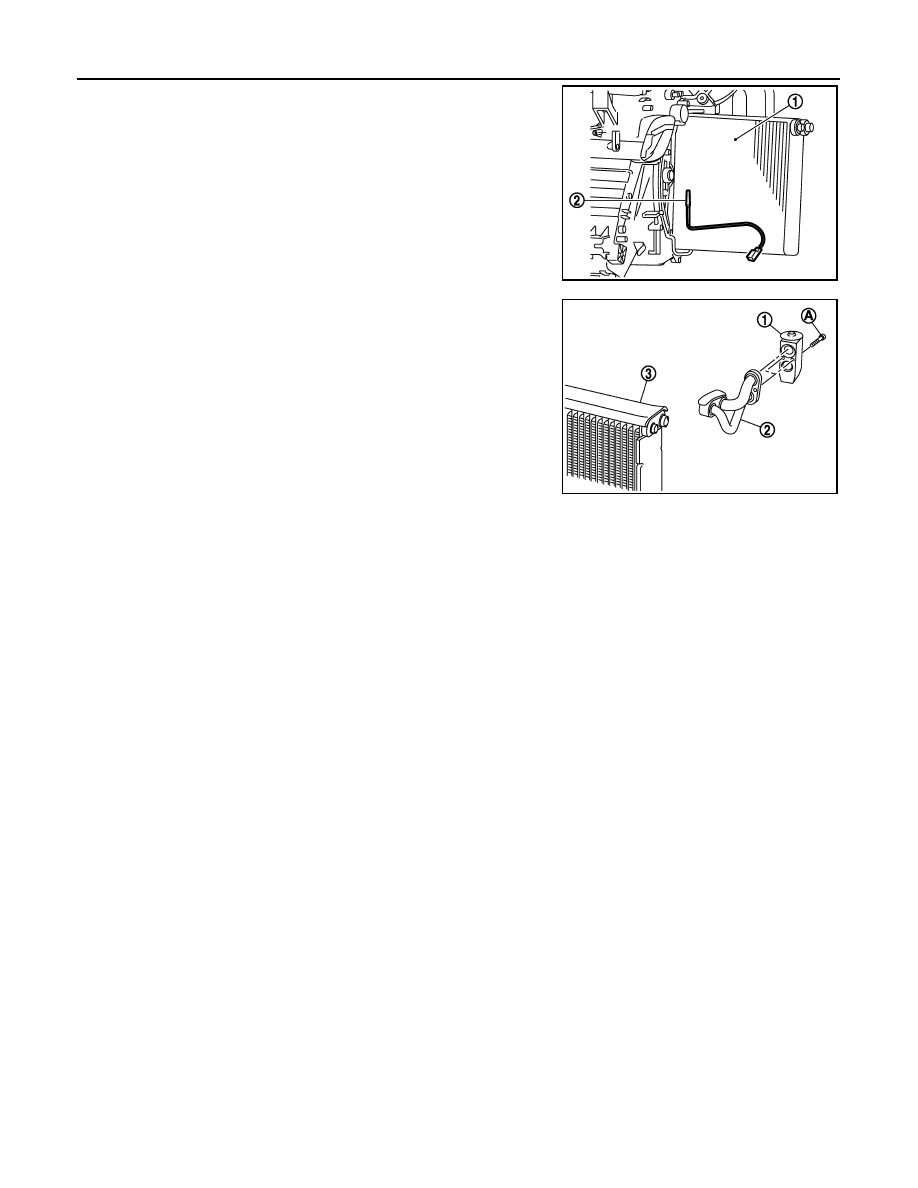

Slide evaporator (1) and intake sensor (2) from heater and cool-
ing unit assembly.

Remove evaporator assembly.

Cut upper insulator (3) and remove mounting bolt (A), expansion
valve (1) and pressure pipe assembly(2), from evaporator.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of low-pressure pipe 1 and high-pressure pipe 2 with new ones, and then apply

compressor oil to it when installing it.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• O-rings are different from low-pressure flexible hose (high-pressure pipe 1) and low-pressure pipe 1

(high-pressure pipe 2).

• Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor

can be located in the same position.

• When recharging refrigerant, check for leaks.

E1KIA0061ZZ

E1KIA0062ZZ

EXPANSION VALVE

HA-55

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER (HR/MR)]

EXPANSION VALVE

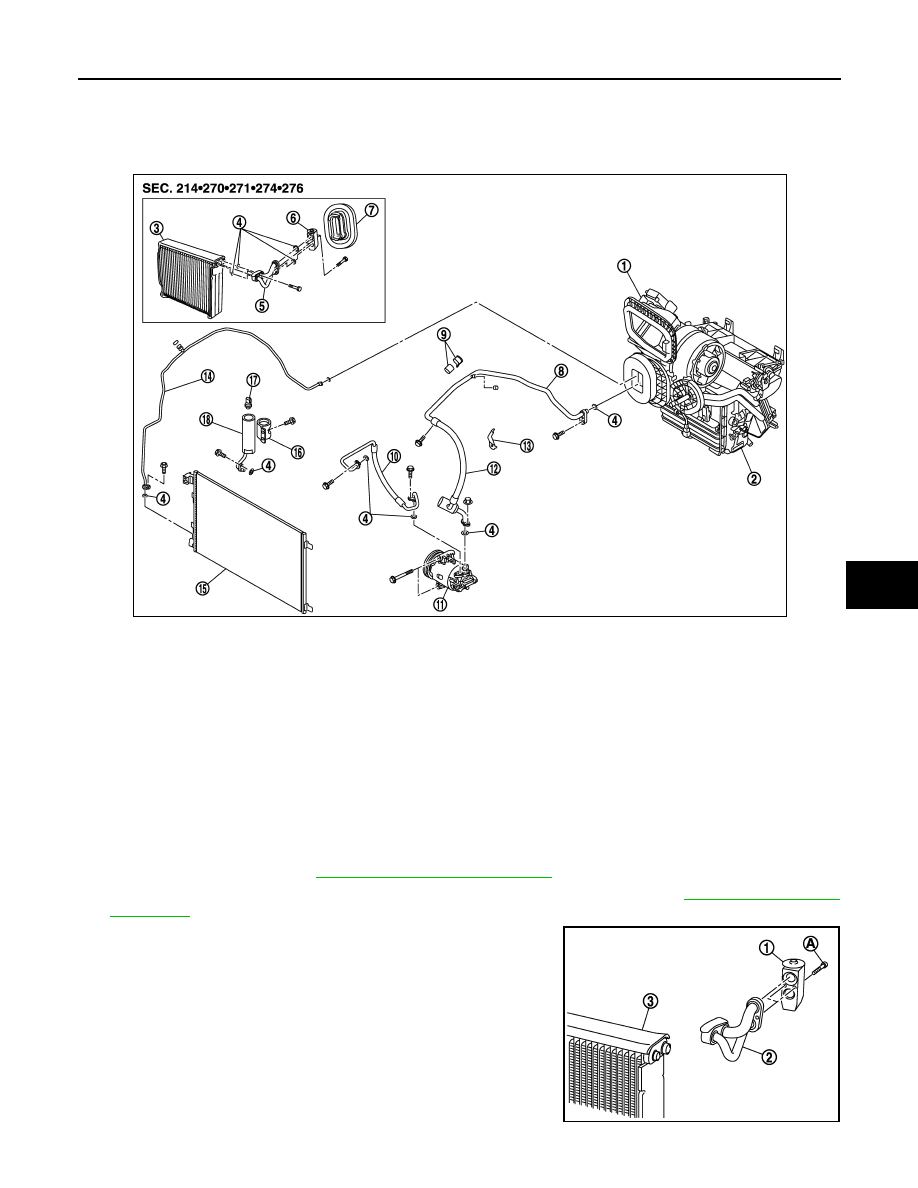

Exploded View

INFOID:0000000001093804

Removal and Installation

INFOID:0000000001093805

REMOVAL

Remove evaporator. Refer to

HA-53, "Removal and Installation"

Remove low pressure pipe 1 and high pressure pipe 2 assembly (2). Refer to

HA-47, "Removal and

Installation"

Remove mounting bolts (A), and then remove expansion valve
(1) from low and high, pressure pipe assembly (2).

CAUTION:

Cap or wrap the joint of expansion valve, low and high pres-
sure pipe assembly, evaporator and expansion valve with
suitable material such as vinyl tape to avoid the entry of air.

Heater & blower unit assembly

Heater & cooling unit assembly

Evaporator

O-ring

Low pressure pipe 1 and high pres-
sure pipe 2 assembly

Expansion valve

Heater sealing

Low pressure flexible hose and pipe
2

Low pressure pipe 2 fixing clamp as-
sembly

10. High pressure flexible hose

11.

Compressor

12. Low pressure flexible hose

13. Low & high pipe bracket support

14. High pressure pipe 1

15. Condenser assembly

16. Liquid tank fixing bracket

17. Refrigerant pressure sensor

18. Liquid tank

E1KIA0037GB

E1KIA0062ZZ

HA-56

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER (HR/MR)]

EXPANSION VALVE

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of evaporator with new ones, and then apply compressor oil to it when installing it.
• O-rings are different from low-pressure pipe 1 (high-pressure pipe 1) and low-pressure pipe 2 (high-

pressure pipe 2).

• When recharging refrigerant, check for leaks.
