Installation is basically the reverse order of removal.

VTL-74

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

AMBIENT SENSOR

AMBIENT SENSOR

Exploded View

INFOID:0000000001093834

Removal and Installation

INFOID:0000000001093835

REMOVAL

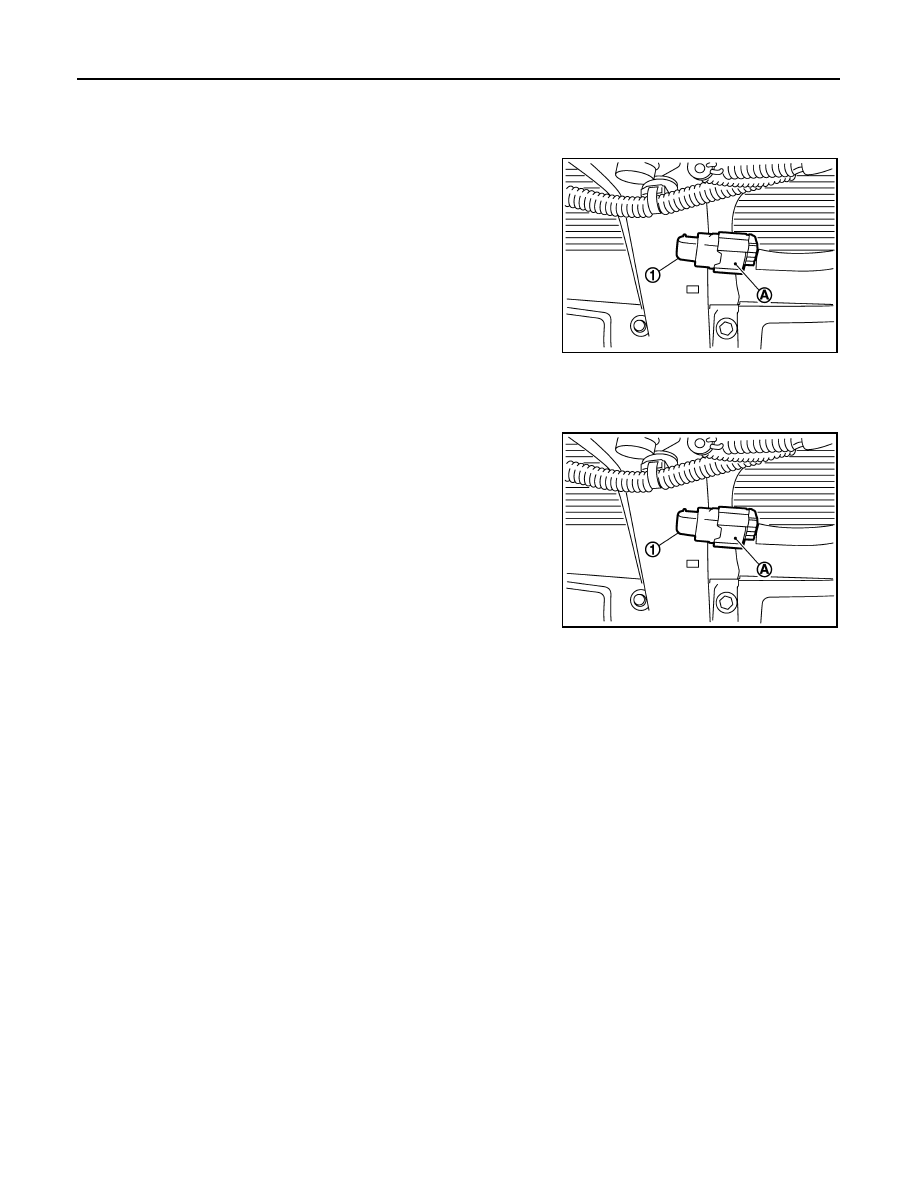

1.

Disconnect ambient sensor connector (A), and then remove
ambient sensor (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Ambient sensor

E1IIA0005ZZ

E1IIA0005ZZ

IN-VEHICLE SENSOR

VTL-75

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

IN-VEHICLE SENSOR

Exploded View

INFOID:0000000001093836

Removal and Installation

INFOID:0000000001093837

REMOVAL

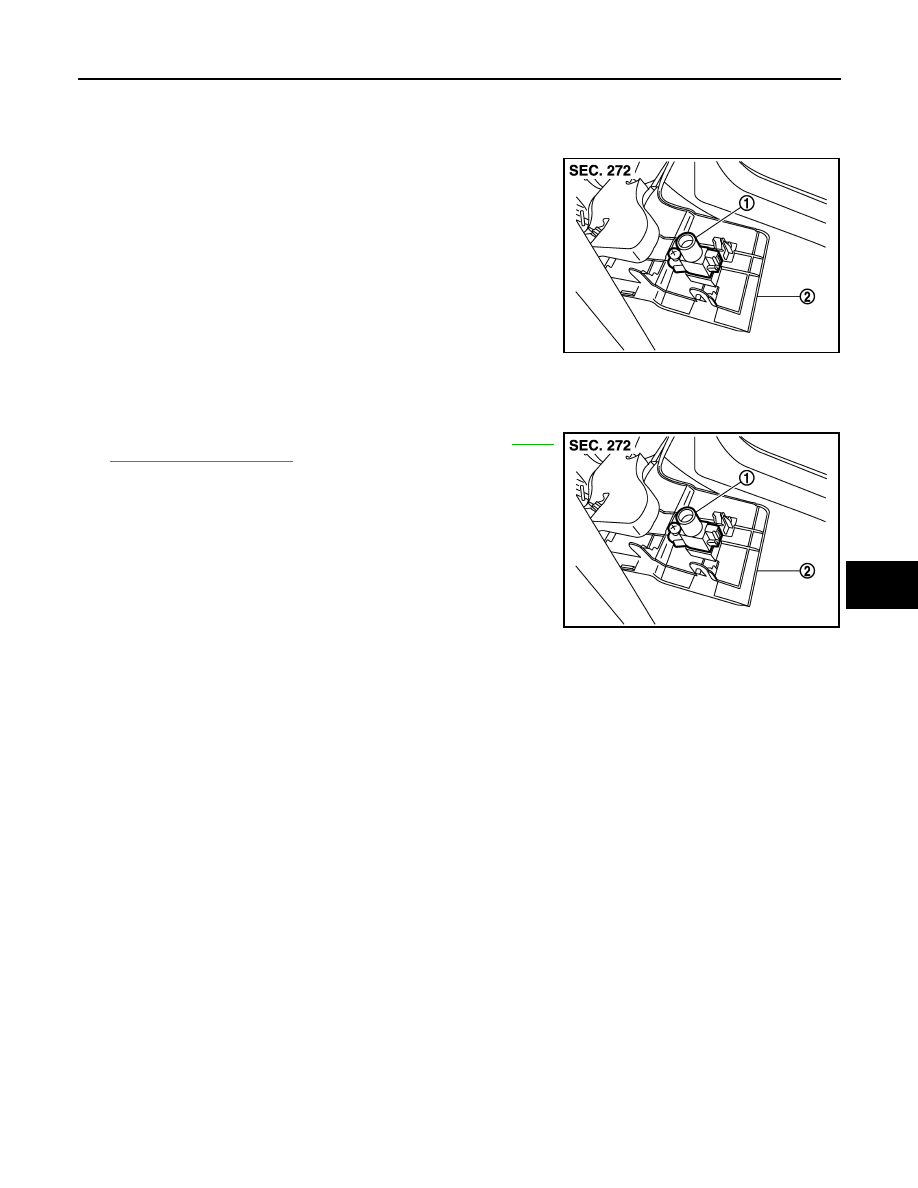

1.

Remove instrument driver lower panel (2). Refer to

IP-12,

"Removal and Installation"

.

2.

Disconnect harness connector.

3.

Remove hose tube from in-vehicle sensor (1).

4.

Remove mounting screws, and then remove in-vehicle sensor.

INSTALLATION

Installation is basically the reverse order of removal.

1.

In-vehicle sensor

2.

instrument driver lower panel

E1IIA0006ZZ

E1IIA0006ZZ

VTL-76

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

SUNLOAD SENSOR

SUNLOAD SENSOR

Exploded View

INFOID:0000000001093838

Removal and Installation

INFOID:0000000001093839

REMOVAL

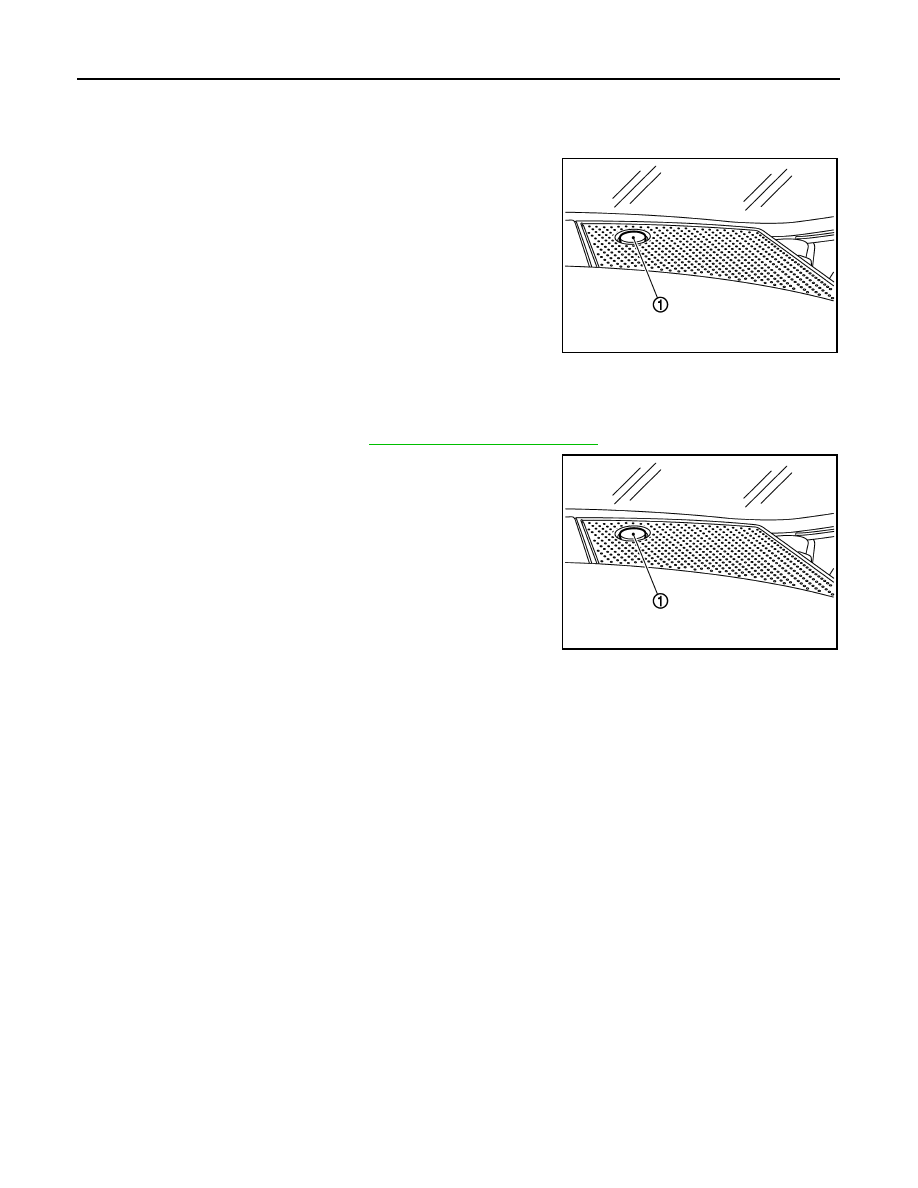

1.

Remove speaker grille (left). Refer to

IP-12, "Removal and Installation"

.

2.

Disconnect sunload sensor connector, and then remove sunload
sensor (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Sunload sensor

E1IIA0007ZZ

E1IIA0007ZZ
