ON-VEHICLE MAINTENANCE

MODE DOOR

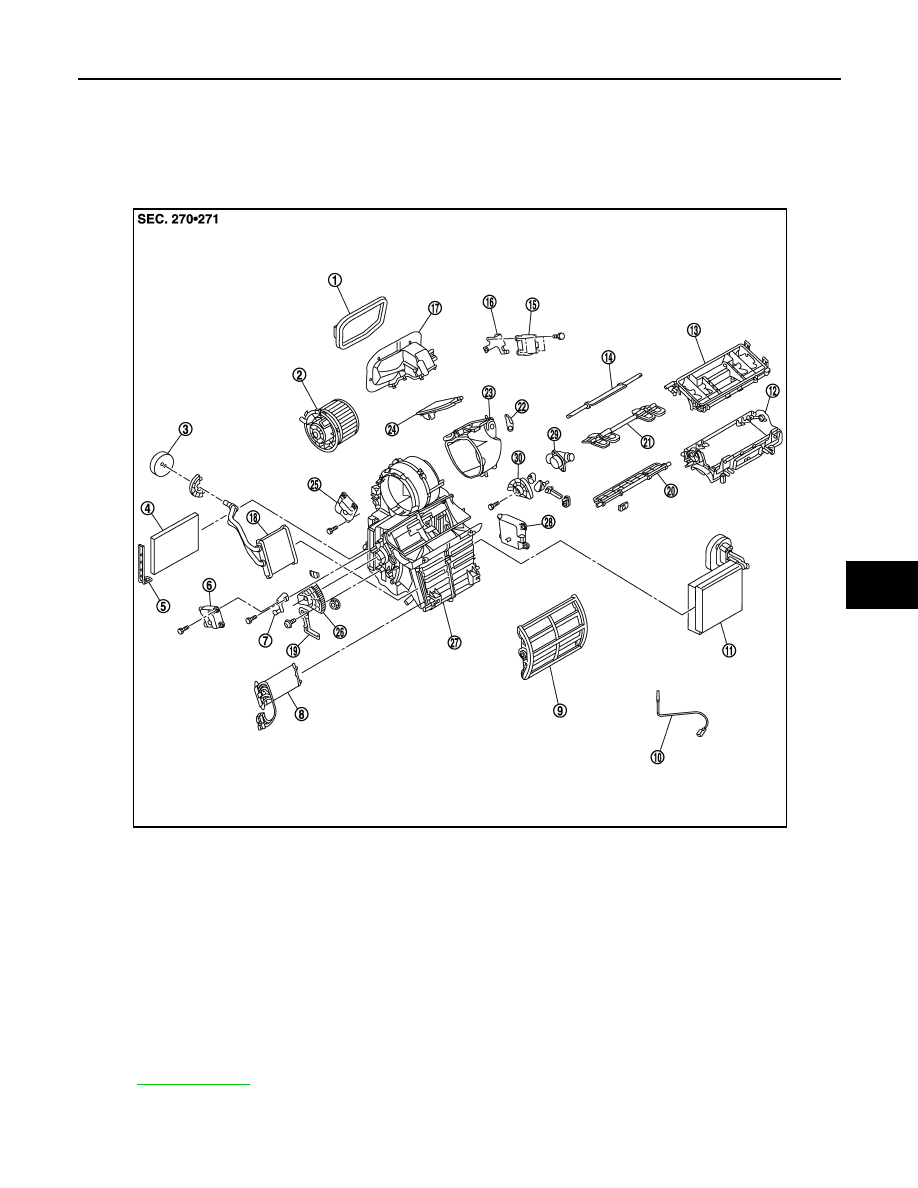

Exploded View

INFOID:0000000001117098

Adjustment

INFOID:0000000001098000

1.

Intake connector seal

2.

Blower motor assembly

3.

Heater pipe seal

4.

Air conditioner filter

5.

Air conditioner filter cover

6.

Air mix door motor (left)

7.

Air mix door lever

8.

Electrical heater

9.

Air mix door (slide door)

10.

Intake sensor

11.

Evaporator and expansion valve unit

12. Center case (lower)

13.

Center case (upper)

14.

Defroster door

15. Intake door motor

16.

Intake motor bracket

17.

Intake connector

18. Heater core

19.

Air mix door link bracket

20.

Front ventilator door

21. Side ventilator door

22.

Intake door lever

23.

Intake door box

24. Intake door

25.

Mode door motor

26.

Air mix door link (left)

27. Heater and cooling unit case

28.

Air mix door motor (right)

29.

Aspirator

30. Air mix door link (right)

*

With left and right ventilation temperature separately system.

Refer to

GI-4, "Components"

 for symbols in the figure.

E1IIA0008GB

VTL-66

< ON-VEHICLE MAINTENANCE >

[MANUAL AIR CONDITIONER]

MODE DOOR

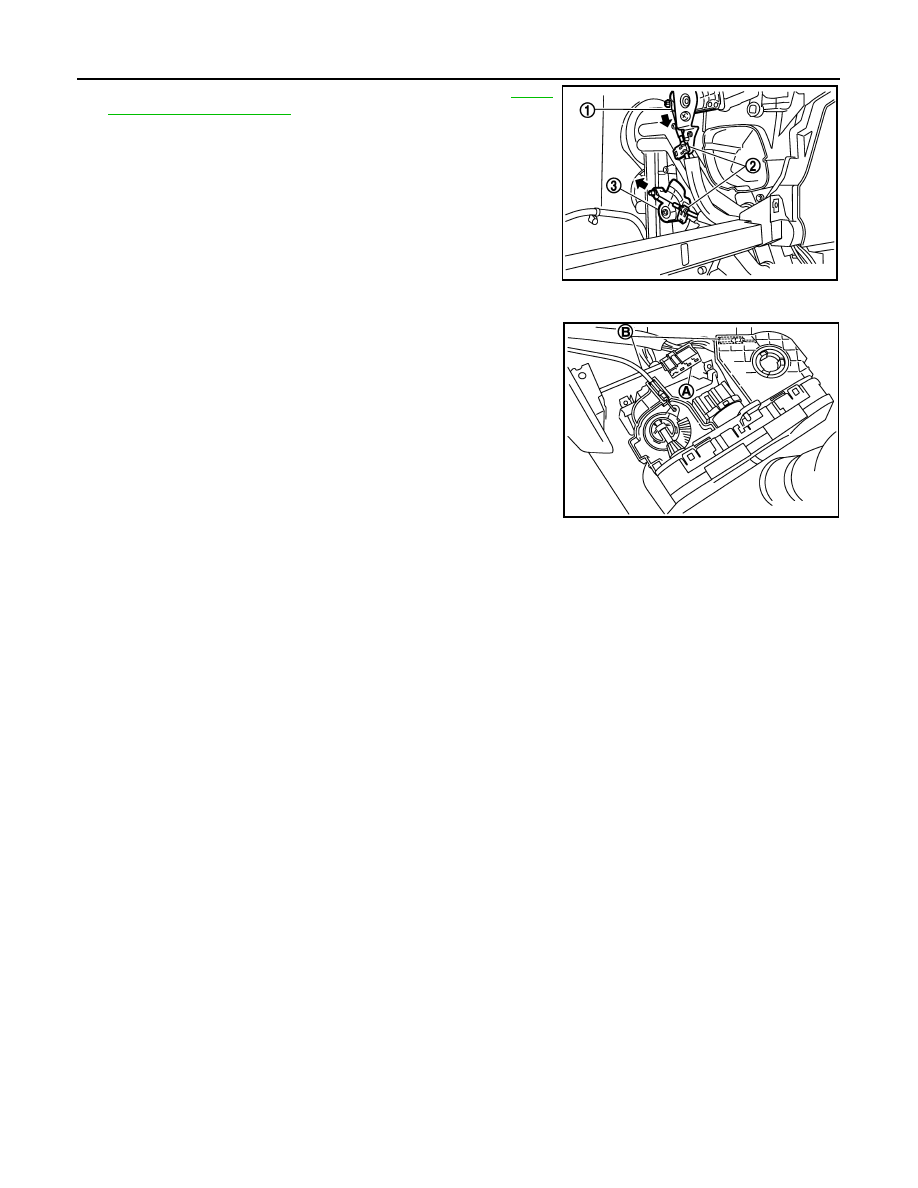

1.

Remove the instrument lower panel. Refer to

IP-12, "Removal

and Installation"

.

2.

Remove the outer cable of mode door cable from the clamp.

3.

Set mode dial to “ventilation” position.

4.

Push the main link in the direction shown by the arrow, then
carefully pull outer cable to the controller side, and install the
clamp.

5.

Operate the mode dial to insure that the inner cable moves
smoothly.

CAUTION:

When clamping the outer cable, de not move the inner
cable.

E1IIA0035ZZ

E1IIA0033ZZ

AIR MIX DOOR

VTL-67

< ON-VEHICLE MAINTENANCE >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

AIR MIX DOOR

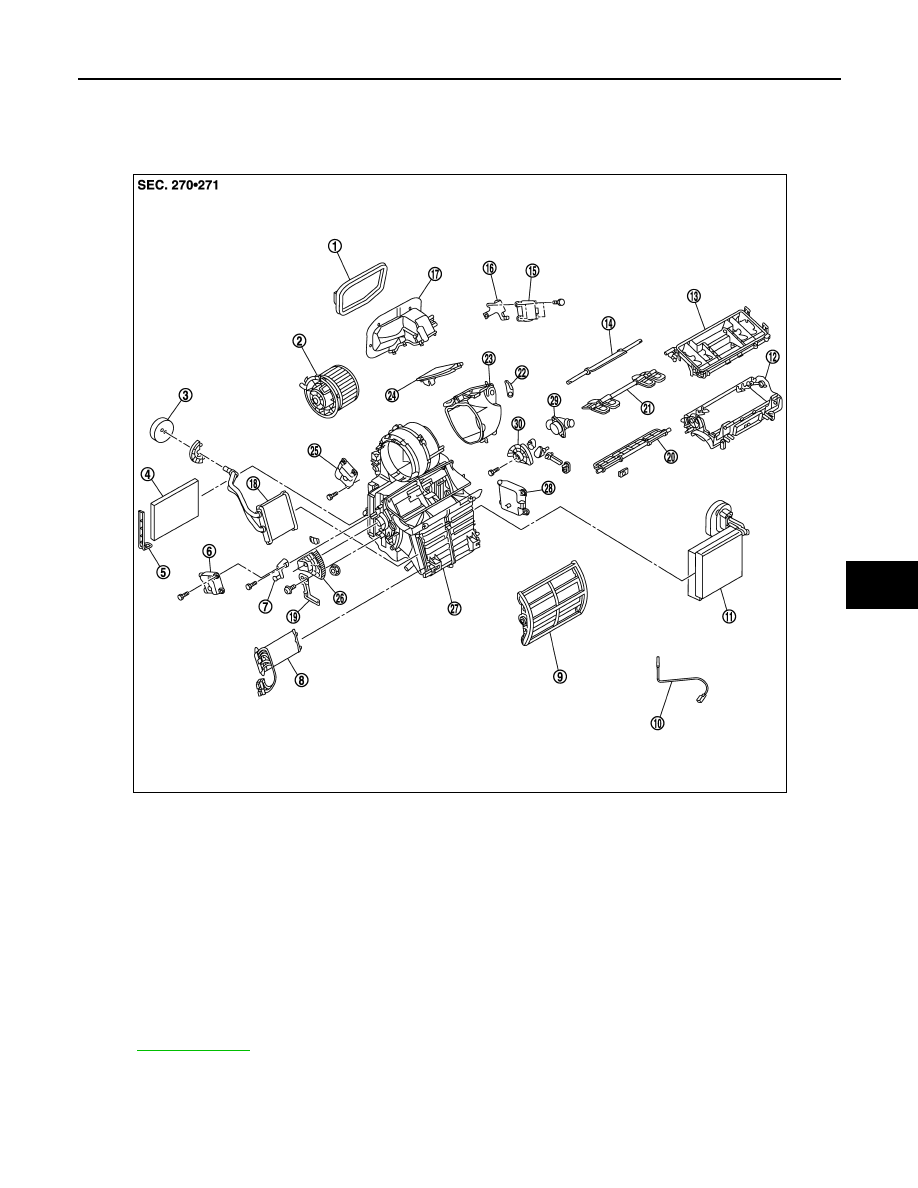

Exploded View

INFOID:0000000001117099

Adjustment

INFOID:0000000001093852

1.

Intake connector seal

2.

Blower motor assembly

3.

Heater pipe seal

4.

Air conditioner filter

5.

Air conditioner filter cover

6.

Air mix door motor (left)

7.

Air mix door lever

8.

Electrical heater

9.

Air mix door (slide door)

10.

Intake sensor

11.

Evaporator and expansion valve unit

12. Center case (lower)

13.

Center case (upper)

14.

Defroster door

15. Intake door motor

16.

Intake motor bracket

17.

Intake connector

18. Heater core

19.

Air mix door link bracket

20.

Front ventilator door

21. Side ventilator door

22.

Intake door lever

23.

Intake door box

24. Intake door

25.

Mode door motor

26.

Air mix door link (left)

27. Heater and cooling unit case

28.

Air mix door motor (right)

29.

Aspirator

30. Air mix door link (right)

*

With left and right ventilation temperature separately system.

Refer to

GI-4, "Components"

 for symbols in the figure.

E1IIA0008GB

VTL-68

< ON-VEHICLE MAINTENANCE >

[MANUAL AIR CONDITIONER]

AIR MIX DOOR

1.

Remove the instrument panel stay cover. Refer to

IP-12,

"Removal and Installation"

.

2.

Remove the outer cable of air mix door cable from the clamp.

3.

Set temperature control dial to “full cold” position.

4.

Push the air mix door lever in the direction shown by arrow and
then carefully pull the outer cable toward controller side, and
install the clamp.

5.

Operate the temperature control dial to insure than the inner
cable moves smoothly.

CAUTION:

When clamping the outer cable, do not move the inner
cable.

E1IIA0035ZZ

E1IIA0033ZZ
