DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

*: If this lamp glows red, the tool is connected to the battery incorrectly.Reverse the connections and check the lamp glows green.

DEPLOYMENT OF AIR BAG MODULE (OUTSIDE OF VEHICLE)

Deployment of Driver Air Bag Module (Outside of Vehicle)

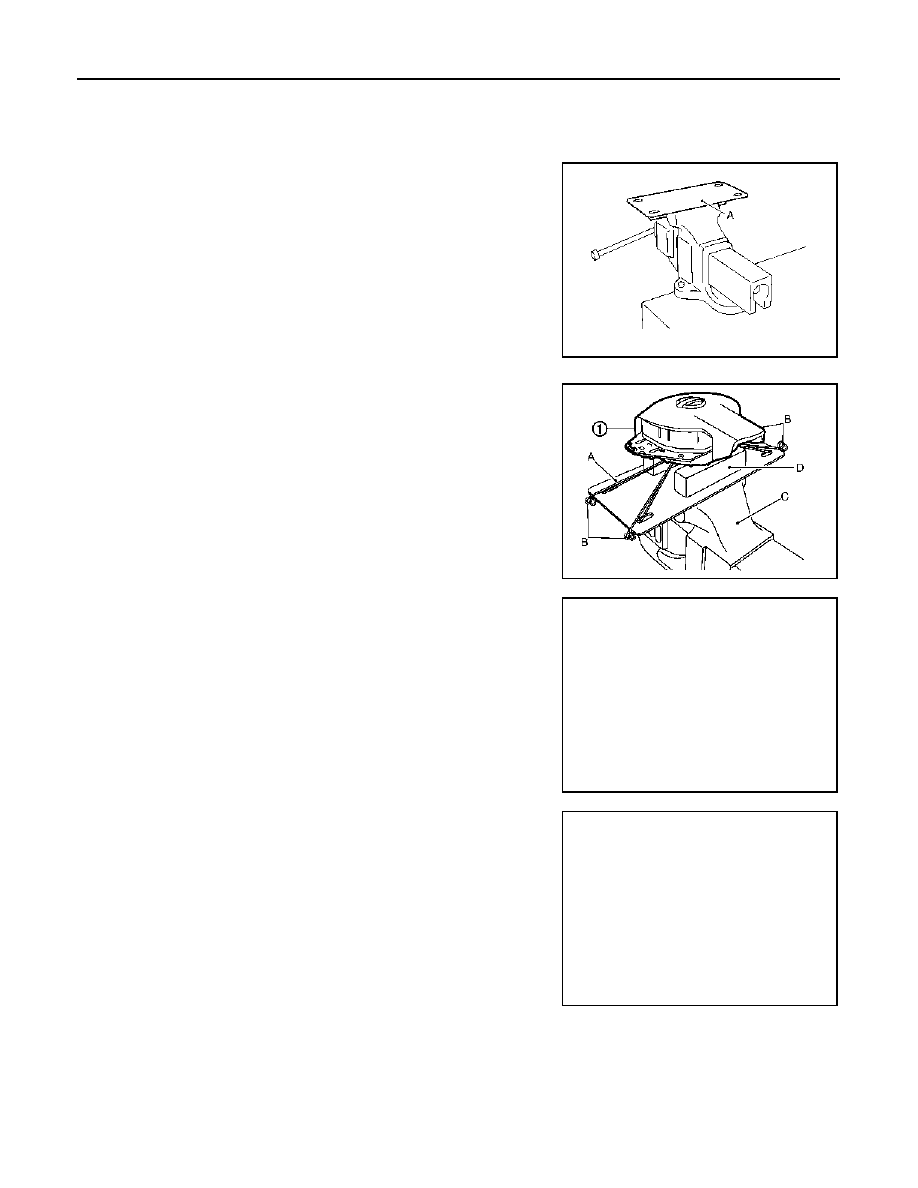

1.

Unless the vehicle is being scrapped, deploying the air bag in
the vehicle is not recommended. This may cause damage to the
vehicle interior.
Anchor air bag module bracket (SST: KV99105300) (A) in a vice
secured to a firm foundation deployment.

2.

Using wire (B), secure air bag module (1) to air bag module
bracket (SST: KV99105300) (A) at four places.

CAUTION:

• Use wire of at least 1 mm (0.04 in) diameter.
• If a gap exists between air bag module and air bag module

bracket, use a piece of wood (D) inserted in the gap to sta-
bilize the air bag module.

3.

Firmly secure air bag module bracket (SST: KV99105300) (A)
with air bag module attached, in a vise (C).

4.

Connect deployment tool adapter (SST: KV99110500) (B) to air
bag module (1) and deployment tool connector (SST:
KV99106400) (A).

5.

Connect red clip of deployment tool (A) to battery positive termi-
nal and black clip to negative terminal (B).

6.

The lamp on the right side of the tool, marked “deployment tool
power”, should glow green, not red.

7.

Press the button on the deployment tool (A). The left side lamp
on the tool, marked “air bag connector voltage”, will illuminate
and the air bag module (1) will deploy.

CAUTION:

When deploying the driver air bag module, stand at least 5 m
(16 ft)away from the air bag module.

DEPLOYMENT OF AIR BAG MODULE (OUTSIDE OF VEHICLE)

Deployment of Front Passenger Air Bag Module (Outside of Vehicle)

JMHIA0208ZZ

JMHIA0206ZZ

JMHIA0207ZZ

JMHIA0209ZZ

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

SR-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

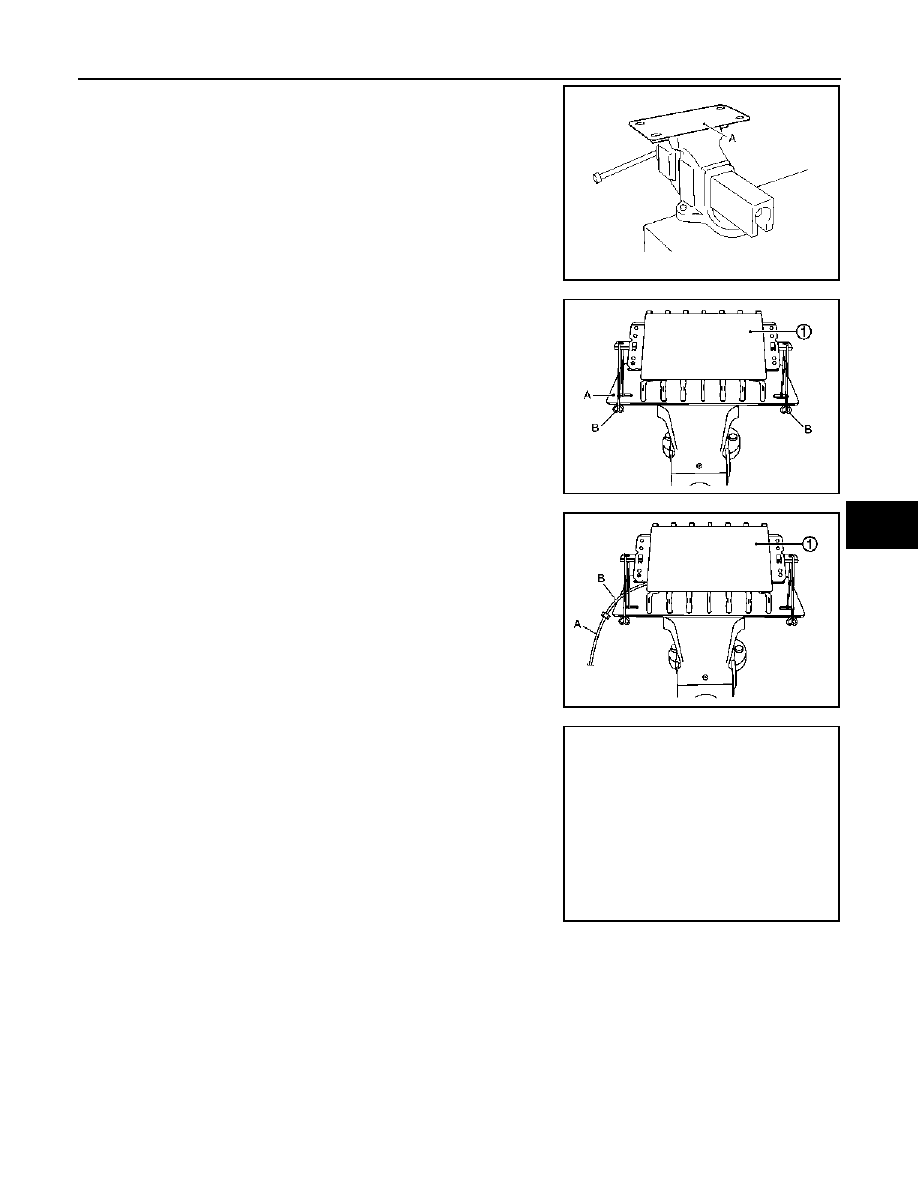

1.

Firmly secure air bag module bracket (SST: KV99105300) (A) in
a vise.

2.

Using wire, secure air bag module to air bag module bracket
(SST: KV99105300) (A) at two places.

CAUTION:

Use wire of at least 1 mm (0.04 in) diameter.

3.

Connect deployment tool (SST: KV99106400) (A) and deploy-
ment tool adapter (SST: KV99110500) (B) to front passenger air
bag module connector (1).

4.

Connect red clip of deployment tool (A) to battery positive termi-
nal and black clip to negative terminal (B).

5.

The lamp on the right side of the tool, marked “deployment tool
power”, should glow green, not red.

6.

Press the button on the deployment tool (A). The left side lamp
on the tool, marked “air bag connector voltage”, will illuminate
and the air bag module (1) will deploy.

CAUTION:

• When deploying the front passenger air bag module, do not

stand on the deploying side.

• Stand at least 5 m (16 ft) away from the air bag module.

DEPLOYMENT OF AIR BAG MODULE (OUTSIDE VEHICLE)

Deployment of Side Curtain Air Bag Module (Outside of Vehicle)

JMHIA0208ZZ

JMHIA0210ZZ

JMHIA0211ZZ

JMHIA0209ZZ

SR-22

< ON-VEHICLE REPAIR >

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

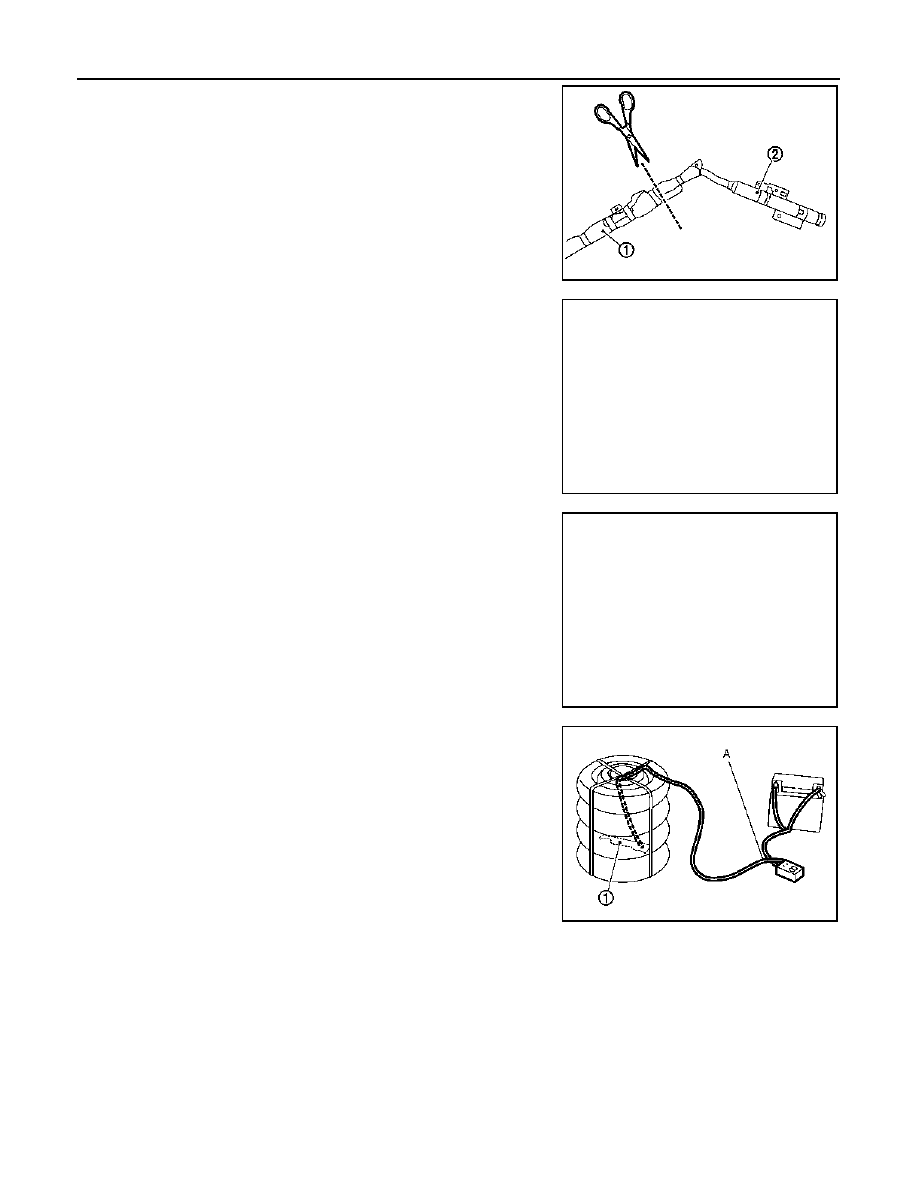

1.

Cut the inflator (2) from side curtain air bag module (1).

2.

Connect deployment tool (SST: KV99106400) (A) and deploy-
ment tool adapter (SST: KV99109800) (B) to  the inflator.

3.

Put the inflator connected with the deployment tool (SST:
KV99106400) and deployment tool adapter (SST: KV99109800)
into a tire without a wheel.

4.

Put the tire with the inflator (1) onto another tire without
wheel.Add an additional tire without a wheel and then a tire
mounted on a wheel on top.

CAUTION:

Tie all tires together with a strap in order keep them stand-
ing.

5.

Connect red clip of deployment tool (A) to battery positive termi-
nal and black clip to negative terminal.

6.

The lamp on the right side of the tool, marked “deployment tool
power”, should glow green, not red.

7.

Press the button on the deployment tool (A). The left side lamp
on the tool, marked “air bag connector voltage”, will illuminate
and the air bag module inflator (1) will deploy.

CAUTION:

When deploying the side curtain air bag module, stand at least 5 m (16ft) away from the side cur-
tain air bag module.

DEPLOYMENT OF AIR BAG MODULE (OUTSIDE VEHICLE)

Deployment of Front Side Air Bag Module (Outside of Vehicle)

JMHIA0064ZZ

JMHIA0065ZZ

PHIA0937J

PHIA1173E

DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

SR-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

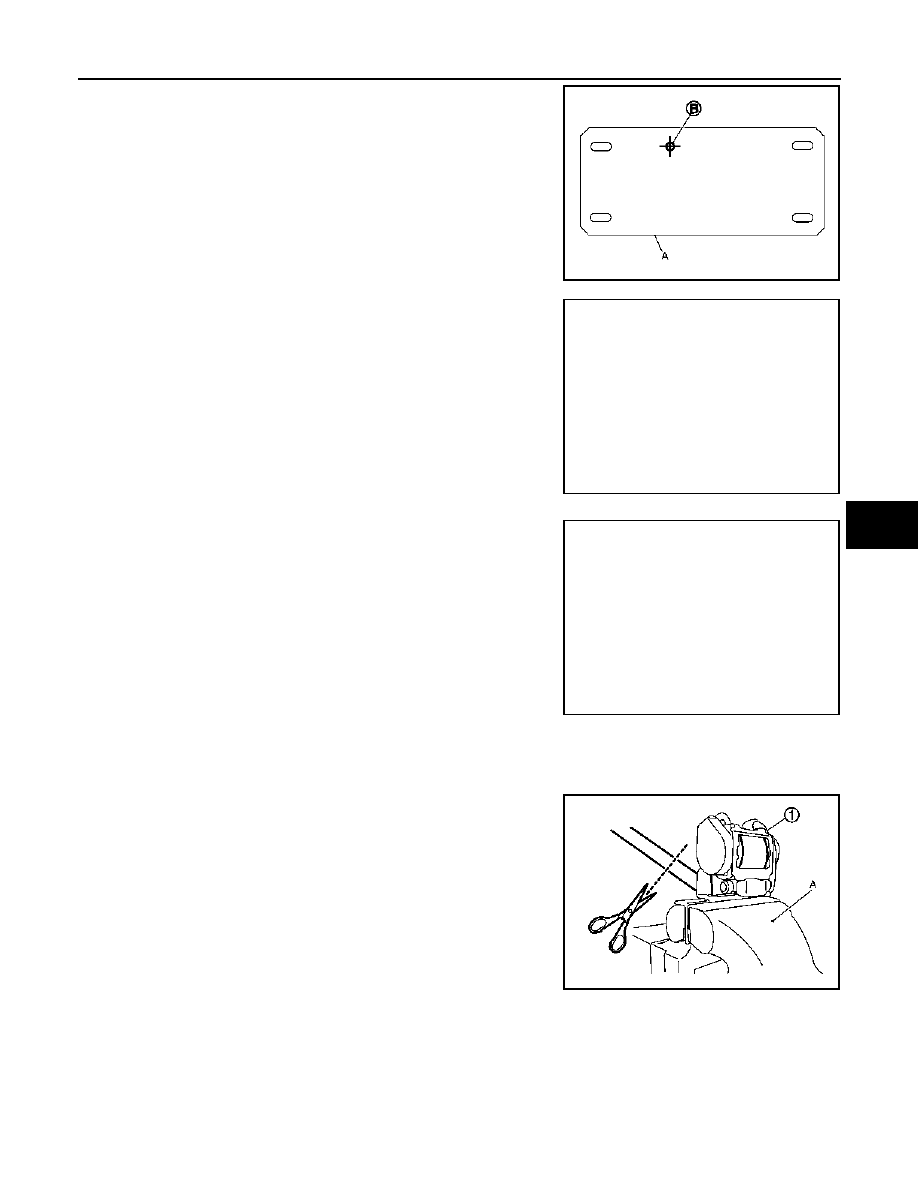

1.

Make 6.5 mm (0.256 in) diameter hole (B) in air bag module
bracket (SST: KV99105300) (A) at the position shown in figure.

2.

Firmly secure air bag module bracket in a vise.

3.

Insert one bolt through air bag module bracket and air bag mod-
ule upper side holes, and fix them with one M6 bolt/nut.
Insert wire through air bag module bracket and air bag module
lower side holes, and fix them.

CAUTION:

Using wire, of at least 1 mm (0.04 in) diameter.

4.

Connect deployment tool (SST: KV99106400) (A) and deploy-
ment tool adapter (SST: KV99109800) (B) to air bag module (1)
connector.

5.

Connect red clip of deployment tool (SST: KV99106400) (A),(B)
to battery positive terminal and black clip to negative terminal
(C).

6.

The lamp on the right side of the tool, marked “deployment tool
power”, should glow green, not red.

7.

Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, will illuminate and
the air bag module (1) will deploy.

CAUTION:

When deploying the front side air bag module, stand at
least 5 m (16ft) away from the air bag module.

DEPLOYMENT OF SEAT BELT PRE-TENSIONER (OUTSIDE OF VEHICLE)

Deployment of Front Seat Belt Pre-Tensioner (Outside of Vehicle)

1.

Firmly grip pre-tensioner (1) in a vise (A) and cut off the web-
bing.

JMHIA0225ZZ

JMHIA0226ZZ

JMHIA0212ZZ

JMHIA0068ZZ
