SR-12

< ON-VEHICLE REPAIR >

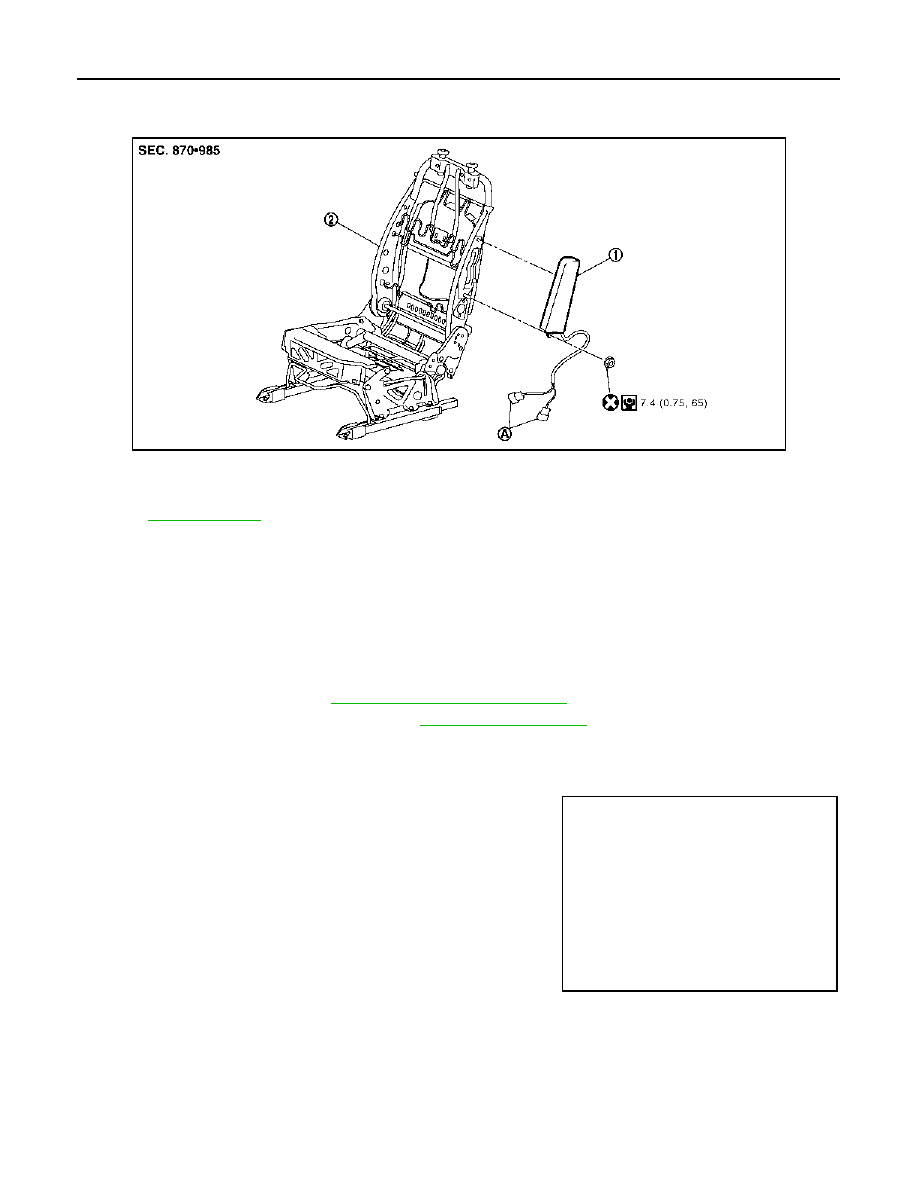

FRONT SIDE AIR BAG MODULE

FRONT SIDE AIR BAG MODULE

Exploded View

INFOID:0000000001069727

Removal and Installation

INFOID:0000000001069728

REMOVAL

CAUTION:

• Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least 3 min-

utes.

• Always work from the rear of the front side air bag module.
• Do not use air tools or electric tools for servicing.
1.

Remove the front seat. Refer to

SE-24, "Removal and Installation"

.

2.

Remove the seatback trim and pad. Refer to

SE-23, "Exploded View"

.

3.

Remove the side air bag module fixing nut, and/or harness connector.

4.

Remove the side air bag module.

CAUTION:

• Always place air bag module with pad side facing upward.

• Do not insert any foreign objects (screwdriver, etc.) into air bag module.
• Do not disassemble air bag module.
• Do not use old fixing nut after removal; replace with new nut.
• Do not expose the air bag module to temperatures exceeding 90

°

C (194

°

F).

• Do not allow oil, grease or water to come in contact with the air bag module.

JMHIA0200GB

1.

Front side air bag module

2.

Front seatback flame

A.

Front side air bag module connector

Refer to

GI-4, "Components"

 for symbols in the figure.

 : Upward

JMHIA0227ZZ

FRONT SIDE AIR BAG MODULE

SR-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

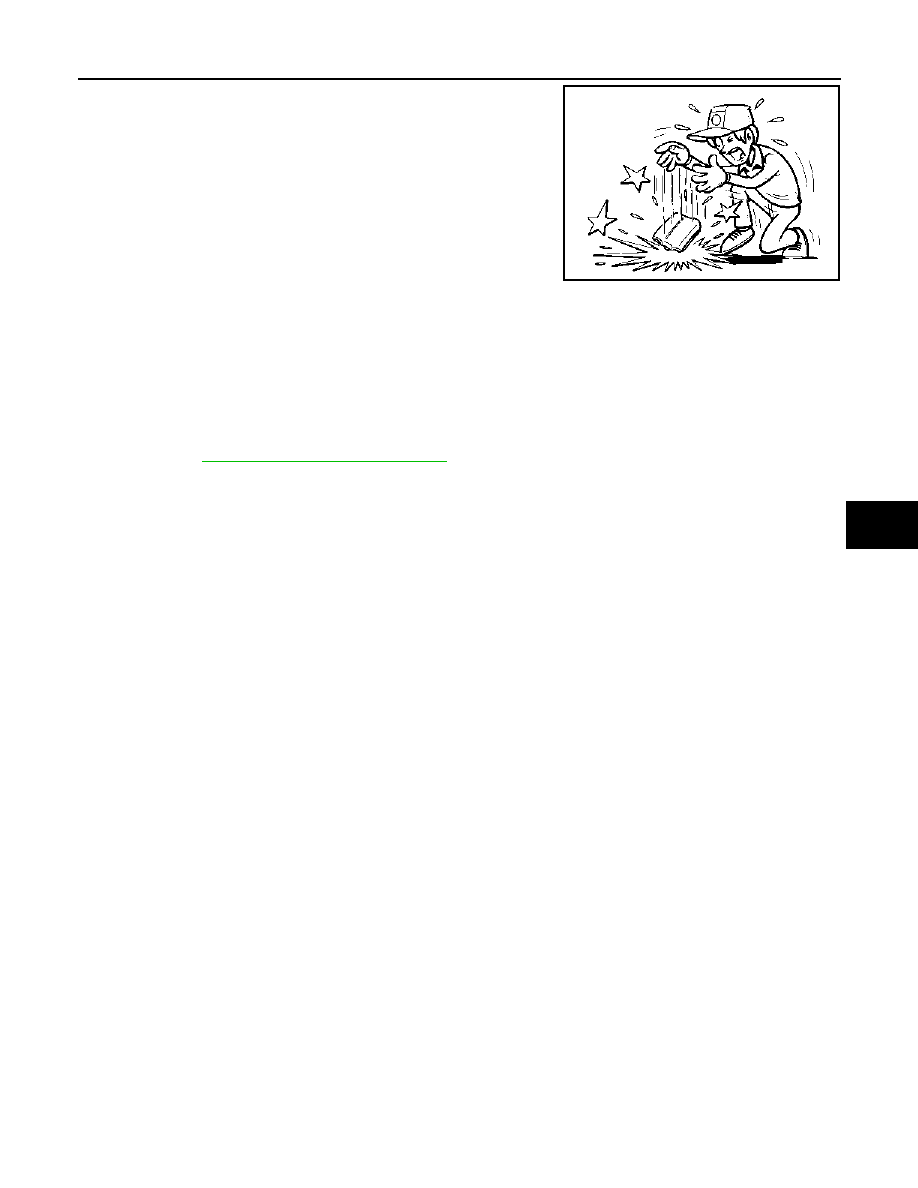

• Replace the air bag module if it has been dropped or sus-

tained an impact.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Do not damage the air bag harness.
• In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis function

and delete the memory by CONSULT-III.

• In case that malfunction is still detected after the above operations, perform self-diagnosis to repair

malfunctions.

• After the work is completed, check that no malfunctioning system is detected by air bag warning

lamp. Refer to

SRC-10, "Diagnosis Description"

.

JMHIA0009ZZ

SR-14

< ON-VEHICLE REPAIR >

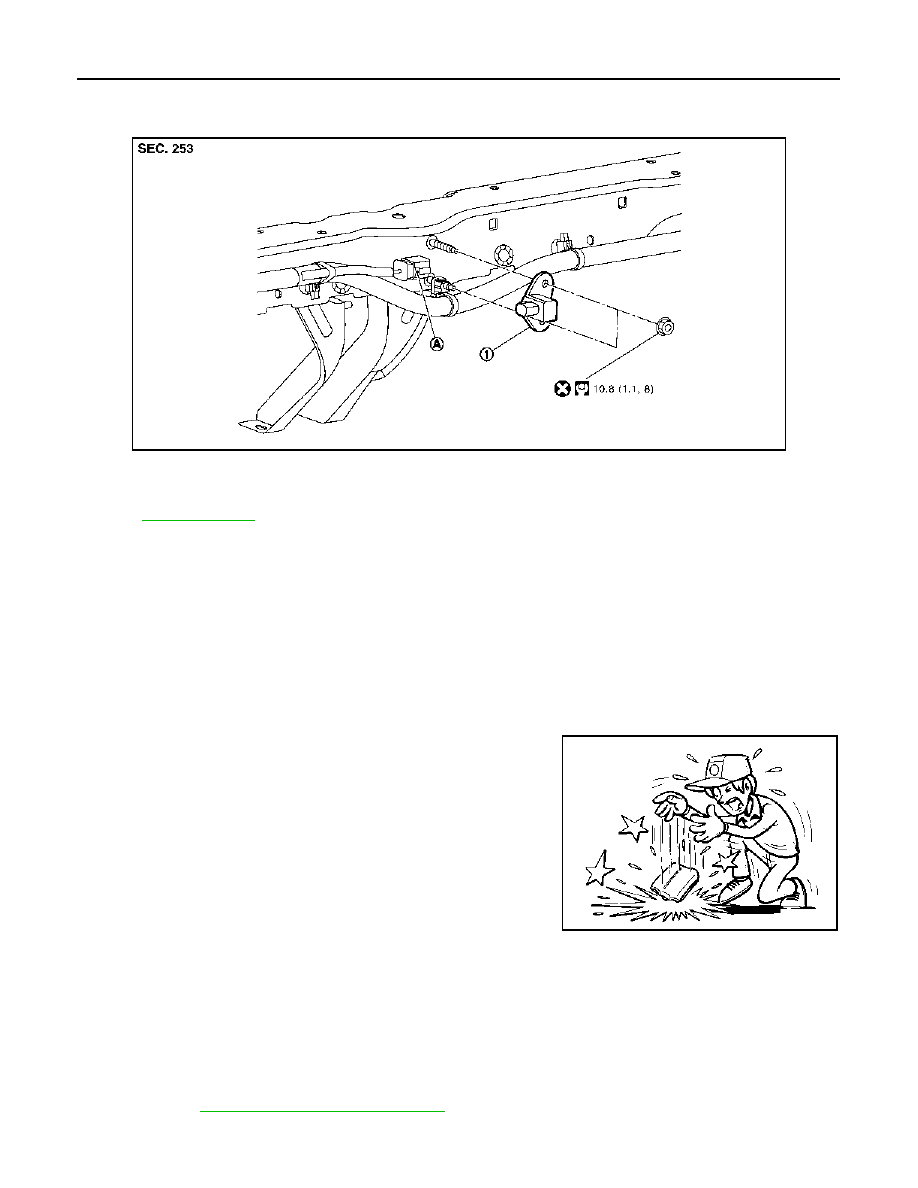

CRASH ZONE SENSOR

CRASH ZONE SENSOR

Exploded View

INFOID:0000000001069729

Removal and Installation

INFOID:0000000001069730

REMOVAL

CAUTION:

• Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least 3 min-

utes.

• Do not use air tools or electric tools for servicing.

1.

Remove the crash zone sensor fixing nuts.

2.

Disconnect harness connector, and then remove crash zone sensor.

CAUTION:

• Replace the crash zone sensor if it has been dropped or sus-

tained an impact.

• Do not use old fixing nuts after removal; replace with new

nuts.

• Replace the crash zone sensor of deployed SRS driver air bag

and deployed SRS front passenger air bag.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Do not damage the crash zone sensor harness.
• In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis function

and delete the memory by CONSULT-III.

• In case that malfunction is still detected after the above operations, perform self-diagnosis to repair

malfunctions.

• After the work is completed, check that no malfunctioning system is detected by air bag warning

lamp. Refer to

SRC-10, "Diagnosis Description"

.

JMHIA0202GB

1.

Crash zone sensor

A.

Harness connector

Refer to

GI-4, "Components"

  for symbols in the figure.

JMHIA0009ZZ

SIDE AIR BAG (SATELLITE) SENSOR

SR-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

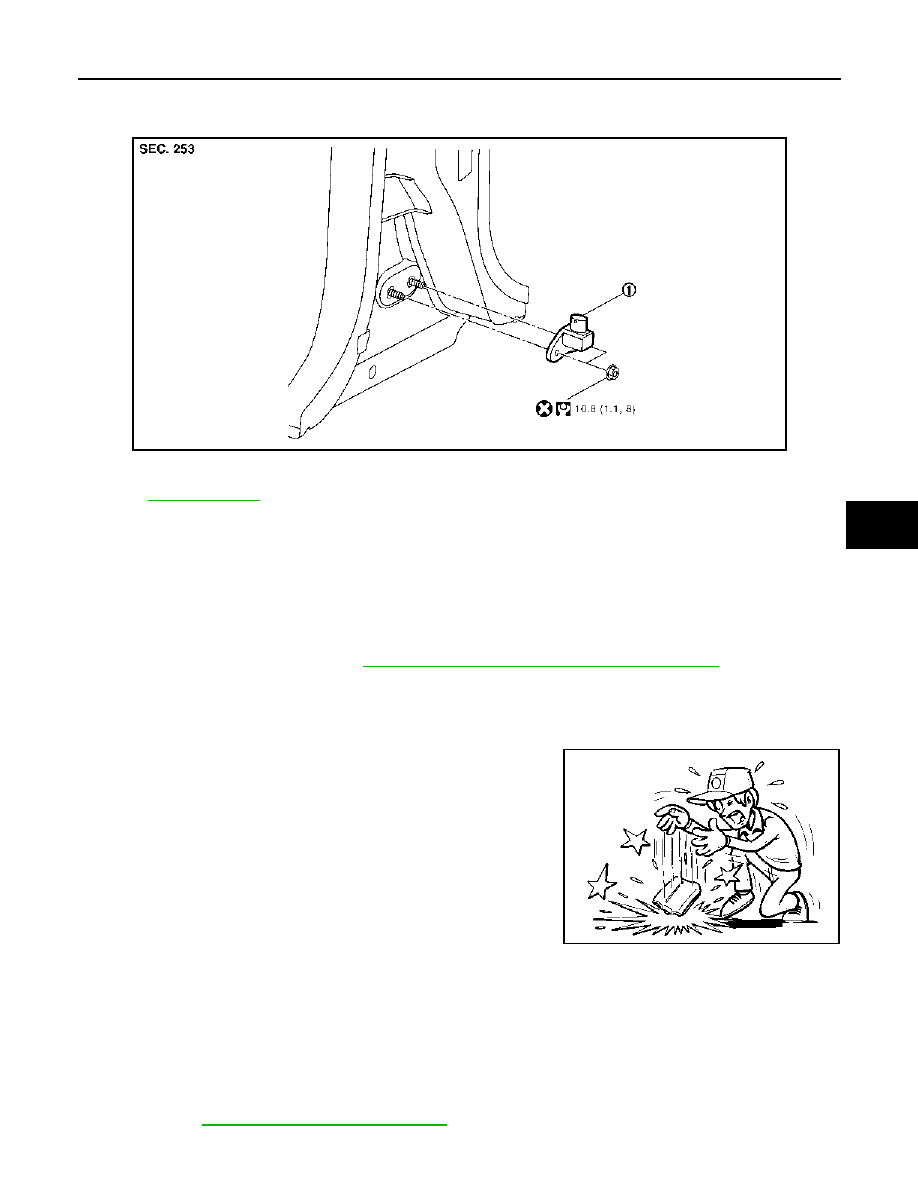

SIDE AIR BAG (SATELLITE) SENSOR

Exploded View

INFOID:0000000001069731

Removal and Installation

INFOID:0000000001069732

REMOVAL

CAUTION:

• Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least 3 min-

utes.

• Do not use air tools or electric tools for servicing.

1.

Remove the front seat belt. Refer to

SB-5, "SEAT BELT RETRACTOR : Exploded View"

.

2.

Remove the side air bag (satellite) sensor fixing nuts.

3.

Disconnect harness connector and then remove side air bag (satellite) sensor.

CAUTION:

• Replace the side air bag (satellite) sensor if it has been

dropped or sustained an impact.

• Do not use old fixing nuts after removal; replace with new

nuts.

• Replace the satellite sensor of deployed SRS front side air

bag and deployed SRS side curtain air bag.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Do not damage the satellite sensor harness.
• In case that malfunction is detected by the air bag warning lamp, reset by the self-diagnosis function

and delete the memory by CONSULT-III.

• In case that malfunction is still detected after the above operations, perform self-diagnosis to repair

malfunctions.

• After the work is completed, check that no malfunctioning system is detected by air bag warning

lamp. Refer to

SRC-10, "Diagnosis Description"

.

JMHIA0201GB

1.

Satellite sensor

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA0009ZZ
