DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
2.
Connect deployment tool (SST: KV99106400) (A) and deploy-
ment tool adapter (SST: KV99110500) (B) yellow connector to
front seat belt pre-tensioner (1).
3.
Connect red clip of deployment tool to battery positive terminal
and black clip to negative terminal (C).
4.
The lamp on the right side of the tool, marked “deployment tool
power”, should glow green, not red.
5.
Press the button on the deployment tool. The left side lamp on
the tool, marked “seat belt pre-tensioner connector voltage”, will
illuminate and the seat belt pre-tensioner (1) will deploy.
CAUTION:
When deploying the front seat belt pre-tensioner, stand at
least 5 m(16 ft) away from the seat belt pre-tensioner.
DEPLOYMENT OF SEAT BELT PRE-TENSIONER (OUTSIDE OF VEHICLE)
Deployment of Front Seat Belt Pre-Tensioner2 (Outside of Vehicle)
1.
Disconnect the webbing of seat belt pre-tensioner2 (1).
2.
Connect deployment tool (SST: KV99106400) (A) and deploy-
ment tool adapter (SST: KV99110500) (B) orange connector to
seat belt pre-tensioner2 (1).
3.
Put the seat belt pre-tensioner2 (1) connected with the deploy-
ment tool into a tire without a wheel.

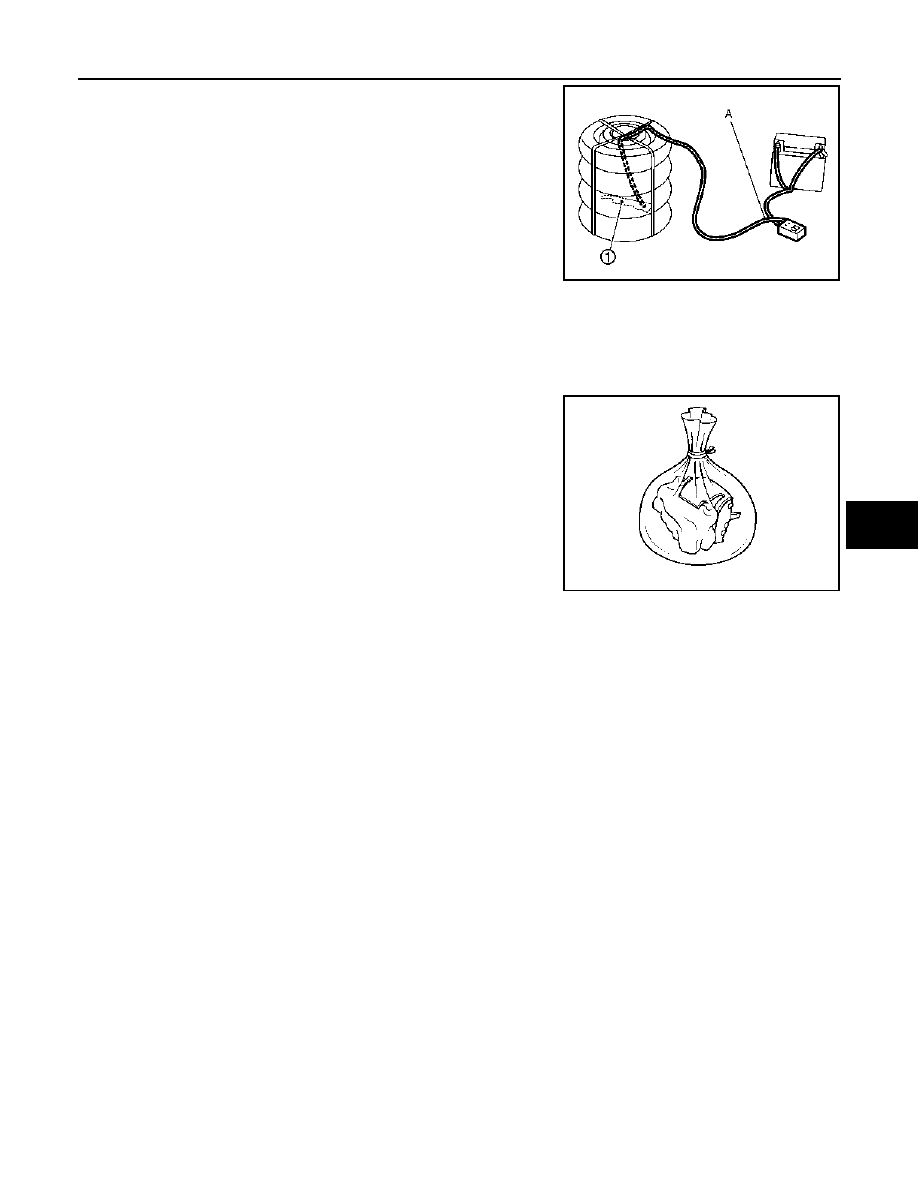

JMHIA0214ZZ
JMHIA0070ZZ
JMHIA0071ZZ
PHIA1288J
