PRIMARY SPEED SENSOR

TM-339

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

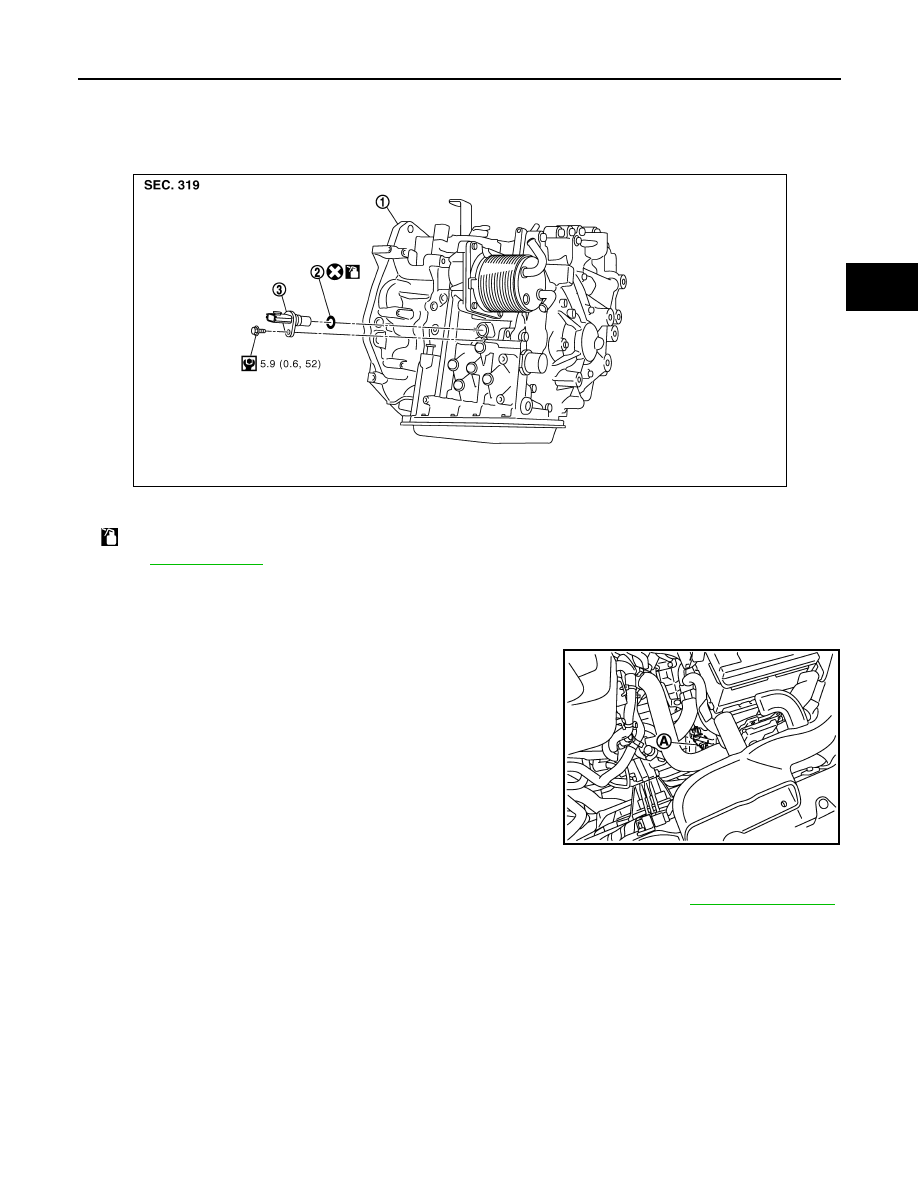

PRIMARY SPEED SENSOR

Exploded View

INFOID:0000000000950779

Removal and Installation

INFOID:0000000000950780

REMOVAL

1.

Remove primary speed sensor connector (A).

2.

Remove primary speed sensor.

3.

Remove O-ring from primary speed sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.
• After completing installation, check for CVT fluid leakage and CVT fluid level. Refer to

TM-314, "Inspection"

.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to O-ring.

1.

Transaxle assembly

2.

O-ring

3.

Primary speed sensor

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described on the above.

SCIA7901J

JPDIA0069ZZ

TM-340

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

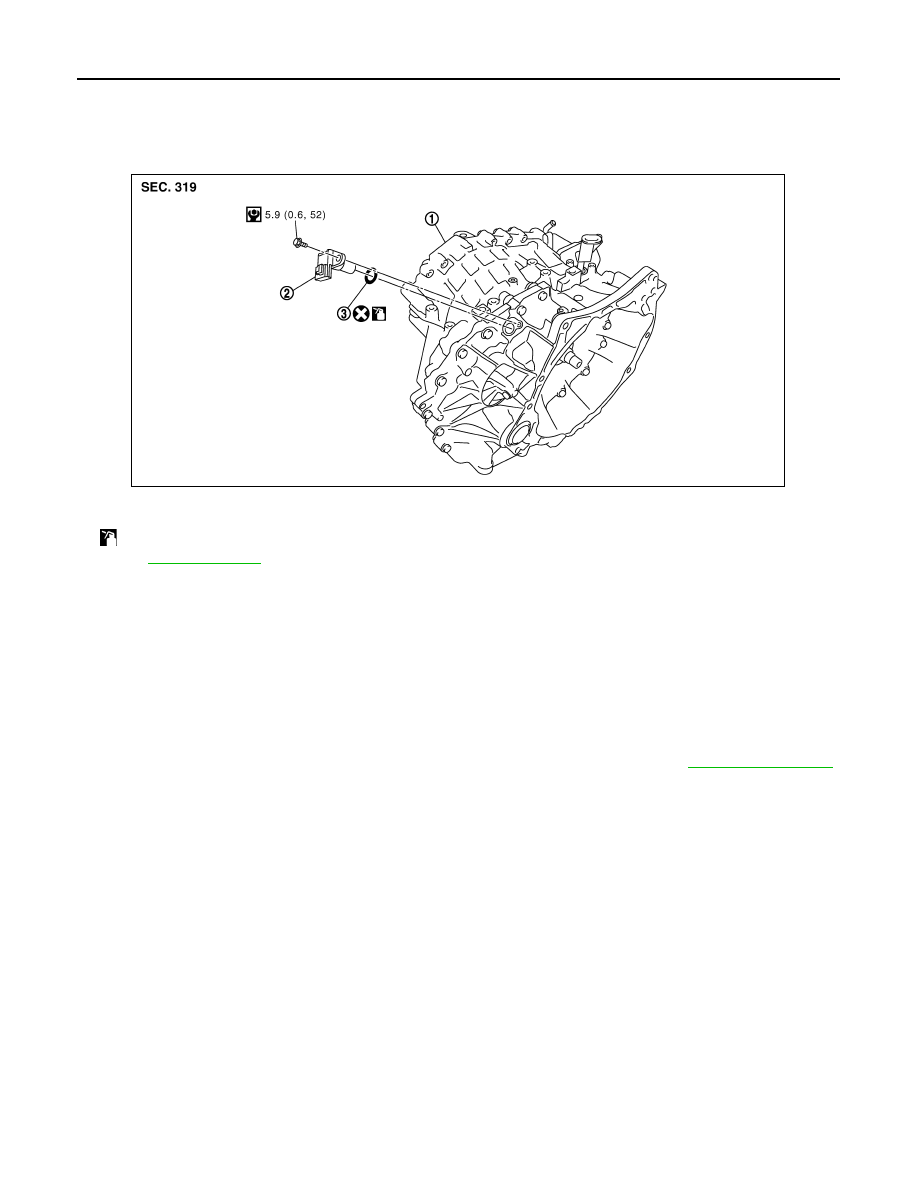

SECONDARY SPEED SENSOR

SECONDARY SPEED SENSOR

Exploded View

INFOID:0000000000950781

Removal and Installation

INFOID:0000000000950782

REMOVAL

1.

Remove secondary speed sensor connector.

2.

Remove secondary speed sensor.

3.

Remove O-ring from secondary speed sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.
• After completing installation, check for CVT fluid leakage and CVT fluid level. Refer to

TM-314, "Inspection"

.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to O-ring.

1.

Transaxle assembly

2.

Secondary speed sensor

3.

O-ring

 : Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIA0104GB

DIFFERENTIAL SIDE OIL SEAL

TM-341

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

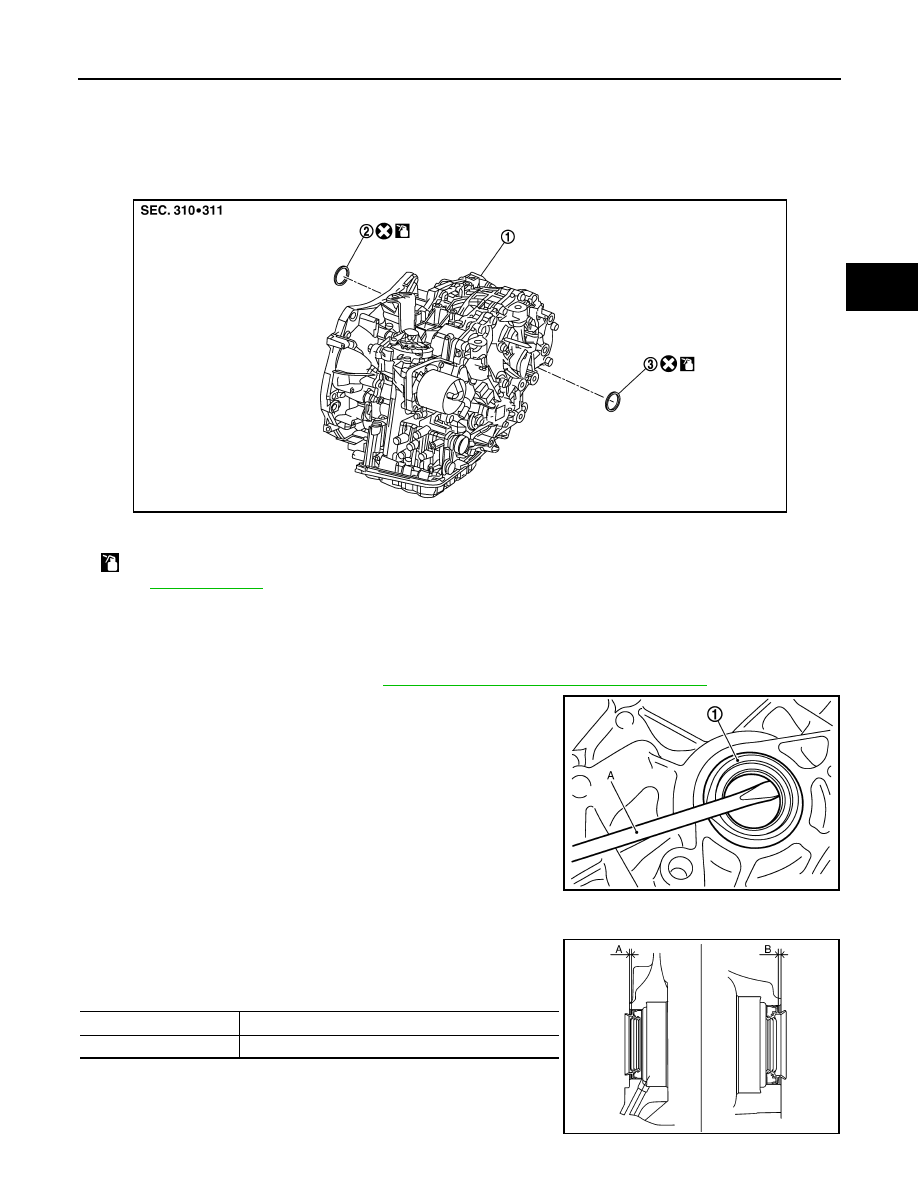

DIFFERENTIAL SIDE OIL SEAL

2WD

2WD : Exploded View

INFOID:0000000000950783

2WD : Removal and Installation

INFOID:0000000000950784

REMOVAL

1.

Remove drive shaft assembly. Refer to

FAX-22, "MR20DE MODELS : Exploded View"

.

2.

Remove differential side oil seals (1) using a flat-bladed screw-
driver (A).

CAUTION:

Be careful not to scratch transaxle case and converter
housing.

INSTALLTION

Note the following, and install in the reverse order of removal.
• Drive each differential side oil seal evenly using a commercial ser-

vice tool so that differential side oil seal protrudes by the dimension
(A) or (B) respectively.

Unit: mm (in)

NOTE:
Differential side oil seal pulling direction is used as the reference.

CAUTION:

• Never reuse differential side oil seals.

1.

Transaxle assembly

2.

RH differential side oil seal

3.

LH differential side oil seal

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described on the above.

SCIA7594J

JPDIA0118ZZ

Dimension A

1.8

±

 0.5 (0.071

±

 0.020)

Dimension B

2.2

±

 0.5 (0.087

±

 0.020)

SCIA6608J

TM-342

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

DIFFERENTIAL SIDE OIL SEAL

• Apply CVT fluid to differential side oil seals.

Drift to be used:

2WD : Inspection

INFOID:0000000001091256

After completing installation, check for CVT fluid leakage and CVT fluid level. Refer to

TM-314, "Inspection"

.

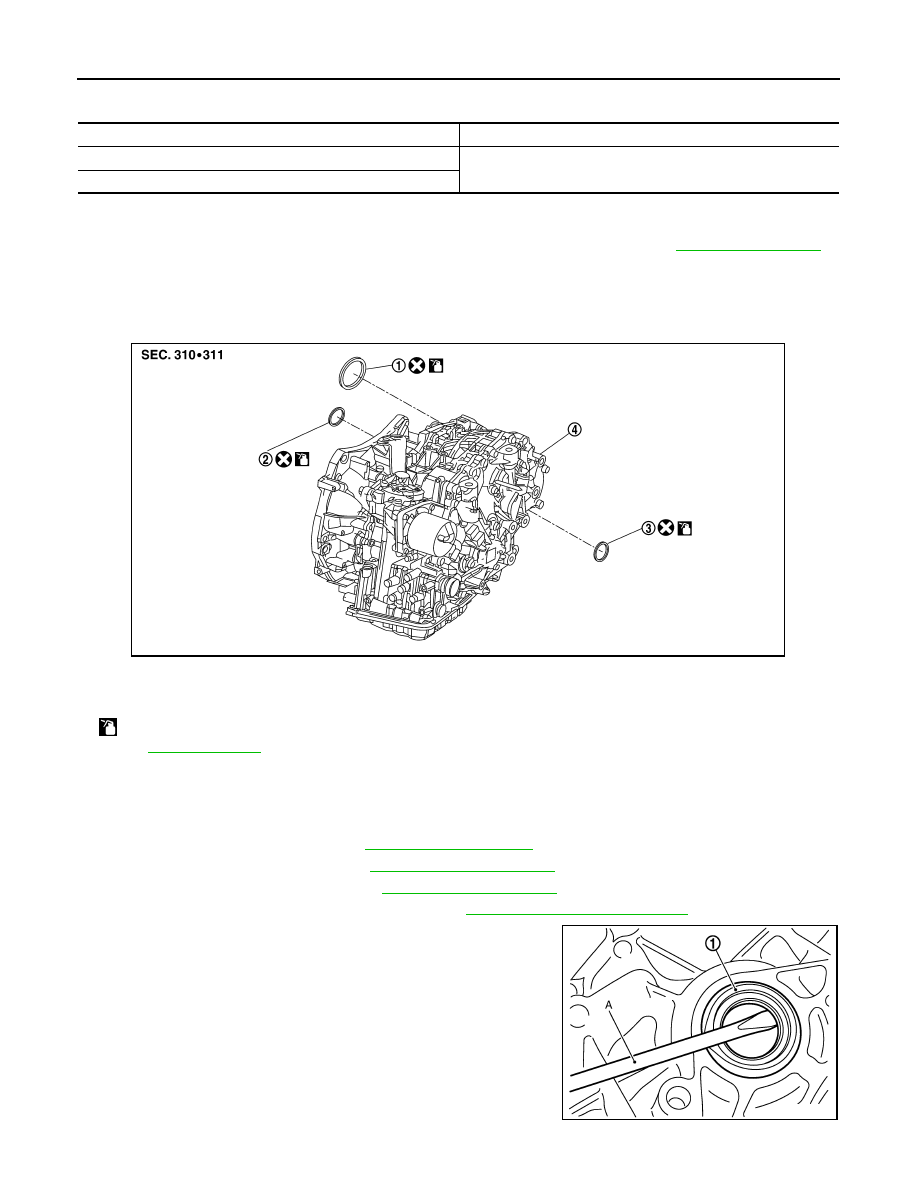

4WD

4WD : Exploded View

INFOID:0000000001091129

4WD : Removal and Installation

INFOID:0000000001091130

REMOVAL

1.

Remove exhaust front tube. Refer to

EX-10, "Exploded View"

.

2.

Separate the propeller shaft. Refer to

DLN-110, "Exploded View"

.

3.

Remove drive shaft assembly. Refer to

FAX-55, "Exploded View"

.

4.

Remove transfer from transaxle assembly. Refer to

DLN-59, "CVT : Exploded View"

.

5.

Remove differential side oil seals (1) and side oil seal (transfer
joint) using a flat-bladed screwdriver (A).

CAUTION:

Be careful not to scratch transaxle case and converter
housing.

INSTALLTION

Location

Tool number

Transaxle case side

Commercial service tool [Outer diameter: 54 mm (2.13 in), inner di-

ameter: 47 mm (1.85 in)]

Converter housing side

1.

Side oil seal (transfer joint)

2.

RH differential side oil seal

3.

LH differential side oil seal

4.

Transaxle assembly

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described on the above.

SCIA6605J

JPDIA0118ZZ
