CONTROL CABLE

TM-331

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

9.

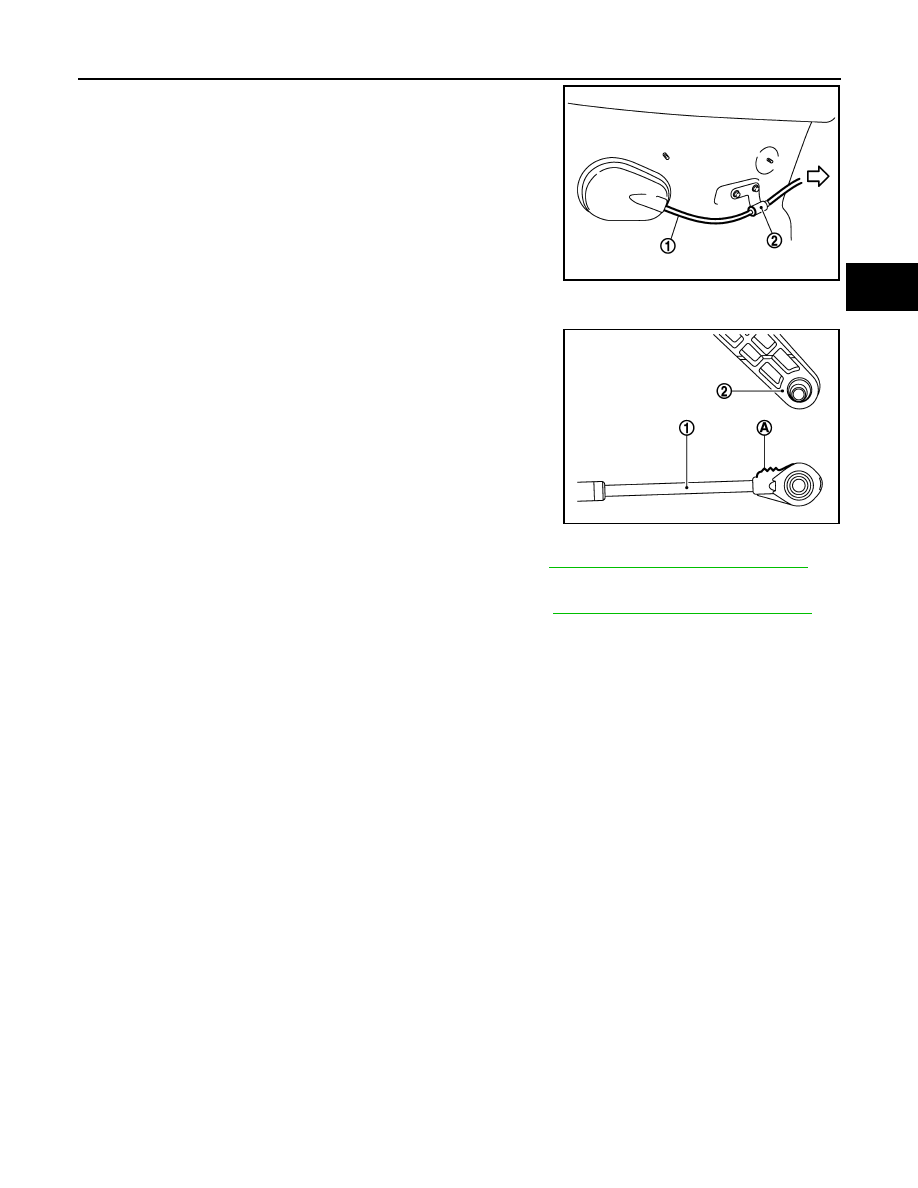

Remove control cable (1) from bracket (2).

10. Remove the control cable from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
• When installing the control cable (1) to the control device assembly

(2), make sure that the control cable is fully pressed in with the
ribbed (A) surface facing upward.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT positions after installing the control device. Refer to

TM-324, "Inspection and Adjustment"

.

INSPECTION AFTER INSTALLATION

Check the CVT positions after adjusting the CVT positions. Refer to

TM-324, "Inspection and Adjustment"

.

: Vehicle front

JPDIA0107ZZ

JPDIA0078ZZ

TM-332

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

KEY INTERLOCK CABLE

KEY INTERLOCK CABLE

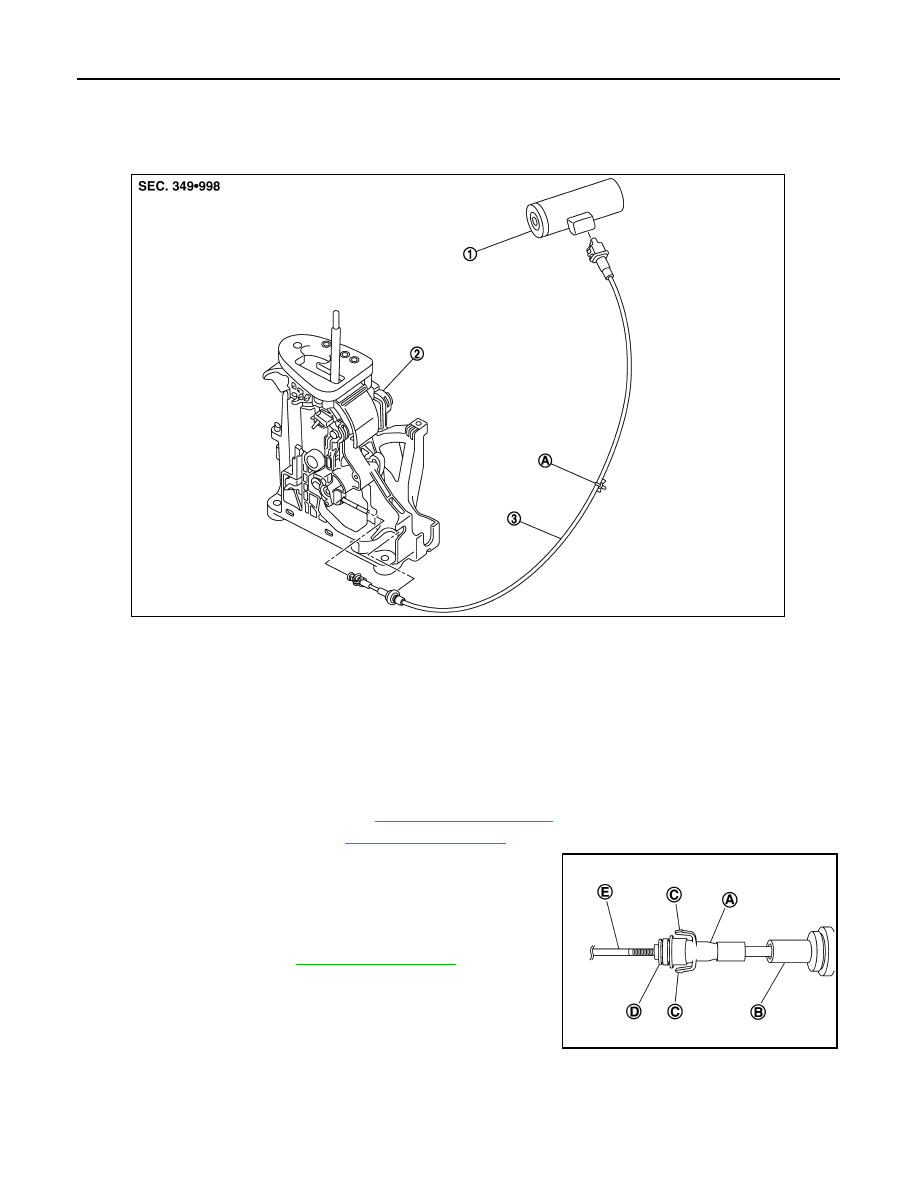

Exploded View

INFOID:0000000000941127

Removal and Installation

INFOID:0000000000941125

REMOVAL

CAUTION:

Make sure that parking brake is applied before removal/installation.

1.

Move selector lever to “P” position.

2.

Removal selector lever knob. Refer to

TM-326, "Exploded View"

.

3.

Removal center console. Refer to

IP-18, "Exploded View"

.

4.

Slide slider (A) toward casing cap (B) while pressing tabs (C) on
slider to separate slider from adjust holder (D).

5.

Remove steering column lower cover and lower instrument
panel, driver side. Refer to

IP-11, "Exploded View"

.

1.

Key cylinder

2.

Control device assembly

3.

Key interlock cable

A.

Clip

JPDIA0098ZZ

E

: Key interlock rod

SCIA6975E

KEY INTERLOCK CABLE

TM-333

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

6.

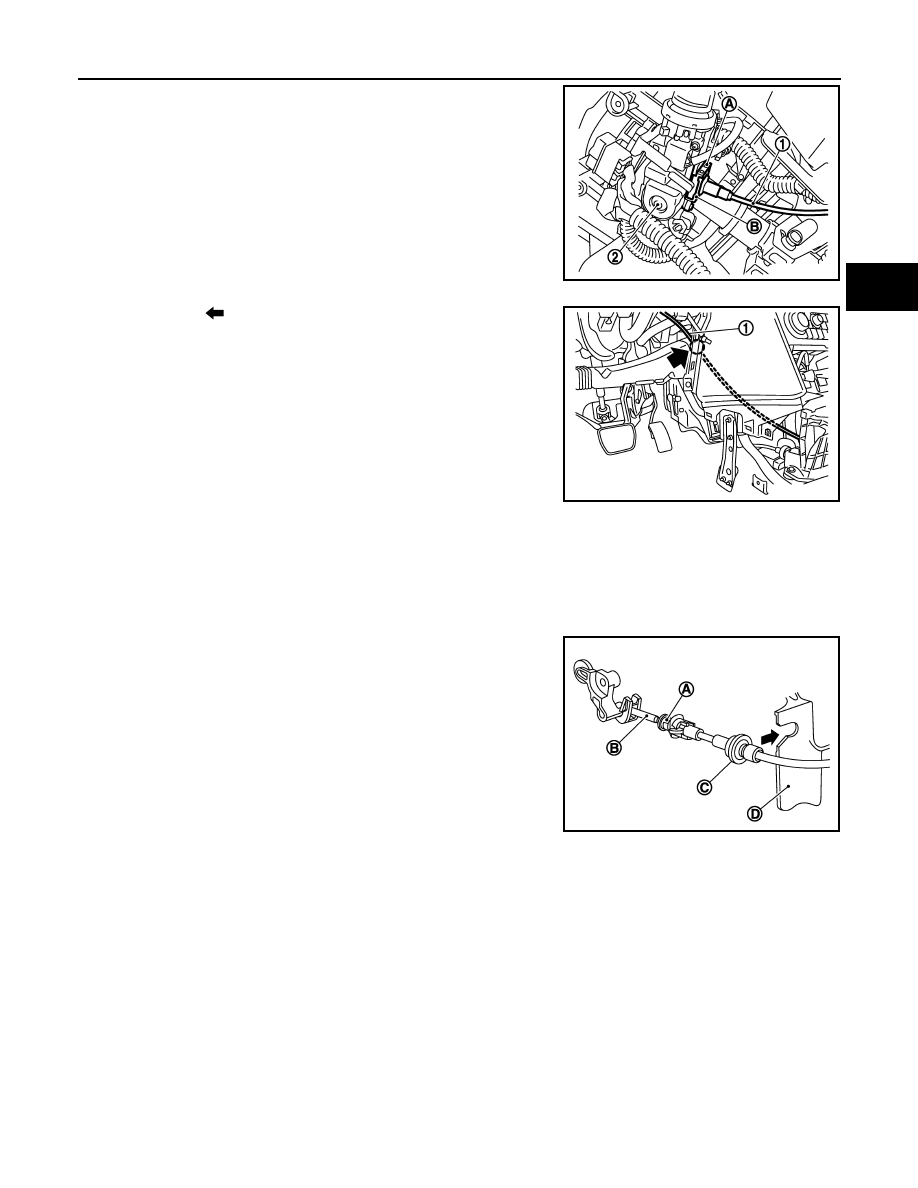

Remove clip (A) from holder (B) and remove key inter lock cable
(1) from key cylinder (2).

7.

Remove clip (

) and remove key inter lock cable (1).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interfer-

ence with adjacent parts.

• After installing key interlock cable to control device assembly, make sure that casing cap and

bracket are firmly secured in their positions.

• Temporarily install adjust holder (A) to key interlock rod (B). Install

casing cap (C) to cable bracket (D) on control device assembly.

CAUTION:

• Never bend or twist key interlock cable excessively when

installing.

• After installing key interlock cable to cable bracket on con-

trol device assembly, make sure casing caps is firmly
secured in cable bracket on control device assembly.

• If casing cap is loose [less than 39.2 N (4.0 kg, 8.8 lb) remov-

ing force], replace key interlock cable.

JPDIA0099ZZ

JPDIA0100ZZ

JPDIA0097ZZ

TM-334

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

KEY INTERLOCK CABLE

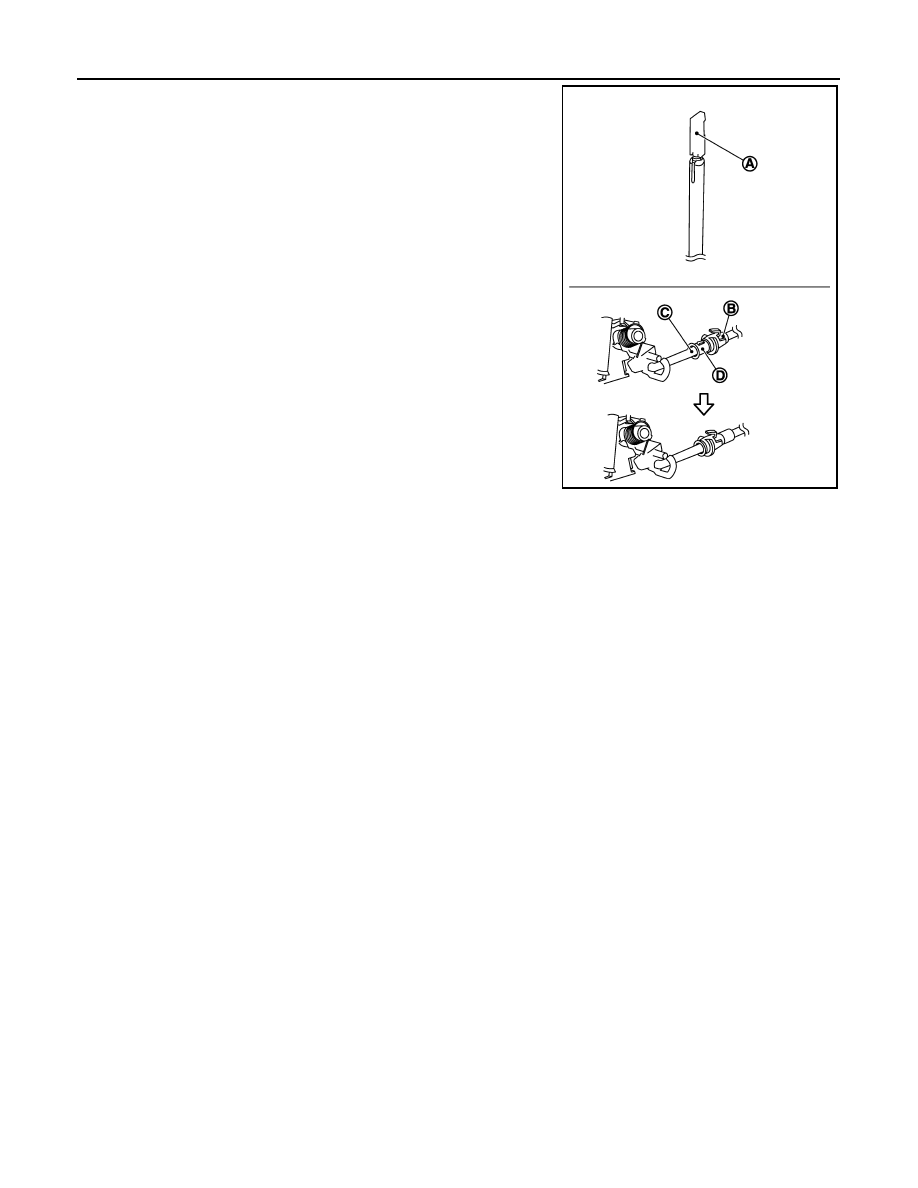

• With the detent rod (A) pressed fully to the end, slider the key inter-

lock cable slider (B) to the key interlock rod side (C), and install
adjust holder (D) and key interlock rod.

CAUTION:

• Never press tabs when holding slider.
• Never apply any force at the right angle to key interlock rod

when slider.

JPDIA0315ZZ
