PREPARATION

TM-15

< PREPARATION >

[5MT: RS5F92R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

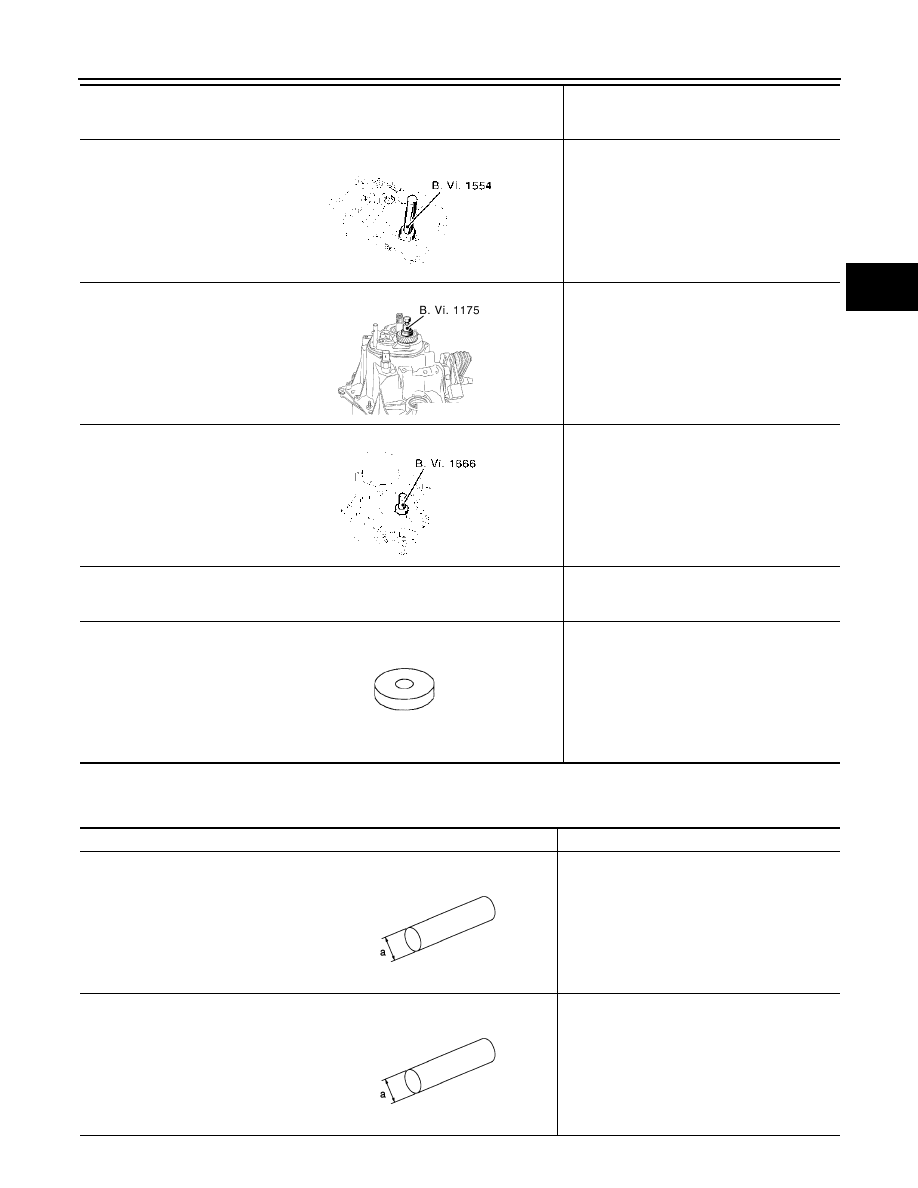

Commercial Service Tools

INFOID:0000000001094778

—

(B. Vi. 1554)
Drift kit

Installing differential side bearing outer race

—

(B. Vi. 1175)
Installer

Installing 5th main gear

—

(B. Vi. 1666)
Drift

Installing differential side oil seal

—

(B. Vi. 1161)
Dial gauge support plate

Measuring preload of mainshaft rear bearing

—

(B. Vi. 1527)
Special spacer

Measuring preload of mainshaft rear bearing

Tool number
(Renault SST No.)
Tool name

Description

MCIA0151E

YMT035

YMT036

S-NT135

Tool name

Description

Drift
a: 55 mm (2.17 in) dia.

Removing mainshaft rear bearing outer race

Drift
a: 38 mm (1.50 in) dia.

Removing input shaft front bearing

SZNT063

SZNT063

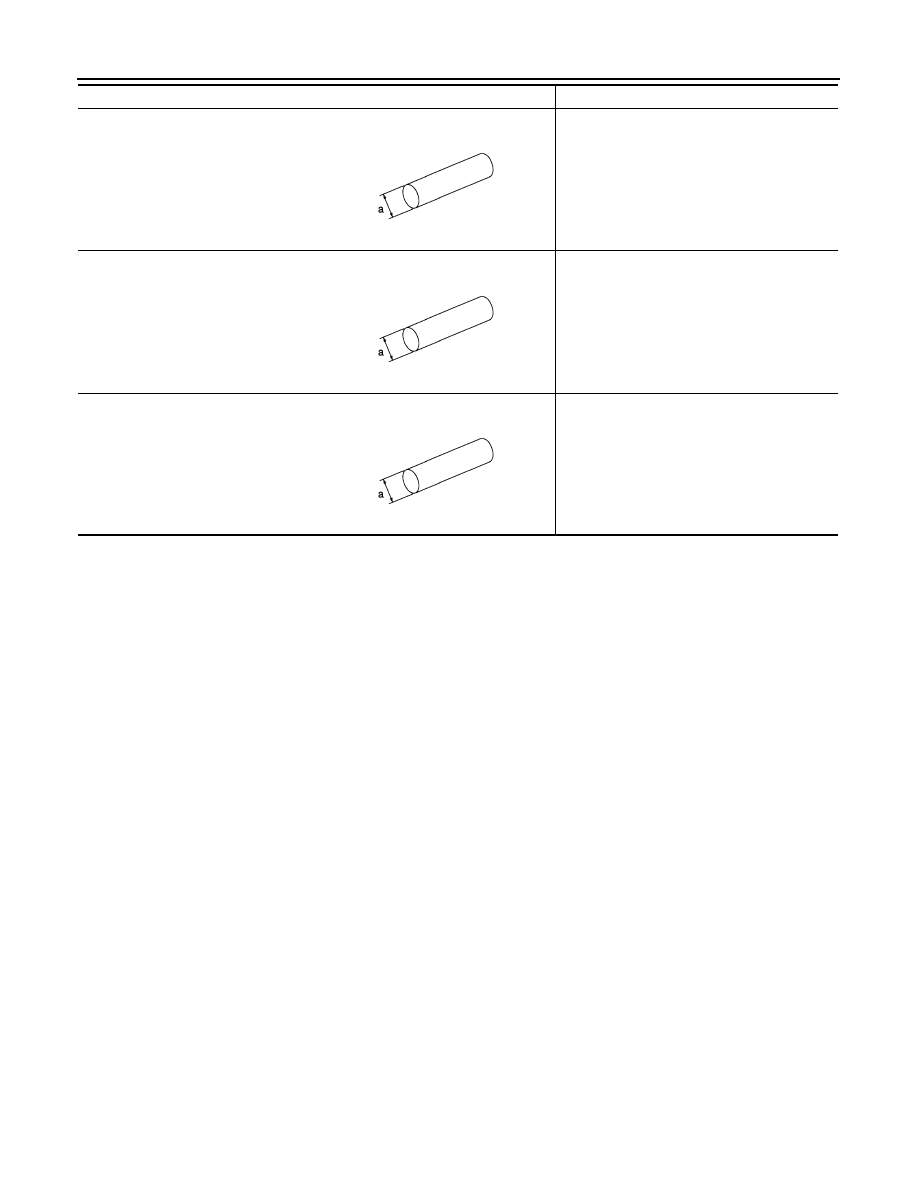

TM-16

< PREPARATION >

[5MT: RS5F92R]

PREPARATION

Drift
a: 60 mm (2.36 in) dia.

Installing the mainshaft rear bearing outer
race

Drift
a: 55 mm (2.17 in) dia.

Removing mainshaft front bearing outer race

Drift
a: 14.5 mm (0.571 in) dia.

Installing bushing

Tool name

Description

SZNT063

SZNT063

SZNT063

GEAR OIL

TM-17

< ON-VEHICLE MAINTENANCE >

[5MT: RS5F92R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

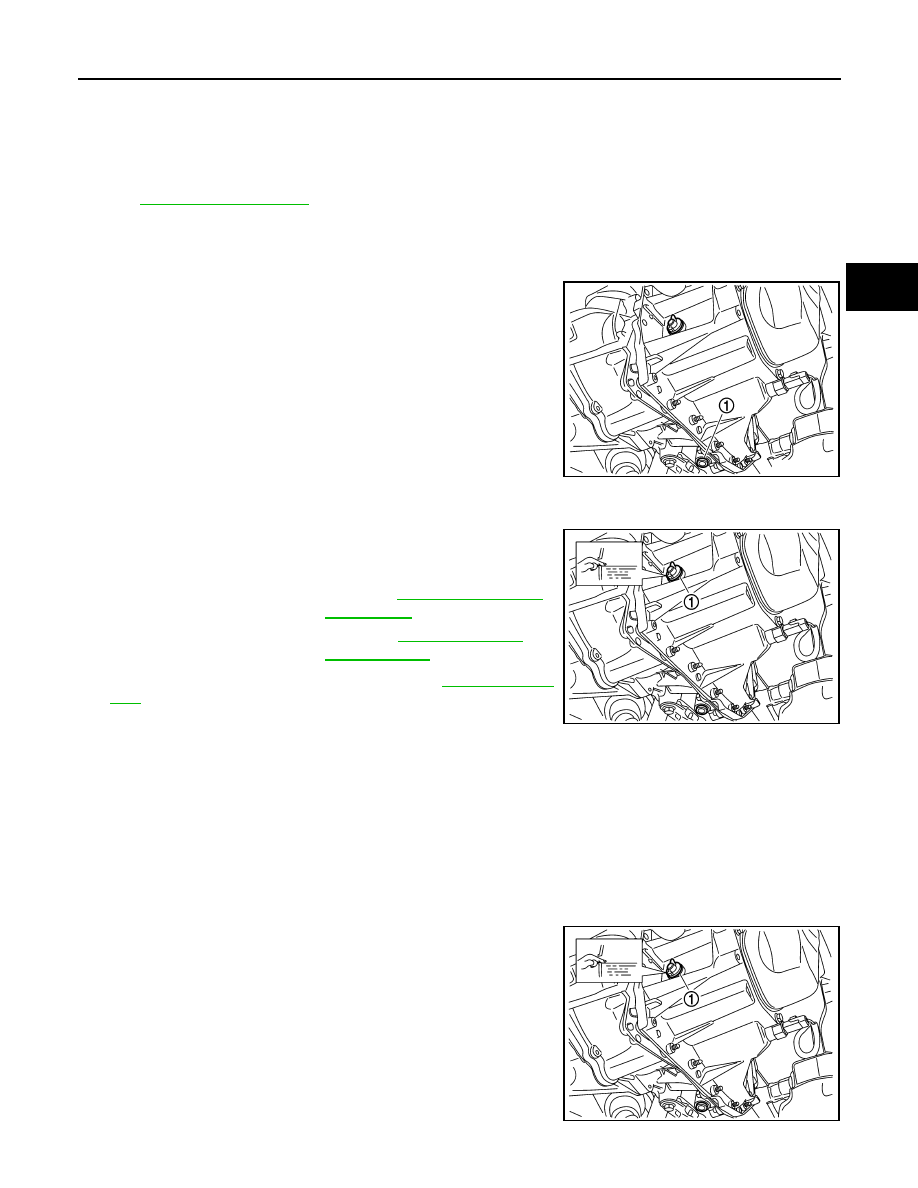

ON-VEHICLE MAINTENANCE

GEAR OIL

Exploded View

INFOID:0000000001070434

Refer to

TM-25, "Exploded View"

.

Draining

INFOID:0000000001070435

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug (1) and then drain gear oil.

3.

Set a new gasket on drain plug and install it to clutch housing.
Tighten drain plug to the specified torque.

CAUTION:

Never reuse gasket.

Refilling

INFOID:0000000001070436

1.

Remove filler plug (1). Fill with new gear oil until oil level reaches
the specified limit at filler plug hole as shown.

2.

After refilling gear oil, check oil level. Refer to

TM-17, "Inspec-

tion"

.

3.

Set a new gasket on filler plug and then install it to transaxle
case.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

Inspection

INFOID:0000000001070437

LEAKAGE

Make sure that gear oil is not leaking from transaxle or around it.

LEVEL

1.

Remove filler plug (1) and check oil level at filler plug hole as
shown.

CAUTION:

Never start engine while checking oil level.

2.

Set a new gasket on filler plug and then install it to transaxle
case.

CAUTION:

Never reuse gasket.

3.

Tighten filler plug to the specified torque.

PCIB1504E

Oil grade and viscosity

: Refer to

MA-21, "Fluids and

Lubricants"

.

Oil capacity

: Refer to

TM-50, "General

Specification"

.

SCIA7119E

SCIA7119E

TM-18

< ON-VEHICLE REPAIR >

[5MT: RS5F92R]

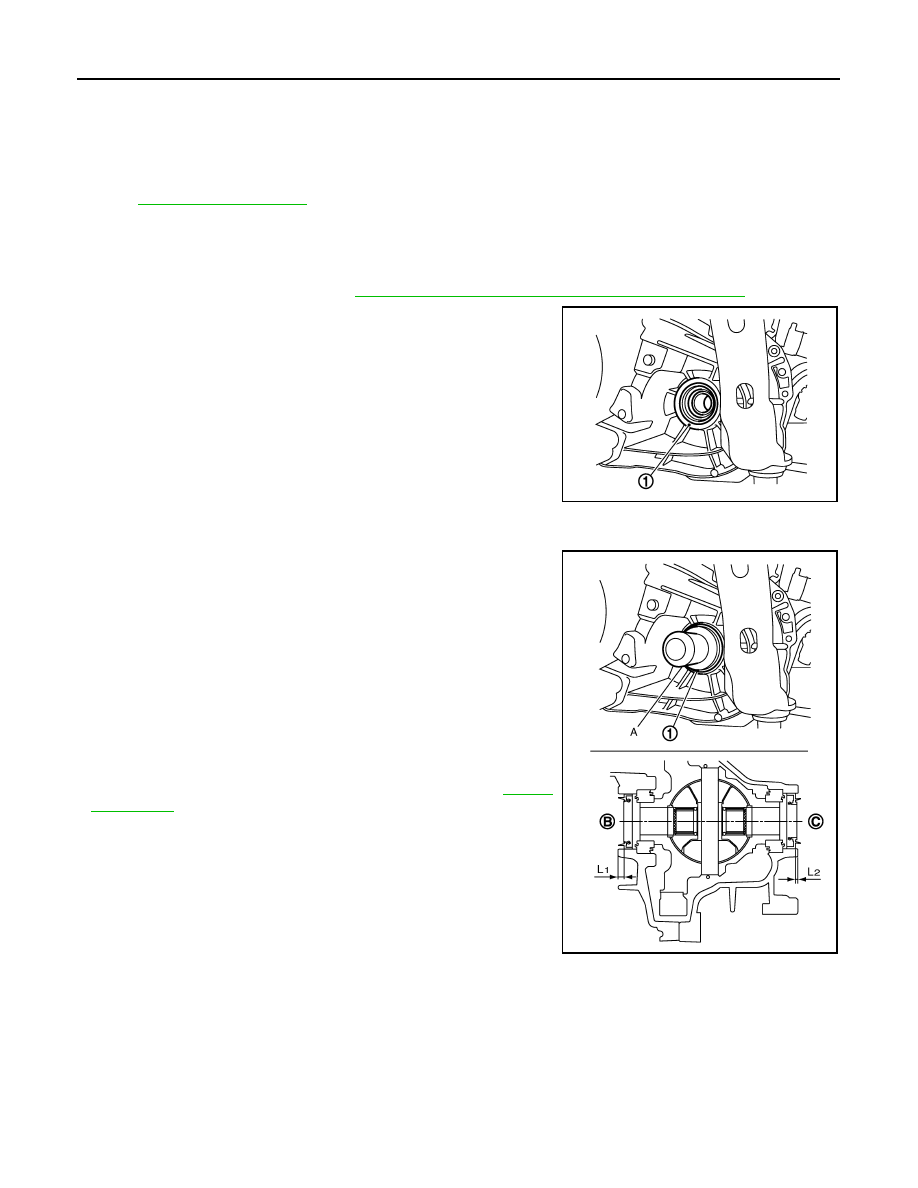

SIDE OIL SEAL

ON-VEHICLE REPAIR

SIDE OIL SEAL

Exploded View

INFOID:0000000001070438

Refer to

TM-25, "Exploded View"

.

Removal and Installation

INFOID:0000000001070439

REMOVAL

1.

Remove front drive shafts. Refer to

FAX-17, "HR16DE MODELS : Removal and Installation"

.

2.

Remove differential side oil seals (1) using a suitable tool.

CAUTION:

Never damage transaxle case and clutch housing.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install differential side oil seals (1) to clutch housing and transaxle

case using the drift (A) [SST:  — (B. Vi. 1666)].

CAUTION:

• Never reuse differential side oil seal.
• When installing, never incline differential side oil seal.
• Never damage clutch housing and transaxle case.

• Check oil level and oil leakage after installation. Refer to

TM-17,

"Inspection"

.

JPDIC0118ZZ

B

: Transaxle case side

C

: Clutch housing side

Dimension “L

1

”

: 5.7 - 6.3 mm (0.224 - 0.248 in)

Dimension “L

2

”

: 2.4 - 3.0 mm (0.094 - 0.118 in)

JPDIC0119ZZ
