Nissan Qashqai (2007-2010). Manual - part 518

TM-7

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FLUID COOLER SYSTEM ...............................

WATER HOSE .........................................................

WATER HOSE : Exploded View ...........................

WATER HOSE : Removal and Installation ............

FLUID COOLER ......................................................

FLUID COOLER : Exploded view .........................

FLUID COOLER : Removal and Installation .........

REMOVAL AND INSTALLATION .............

TRANSAXLE ASSEMBLY ...............................

2WD .........................................................................

2WD : Exploded View ...........................................

2WD : Removal and Installation ............................

2WD : Inspection ...................................................

4WD .........................................................................

4WD : Exploded View ...........................................

4WD : Removal and Installation ............................

4WD : Inspection ...................................................

DISASSEMBLY AND ASSEMBLY ............

TORQUE CONVERTER AND CONVERTER
HOUSING OIL SEAL ......................................

Exploded View .......................................................

Disassembly ..........................................................

Assembly ...............................................................

Inspection ..............................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) ...............................................................

General Specification ............................................

Vehicle Speed When Shifting Gears .....................

Stall Speed ............................................................

Line Pressure ........................................................

Solenoid Valves .....................................................

CVT Fluid Temperature Sensor .............................

Primary Speed Sensor ..........................................

Secondary Speed Sensor ......................................

Removal and Installation .......................................

TM-8

< FUNCTION DIAGNOSIS >

[5MT: RS5F92R]

M/T SYSTEM

FUNCTION DIAGNOSIS

M/T SYSTEM

System Diagram

INFOID:0000000001070424

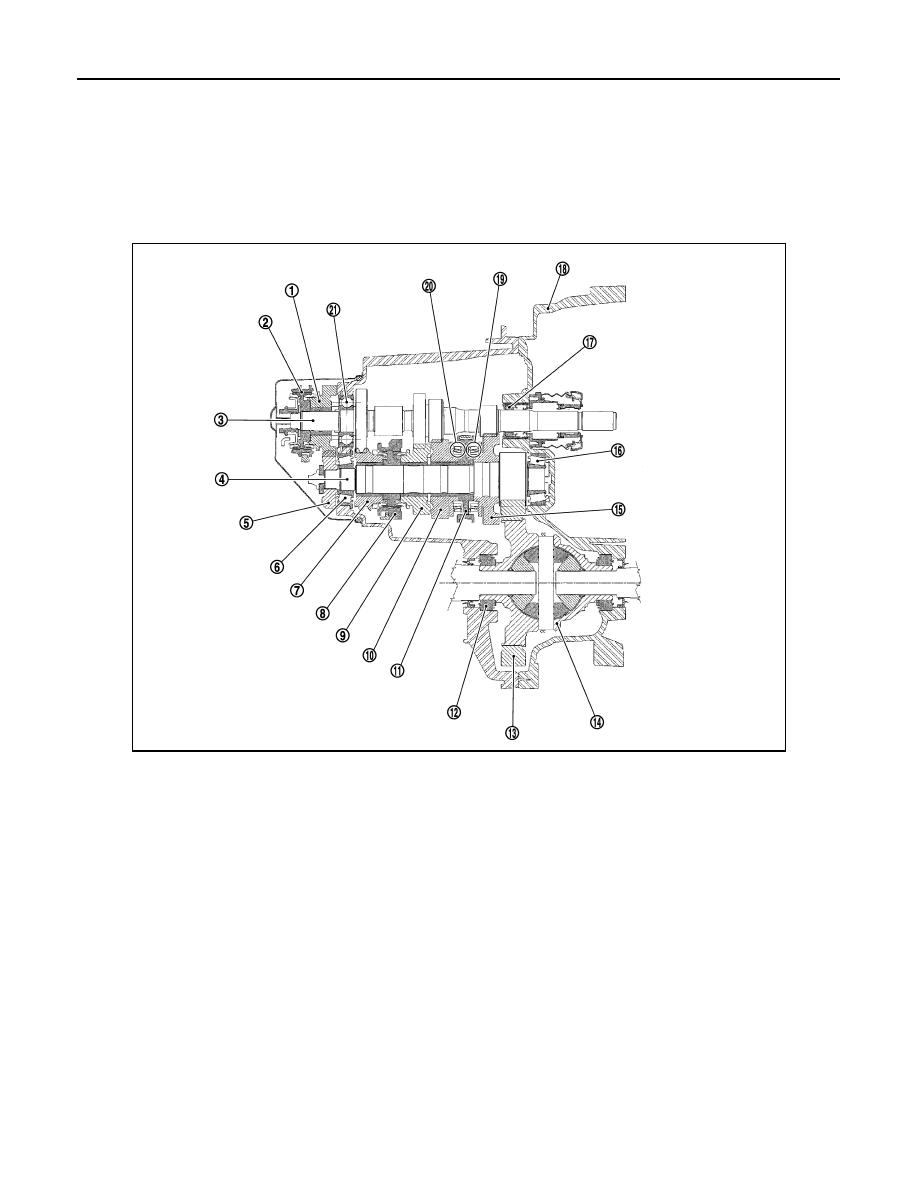

CROSS-SECTIONAL VIEW

System Description

INFOID:0000000001098398

DOUBLE-CONE SYNCHRONIZER

Double-cone synchronizer are adopted for 1st and 2nd gears to reduce operating force of the control lever.

REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING METHOD)

JPDIC0101ZZ

1.

5th input gear

2.

5th-reverse synchronizer assembly

3.

Input shaft

4.

Mainshaft

5.

5th main gear

6.

Mainshaft rear bearing

7.

4th main gear

8.

3rd-4th synchronizer assembly

9.

3rd main gear

10. 2nd main gear

11.

1st-2nd synchronizer assembly

12. Differential side bearing

13. Final gear

14. Differential assembly

15. 1st main gear

16. Mainshaft front bearing

17. Input shaft front bearing

18. Clutch housing

19. 1st double cone synchronizer

20. 2nd double cone synchronizer

21. Input shaft rear bearing

M/T SYSTEM

TM-9

< FUNCTION DIAGNOSIS >

[5MT: RS5F92R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

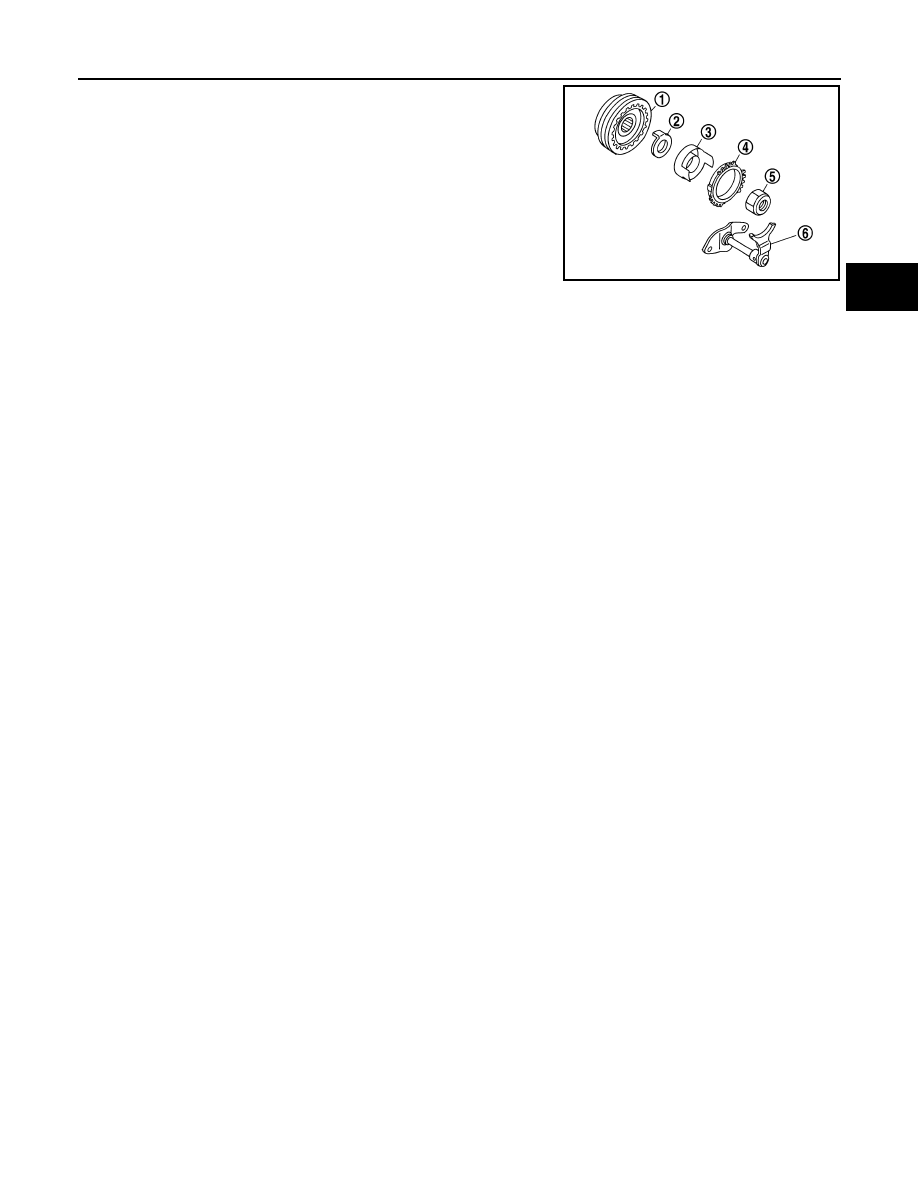

5th-reverse synchronizer hub assembly consists of reverse baulk
ring, reverse synchronizer cone and reverse gear gate assembly.
When the lever is shifted to the reverse position, the construction
allows smooth shift operation by stopping the input shaft rotation by
frictional force of synchronizer.

1

: 5th-reverse synchronizer hub assembly

2

: Lock washer

3

: Reverse synchronizer cone

4

: Reverse baulk ring

5

: Input shaft nut

6

: Reverse gear gate assembly

SCIA7118E

TM-10

< COMPONENT DIAGNOSIS >

[5MT: RS5F92R]

POSITION SWITCH

COMPONENT DIAGNOSIS

POSITION SWITCH

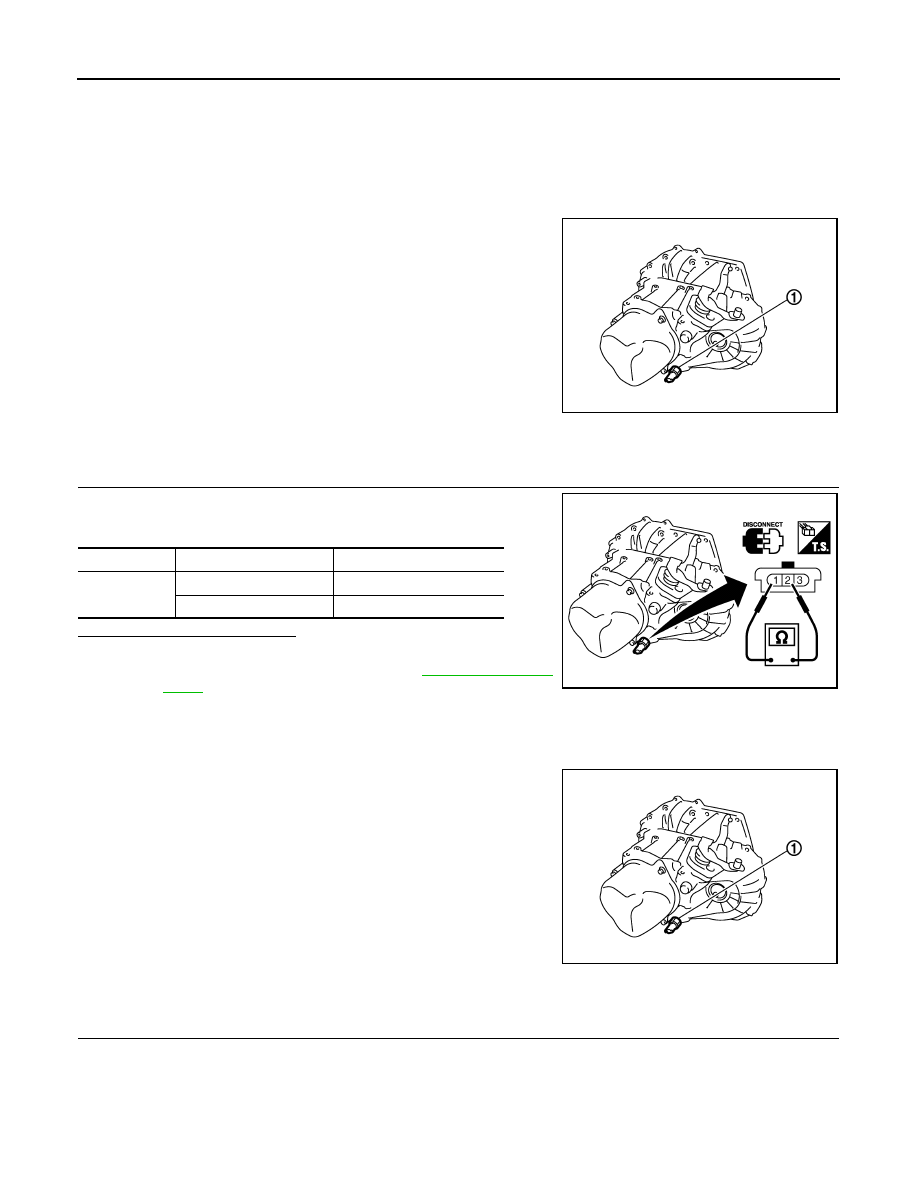

BACK-UP LAMP SWITCH

BACK-UP LAMP SWITCH : Component Parts Location

INFOID:0000000001070426

BACK-UP LAMP SWITCH : Component Inspection

INFOID:0000000001070427

1.

CHECK BACK-UP LAMP SWITCH

Check continuity between position switch terminals with control lever
turned to 1st to 6th and reverse position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch. Refer to

TM-25, "Exploded

PARK/NEUTRAL POSITION (PNP) SWITCH

PARK/NEUTRAL POSITION (PNP) SWITCH : Component Parts Location

INFOID:0000000001070428

PARK/NEUTRAL POSITION (PNP) SWITCH : Component Inspection

INFOID:0000000001070429

1.

CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

1

: Position switch

JPDIC0072ZZ

Terminals

Gear position

Continuity

1 – 2

Reverse

Existed

Except reverse

Not existed

MCIA0157E

1

: Position switch

JPDIC0072ZZ
