POSITION SWITCH

TM-11

< COMPONENT DIAGNOSIS >

[5MT: RS5F92R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

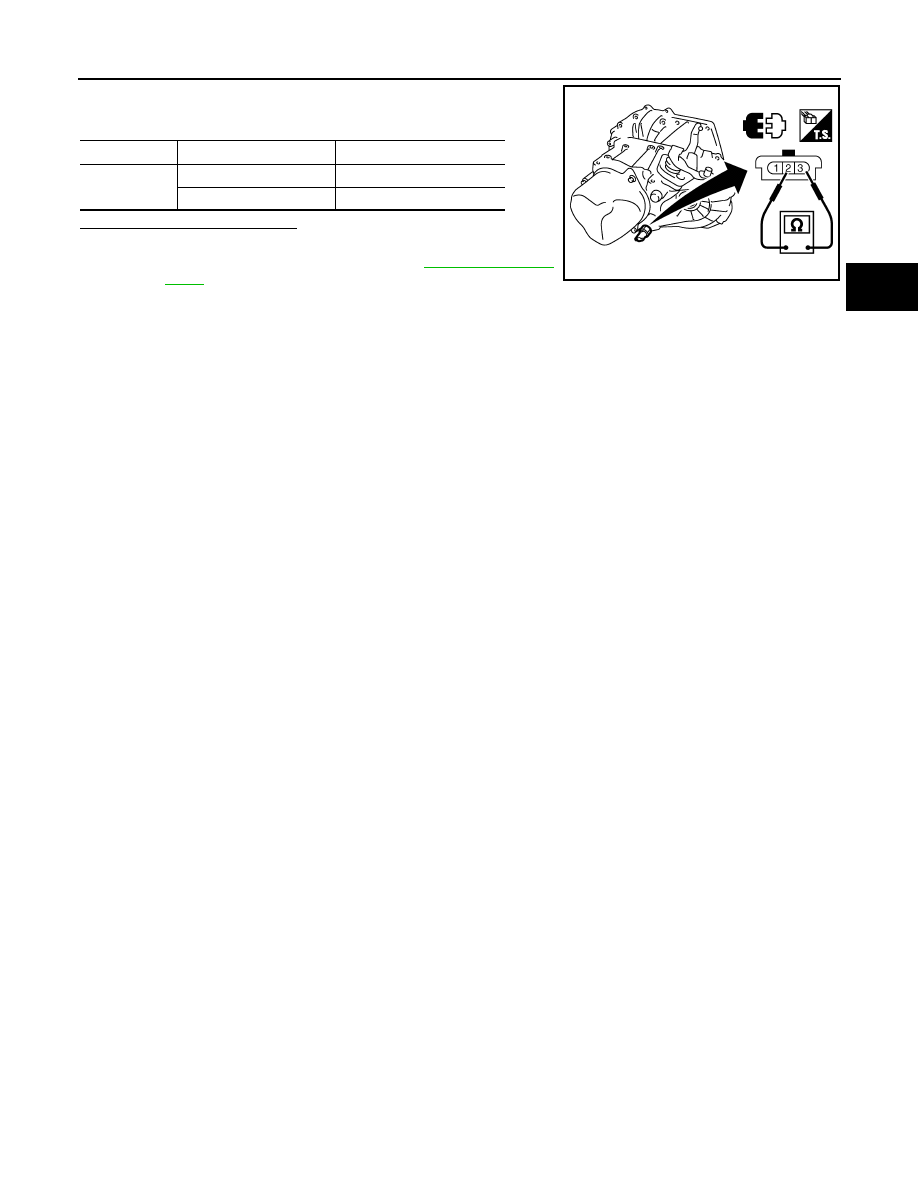

Check continuity between position switch terminals with control lever
turned to 1st to 6th and reverse position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch. Refer to

TM-25, "Exploded

View"

.

Terminals

Gear position

Continuity

2 – 3

Neutral

Existed

Except neutral

Not existed

JPDIC0092ZZ

TM-12

< SYMPTOM DIAGNOSIS >

[5MT: RS5F92R]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000001070430

NOTE:
The numbers indicate the order of priority for diagnostics.

Symptoms (after checking the

clutch)

Possible causes

Symptoms

Oil level or

grade

External

control

Synchro-

nizer

Gearing

Sliding

gear hub

Fork and

balls

Bearings

Engine

mounting
- housing

Gear grinding

1

2

3

4

One or more gears
cannot be selected

1

2

3

4

Gear disengagement

2

4

4

3

1

One or more gears
locked

1

4

2

3

Noisy

1

3

2

PRECAUTIONS

TM-13

< PRECAUTION >

[5MT: RS5F92R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PRECAUTION

PRECAUTIONS

Service Notice or Precautions for Manual Transaxle

INFOID:0000000001070431

CAUTION:

• If transaxle assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder).

Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc sliding
parts may damage seal of CSC and may cause clutch fluid leakage.

• Never reuse transaxle gear oil, once it has been drained.
• Check oil level or replace gear oil with vehicle on level surface.
• During removal or installation, keep inside of transaxle clear of dust or dirt.
• Check for the correct installation status prior to removal or disassembly. If matching marks are

required, be certain they do not interfere with the function of the parts they are applied.

• In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to out-

side. If tightening sequence is specified, use it.

• Never damage sliding surfaces and mating surfaces.
• Removing and handling the parts must be carried out on a workbench with a knockproof cover. (rub-

ber or thick plastic)

• Cover all turning and synchronizer points in gear oil.
• Observe the tightening torques.
• Carefully carry out the specific settings and adjustments.
• Be sure to properly refit parts in the same order and position after removal.

TM-14

< PREPARATION >

[5MT: RS5F92R]

PREPARATION

PREPARATION

PREPARATION

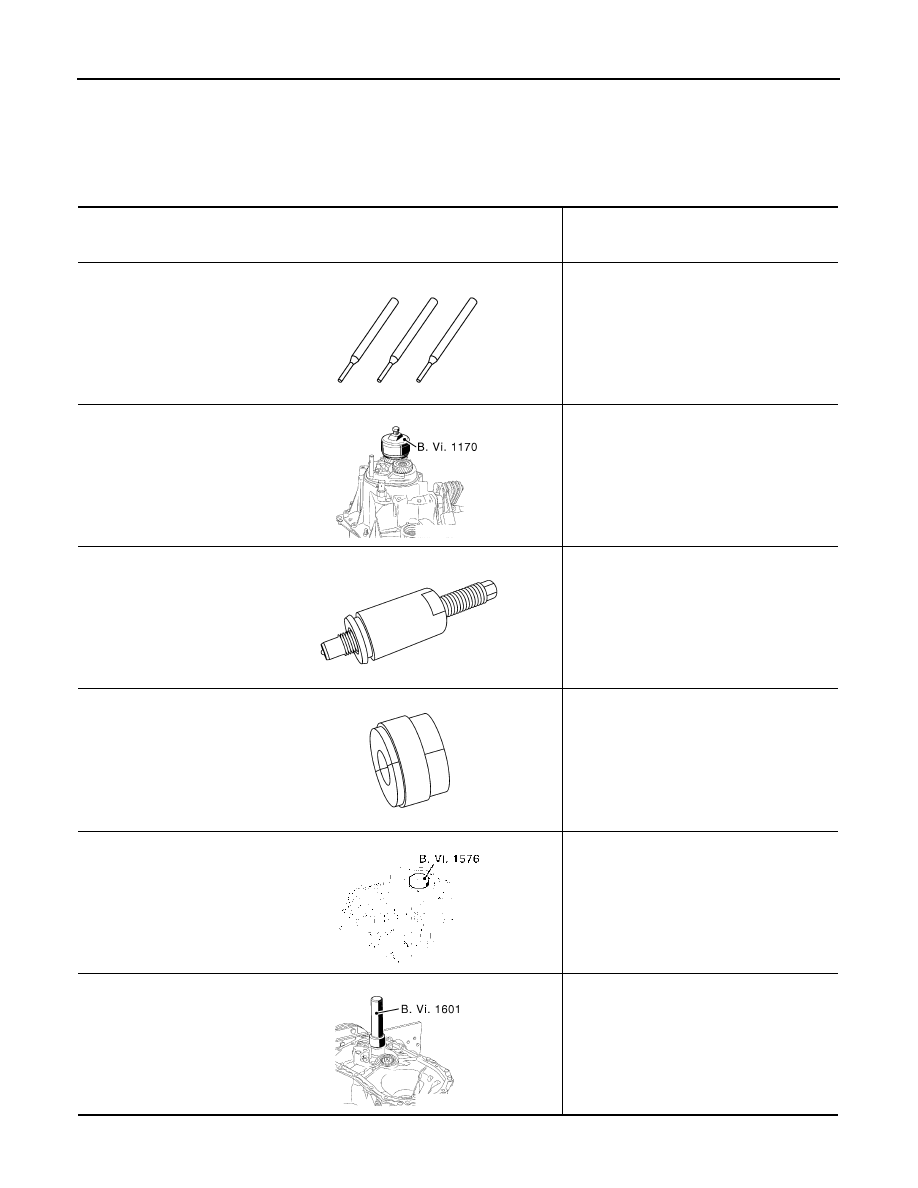

Special Service Tools

INFOID:0000000001070432

Tool number
(Renault SST No.)
Tool name

Description

—

(B. Vi. 31-01)
Pin punch

Removing and installing retaining pin

—

(B. Vi. 1170)
Puller

Removing 5th-reverse synchronizer hub

KV32300QAC
(B. Vi. 22-01)
Puller

Removing 5th main gear

KV32300QAD
(B. Vi. 1000-01)
Puller

Removing 5th main gear

—

(B. Vi. 1576)
Mandrel

Removing and  installing input shaft rear bear-
ing

—

(B. Vi. 1601)
Mandrel

Installing input shaft front bearing

YMT030

YMT031

SCIA1781J

SCIA1782J

YMT032

YMT033
