CLUTCH FLUID

CL-7

< ON-VEHICLE MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

• RS6F94R and RS6F52A

CAUTION:

Hold it to prevent releasing clutch tube from bleeding con-
nector when fluid pressure is applied in the tube.

5.

Slide clutch tube (1) in the direction of the arrow as shown in the figure.
• RS5F92R

• RS6F94R and RS6F52A

6.

Depress the clutch pedal soon and hold it, and then bleed the air
from the piping.

CAUTION:

Hold it to prevent releasing clutch tube from bleeding con-
nector when fluid pressure is applied in the tube.

7.

Return clutch tube (1) and lock pin to their original positions.

8.

Release clutch pedal and wait for 5 seconds.

9.

Repeat steps 3 to 8 until no bubbles are observed in the clutch fluid.

JPDIB0041ZZ

Dimension “A”

: 5 mm (0.20 in)

JPDIB0045ZZ

2

: Clutch housing

Dimension “A”

: 10 mm (0.39 in)

JPDIB0042ZZ

CL-8

< ON-VEHICLE REPAIR >

CLUTCH PEDAL

ON-VEHICLE REPAIR

CLUTCH PEDAL

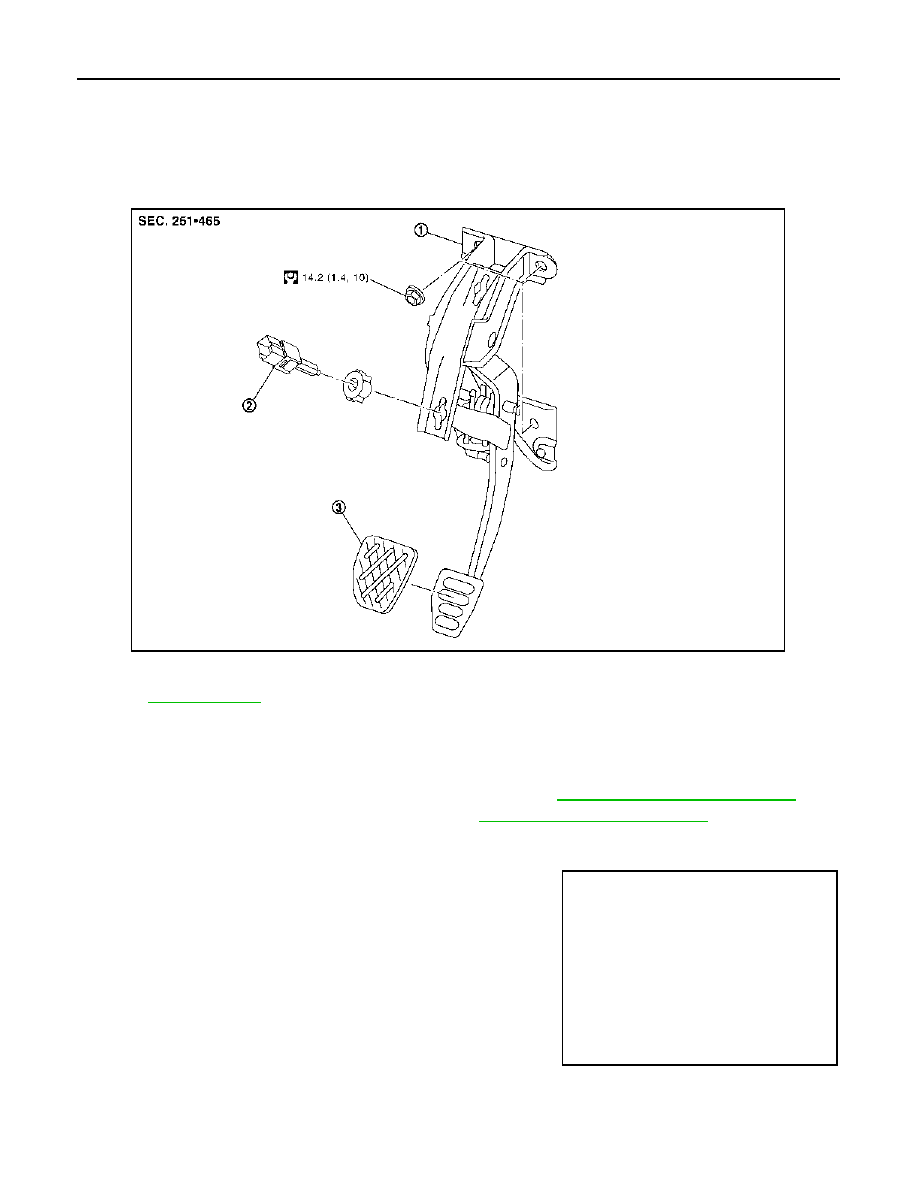

Exploded View

INFOID:0000000001043511

Removal and Installation

INFOID:0000000001043512

REMOVAL

1.

Remove front kicking plate inner and dash side finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove lower instrument panel, driver side. Refer to

IP-12, "Removal and Installation"

.

3.

Disconnect ASCD clutch switch harness connector and then disconnect clip of harness from clutch pedal
assembly.

4.

Remove master cylinder rod end from clutch pedal assembly.

5.

Remove clutch pedal assembly.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000001043513

1.

Clutch pedal assembly

2.

ASCD clutch switch

3.

Pedal pad

Refer to

GI-4, "Components"

 for the symbols in the figure.

JPDIB0034GB

PCIB1491E

CLUTCH PEDAL

CL-9

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

INSPECTION AFTER REMOVAL

Check clutch pedal for bend, damage, or a cracked weld. If bend, damage, or a cracked weld is found, replace
clutch pedal assembly.

CL-10

< ON-VEHICLE REPAIR >

CLUTCH MASTER CYLINDER

CLUTCH MASTER CYLINDER

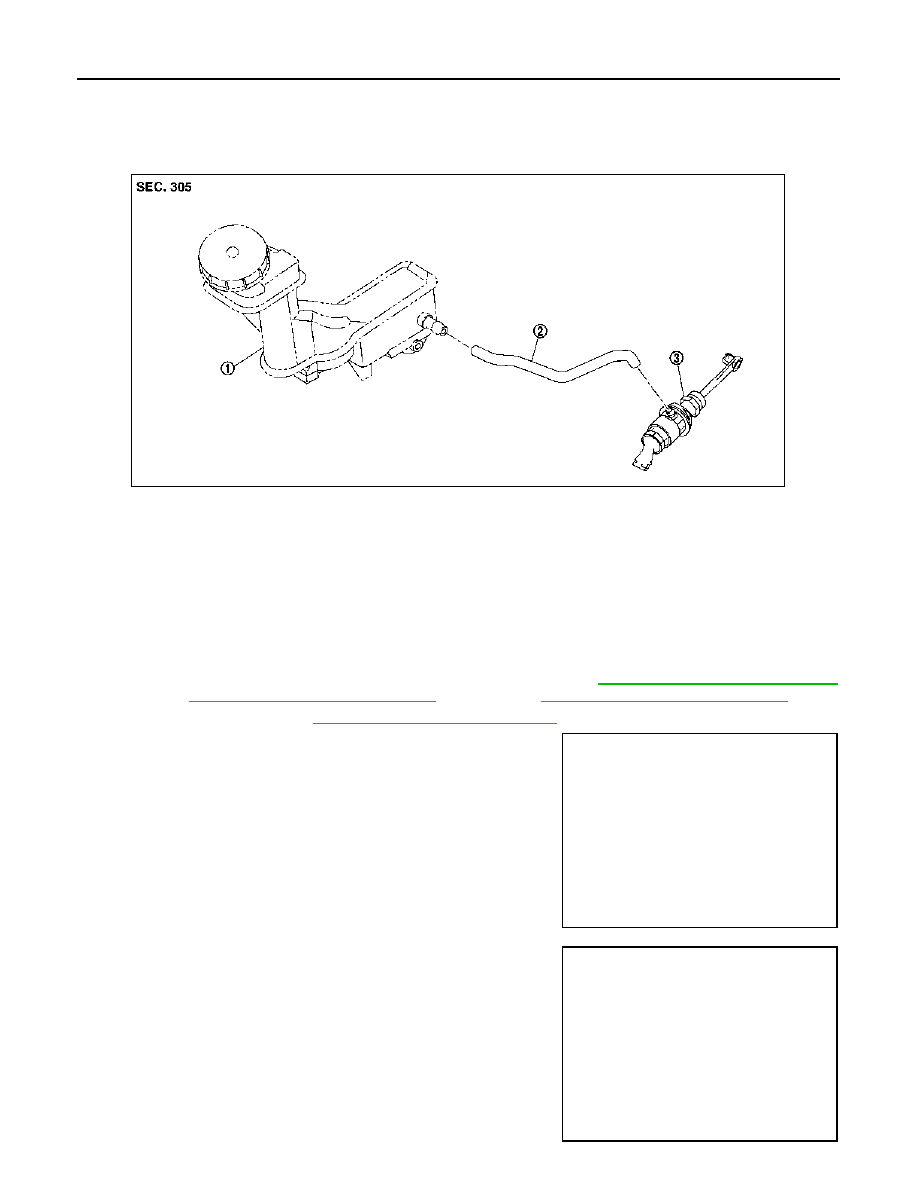

Exploded View

INFOID:0000000001043514

Removal and Installation

INFOID:0000000001043515

REMOVAL

CAUTION:

• Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately

and wash the affected area with water.

• Never disassemble master cylinder.
1.

Remove the air cleaner case and air duct (inlet) or air ducts. Refer to

EM-27, "Removal and Installation"

(HR16DE),

EM-144, "Removal and Installation"

 (MR20DE), or

EM-265, "Removal and Installation"

 (K9K).

2.

Remove the battery. Refer to

PG-118, "Removal and Installation"

.

3.

Disconnect the connectors (A) and then remove the bracket (1).

4.

Drain clutch fluid in reservoir tank assembly and then remove
hose.

5.

Remove master cylinder rod end from clutch pedal assembly.

1.

Reservoir tank assembly

2.

Hose

3.

Master cylinder assembly

JPDIB0035ZZ

JPDIA0240ZZ

PCIB1491E
