STR-30

< ON-VEHICLE REPAIR >

STARTER MOTOR

3.

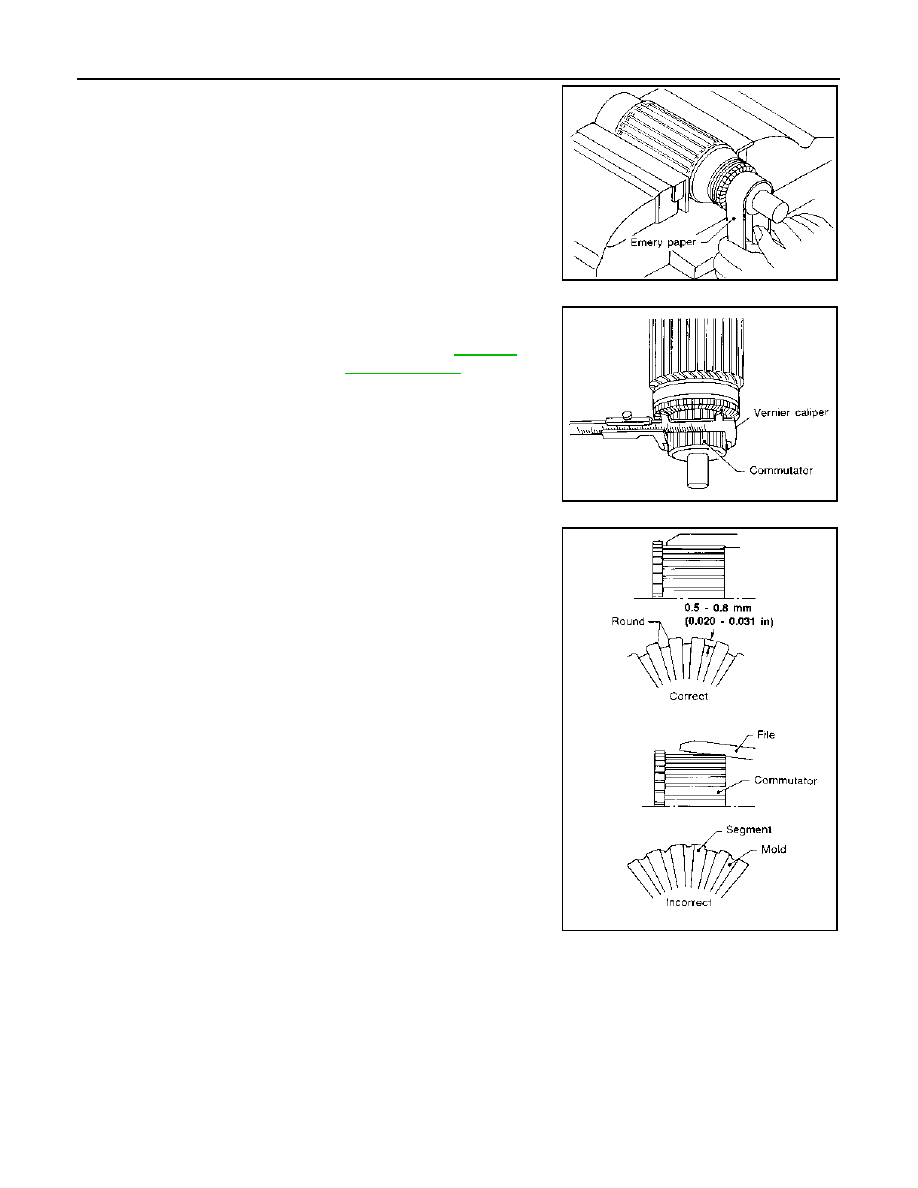

Check commutator surface.
• Grind with No. 500 - 600 emery paper if it has a rough surface.

4.

Check diameter of commutator.

• Replace armature assembly if the measurement value is less

than the specified value.

5.

Check depth of insulating mold from commutator surface.
• Undercut to 0.5 to 0.8 mm (0.020 to 0.031 in) if the depth is 0.2

mm (0.008 in) or less.

SEL020Z

Commutator minimum di-
ameter

: Refer to SDS

STR-31,

"Starter Motor"

.

SEL021Z

SEL022Z

SERVICE DATA AND SPECIFICATIONS (SDS)

STR-31

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Starter Motor

INFOID:0000000000955279

Applied model

K9K

HR16DE

MR20DE

Type

M000T87881

M000T32171

S114-902A

MITSUBISHI make

MITSUBISHI make

HITACHI make

Reduction gear type

Reduction gear type

Reduction gear type

System voltage

[V]

—

12

12

No-load

Terminal voltage

[V]

—

11

11

Current

[A]

—

Less than 95

Less than 110

Revolution

[rpm]

—

More than 3,000

More than 3,000

Minimum diameter of commutator

[mm (in)]

—

28.8 (1.134)

28.0 (1.102)

Minimum length of brush

[mm (in)]

—

5.5 (0.217)

10.5 (0.413)

Brush spring tension

[N (kg, lb)]

—

17.7 (1.81, 3.98)

16.2 (1.65, 3.64)

Clearance between bearing metal and ar-
mature shaft

[mm (in)]

—

Less than 0.2 (0.008)

Less than 0.2 (0.008)

Clearance “L” between pinion front edge
and pinion stopper

[mm (in)]

—

0.3 - 2.0 (0.012 - 0.079)

0.3 - 2.5 (0.012 - 0.098)
