STR-22

< ON-VEHICLE REPAIR >

STARTER MOTOR

HR16DE MODELS : Removal and Installation

INFOID:0000000000955719

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove “B” terminal nut and “B” terminal harness.

3.

Remove “S” terminal nut and “S” terminal harness.

4.

Remove starter motor mounting bolts.

5.

Remove starter motor upward from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to tighten “B” terminal nut carefully.

HR16DE MODELS : Disassembly and Assembly

INFOID:0000000000967656

ASSEMBLY

Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling
the starter.
Carefully observe the following manuals.

Pinion Protrusion Length Adjustment

CLEARANCE

• With pinion driven out by magnetic switch, push pinion back to

remove slack and measure clearance “L” between the front edge
of the pinion and the pinion stopper.

• Adjust with the adjusting plate if the measurement value is not in

the specified area.

HR16DE MODELS : Inspection

INFOID:0000000000967657

INSPECTION

Magnetic Switch Check

13. Planetary gear

14. Gear shaft

15. Packing

16. Internal gear

17. Pinion assembly

18. Stopper

19. Stopper ring

 (H): High-temperature grease point

Refer to

GI-4, "Components"

 for symbols not described on the above.

Clearance “L”

: Refer to SDS

STR-31,

"Starter Motor"

.

SKIB0229E

PKID0786E

STARTER MOTOR

STR-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

• Before starting to check, disconnect the battery cable from the negative terminal.
• Disconnect “M” terminal of starter motor.
1.

Continuity test [between “S” terminal (A) and switch body]

• Replace magnetic switch if continuity does not exist.

2.

Continuity test [between “S” terminal (A) and “M” terminal (C)]

• Replace magnetic switch if continuity does not exist.

Pinion/Clutch Check

1.

Inspect pinion teeth.
• Replace pinion if teeth are worn or damaged. (Also check con-

dition of ring gear teeth.)

2.

Inspect reduction gear teeth (If equipped).
• Replace reduction gear if teeth are worn or damaged. (Also

check condition of armature shaft gear teeth.)

3.

Check to see if pinion locks in one direction and rotates
smoothly in the opposite direction.
• Replace pinion assembly if it is locked or rotated in both direc-

tions or unusual resistance is evident.

Brush Check

• Check wear of brush.

• Replace brush if the measurement value is less than the specified

value.

Brush Spring Check

B

: “B” terminal

C

: “M” terminal

SKIB9002E

B

: “B” terminal

SKIB9003E

SEL630BA

Minimum length of brush

: Refer to SDS

STR-31,

"Starter Motor"

.

SEL014Z

STR-24

< ON-VEHICLE REPAIR >

STARTER MOTOR

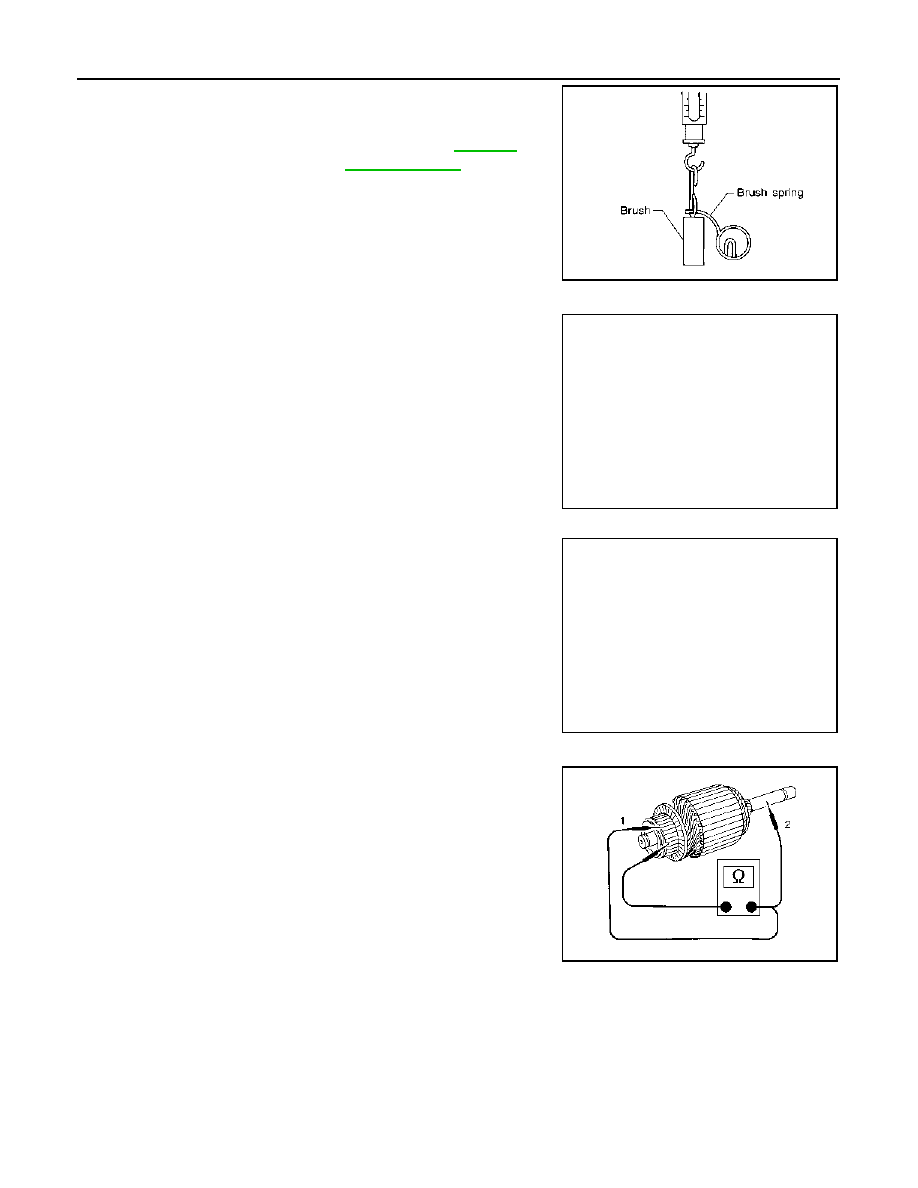

• Check brush spring tension with brush spring detached from

brush.

• Replace brush spring if the measurement value is less than the

specified value.

Brush Holder Check

1.

Perform insulation test between brush holder (positive side) and
its base (negative side).
• Replace brush holder assembly if continuity does not exist.

2.

Check brush to see if it moves smoothly.
• If brush holder is bent, replace it; if sliding surface is dirty,

clean.

Yoke Check

Magnet is secured to yoke by bonding agent. Check magnet to see
that it is secured to yoke and for any cracks. Replace malfunctioning
parts as an assembly.

CAUTION:

Never clamp yoke in a vise or strike it with a hammer.

Armature Check

1.

Continuity test (between two segments side by side)
• Replace armature assembly if continuity does not exist.

2.

Insulation test (between each commutator bar and shaft)
• Replace armature assembly if continuity exists.

Spring tension (with new
brush)

: Refer to SDS

STR-31,

"Starter Motor"

.

SEL015Z

SKIB0460E

SEL305H

SKIB0461E

STARTER MOTOR

STR-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

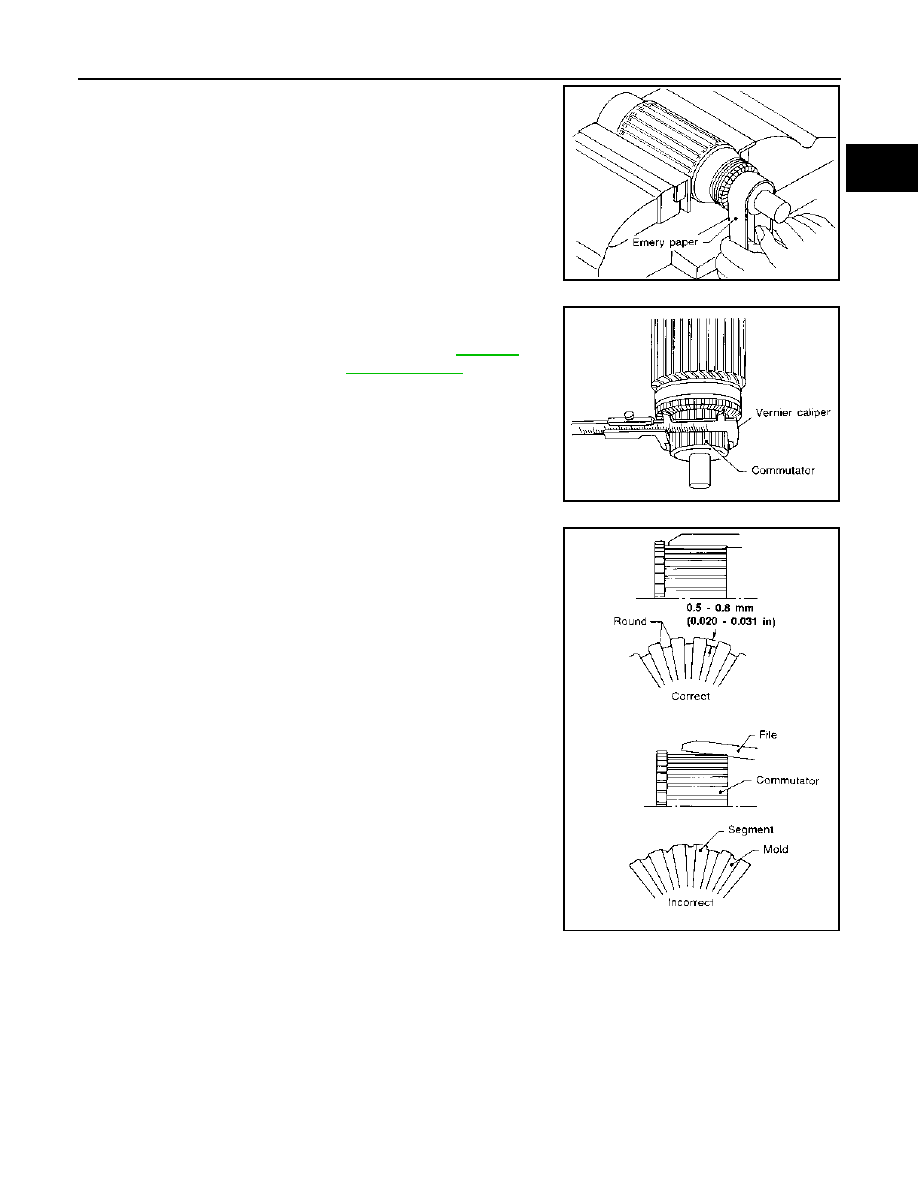

3.

Check commutator surface.
• Grind with No. 500 - 600 emery paper if it has a rough surface.

4.

Check diameter of commutator.

• Replace armature assembly if the measurement value is less

than the specified value.

5.

Check depth of insulating mold from commutator surface.
• Undercut to 0.5 to 0.8 mm (0.020 to 0.031 in) if the depth is 0.2

mm (0.008 in) or less.

MR20DE MODELS

MR20DE MODELS : Exploded View

INFOID:0000000000955722

REMOVAL

SEL020Z

Commutator minimum di-
ameter

: Refer to SDS

STR-31,

"Starter Motor"

.

SEL021Z

SEL022Z
