STR-18

< SYMPTOM DIAGNOSIS >

STARTING SYSTEM

SYMPTOM DIAGNOSIS

STARTING SYSTEM

Symptom Table

INFOID:0000000000955272

Symptom

Reference

No normal cranking

Refer to

STR-2, "K9K MODELS : Work Flow"

 (K9K models) or

STR-4, "HR16DE/MR20DE MODELS : Work Flow"

 (HR16DE/

MR20DE models).

Starter motor does not rotate

PRECAUTIONS

STR-19

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

PRECAUTION

PRECAUTIONS

Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSION-
ER"

INFOID:0000000000955273

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

STR-20

< ON-VEHICLE REPAIR >

STARTER MOTOR

ON-VEHICLE REPAIR

STARTER MOTOR

K9K MODELS

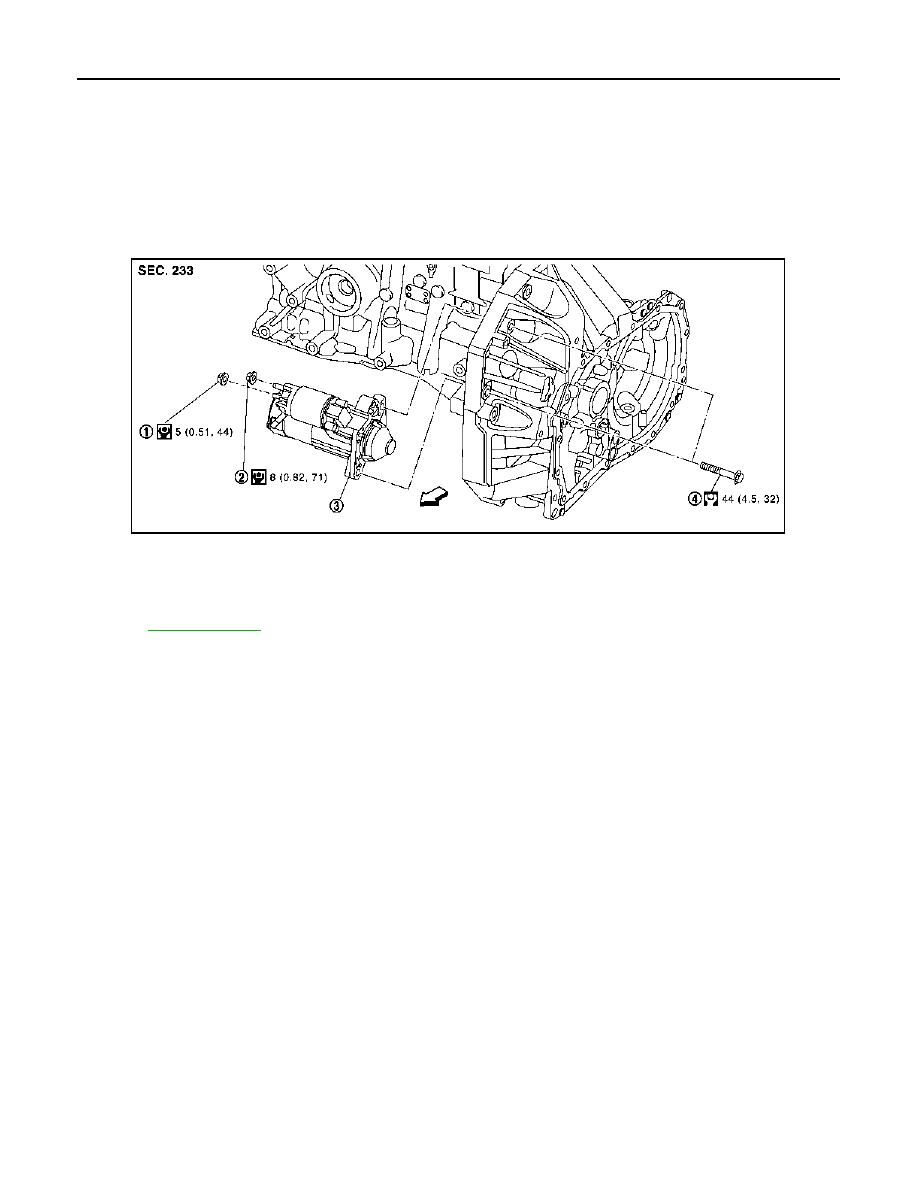

K9K MODELS : Exploded View

INFOID:0000000000955275

REMOVAL

K9K MODELS : Removal and Installation

INFOID:0000000000955276

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove “S” terminal nut and “S” terminal harness.

3.

Remove “B” terminal nut and “B” terminal harness.

4.

Remove starter motor mounting bolts.

5.

Remove starter motor upward from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to tighten “B” terminal nut carefully.

HR16DE MODELS

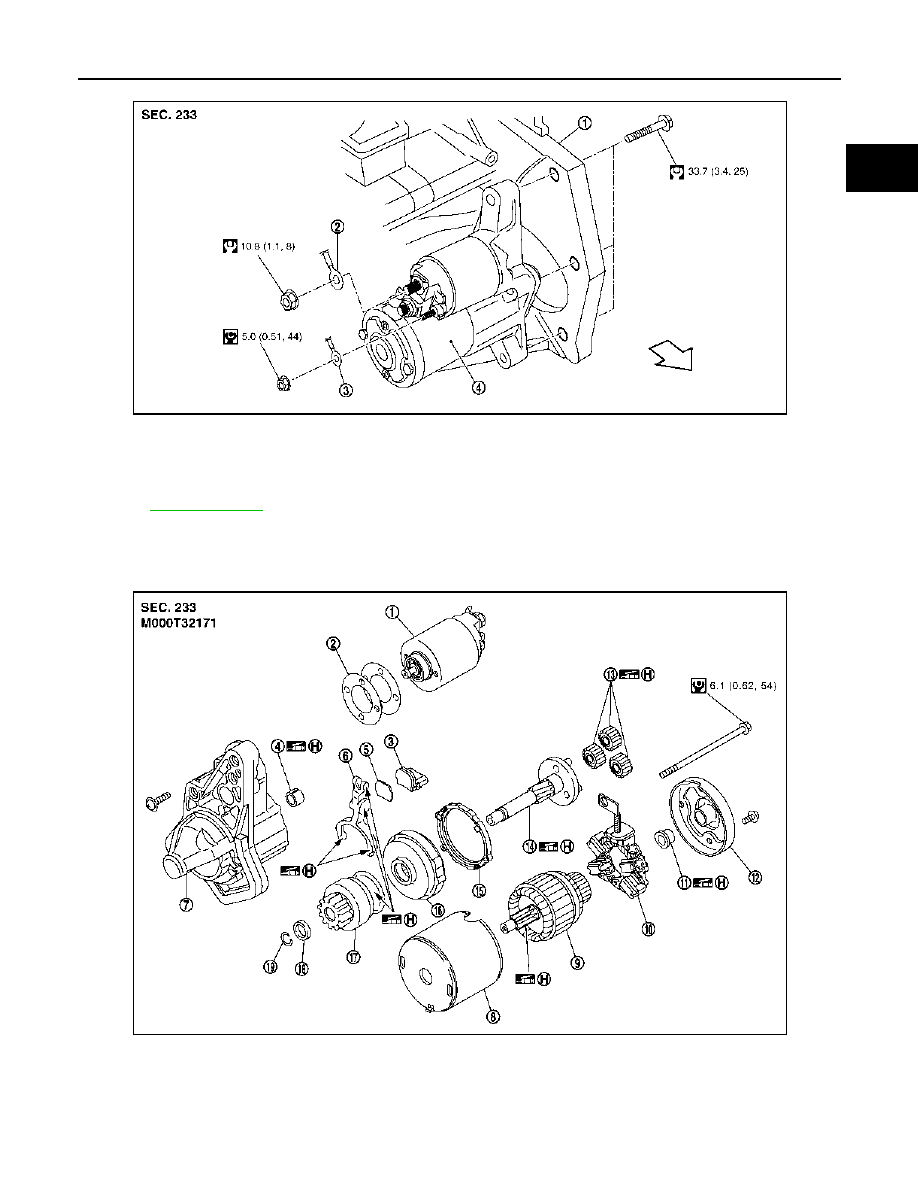

HR16DE MODELS : Exploded View

INFOID:0000000000955718

REMOVAL

1.

“S” terminal nut

2.

“B” terminal nut

3.

Starter motor

4.

Starter motor mounting bolt

 : Engine front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA0519GB

STARTER MOTOR

STR-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

DISASSEMBLY

Type: M000T32171

1.

Cylinder block

2.

“B” terminal harness

3.

“S” terminal harness

4.

Starter motor

 : Engine front

Refer to

GI-4, "Components"

 for symbols in the figure.

PKIC0987E

1.

Magnetic switch assembly

2.

Adjusting plate

3.

Packing

4.

Metal FR

5.

Plate

6.

Shift lever

7.

Gear case

8.

Yoke

9.

Armature

10. Brush holder assembly

11.

Metal RR

12. Rear cover

PKIC4906E
