Nissan Qashqai (2007-2010). Manual - part 502





EX-14

< ON-VEHICLE MAINTENANCE >

[K9K]

EXHAUST SYSTEM

ON-VEHICLE MAINTENANCE

EXHAUST SYSTEM

Inspection

INFOID:0000000001062581

Check exhaust pipes, muffler and mounting for improper attachment,
leaks, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

SMA211A

EXHAUST SYSTEM

EX-15

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

ON-VEHICLE REPAIR

EXHAUST SYSTEM

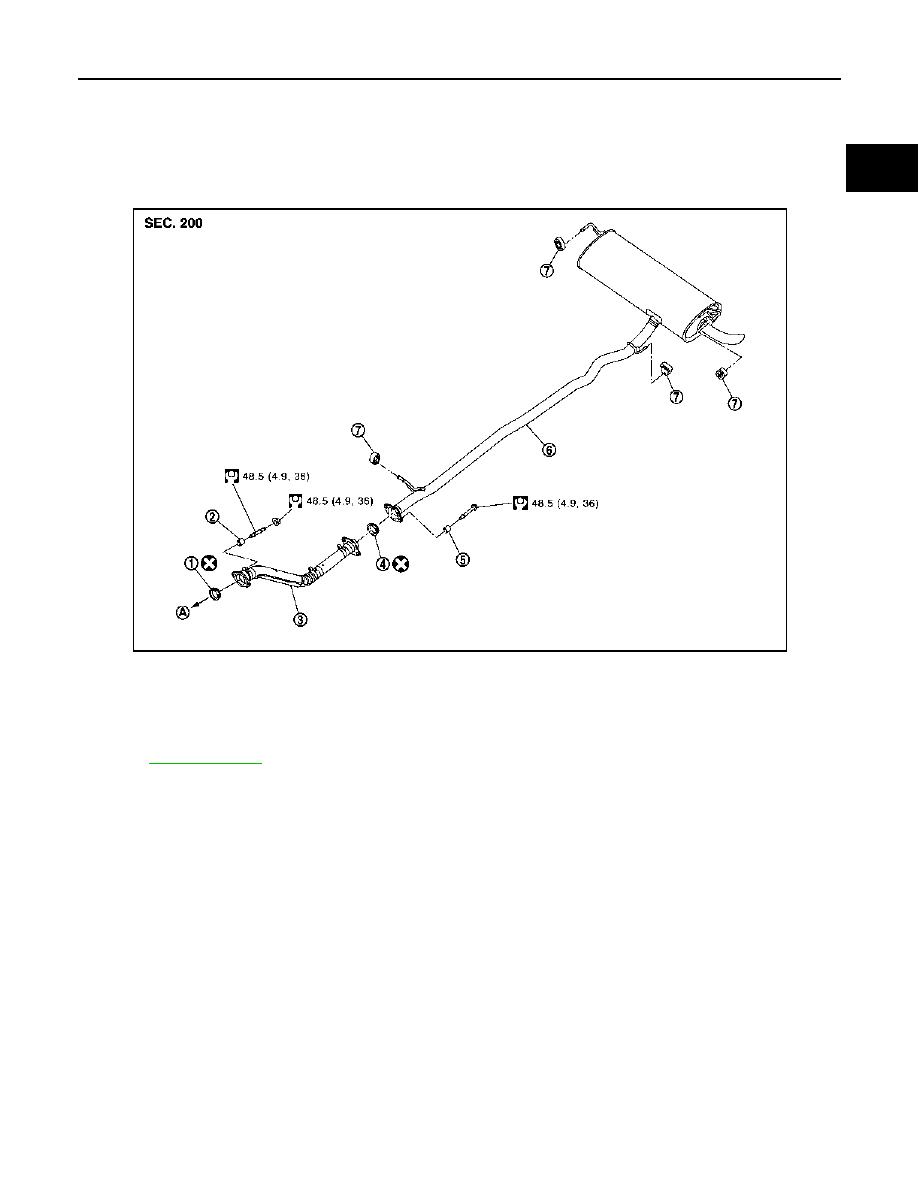

Exploded View

INFOID:0000000001062582

Removal and Installation

INFOID:0000000001062587

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance and shape.

• Perform the operation with the exhaust system fully cooled down because the system is still hot just

after the engine stops.

• Be careful not to cut your hand on the insulator edge.

REMOVAL

• Disconnect each joint and mounting.

INSTALLATION

• Install in the reverse order of removal.

CAUTION:

• Always replace exhaust gaskets with new ones when reassembling.
• If the insulator is badly deformed, repair or replace it. If deposits such as mud pile up on the insula-

tor, remove them.

• When installing the insulator avoid large gaps or interference between the insulator and each

exhaust pipe.

1.

Seal bearing

2.

Spring

3.

Exhaust front tube

4.

Seal bearing

5.

Spring

6.

Muffler

7.

Mounting rubber

A.

To catalyst

Refer to

GI-4, "Components"

 for symbols not described on the above.

E1BIA0013GB

EX-16

< ON-VEHICLE REPAIR >

[K9K]

EXHAUST SYSTEM

• Remove deposits from the sealing surface of each connection. Connect them securely to avoid gas

leakage.

• Temporarily tighten mounting nuts on the exhaust manifold side and mounting bolts on the vehicle

side. Check each part for unusual interference, and then tighten them to the specified torque.

• When installing each mounting rubber, avoid twisting or unusual extension in up/down and right/left

directions.

Inspection

INFOID:0000000001062584

INSPECTION AFTER INSTALLATION

• With the engine running, check exhaust tube joints for gas leakage and unusual noises.
• Check to ensure that mounting brackets and mounting insulators are installed properly and free from undue

stress. Improper installation could result in excessive noise and vibration.
