P0340 CMP SENSOR

EC-1363

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace CMP sensor.

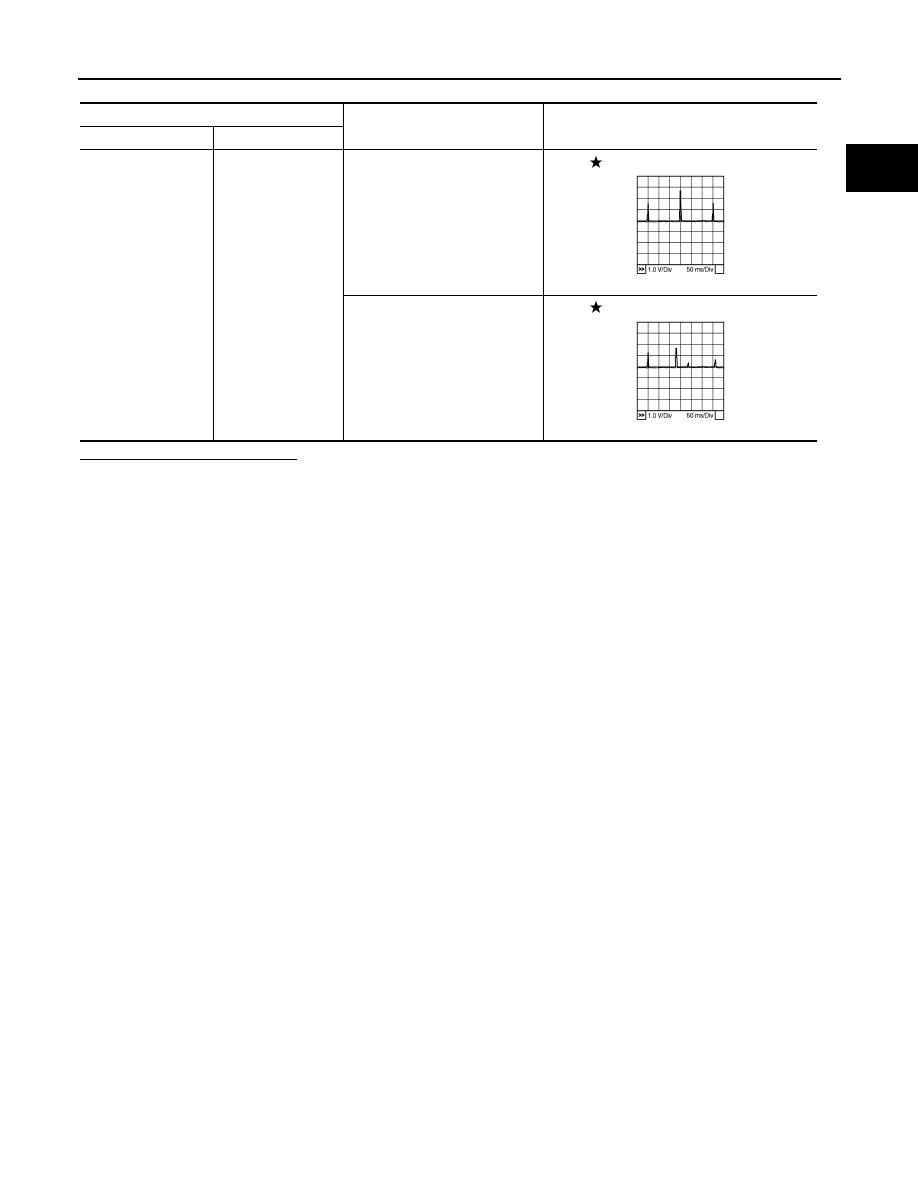

ECM

Condition

Voltage

Connector

Terminal

F68

75

(CMP sensor signal)

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes de-
pending on rpm at idle.

0 - 1V

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

0 - 1V

MBIB1510E

MBIB1511E

EC-1364

< COMPONENT DIAGNOSIS >

[K9K]

P0380 GLOW RELAY

P0380 GLOW RELAY

DTC Logic

INFOID:0000000001115078

DTC DETECTION LOGIC

NOTE:
• Conditions for applying the diagnostic procedure to the stored DTCs:

The DTC is declared present after attempts have been made to start the engine.

• Special notes:

If the DTC is present, it will be difficult to start the vehicle, or even impossible when cold, or preheating will
be continuous and the heater plugs will deteriorate.

Diagnosis Procedure

INFOID:0000000000956057

1.

CHECK GLOW RELAY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect glow relay harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between glow relay connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.
• 80A fusible link (letter N)
• Harness for open and short between glow relay and battery

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK GLOW RELAY INPUT CIRCUIT FOR OPEN AND SHORT-I

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between glow relay harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK GLOW RELAY INPUT CIRCUIT FOR OPEN AND SHORT-II

1.

Check the continuity between glow relay harness connector and ECM harness connector.

DTC No.

Trouble diagnosis name

Possible cause

P0380

GLOW PLUG DIAGNOSTIC CONNECTION
• CO:  Open  circuit
• CC.0: Short circuit to ground
• CC.1: Short circuit to +12V

• Harness or connectors

(The glow relay circuit is open or shorted.)

• Glow  relay

Glow relay

Ground

Voltage

Connector

Terminal

F94

4

Ground

Battery voltage

Glow relay

ECM

Continuity

Connector

Terminal

Connector

Terminal

F94

3

F68

80

Existed

P0380 GLOW RELAY

EC-1365

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace glow relay.

NO

>> Repair or replace.

Glow relay

ECM

Continuity

Connector

Terminal

Connector

Terminal

F94

8

F68

76

Existed

EC-1366

< COMPONENT DIAGNOSIS >

[K9K]

P0381 GLOW CONTROL SYSTEM

P0381 GLOW CONTROL SYSTEM

DTC Logic

INFOID:0000000001115079

DTC DETECTION LOGIC

NOTE:
• Conditions for applying the diagnostic procedure to the stored DTCs:

The DTC is declared present after several attempts have been made to start the engine.

• Special notes:

If the DTC is present, it will be difficult to start the vehicle, or even impossible when cold, or preheating will
be continuous and the heater plugs will deteriorate.

Diagnosis Procedure

INFOID:0000000001091154

1.

CHECK GLOW RELAY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect glow relay harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between glow relay connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.
• 80A fusible link (letter N)
• Harness for open and short between glow relay and battery

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK GLOW RELAY INPUT CIRCUIT FOR OPEN AND SHORT-I

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between glow relay harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK GLOW RELAY INPUT CIRCUIT FOR OPEN AND SHORT-II

1.

Check the continuity between glow relay harness connector and ECM harness connector.

DTC No.

Trouble diagnosis name

Possible cause

P0381

GLOW CONTROL UNIT CIRCUIT
• CC.0: Short circuit to ground
• CO.1: Open circuit or short circuit to +12V

• Harness or connectors

(The glow relay circuit is open or shorted.)

• Glow relay
• Glow  plug

Glow relay

Ground

Voltage

Connector

Terminal

F94

4

Ground

Battery voltage

Glow relay

ECM

Continuity

Connector

Terminal

Connector

Terminal

F94

3

F68

80

Existed
