P0225 APP SENSOR

EC-1355

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK ACCELERATOR PEDAL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between accelerator pedal position sensor harness connector and ECM harness
connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK ACCELERATOR PEDAL POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between accelerator pedal position sensor harness connector and ECM harness
connector.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK ACCELERATOR PEDAL POSITION SENSOR

Refer to

EC-1359, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace accelerator pedal position sensor.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000001089326

1.

CHECK ACCELERATOR PEDAL POSITION SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect accelerator pedal position sensor harness connector.

3.

Check resistance between accelerator pedal position sensor as follows.

Accelerator pedal position sensor

ECM

Continuity

Sensor

Connector

Terminal

Connector

Terminal

1

E110

2

E60

127

Existed

2

1

120

Accelerator pedal position sensor

ECM

Continuity

Sensor

Connector

Terminal

Connector

Terminal

1

E110

3

E60

126

Existed

2

6

119

Sensor

Terminals

Resistance

1

2 and 4

1.7

±

 0.9 K

Ω



2

1 and 5

2.85

±

 2.05 K

Ω

EC-1356

< COMPONENT DIAGNOSIS >

[K9K]

P0225 APP SENSOR

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace accelerator pedal position sensor.

P0235 TC BOOST SENSOR

EC-1357

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0235 TC BOOST SENSOR

Description

INFOID:0000000001090439

The turbocharger boost sensor detects pressure in the exit side of the charge air cooler. The sensor output
voltage to the ECM increases as pressure increases.

DTC Logic

INFOID:0000000001115075

DTC DETECTION LOGIC

NOTE:
• If DTC P0235 is displayed with DTC P0651, first perform trouble diagnosis for DTC P0651. Refer to

EC-1395, "DTC Logic"

.

• Conditions for applying the diagnostic procedure to the stored DTCs:

The DTC is declared present after the ignition has been switched on for 1 second, with a warm engine when
the vehicle is stationary.

• If the DTC is present:
- Malfunction indicator (Red) lights up.

Diagnosis Procedure

INFOID:0000000001089850

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

 Check ground connection E17. Refer to Ground inspection in

GI-41, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK TUBOCHARGER BOOST SENSOR SUPPLY CIRCUIT

1.

Disconnect turbocharger boost sensor harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between turbocharger boost sensor connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK TUBOCHARGER BOOST SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between turbocharger boost sensor harness connector and ECM harness connector.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

DTC No.

Trouble diagnosis name

Possible cause

P0235

• CC.1: short circuit to +12V
• CO.0: Open circuit or Short circuit to ground
• 1.DEF: Micro-breaks
• 2.DEF: Signal outside lower level
• 3.DEF: Signal outside upper level

• Harness or connectors

(Turbocharger boost sensor)

• Turbocharger boost sensor

Turbocharger boost sensor

Ground

Voltage

Connector

Terminal

F91

1

Ground

Approx. 5V

Turbocharger boost sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

F91

2

F85

43

Existed

EC-1358

< COMPONENT DIAGNOSIS >

[K9K]

P0235 TC BOOST SENSOR

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK TUBOCHARGER BOOST SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between turbocharger boost sensor harness connector and ECM harness connector.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK TUBOCHARGER BOOST SENSOR

Refer to

EC-1364, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace turbocharger boost sensor.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000001090195

1.

CHECK TURBOCHARGER BOOST SENSOR-I

1.

Turn ignition switch OFF.

2.

Remove turbocharger boost sensor with its harness connected.

3.

Turn ignition switch ON.

4.

Select “DATA MONITOR” mode with CONSULT-III.

5.

Check “BOOST_PRESS” and “ATOMOS_PRESS” indication.

If the value is not very close to “ATOMOS_PRESS”, maximum pressure difference between
“ATOMOS_PRESS” and “BOOST_PRESS” with the ignition switch ON (engine stop) =

±

 50 mbar?

YES

>> GO TO 2.

NO

>> Replace turbocharger boost sensor.

2.

CHECK TURBOCHARGER BOOST SENSOR-II

1.

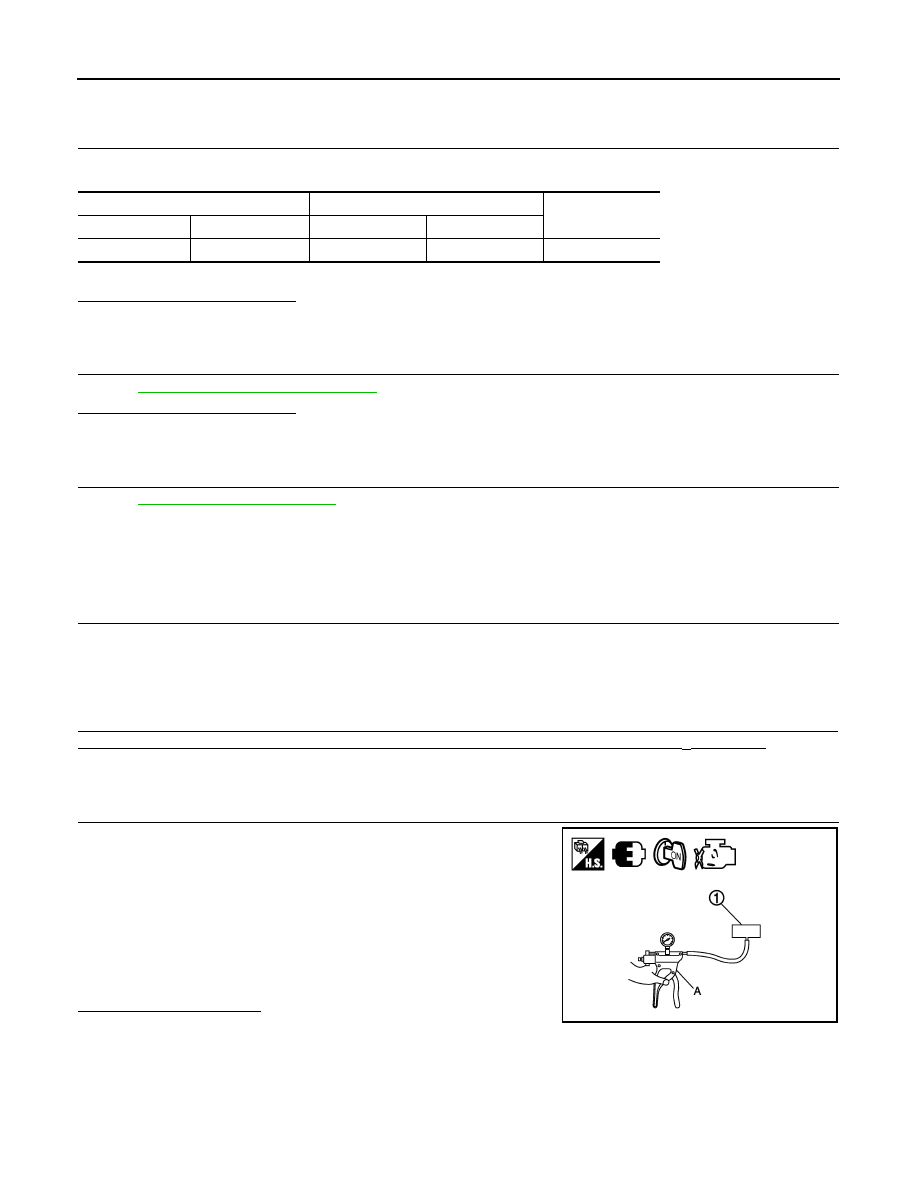

Use pump to apply turbocharger boost sensor as shown in the
figure.

2.

Apply a pressure of between 10kPa(0.100 bar, 0.102 kg/cm

2

,

1.5 psi) - 13kPa(0.130 bar, 0.133 kg/cm

2

, 1.9 psi) [maximum

pressure to be applied: 13kPa(0.130 bar, 0.133 kg/cm

2

, 1.9

psi)].

3.

Select “DATA MONITOR” mode with CONSULT-III.

4.

Check “BOOST_PRESS” indication with that given by the vac-
uum pump.

If there is no discrepancy?

YES

>> INSPECTION END

NO

>> Replace turbocharger boost sensor.

Turbocharger boost sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

F91

3

F85

44

Existed
