P0217 ENGINE OVER TEMPERATURE

EC-1351

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0217 ENGINE OVER TEMPERATURE

DTC Logic

INFOID:0000000001102011

DTC DETECTION LOGIC

If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.

Diagnosis Procedure

INFOID:0000000001102013

1.

CHECK COOLING FAN LOW SPEED FUNCTION

1.

Start engine and let it idle.

2.

Turn air conditioner switch and blower fan switch ON.

3.

Make sure that cooling fan operates at low speed.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

EC-1422, "Diagnosis Procedure"

.

2.

CHECK COOLING FAN HIGH SPEED FUNCTION

1.

Turn ignition switch OFF.

2.

Turn air conditioner switch and blower fan switch OFF.

3.

Disconnect engine coolant temperature sensor harness connector.

4.

Connect 150

Ω

 resistor to engine coolant temperature sensor harness connector.

5.

Restart engine and make sure that cooling fan operates at higher speed than low speed.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Refer to

EC-1422, "Diagnosis Procedure"

.

3.

CHECK COOLING SYSTEM FOR LEAK-I

Check cooling system for leak. Refer to

CO-52, "Inspection"

.

Is leakage detected?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

CHECK COOLING SYSTEM FOR LEAK-II

Check the following for leak. Refer to

CO-52, "Inspection"

.

• Hose
• Radiator
• Water pump

>> Repair or replace malfunctioning part.

5.

CHECK RADIATOR CAP

DTC No.

Trouble diagnosis name

Possible cause

P0217

Engine over temperature (Overheat)

• Harness or connectors

(The cooling fan circuit is open or short-
ed.)

• IPDM E/R (Cooling fan relay-1)
• Cooling fan relay-3
• Cooling fan motor
• Radiator  hose
• Radiator
• Radiator  cap
• Water pump
• Thermostat

EC-1352

< COMPONENT DIAGNOSIS >

[K9K]

P0217 ENGINE OVER TEMPERATURE

Check radiator cap. Refer to

CO-55, "RADIATOR CAP : Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace radiator cap.

6.

CHECK THERMOSTAT

Check thermostat. Refer to

CO-62, "Removal and Installation"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace thermostat.

7.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

Refer to

EC-1344, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace engine coolant temperature sensor.

8.

CHECK MAIN 12 CAUSES

If the cause cannot be isolated, check the following.

*1: Engine running at idle speed.

*2: Engine running at 3,000 rpm for 10 minutes.

*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.

*4: After 60 minutes of cool down time.

For more information, refer to

CO-48, "Troubleshooting Chart"

.

Engine

Step

Inspection item

Equipment

Standard

Reference page

OFF

1

• Blocked radiator
• Blocked condenser
• Blocked radiator grille
• Blocked bumper

• Visual

No blocking

—

2

• Coolant mixture

• Coolant tester

50 - 50% coolant mixture

MA-21, "SAE Viscosity
Number"

3

• Coolant  level

• Visual

Coolant up to MAX level in
reservoir tank and radiator
filler neck

CO-52, "Inspection"

4

• Radiator cap

• Pressure tester

CO-55, "RADIATOR CAP
: Inspection"

CO-55, "RADIATOR CAP
: Inspection"

ON*

2

5

• Coolant leaks

• Visual

No leaks

CO-52, "Inspection"

ON*

2

6

• Thermostat

• Touch the upper and

lower radiator hoses

Both hoses should be hot

CO-62, "Exploded View"

ON*

1

7

• Cooling fan motor

• IPDM E/R (auto active

test)

Operating

EC-1424, "Component In-
spection (Cooling Fan
Motor)"

OFF

8

• Combustion gas leak

• Color checker chemical

tester 4 Gas analyzer

Negative

—

ON*

3

9

• Coolant temperature

gauge

• Visual

Gauge less than 3/4 when
driving

—

• Coolant overflow to res-

ervoir tank

• Visual

No overflow during driving
and idling

CO-52, "Inspection"

OFF*

4

10

• Coolant return from res-

ervoir tank to radiator

• Visual

Should be initial level in
reservoir tank

CO-52, "Inspection"

OFF

11

• Cylinder head

• Straight gauge feeler

gauge

0.1 mm (0.004 in) Maxi-
mum distortion (warping)

EM-296, "Inspection"

12

• Cylinder block and pis-

tons

• Visual

No scuffing on cylinder
walls or piston

—

P0217 ENGINE OVER TEMPERATURE

EC-1353

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

>> INSPECTION END

EC-1354

< COMPONENT DIAGNOSIS >

[K9K]

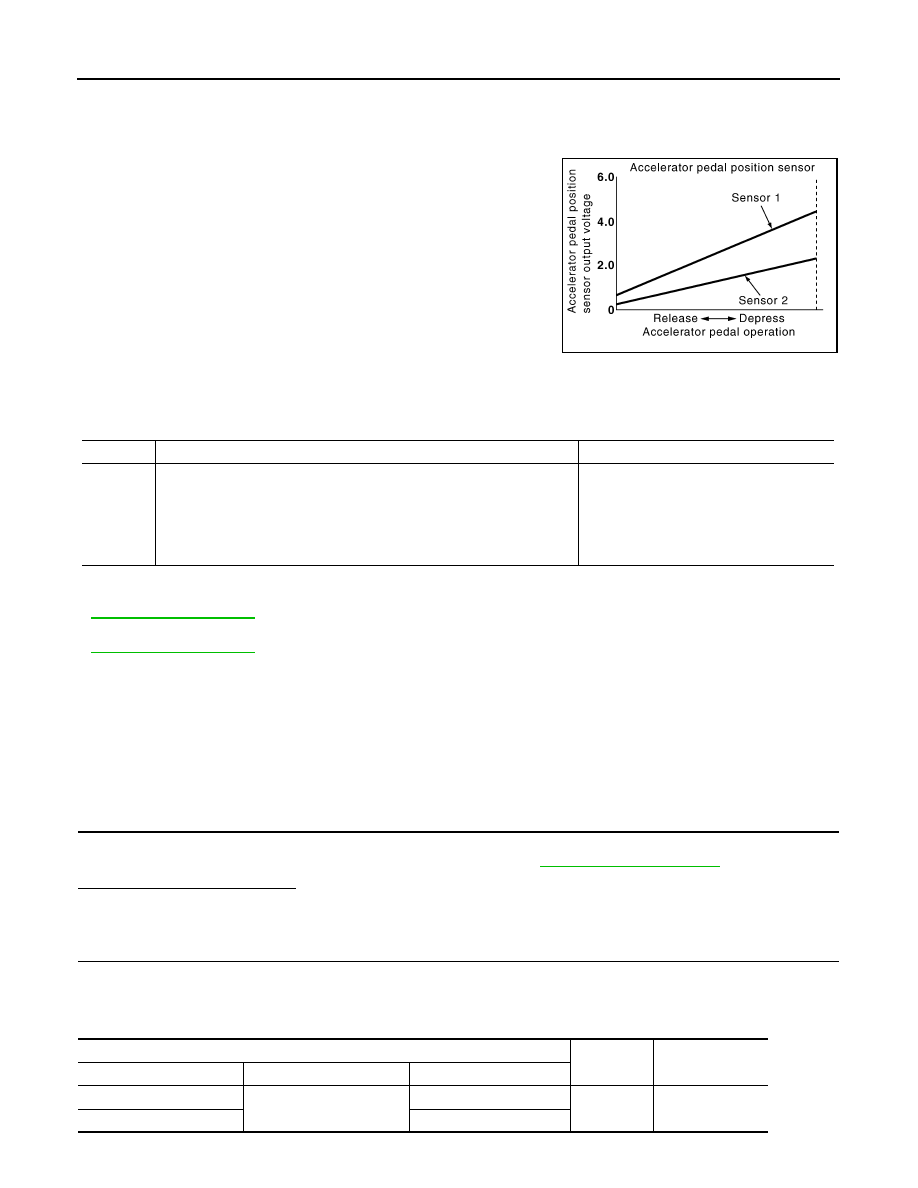

P0225 APP SENSOR

P0225 APP SENSOR

Description

INFOID:0000000001090480

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.

DTC Logic

INFOID:0000000001115074

DTC DETECTION LOGIC

NOTE:
• If DTC P0225 is displayed with DTC P0641, first perform trouble diagnosis for DTC P0641. Refer to

EC-1393, "DTC Logic"

.

• If DTC P0225 is displayed with DTC P0651, first perform trouble diagnosis for DTC P0651. Refer to

EC-1395, "DTC Logic"

.

• If DTC P2120 is present at the same time, check that the APP sensor connector is connected cor-

rectly.

• Conditions for applying the diagnostic procedure to the stored DTCs:
- The DTC is declared present after a series of full load/no load action on the accelerator.
• If the DTC is present:
- Malfunction indicator (Red) lights up.

Diagnosis Procedure

INFOID:0000000000955712

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

 Check ground connection E17. Refer to Ground inspection in

GI-41, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK ACCELERATOR PEDAL POSITION SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect accelerator pedal position sensor harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between accelerator pedal position sensor connector and ground.

PBIB1741E

DTC No.

Trouble diagnosis name

Possible cause

P0225

ACCELERATOR PEDAL POSITION SENSOR 1 AND ACCELERATOR
PEDAL POSITION SENSOR 2 CIRCUIT
• CC.1: Short circuit to +12V
• 1.DEF: Signal incoherence
• 2.DEF: No signal
• CO.0: Open circuit or short circuit to ground

• Harness or connectors

(APP sensor 1 and 2 circuit is open or
shorted.)

• Accelerator pedal position sensor

(APP sensor 1 and 2.)

Accelerator pedal position sensor

Ground

Voltage

Sensor

Connector

Terminal

1

E110

4

Ground

Approx. 5V

2

5
