< ECU DIAGNOSIS >

COMBINATION METER

ECU DIAGNOSIS

COMBINATION METER

Reference Value

INFOID:0000000000892342

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

SPEED METER
[km/h]

Ignition switch
ON

While driving

Equivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

SPEED OUTPUT
[km/h]

Ignition switch
ON

While driving

Equivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

TACHO METER
[rpm]

Ignition switch
ON

While driving

Equivalent to tachometer reading
NOTE:
8191.875 is displayed when the mal-
function signal is received

W TEMP METER
[

°

C]

Ignition switch
ON

—

Values according to engine coolant
temperature
NOTE:
215 is displayed when the malfunction
signal is input

FUEL METER
[lit]

Ignition switch
ON

—

Values according to fuel level

DISTANCE
[km]

Ignition switch
ON

—

Possible driving distance calculated by
combination meter

FUEL W/L

Ignition switch
ON

Low-fuel warning lamp ON

On

Low-fuel warning lamp OFF

Off

MIL

Ignition switch
ON

Malfunction indicator lamp ON

On

Malfunction indicator lamp OFF

Off

SEAT BELT W/L

Ignition switch
ON

Seat belt warning lamp ON

On

Seat belt warning lamp OFF

Off

BUZZER

Ignition switch
ON

Buzzer ON

On

Buzzer OFF

Off

C-ENG 2 W/L

Ignition switch
ON

Malfunction indicator lamp 2 ON

On

Malfunction indicator lamp 2 OFF

Off

GLOW IND

Ignition switch
ON

Glow indicator lamp ON

On

Glow indicator lamp OFF

Off

DOOR W/L

Ignition switch
ON

Door warning lamp ON

On

Door warning lamp OFF

Off

HI-BEAM IND

Ignition switch
ON

High-beam indicator lamp ON

On

High-beam indicator lamp OFF

Off

TURN IND

Ignition switch
ON

Turn signal indicator lamp ON

On

Turn signal indicator lamp OFF

Off

FR FOG IND

Ignition switch
ON

Front fog lamp indicator lamp ON

On

Front fog lamp indicator lamp OFF

Off

RR FOG IND

Ignition switch
ON

Rear fog lamp indicator lamp ON

On

Rear fog lamp indicator lamp OFF

Off

MWI

COMBINATION METER

MWI-39

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

OIL W/L

Ignition switch
ON

Oil pressure warning lamp ON

On

Oil pressure warning lamp OFF

Off

LIGHT IND

Ignition switch
ON

Tail lamp indicator lamp ON

On

Tail lamp indicator lamp OFF

Off

DPF W/L

Ignition switch
ON

DPF warning lamp ON

On

DPF warning lamp OFF

Off

VDC/TCS IND

Ignition switch
ON

VDC OFF indicator lamp ON

On

VDC OFF indicator lamp OFF

Off

ABS W/L

Ignition switch
ON

ABS warning lamp ON

On

ABS warning lamp OFF

Off

SLIP IND

Ignition switch
ON

SLIP Indicator lamp ON

On

SLIP indicator lamp OFF

Off

BRAKE W/L

Ignition switch
ON

Brake warning lamp ON

On

Brake warning lamp OFF

Off

OIL LEVEL IND

Ignition switch
ON

Oil level 1 is detected

LEVEL1

Oil level 2 is detected

LEVEL2

Oil level 3 is detected

LEVEL3

Oil level 4 is detected

LEVEL4

Oil level 5 is detected

LEVEL5

OIL LOW is detected

On

Oil level is not detected

CR NG

KEY G W/L

Ignition switch
ON

KEY warning lamp (green) ON

On

KEY warning lamp (green) OFF

Off

KEY R W/L

Ignition switch
ON

KEY warning lamp (red) ON

On

KEY warning lamp (red) OFF

Off

KEY KNOB IND

Ignition switch
ON

LOCK warning lamp ON

On

LOCK warning lamp OFF

Off

M RANGE SW

Ignition switch
ON

MANUAL MODE

On

Other than the above

Off

NM RANGE SW

Ignition switch
ON

MANUAL MODE

Off

Other than the above

On

AT SFT UP SW

Ignition switch
ON

Selector lever (+) position

On

Other than the above

Off

AT SFT DWN SW

Ignition switch
ON

Selector lever (–) position

On

Other than the above

Off

P RANGE IND

Ignition switch
ON

Selector lever in P position

On

Other than the above

Off

R RANGE IND

Ignition switch
ON

Selector lever in R position

On

Other than the above

Off

N RANGE IND

Ignition switch
ON

Selector lever in N position

On

Other than the above

Off

D RANGE IND

Ignition switch
ON

Selector lever in D position

On

Other than the above

Off

Monitor Item

Condition

Value/Status

MWI-40

< ECU DIAGNOSIS >

COMBINATION METER

NOTE:

Some items are not available according to vehicle specification.

TERMINAL LAYOUT

PHYSICAL VALUES

4 RANGE IND

Ignition switch
ON

Shift indicator 4 is displayed

On

Other than the above

Off

3 RANGE IND

Ignition switch
ON

Shift indicator 3 is displayed

On

Other than the above

Off

2 RANGE IND

Ignition switch
ON

Shift indicator 2 is displayed

On

Other than the above

Off

AT CHECK-W/L

Ignition switch
ON

TCM electronic control system warning
lamp ON

On

TCM electronic control system warning
lamp OFF

Off

CVT IND

Ignition switch
ON

CVT warning lamp ON

On

CVT warning lamp OFF

Off

CRUISE IND

Ignition switch
ON

Cruise indicator lamp ON

On

Cruise indicator lamp OFF

Off

SET IND

Ignition switch
ON

SET indicator lamp ON

On

SET indicator lamp OFF

Off

4WD LOCK SW

Ignition switch
ON

4WD LOCK switch ON

On

4WD LOCK switch OFF

Off

4WD LOCK IND

Ignition switch
ON

4WD LOCK indicator lamp ON

On

4WD LOCK indicator lamp OFF

Off

4WD W/L

Ignition switch
ON

4WD warning lamp ON

On

4WD warning lamp OFF

Off

Monitor Item

Condition

Value/Status

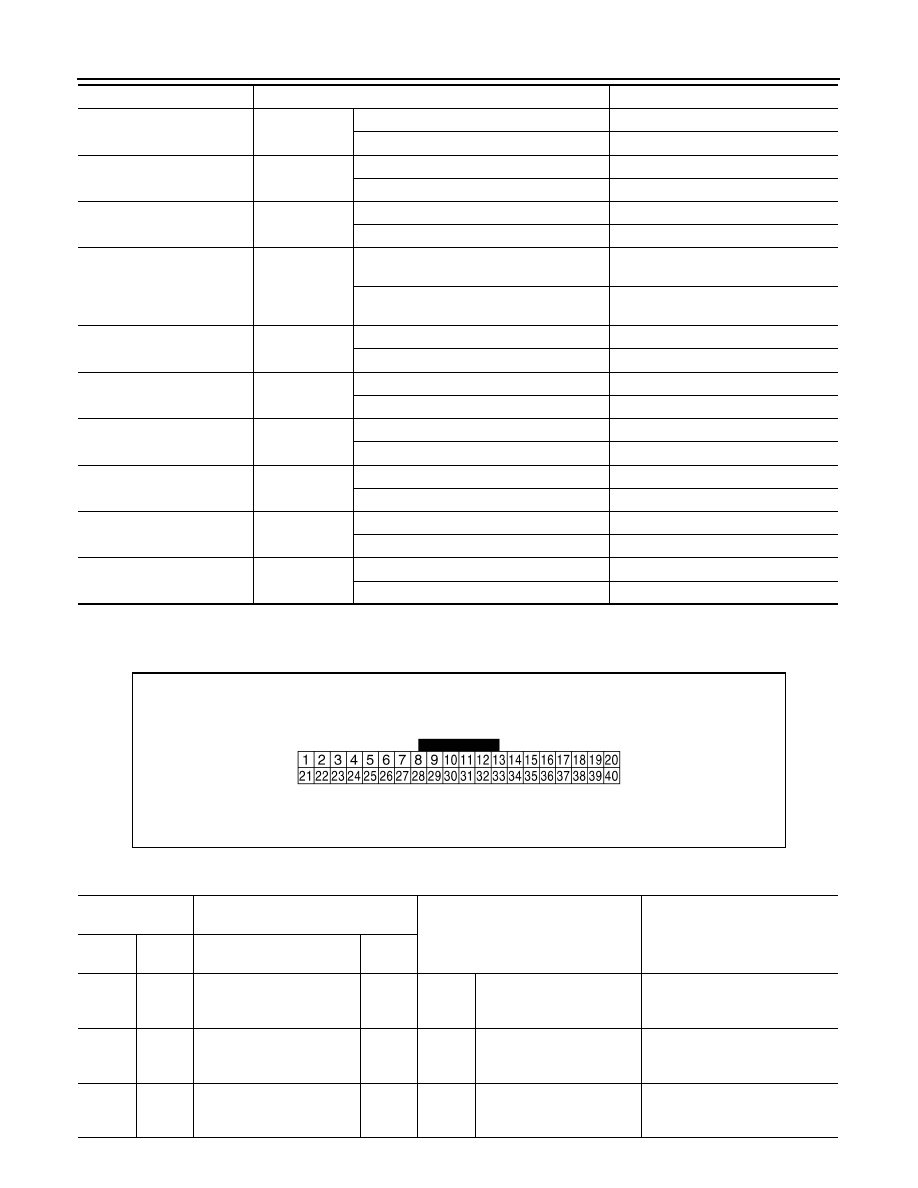

JSNIA0096ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

1

(Y)

Ground

Battery power supply

Input

Ignition
switch
OFF

—

Battery voltage

2

(GR)

Ground

IGN signal

Input

Ignition
switch
ON

—

Battery voltage

3

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

MWI

COMBINATION METER

MWI-41

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

11

(B)*

1

(R)*

2

Ground

Steering switch (trip com-
puter) signal

Input

Ignition
switch
ON

Press the steering switch
(trip computer)

0 V

Other than the above

5 V

15

(W)

Ground

Air bag signal

Input

Ignition
switch
ON

Air bag warning lamp
ON

4 V

Air bag warning lamp
OFF

0 V

19

(V)

Ground

OAT sensor signal

Input

Ignition
switch
ON

—

20

(SB)

Ground

OAT sensor ground

—

Ignition
switch
ON

—

0  V

21

(L)

—

CAN-H

—

—

—

—

22

(P)

—

CAN-L

—

—

—

—

23

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

24

(G)

Ground

Fuel level sensor signal
ground

—

Ignition
switch
ON

—

0  V

25

(L)

Ground

Alternator signal

Input

Ignition
switch
ON

Charge warning lamp ON

0 V

Charge warning lamp OFF

12 V

26

(V)

Ground

Parking brake switch signal

Input

Ignition
switch
ON

Parking brake ON

0 V

Parking brake OFF

5 V

27

(BR)

Ground

Brake fluid level switch sig-
nal

Input

Ignition
switch
ON

Brake fluid level is normal

5 V

Brake fluid level is less than
LOW level

0 V

28

(SB)

Ground

Security signal

Input

Ignition
switch
ON

Security warning lamp ON

0 V

Security warning lamp OFF

12 V

31

(Y)

Ground

Vehicle speed signal
(8 pulse)

Output

Ignition
switch
ON

Vehicle speed is approxi-
mately 40 km/h (24.9 MPH)

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

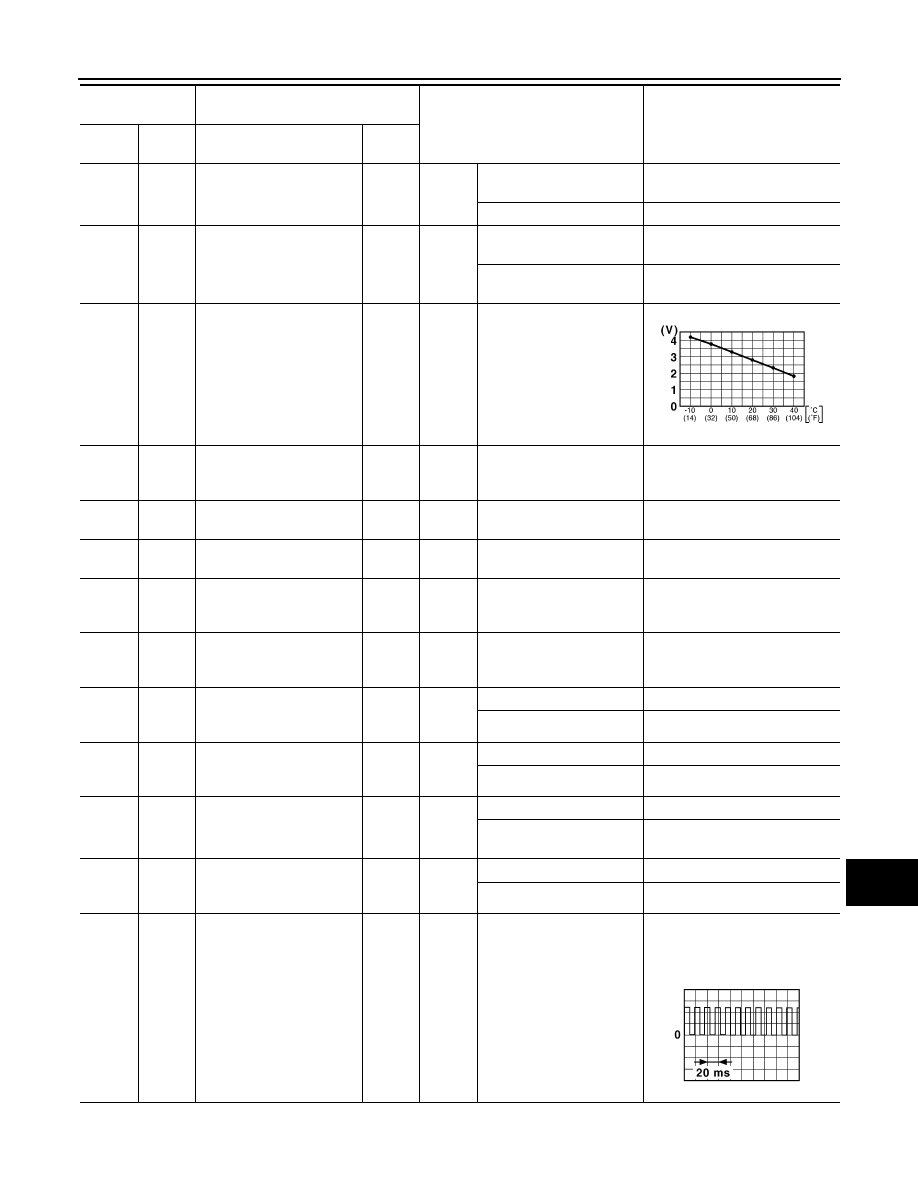

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0014GB
