FUEL LEVEL SENSOR SIGNAL CIRCUIT

FUEL LEVEL SENSOR SIGNAL CIRCUIT

2WD

2WD : Description

INFOID:0000000001110136

The fuel level sensor (main) detect the fuel level in the fuel tank and transmit the fuel level sensor signal to the
combination meter.

2WD : Component Function Check

INFOID:0000000001110137

1.

CHECK COMBINATION METER INPUT SIGNAL

Select the “Data Monitor” for the “METER/M&A” and compare the “FUEL METER” monitor value with the fuel
gauge reading on the combination meter.

Does monitor value match fuel gauge reading?

YES

>> INSPECTION END

NO

>> Replace combination meter.

2WD : Diagnosis Procedure

INFOID:0000000001110138

1.

CHECK COMBINATION METER INPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between combination meter harness connector terminal 34 and ground.

Does it match fuel gauge reading?

YES

>> GO TO 2.

NO

>> Replace the combination meter.

2.

CHECK FUEL LEVEL SENSOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and fuel level sensor unit (main) connector.

3.

Check continuity between combination meter harness connector terminal 34 and fuel level sensor unit
(main) harness connector terminal 4.

4.

Check continuity between combination meter harness connector terminal 34 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

Fuel gauge indication position (segment illu-

mination position)

Monitor value [lit]

13/13

Approx. 64

10/13

Approx. 53

7/13

Approx. 41

4/13

Approx. 19

0/13

Approx. 2

34 – Ground :

JSNIA0322GB

34 – 4

: Continuity should exist.

34 – Ground

: Continuity should not exist.

MWI

FUEL LEVEL SENSOR SIGNAL CIRCUIT

MWI-31

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NO

>> Repair harness or connector.

3.

CHECK FUEL LEVEL SENSOR GROUND CIRCUIT

Check continuity between fuel level sensor unit (main) harness connector terminal 2 and combination meter
harness connector terminal 24.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

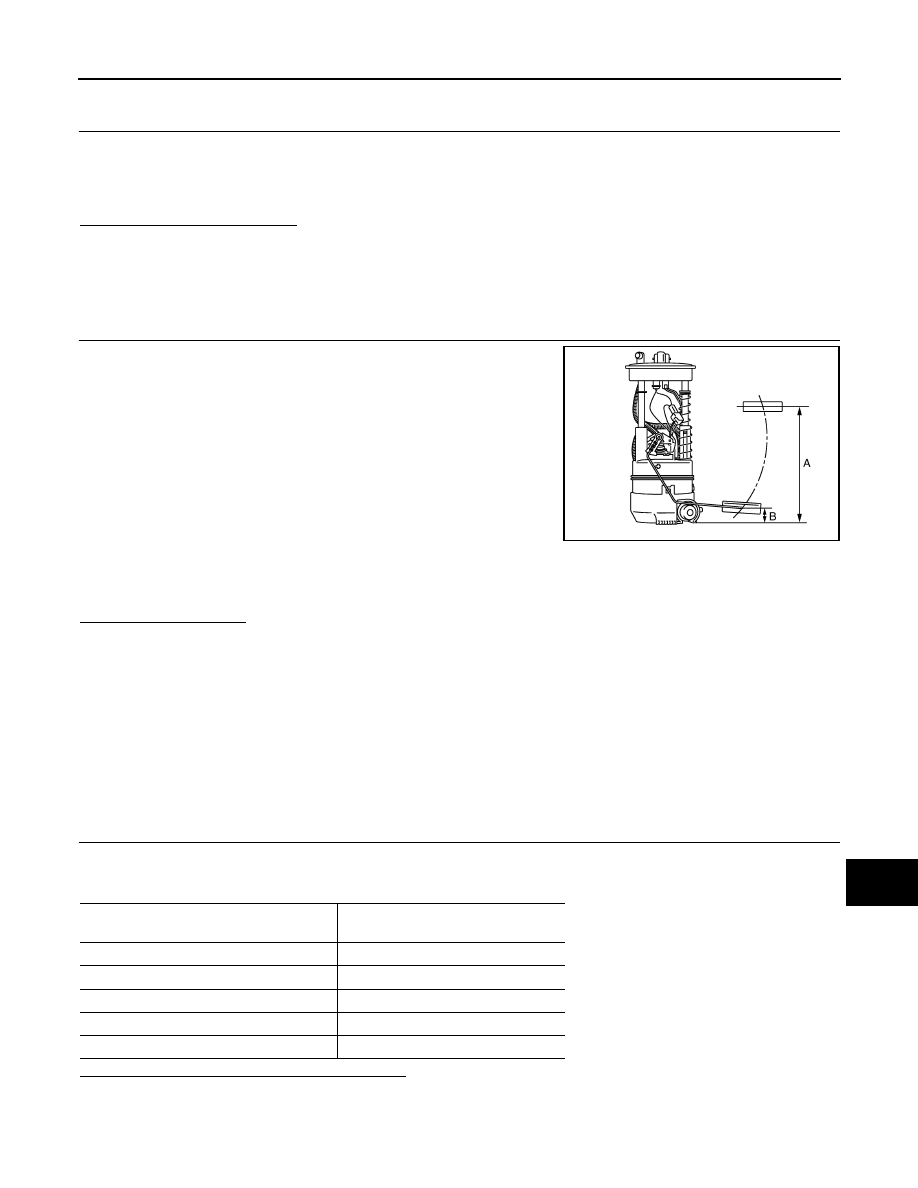

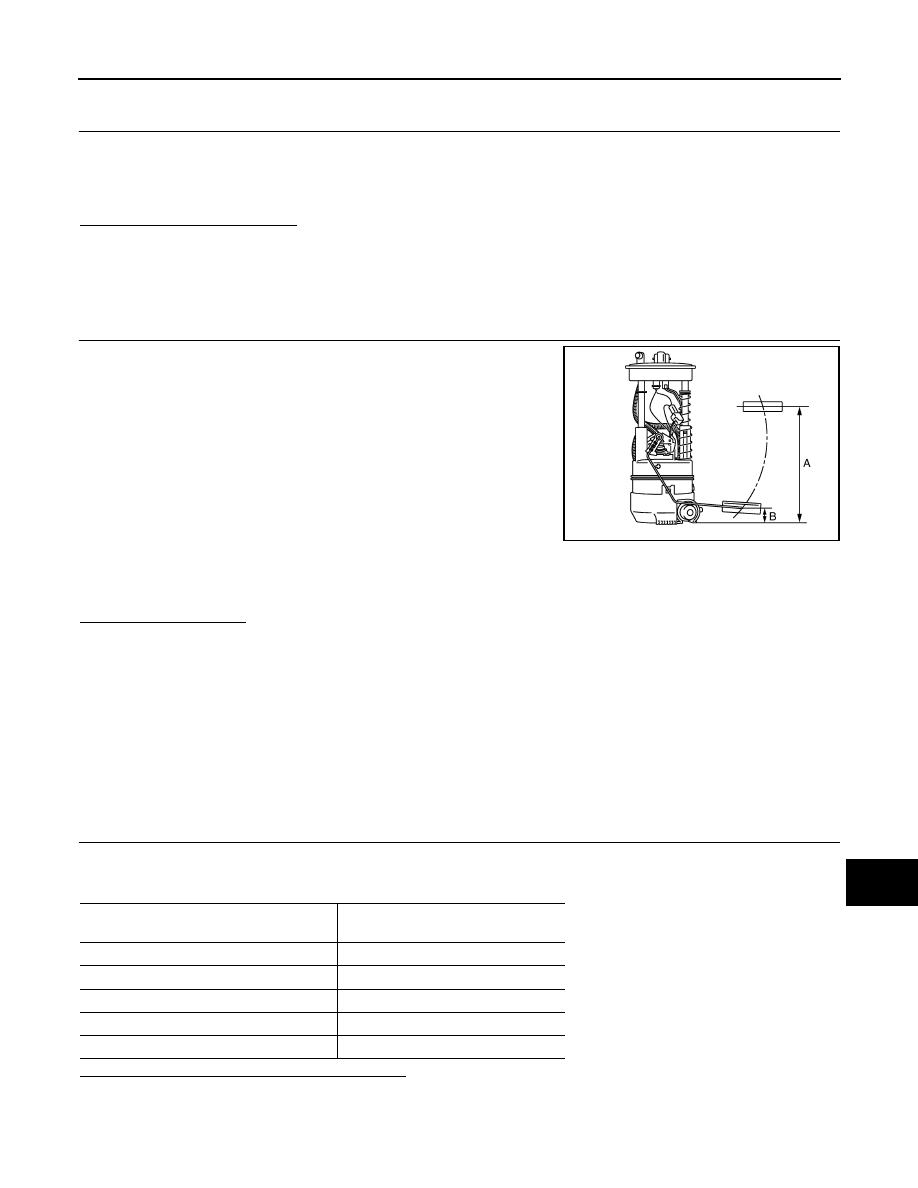

2WD : Component Inspection [Fuel Level Sensor Unit (Main)]

INFOID:0000000001110139

1.

CHECK FUEL LEVEL SENSOR UNIT (MAIN)

Check the resistance between fuel level sensor unit (main).

Standard float position

Is inspection result OK?

YES

>> INSPECTION END

NO

>> Replace fuel level sensor unit (main).

4WD

4WD : Description

INFOID:0000000001110735

The fuel level sensor (main) and the fuel level sensor (sub) detect the fuel level in the fuel tank and transmit
the fuel level sensor signal to the combination meter.

4WD : Component Function Check

INFOID:0000000001110736

1.

CHECK COMBINATION METER INPUT SIGNAL

Select the “Data Monitor” for the “METER/M&A” and compare the “FUEL METER” monitor value with the fuel
gauge reading on the combination meter.

Does monitor value match fuel gauge reading?

YES

>> INSPECTION END

NO

>> Replace combination meter.

2 – 24

: Continuity should exist

2 – 4

Full

: Approx. 5

Ω

Empty

: Approx. 82

Ω

JSNIA0315ZZ

Full (A)

: Approx. 208 mm

Empty (B)

: Approx. 15 mm

Fuel gauge indication position (segment illu-

mination position)

Monitor value [lit]

13/13

Approx. 64

10/13

Approx. 53

7/13

Approx. 41

4/13

Approx. 19

0/13

Approx. 2

MWI-32

< COMPONENT DIAGNOSIS >

FUEL LEVEL SENSOR SIGNAL CIRCUIT

4WD : Diagnosis Procedure

INFOID:0000000001110737

1.

CHECK COMBINATION METER INPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between combination meter harness connector terminal 34 and ground.

Does it match fuel gauge reading?

YES

>> GO TO 2.

NO

>> Replace the combination meter.

2.

CHECK FUEL LEVEL SENSOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and fuel level sensor unit (main) connector.

3.

Check continuity between combination meter harness connector terminal 34 and fuel level sensor unit
(main) harness connector terminal 4.

4.

Check continuity between combination meter harness connector terminal 34 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK FUEL LEVEL SENSOR GROUND CIRCUIT

Check continuity between fuel level sensor unit (main) harness connector terminal 2 and combination meter
harness connector terminal 24.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

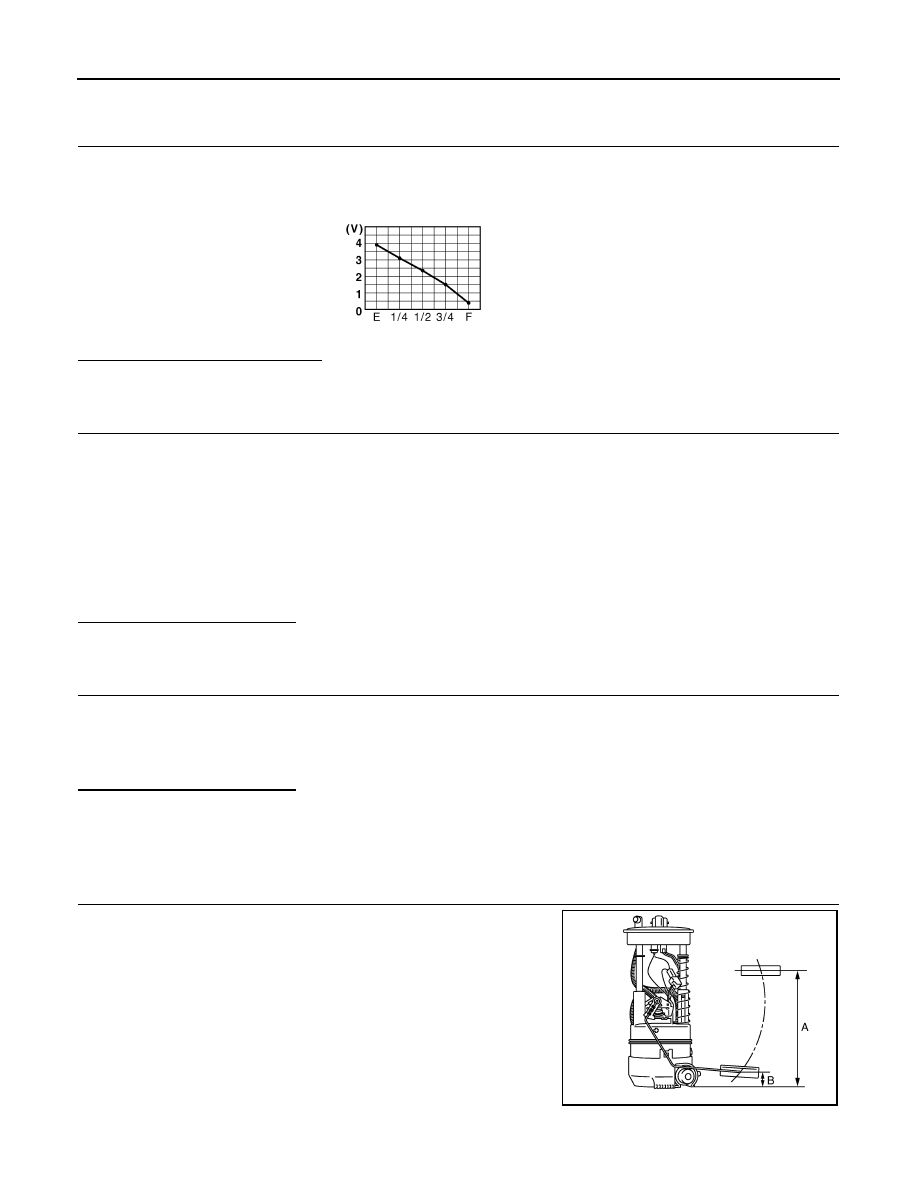

4WD : Component Inspection [Fuel Level Sensor Unit (Main)]

INFOID:0000000001110738

1.

CHECK FUEL LEVEL SENSOR UNIT (MAIN)

Check the resistance between fuel level sensor unit (main).

34 – Ground :

JSNIA0322GB

34 – 4

: Continuity should exist.

34 – Ground

: Continuity should not exist.

2 – 24

: Continuity should exist

2 – 5

Full

: Approx. 2.5

Ω

Empty

: Approx. 82

Ω

JSNIA0315ZZ

MWI

FUEL LEVEL SENSOR SIGNAL CIRCUIT

MWI-33

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Standard float position

Is inspection result OK?

YES

>> INSPECTION END

NO

>> Replace fuel level sensor unit (main).

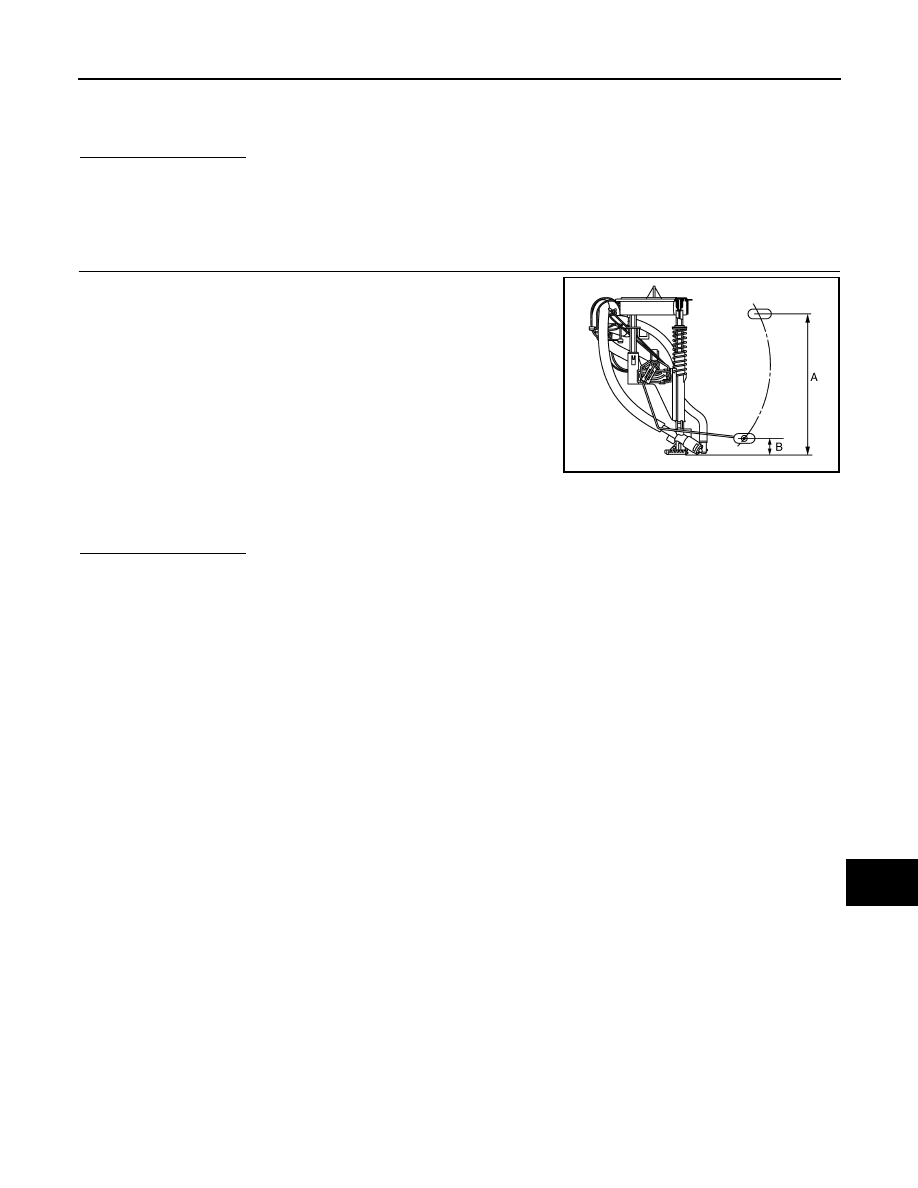

4WD : Component Inspection [Fuel Level Sensor Unit (Sub)]

INFOID:0000000001110739

1.

CHECK FUEL LEVEL SENSOR UNIT (SUB)

Inspect the resistance of fuel level sensor unit (sub).

Standard float position

Is inspection result OK?

YES

>> INSPECTION END

NO

>> Replace fuel level sensor unit (sub).

Full (A)

: Approx. 190 mm

Empty (B)

: Approx. 25 mm

5 – 6

Full

: Approx. 2.5

Ω

Empty

: Approx. 37.5

Ω

JSNIA0316ZZ

Full (A)

: Approx. 222 mm

Empty (B)

: Approx. 25 mm
