OIL LEVEL SENSOR SIGNAL CIRCUIT

OIL LEVEL SENSOR SIGNAL CIRCUIT

Description

INFOID:0000000000892331

Transmits the oil level sensor signal to the combination meter.

Diagnosis Procedure

INFOID:0000000000892332

HR16DE ENGINE MODELS

1.

CHECK OIL LEVEL SENSOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and oil level sensor unit connector.

3.

Check continuity between combination meter harness connector terminal 32, 33 and oil level sensor unit
harness connector terminal 1, 3.

4.

Check continuity between combination meter harness connector terminal 32 and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

EXCEPT HR16DE ENGINE MODELS

1.

CHECK OIL LEVEL SENSOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and oil level sensor unit connector.

3.

Check continuity between combination meter harness connector terminal 32, 33 and oil level sensor unit
harness connector terminal 1, 2.

4.

Check continuity between combination meter harness connector terminal 32 and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000000892333

HR16DE ENGINE MODELS

1.

CHECK OIL LEVEL SENSOR UNIT

1.

Turn ignition switch OFF.

2.

Disconnect oil level sensor connector.

3.

Check resistance between oil level sensor terminals 1 and 3.

Is inspection result OK?

YES

>> INSPECTION END

NO

>> Replace oil level sensor.

EXCEPT HR16DE ENGINE MODELS

32 – 1

: Continuity should exist.

33 – 3

: Continuity should exist.

32 – Ground

: Continuity should not exist.

32 – 1

: Continuity should exist.

33 – 2

: Continuity should exist.

32 – Ground

: Continuity should not exist.

1 – 3

: 3 – 20

Ω

MWI

OIL LEVEL SENSOR SIGNAL CIRCUIT

MWI-35

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1.

CHECK OIL LEVEL SENSOR UNIT

1.

Turn ignition switch OFF.

2.

Disconnect oil level sensor connector.

3.

Check resistance between oil level sensor terminals 1 and 2.

Is inspection result OK?

YES

>> INSPECTION END

NO

>> Replace oil level sensor.

1 – 2

: 3 – 20

Ω

MWI-36

< COMPONENT DIAGNOSIS >

OIL PRESSURE SWITCH SIGNAL CIRCUIT

OIL PRESSURE SWITCH SIGNAL CIRCUIT

Description

INFOID:0000000000892334

Detects the engine oil pressure and transmits the oil pressure switch signal to IPDM E/R.

Component Function Check

INFOID:0000000000892335

1.

CHECK COMBINATION METER INPUT SIGNAL

Select the “Data Monitor” for the “METER/M&A” and check the “OIL W/L” monitor value.

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000000892336

1.

CHECK OIL PRESSURE SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector and oil pressure switch connector.

3.

Check continuity between IPDM E/R harness connector terminal 27 and oil pressure switch harness con-
nector terminal 1.

4.

Check continuity between IPDM E/R harness connector terminal 27 and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000000892337

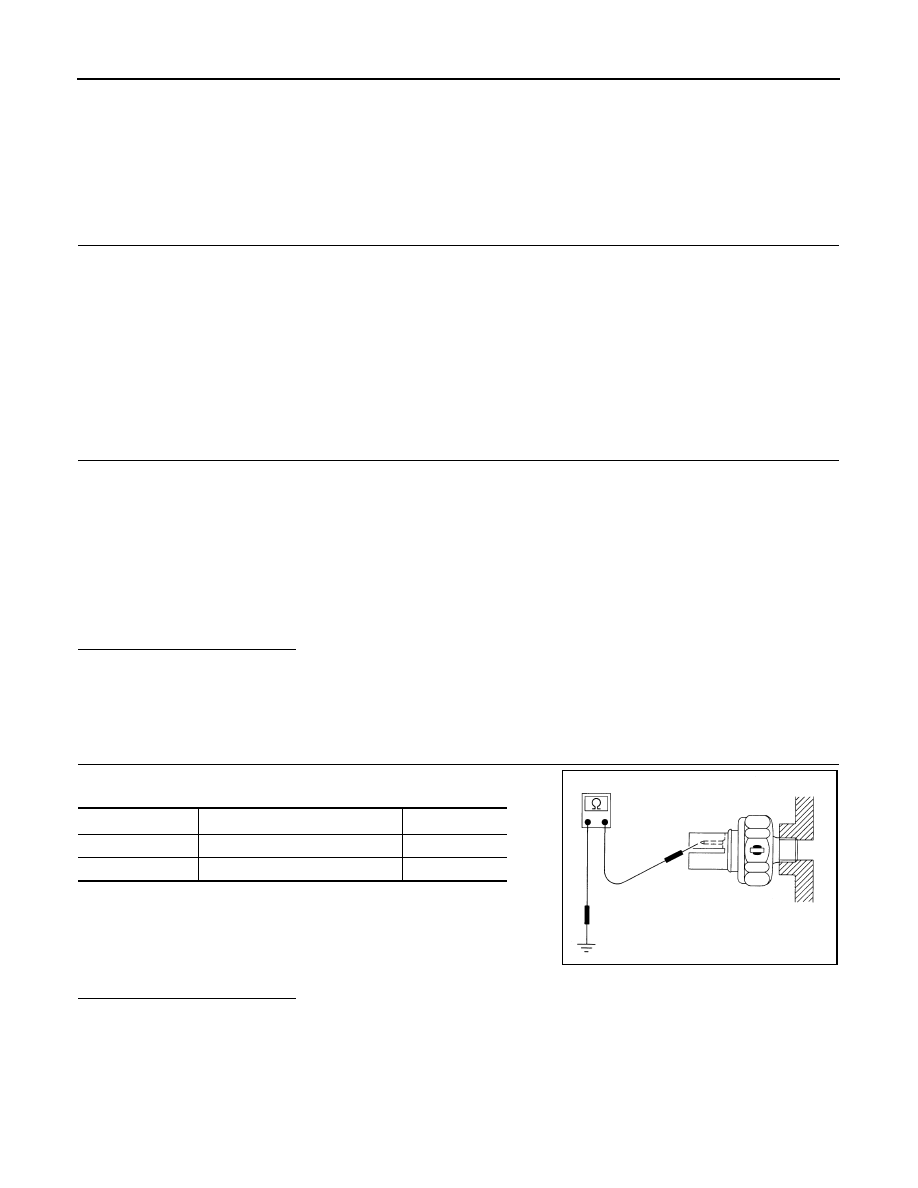

1.

CHECK OIL PRESSURE SWITCH UNIT

Check continuity between oil pressure switch and ground

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace the oil pressure switch.

OIL W/L

Ignition switch ON

: On

Engine running

: Off

27 – 1

: Continuity should exist.

27 – Ground

: Continuity should not exist.

Condition

Oil pressure kPa (bar, kg/cm

2

, psi)

Continuity

Engine stopped

Less than 29 (0.3, 0.3, 4)

Yes

Engine running

More than 29 (0.3, 0.3, 4)

No

ELF0044D

MWI

OAT SENSOR SIGNAL CIRCUIT

MWI-37

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

OAT SENSOR SIGNAL CIRCUIT

Description

INFOID:0000000001078082

The OAT sensor is attached on the radiator core support (left side). It detects ambient temperature and con-
verts it into a resistance value which is then input into the combination meter.

Diagnosis Procedure

INFOID:0000000001078083

1.

CHECK OAT SENSOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and OAT sensor connector.

3.

Check continuity between combination meter harness connector terminal 20 and oil level sensor harness
connector terminal 1.

4.

Check continuity between combination meter harness connector terminal 20 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK OAT SENSOR GROUND CIRCUIT

1.

Check continuity between combination meter harness connector terminal 19 and OAT sensor harness
connector terminal 2.

2.

Check continuity between combination meter harness connector terminal 19 and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000001078084

Refer to

HAC-78, "Component Inspection"

.

20 – 1

: Continuity should exist.

20 – Ground

: Continuity should not exist.

19 – 2

: Continuity should exist.

19 – Ground

: Continuity should not exist.
