Nissan Qashqai (2007-2010). Manual - part 1477





PWO

POWER SOCKET

PWO-3

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JCMWA0406GB

PWO-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001125421

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRC and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRC section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PWO

POWER SOCKET

PWO-5

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ON-VEHICLE REPAIR

POWER SOCKET

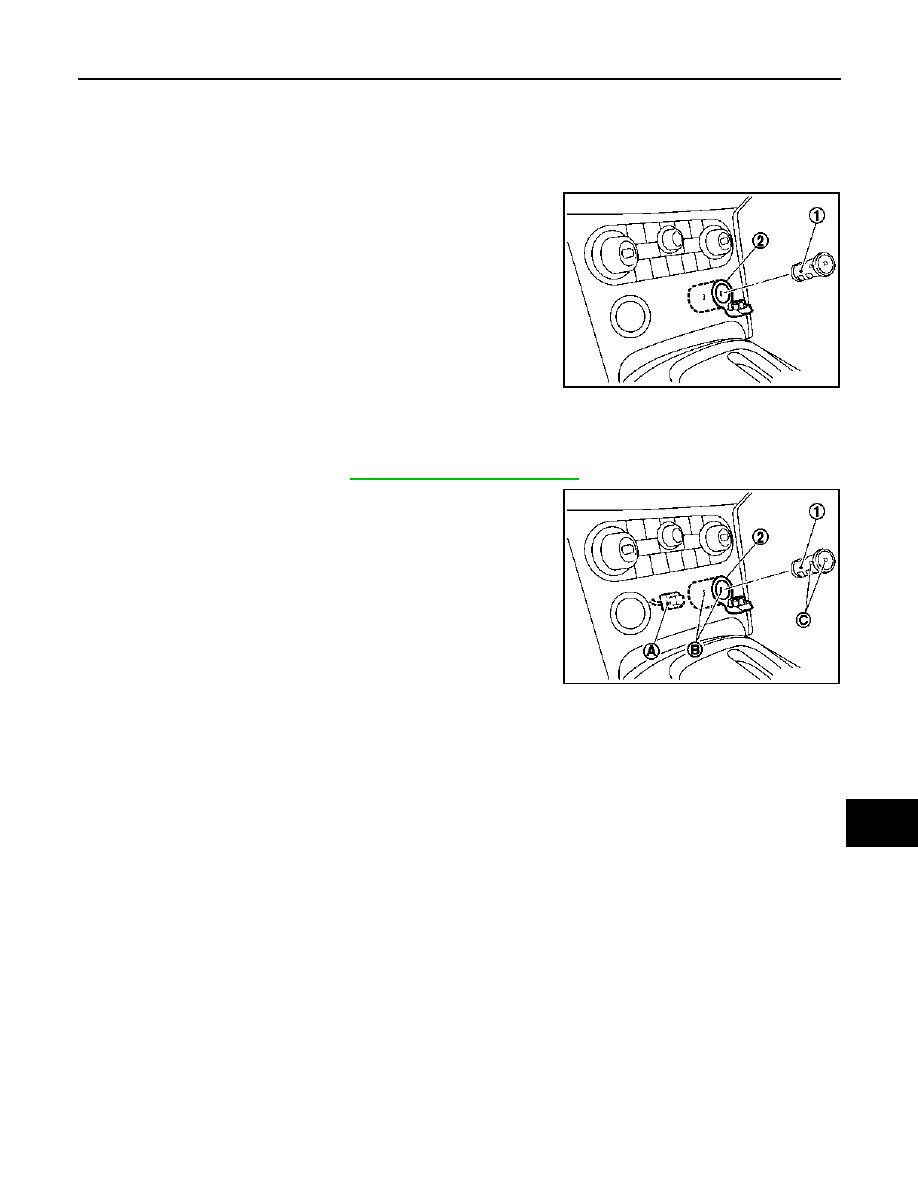

Exploded View

INFOID:0000000000945613

Removal and Installation

INFOID:0000000000945614

REMOVAL

1.

Remove console finisher. Refer to

IP-12, "Removal and Installation"

.

2.

Disconnect power socket connector (A).

3.

Pull out the inner socket (2) by pushing the ring pawl (B) from
the inner socket hole (square) (C).

4.

Remove ring (1) from console finisher while pressing pawls.

INSTALLATION

Install in the reverse order of removal.

1

:  Ring

2

: Inner socket

JPMIA0151ZZ

JPMIA0134ZZ

BCS

BCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

BCS

A

O

P

N

CONTENTS

BODY CONTROL SYSTEM

BASIC INSPECTION  ....................................

3

INSPECTION AND ADJUSTMENT .....................

3

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ........................................................
..

3

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ................................
..

3

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .....
..

3

CONFIGURATION .......................................................

3

CONFIGURATION : Description  ...............................

3

CONFIGURATION : Special Repair Requirement

......

4

FUNCTION DIAGNOSIS ...............................

7

BODY CONTROL SYSTEM ................................

7

System Description  ...................................................

7

Component Parts Location ........................................

8

COMBINATION SWITCH READING SYSTEM

.....

9

System Diagram ........................................................

9

System Description  ...................................................

9

Component Parts Location ......................................

12

SIGNAL BUFFER SYSTEM  ...............................

13

System Diagram ......................................................

13

System Description  .................................................

13

POWER CONSUMPTION CONTROL SYS-
TEM ....................................................................

14

System Diagram ......................................................

14

System Description  .................................................

14

Component Parts Location ......................................

15

DIAGNOSIS SYSTEM (BCM)  ............................

17

COMMON ITEM  .........................................................

17

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................

17

BCM ...........................................................................

17

BCM : CONSULT-III Function (BCM - BCM) ...........

17

DOOR LOCK ..............................................................

18

DOOR LOCK : CONSULT-III Function (BCM -
DOOR LOCK) ..........................................................

18

REAR WINDOW DEFOGGER  ...................................

19

REAR WINDOW DEFOGGER : CONSULT-III
Function (BCM - REAR DEFOGGER) .....................

19

BUZZER .....................................................................

19

BUZZER : CONSULT-III Function (BCM - BUZZ-
ER) ..........................................................................

19

INT LAMP ...................................................................

20

INT LAMP : CONSULT-III Function (BCM - INT
LAMP) ......................................................................

20

MULTIREMOTE ENT  .................................................

22

MULTIREMOTE ENT : CONSULT-III Function
(BCM - MULTIREMOTE ENT) .................................

22

HEADLAMP ...............................................................

23

HEADLAMP : CONSULT-III Function (BCM -
HEAD LAMP) ...........................................................

23

WIPER ........................................................................

24

WIPER : CONSULT-III Function (BCM - WIPER) ....

24

FLASHER ...................................................................

25

FLASHER : CONSULT-III Function (BCM -
FLASHER) ...............................................................

25

AIR CONDITIONER  ...................................................

26

AIR CONDITIONER : CONSULT-III Function
(BCM - AUTO AIR CONDITIONER) ........................

26

INTELLIGENT KEY ....................................................

26

INTELLIGENT KEY : CONSULT-III Function
(BCM - INTELLIGENT KEY) ....................................

26

COMB SW ..................................................................

26
