Nissan Qashqai (2007-2010). Manual - part 1476





HRN-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001102415

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRC and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRC section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

HORN

HRN-5

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

ON-VEHICLE REPAIR

HORN

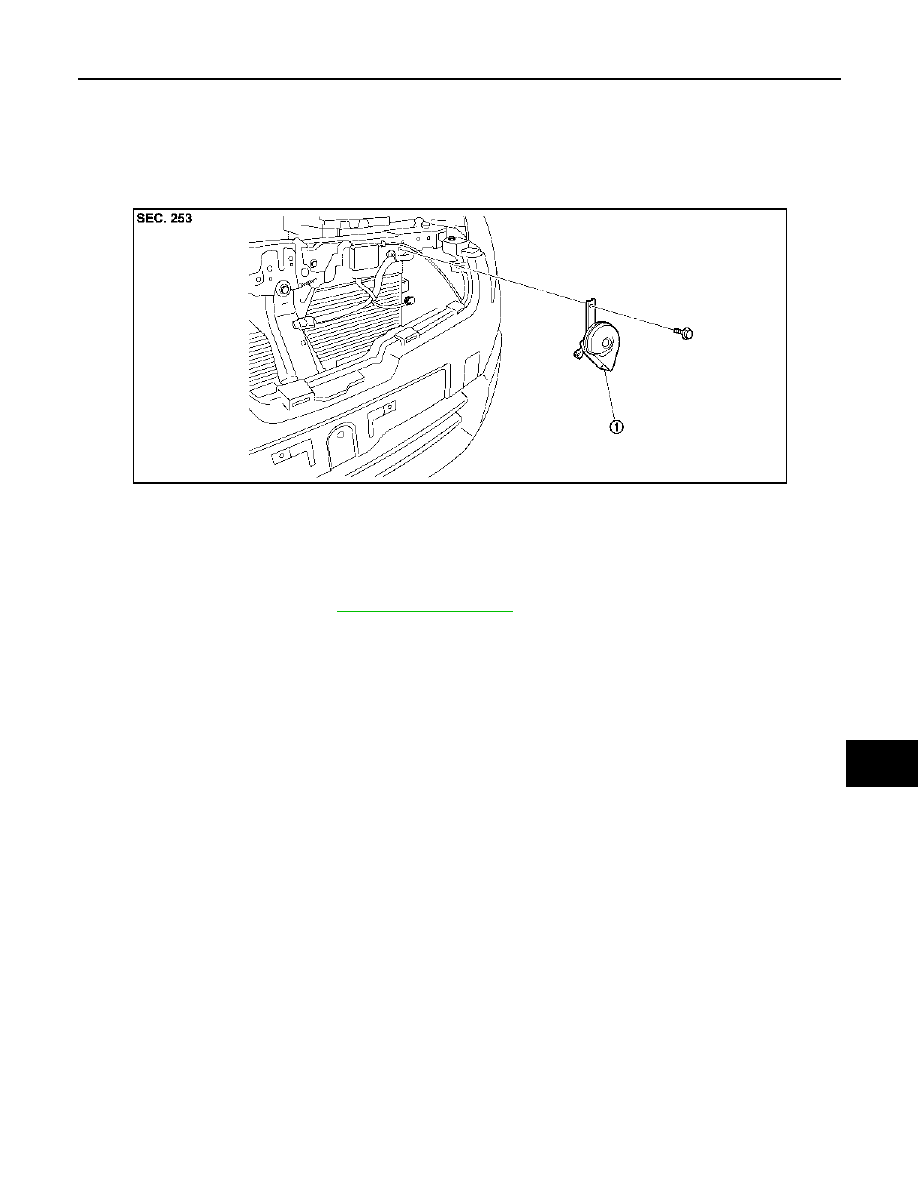

Exploded View

INFOID:0000000000924476

Removal and Installation

INFOID:0000000000924477

REMOVAL

1.

Remove the front grille. Refer to

EXT-17, "Exploded View"

.

2.

Disconnect the horn connector.

3.

Remove the horn mounting bolt, and remove the horn from the vehicle.

INSTALLATION

Install in the reverse order of removal.

1.

Horn

JPLIA0302ZZ

PWO-2

< COMPONENT DIAGNOSIS >

POWER SOCKET

COMPONENT DIAGNOSIS

POWER SOCKET

Wiring Diagram - POWER SOCKET -

INFOID:0000000000945610

JCMWA0405GB
