REAR FOG LAMP SYSTEM

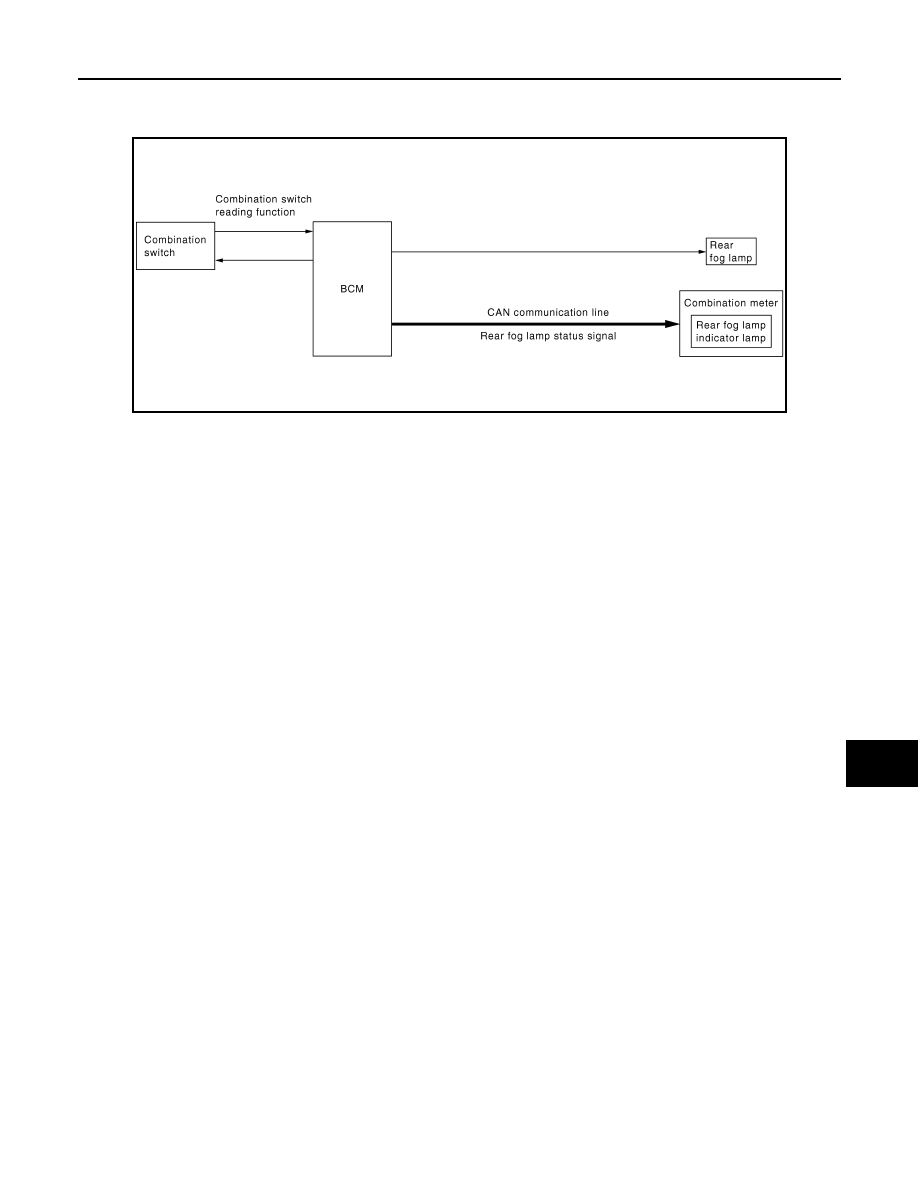

System Diagram

INFOID:0000000000955396

System Description

INFOID:0000000000955397

OUTLINE

Rear fog lamp is controlled with the combination switch reading function and the rear fog lamp control function
of BCM.

REAR FOG LAMP OPERATION

• BCM detects the condition of the combination switch by the combination switch reading function.
• BCM supplies voltage to rear fog lamp according to the rear fog lamp ON condition.

Rear fog lamp ON condition

- Rear fog lamp switch signal is input with front fog lamp ON and rear fog lamp OFF

Rear fog lamp OFF condition

- Rear fog lamp switch signal is input with rear fog lamp ON
- Front fog lamp OFF
• BCM transmits the rear fog lamp status signal to the combination meter with CAN communication.
• Combination meter turns the rear fog lamp indicator lamp ON according to the rear fog lamp status signal.

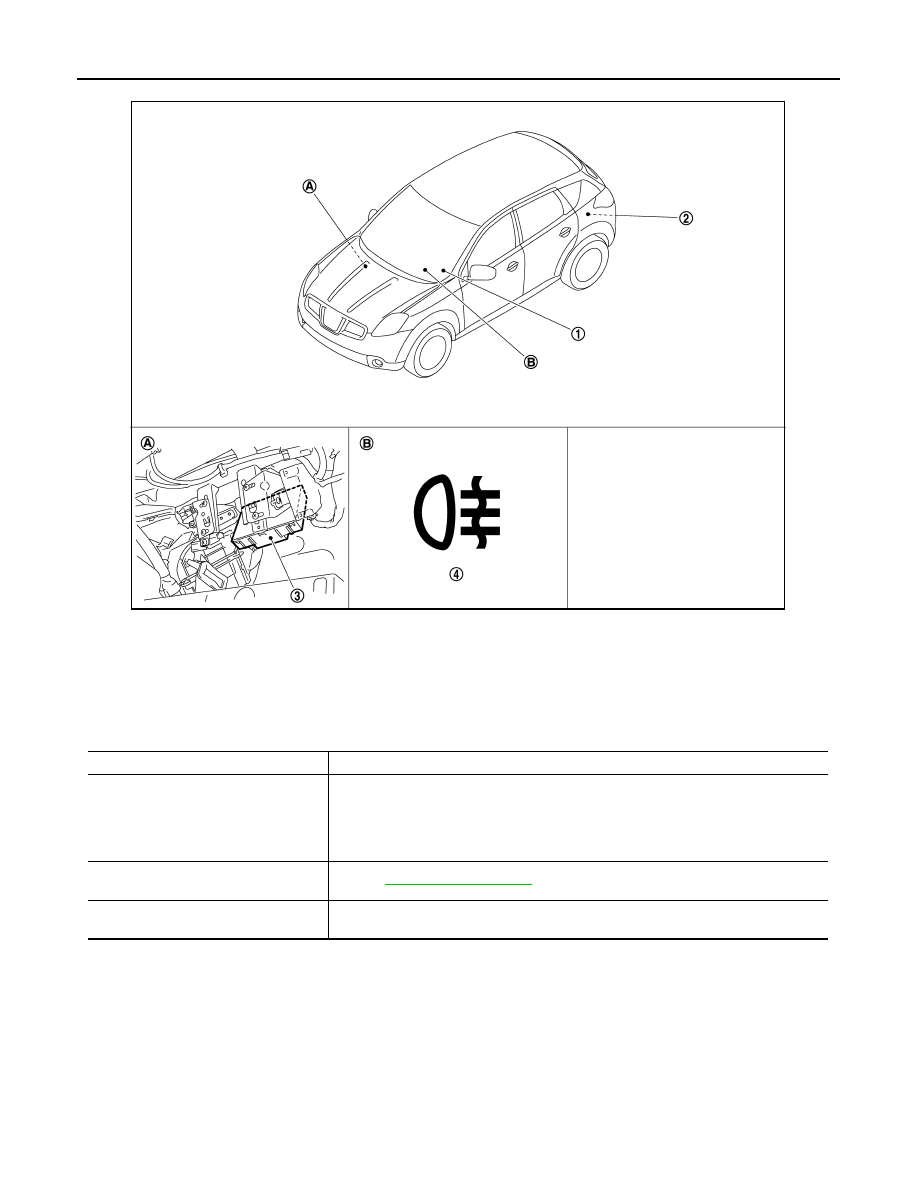

Component Parts Location

INFOID:0000000000955398

JPLIA0179GB

EXL-26

< FUNCTION DIAGNOSIS >

[XENON TYPE]

REAR FOG LAMP SYSTEM

Component Description

INFOID:0000000000955399

1.

Combination switch

2.

Rear fog lamp

3.

BCM

4.

Rear fog lamp indicator lamp

A.

Over the glove box

B.

On the combination meter

JPLIA0192ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges that the rear fog lamp is turned ON according to the vehicle status
- Supplies voltage to the rear fog lamp
- Requests the rear fog lamp indicator lamp ON to the combination meter (with CAN

communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-9, "System Diagram"

.

Combination meter
(Rear fog lamp indicator lamp)

Turns the rear fog lamp indicator lamp ON according to the request from BCM (with CAN
communication).

DIAGNOSIS SYSTEM (BCM)

EXL-27

< FUNCTION DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001116333

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

HEADLAMP

HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)

INFOID:0000000001026151

WORK SUPPORT

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-61, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

—

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

PTC heater system

PTC HEATER

×

×

EXL-28

< FUNCTION DIAGNOSIS >

[XENON TYPE]

DIAGNOSIS SYSTEM (BCM)

*: Initial setting

DATA MONITOR

ACTIVE TEST

Service item

Setting item

Setting

HEAD LIGHT TIMER

MODE 1

10 sec.

Sets follow me home function activating time.

MODE 2

*

30 sec.

Monitor item

[Unit]

Description

IGN ON SW
[ON/OFF]

Ignition switch (ON) status judged from IGN signal (ignition power supply)

ACC SW
[ON/OFF]

Ignition switch (ACC) status judged from ACC signal (ACC power supply)

HI BEAM SW
[ON/OFF]

Each switch status that BCM judges from the combination switch reading function

HEAD LAMP SW1
[ON/OFF]

HEAD LAMP SW2
[ON/OFF]

TAIL LAMP SW
[ON/OFF]

AUTO LIGHT SW
[ON/OFF]

PASSING SW
[ON/OFF]

FR FOG SW
[ON/OFF]

RR FOG SW
[ON/OFF]

DOOR SW-DR
[ON/OFF]

The switch status input from front door switch (driver side)

DOOR SW-AS
[ON/OFF]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[ON/OFF]

The switch status input from rear door switch RH

DOOR SW- RL
[ON/OFF]

The switch status input from rear door switch LH

BACK DOOR SW
[ON/OFF]

The switch status input from back door switch

TURN SIGNAL R
[ON/OFF]

Each switch status that BCM judges from the combination switch reading function

TURN SIGNAL L
[ON/OFF]

ENGINE RUNNING
[ON/OFF]

The engine status received from ECM with CAN communication

PUSH SW
[ON/OFF]

Push switch status received from Intelligent Key unit by CAN communication

LIT-SEN FAIL
[OK/NOTOK]

• The sensor status received from light & rain sensor with serial link
• The serial link condition that BCM judges

AUT LIGHT SYS
[ON/OFF]

Auto light system status that BCM judges from the vehicle condition
