DIAGNOSIS SYSTEM (BCM)

EXL-29

< FUNCTION DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FLASHER

FLASHER : CONSULT-III Function (BCM - FLASHER)

INFOID:0000000001026153

DATA MONITOR

ACTIVE TEST

Test item

Operation

Description

TAIL LAMP

ON

Transmits the position light request signal to IPDM E/R with CAN com-
munication to turn the tail lamp ON.

OFF

Stops the tail lamp request signal transmission.

HEAD LAMP

HI

Transmits the high beam request signal with CAN communication to turn
the headlamp (HI).

LO

Transmits the low beam request signal with CAN communication to turn
the headlamp (LO).

OFF

Stops the high & low beam request signal transmission.

FR FOG LAMP

ON

Transmits the front fog lights request signal to IPDM E/R with CAN com-
munication to turn the front fog lamp ON.

OFF

Stops the front fog lights request signal transmission.

RR FOG LAMP

ON

• Outputs the voltage to turn the rear fog lamp ON.
• Transmits the rear fog lamp status signal to the combination meter with

CAN communication to turn the rear fog lamp indicator lamp ON.

OFF

• Stops the voltage to turn the rear fog lamp OFF.
• Stops the rear fog lamp status signal transmission.

DAYTIME RUNNING LIGHT

ON

Transmits the day time running light request signal to IPDM E/R with
CAN communication to turn the each lamps ON.

OFF

Stops the day time running light request signal transmission.

Monitor item

[Unit]

Description

IGN ON SW
[ON/OFF]

Ignition switch (ON) status judged from IGN signal (ignition power supply)

HAZARD SW
[ON/OFF]

The switch status input from the hazard switch

TURN SIGNAL R
[ON/OFF]

Each switch condition that BCM judges from the combination switch reading function

TURN SIGNAL L
[ON/OFF]

Test item

Operation

Description

FLASHER

RH

Outputs the voltage to turn the right side turn signal lamps ON.

LH

Outputs the voltage to turn the left side turn signal lamps ON.

OFF

Stops the voltage to turn the turn signal lamps OFF.

EXL-30

< FUNCTION DIAGNOSIS >

[XENON TYPE]

DIAGNOSIS SYSTEM (IPDM E/R)

DIAGNOSIS SYSTEM (IPDM E/R)

Diagnosis Description

INFOID:0000000001098948

Auto active test

Description

In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation.
• Oil pressure warning lamp
• Rear window defogger
• Front wiper (LO, HI)
• Parking lamps
• License plate lamps
• Tail lamps
• Front fog lamps
• Headlamps (LO, HI)
• A/C compressor (magnet clutch)
• Cooling fan (LO, HI)

Operation procedure

1.

Close the hood and lift the wiper arms from the windshield. (Prevent windshield damage due to wiper
operation)
NOTE:
When auto active test is performed with hood opened, sprinkle water on windshield beforehand.

2.

Turn ignition switch OFF.

3.

Turn the ignition switch ON, and within 20 seconds, press the driver door switch 10 times. Then turn the
ignition switch OFF.

CAUTION:

Close passenger door.

4.

Turn the ignition switch ON within 10 seconds. Then the horn sounds once and the auto active test starts.

5.

The oil pressure warning lamp starts blinking when the auto active test starts.

6.

After a series of the following operations is repeated 3 times, auto active test is completed.

NOTE:
When auto active test mode has to be cancelled halfway through test, turn ignition switch OFF.

CAUTION:

• If auto active test mode cannot be actuated, check door switch system.
• Never start the engine.

Inspection in auto active test mode

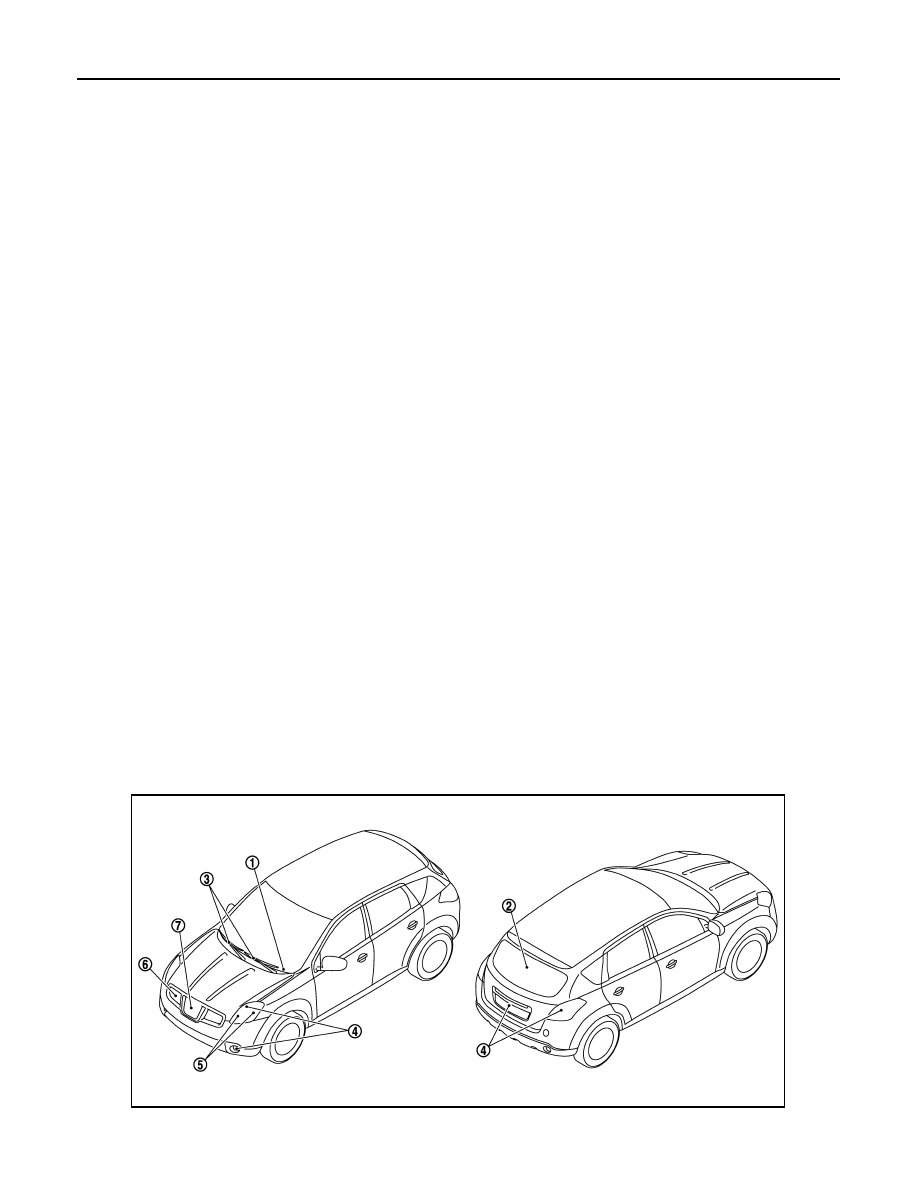

When auto active test mode is actuated, the following 6 steps are repeated 3 times.

JPMIA0234ZZ

DIAGNOSIS SYSTEM (IPDM E/R)

EXL-31

< FUNCTION DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

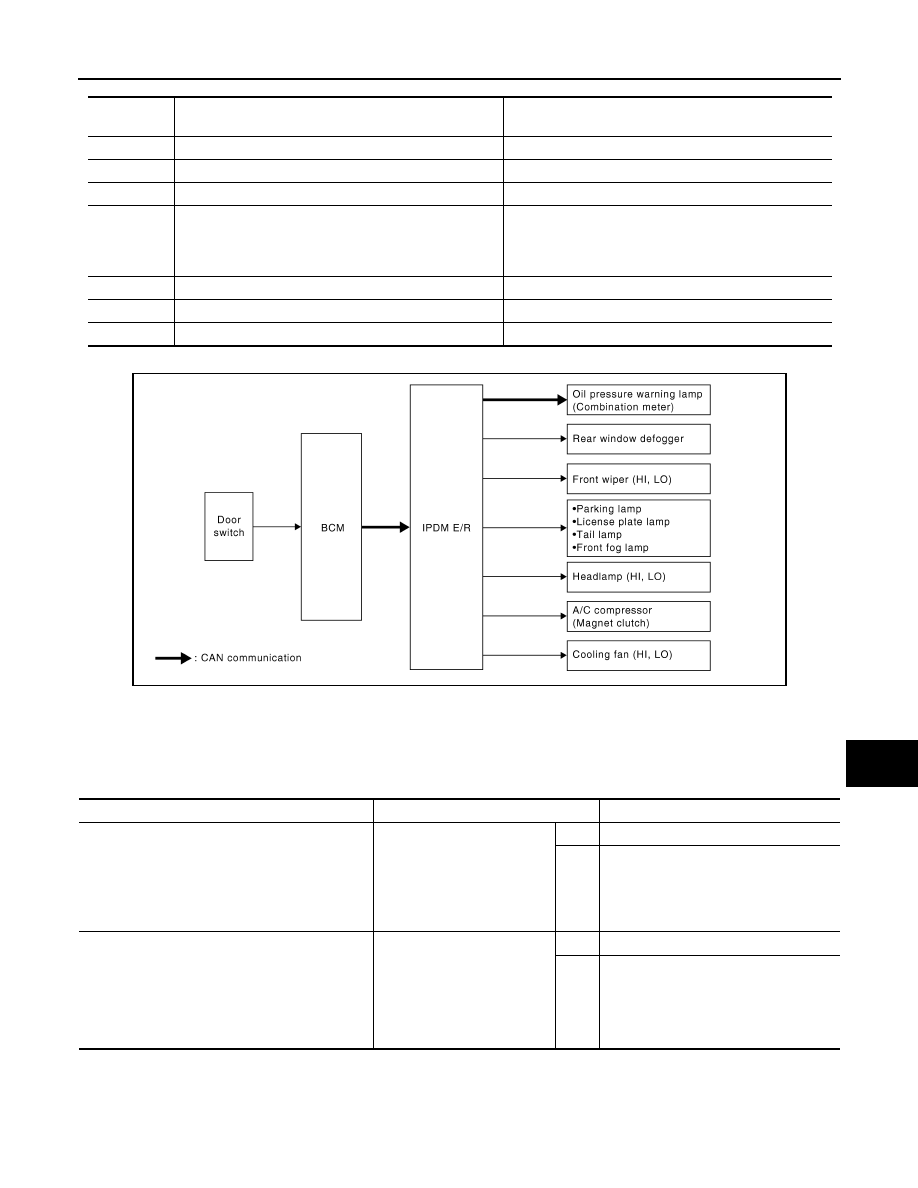

Concept of auto active test

• IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communica-

tion. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto
active test starts successfully.

• The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.

Diagnosis chart in auto active test mode

Operation
sequence

Inspection location

Operation

1

Oil pressure warning lamp

Blinks continuously during operation of auto active test.

2

Rear window defogger

10 seconds

3

Front wiper

LO for 5 seconds

→

 HI for 5 seconds

4

• Parking  lamps
• License plate lamps
• Tail lamps
• Front fog lamps

10 seconds

5

Headlamps

LO

⇔

 HI 5 times

6

A/C compressor (magnet clutch)

ON

⇔

 OFF 5 times

7

Cooling fan

LO for 5 seconds

→

 HI for 5 seconds

JPMIA0235GB

Symptom

Inspection contents

Possible cause

Rear window defogger does not operate

Perform auto active test.
Does the rear window defog-
ger operate?

YES

BCM signal input circuit

NO

• Rear window defogger
• Rear window defogger ground circuit
• Harness or connector between IPDM

E/R and rear window defogger

• IPDM E/R

Any of the following components do not operate
• Parking lamps
• License plate lamps
• Tail  lamps
• Front fog lamps
• Headlamp (HI, LO)
• Front wiper (HI, LO)

Perform auto active test.
Does the applicable system
operate?

YES

BCM signal input circuit

NO

• Lamp or motor
• Lamp or motor ground circuit
• Harness or connector between IPDM

E/R and applicable system

• IPDM E/R

EXL-32

< FUNCTION DIAGNOSIS >

[XENON TYPE]

DIAGNOSIS SYSTEM (IPDM E/R)

NOTE:

*: MR engine and K9K engine models

CONSULT - III Function (IPDM E/R)

INFOID:0000000001098949

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC

Refer to

EXL-148, "DTC Index"

.

DATA MONITOR

Monitor item

A/C compressor does not operate

Perform auto active test.
Does the magnet clutch oper-
ate?

YES

• Communication signal between BCM

and auto amp. (with auto A/C)

• Communication signal between BCM

and heater control panel (without auto
A/C, with manual A/C)

• BCM
• CAN communication signal between

BCM and ECM

• CAN communication signal between

ECM and IPDM E/R

NO

• Magnet clutch
• Harness or connector between IPDM

E/R and magnet clutch

• IPDM E/R

Oil pressure warning lamp does not operate

Perform auto active test.
Does the oil pressure warning
lamp blink?

YES

• Harness or connector between IPDM

E/R and oil pressure switch

• Oil pressure switch
• IPDM E/R

NO

• CAN communication signal between

IPDM E/R and BCM

• CAN communication signal between

BCM and combination meter

• Combination meter

Cooling fan does not operate

Perform auto active test.
Does the cooling fan operate?

YES

• ECM signal input circuit
• CAN communication signal between

ECM and IPDM E/R

NO

• Cooling fan
• Cooling fan ground circuit
• Harness or connector between IPDM

E/R and cooling fan

• IPDM E/R
• Cooling fan relay-3*
• Harness or connector between IPDM

E/R and cooling fan relay-3*

• Harness or connector between cooling

fan and cooling fan relay-3*

Symptom

Inspection contents

Possible cause

Diagnosis mode

Description

Ecu Identification

Allows confirmation of IPDM E/R part number.

Self Diagnostic Result

Displays the diagnosis results judged by IPDM E/R.

Data Monitor

Displays the real-time input/output data from IPDM E/R input/output data.

Active Test

IPDM E/R can provide a drive signal to electronic components to check their operations.

CAN Diag Support Monitor

The results of transmit/receive diagnosis of CAN communication can be read.
