FRONT FOG LAMP SYSTEM

EXL-17

< FUNCTION DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP SYSTEM

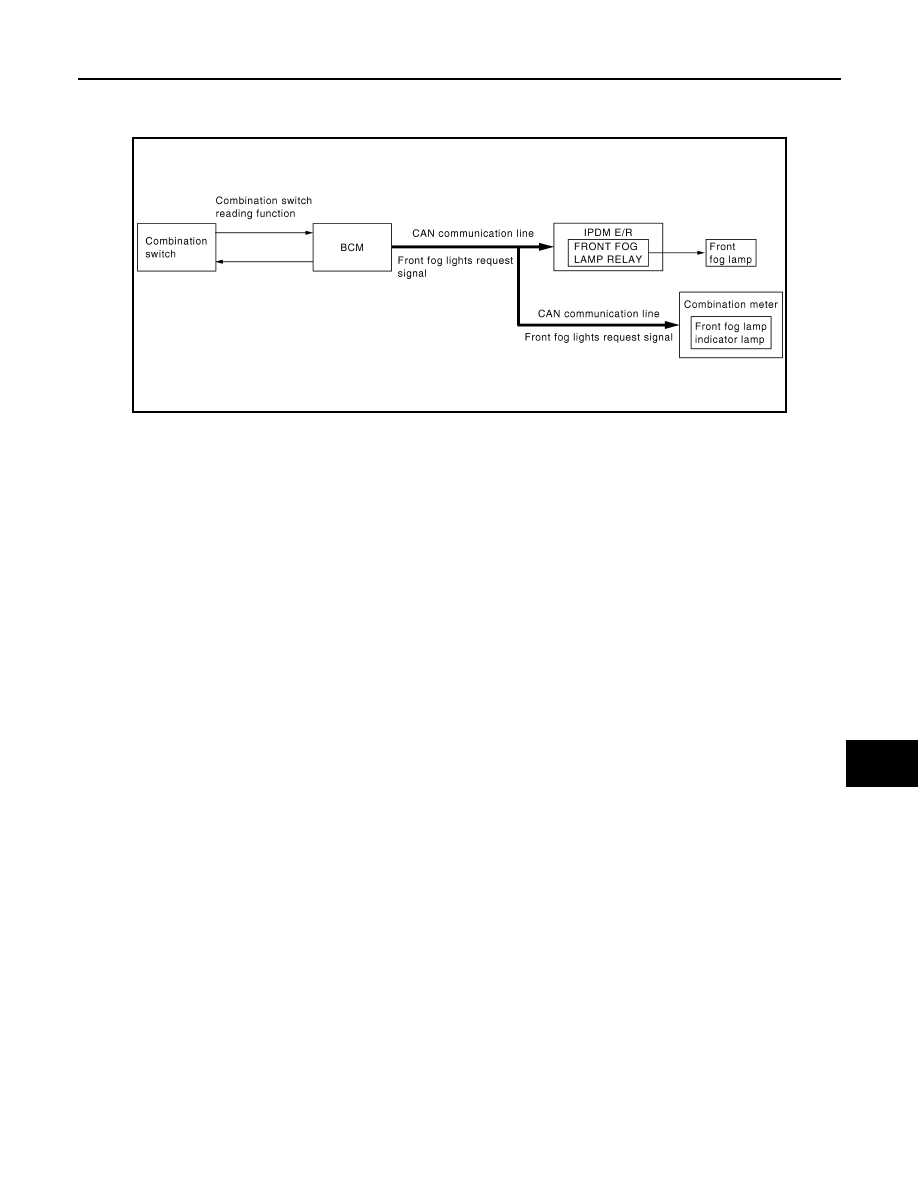

System Diagram

INFOID:0000000000955380

System Description

INFOID:0000000000955381

OUTLINE

Front fog lamp is controlled by combination switch reading function and front fog lamp control function of BCM,
and relay control function of IPDM E/R.

FRONT FOG LAMP OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the front fog lights request signal to IPDM E/R and the combination meter with CAN commu-

nication according to the front fog lamp ON condition.

Front fog lamp ON condition

- Front fog lamp switch ON
- Lighting switch 1ST, 2ND, or AUTO (ignition switch ON)
• IPDM E/R turns the integrated front fog lamp relay ON, and turns the front fog lamp ON according to the

front fog lights request signal.

• Combination meter turns the front fog lamp indicator lamp ON according to the front fog lights request signal.

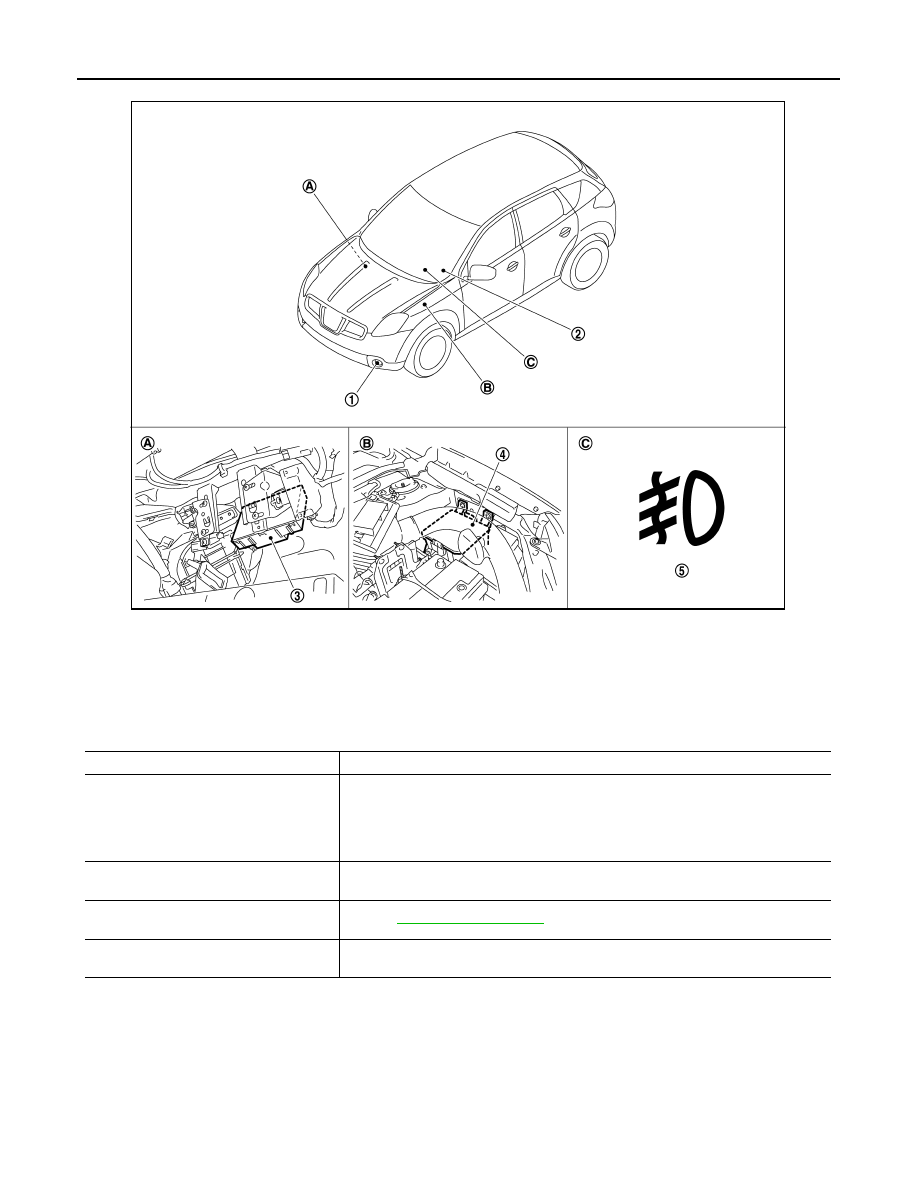

Component Parts Location

INFOID:0000000000955382

JPLIA0178GB

EXL-18

< FUNCTION DIAGNOSIS >

[XENON TYPE]

FRONT FOG LAMP SYSTEM

Component Description

INFOID:0000000000955383

1.

Front fog lamp

2.

Combination switch

3.

BCM

4.

IPDM E/R

5.

Front fog lamp indicator lamp

A.

Over the glove box

B.

Engine room (left side)

C.

On the combination meter

JPLIA0195ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges the front fog lamp ON/OFF status according to the vehicle condition.
- Requests the front fog lamp relay ON to IPDM E/R (with CAN communication).
- Requests the front fog lamp indicator lamp ON to the combination meter (with CAN

communication).

IPDM E/R

Controls the integrated relay and supplies voltage to the load according to the request
from BCM (with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-9, "System Diagram"

.

Combination meter
(Front fog lamp indicator lamp)

Turns the front fog lamp indicator lamp ON according to the request from BCM.

HEADLAMP AIMING CONTROL SYSTEM (AUTO)

EXL-19

< FUNCTION DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP AIMING CONTROL SYSTEM (AUTO)

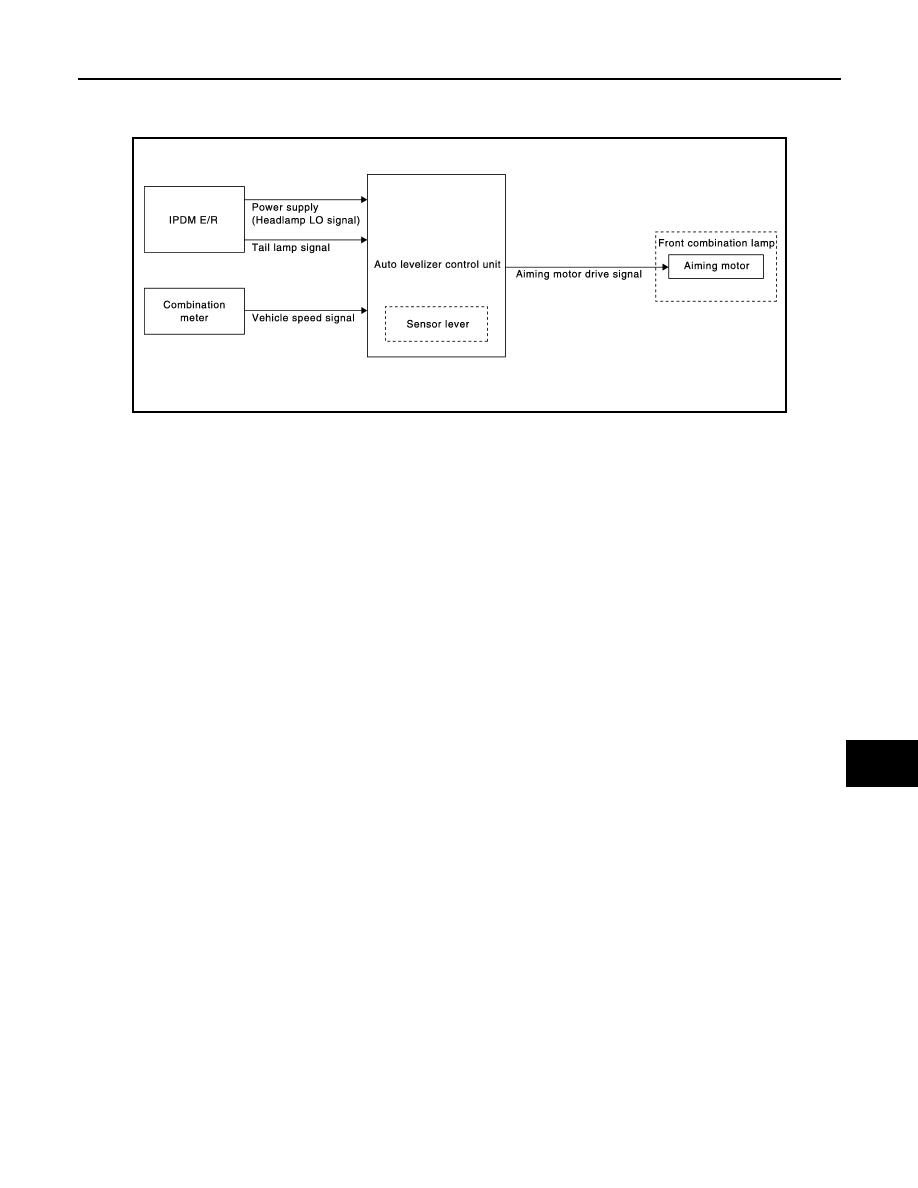

System Diagram

INFOID:0000000000955384

System Description

INFOID:0000000000955385

OUTLINE

• Headlamp aiming control system is controlled by auto levelizer control unit.
• Auto levelizer control unit controls the headlamp light axis height appropriately depending on the vehicle rear

height.

• Auto levelizer control unit detects the vehicle condition necessary for the aiming motor control with the fol-

lowing signals.

- Sensor lever signal (detected by the sensor lever)
- Tail lamp signal (inputted from IPDM E/R)
- Vehicle speed signal (8-pulse) (inputted from combination meter)

HEADLAMP AUTO AIMING OPERATION

• Auto levelizer control unit calculates vehicle pitch angle from sensor lever signal and determines the neces-

sary correction to compensate the deviation from standard light axis position.

• Auto levelizer control unit outputs aiming motor drive signal when operating conditions are satisfied.

Operating condition

- Headlamp (LO) ON
- Tail lamp ON
• Auto levelizer control unit changes the aiming motor drive signal when any of the correcting condition is

detected. Output is maintained if other condition is detected.

Correcting condition

- Headlamp (LO) is turned ON.
- Vehicle posture becomes stable after the vehicle posture change is detected with the headlamp (LO) ON

and the vehicle stopped.

- Vehicle speed is maintained with the headlamp (LO) ON and the vehicle driven.

CAUTION:

Adjusted axis position may differ from the preset position although the headlamp auto aiming acti-
vates properly when the suspension is replaced or worn.

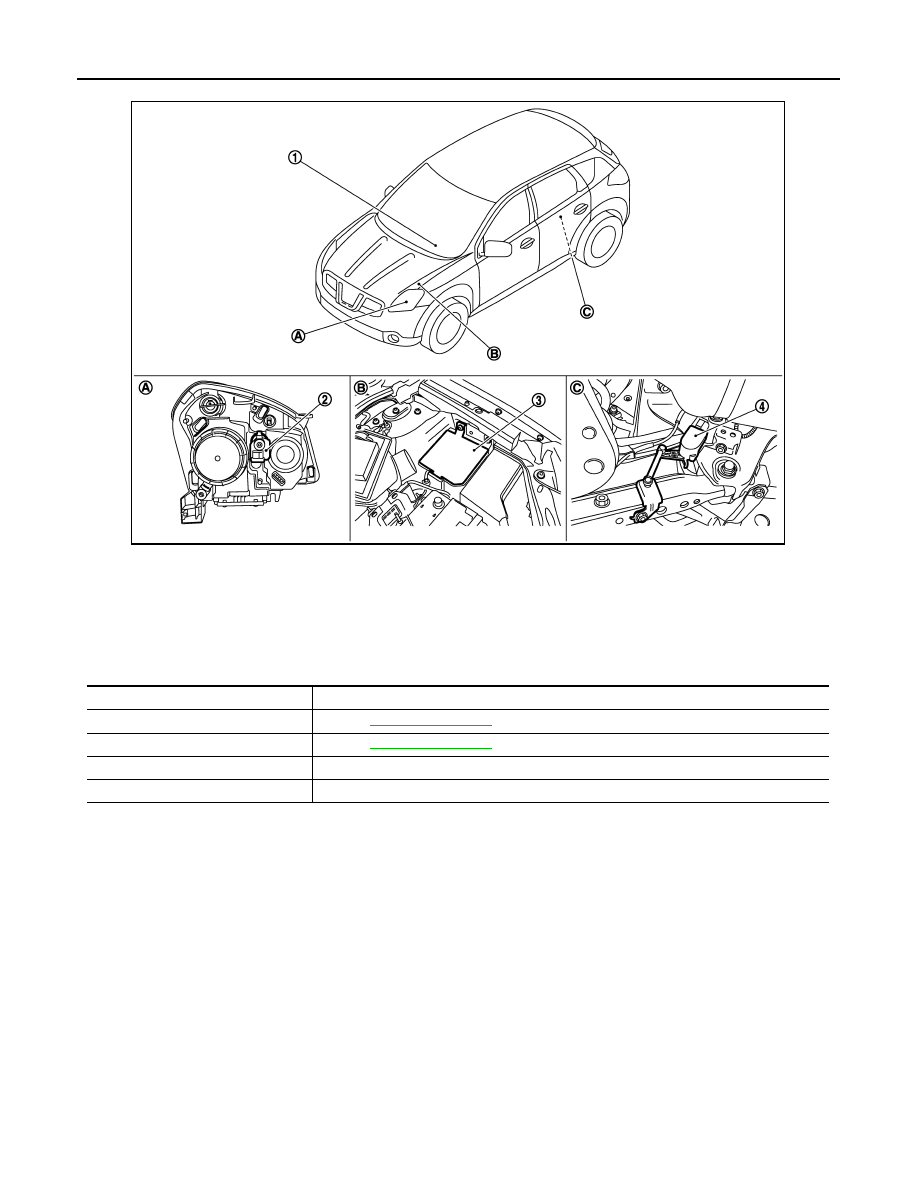

Component Parts Location

INFOID:0000000000955386

JSLIA0097GB

EXL-20

< FUNCTION DIAGNOSIS >

[XENON TYPE]

HEADLAMP AIMING CONTROL SYSTEM (AUTO)

Component Description

INFOID:0000000000955387

1.

Combination meter

2.

Aiming motor

3.

IPDM E/R

4.

Auto levelizer control unit

A.

Front combination lamp (back)

B.

Engine room (left side)

C.

Right rear suspension member

JPLIA0182ZZ

Part

Description

Auto levelizer control unit

Refer to

EXL-36, "Description"

.

Headlamp aiming motor

Refer to

EXL-59, "Description"

.

IPDM E/R

Outputs the tail lamp signal to auto levelizer control unit.

Combination meter

Outputs the vehicle speed signal (8-pulse) to auto levelizer control unit.
