FRONT DOOR GLASS

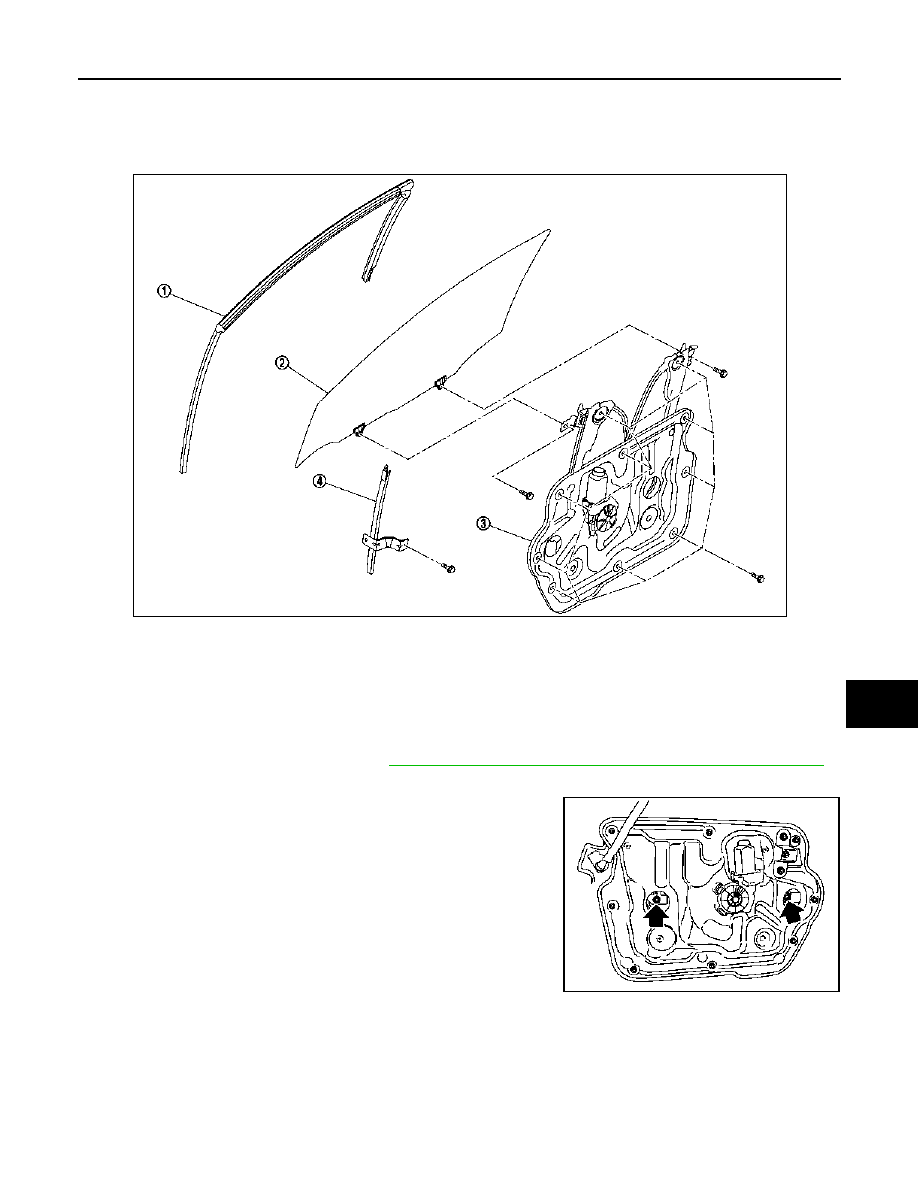

Exploded View

INFOID:0000000001093980

Removal and Installation

INFOID:0000000001093981

REMOVAL

1.

Remove the front door finisher. Refer to

INT-10, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove the corner cover.

3.

Operate the power window main switch to raise/lower the door
glass until the glass mounting bolts can be seen.

4.

Remove the door glass mounting bolts.

1.    Door glass run

2.

Door glass

3.

Module assembly

4.

Front door sash

JMKIA0469ZZ

JMKIA0471ZZ

GW-20

< ON-VEHICLE REPAIR >

FRONT DOOR GLASS

5.

While holding the door glass, raise it at the rear end to pull the
glass out of the sash toward the inside of the door.

6.

Remove the door glass run.

7.

Remove the front door sash mounting bolt, and remobe the front door sash.

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000001093982

SYSTEM INITIALIZATION

If any of the following work has been done, initialize the system.
• Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery

cable, etc.

• Removal and installation of the regulator assembly.
• Removal and installation of the motor from the regulator assembly.
• Removal and installation of the harness connector of the power window switch.
• Operation of the regulator assembly as a unit.
• Removal and installation of the door glass.
• Removal and installation of the door glass run.

Initialization

After installing each component to the vehicle, follow the steps below.

1.

Disconnect the minus terminal of battery or disconnect power window switch harness connector tempo-
rarily, then reconnect after at least 1 minute.

2.

Turn ignition switch ON.

3.

Operate power window switch to make over a half of the window area open.

4.

Fully draw the power window switch in the up direction (auto close position) and hold, keep holding the
switch even when window is completely closed and then release after 2 seconds have passed.

5.

Inspect the anti-pinch system function.
NOTE:
Initialization may be cancelled with continuous opening and closing operation. In this case, initialize the
system.

INSPECT THE FUNCTION OF THE ANTI-PINCH SYSTEM

1.

Fully open the door glass.

2.

Place a wooden piece (wooden hammer handle, etc.) at near fully closed position.

3.

Perform fully closing operation with auto up switch.

• Check that the glass reverses without pinching the wooden piece, is lowered approximately 150 mm (5.91

in) or for 2 seconds and then stops.

• The glass should not be raised with power window main switch operated while it is reversing or lowering.

CAUTION:

• Do not inspect by pinching a part of worker's body, a hand, etc. Be careful not to be pinched.
• Check that the auto up function is normal before inspection following the system initialization.

FITTING INSPECTION

• Check that the glass is securely fit into the glass run groove.

SIIA1779J

FRONT DOOR GLASS

GW-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting
bolts, guide rail mounting bolts, and glass and guide rail mounting bolts to correct the glass position.

GW-22

< ON-VEHICLE REPAIR >

FRONT REGULATOR

FRONT REGULATOR

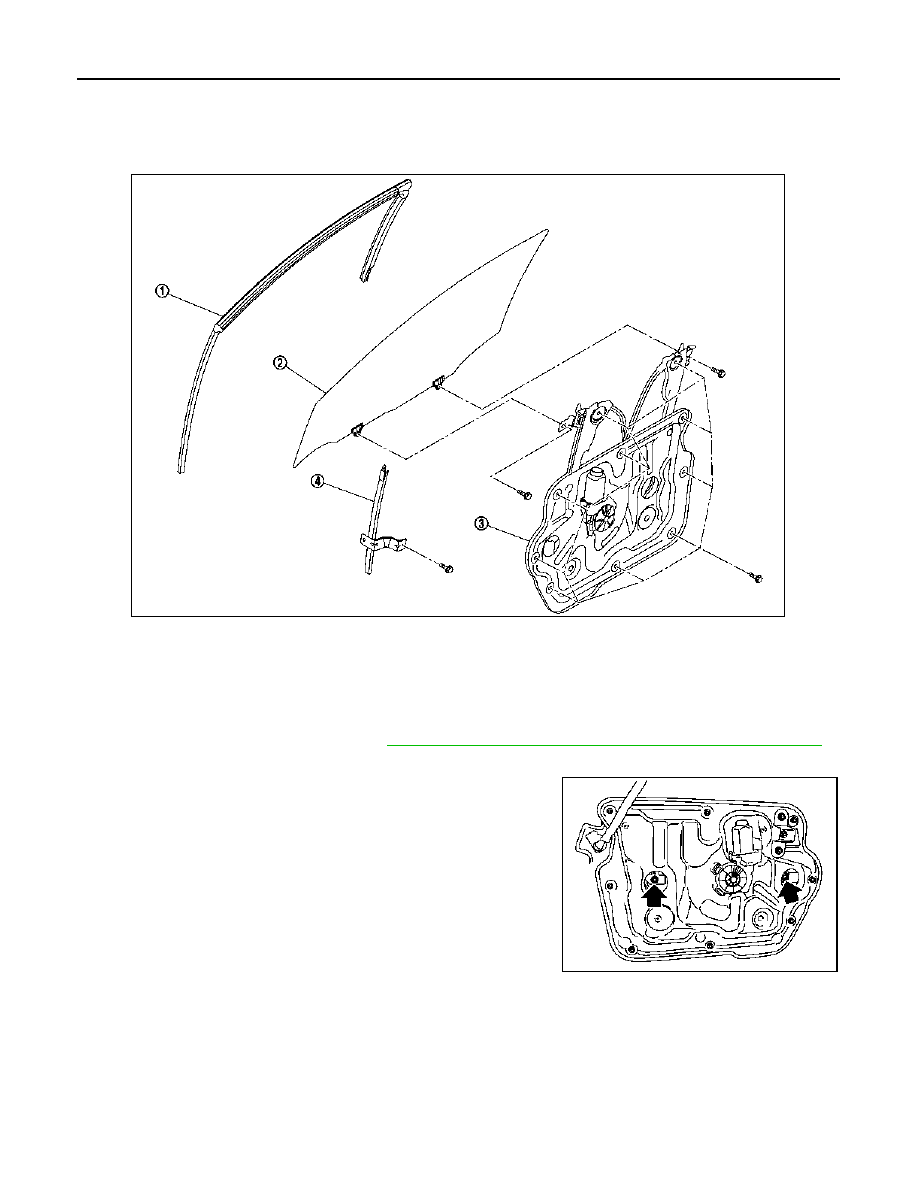

Exploded View

INFOID:0000000001093983

Removal and Installation

INFOID:0000000001093984

REMOVAL

1.

Remove the front door finisher. Refer to

INT-10, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove the corner cover.

3.

Operate the power window main switch to raise/lower the door
glass until the glass mounting bolts can be seen.

4.

Remove the door glass mounting bolts.

5.

Raise up the door glass and hold with a suction lifter.

6.

Disconnect the harness connector for the regulator assembly, and remove the harness clip.

1.    Door glass run

2.

Door glass

3.

Regulator assembly

JMKIA0469ZZ

JMKIA0471ZZ
