When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help pre-
vent glass splinters from entering your eyes or cutting your hands.

CAUTION:

• When a glass is to be reused, do not use a cutting knife or power cutting tool.
• Do not scratch the glass when removing.
• Do not set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

• The dam rubber and insulator should be installed in position.
• Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the manuals furnished

with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger room air pressure when a door is closed.

• The molding must be installed securely so that it is in position and leaves no gap.
• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the windshield in case of an accident.

CAUTION:

• Perform adjustment of front wiper stop location. Refer to

WW-105, "Adjustment"

Windshield glass

Dam rubber

Windshield molding

Spacer

Rain sensor bracket

Mirror base

Adhesive

Primer

Roof panel

10. Roof glass

11.

Body side outer panel

12. Cowl top

13. Cowl top cover

Refer to

GI-4, "Components"

for symbols in the figure.

PIIB5779E

GW-12

< ON-VEHICLE REPAIR >

WINDSHIELD GLASS

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed
on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Do not leave primers or adhesive cartridge unattended with their caps open or off.
• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidity. The curing time will increase
under lower temperature and lower humidity.

Inspection

INFOID:0000000001093976

Repairing Water Leakage for Windshield

Leakage can be repaired without removing and reinstalling glass.
If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.
This can be done by applying water to the windshield area while pushing glass outward.
To stop the leakage, apply primer (if necessary) and then urethane adhesive to the leakage point.

SUNROOF

GW-13

< ON-VEHICLE REPAIR >

SUNROOF

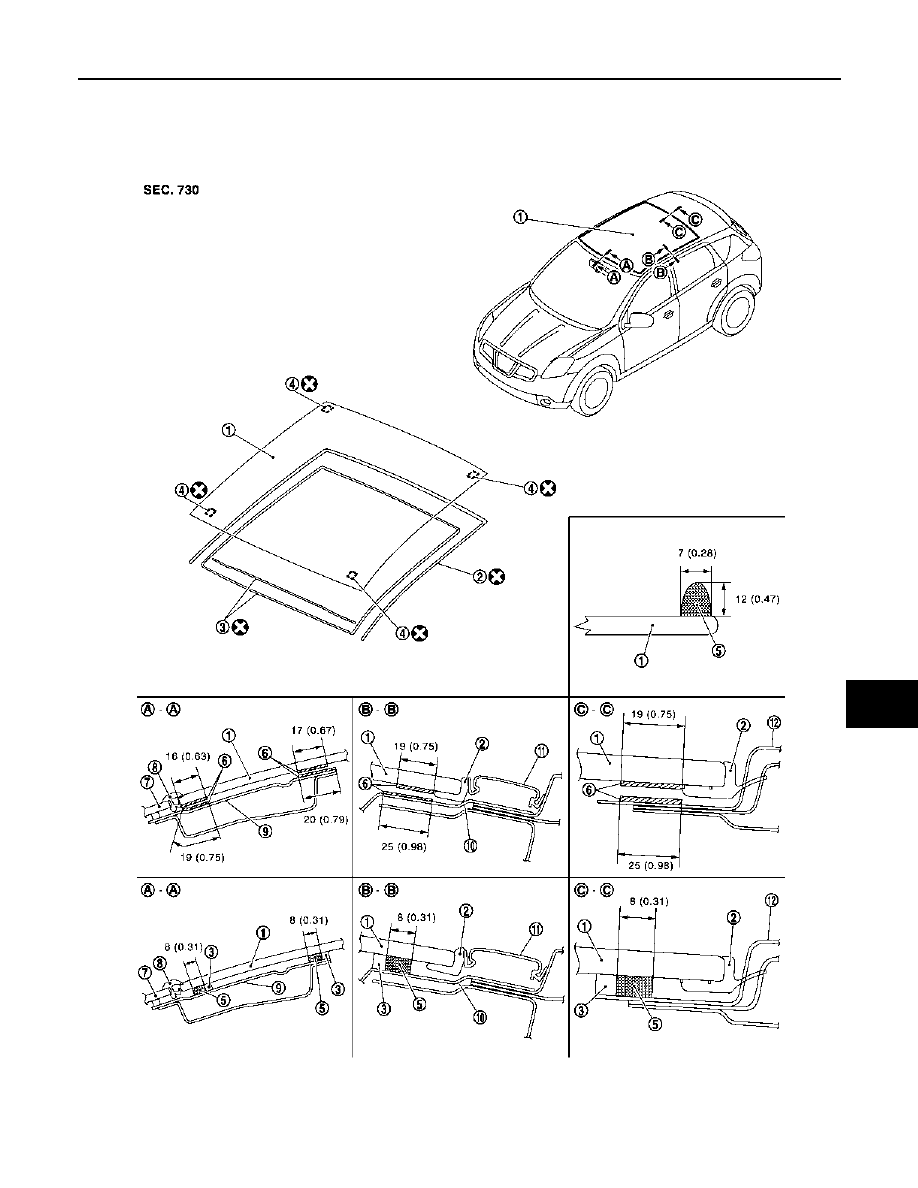

Exploded View

INFOID:0000000001094000

Sunroof glass

Sunroof molding

Dam rubber

Spacer

Adhesive

Primer

Windshield glass

Windshield molding

Front roof rail upper

JMKIA0466GB

GW-14

< ON-VEHICLE REPAIR >

SUNROOF

Removal and Installation

INFOID:0000000001094004

REMOVAL

Remove the headlining.Refer to

INT-21, "Removal and Installation"

Remove the sunshade unit assembly. Refer to

RF-53, "SUNSHADE UNIT ASSEMBLY : Removal and

Installation"

Remove the clips on sunroof inner finisher, and remove the sunroof inner finisher.

Remove the roof side molding. Refer to

EXT-24, "Removal and Installation"

Remove the windshield molding. Refer to

GW-11, "Removal and Installation"

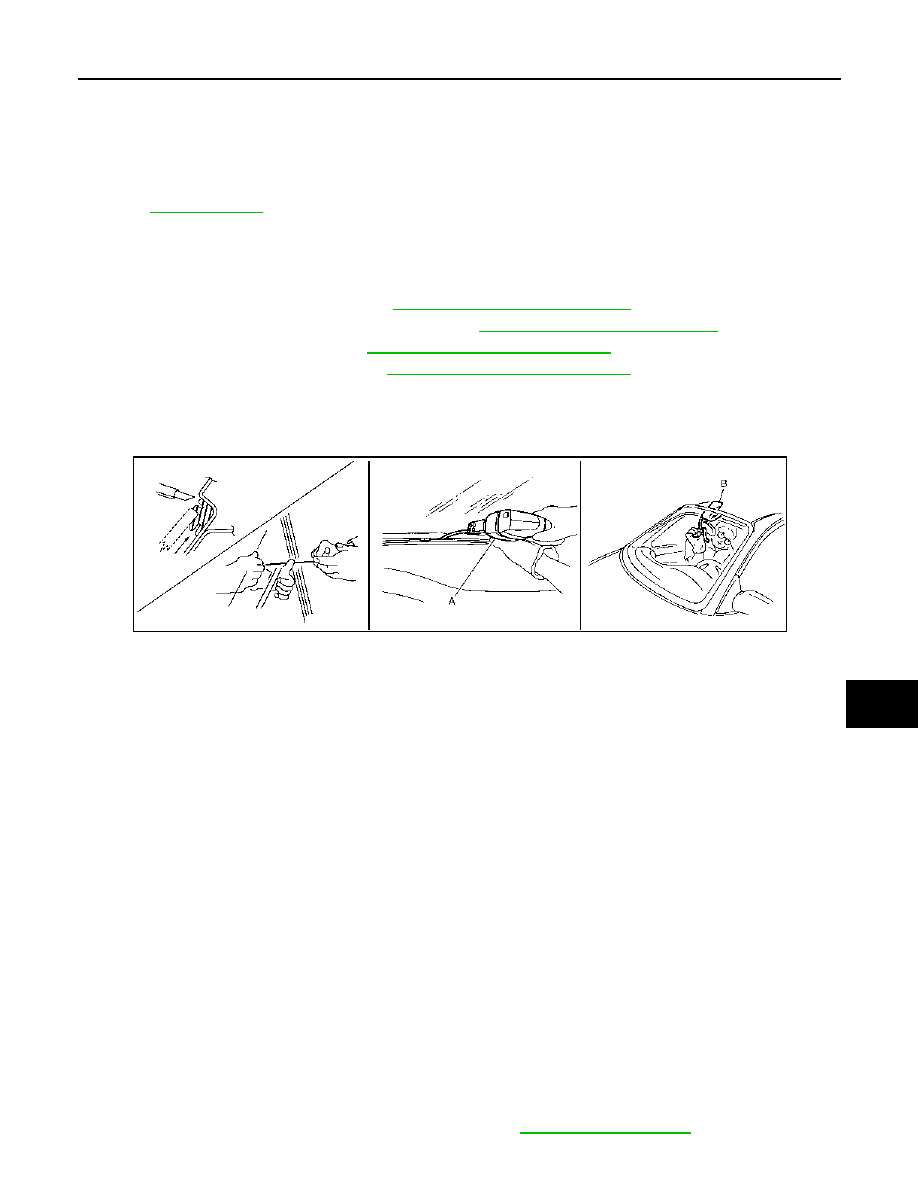

Apply protective tape around the sunroof glass and windshield glass and panel to protect from damage.

Cut the sunroof moldings with the cutting knife.

Remove the sunroof moldings using pliers, remove sunroof glass using piano wire or power cutting tool
and an inflatable pump bag.
NOTE:
If a glass is to be reused, mark the body and the glass with matching marks.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help pre-
vent glass splinters from entering your eyes or cutting your hands.

CAUTION:

INSTALLATION

• The dam rubber and insulator should be installed in position.
• Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the manuals furnished

with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger room air pressure when a door is closed.

• The molding must be installed securely so that it is in position and leaves no gap.
• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the windshield in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed
on the box.

cured. Curing time varies depending on temperature and humidity. The curing time will increase
under lower temperature and lower humidity.

10. Body side outer panel

11.

Roof side molding

12. Roof panel

Refer to

GI-4, "Components"

for symbols in the figure.
