Nissan Qashqai (2007-2010). Manual - part 1265

SQUEAK AND RATTLE TROUBLE DIAGNOSES

GW-7

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

PIIB8742E

GW-8

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Procedure without Cowl Top Cover

INFOID:0000000001103986

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Handling for Adhesive and Primer

INFOID:0000000001093971

• Do not use an adhesive which is past its usable date. Shelf life of this product is limited to six months after

the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Open the seal of the primer and adhesive just before application. Discard the remainder.
• Before application, be sure to shake the primer container to stir the contents. If any floating material is found,

do not use it.

• If any primer or adhesive contacts the skin, wipe it off with gasoline or equivalent and wash the skin with

soap.

• When using primer and adhesive, always observe the precautions in the manual instruction.

PIIB3706J

PREPARATION

GW-9

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000001093973

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove the clip and pawl and metal clip

Suction lifter

Holding the door glass

SIIA0995E

PIIB7923J

PIIB1805J

GW-10

< ON-VEHICLE REPAIR >

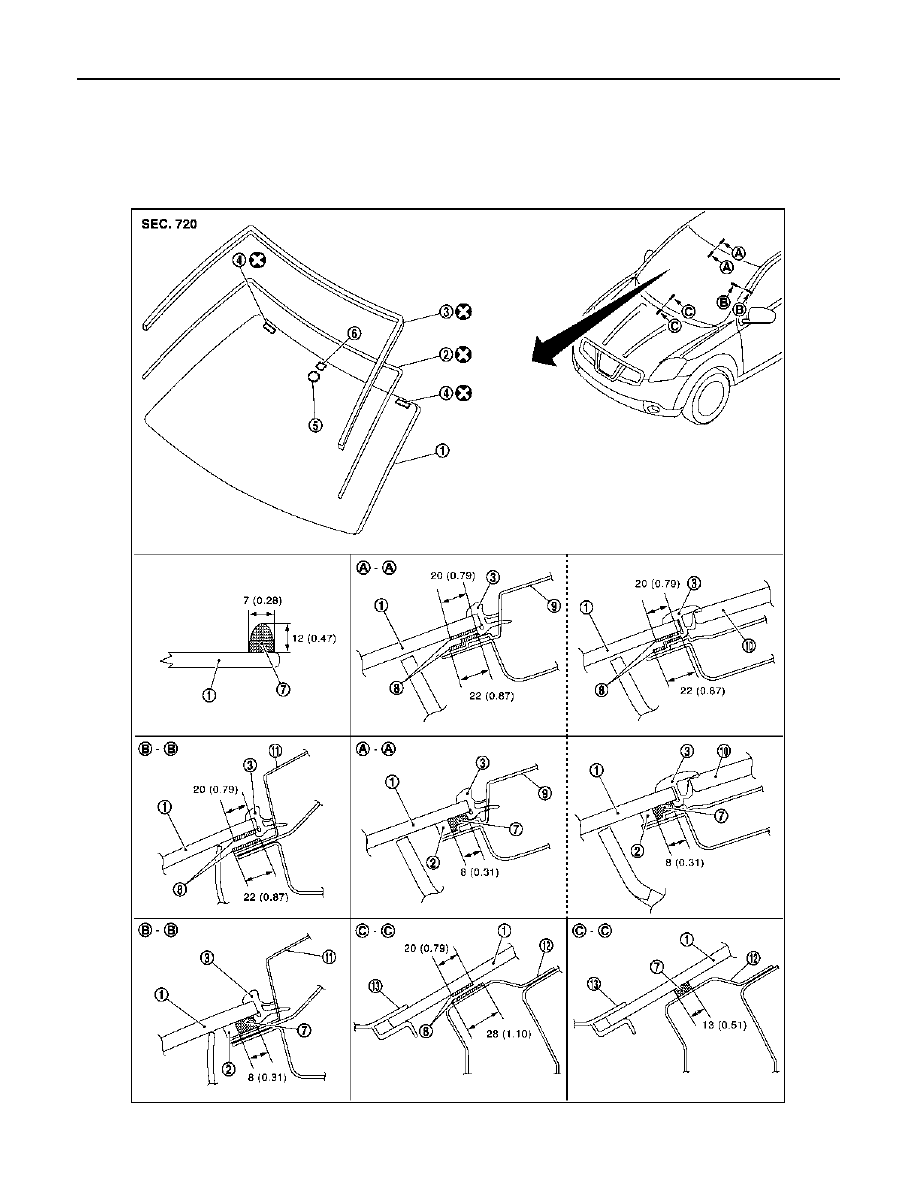

WINDSHIELD GLASS

ON-VEHICLE REPAIR

WINDSHIELD GLASS

Exploded View

INFOID:0000000001093974

JMKIA0465GB
