ULTRA SONIC SENSOR

ULTRA SONIC SENSOR

Exploded View

INFOID:0000000001097938

ULTRA SONIC SENSOR

Refer to

SEC-252, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001097939

REMOVAL

1.

Remove the ultra sonic sensor finisher.
Refer to

SEC-252, "Exploded View"

.

2.

Remove the ultra sonic sensor (2) from ultra sonic sensor fin-
isher (1).

INSTALLATION

Install in the reverse order of removal.

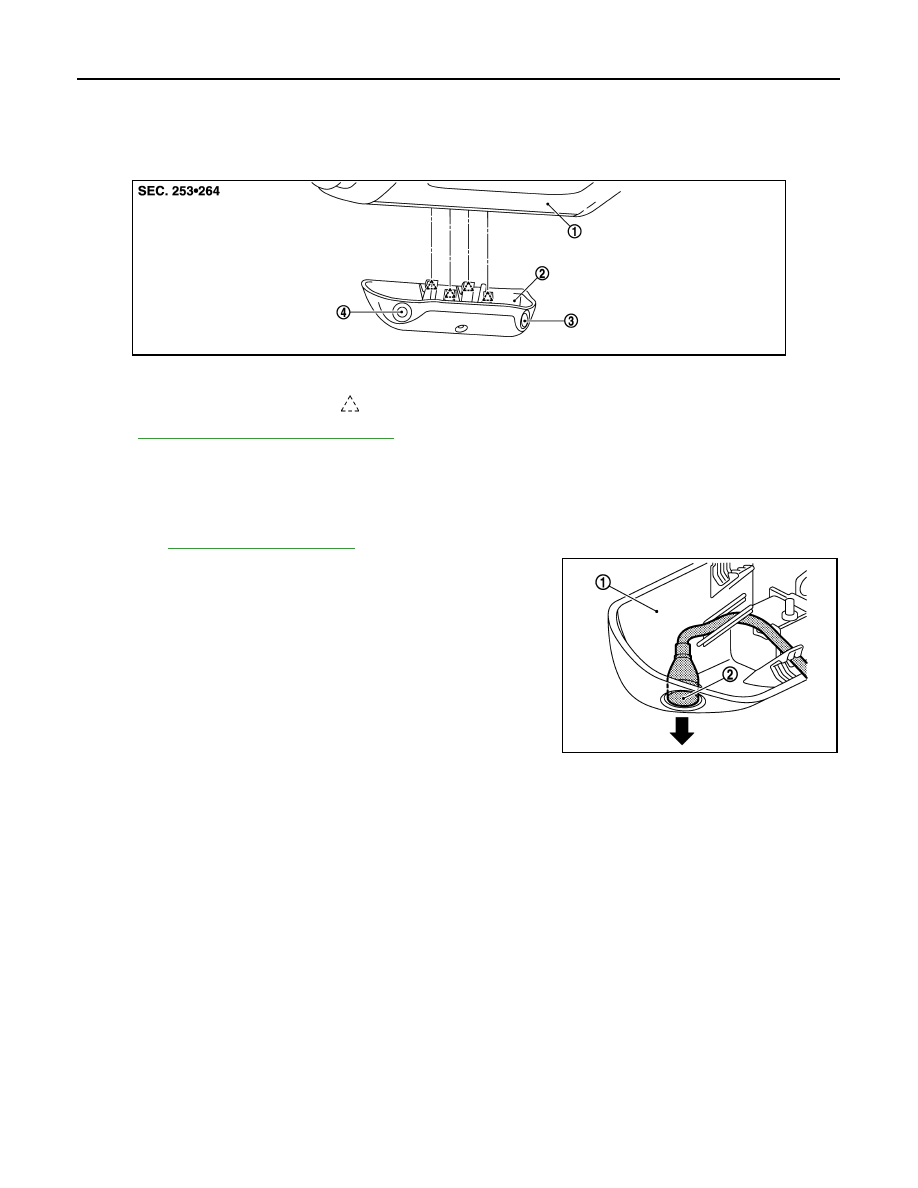

JMKIA0447ZZ

1.

Headlining

2.

Ultra sonic sensor finisher

3.

Ultra sonic sensor RH

4.

Ultra sonic sensor LH

Pawl

JMKIA0448ZZ

HOOD SWITCH

SEC-253

< ON-VEHICLE REPAIR >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

HOOD SWITCH

Exploded View

INFOID:0000000001097960

HOOD SWITCH

Refer to

SEC-253, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001097961

REMOVAL

1.

Remove the hood switch mounting bolt (A), and then remove
hood switch (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA0449ZZ

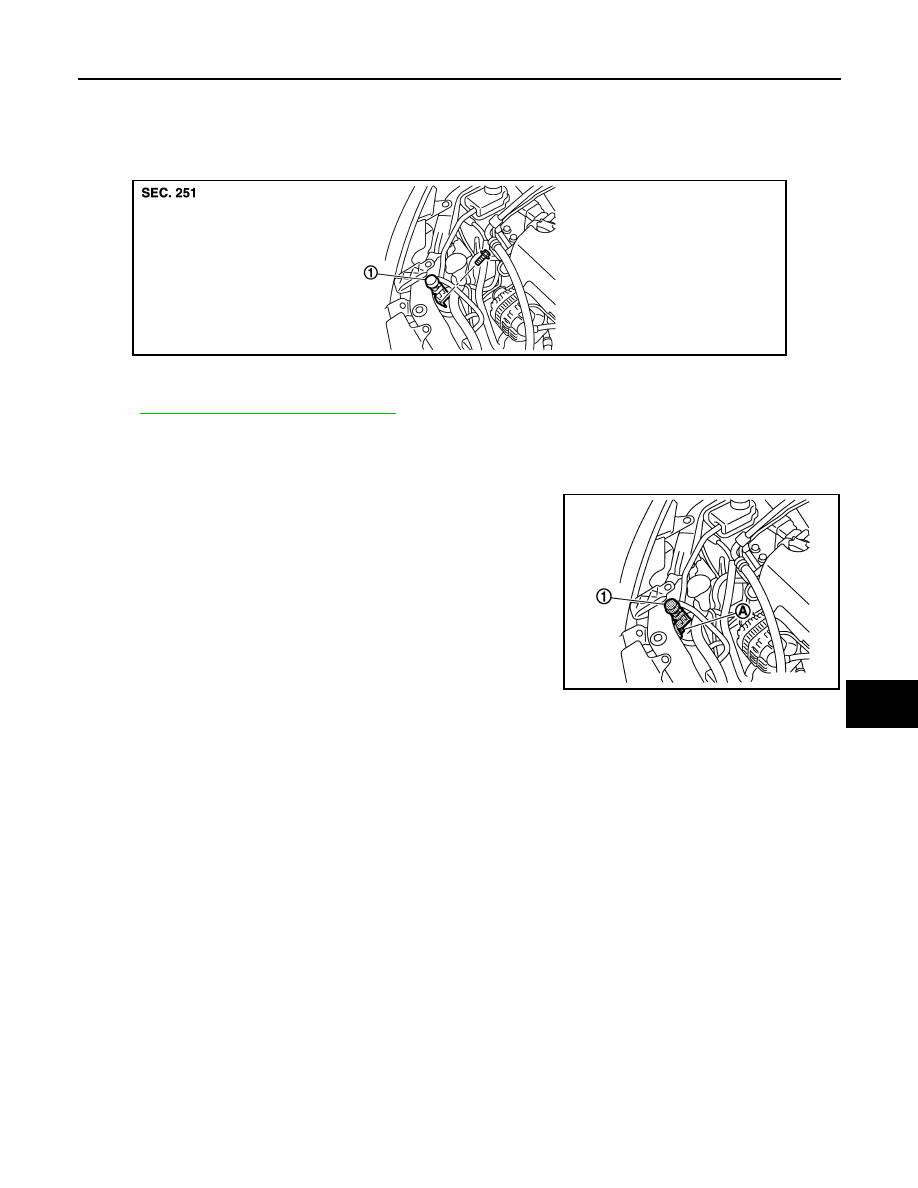

1.

Hood switch

JMKIA0450ZZ
