SEC-248

< ON-VEHICLE MAINTENANCE >

[WITHOUT INTELLIGENT KEY SYSTEM]

PRE-INSPECTION FOR DIAGNOSTIC

ON-VEHICLE MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000001116849

1.

INSPECTION START

Turn ignition switch “OFF” and pull out ignition key from key cylinder.
NOTE:
Before starting operation check, open front windows.

>> GO TO 2.

2.

CHECK SECURITY INDICATOR LAMP

1.

Lock doors using keyfob.

2.

Check that security indicator lamp illuminates for 30 seconds.

Security indicator lamp should illuminate.

OK

>> GO TO 3.

NG

>> Perform diagnosis and repair. Refer to

SEC-246, "Symptom Table"

.

3.

CHECK ALARM FUNCTION

1.

After 30 seconds, security indicator lamp will start to blink.

2.

Open any door or hood before unlocking with keyfob or open back door without keyfob.

Do alarm function properly.

OK

>> GO TO 4.

NG

>>

Check the following.

• The vehicle security system does not phase in alarm mode. Refer to

SEC-246, "Symptom

Table"

.

• Alarm do not operate. Refer to

SEC-246, "Symptom Table"

.

4.

CHECK ALARM CANCEL OPERATION

Unlock any door or open back door using keyfob.
Alarm (horn and siren) should stop.

OK

>> INSPECTION END.

NG

>> Check door lock function. Refer to

DLK-645, "KEYFOB : Symptom Table"

.

NATS (NISSAN ANTI-THEFT SYSTEM)

SEC-249

< ON-VEHICLE REPAIR >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ON-VEHICLE REPAIR

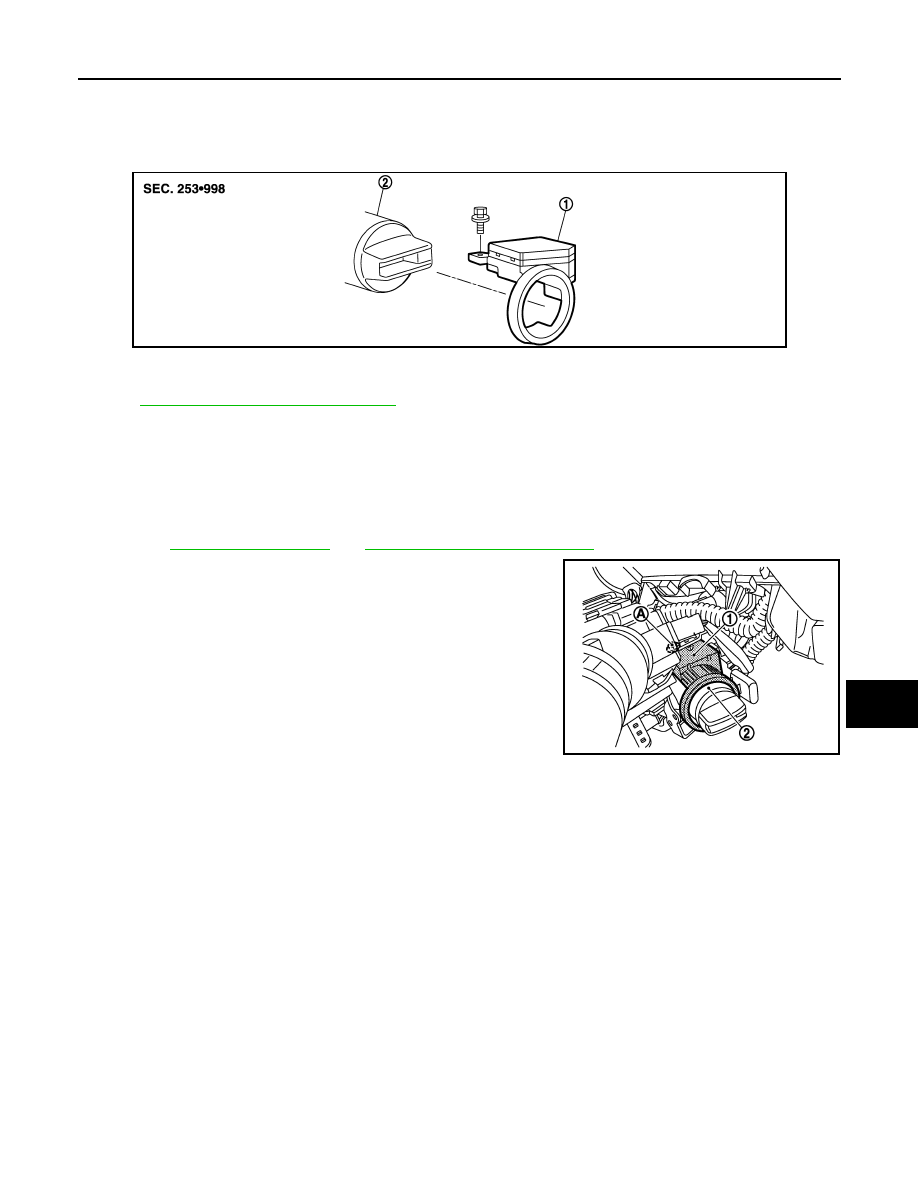

NATS (NISSAN ANTI-THEFT SYSTEM)

Exploded View

INFOID:0000000001097892

Refer to

SEC-249, "Removal and Installation"

.

NOTE:
An illustration is an object for Intelligent Key system.

Removal and Installation

INFOID:0000000001097893

REMOVAL

1.

Remove the steering column cover.
Refer to

IP-11, "Exploded View"

 and

IP-12, "Removal and Installation"

.

2.

Remove the NATS antenna amp. mounting screw (A), and then
remove NATS antenna amp. (1) from steering lock assembly (2).
NOTE:
An illustration is an object for Intelligent Key system.

INSTALLATION

Install in the reverse order of removal.

JMKIA0463ZZ

1.

NATS antenna amp.

2.

Steering lock assembly

JMKIA0464ZZ

SEC-250

< ON-VEHICLE REPAIR >

[WITHOUT INTELLIGENT KEY SYSTEM]

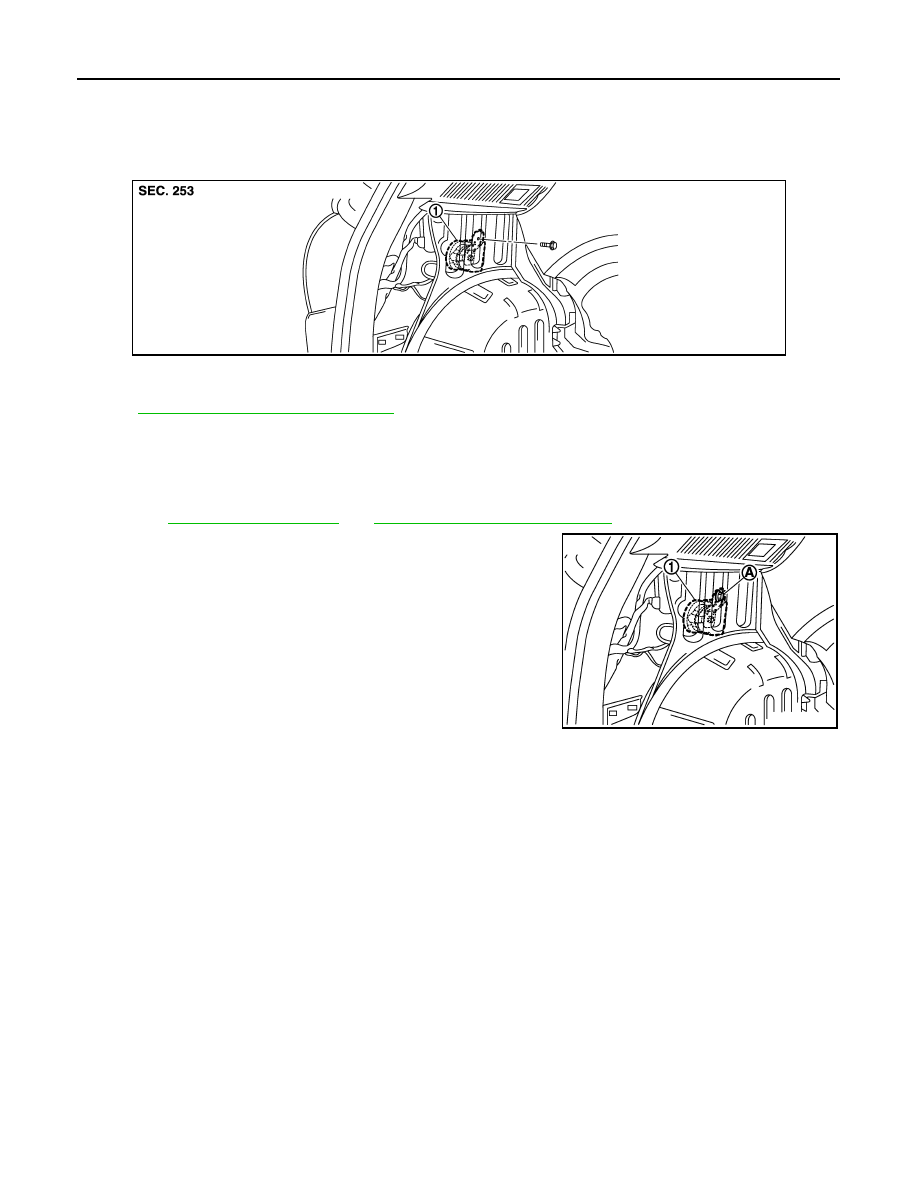

SIREN

SIREN

Exploded View

INFOID:0000000001097894

SIREN

Refer to

SEC-250, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001097895

REMOVAL

1.

Remove the luggage side lower finisher (LH).
Refer to

INT-24, "Exploded View"

 and

INT-24, "Removal and Installation"

.

2.

Remove the siren mounting bolt (A), and then remove siren (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA0461ZZ

1.

Siren

JMKIA0462ZZ

SIREN CONTROL UNIT

SEC-251

< ON-VEHICLE REPAIR >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

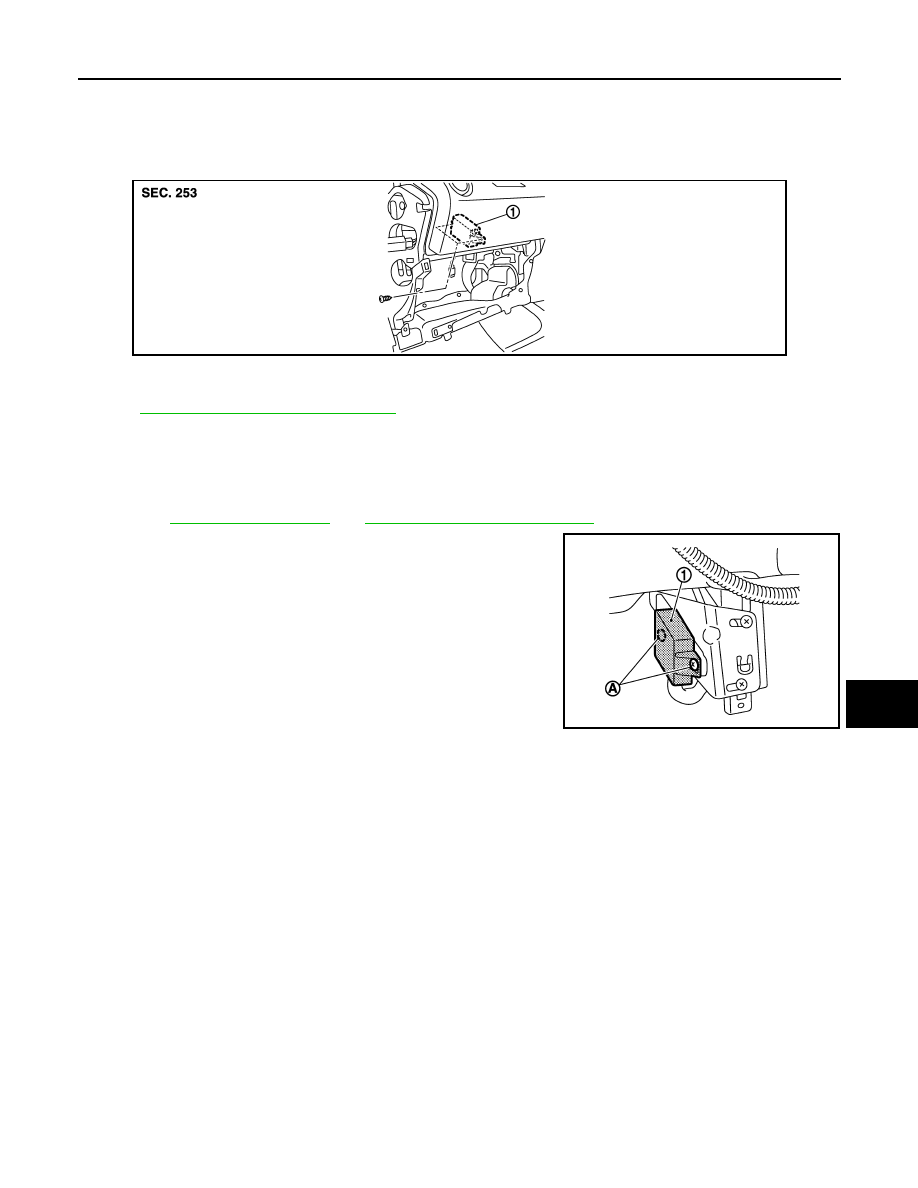

SIREN CONTROL UNIT

Exploded View

INFOID:0000000001097916

SIREN CONTROL UNIT

Refer to

SEC-251, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001097917

REMOVAL

1.

Remove the glove box.
Refer to

IP-11, "Exploded View"

 and

IP-12, "Removal and Installation"

.

2.

Remove the siren control unit mounting screw (A), and then
remove siren control unit (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA0445ZZ

1.

Siren control unit

JMKIA0446ZZ
