SEC-20

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

BCM shifts the phase as follows and the phase information is sent to siren control unit via communication line.

Disarmed Phase

When the vehicle is being driven or when doors are open, the theft warning system is set in the disarmed
phase on the assumption that the owner is inside or near the vehicle.

Pre-Armed Phase And Armed Phase

The vehicle security system turns into the pre-armed phase when ignition switch is in OFF position, all doors
are closed and locked (using Intelligent Key, door request switch or auto relock function). 10 seconds after the
lock operation, the system automatically shifts into the armed phase.

Condition of Activating The System

When the following condition is performed in armed phase, the system sounds the horns/siren and flashes the
head lamps for about 30 seconds.
• Hood or any door is opened.
• Ultra sonic sensor is triggered.
• Ignition switch goes ON with invalid transponder ID.

Condition of Deactivating The System

When one of the following operations is performed, the armed phase is canceled.
• Unlock the doors with Intelligent Key or door request switch.
• Ignition switch goes ON with transponder ID verified.

SIREN CONTROL UNIT

Siren control unit manages siren. The siren control unit does not shift to armed phase in the same way as
BCM. The siren control unit goes to armed phase after about 10 seconds from lock command. If door is
opened or closed within about 20 seconds, only the siren will be activated.
Siren control unit has battery inside. If disconnect or connect battery terminal before canceling armed phase,
siren will be activated.

CAUTION:

When replace siren control unit (new one and used one), Perform “C/U INITALIZATION” with CON-
SULT-III.

Ultra Sonic Sensor Function

The ultra sonic sensor consist of two separate units, a transmitter on the left and receiver on the right mounted
on room mirror. The LH transmitter sensor sends an ultra sonic pulse of sound, and RH receiver sensor
receives the returning echo pulse.
It is possible to exclude the ultrasonic sensors.
To exclude the ultra sonic sensors:
1.

Turn the ignition switch from the OFF to the ON position.

2.

Turn the ignition switch from OFF to ON 3 times within 7 seconds.

3.

Close the doors, bonnet and press the lock button on the Intelligent Key to lock all doors.

The ultra sonic sensors are now excluded from the alarm system. All other functions of the system remain acti-
vated until the alarm system is disarmed again.

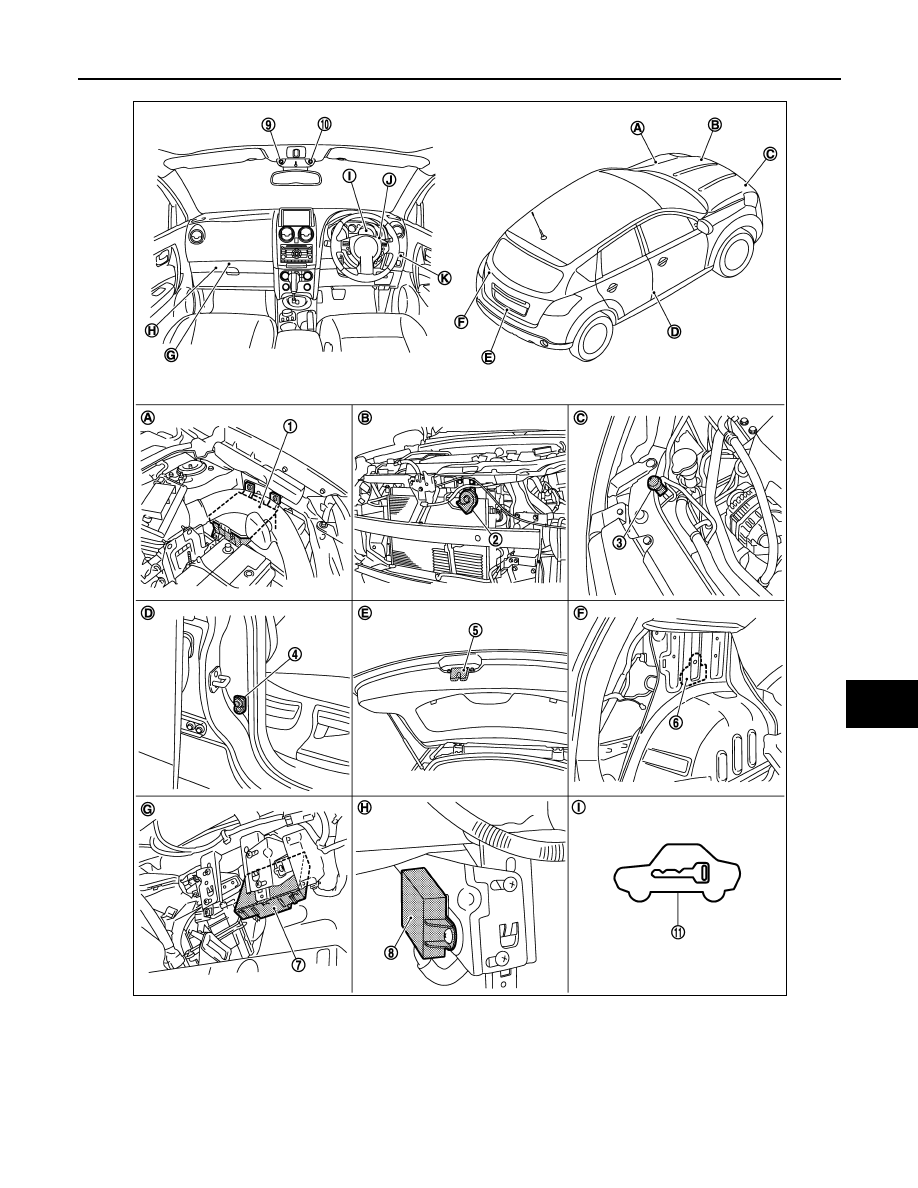

Component Parts Location

INFOID:0000000000944535

VEHICLE SECURITY SYSTEM

SEC-21

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

1.

IPDM E/R
E10,E12

2.

Horn
E51

3.

Hood switch
E113

4.

Front door switch (driver side)
B34

5.

Back door lock assembly (back door
switch)
D152

6.

Siren
B68

JMKIA0437ZZ

SEC-22

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

Component Description

INFOID:0000000000944536

7.

BCM
M65,M66,M67

8.

Siren control unit
M94

9.

Ultra sonic sensor LH
R11

10. Ultra sonic sensor RH

R12

11. Security indicator lamp

(built in combination meter)
M34

A.

Engine room (LH)

B.

View with front bumper removed

C.

Engine room (RH)

D.

View with center pillar

E.

View with back door opened

F.

View with luggage side lower finisher
(LH) removed

G.

Over the glove box

H.

Over the glove box

I.

Built in combination meter

12. NATS antenna amp.

M26

13. Intelligent Key unit

M40

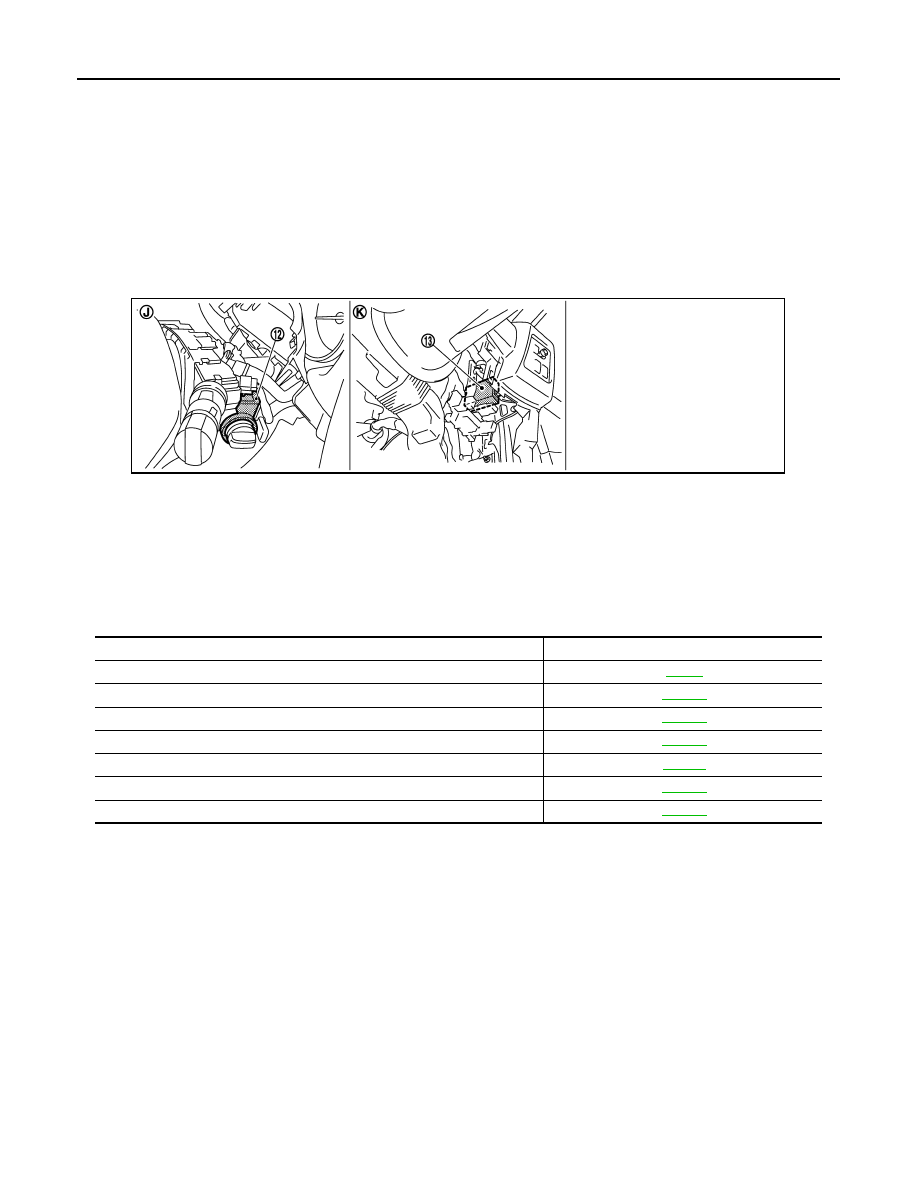

J.

View with steering column cover re-
moved

K.

Remove instrument driver lower pan-
el

JMKIA0438ZZ

Component Reference

BCM

BCS-7

Horn

SEC-56

Hood switch

SEC-54

Security indicator

SEC-58

Door switch

DLK-83

Siren control unit

SEC-60

Ultra sonic sensor

SEC-60

DIAGNOSIS SYSTEM (BCM)

SEC-23

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001096688

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

IMMU

IMMU : CONSULT-III Function (BCM - IMMU)

INFOID:0000000001096689

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-61, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

—

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

PTC heater system

PTC HEATER

×

×
