SEC-16

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

NATS (NISSAN ANTI-THEFT SYSTEM)

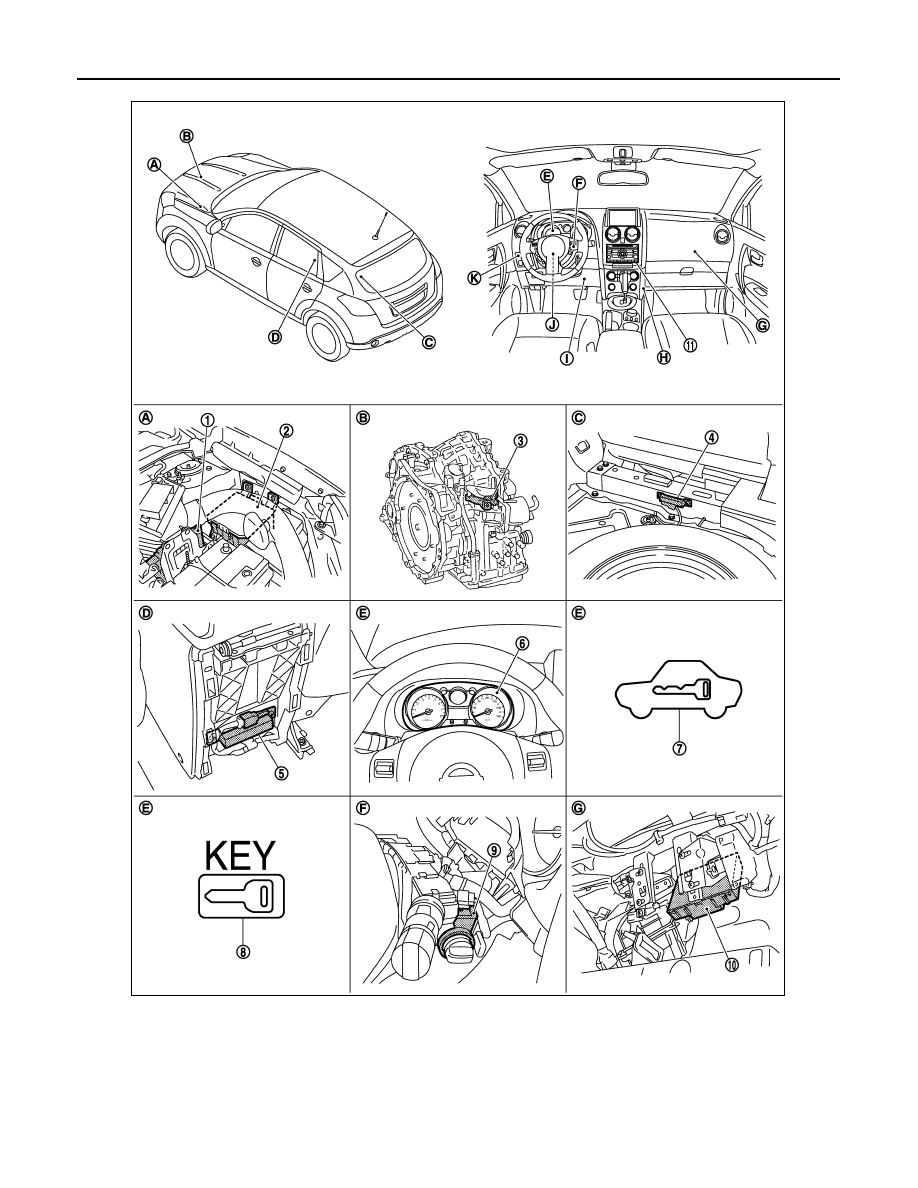

1.

ECM
Gasoline engine E16
Diesel engine E60

2.

IPDM E/R
E10, E11, E13, E14

3.

Park/neutral position switch
F21

4.

Inside key antenna (rear seat)
B45

5.

Inside key antenna (center console)
M61

6.

Combination meter (buzzer)
(behind the combination meter)
M34

JMKIA0434ZZ

NATS (NISSAN ANTI-THEFT SYSTEM)

SEC-17

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Component Description

INFOID:0000000000944532

7.

Security indicator lamp
M34

8.

Key warning lamp
M34

9.

NATS antenna amp.
M26

10.

BCM
M65, M66, M67

A.

Engine room (LH)

B.

CVT unit

C.

View with luggage floor spacer (LH)
removed

D.

View with console rear finisher re-
moved

E.

Built in combination meter

F.

View with steering column cover re-
moved

G.

Over the glove box

12.

Inside Key antenna (instrument cen-
ter)
M70

13. Stop lamp switch

Gasoline engine M/T models: E114
Except gasoline engine M/T models:
E115

14.

Steering lock unit
M28

15.

Ignition knob switch, key switch and
key lock solenoid (key switch)
M25

16. Ignition knob switch, key switch and

key lock solenoid (ignition knob
switch)
M25

17.

Ignition knob switch, key switch
and key lock solenoid (key lock so-
lenoid)
M25

18.

Intelligent Key unit
M40

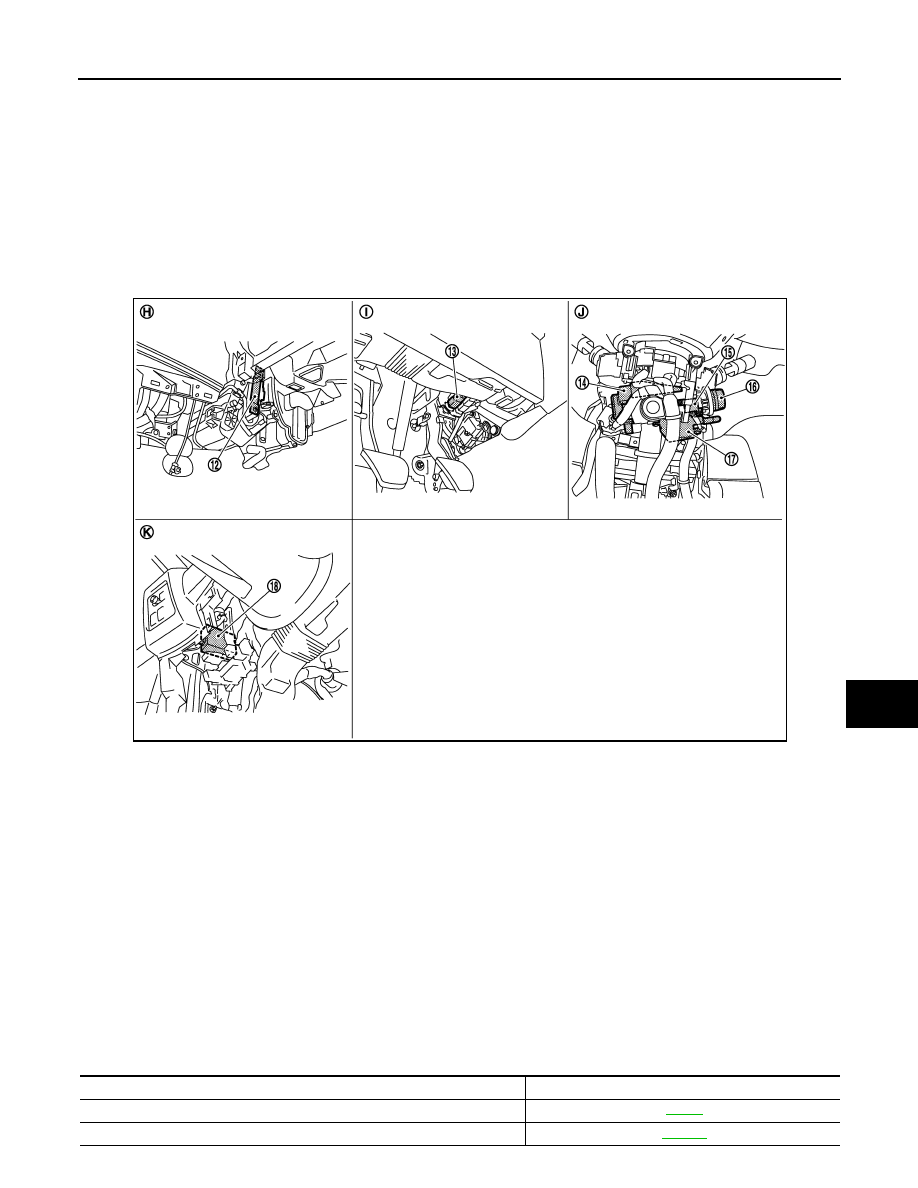

H.

View with instrument lower cover RH
removed

I.

Remove lower instrument panel
(driver side)

J.

View with steering column cover re-
moved

K.

Remove lower instrument panel
(driver side)

JMKIA0435ZZ

Component Reference

BCM

BCS-7

Steering lock unit

SEC-31

SEC-18

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

NATS (NISSAN ANTI-THEFT SYSTEM)

Key switch

SEC-48

Ignition knob switch

SEC-50

NATS antenna amp.

SEC-33

Security indicator

SEC-58

IPDM E/R

PCS-7

Component Reference

VEHICLE SECURITY SYSTEM

SEC-19

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

VEHICLE SECURITY SYSTEM

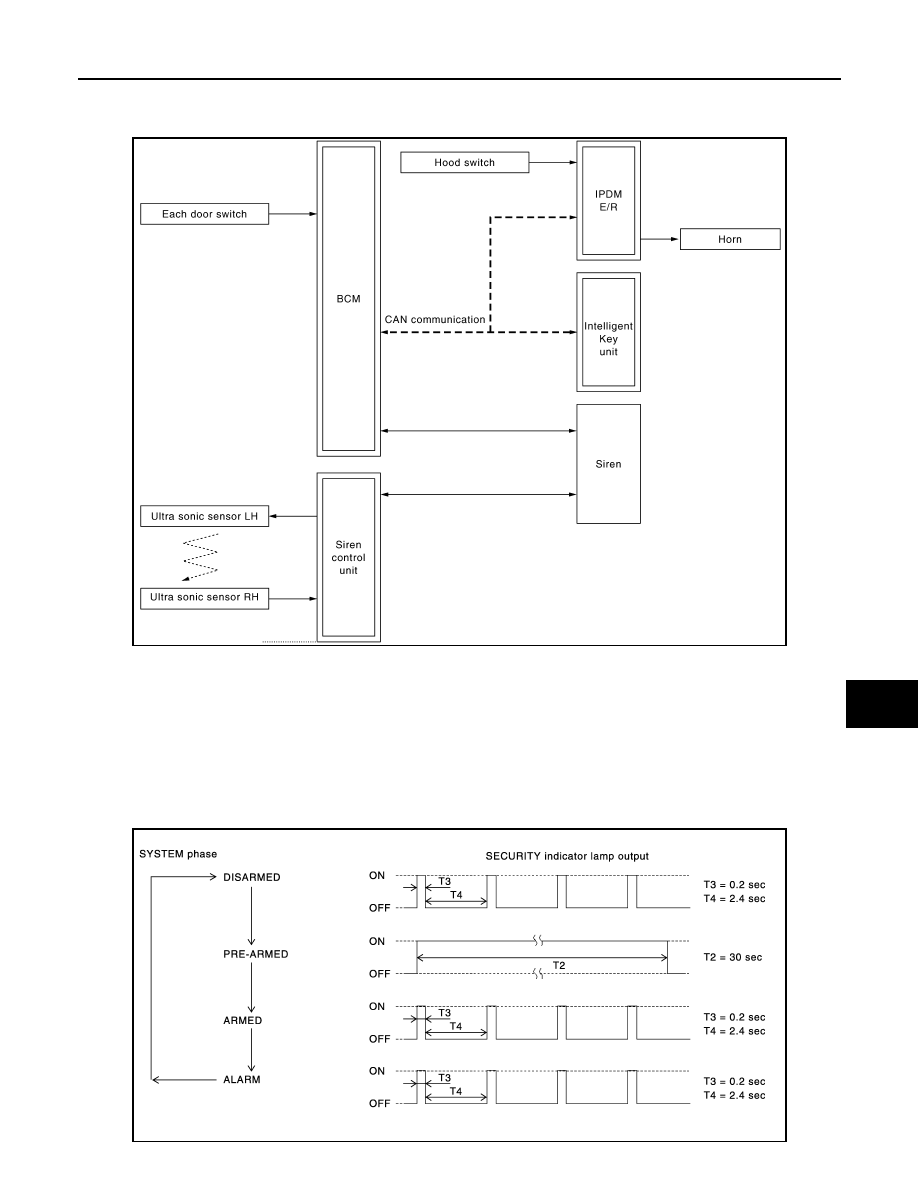

System Diagram

INFOID:0000000000944533

System Description

INFOID:0000000000944534

DESCRIPTION

The security system provides an audible and visual alarm when an unauthorized access to the vehicle is
detected while the system is in armed phase.
The security system consist of two control units. BCM manages audible alarm (horn), siren control unit man-
age audible alarm (siren).

OPERATION FLOW

JMKIA0512GB

PIIA1367E
